VIBCO 2000 Series User manual

VIBCO
INSTRUCTION MANUAL
WARNING: Failure to read and follow these installation instructions and safety precautions could result in personal injury, equipment
damage, shortened service life or unsatisfactory equipment performance. All information in this document is vital to the proper installation
and operation of the equipment. It is important that all personnel who will be coming in contact with this product thoroughly read and
understand this manual.
ADDITIONAL DETAILS AVAILABLE ONLINE AT www.vibco.com
ADDITIONAL DETAILS AVAILABLE ONLINE AT www.vibco.com
800-633-0032 l[email protected] lwww.vibco.com
800-633-0032 l[email protected] lwww.vibco.com
CC TURBINE
VIBRATORS
1
NEW
INSTALLATION
START
HERE!
REPLACEMENT
INSTALLATION
SKIP TO
#7
THANK YOU FOR CHOOSING
A VIBCO VIBRATOR!
6
oDetermine length of channel iron.
oSelect thickness of foot plate & method of mounting.
oSTITCH weld foot plate to channel iron.
oDetermine vibrator placement on bin.
oSTITCH weld channel iron to bin.
oPlace vibrator on foot plate.
Check the foot plate for warping. Secure rmly.
oInstall safety chain or wire.
oConnect pneumatics & check for leaks.
oFILL OUT WARRANTY CARD & MAIL IN!!!!
MOUNTING INSTRUCTIONS CHECKLIST
The warranty is void if vibrator is not properly installed. During
installation follow and check off the following steps and your vibrator
should provide you with years of trouble-free service.
2
WARRANTY
DON’T
FORGET TO
MAIL IN YOUR
WARRANTY
CARD!
YOU MUST STITCH WELD NEVER CONTINUOUSLY WELD. STOP WELDS 1”
FROM ENDS TO PREVENT CRACKING AS SHOWN BELOW.
3PLATES, BRACKETS & CHANNEL IRONS
NEVER PLACE
VIBRATOR DIRECTLY
ON SKIN OF BIN OR
HOPPER!
ALL ACCESSORY ITEMS
AVAILABLE FROM VIBCO
for bin thickness > 3/16”for bin thickness < 3/16”
4SOME TYPICAL MOUNTS
Rectangular
Bin Two Vibrators On
A Single Bin
Conical
Bin
THESE ARE JUST EXAMPLES GO ONLINE TO SEE MORE
www.vibco.com
5INSTALL SAFETY CHAIN OR CABLE
It is important to install a safety chain or wire to prevent the vibrator
from falling and causing injury if it comes loose from its mount.
Attach chain to stationary object, not to mounting plate or
channel iron. Use the handle on the unit to attach
opposite end.
6MOUNTING OF VIBRATOR
NOTE: Damage
to the bin and the
vibrator can occur if
not mounted securely.
7BOLTING
Make sure the vibrator is
secured tightly. Retighten
after the rst 10 -15 minutes
of operation & check them
periodically to maintain
proper tightness.
8AIR HOSE SIZING
TO DETERMINE CORRECT AIR HOSE SIZE**
CC TURBINE
MODEL NUMBER
AIR HOSE
DIAMETER
MIN FR* THREAD
DIAMETER CFM
2000/4000 3/4” 3/4” 40
5000/7000 3/4”- 1” 1” 50
* F=lter R=regulator
** these specs for installation of single unit;
for multiple units, adjust to maintain CFM
The hose to the inlet port of the vibrator should have the
same or larger hose I.D. as the inlet I.D. (pipe size) of the
vibrator, so that the pressure loss from the compressor
to the vibrator is minimized.
GRADE 5
BOLT
SIZE
MAX
TORQUE
ft-lbs
1/4” 9
5/16” 18
3/8” 32
1/2” 78
5/8” 160
3/4” 260
1” 580
1-1/4” 1105
SUGGESTED CHANNEL LENGTH
SERIES NUMBER CHANNEL IRON WIDTH CHANNEL IRON LENGTH
2000 & 4000 4” channel iron 6” to 8” on both sides of vibrator
5000 & 7000 6” channel iron 12” to 16” on both sides of vibrator
CORRECT FOOT PLATES
SERIES NUMBER PLATE THICKNESS
2000 & 4000 1/2” plate
5000 & 7000 5/8” to 3/4” plate
910
PNEUMATIC HOOK-UP
for lug bracket
mount
for wedge
bracket mount
START
To Control
Switch
To Gate
Solenoid
Valve
Air
Regulator Air
Filter
Flow
Valve
Direction of Flow
CCF models CCW models CCL models
drilled & taped
mounting plate
studded
mounting plate
female wedge
bracket lug bracket
DO NOT LUBRICATE!
NO LUBRICATION
NECESSARY!
BREAK IN UNIT
Bearing
location
Run unit for a short cycle of 5-10
minutes at maximum pressure
(80-100 psi). Bearings require a
short “break-in” period to run at
optimum VPM (vibrations per
minute) as stated in catalog.
If you have any further
questions or concerns contact
VIBCO right away. We are
available 24 hours a day 7 days a
week at 401-539-2392.
Angle Iron Channel Iron
ALL MOUNTING
HARDWARE
AVAILABLE FROM
VIBCO
Remember
Check those
bolts!
REV095-12

WARNING: Failure to read and follow these installation instructions and safety precautions could result in personal injury, equipment
damage, shortened service life or unsatisfactory equipment performance. All information in this document is vital to the proper installation
and operation of the equipment. It is important that all personnel who will be coming in contact with this product thoroughly read and
understand this manual.
800-633-0032 l[email protected] lwww.vibco.com
800-633-0032 l[email protected] lwww.vibco.com
Warranty
All warranty claims must be submitted to VIBCO for approval prior to any repairs being done. Failure to do so will void any and all warranty coverage.
All repairs will be done at the VIBCO factory.
Errors, Shortages & Complaints
Complaints concerning goods received or errors should be made at once. Claims must be made within ve days after receipt of goods. Clerical errors
are subject to correction. Damage during shipping must be reported to the carrier, not VIBCO.
Returning Parts
Parts should not be returned to VIBCO without prior authorization. Call VIBCO’s customer service department at 800-633-0032 (800-465-9709 in
Canada) for a Return Goods Authorization (RGA) number. A return authorization will be emailed or faxed to you. Use this as your packing slip. Return
shipping must be prepaid. Material returned may be subject to a 10% restocking fee. All returned shipments should clearly display your name, address
and original invoice number to ensure proper credit.
Orders for custom equipment built to customer’s specications are not returnable.
Product Changes
VIBCO reserves the right to make changes in pattern, design or materials when deemed necessary, without prior notice or obligation to make
corresponding changes in previous models. To be sure of exact mounting dimensions, it is recommended that you obtain a certied dimensional
drawing from the factory.
Ordering Spare Parts
Parts can be ordered through authorized distributors or from VIBCO’s Spare Parts Department. The following data should be provided when placing
your spare parts order:
From foot of housing: Model of unit.
From spare parts list: Reference number, part number, description and quantity required.
Shipping instructions: Specify shipping point and method of shipping.
For custom mounting applications or any other questions:
800-633-0032 or
[email protected]
YOU CAN FIND
ADDITIONAL
DETAILS &
INSTRUCTIONS
ONLINE AT
www.vibco.com
(look for the
Support
link on homepage)
VIBCO
INSTRUCTION MANUAL
CC TURBINE
VIBRATOTRS

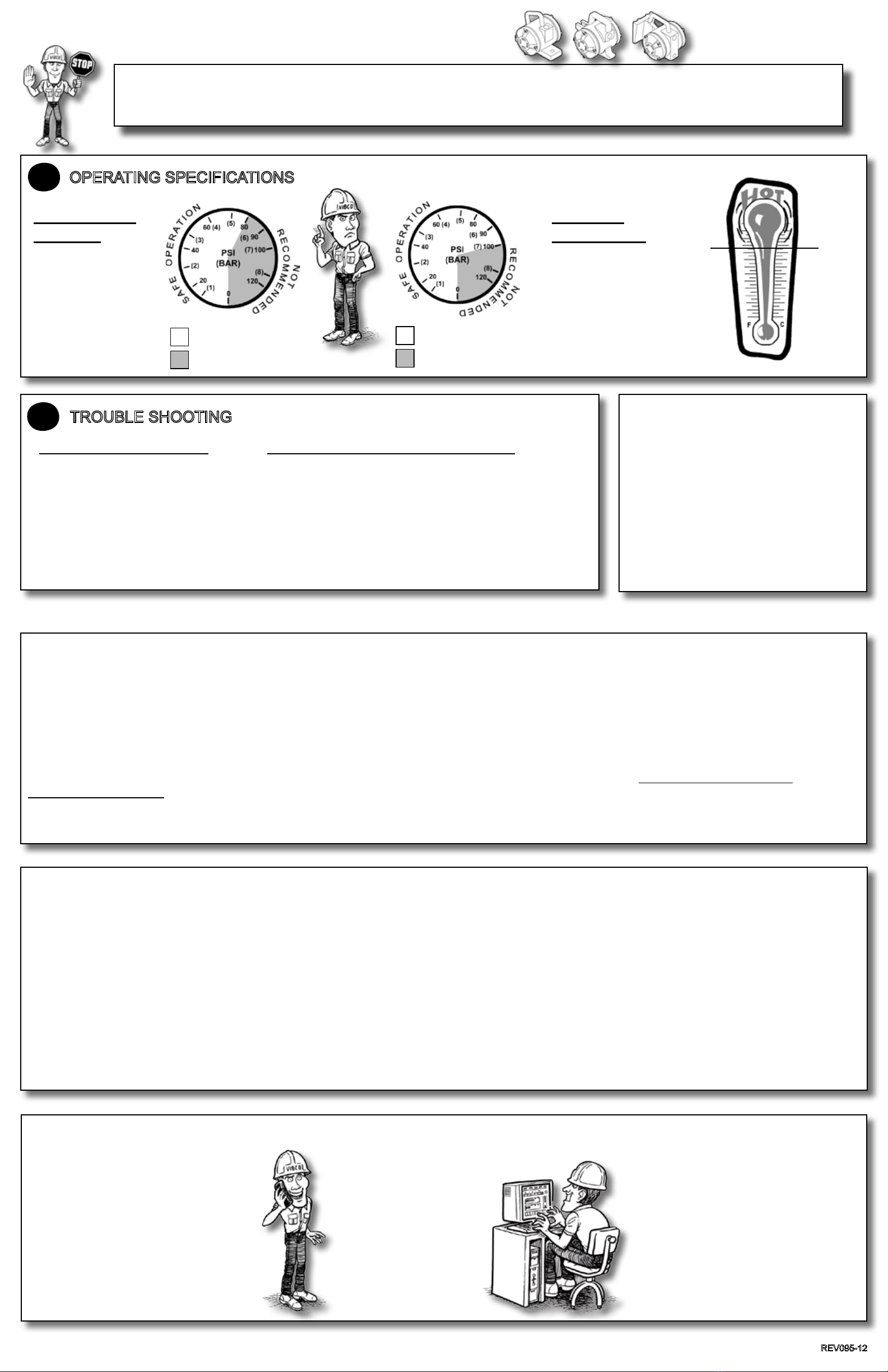

11 OPERATING SPECIFICATIONS
Maximum Air
Pressure
For continuous
use, operating
pressure should
not exceed 80 psi
unless specially
constructed from
the factory.
Safe Operation for
Intermittent Duty
Not Recommended
Maximum
Temperature
The operating
temperature of the
vibrator should not
exceed 200°F (93°C).
High temperature
units are available
from factory.
Safe Operation for
Continuous Duty
Not Recommended
200°F 93°C
12 TROUBLE SHOOTING
1. Check for dirt in the airline or
inlet opening.
2. Check air line back to
compressor for holes or
disconnections.
1. Double check the size of your airline - is it large
enough to give you the correct cubic feet per minute
(CFM) and correct air pressure (minimum required
= 20 PSI).
2. Bearings require a short “break-in” period to run at
optimum VPM stated in catalog.
Vibrator won’t start? Vibrator won’t get up to speed?
ADDITIONAL DETAILS AVAILABLE ONLINE AT www.vibco.com
ADDITIONAL DETAILS AVAILABLE ONLINE AT www.vibco.com
REV095-12
