Viega Prevista Dry 8535.32 User manual

for a barrier-free washbasin with a single-hole fitting, washbasin
with a single-hole fitting
Model Year built:
8535.32 from 03/2019
en_INT
Prevista Dry washbasin element with indi‐
vidually adjustable ceramic height
Instructions for Use

Prevista Dry washbasin element with individually adjustable ceramic height 2 from 38

Table of contents
1About these instructions for use 4
1.1 Target groups 4
1.2 Labelling of notes 4
1.3 About this translated version 5
2Product information 6
2.1 Standards and regulations 6
2.2 Intended use 6
2.2.1 Areas of use 6
2.3 Product description 7
2.3.1 Overview 7
2.3.2 Operating mode 7
2.3.3 Compatible components 8
2.3.4 Technical data 8
2.4 Accessories 9
3Handling 12
3.1 Assembly information 12
3.1.1 Mounting conditions 12
3.1.2 Installation dimensions 13
3.2 Assembly 13
3.2.1 Mounting the washbasin element 13
3.2.2 Set and clad the element 24
3.2.3 Mounting the cover plate 26
3.2.4 Mount concealed connection box 30
3.2.5 Changing the sides of the hydraulic hose 33
3.2.6 Replacing corner valves 35
3.3 Lifting and lowering the washbasin 35
3.4 Cleaning and maintenance 37
3.5 Disposal 38
Table of contents
Prevista Dry washbasin element with individually adjustable ceramic height 3 from 38

1 About these instructions for use
Trade mark rights exist for this document; for further information, go to
viega.com/legal.
1.1 Target groups
The information in this instruction manual is directed at the following
groups of people:
nHeating and sanitary professionals and trained personnel
nConsumers
nDrywall builder
Individuals without the abovementioned training or qualification are not
permitted to mount, install and, if required, maintain this product. This
restriction does not extend to possible operating instructions.
The installation of Viega products must take place in accordance with
the general rules of engineering and the Viega instructions for use.
This document contains information about operation and maintenance.
Please make sure to hand the document over to the customer / oper‐
ator / user after mounting.
1.2 Labelling of notes
Warning and advisory texts are set aside from the remainder of the text
and are labelled with the relevant pictographs.
DANGER!
This symbol warns of possible life-threatening injury.
WARNING!
This symbol warns of possible serious injury.
CAUTION!
This symbol warns of possible injury.
Handover to the user
About these instructions for use
Prevista Dry washbasin element with individually adjustable ceramic height 4 from 38

NOTICE!
This symbol warns of possible damage to property.
This symbol gives additional information and hints.
1.3 About this translated version
This instruction for use contains important information about the choice
of product or system, assembly and commissioning as well as intended
use and, if required, maintenance measures. The information about the
products, their properties and application technology are based on the
current standards in Europe (e.g. EN) and/or in Germany
(e.g. DIN/DVGW).
Some passages in the text may refer to technical codes in Europe/
Germany. These should serve as recommendations in the absence of
corresponding national regulations. The relevant national laws, stand‐
ards, regulations, directives and other technical provisions take priority
over the German/European directives specified in this manual: The
information herein is not binding for other countries and regions; as said
above, they should be understood as a recommendation.
About these instructions for use
Prevista Dry washbasin element with individually adjustable ceramic height 5 from 38

2 Product information
2.1 Standards and regulations
The following standards and regulations apply to Germany / Europe and
are provided as a support feature.
Regulations from section: Fields of application / Mounting conditions
Scope / Notice Regulations applicable in Ger‐
many
Suitable masonry walls EN 1996-1-1
Suitable concreted walls DIN 1045
Suitable support profiles DIN 18183
2.2 Intended use
2.2.1 Areas of use
The Prevista Dry washbasin element is suitable for mounting on
masonry wall constructions and support profiles pursuant to the regula‐
tions in section Ä „Regulations from section: Fields of application /
Mounting conditions“ on page 6 and can be used in a Prevista Dry Plus
pre-wall construction.
The Prevista Dry washbasin element is suitable for washbasin ceramics
with single-hole fitting (also barrier-free).
The individual user height can be adjusted within a range of 20 cm.
Product information
Prevista Dry washbasin element with individually adjustable ceramic height 6 from 38

2.3 Product description
2.3.1 Overview


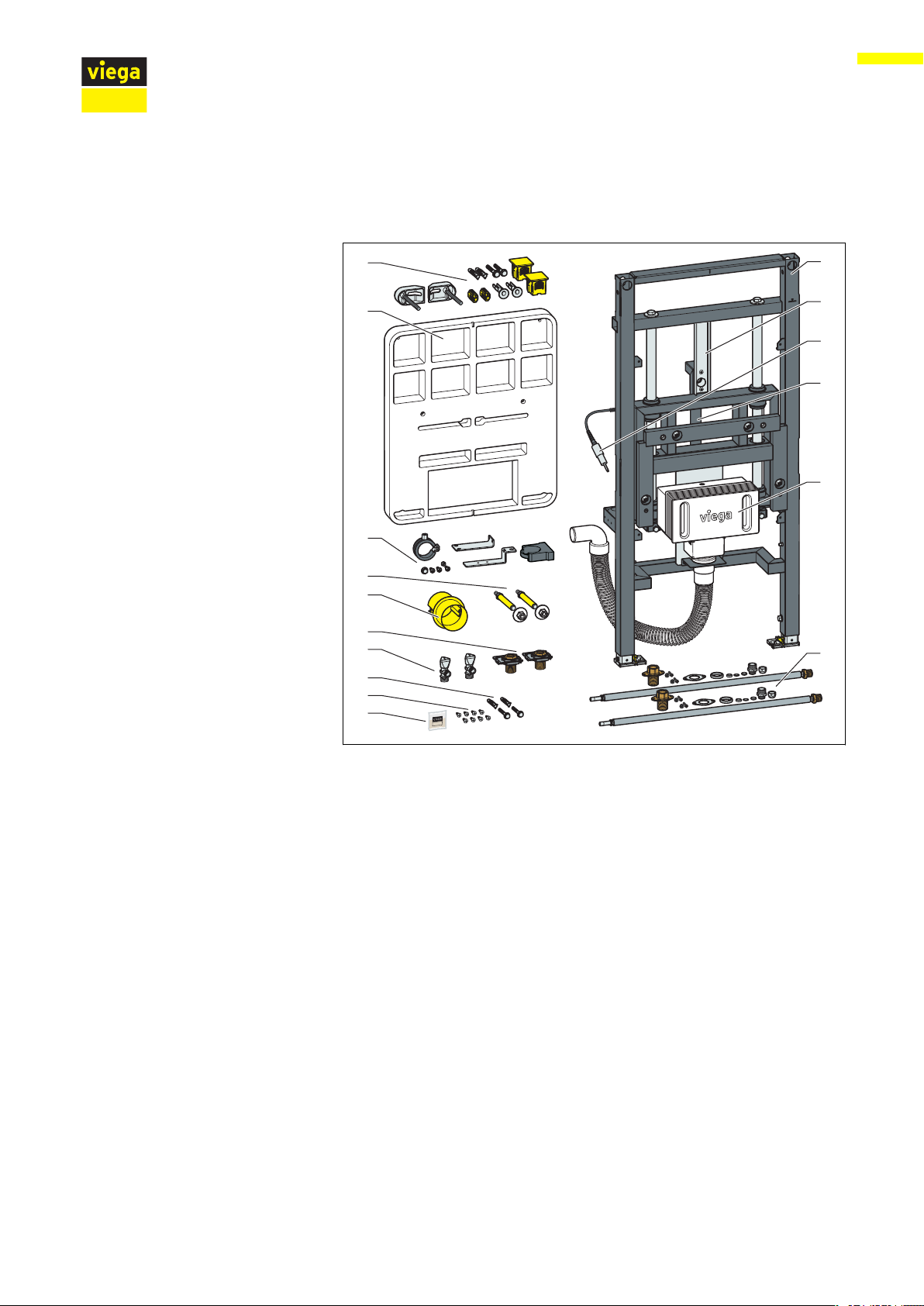

Fig. 1: Components and scope of delivery
1 washbasin element
2 transport lock
3 Gas pressure spring
4 hydraulic cylinder with hydraulic hose and actuation unit
5 concealed connection box
6 flexible hoses G ½ x 10 mm
7 silicon grease
8 Screws for fixing in support profile
9 Screws and dowels for fixing in the floor
10 corner valves
11 Screw fitting for corner valves
12 concealed socket
13 threaded rods for fixing sanitary objects
14 drain elbow fixing material
15 mounting template
16, fixing set
2.3.2 Operating mode
The height-adjustable washbasin element is operated without elec‐
tronics and functions with the help of a gas pressure spring.
Gas pressure spring
Product information
Prevista Dry washbasin element with individually adjustable ceramic height 7 from 38

The gas pressure spring guarantees continuous adjustment of the
washbasin height within a 20 cm range.
Further information can be found in the instruction for use of
the gas pressure spring.
CAUTION!
Risk of crushing
The cover plate shifts in parallel with the wall surface during
the height adjustment. Due to this, there is the risk of
crushing in the areas above and below the cover plate.
– Keep your hands away from the dangerous areas.
When the actuating button is pressed and gentle pressure is applied to
the washbasin, the sanitary ware is lowered by a maximum of 20 cm.
When the actuating button is pressed and no pressure applied, the
washbasin is raised by a maximum of 20 cm by the gas pressure spring.
If necessary, apply some manual help in the case of heavy washbasin
ceramics.
2.3.3 Compatible components
The washbasin element can only be used for WB ceramics with a total
weight including fitting of 15-21 kg.
The cover plate 8570.45 is required for the detailed installation.
2.3.4 Technical data
individual adjusting range of the
washbasin height
200 mm
Fixing distance of the washbasin
ceramic
280 mm
max. washbasin width 700 mm
Lowering the washbasin
Lifting the washbasin
Product information
Prevista Dry washbasin element with individually adjustable ceramic height 8 from 38

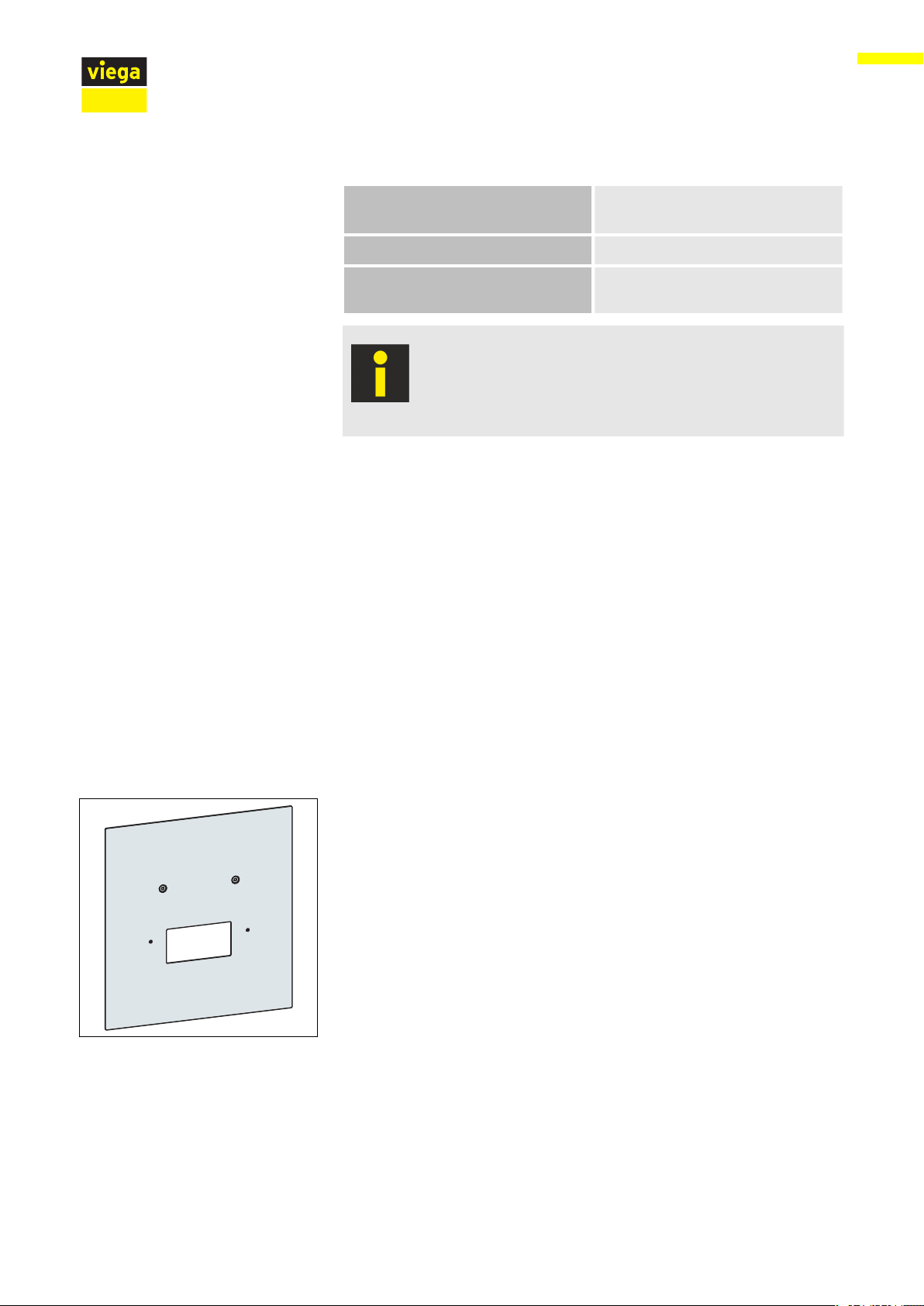

Wall construction
(incl. wall tile)
max. 45 mm
total liftable and sinkable weight approx. 18 kg ± 3 kg
Release force for the actuating
button
approx. 30 N
Depending on the total weight (including fitting, amongst
other things), it may be necessary to apply some gentle
manual support when raising or lowering the washbasin
completely.
2.4 Accessories
The washbasin element is delivered without cover plate. You require the
cover plate 8570.45 for mounting.
The support bracket (model 8570.48) is used for the connection of mul‐
tiple Viega Prevista elements at an interval of less than 500 mm to
enable a stable cladding.
If necessary, you can order the following spare parts:
Cover plate, model 8570.45, glass
nPush button with rosette for individual height adjustments of WB
ceramic
n2 double straight screw fittings with compression fittings for copper
pipe d10
n2 connection pipes, chrome-plated, d10
nDrain elbow 300 mm, chrome-plated brass
nChrome-plated plastic cover plate for concealed connection box
Required accessories
support bracket
Spare parts
Product information
Prevista Dry washbasin element with individually adjustable ceramic height 9 from 38

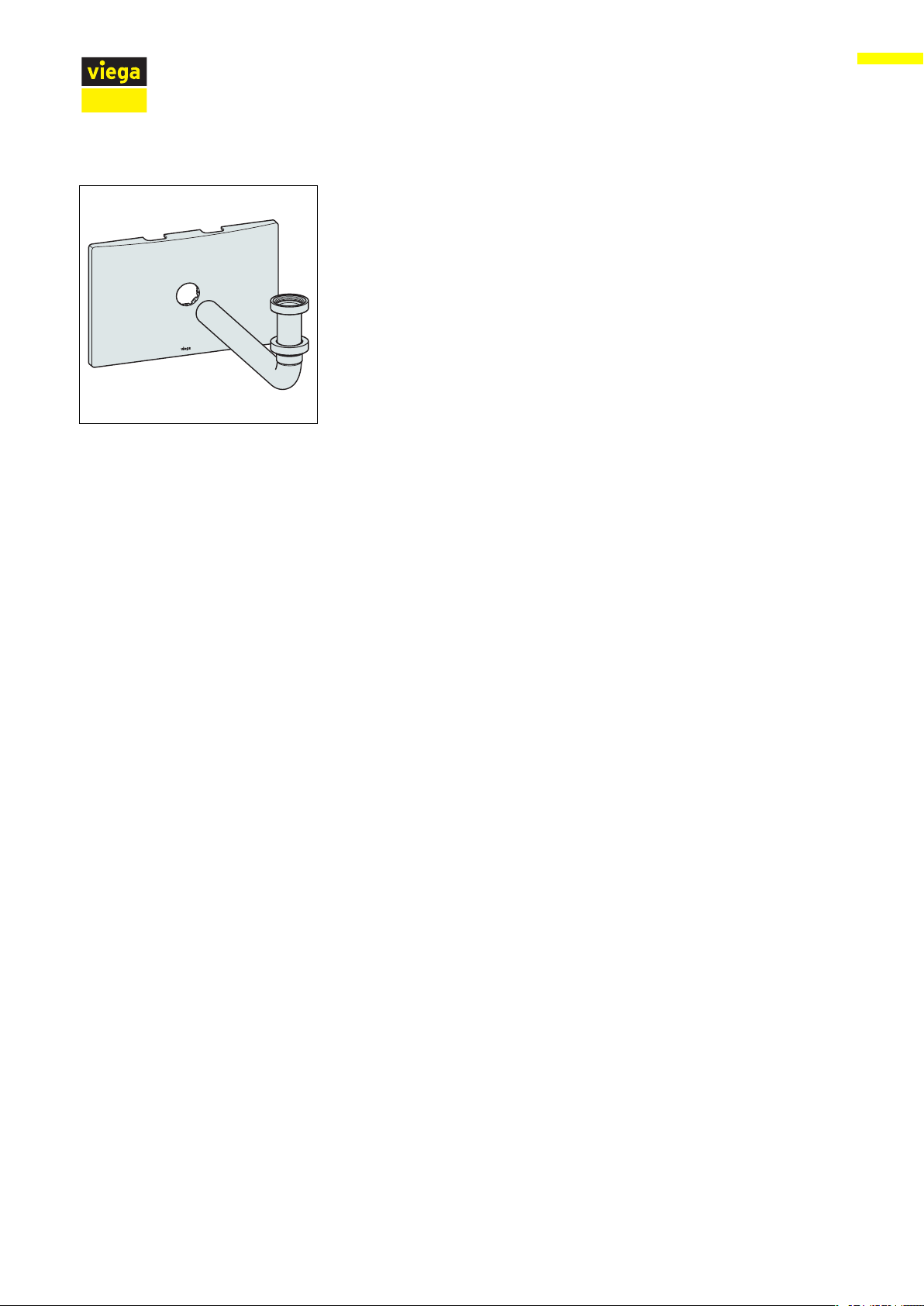

Drain elbow model 8064.90, chrome-plated with flanged rim
Drainpipe model 9945.143
nchrome-plated with flanged rim 75 mm, article 121 587
nchrome-plated with flanged rim 120 mm, article 670 856
Gas pressure spring model 8172.1, only in connection with Prevista Dry
washbasin element model 8535.32
nSteel
nhydraulic actuation
Push button 8064.10 with rosette, only in connection with Prevista Dry
washbasin element model 8535.32
nchrome-plated brass
nhydraulic actuation
Product information
Prevista Dry washbasin element with individually adjustable ceramic height 10 from 38

Cover plate for concealed connection box model 8314.5
nchrome-plated, plastic
n2 double straight screw fittings with compression fittings for copper
pipe d10
n2 connection pipes, chrome-plated, d10
nDrain elbow 300 mm, chrome-plated brass
nAdjusting pipe, chrome-plated brass
Product information
Prevista Dry washbasin element with individually adjustable ceramic height 11 from 38

3 Handling
3.1 Assembly information
3.1.1 Mounting conditions
nMasonry walls
nConcreted walls
nMetal support profiles
nPrevista Dry Plus pre-wall constructions
The wall constructions must comply with the regulations in section
Ä „Regulations from section: Fields of application / Mounting condi‐
tions“ on page 6.
The washbasin element may only be mounted on even wall surfaces.
NNNN
Fig. 2: Minimum distance to the wall
The minimum distance to the wall is:
nleft 160 mm; outermost fixing points for support profiles with a depth
of 75 mm
nright 135 mm; (when holding plate 2 is shortened) outermost fixing
points for support profiles with a depth of 50 mm.
Suitable walls
Minimum distance to the wall when mounting support profiles
Handling
Prevista Dry washbasin element with individually adjustable ceramic height 12 from 38

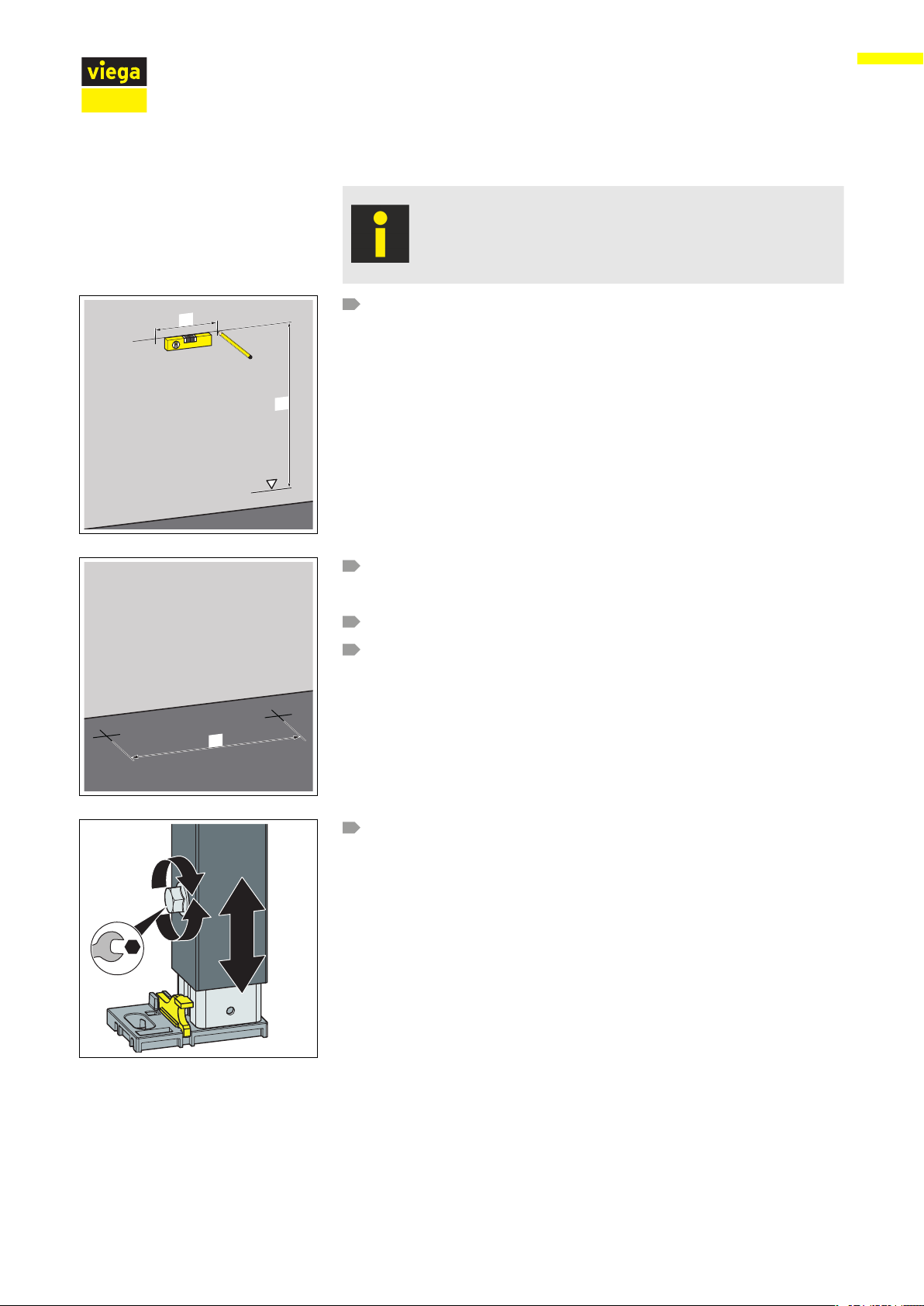

With the construction height, the marked height of the upper edge of
the finished floor must be observed.
3.1.2 Installation dimensions





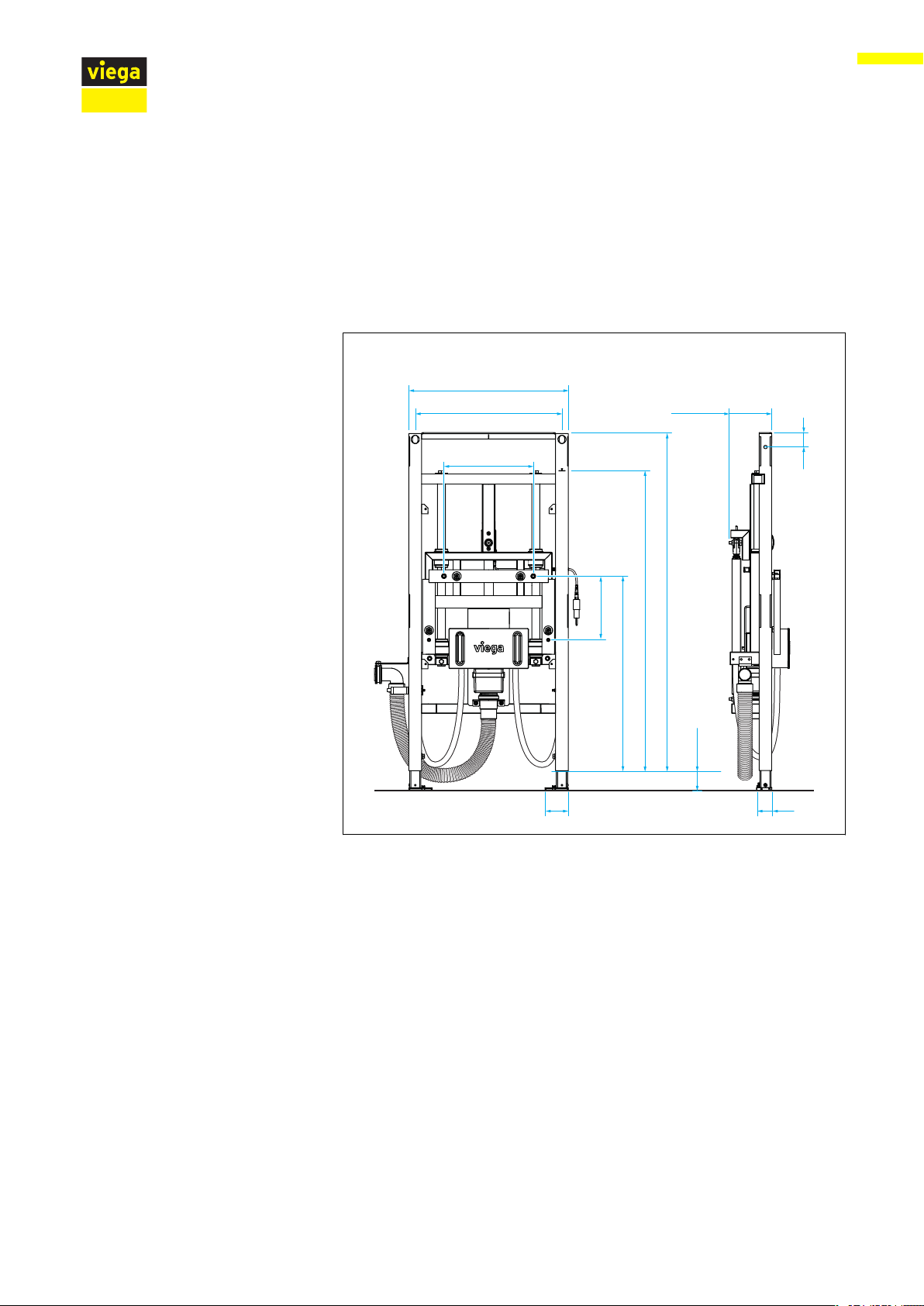

Fig. 3: Dimensions
3.2 Assembly
3.2.1 Mounting the washbasin element
Construction height
Preparing the concealed connection box
Handling
Prevista Dry washbasin element with individually adjustable ceramic height 13 from 38

Remove the mounting template from the element.
Remove the site protection from the concealed connection box.

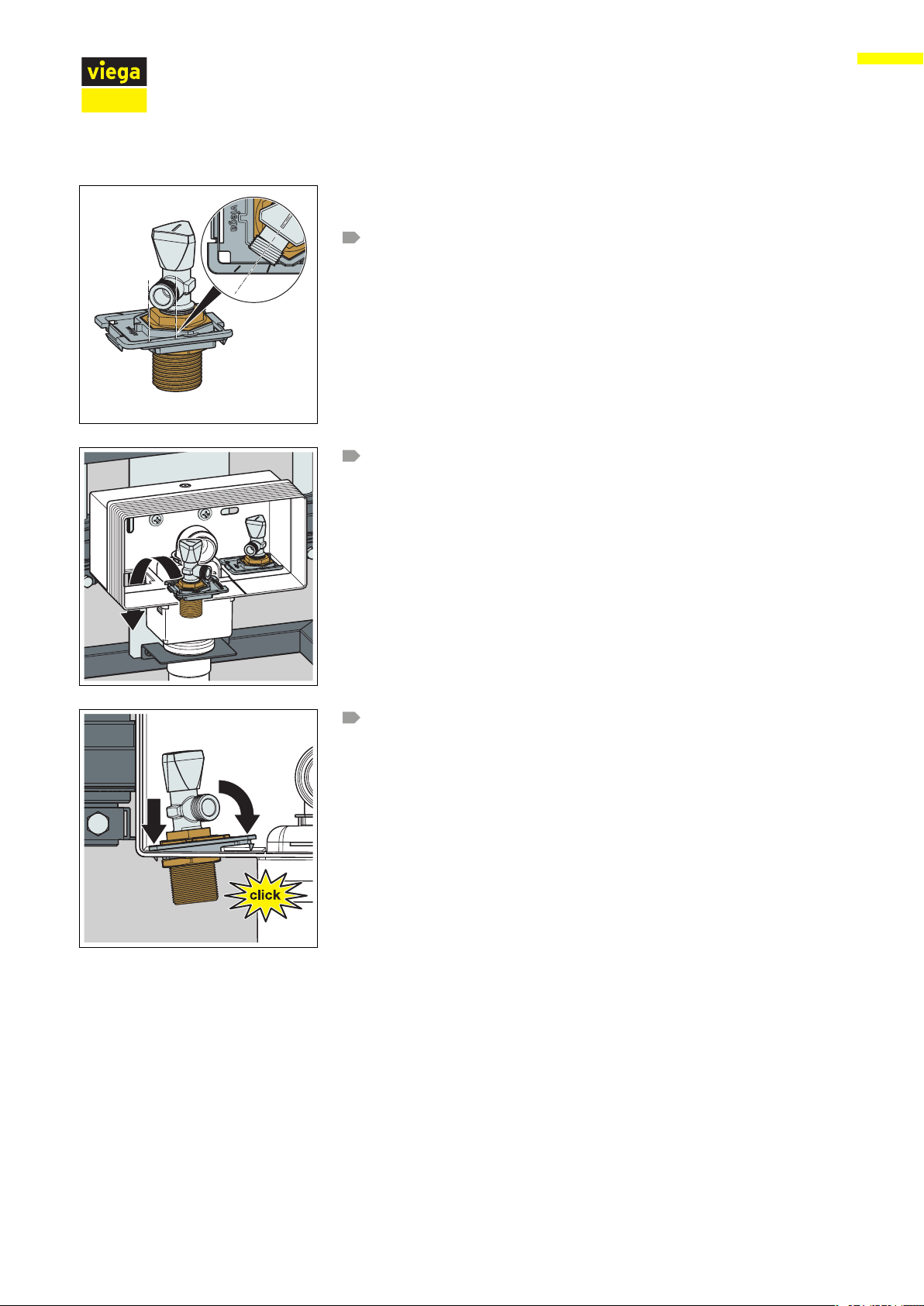

Seal the corner valve (e.g. using hemp).
Screw the corner valve into the screw fitting.
Handling
Prevista Dry washbasin element with individually adjustable ceramic height 14 from 38

INFO! Observe the additional markings when aligning the corner
valves.
Screw in until the connection to the washbasin fitting is between the
markings.
Mount the entire seats in the concealed connection box.
The object can be heard locking into place.
Handling
Prevista Dry washbasin element with individually adjustable ceramic height 15 from 38

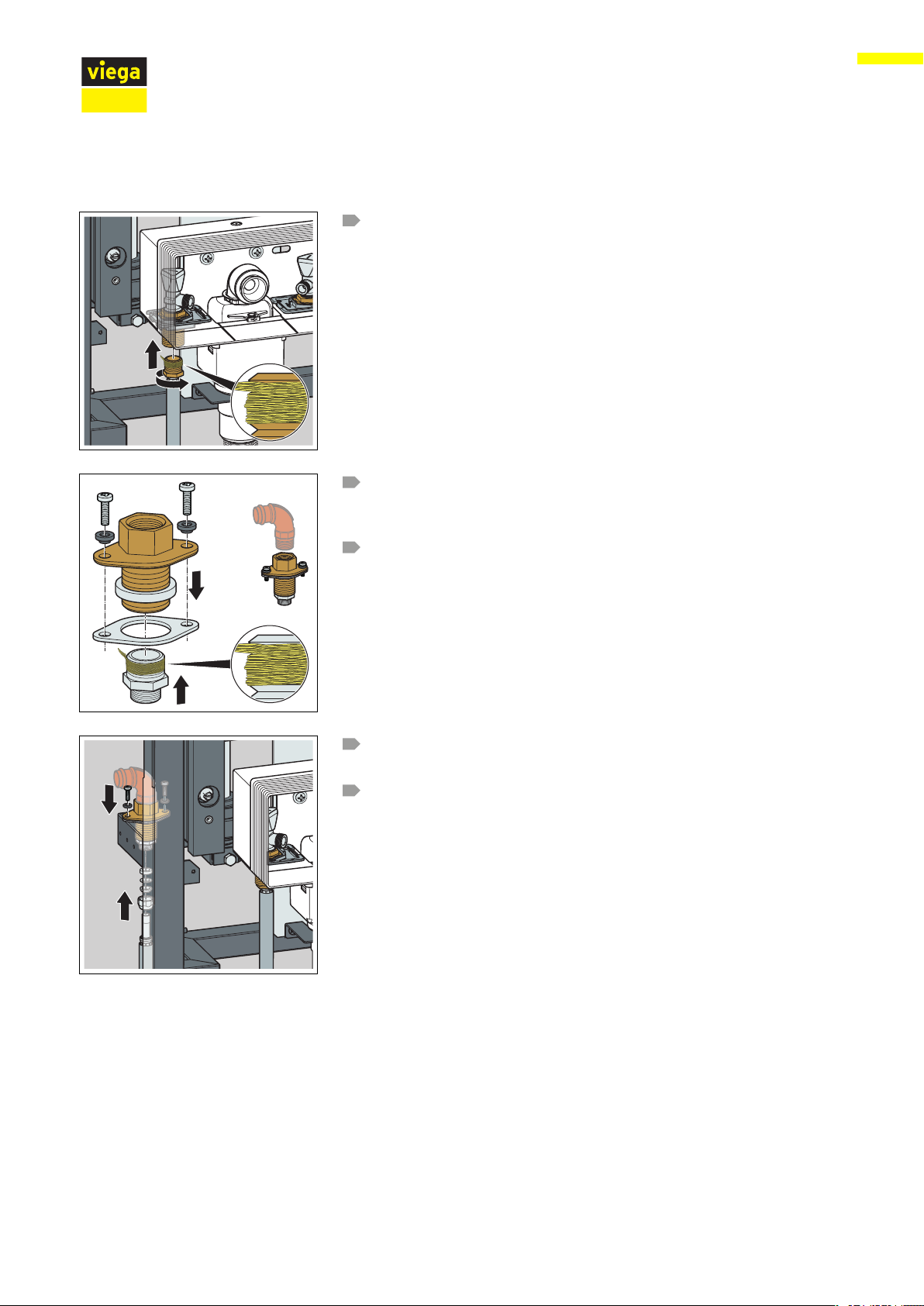

Seal in the flexible hose on the thread side and assemble on the wall
lead-in of the concealed connection box.
Seal in the reducing sleeve on one side and pre-assemble with the
wall lead-in. Please ensure that the supplied rubber seals are fitted
correctly.
Provide a connection to the piping system on site.
Mount the flexible hose on the left-hand side of the wall lead-in of
the element using a compression fitting.
Repeat the mounting on the right-hand side.

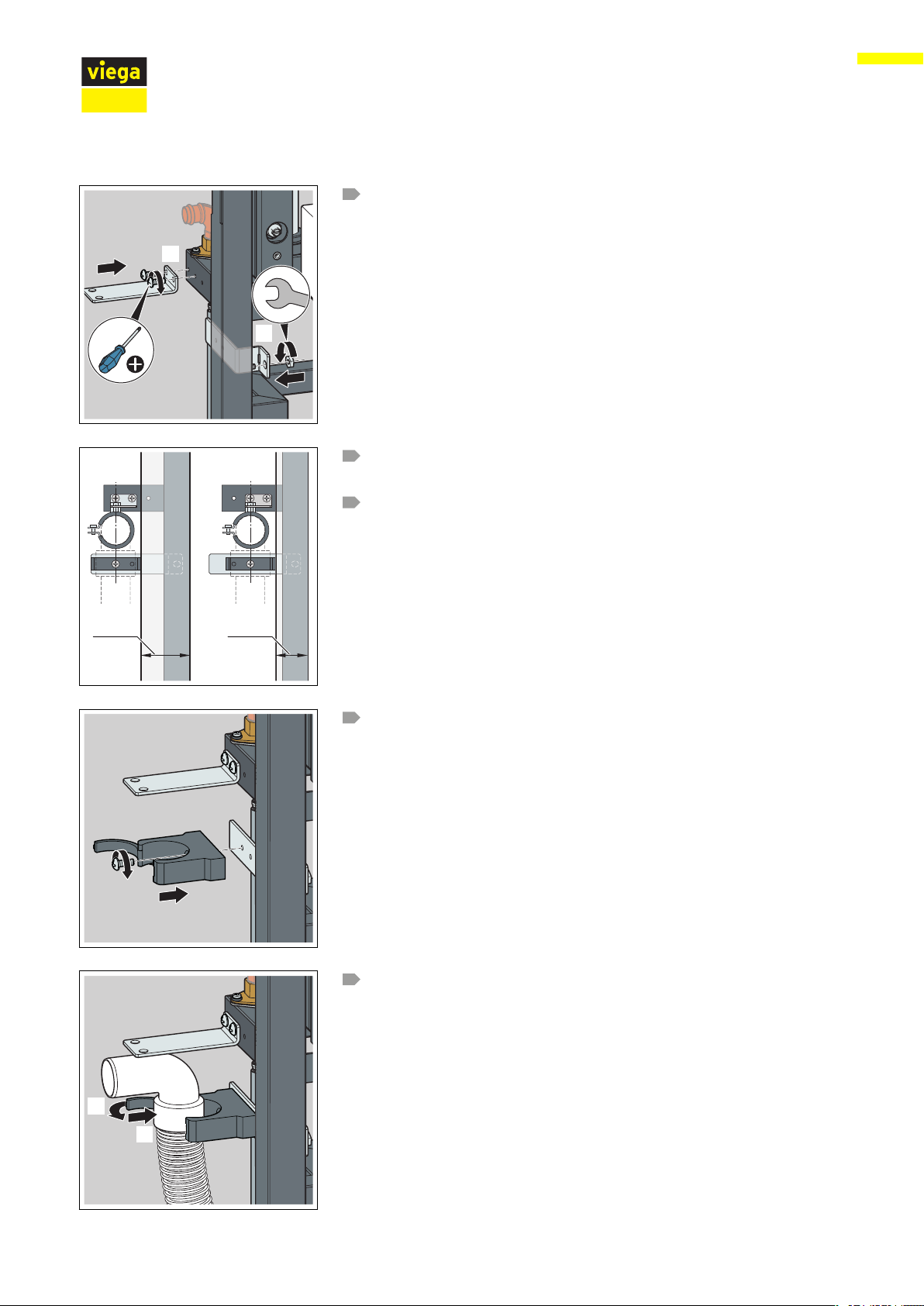

Preparing the washbasin element
Only for mounting in support
profile
Handling
Prevista Dry washbasin element with individually adjustable ceramic height 16 from 38

Mount retaining plates 1 and 2. They can be attached on the left and
right hand side of the element.
Left: min. interval to wall 160 mm; external fixing points for support
profiles with a depth of 75 mm.
Right: min. interval to wall 135 mm (when retaining plate 2 is cut to
length): internal fixing points for support profiles with a depth of
50 mm.
Mount the pipe clamp for the drain elbow to retaining plate 2.
Mount the drain elbow in the pipe clamp.

NNNN

Handling
Prevista Dry washbasin element with individually adjustable ceramic height 17 from 38

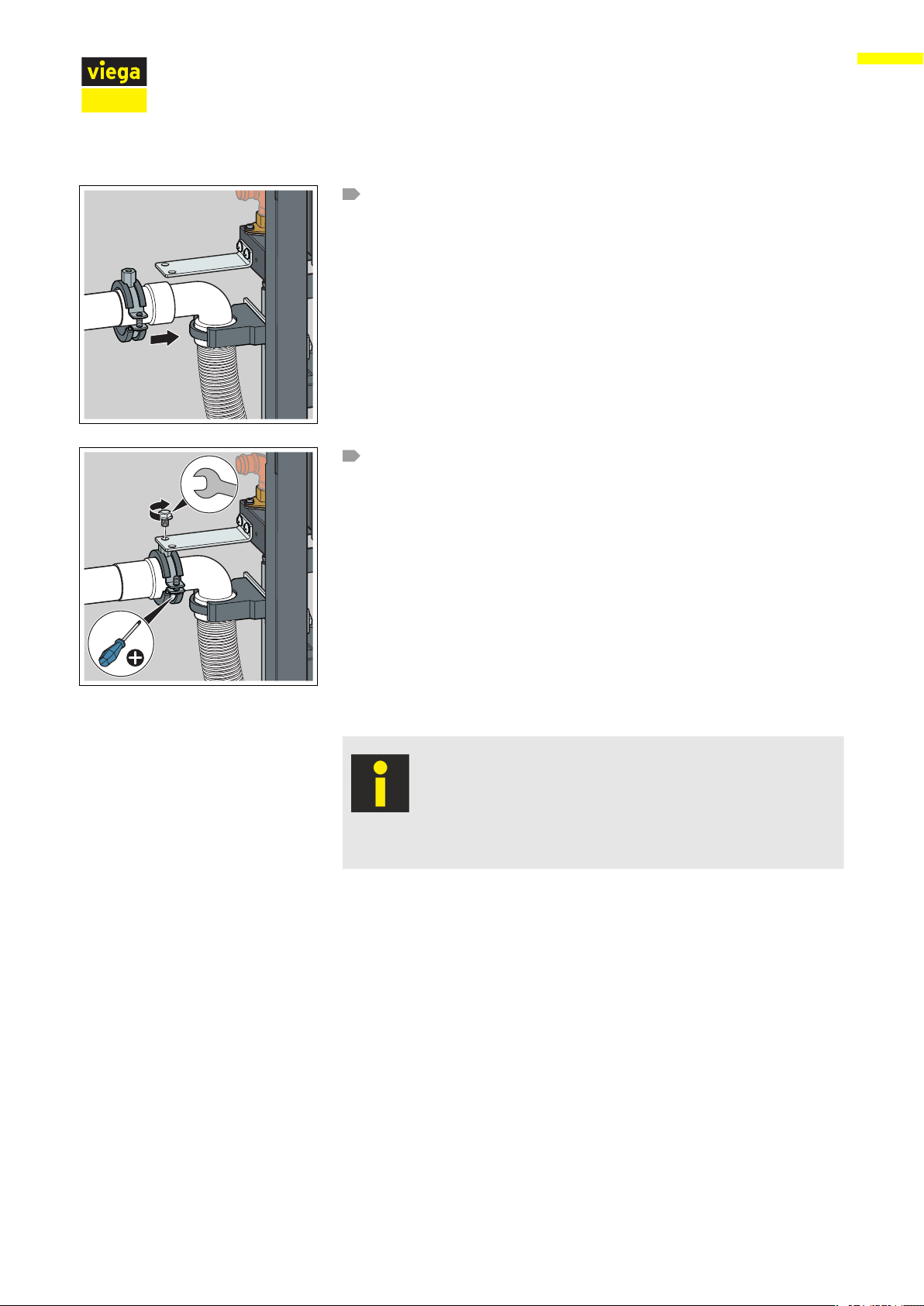

Make the wastewater connection (DN 40) on site.
Mount the pipe clamp to retaining plate 1 and on the sleeve of the
wastewater connection.
Masonry and concreted walls
When mounting multiple washbasin elements with an
interval of > 500 mm, Viega recommends to use a Pre‐
vista Dry support bracket (model 8570.48). Observe the
instructions for use of the support bracket when mounting.
Mounting to a masonry wall
Handling
Prevista Dry washbasin element with individually adjustable ceramic height 18 from 38

For mounting, Viega recommends to use a Prevista Dry
fixing set.
Determine and mark the fixing points.
nX1: 1100 mm
nX2: 460 mm
Determine and mark the fixing points on the floor.
nX3: 375 mm
Drill the holes.
Insert the dowels.
INFO! Mount the Prevista Dry fixing set pursuant to the instruc‐
tions for use for the fixing set.
Loosen the feet of the element using a fork spanner.
9

9
9
Handling
Prevista Dry washbasin element with individually adjustable ceramic height 19 from 38

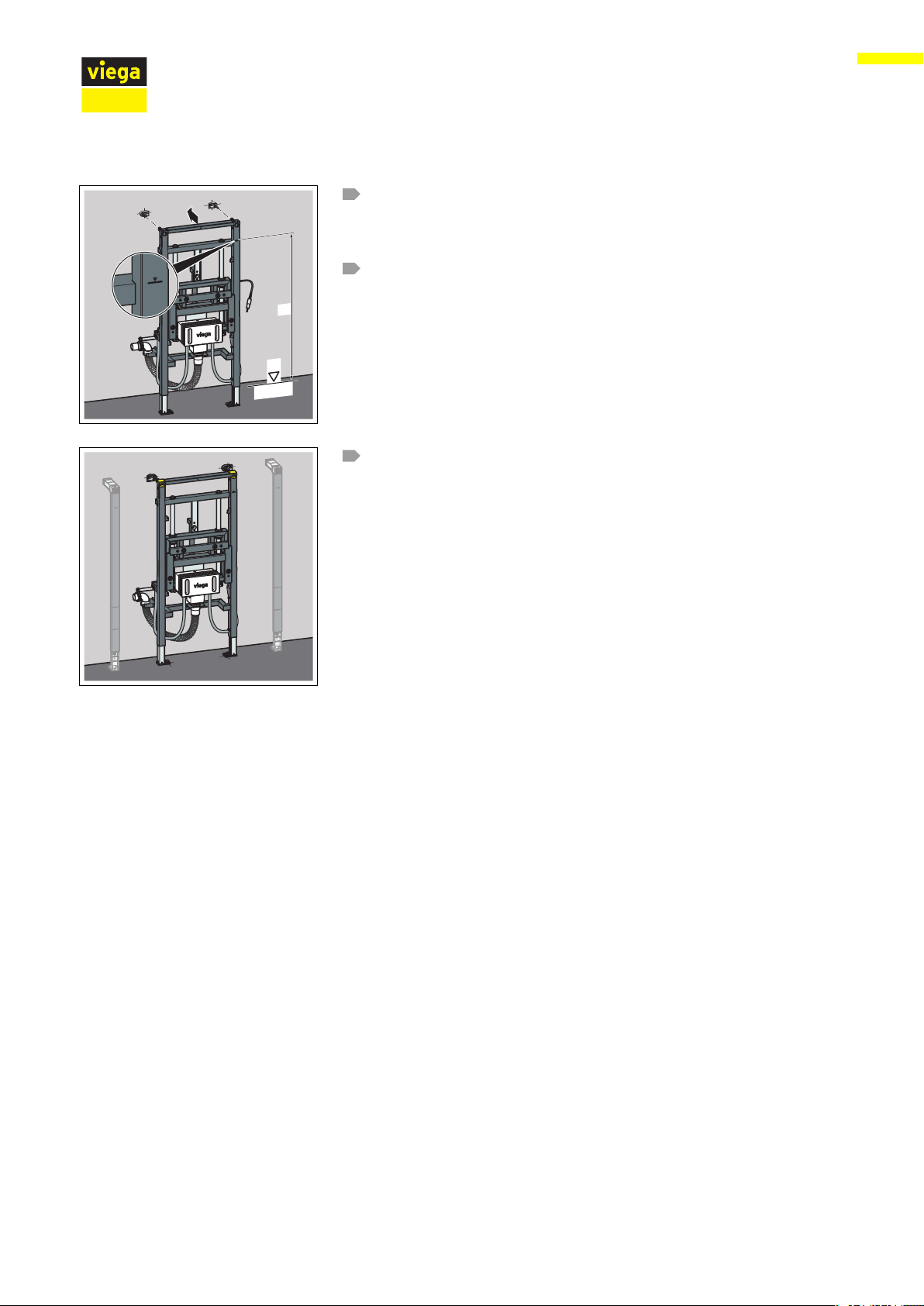

Adjust the construction height of the element in accordance with the
on-site marking of the upper edge of the finished floor.
nX: 1000 mm
Tighten the feet of the element using a fork spanner.
Mount the two support brackets in accordance with the instructions
for use for the support brackets.
ðThe element is attached to the wall.

9
Handling
Prevista Dry washbasin element with individually adjustable ceramic height 20 from 38
