Viessmann VITOTRONIC 300 User manual

Operating instructions
for the system user
VIESMANN
Weather-compensated control unit for a multi boiler system (cascade) and to
control the boiler water temperature:
■Vitotronic 300, type CM1E
■Vitotronic 300, type CM1I
To control the boiler water temperature of each additional boiler in the cascade:
■Vitotronic 100, type CC1E
■Vitotronic 100, type CC1I
With BASE E control unit
VITOTRONIC 300
VITOTRONIC 100
5863758 GB 9/2018 Please keep safe.

2
Please follow these safety instructions closely to
prevent accidents and material losses.
Safety instructions explained
Danger
This symbol warns against the risk of injury.
!Please note
This symbol warns against the risk of material
losses and environmental pollution.
Note
Details identified by the word "Note" contain additional
information.
Target group
These operating instructions are designed for heating
system users.
This appliance can also be operated by children 8
years and older, as well as by individuals with reduced
physical, sensory or mental faculties or those lacking
in experience and knowledge, provided such individu-
als are being supervised or have been instructed in the
safe use of this appliance and any risks arising from it.
!Please note
Supervise children in the proximity of the appli-
ance.
■Never permit children to play with the appli-
ance.
■Cleaning and maintenance must not be car-
ried out by unsupervised children.
Connecting the appliance
■Connection and commissioning of the appliance may
only be carried out by authorised contractors.
■Only operate the appliance with suitable fuels.
■Adhere to the electrical connection requirements.
■Modifications to the existing installation may only be
carried out by authorised contractors.
Danger
Incorrectly executed work on the heating system
can lead to life threatening accidents.
■Work on gas installations must only be carried
out by a registered gas fitter.
■Work on electrical equipment must only be
carried out by a qualified electrician.
Working on the appliance
■When adjusting settings and carrying out work on the
appliance always follow the guidelines in these oper-
ating instructions.
Additional work on the appliance may only be carried
out by authorised contractors.
■Never open the appliance.
■Never remove the cladding.
■Never remove or change additional parts or installed
accessories.
■Never open or retighten pipe connections.
Danger
Hot surfaces can cause burns.
■Never open the appliance.
■Never touch the hot surfaces of uninsulated
pipes, fittings or flue pipes.
Damage to the appliance
Danger
Damaged equipment poses a safety hazard.
Check the appliance for external damage. Never
start up a damaged appliance.
Safety instructions
For your safety
5863758

3
If you smell gas
Danger
Escaping gas can lead to explosions which may
result in serious injury.
■Do not smoke. Prevent naked flames and
sparks. Do not switch lights or electrical appli-
ances on or off.
■Close the gas shut-off valve.
■Open windows and doors.
■Evacuate any people from the danger zone.
■Notify your gas and power supply utility and
your local heating contractor from outside the
building.
■Have the power supply to the building shut off
from a safe place (outside the building).
If you smell flue gas
Danger
Flue gas can lead to life threatening poisoning.
■Shut down the heating system.
■Ventilate the installation site.
■Close all doors in the living space.
Emergency contact
If you smell gas or detect a gas leak call the National
Gas Emergency service on 0800 111 999. Notify your
gas or electricity supplier and your heating contractor.
■Shut off the electricity supply to the building from a
safe place (outside the building).
In case of fire
Danger
Fire presents a risk of burns and explosion.
■Shut down the heating system.
■Close the shut-off valves in the fuel supply
lines.
■Use a tested fire extinguisher, class ABC.
What to do if water escapes from the appliance
Danger
If water escapes from the appliance there is a
risk of electrocution.
■Switch OFF the heating system at the external
isolator (e.g. fuse box, domestic distribution
board).
■Notify heating contractor.
What to do if the heating system develops a fault
Danger
Fault messages indicate faults in the heating
system. If faults are not rectified, they can have
life threatening consequences.
Do not acknowledge fault messages several
times in quick succession. Inform your heating
contractor so the cause can be analysed and
the fault rectified.
Safety instructions
For your safety (cont.)
5863758

4
Installation room requirements
Danger
Sealed vents result in a lack of combustion air.
This leads to incomplete combustion and the
formation of life threatening carbon monoxide.
Never cover or close existing vents.
Do not make any subsequent modifications to
the building characteristics that could affect safe
operation (e.g. cable/pipework routing, cladding
or partitions).
Danger
Easily flammable liquids and materials (e.g. pet-
rol, solvents, cleaning agents, paints or paper)
can cause deflagration and fire.
Never store or use such materials in the boiler
room or in direct proximity to the heating sys-
tem.
!Please note
Incorrect ambient conditions can lead to heating
system damage and can put safe operation at
risk.
■Ensure ambient temperatures are above 0 °C
and below 35 °C.
■Prevent air contamination by halogenated
hydrocarbons (e.g. as contained in paints, sol-
vents or cleaning fluids) and excessive dust
(e.g. through grinding/polishing work).
■Avoid continuously high humidity levels (e.g.
through continuous drying of washing).
Extractors
The operation of appliances that extract air to the out-
side (cooker hoods, extractors, air conditioning units,
etc.) can create negative pressure. If the boiler is oper-
ated at the same time, this can lead to reverse flow of
the flue gas.
Danger
The simultaneous operation of the boiler and
appliances that extract air to the outside can
result in life threatening poisoning due to
reverse flow of the flue gas.
Take suitable steps to ensure an adequate sup-
ply of combustion air. If necessary, contact your
contractor.
Auxiliary components, spare and wearing parts
!Please note
Components not tested with the heating system
may damage the system or affect its function.
Only allow qualified contractors to carry out
installation or replacement work.
Safety instructions
For your safety (cont.)
5863758

5
1. Liability ................................................................................................................ 8

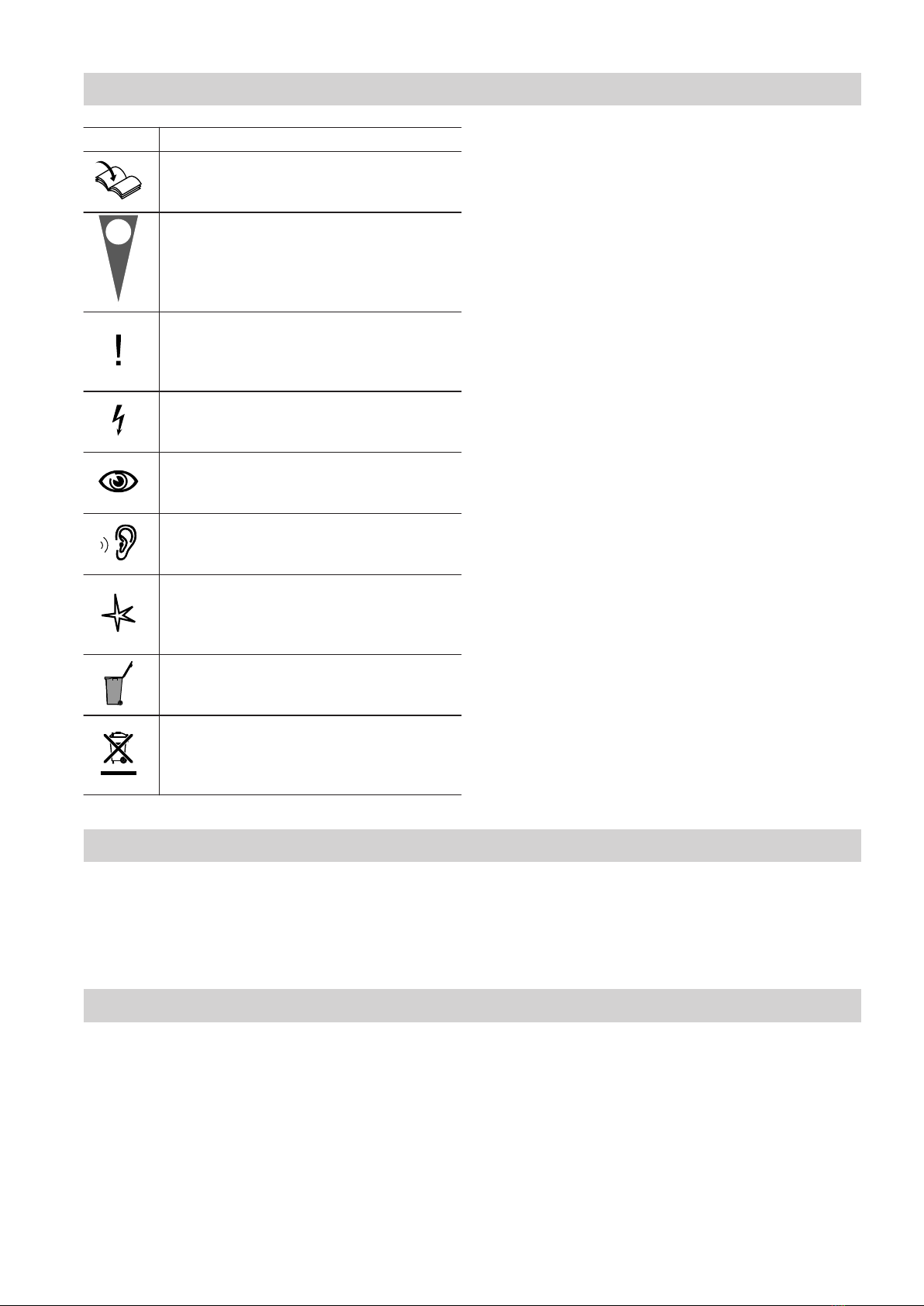

2. Introductory information Symbols ................................................................................................. 9
Terminology ........................................................................................... 9
Intended use .......................................................................................... 9
Product information ................................................................................ 10
Commissioning ...................................................................................... 10
Your system is preset ............................................................................ 10
3. Control unit operation Operating principles ............................................................................... 12
Home screen: Displays and settings ..................................................... 12
■Home screen displays ........................................................................ 12
■Buttons and icons in menu bar A ...................................................... 12
■Buttons and icons in function area B ................................................ 13
■Buttons in navigation area C ............................................................. 13
Overview of the "Main menu" ............................................................... 14

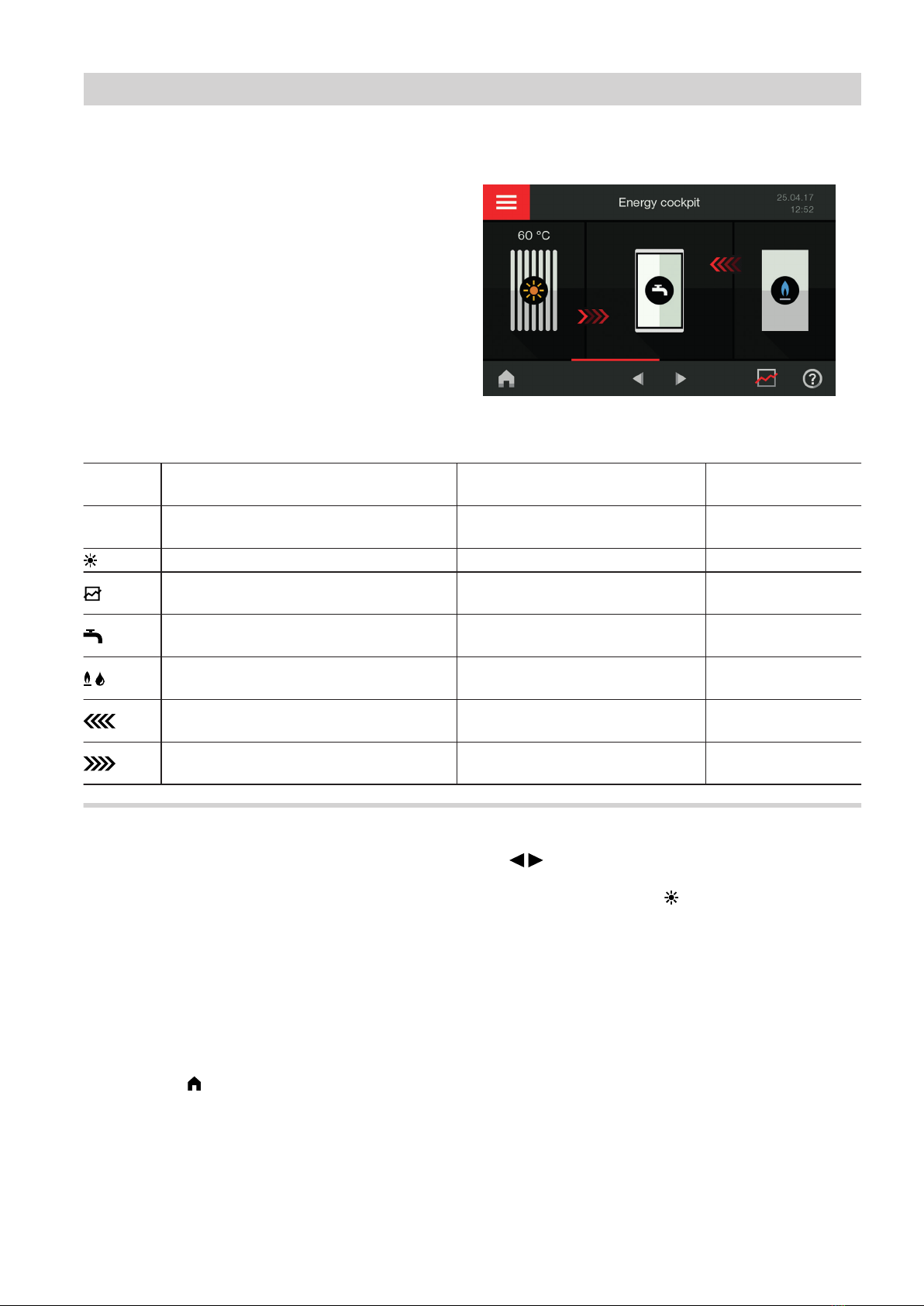

Information in the "Energy cockpit" ..................................................... 14
■Default display in the "Energy cockpit" ............................................ 15
■Vitotronic 300: Energy yield from the solar thermal system ................ 15
■Vitotronic 300: "Energy statement" of the boiler in conjunction with
solar thermal system .......................................................................... 16
■Vitotronic 300: DHW cylinder temperatures ........................................ 16
■Energy consumption and operating data ............................................ 16
■Energy consumption correction factor ................................................ 17
■Vitotronic 300: Central heating and DHW heating energy consump-
tion distribution ................................................................................... 17
Vitotronic 300: Set "Favourites" ........................................................... 17
Vitotronic 300: Operating program information ...................................... 17
■Operating programs for central heating, DHW, frost protection .......... 18
■Special operating programs ................................................................ 18
Vitotronic 300: How to set a time program ............................................. 19
■Time programs and time phases ........................................................ 19
■Setting time phases ............................................................................ 19
■Copying the time program to other days of the week ......................... 20
■Changing the time phases .................................................................. 20
■Deleting time phases .......................................................................... 20
4. Vitotronic 300: Central
heating
Setting the room temperature ................................................................ 22
■Setting the standard room temperature .............................................. 22
■Setting the reduced room temperature ............................................... 22
Setting "Operating program" for central heating ................................. 22
Setting "Time program" for central heating ......................................... 23
Setting the "Heating curve" ................................................................. 23
Stopping central heating ........................................................................ 24
Adjusting room temperature temporarily ................................................ 24
■Setting "Comfort mode" ................................................................... 25
■Ending "Comfort mode" ................................................................... 25
Reducing room temperature temporarily ............................................... 25
■Setting "Economy mode" ................................................................. 25
■Ending "Economy mode" ................................................................. 26
Energy saving function for longer absences .......................................... 26
■Setting the "Holiday program" ......................................................... 26
■Cancelling or deleting the "Holiday program" .................................. 27
5. Vitotronic 300: DHW heat-
ing
Setting DHW temperature ...................................................................... 28
Setting "Operating program" for DHW heating ................................... 28
Setting the "Time program" for DHW heating ...................................... 28
■Increased DHW hygiene ..................................................................... 29
■One-time DHW heating outside the time program .............................. 29
■Setting the "Time program" for the DHW circulation pump .............. 29
Index
Index
5863758

6
Switching off DHW heating .................................................................... 30
6. Further adjustments Blocking or enabling the boiler ............................................................... 31
Setting the "Language" ........................................................................ 31
Setting the display brightness ................................................................ 31
Setting the "Time" and "Date" .............................................................. 31
Signal tone for operation ........................................................................ 32
Deactivating the display screen for cleaning ......................................... 32
Locking the controls ............................................................................... 32
Entering the contractor's contact details ................................................ 32
7. Vitotronic 300: Further
system settings
Setting the "Boiler sequence" ............................................................. 34
Naming heating circuits ......................................................................... 34
Restoring "Factory settings" ............................................................... 34
8. Calling up information Calling up help messages ...................................................................... 36
Calling up information ............................................................................ 36
■Vitotronic 300: Checking the solar thermal system energy yield ........ 36
■Resetting operating data (meter) ........................................................ 37
Calling up service messages ................................................................. 37
■Calling up a service message ............................................................. 37
Scanning fault messages ....................................................................... 38
■Calling up a fault message ................................................................. 38
■Burner faults ....................................................................................... 38
9. Emissions test mode ................................................................................................................ 40
10. Switching on and off Control unit controls ............................................................................... 41
■Vitotronic 300, type CM1E and Vitotronic 100, type CC1E ................. 41
■Vitotronic 300, type CM1I and Vitotronic 100, type CC1I ................... 41
Shutting down the heating system ......................................................... 41
■Vitotronic 300: With frost protection monitoring .................................. 41
■Without frost protection monitoring (shutdown) .................................. 42
Starting up the heating system .............................................................. 42
11. What to do if... Rooms are too cold ................................................................................ 43
Rooms are too hot ................................................................................. 44
There is no hot water ............................................................................. 45
The DHW is too hot ............................................................................... 46
and "Fault" are displayed ................................................................ 46
and "Burner fault" are displayed .................................................... 46
ë and "Service" are displayed ............................................................ 47
"External hook-up" is displayed .......................................................... 47
"External program" is displayed .......................................................... 47
12. Maintenance Cleaning ................................................................................................. 48
Inspection and maintenance .................................................................. 48
■Boiler .................................................................................................. 48
■DHW cylinder (if installed) .................................................................. 48
■Safety valve (DHW cylinder) ............................................................... 48
■Potable water filter (if installed) .......................................................... 48
Damaged cables / lines ......................................................................... 49
13. Ordering fuel oil ................................................................................................................ 50
14. Appendix Buttons and icons .................................................................................. 51
■Buttons and icons in the menu bar ..................................................... 51
■Buttons in the navigation area ............................................................ 51
■Buttons and icons in the function area ............................................... 51
Vitotronic 300: Menu overview ............................................................... 52
■Home screen overview ....................................................................... 52
Index
Index
5863758

7
■Main menu overview ........................................................................... 53
Vitotronic 100: Menu overview ............................................................... 61
■Home screen overview ....................................................................... 61
■Main menu overview ........................................................................... 61
Terminology ........................................................................................... 63
■Setback mode (reduced heating mode) ............................................. 63
■Operating program ............................................................................. 63
■Operating status ................................................................................. 63
■Extension kit for heating circuit with mixer .......................................... 63
■Screed drying ..................................................................................... 64
■Underfloor heating .............................................................................. 64
■Heating mode ..................................................................................... 64
■Heating curve ..................................................................................... 64
■Heating circuit ..................................................................................... 65
■Heating circuit pump ........................................................................... 65
■Cascade ............................................................................................. 65
■Mixer ................................................................................................... 66
■Night setback ...................................................................................... 66
■Open flue operation ............................................................................ 66
■Room sealed operation ...................................................................... 66
■Room temperature .............................................................................. 66
■Safety valve ........................................................................................ 66
■Solar circuit pump ............................................................................... 66
■Set temperature .................................................................................. 66
■Summer mode .................................................................................... 67
■Cylinder primary pump ....................................................................... 67
■Drinking water filter ............................................................................. 67
■Set temperature .................................................................................. 67
■Weather-compensated operation ....................................................... 67
■DHW circulation pump ........................................................................ 67
Information on disposal .......................................................................... 67
■Disposal of packaging ........................................................................ 67
■Final decommissioning and disposal of the heating system ............... 67
15. Keyword index ................................................................................................................ 68
Index
Index (cont.)
5863758

8
No liability is accepted for loss of profit, unattained
savings, or other direct or indirect consequential losses
resulting from use of the Vitocom or the corresponding
internet services. No liability is accepted for losses
resulting from inappropriate use.
Liability is limited to typical damage arising if a funda-
mental contractual obligation is violated through slight
negligence, the fulfilment of which is essential for
proper execution of the contract.
The limitation of liability shall not apply if the damage
was caused deliberately or through gross negligence,
or if mandatory liability applies due to product liability
legislation.
The Viessmann General Terms and Conditions apply,
which are included in each current Viessmann pricelist.
Use of Vitoguide is subject to the Vitoguide data pro-
tection regulations and terms of use. Viessmann
accepts no liability for push notifications and email
services, which are provided by network operators.
The terms and conditions of the respective network
operators therefore apply.
Liability
Liability
5863758

9
Symbol Meaning
Reference to other document containing
further information
1.
Step in a diagram:
The numbers correspond to the order in
which the steps are carried out.
Warning of material losses and environ-
mental pollution
Live electrical area
Pay particular attention.
■Component must audibly click into place.
or
■Acoustic signal
■Fit new component.
or
■In conjunction with a tool: Clean the sur-
face.
Dispose of component correctly.
Dispose of component at a suitable collec-
tion point. Do not dispose of component in
domestic waste.
Terminology
To provide you with a better understanding of the func-
tions of your Vitotronic control unit, some terminology
is explained. This information can be found in chapter
"Terminology" in the Appendix.
Intended use
The device is intended to control only Viessmann
medium sized and industrial/commercial boilers with oil
or gas burners, in line with the intended use of those
appliances. Observe the relevant installation, service
and operating instructions.
Any usage beyond this must be approved by the man-
ufacturer in each individual case.
Incorrect usage or operation of the appliance (e.g. the
appliance being opened by the system user) is prohibi-
ted and will result in an exclusion of liability. Incorrect
usage also occurs if the components in the heating
system are modified from their intended function.
Introductory information
Symbols
5863758

10
These instructions describe the following control units:
■Vitotronic 300, type CM1E and type CM1I
–Weather-compensated control of a multi boiler sys-
tem (cascade)
–Control of the boiler water temperature for the
boiler with Vitotronic 300
■Vitotronic 100, type CC1E and type CC1I
Control of the boiler water temperature for each addi-
tional boiler in the cascade
The Vitotronic 300, type CM1E and type CM1I, are
designed for weather-compensated control of multi
boiler systems (cascades). In addition, these Vitotronic
control units regulate the boiler water temperature of
the boiler which is equipped with the Vitotronic 300.
The Vitotronic control units are factory-configured as
"Boiler and Cascade".
The Vitotronic 100, type CC1E and CC1I, are designed
to control the boiler water temperature of each addi-
tional boiler in the cascade.
Your contractor has configured the Vitotronic control
units accordingly as "Boiler in the Cascade".
In multi boiler systems, boiler water temperatures can
vary between individual boilers. The common flow tem-
perature for the heating system is specified by the
Vitotronic 300, using weather compensation.
In weather-compensated mode, the level of the com-
mon flow temperature is controlled according to the
outside temperature. The lower the outside tempera-
ture, the higher the common flow temperature.
Note
Alternatively, your contractor can configure the
Vitotronic 300 for one of the following application
areas:
■"Single boiler weather-compensated"
This makes the Vitotronic control unit suitable for the
weather-compensated control of a single boiler sys-
tem.
You can find all information on operation in the
"Vitotronic 200" operating instructions.
■"Single boiler constant control"
This makes the Vitotronic control unit suitable for
control of a single boiler system with constant boiler
water temperature.
You can find all information on operation in the
"Vitotronic 100" operating instructions.
Commissioning
The commissioning and matching of the control unit to
local conditions and building characteristics, as well as
instructing the user in the operation of the system,
must be carried out by your contractor.
As the user of new combustion equipment, you may be
obliged to notify your local flue gas inspector of the
installation [check local regulations]. Your local flue gas
inspector [where applicable] will also provide you with
information on additional activities concerning your
combustion equipment (such as regular testing, clean-
ing, etc.).
Your system is preset
Your heating system is preset at the factory and is
therefore ready for operation following commissioning
by your contractor:
Central heating
■Between 06:00 h and 22:00 h, rooms are heated to
20 °C "Room set temperature" (standard room
temperature).
■Between 22:00 h and 06:00 h, rooms are heated to
3 °C "Set reduced room temperature" (reduced
room temperature, frost protection).
DHW heating
■Between 05:30 and 22:00 h, the DHW is heated to a
50 °C "DHW set temperature". Any installed DHW
circulation pump is switched on.
■Between 22:00 and 05:30 h, the DHW cylinder is not
reheated. Any installed DHW circulation pump is
switched off.
Note
Any DHW heating begun before 22:00 h is termina-
ted.
Frost protection
■Your boiler and DHW cylinder are protected against
frost.
Introductory information
Product information
5863758

11
Wintertime/summertime changeover
■This changeover is automatic.
Date and time
■The date and time were set by your heating contrac-
tor.
You can change the settings at any time to suit your
individual requirements.
Power failure
All settings are saved if there is a power failure.
Introductory information
Your system is preset (cont.)
5863758

12
The control units are equipped with a touchscreen. To
input settings and check information, tap the on-screen
buttons.
■You can make specific settings for a boiler and call
up information at each Vitotronic 100.
■You can make settings for your heating system and
call up information at the Vitotronic 300. The
Vitotronic 300 contains the settings and information
for the boiler to which it is fitted.
Other control devices:
If remote control units are installed in your rooms, you
can also adjust the settings at the remote control units.
Remote control operating instructions
Home screen: Displays and settings
The home screen provides you with the most fre-
quently used settings and checks.
Call up the home screen as follows:
■Standby display active:
Tap anywhere on the screen.
■From the main menu:
Tap .
Home screen displays
Example of Vitotronic 300 home screen Example of Vitotronic 100 home screen
AMenu line
BFunction area
CNavigation area
Buttons and icons in menu bar A
Display Vitotronic 300 Vitotronic 100
Call up the "Main menu" Call up the "Main menu"
■Date
■Time
■Date
■Time
WiFi connection activated for contractor WiFi connection activated for contractor
No WiFi connection No WiFi connection
Control unit operation
Operating principles
5863758

13
Buttons and icons in function area B
Display Vitotronic 300 Vitotronic 100
Gas condensing boiler in multi boiler system
Colour of the flame :
Blue Burner in operation
Grey Burner off
Red Boiler in a fault state
Colour of the flame :
Blue Burner in operation
Grey Burner off
Red Boiler in a fault state
Oil condensing boiler in multi boiler system
Colour of droplet :
Yellow Burner in operation
Grey Burner off
Red Boiler in a fault state
Colour of droplet :
Yellow Burner in operation
Grey Burner off
Red Boiler in a fault state
1, 2, ... Boiler number
The boiler with the Vitotronic 300 is always boiler
number "1".
Boilers with the Vitotronic 100 are numbered "2"
to "8".
Boiler disabled Boiler disabled
Denotes the lead boiler Denotes the lead boiler
75 °C Common flow temperature Current boiler water temperature
85 °C —Specified set boiler water temperature
600 kW Current heating output of the boiler Current heating output of the boiler
Note
The current burner output is shown by bars at the bot-
tom of the boiler that are the same colour as the fuel:
■1 bar corresponds to ⅓ of the maximum boiler output
■2 bars correspond to ⅔ of the maximum boiler output
■3 bars correspond to the maximum boiler output
Buttons in navigation area C
Display Vitotronic 300 Vitotronic 100
Call up the home screen Call up the home screen
■One step back in the menu
or
■Cancellation of started setting
■One step back in the menu
or
■Cancellation of started setting
Confirm an entry or selection Confirm an entry or selection
Call up a help text Call up a help text
/
■Scroll through the menu
or
■Switch to other display areas, e.g. to the "En-
ergy cockpit"
■Scroll through the menu
or
■Switch to other display areas, e.g. to the "Ener-
gy cockpit"
Note
These icons are not always displayed, but appear sub-
ject to the system version and the operating condition.
Explanation of all buttons and icons: See page 51.
Note
You can lock the controls for the home screen: See
chapter "Locking the controls".
If you do so, you will not be able to make adjustments
on either the home screen or the main menu. "Panel
locked" is displayed.
Control unit operation
Home screen: Displays and settings (cont.)
5863758

14
In the "Main menu", you can call up and adjust all of
the remaining settings for the control unit's range of
functions.
Call up the "Main menu" as follows:
■Standby display active:
Tap anywhere on the screen and then tap .
■From the home screen:
Tap .
■From anywhere in the menu:
Tap and then .
Menus available in the "Main menu":
Vitotronic 300 Vitotronic 100 Further details:
See page
"Block/enable boiler" "Block/enable boiler" 31
"Boiler sequence" — 34
"Test mode"
For the flue gas inspector only
"Test mode"
For the flue gas inspector only 40
"Settings"
E.g. – display brightness
"Settings"
E.g. – display brightness 31
"Heating"
For central heating settings, e.g. – the
"Time program".
— 22
"DHW"
For DHW heating settings, e.g. for the
"DHW temperature".
— 28
"Information"
To check operating data, e.g. temperatures
"Information"
To check operating data, e.g. temperatures 36
Energy saving function "Holiday pro-
gram" — 26
"Service"
For contractors only
"Service"
For contractors only —
Using / you can scroll through the menu. Note
The menus available depend on your heating system
equipment.
Menu overview with all menus: See page 52.
Information in the "Energy cockpit"
The "Energy cockpit" provides you with clear infor-
mation on the energy state of the components in your
heating system.
Note
The "Energy cockpit" is only shown if it was set up
during commissioning. If necessary, notify your con-
tractor.
Tap the following on-screen buttons:
1. If required, for the home screen
2. / for "Energy cockpit"
Note
When you call up the "Energy cockpit" for the first
time, you will be notified that the values shown cannot
be used for settling bills with the power supply utility.
■The "Energy cockpit" is opened once you confirm
this notification with OK. This notification will not
appear again.
■If you tap Cancel, the "Energy cockpit" will not be
opened. The notification will be shown again next
time.
Control unit operation
Overview of the "Main menu"
5863758

15
Default display in the "Energy cockpit"
The various components present in the system are
shown as graphics. For information on the energy sta-
tus of these system components, tap the relevant sys-
tem component.
Note
The graphics depicting the boiler and the DHW cylin-
der vary according to the products used in the system.
Example: Vitotronic 300
Fig. 1
You can check the following information in the "Energy cockpit":
Display Vitotronic 300 Vitotronic 100 Further details:
See page
60 °C Current solar thermal system tempera-
ture — —
Solar thermal system energy yield — 15
Boiler energy statement in conjunction
with the solar thermal system — 16
Temperatures and heat-up condition of
the DHW cylinder — 16
/Energy consumption (gas or oil) and op-
erating data
Energy consumption (gas or oil)
and operating data 16
DHW cylinder heating by the boiler is ac-
tive (red and moving) — —
Heating of DHW cylinder by solar ther-
mal system is active (red and moving) — —
Vitotronic 300: Energy yield from the solar thermal system
You can call up the energy yield from the solar thermal
system for the last 7 days, including the current day.
The energy yield is shown in kilowatt hours "kWh".
Note
This information can only be retrieved in conjunction
with the solar control module, type SM1. When con-
nected to a Vitosolic solar control unit, you can call up
the solar energy yield on this device.
Tap the following on-screen buttons:
1. If required, for the home screen
2. / for the "Energy cockpit"
3. Tap the solar collector
The energy yields for the last 7 days, including the
current day, are shown as a bar for comparison.
4. Tap a day, e.g. "Mo"
The energy yield for the selected day is shown in
"kWh".
Control unit operation
Information in the "Energy cockpit" (cont.)
5863758

16
Vitotronic 300: "Energy statement" of the boiler in conjunction with solar thermal system
You can call up the energy status for the last 7 days,
including the current day. The amount of heat gener-
ated from solar power and the energy consumption of
the boiler (gas or oil) are shown in kilowatt hours
"kWh".
Note
This information can only be retrieved in conjunction
with the solar control module, type SM1.
Tap the following on-screen buttons:
1. If required, for the home screen
2. / for the "Energy cockpit"
3. in the navigation area
The "Energy statement" is displayed as a
graphic.
Blue: Amount of gas consumed
or
Dark yellow: Amount of oil consumed
Light yellow: Amount of heat generated by the
solar thermal system
Vitotronic 300: DHW cylinder temperatures
You can call up the current DHW temperatures in the
DHW cylinder ("Heat-up condition").
Tap the following on-screen buttons:
1. If required, for the home screen
2. / for the "Energy cockpit"
3. Tap the DHW cylinder
Energy consumption and operating data
You can call up the following information about your
boiler:
■"Current output" (heating output)
■"Hours run" (operating time)
■"Fuel"
■"Fuel consumption" (energy consumption)
Tap the following on-screen buttons:
1. If required, for the home screen
2. / for the "Energy cockpit"
3. in conjunction with a gas boiler
or
in conjunction with an oil boiler
The operating data is shown, e.g. the "Hours run"
Note
To reset the hours run: See chapter "Calling up
information".
4. Energy consumption:
for "Fuel consumption"
5. Tap the required period:
"The past 7 days", including current day
"The past 5 weeks", including current week
"For the past 12 months", including current
month
"For the past 2 years", including current year
Consumption above or below these levels is shown
graphically within the selected time period for com-
parison purposes:
Dark areas: Proportion of energy consumption
for central heating
Light areas: Proportion of energy consumption
for DHW heating
6. Tap e.g. a day or a week on the graph. The energy
consumption for this period is shown as a numeri-
cal value in kilowatt hours "kWh". 10 kWh corre-
sponds to approximately one litre of fuel oil or one
cubic metre of gas.
Information on the energy consumption figures
shown
The calculation of the energy consumption takes into
account the installed system components and the user
behaviour (e.g. operating time and utilisation level).
Depending on system-specific conditions, differences
may arise between the displayed (calculated) and
actual consumption figures.
They therefore cannot be used as a binding basis for
billing with the power supply utility.
Control unit operation
Information in the "Energy cockpit" (cont.)
5863758

17
Energy consumption correction factor
You can enter a correction factor to adjust the dis-
played (calculated) values for energy consumption/fuel
consumption to the actual values (as measured by the
meter in your home). The calculated value is multiplied
by the correction factor. However, due to seasonal cli-
mate conditions and other factors, discrepancies may
still arise.
Tap the following on-screen buttons:
1. If required, for the home screen
2. / for the "Energy cockpit"
3. in conjunction with a gas boiler
or
in conjunction with an oil boiler
4. for "Fuel consumption"
5. "Input adjustment factor"
6. / for the required correction factor
7. to confirm
Vitotronic 300: Central heating and DHW heating energy consumption distribution
Specify the ratio in which your total energy consump-
tion (100 %) is to be split for central heating and DHW
heating. You can estimate the values or establish them
through repeated meter readings (gas meter or oil con-
sumption) over the year.
The values set here are only used in the graphs for
energy consumption ("Fuel consumption").
Factory setting:
■DHW heating: 30 %
■Central heating: 70 %
Tap the following on-screen buttons:
1. If required, for the home screen
2. / for the "Energy cockpit"
3. in conjunction with a gas boiler
or
in conjunction with an oil boiler
4. for "Fuel consumption"
5. "Proportion DHW - heating"
6. / for the required value, either for "DHW" or
"Heating". The other value is adjusted automati-
cally so that the total of both values is 100 %.
7. to confirm
Vitotronic 300: Set "Favourites"
You can set some menus as favourite for faster
access.
Tap the following on-screen buttons:
1. If required, for the home screen
2. / for "Favourites"
3. for the list of selectable menus.
4. in the desired menu, e.g., in "Time program,
DHW"
The selection is indicated by .
5. to confirm
Vitotronic 300: Operating program information
Using the "Operating program", you set whether you
want rooms heated, or DHW heating only, for example.
If your heating system has multiple heating circuits, set
the operating program separately for each one.
Control unit operation
Information in the "Energy cockpit" (cont.)
5863758

18
Operating programs for central heating, DHW, frost protection
Symbol Operating program Function
Central heating and DHW heating
"Heating and DHW" ■The rooms of the selected heating circuit are
heated in accordance with the room temperature
and time program specified (see chapter "Central
heating").
■DHW is heated in accordance with the DHW
temperature and time program specified (see
chapter "DHW heating").
Only for systems without DHW cylinder:
"Heating"
■The rooms of the selected heating circuit are
heated in accordance with the room temperature
and time program specified: See chapter "Cen-
tral heating".
DHW heating (available in conjunction with DHW cylinder only)
"Only DHW" ■DHW is heated in accordance with the DHW
temperature and time program specified (see
chapter "DHW heating").
■No central heating
■Frost protection for the boiler, heating circuit and
DHW cylinder is active.
Frost protection
"Standby mode" ■No central heating
■No DHW heating
■Frost protection for the boiler, heating circuit and
DHW cylinder is active.
Special operating programs
The following special operating programs are available
according to system equipment:
■"Screed drying"
This function is activated by your contractor. Your
screed is dried in line with a set time program (tem-
perature/time profile) suitable for the relevant build-
ing materials. Your settings for central heating are
deactivated for the duration of the screed drying.
This function can be altered or cancelled by your
contractor.
■"External hook-up"
The operating program set at the control unit was
e.g. changed over via an externally connected but-
ton.
Example: In a school, there is a heat demand out-
side of school hours, e.g. for a parents' evening.
This function cannot be influenced via the control
unit. Once the external changeover no longer
applies, the set operating program becomes active
again.
■"Holiday program" (see page)
Note
In the main menu, you can call up the set operating
program under "Information" (see page 36).
"External program"
The operating program set at the control unit has been
changed by another control device. You can change
the operating program on the Vitotronic control unit.
Control unit operation
Vitotronic 300: Operating program information (cont.)
5863758

19
Time programs and time phases
In the time programs, you specify what your heating
system should do at what time. To do so, divide the
day into sections. These are called time phases.
Different operating statuses are enabled within and
outside these time phases. The available operating
statuses differ, e.g. through different temperature lev-
els.
You can set up a time program for the following functions:
Function Operating status
Within the time phase Outside the time phase
Central heating Your rooms are heated to standard room
temperature.
Your rooms are heated to reduced room
temperature.
DHW heating DHW heating is set.
The water in the DHW cylinder is heated to
the set DHW temperature.
DHW heating is blocked.
DHW circulation
pump
The DHW circulation pump is operational.
Note
Your contractor can limit the DHW circula-
tion pump runtime.
The DHW circulation pump is not operation-
al.
Note
Your contractor can enable DHW circulation
pump operation.
■The frost protection limit is factory-set to "Auto-
matic".
■You can set "Individual" time programs to be the
same, or different, for every day of the week.
■In the main menu, you can call up the time programs
under "Information".
The following explains how to input the settings for a
time program, using central heating for heating cir-
cuit 1 as an example. The specifics of the individual
time programs can be found in the relevant chapters.
Setting time phases
You can set up to 4 time phases in each "Time pro-
gram". The time phases are numbered.
Set the "Start" and "End" for each time phase.
Example:
"Time program" for "Monday" for "Heating circuit
1"
■Time phase "1":
05:30 to 09:00 h
■Time phase "2":
16:30 to 22:00 h
Tap the following on-screen buttons:
01. for the "Main menu"
02. "Heating" for central heating settings
03. "Heating circuit 1"
04. "Time program"
05. "Mo" for "Monday"
06. to edit the "Time program".
07. / for time phase "1" "Start" and "End"
from 05:30 h to 09:00 h.
The bar in the time diagram is adjusted.
Cancelling the setting of a time phase early
Tap .
08. to create time phase "2".
09. / for time phase "2" "Start" and "End"
from 16:30 h to 22:00 h
The bar in the time diagram is adjusted.
Control unit operation
Vitotronic 300: How to set a time program
5863758

20
10. to confirm
Fig. 2
11. to quit the "Time program".
Copying the time program to other days of the week
You can copy the "Time program" to other days of
the week.
Example:
You want to copy the "Monday" "Time program" to
"Tuesday" until "Friday".
Tap the following on-screen buttons:
1. for the "Main menu"
2. "Heating" for central heating settings
3. "Heating circuit 1"
4. "Time program"
5. "Mo" for "Monday"
6. to copy the "Monday" "Time program".
7. "Tu", "We", "Th", "Fr"
8. to confirm
9. to quit the "Time program".
Changing the time phases
You can change the time phase settings at any time.
Example:
For "Monday", you want to change time phase "2"
"Start" to 19:00 h.
Tap the following on-screen buttons:
01. for the "Main menu"
02. "Heating" for central heating settings
03. "Heating circuit 1"
04. "Time program"
05. "Mo" for "Monday"
06. to edit the "Time program".
07. / for time phase "2"
08. / to change time phase "2" "Start" to
19:00 h. The bar in the time diagram is adjusted.
09. to confirm
10. to quit the "Time program".
Deleting time phases
You can delete individual time phases at any time.
Example:
For "Monday", you want to delete Time phase "2".
Tap the following on-screen buttons:
01. for the "Main menu"
02. "Heating" for central heating settings
Control unit operation
Vitotronic 300: How to set a time program (cont.)
5863758
