Vitosol-F/-FM
Type SV and SH
Flat-plate collector for pitched roofs
Above roof installation with roof hooks or mounting brackets
VITOSOL-F/-FM
5698338 GB/en 9/2017 Dispose after installation.

2
Please follow these safety instructions closely to
prevent accidents and material losses.
Safety instructions explained
!Please note
This symbol warns against the risk of material
losses and environmental pollution.
Note
Details identified by the word "Note" contain additional
information.
Target group
These instructions are exclusively intended for author-
ised contractors.
■Work on electrical equipment must only be carried
out by a qualified electrician.
Regulations to be observed
■National installation regulations
■Statutory regulations for the prevention of accidents
■Statutory regulations for the protection of the envi-
ronment
■Codes of practice of the relevant trade associations
■All relevant safety regulations as defined by DIN, EN,
DVGW, VDE and locally applicable standards
aÖNORM, EN and ÖVE
cSEV, SUVA, SVTI, SWKI and SVGW
Working on the system
■Isolate the system from the power supply (e.g. by
removing the separate fuse or by means of a mains
isolator) and check that it is no longer 'live'.
■Safeguard the system against reconnection.
Safety instructions
5698338

3
1. Information Disposal of packaging ............................................................................ 4
Symbols ................................................................................................. 4
Intended use .......................................................................................... 5
2. Preparing for installation Distribution of roof hooks or mounting brackets .................................... 6
■Type SV .............................................................................................. 6
■Type SH .............................................................................................. 8
3. Installation sequence Fitting roof hooks ................................................................................... 11
■Overview – installation with roof hooks ............................................... 11
■Fitting roof hooks for tiled roof cover .................................................. 12
■Fitting roof hooks for slate roof cover ................................................. 13
■Fitting roof hooks for corrugated sheet roof cover .............................. 13
■Fitting roof hooks for plain tiled roof cover .......................................... 14
Fitting mounting brackets ....................................................................... 15
Fitting mounting rails .............................................................................. 16
■Distribution of mounting plates ........................................................... 17
Installing collectors ................................................................................ 17
■Component overview .......................................................................... 17
Fitting the connection set and collector temperature sensor ................. 19
Covering the collector ............................................................................ 20
Installation .............................................................................................. 21
Commissioning and adjustment ............................................................. 22
Index
5698338

4
Disposal of packaging
Please dispose of packaging waste in line with statu-
tory regulations.
DE: Use the disposal system organised by
Viessmann.
AT: Use the ARA statutory disposal system (Altstoff
Recycling Austria AG, licence number 5766).
CH: Packaging waste is disposed of by the HVAC
contractor.
Symbols

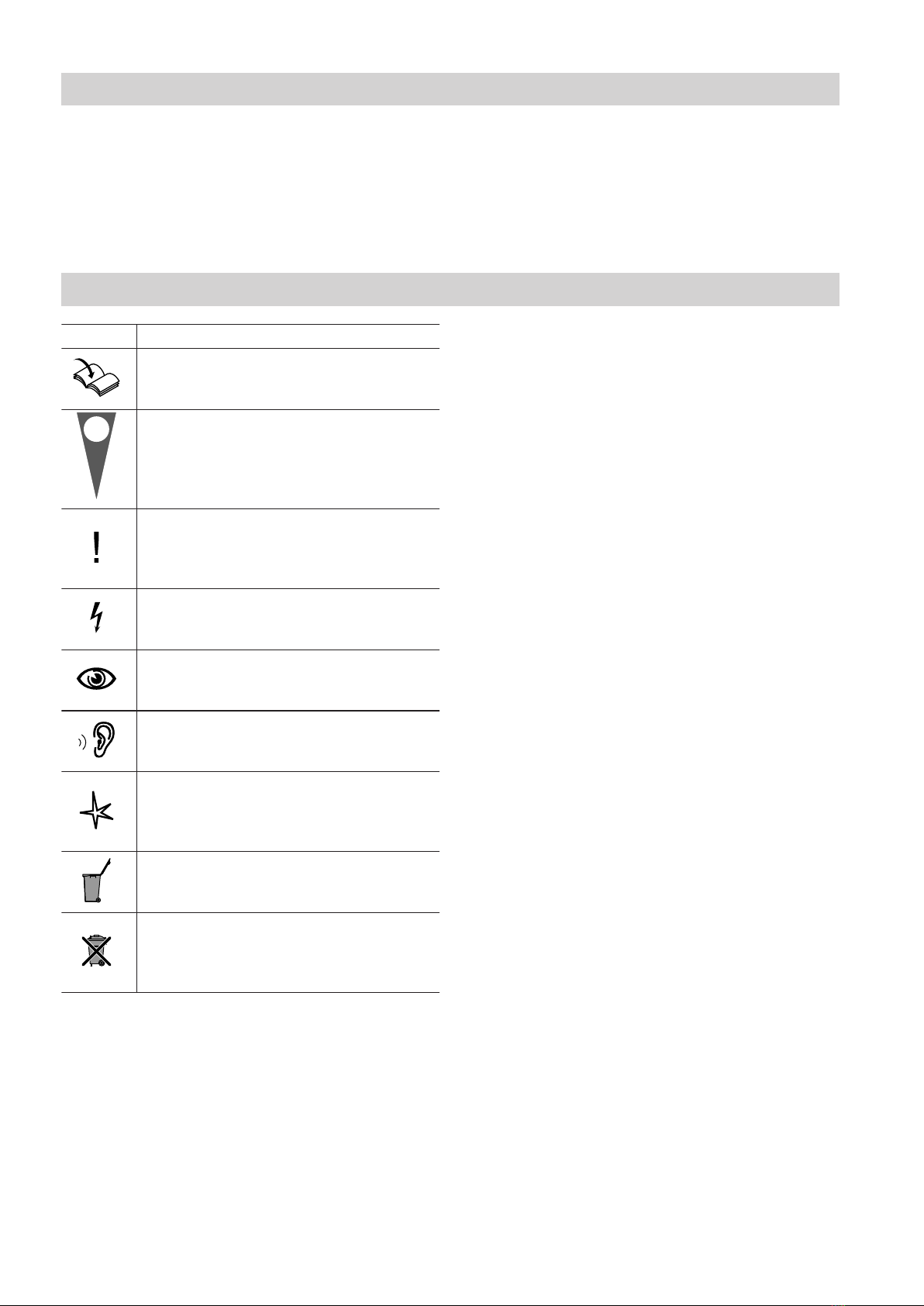

Symbol Meaning
Reference to other document containing
further information
1.
Step in a diagram:
The numbers correspond to the order in
which the steps are carried out.
Warning of material losses and environ-
mental pollution
Live electrical area
Pay particular attention.
■Component must audibly click into place.
or
■Acoustic signal
■Fit new component.
or
■In conjunction with a tool: Clean the sur-
face.
Dispose of component correctly.
Dispose of component at a suitable collec-
tion point. Do not dispose of component in
domestic waste.
Disposal of packaging
5698338

5
The appliance is only intended to be installed and
operated in sealed unvented systems that comply with
EN 12828 / DIN 1988, or solar thermal systems that
comply with EN 12977, with due attention paid to the
associated installation, service and operating instruc-
tions. DHW cylinders are only designed to store and
heat water of potable water quality. Heating water buf-
fer cylinders are only designed to hold fill water of pot-
able water quality. Only operate solar collectors with
the heat transfer medium approved by the manufac-
turer.
Intended use presupposes that a fixed installation in
conjunction with permissible, system-specific compo-
nents has been carried out.
Commercial or industrial usage for a purpose other
than heating the building or DHW shall be deemed
inappropriate.
Any usage beyond this must be approved by the man-
ufacturer for the individual case.
Incorrect usage or operation of the appliance (e.g. the
appliance being opened by the system user) is prohibi-
ted and results in an exclusion of liability.
Incorrect usage also occurs if the components in the
system are modified from their intended use (e.g.
through direct DHW heating in the collector).
Adhere to statutory regulations, especially concerning
the hygiene of potable water.
Intended use
5698338

6
Type SV
Standard snow loads
For installations without roof hooks, mounting brackets are used in place of roof hooks.
f
154
k923
ghhg
fe
k
d
Fig. 1
No. 1 2 3 4 5 6 8 10
d mm 1098 2175 3273 4350 5448 6525 8700 10875
e mm 1019 2038 3115 4192 5269 6346 8500 10654
g+g g+h+g g+2·h+g g+3·h+g g+4·h+g g+6·h+g g+8·h+g
f mm 39.5 68.5 79 79 89.5 89.5 100 110.5
g mm 1019 1019 1019 1019 1019 1019 1019 1019
h mm — — 1077 1077 1077 1077 1077 1077
k mm 87.5 87.5 98 98 108.5 108.5 119 129.5
Distribution of roof hooks or mounting brackets
5698338

7
Higher snow loads
Installation only with roof hooks.
f
l
g
k
g
k
g
l
f
m
g
f
h
g
k
g
k
g
h
g
f
e
d
Fig. 2

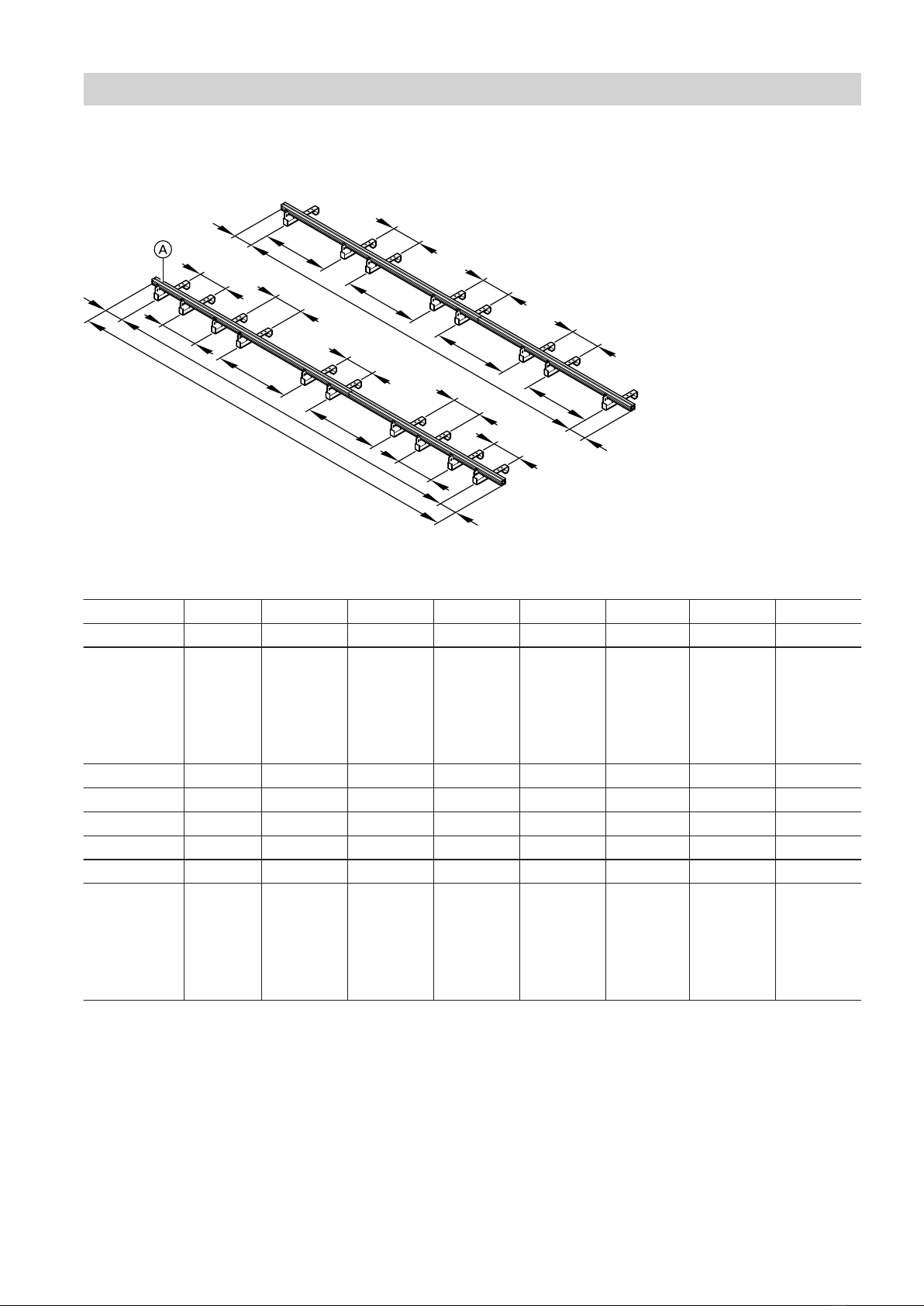

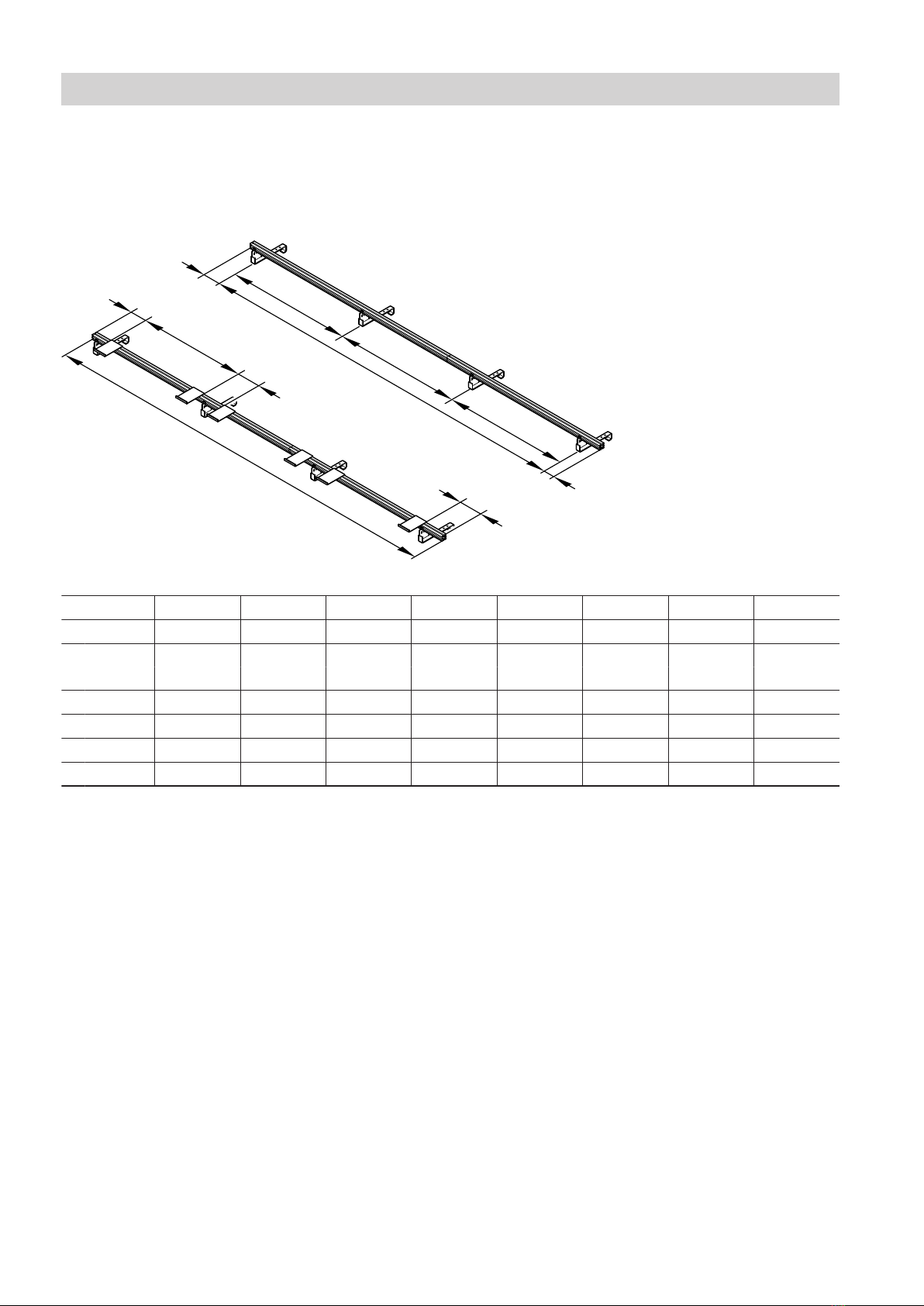

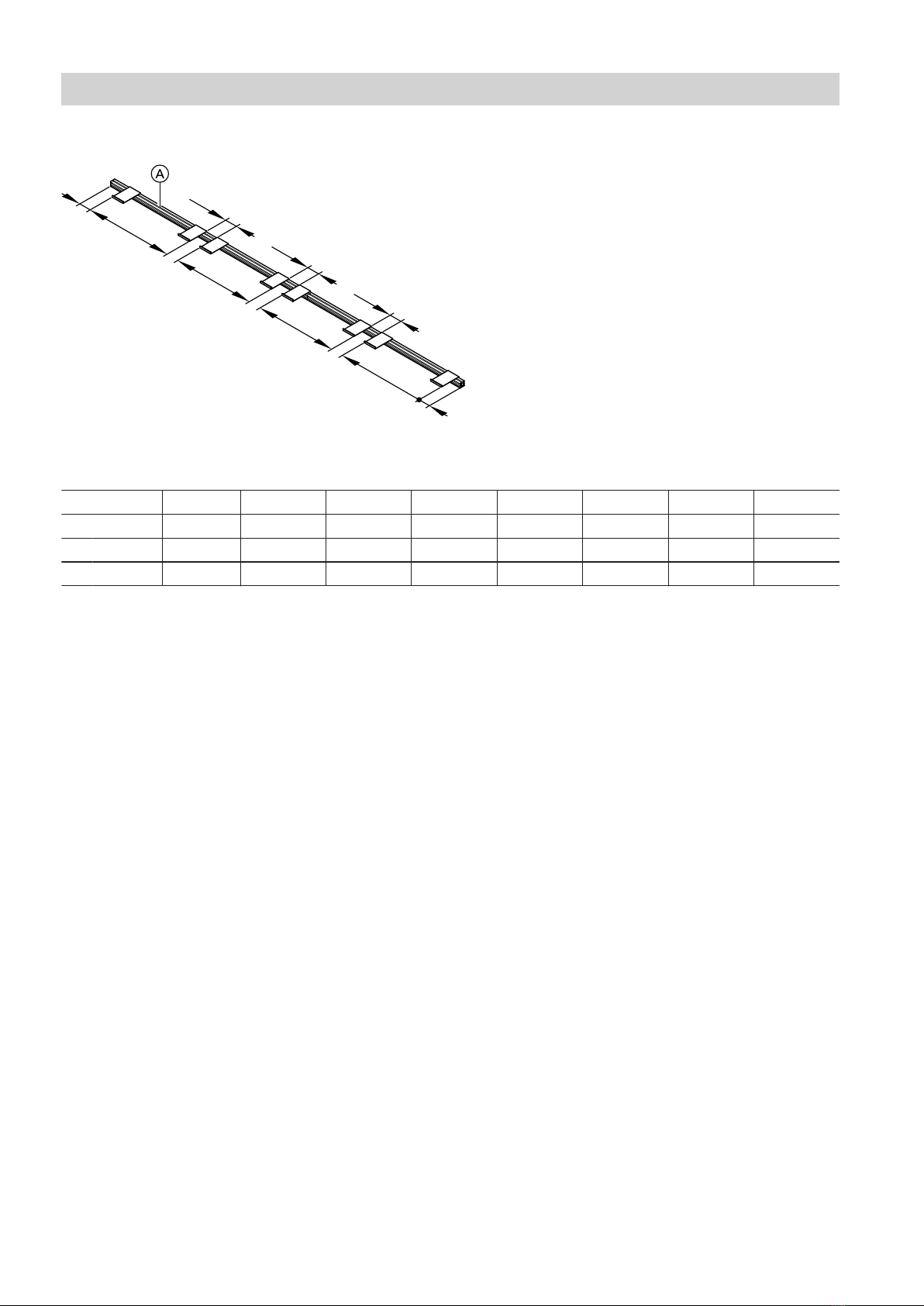

ALower mounting rail
No. 1 2 3 4 5 6 8 10
d mm 1098 2175 3273 4350 5448 6525 8700 10875
e mm 895
g+g
1972
g+h+g+h
+g
3103
g+h+g+k
+g+h+g
4180
g+h+g+k
+g+k+g+h
+g
5257
g+h+g+k
+g+k+g+k
+g+h+g
6334
g+h+g+k
+g+k+g+k
+g+k+g+h
+g
8488
g+h+g+k
+g+k+g+k
+g+k+g+k
+g+k+g+h
+g
10642
g+h+g+k+g
+k+g+k+g
+k+g+k+g
+k+g+k+g
+k+g+h+g
f mm 101.5 101.5 85 85 95.5 95.5 106 116.5
g mm 447.5 300 300 300 300 300 300 300
h mm —536 563 563 563 563 563 563
k mm — — 777 777 777 777 777 777
lmm 895 836 863 863 863 863 863 863
m mm 895 1972
l+g+l
3103
l+g+k+g+l
4180
l+g+k+g+k
+g+l
5257
l+g+k+g+k
+g+k+g+l
6334
l+g+k+g
+k+g+k+g
+k+g+l
8488
l+g+k+g+k
+g+k+g+k
+g+k+g+k
+g+l
10642
l+g+k+g+k
+g+k+g+k
+g+k+g+k
+g+k+g+k
+g+l
Distribution of roof hooks or mounting brackets (cont.)
5698338

8
Type SH
Standard snow loads
For installations without roof hooks, mounting brackets are used in place of roof hooks.
k2200 201
d
k
f
e
f
ghg
Fig. 3
No. 1 2 3 4 5 6 8 10
d mm 2422 4844 7266 9688 12110 14532 19376 24220
e mm 2250 4500 6901 9302 11703 14104 18906 23708
g+g g+h+g g+2·h+g g+3·h+g g+4·h+g g+6·h+g g+8·h+g
f mm 86 172 182.5 193 203 214 235 256
g mm 2250 2250 2250 2250 2250 2250 2250 2250
h mm — — 2401 2401 2401 2401 2401 2401
k mm 111 121.5 132 142.5 153 163.5 184.5 205.5
Distribution of roof hooks or mounting brackets (cont.)
5698338

9
Higher snow loads
Installation only with roof hooks.
300
f
kllk
f
m
ff
d
g
300
h
300
300
h
300
300
g
e
300
f
kllk
f
m
ff
d
g
300
h
300
300
h
300
300
g
e
Fig. 4
ALower mounting rail
No. 1 2 3 4 5 6 8 10
d mm 2422 4844 7266 9688 12110 14532 19376 24220
e mm 2273 4674 7075 9476 11877 14278 19080 23882
g+g g
+2·300+g
g
+2·300+h
+2·300+g
g
+2·300+h
+2·300+h
+2·300+g
g
+2·300+h
+2·300+h
+2·300+h
+2·300+g
g+2·300+h
+2·300+h
+2·300+h
+2·300+h
+2·300+g
g+2·300+h
+2·300+h
+2·300+h
+2·300+h
+2·300+h
+2·300+h
+2·300+g
g+2·300+h
+2·300+h
+2·300+h
+2·300+h
+2·300+h
+2·300+h
+2·300+h
+2·300+h
+2·300+g
f mm 75 85 95.5 106 116.5 127 148 169
g mm 1137 2037 2037 2037 2250 2250 2250 2250
h mm — — 1801 1801 1801 1801 1801 1801
k mm 2273 2337 2337 2337 2337 2337 2337 2337
l mm — — 2401 2401 2401 2401 2401 2401
m mm 2273 4674 7075 9476 11877 14278 19080 23882
—k+k k+l+k k+2·l+k k+3·l+k k+4·l+k k+6·l+k k+8·l+k
Distribution of roof hooks or mounting brackets (cont.)
5698338

10
Distribution of mounting plates
n
130
op
130
p
130
on
Fig. 5
ALower mounting rail
No. 1 2 3 4 5 6 8 10
n mm 78.5 89 99.5 110 120.5 131 152 173
o mm 2265 2268 2268 2268 2268 2268 2268 2268
p mm — — 2271 2271 2271 2271 2271 2271
Distribution of roof hooks or mounting brackets (cont.)
5698338

11
Overview – installation with roof hooks
Fig. 6
Note
Dimension x according to the width of the tile head.
ARoof hook
BCollector
CMounting rail
DTimber, 38 x 58 mm
(only for roof tiles)
ETimber, 30 x 100 mm
(only for roof tiles)
Type a mm b mm c mm
SV 2380 1900–2100 ≥2400
SH 1056 450–850 ≥1077
Roof cover y mm
Roof tiles 440
Slate 348
Plain tile 380
Corrugated sheets 207
Fitting roof hooks
5698338

12
Fitting roof hooks for tiled roof cover
1 2 3 4
385
Fig. 7

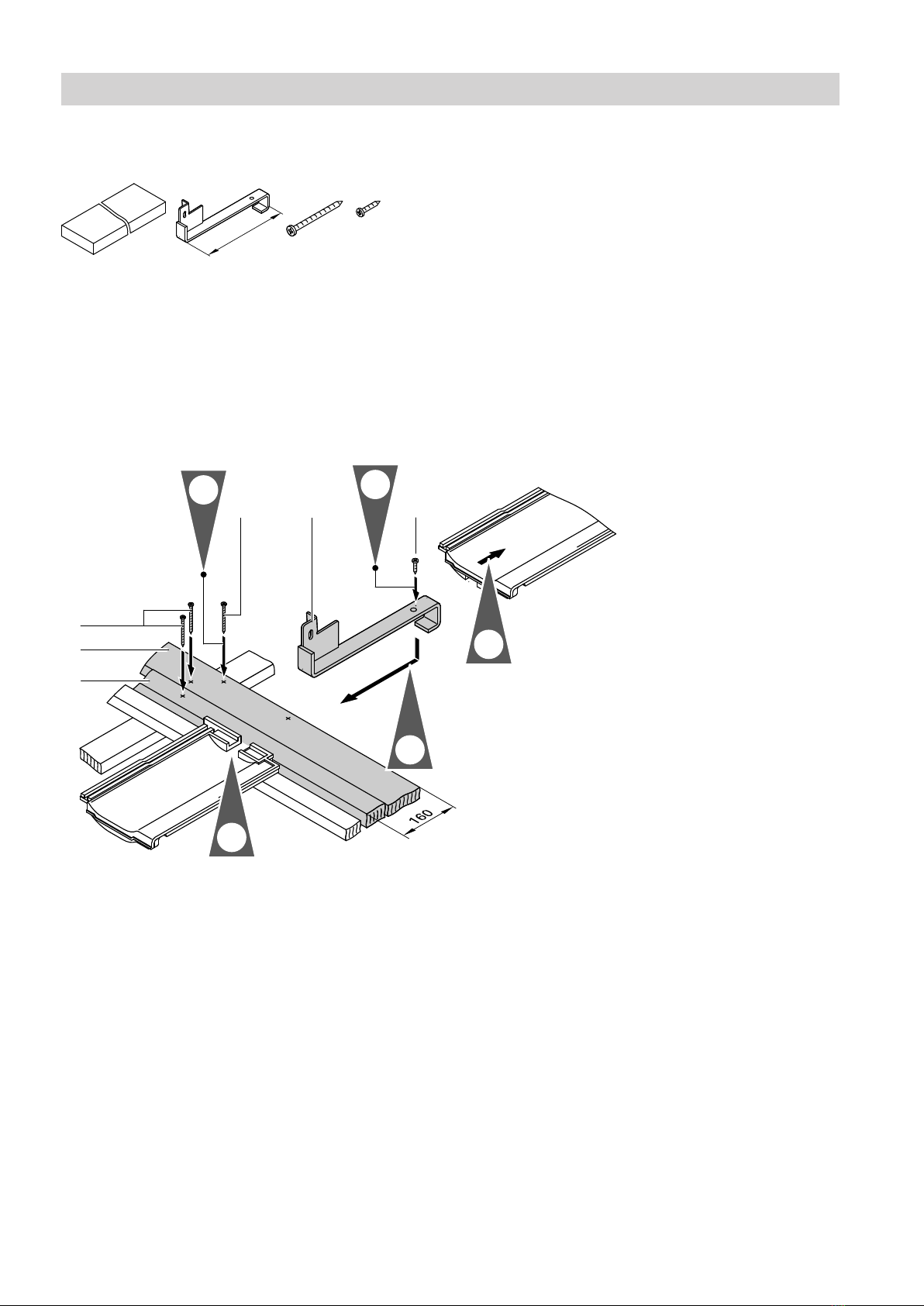

1Timber
■38 x 58 x 2430/1570 mm
■30 x 100 x 2430/1570 mm
2Roof hook
3Zinc-plated countersunk chipboard screw (Spax-s)
6 x 80 mm
4Zinc-plated countersunk chipboard screw (Spax-s)
5 x 30 mm
2. 5.
42
1
1
30 x 100
38 x 58
3
3
3.
4.
1.
Fig. 8
1. Push up the roof tiles in accordance with the
dimensions shown in Fig. 6 on page 11.
2. Secure the timber with screws to the rafters at the
top of the uncovered rows of tiles. For dimensions,
see Fig. 6.
3. Hook the roof hooks into the timber in accordance
with the dimensions. For dimensions, see "Distribu-
tion of roof hooks or mounting brackets" from
page 6
4. Remove the drip tabs and protrusions from the roof
tiles where the roof hooks are to be fitted.
5. Secure the roof hooks with screws. Position the
roof tiles.
6. Continue with chapter "Fitting the mounting rails"
on page 16.
Note
The timbers provided are designed for existing battens
of 24 x 48 mm to 30 x 50 mm. In the case of thicker
battens or particularly tall roof tiles, support the timbers
from below on site so that there is a clearance without
any pressure load between the roof hook and roof tile.
Fitting roof hooks (cont.)
5698338

13
Fitting roof hooks for slate roof cover
65
280
Fig. 9

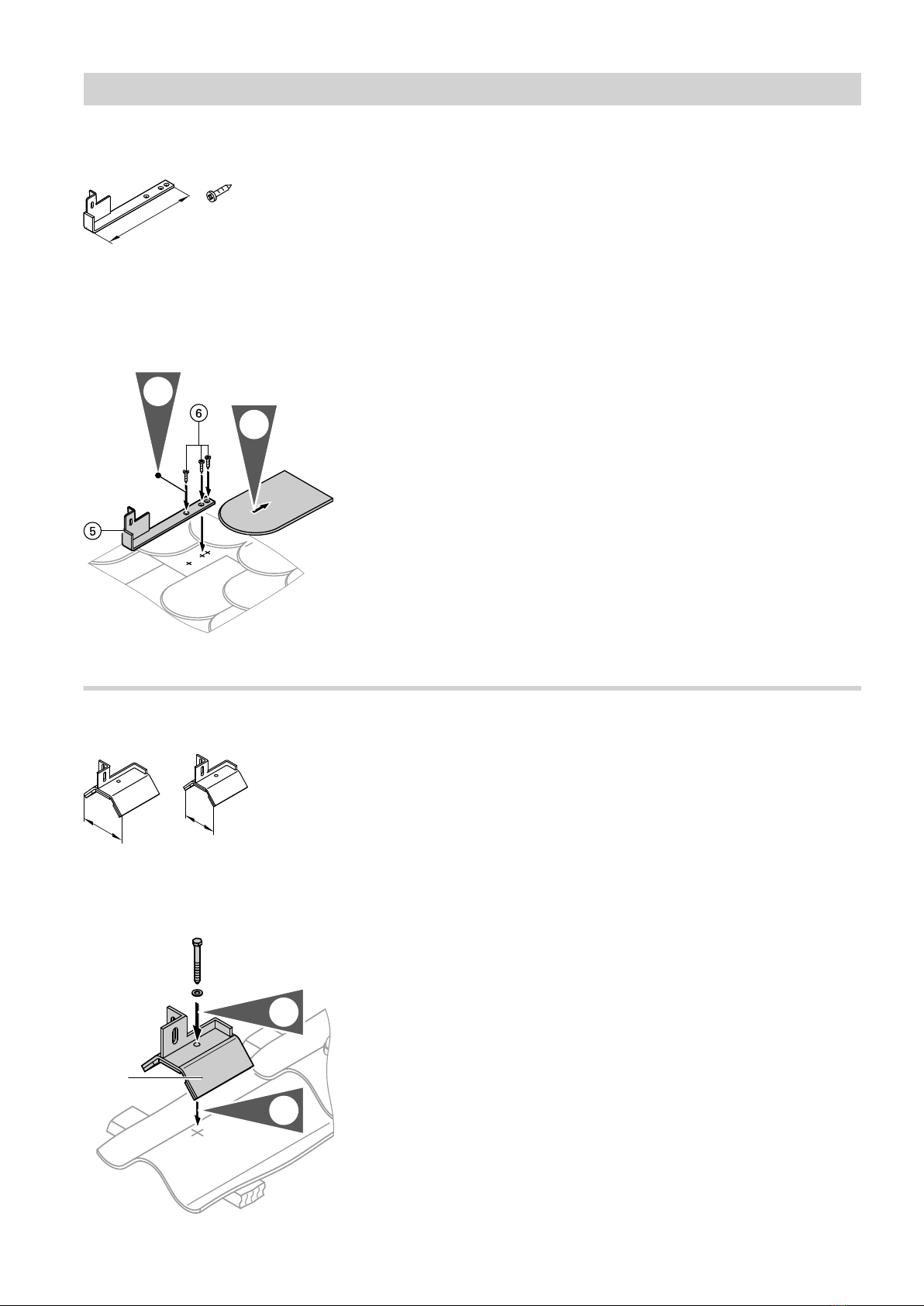

5Roof hook
6Zinc-plated countersunk chipboard screw (Spax-s)
6 x 30 mm
2.
3.
Fig. 10
1. Mark the position of the roof hooks. For dimen-
sions, see page 11 and chapter "Distribution of roof
hooks or mounting brackets" from page 6
2. Remove slates from the roof at the hook contact
points.
3. Secure the roof hooks to the roof surface with
screws. Fit commercially available lead flashing to
protect against the ingress of moisture.
4. Cover the roof.
5. Continue with chapter "Fitting the mounting rails"
on page 16.
Fitting roof hooks for corrugated sheet roof cover
7 8
119
94
Fig. 11
7Roof hook for corrugated sheet profiles 5 and 6
8Roof hook for corrugated sheet profile 8
7,8
2.
3.
Fig. 12
1. Mark the position of the roof hooks. For dimen-
sions, see diagrams on pages 11 and 6 or 8
2. Position the roof hook on the corrugation of the
sheet, at the same height as a batten. Drill a hole
in the crest of the corrugation, through the hole in
the roof hook.
3. Secure the roof hooks with screws 7 8 mm and
sealing washers (on-site provision) to the battens.
4. Continue with chapter "Fitting the mounting rails"
on page 16.
Fitting roof hooks (cont.)
5698338

14
Fitting roof hooks for plain tiled roof cover
4 9
325

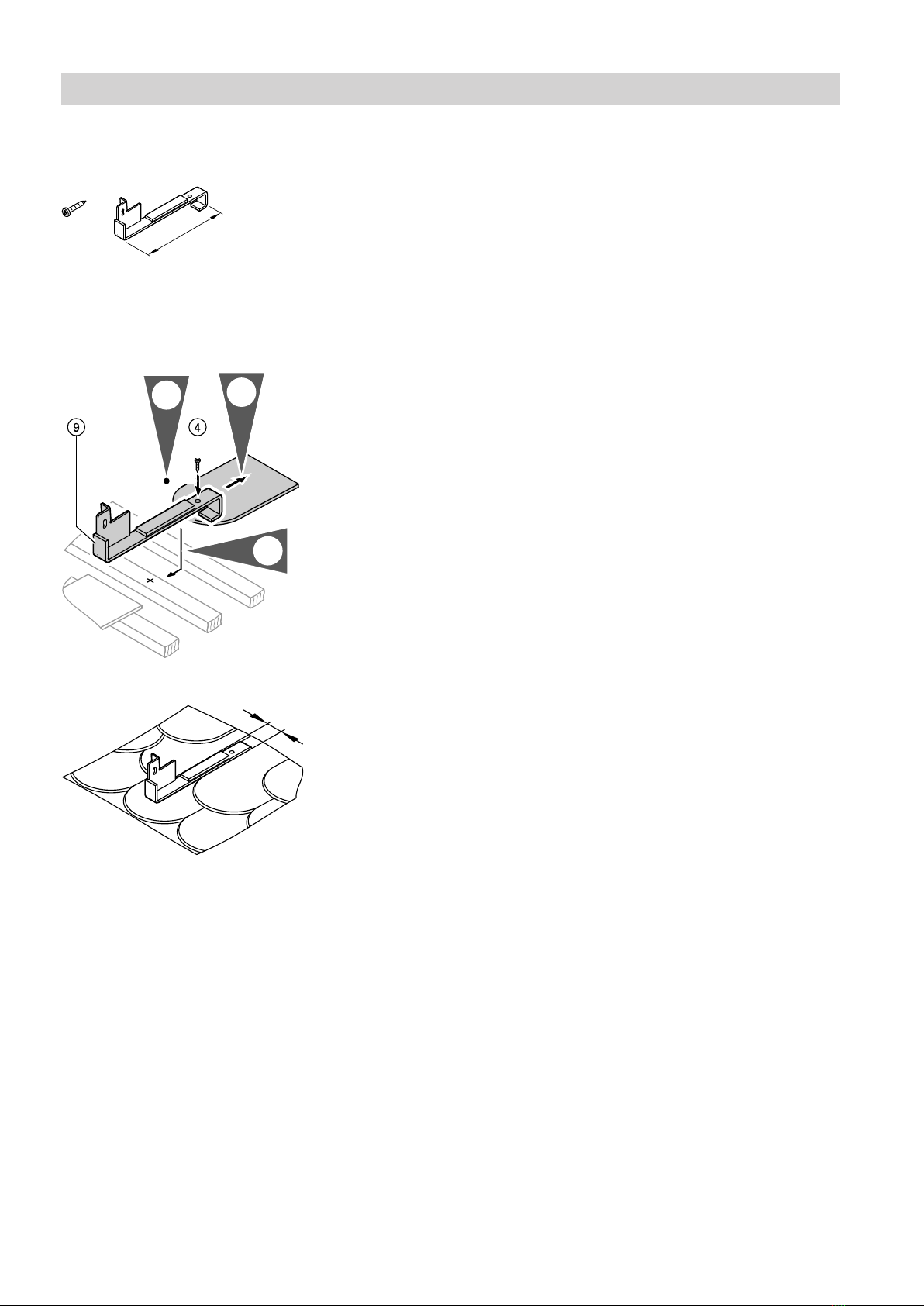

Fig. 13
9Roof hook
4Zinc-plated countersunk chipboard screw (Spax-s)
5 x 30 mm
2.
4.
3.
Fig. 14
1. Mark the position of the roof hooks. For dimen-
sions, see page 11 and chapter "Distribution of roof
hooks or mounting brackets" from page 6
2. Remove roof tiles from the roof at the hook contact
points.
3. Hook the roof hooks onto the battens, position
them on the roof tiles below and align.
4. Secure the roof hooks to the battens with screws.
30
Fig. 15
5. Cover the roof: Adjust the roof tile using an angle
grinder. Trim approx. 30 mm from the roof tile.
6. Continue with chapter "Fitting the mounting rails"
on page 16.
Fitting roof hooks (cont.)
5698338

15
(for example on sheet steel roofs)
qP
Fig. 16
qP Mounting bracket
Fig. 17
AInstallation of mounting brackets
BCollector
CMounting rail
Type a mm b mm c mm
SV 2380 1900–2100 ≥2400
SH 1056 450–850 ≥1077
Fig. 18
Secure mounting brackets on site with a screw to the
substructure. For dimensions, see Fig. 17 and chapter
"Distribution of roof hooks or mounting brackets" from
page 6.
Fitting mounting brackets
5698338

16

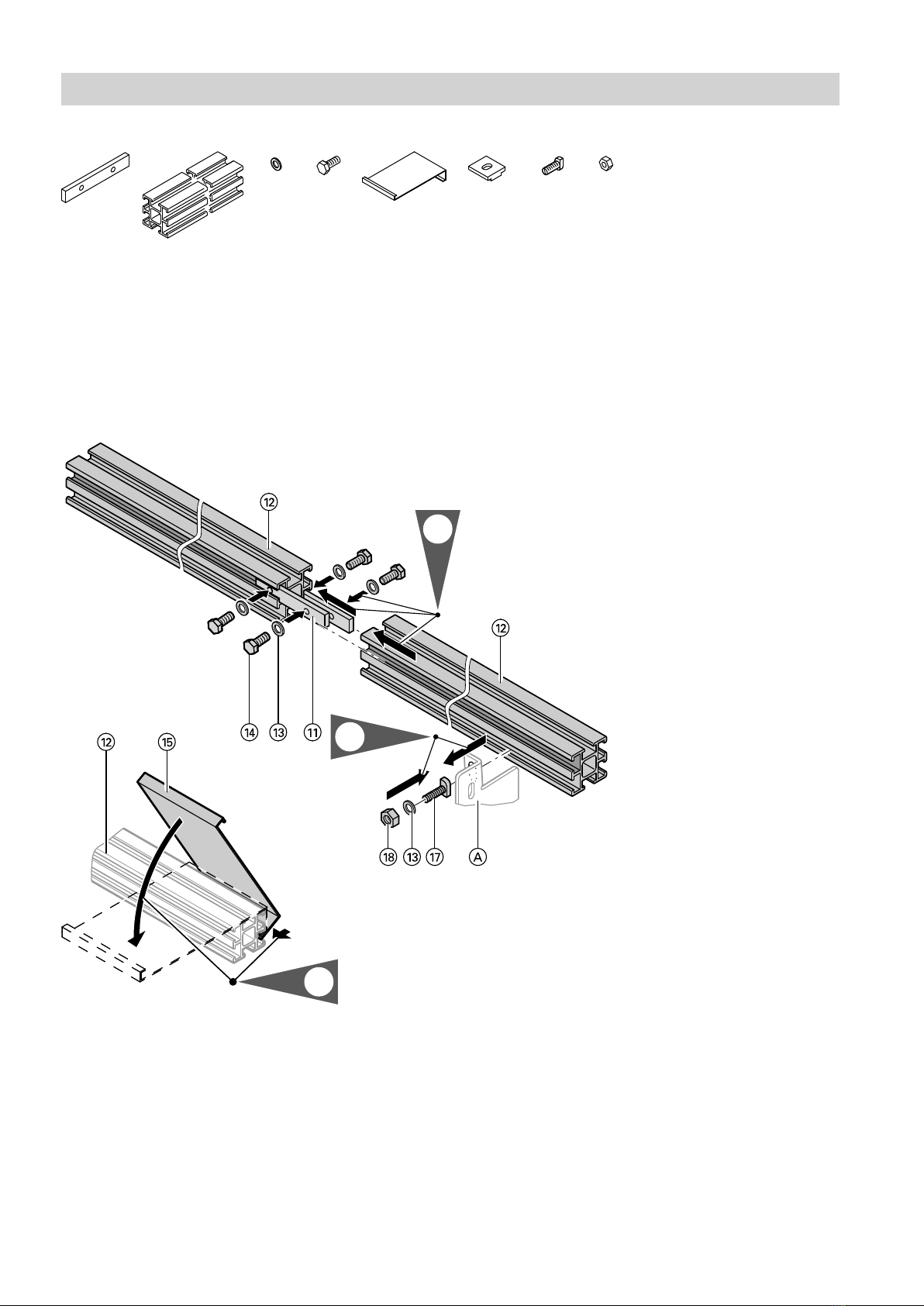

qE qR qT qZ qU qIqQ qW
Fig. 19
For all types of roof
qQ Connecting part
qW Mounting rail
■Type SV: 1098 or 2175 mm
■Type SH: 2422 mm
qE Washer
qR Hexagon bolt M 8 x 10
qT Mounting plate
qZ Clamping bracket
qU Tee slot bolt
qI Hexagon nut M 8
Turn tee slot bolts through 90° for all installation steps.
2.
1.
3.
Fig. 20
ARoof hook or mounting bracket
1. Secure the connecting parts to the mounting rails
with screws.
2. Align the mounting rails and secure to the roof
hooks or mounting brackets.
3. Click the mounting plates into place in the lower
mounting rails as per the following dimensions.
Fitting mounting rails
5698338

17
Distribution of mounting plates
n
130
op
130
p
130
on
Fig. 21
ALower mounting rail
No. 1 2 3 4 5 6 8 10
n mm 178.5 198.5 199 199 209.5 209.5 220 230.5
o mm 741 824 834 834 834 834 834 834
p mm — — 947 947 947 947 947 947
Installing collectors
Component overview
wR
wW wE
wT wZ wU wI wO
wP
qO
eP
wQ
Fig. 22
Accessories for one collector array
qO Connection pipe
Connection set:
wP Profile clip
wQ Cap
wW Connection pipe (long)
wE Connection pipe (short)
wR Plug
wT Locking ring fitting (90° elbow), 7 22 mm
wZ Support sleeve
Accessories for one solar thermal system
wZ Support sleeve
wU Locking ring fitting
(tee), 7 22 mm
wI Sensor well
wO Strain relief fitting
eP Thermal insulation
Fitting mounting rails (cont.)
5698338

18
Turn tee slot bolts through 90° for all installation steps.
qT qO
qO
3.
3.
A
4x
wQ
8.
1.
5.
4.
21 r
r
qZ
qE
qI
qU
qW
2.

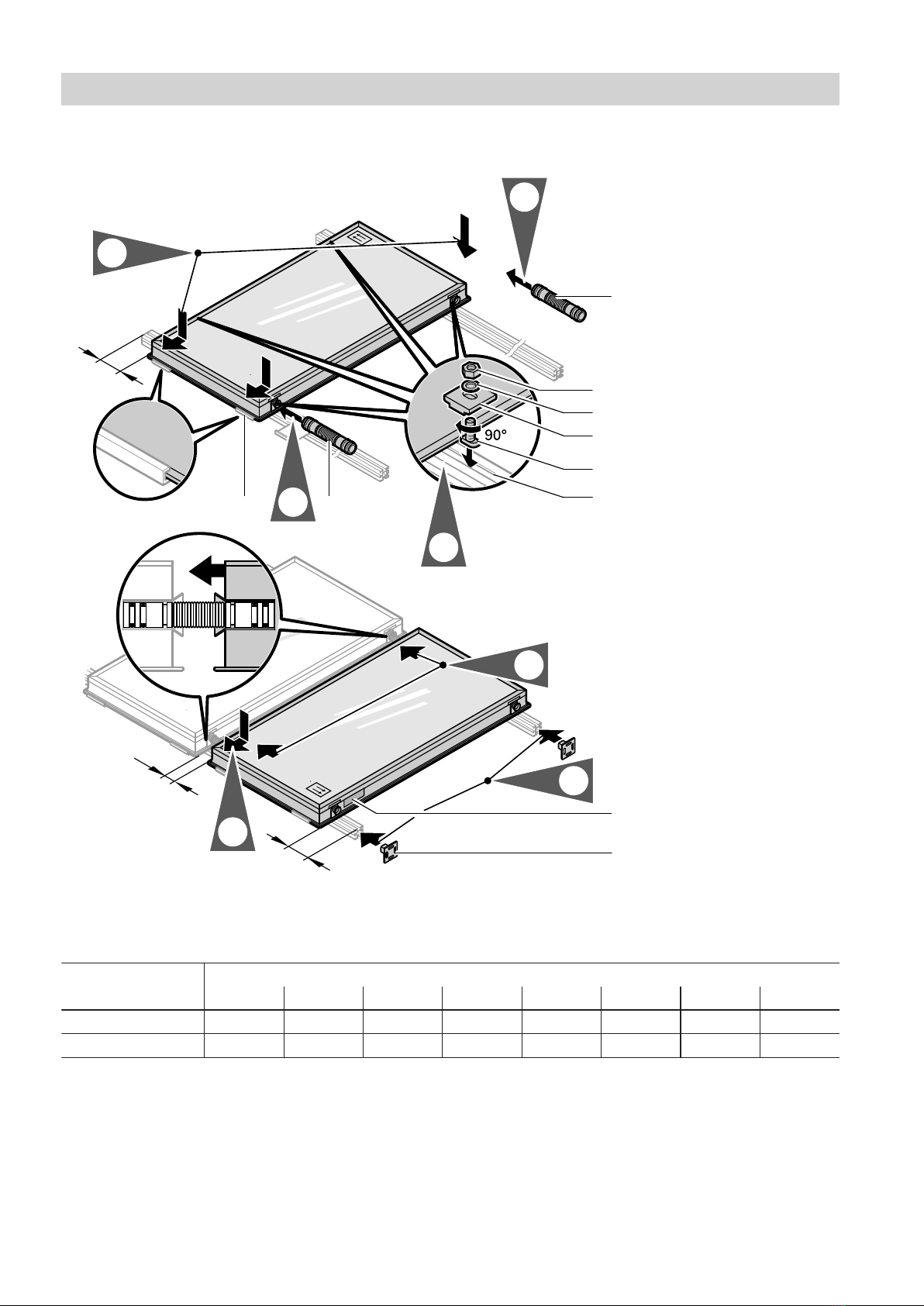

Fig. 23
AType plate
Dim. r
Number of collectors
Type 1 2 3 4 5 6 8 10
SV mm 21 21 31.5 31.5 42 42 52.5 63
SH mm 21 31.5 42 52.5 63 73.5 94.5 115.5
The connection pipes must be free of any signs of
damage.
Lubricate all push-fit connections (O-rings) found on
the collectors only with the special grease supplied
with the connection set.
The side with the type plate must be on the outside of
the first and last collector.
On just one of the collectors, fit the pipework at the
side opposite the type plate side.
1. Hook the collector into the mounting plates and
position on the mounting rails.
2. Screw the collector with 4 clamping brackets to the
mounting rails.
Installing collectors (cont.)
5698338

19
3. Guide the connection pipes into the flow and return
connections.
4. Hook in the next collector.
5. Push the next collector carefully against the first
and insert the connection pipes.
Distance to the lower edge of the fitted collector
21 mm.
6. Install additional collectors.
7. Tighten all clamping brackets.
8. Fit the caps (part of the connection set).
Fitting the connection set and collector temperature sensor
Observe the following when installing the locking ring
fitting:
■All pipes must be cut at right angles and deburred.
■Push the union nut and locking ring onto the pipes.
Lightly lubricate the threads with oil.
■Push the pipe into the locking ring fitting as far as it
will go.
■Initially tighten union nut by hand, then tighten with
an open-ended spanner by a further ¾ revolution.
Never fit annealed copper pipes onto the locking ring
fittings.
Installing collectors (cont.)
5698338

20
2.
1.
2.
1.
wT
wW
wP
wU
eP
wI
wO
A
wZ
wP
wR
B
wP
wW
C
D
wE
6.
7.
4. 8.
3.
9. 5.
Fig. 24
AFlow connection
BReturn connection
CFlared coupling
DType plate
1. Insert the sealing plugs as far as they will go.
Secure with profile clips.
2. Insert the connection pipes as far as they will go.
Secure with profile clips.
3. Fit the elbow to the return connection.
4. Fit the tee to the flow connection.
5. Insert the sensor well into the tee, counterholding
the tee.
6. Insert the strain relief into the sensor well.
7. Guide the collector temperature sensor as far as
possible into the sensor well and secure with strain
relief.
8. Insert support sleeves in the solar circuit pipework.
Make the connection between the collector array
and the solar circuit pipework.
9. Fit thermal insulation and affix to the cut edges.
Covering the collector
Commission the solar thermal system as quickly as
possible once the collectors have been installed.
To reliably prevent steam hammer, the collectors must
be cold when filled. Cover the collector arrays.
In the delivered condition, the collectors are covered
with a protective film for this purpose. Remove this
protective film no later than 4 weeks following col-
lector installation.
Fitting the connection set and collector… (cont.)
5698338
