Viessmann VITOSOL-F User manual

Installation instructions
for contractors
VIESMANN

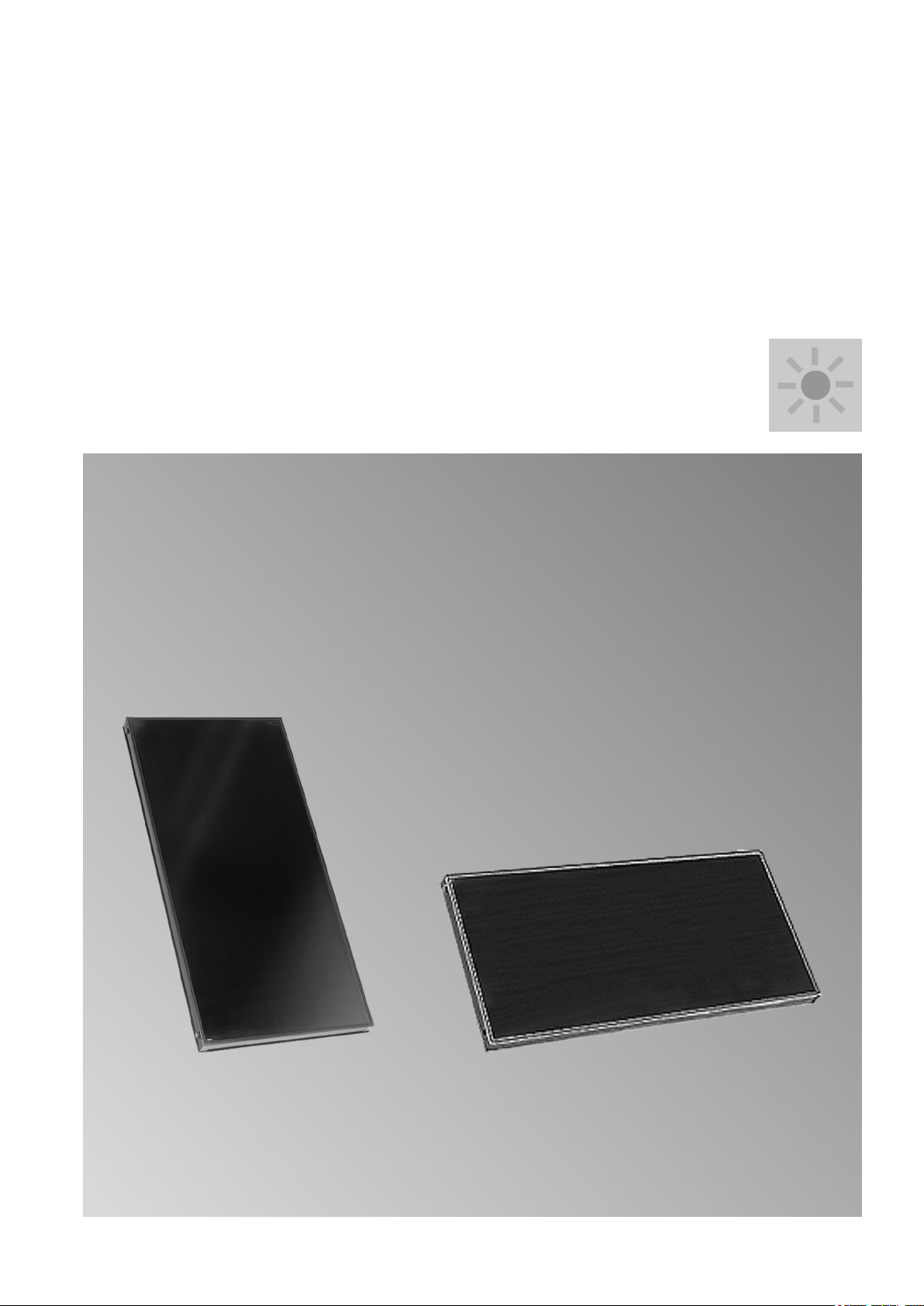

Vitosol-F/-FM
Type SV and SH
Flat-plate collector for pitched roofs
Above roof installation with rafter anchors or mounting brackets
VITOSOL-F/-FM
5698324 GB/en 9/2017 Dispose after installation.

2
Please follow these safety instructions closely to
prevent accidents and material losses.
Safety instructions explained
!Please note
This symbol warns against the risk of material
losses and environmental pollution.
Note
Details identified by the word "Note" contain additional
information.
Target group
These instructions are exclusively intended for author-
ised contractors.
■Work on electrical equipment must only be carried
out by a qualified electrician.
Regulations to be observed
■National installation regulations
■Statutory regulations for the prevention of accidents
■Statutory regulations for the protection of the envi-
ronment
■Codes of practice of the relevant trade associations
■All relevant safety regulations as defined by DIN, EN,
DVGW, VDE and locally applicable standards
aÖNORM, EN and ÖVE
cSEV, SUVA, SVTI, SWKI and SVGW
Working on the system
■Isolate the system from the power supply (e.g. by
removing the separate fuse or by means of a mains
isolator) and check that it is no longer 'live'.
■Safeguard the system against reconnection.
Safety instructions
5698324

3
1. Information Disposal of packaging ............................................................................ 4
Symbols ................................................................................................. 4
Intended use .......................................................................................... 5
2. Preparing for installation Observe prior to installation ................................................................... 6
■Type SV (vertical collectors) ............................................................... 6
■Type SH (horizontal collectors) ........................................................... 8
3. Installation sequence Installation with rafter anchors ............................................................... 11
■Components ....................................................................................... 11
■Installation .......................................................................................... 12
Installation with mounting brackets ........................................................ 17
■Components ....................................................................................... 17
■Installation .......................................................................................... 18
Installing the collectors .......................................................................... 20
Connecting the collectors ...................................................................... 22
Covering the collector array ................................................................... 23
Installation .............................................................................................. 23
Commissioning ...................................................................................... 24
Index
5698324

4
Disposal of packaging
Please dispose of packaging waste in line with statu-
tory regulations.
DE: Use the disposal system organised by
Viessmann.
AT: Use the ARA statutory disposal system (Altstoff
Recycling Austria AG, licence number 5766).
CH: Packaging waste is disposed of by the HVAC
contractor.
Symbols
Symbol Meaning
Reference to other document containing
further information
1.
Step in a diagram:
The numbers correspond to the order in
which the steps are carried out.
Warning of material losses and environ-
mental pollution
Live electrical area
Pay particular attention.
■Component must audibly click into place.
or
■Acoustic signal
■Fit new component.
or
■In conjunction with a tool: Clean the sur-
face.
Dispose of component correctly.
Dispose of component at a suitable collec-
tion point. Do not dispose of component in
domestic waste.
Disposal of packaging
5698324

5
The appliance is only intended to be installed and
operated in sealed unvented systems that comply with
EN 12828 / DIN 1988, or solar thermal systems that
comply with EN 12977, with due attention paid to the
associated installation, service and operating instruc-
tions. DHW cylinders are only designed to store and
heat water of potable water quality. Heating water buf-
fer cylinders are only designed to hold fill water of pot-
able water quality. Only operate solar collectors with
the heat transfer medium approved by the manufac-
turer.
Intended use presupposes that a fixed installation in
conjunction with permissible, system-specific compo-
nents has been carried out.
Commercial or industrial usage for a purpose other
than heating the building or DHW shall be deemed
inappropriate.
Any usage beyond this must be approved by the man-
ufacturer for the individual case.
Incorrect usage or operation of the appliance (e.g. the
appliance being opened by the system user) is prohibi-
ted and results in an exclusion of liability.
Incorrect usage also occurs if the components in the
system are modified from their intended use (e.g.
through direct DHW heating in the collector).
Adhere to statutory regulations, especially concerning
the hygiene of potable water.
Intended use
5698324

6
For each number of collectors, there is a specific allo-
cated number of rafter anchors or mounting brackets
(for use on sheet steel roofs).
The spacing between rafters and the potential snow
loads dictate how many rafters need to be used for the
installation.
The following tables specify which rafters the rafter
anchors or mounting brackets should be secured to.
Example:
■2 collectors type SV
■Rafter spacing a 600 mm
■Snow load 0.75 N/m2
Of the 4 rafters, the following are used:
Rafters 1 and 4
a
=
A
=
B

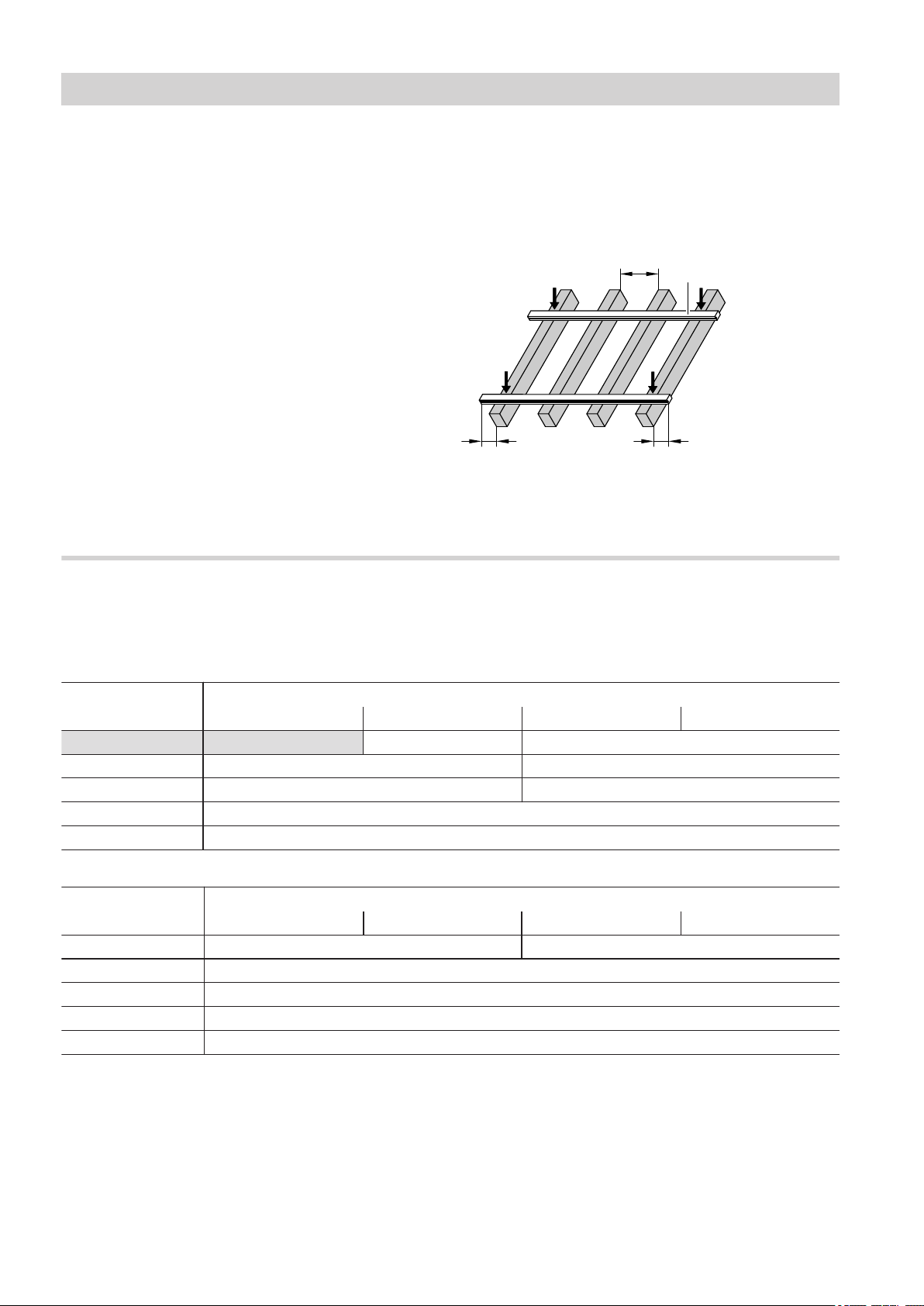

Fig. 1
APosition of rafter anchors
BMounting rails
Type SV (vertical collectors)
1 collector
2 rafters are required for all snow loads.
2 collectors
Rafter spacing in
mm
Snow load in kN/m2
≤ 0.75 > 0.75/ ≤ 1.25 > 1.25/ ≤ 2.55 > 2.55/ ≤ 4.80
≤ 600 1, 4 1, 3, 4 1, 3, 4
≤ 700 1, 3 1, 2, 3
≤ 800 1, 3 1, 2, 3
≤ 900 1, 2, 3
≤ 1000 1, 2, 3
3 collectors
Rafter spacing in
mm
Snow load in kN/m2
≤ 0.75 > 0.75/ ≤ 1.25 > 1.25/ ≤ 2.55 > 2.55/ ≤ 4.80
≤ 600 1, 3, 5 1, 3, 4, 6
≤ 700 1, 2, 4, 5
≤ 800 1, 2, 4, 5
≤ 900 1, 2, 3, 4
≤ 1000 1, 2, 3, 4
Observe prior to installation
5698324

7
4 collectors
Rafter spacing in
mm
Snow load in kN/m2
≤ 0.75 > 0.75 ≤ 1.25 > 1.25 ≤ 2.55 > 2.55 ≤ 4.80
≤ 600 1, 4, 5, 8 1, 3, 4, 5, 6, 8
≤ 700 1, 3, 4, 6 1, 3, 4, 5, 7
≤ 800 1, 3, 4, 6 1, 2, 3, 4, 5, 6
≤ 900 1, 2, 3, 4, 5
≤ 1000 1, 2, 3, 4, 5
5 collectors
Rafter spacing in
mm
Snow load in kN/m2
≤ 0.75 > 0.75/ ≤ 1.25 > 1.25/ ≤ 2.55 > 2.55/ ≤ 4.80
≤ 600 1, 3, 4, 6, 7, 8, 10
≤ 700 1, 2, 4, 5, 6, 8
≤ 800 1, 2, 4, 5, 7 1, 2, 3, 4, 5, 6, 7
≤ 900 1, 2, 3, 4, 5, 6, 7
≤1000 1, 2, 3, 4, 5, 6
6 collectors
Rafter spacing in
mm
Snow load in kN/m2
≤ 0.75 > 0.75/ ≤ 1.25 > 1.25/ ≤ 2.55 > 2.55/ ≤ 4.80
≤ 600 1, 3, 4, 6, 7, 9, 11
≤ 700 1, 2, 4, 5, 6, 7, 9, 10
≤ 800 1, 2, 4, 5, 6, 8, 9
≤ 900 1, 2, 3, 4, 5, 6, 7, 8
≤ 1000 1, 2, 3, 4, 5, 6, 7
8 collectors
Rafter spacing in
mm
Snow load in kN/m2
≤ 0.75 > 0.75/ ≤ 1.25 > 1.25/ ≤ 2.55 > 2.55/ ≤ 4.80
≤ 600 1, 2, 4, 6, 7, 9, 11, 12, 15 1, 2, 4, 6, 7, 9, 11, 12, 13, 15
≤ 700 1, 2, 4, 5, 6, 7, 9, 10, 11, 13
≤ 800 1, 2, 3, 4, 5, 6, 8, 9, 11 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11
≤ 900 1, 2, 3, 4, 5, 6, 7, 8, 9, 10
≤1000 1, 2, 3, 4, 5, 6, 7, 8, 9
10 collectors
Rafter spacing in
mm
Snow load in kN/m2
≤ 0.75 > 0.75/ ≤ 1.25 > 1.25/ ≤ 2.55 > 2.55/ ≤ 4.80
≤ 600 1, 3, 5, 6, 7, 8, 10, 11, 12, 14, 15, 16, 17, 19
≤ 700 1, 2, 4, 5, 6, 7, 9, 10, 11, 13, 14, 16 1, 2, 4, 5, 6, 7, 9, 10, 11, 12, 13, 14, 16
≤ 800 1, 2, 4, 5, 6, 8, 9, 10, 11, 12, 13, 14 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11.12, 13, 14
≤ 900 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13
≤ 1000 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11
Observe prior to installation (cont.)
5698324

8
Type SH (horizontal collectors)
With 3 collectors or more, the distribution of the rafter
anchors on the upper and lower mounting rail may
vary.
1 collector
Rafter spacing in
mm
Snow load in kN/m2
≤ 1.25 > 1.25/ ≤ 2.55
≤ 600 1, 4
≤ 700 1, 4
≤ 800 1, 3
≤ 900 1, 3
≤ 1000 1, 3
2 collectors
Rafter spacing in
mm
Snow load in kN/m2
≤ 1.25 > 1.25/ ≤ 2.55
≤ 600 1, 4, 5, 8
≤ 700 1, 4, 7
≤ 800 1, 3, 4, 6
≤ 900 1, 3, 4, 6
≤ 1000 1, 3, 5
3 collectors
Rafter spacing in
mm
Mounting rail Snow load in kN/m2, to
≤ 1.25 > 1.25/ ≤ 2.55
≤ 600 1, 5, 9, 13
≤ 700 bottom 1, 4, 8, 11 1, 4, 5, 7, 8, 11
top 1, 4, 8, 11
≤ 800 1, 4, 7, 10
≤ 900 bottom 1, 4, 6, 9 1, 3, 4, 6, 7, 9
top 1, 4, 6, 9
≤ 1000 bottom 1, 3, 6, 8 1, 3, 4, 5, 6, 8
top 1, 3, 6, 8
4 collectors
Rafter spacing in
mm
Mounting rail Snow load in kN/m2
≤ 1.25 > 1.25/ ≤ 2.55
≤ 600 1, 5, 9, 13, 17
≤ 700 1, 4, 7, 8, 11.14
≤ 800 1, 4, 7, 10, 13
≤ 900 bottom 1, 3, 6, 9, 11 1, 3, 4, 6, 8, 9, 11
top 1, 3, 6, 9, 11
≤ 1000 1, 3, 5, 6, 8, 10
Observe prior to installation (cont.)
5698324

9
5 collectors
Rafter spacing in
mm
Mounting rail Snow load in kN/m2, to
≤ 1.25 > 1.25/ ≤ 2.55
≤ 600 1, 5, 9, 13, 17, 21
≤ 700 bottom 1, 4, 8, 11, 15, 18 1, 4, 5, 8, 11.14, 15, 18
top 1, 4, 8, 11, 15, 18
≤ 800 1, 4, 7, 10, 13, 16
≤ 900 bottom 1, 3, 6, 9, 12, 14 1, 3, 4, 6, 9, 11, 12, 14
top 1, 3, 6, 9, 12, 14
≤ 1000 bottom 1, 3, 6, 8, 11, 13 1, 3, 4, 6, 8, 10, 11, 13
top 1, 3, 6, 8, 11, 13
6 collectors
Rafter spacing in
mm
Mounting rail Snow load in kN/m2
≤ 1.25 > 1.25/ ≤ 2.55
≤ 600 1, 5, 9, 13, 17, 21, 25
≤ 700 1, 4, 7, 8, 11, 14, 15, 18, 21
≤ 800 1, 4, 7, 10, 13, 16, 19
≤ 900 bottom 1, 4, 6, 9, 12, 14, 17 1, 3, 4, 6, 7, 9, 11, 12, 14, 15, 17
top 1, 4, 6, 9, 12, 14, 17
≤ 1000 1, 3, 5, 6, 8, 10, 11, 13, 15
8 collectors
Rafter spacing in
mm
Mounting rail Snow load in kN/m2
≤ 1.25 > 1.25/ ≤ 2.55
≤ 600 1, 5, 9, 13, 17, 21, 25, 29, 33
≤ 700 bottom
1, 4, 8, 11, 14, 15, 18, 21, 25, 28
1, 4, 7, 8, 11, 14, 15, 18, 21, 22, 25,
28
top 1, 4, 8, 11, 14, 15, 18, 21, 25, 28
≤ 800 1, 4, 7, 10, 13, 16, 19, 22, 25
≤ 900 bottom
1, 3, 6, 9, 11, 12, 14, 17, 20, 22
1, 3, 4, 6, 9, 11, 12, 14, 17, 19, 20,
22
top 1, 3, 6, 9, 11, 12, 14, 17, 20, 22
≤ 1000 bottom
1, 3, 6, 8, 10, 11, 13, 15, 18, 20
1, 3, 5, 6, 8, 10, 11, 13, 15, 16, 18,
20
top 1, 3, 6, 8, 10, 11, 13, 15, 18, 20
Observe prior to installation (cont.)
5698324

10
10 collectors
Rafter spacing in
mm
Mounting rail Snow load in kN/m2
≤ 1.25 > 1.25/ ≤ 2.55
≤ 600 1, 5, 9, 13, 17, 21, 25, 29, 33, 37, 41
≤ 700 bottom 1, 4, 8, 11, 15, 18, 21, 25, 28, 32,
35
1, 4, 5, 8, 11, 14, 15, 18, 21, 22, 25,
28, 31, 32, 35
top 1, 4, 8, 11, 15, 18, 21, 25, 28, 32, 35
≤ 800 1, 4, 7, 10, 13, 16, 19, 22, 25, 28, 31
≤ 900 bottom 1, 3, 6, 9, 11, 14, 17, 19, 22, 25, 27 1, 3, 6, 8, 9, 11, 12, 14, 16, 17, 19,
20, 22, 25, 27
top 1, 3, 6, 9, 11, 14, 17, 19, 22, 25, 27
≤ 1000 bottom 1, 3, 6, 8, 10, 11, 13, 15, 16, 18, 20,
23, 25
1, 3, 4, 6, 8, 10, 11, 13, 15, 16, 18,
20, 22, 23, 25
top 1, 3, 6, 8, 10, 11, 13, 15, 16, 18, 20,
23, 25
Observe prior to installation (cont.)
5698324

11

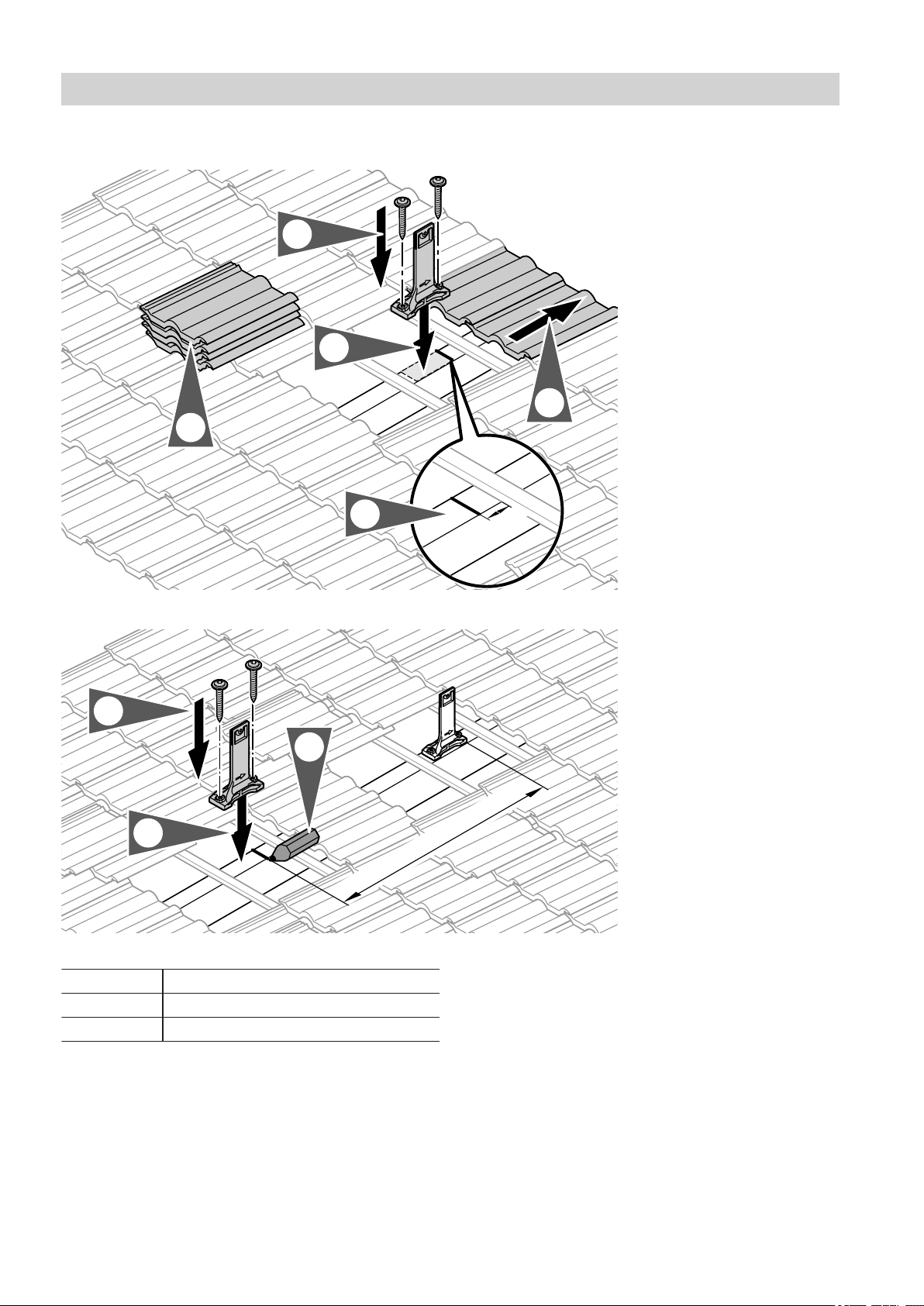

Components
Ø 8.4M8 M8x25
A
Fig. 2

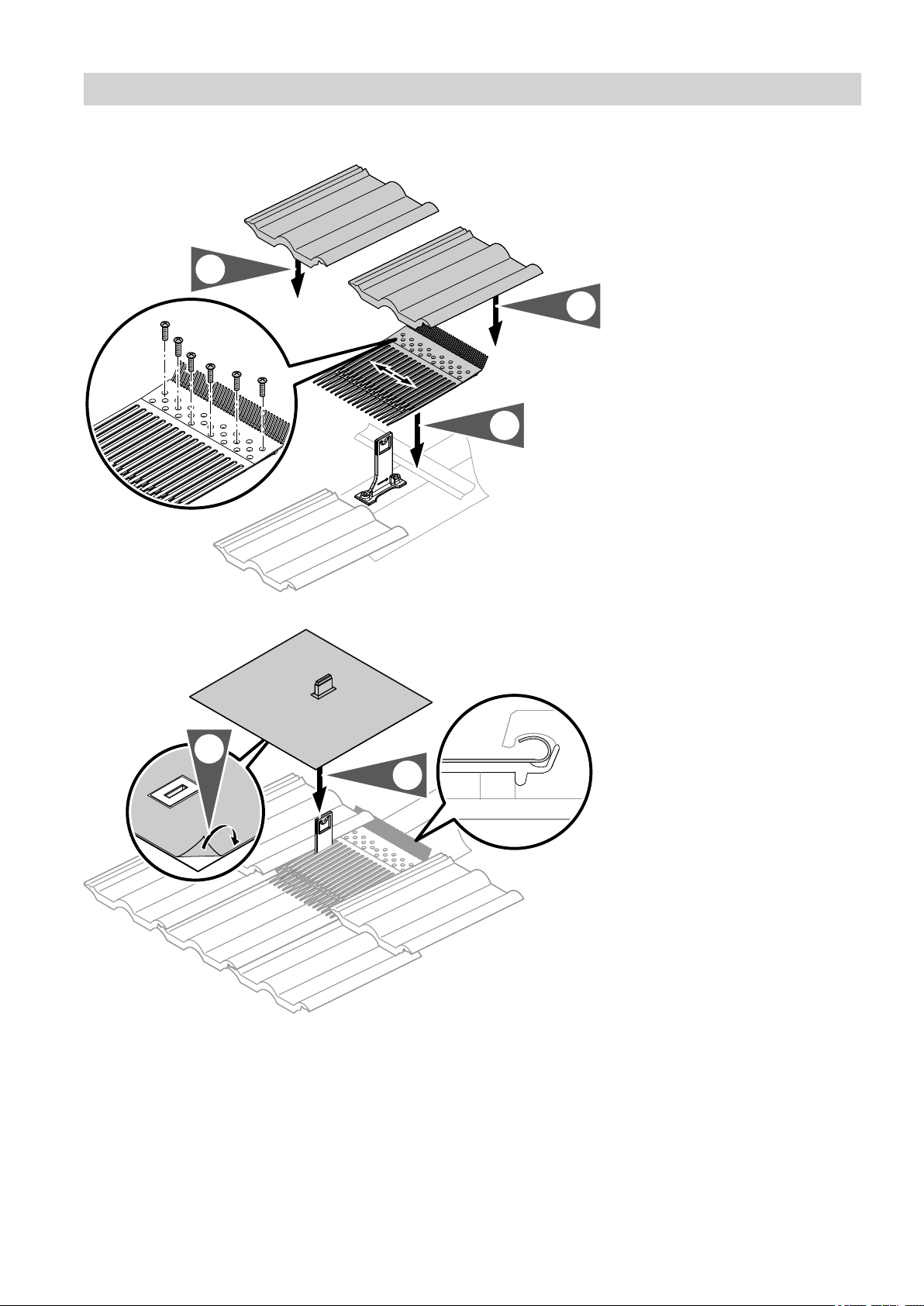

APlastic replacement tile, if the existing tiles are not
to be cut.
Use only on roofs with a pitch of at least 12°.
B
Fig. 3
BSupporting rails:
For type SV with snow loads of 4.80 kN/m2
Installation with rafter anchors
5698324

12
Installation
3.
1.
5.
4.
2.
≈ 40

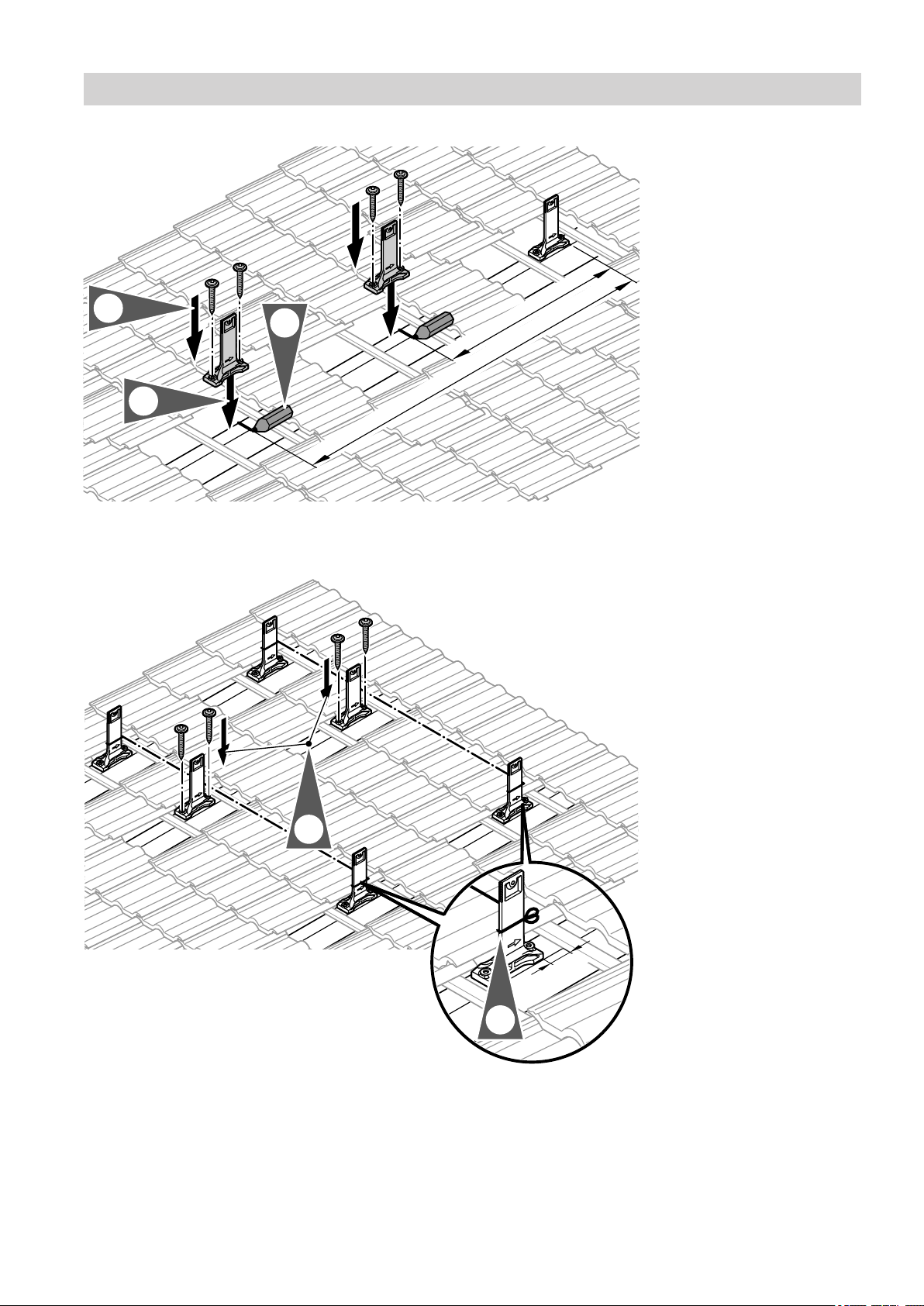

Fig. 4
6.
7.
a
8.
Fig. 5
Type a in mm
SV 1650 – 1900
SH 600 – 700
Installation with rafter anchors (cont.)
5698324

13
Only for type SV with snow loads of 4.80 kN/m2
6.
7.
a
b
8.
Fig. 6 Fit 3 rafter anchors one above the other;
average out dimension b.
10.
9.
≈ 40
Fig. 7
Installation with rafter anchors (cont.)
5698324

14
Installation with trimmed tiles
11.
12.
Fig. 8
14.
13.
Fig. 9
Continue with step 16 on page 16.
Installation with rafter anchors (cont.)
5698324

15
Installation with plastic replacement tiles
12.
13.
11.
Fig. 10
15.
14.
Fig. 11
Installation with rafter anchors (cont.)
5698324

16
16.
Fig. 12
18.
c
90 °
4x
17.
19.
Fig. 13

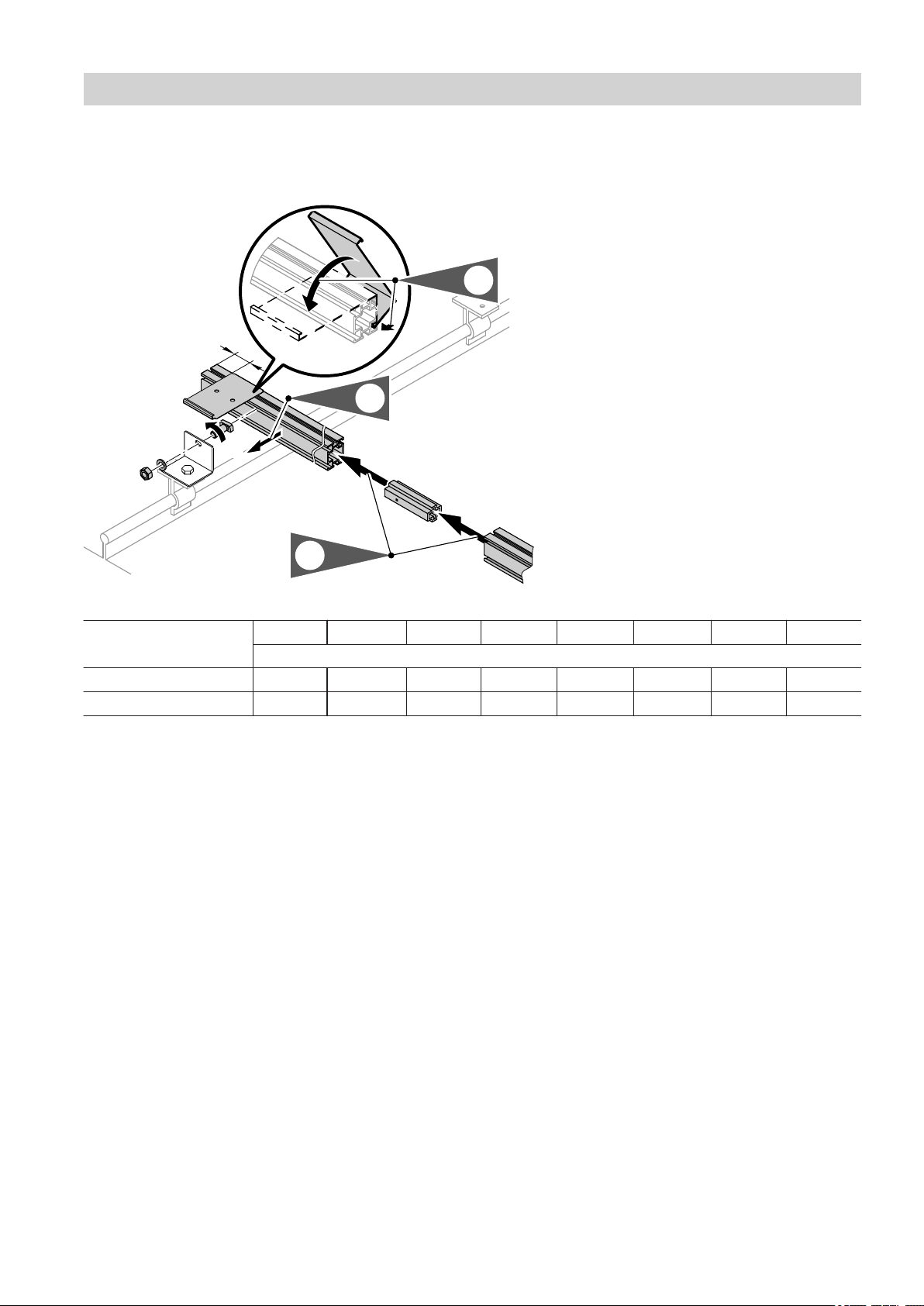

Number of collectors 1 2 3 4 5 6 8 10
c in mm
Type SV 99 100 86 124 125 126 150 174
Type SH 117 134 152 169 187 204 239 274
Continue with "Installing the collectors" (see
page 20).
Installation with rafter anchors (cont.)
5698324

17
Note for type SV
For snow loads of 4.80 kN/m2 supporting rails must be
fitted; see diagram below.
20.
Ø 8.5
21.
90 °
Fig. 14
Continue with "Installing the collectors" (see
page 20).
Installation with mounting brackets
E.g. installation on sheet steel roofs.

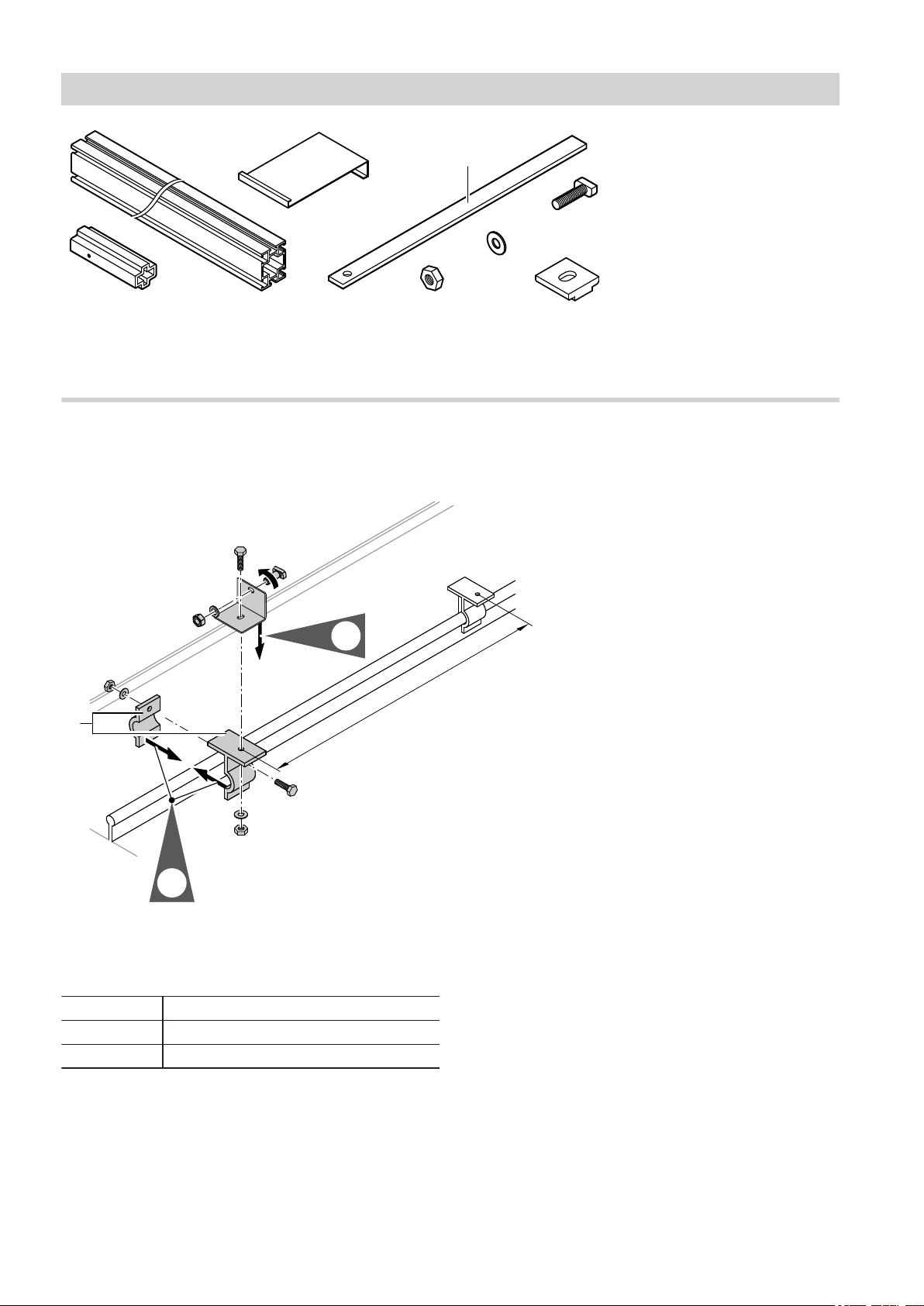

Components
M8x25 Ø8,4M8
Fig. 15
Installation with rafter anchors (cont.)
5698324

18
B
Fig. 16
BSupporting rails:
For type SV with snow loads of 4.80 kN/m2
Installation
On-site fixings A are required for securing the mount-
ing brackets (see diagram below).
The installation of the mounting bracket is shown using
standing seam profiles as an example.
90 °
2.
A
a
1.
Fig. 17
Note on step 1:
Screws to be provided on site
Type a in mm
SV 1650 – 1900
SH 600 – 700
The horizontal arrangement of the mounting brackets
depends on the rafter spacing (see page 6 onwards).
All mounting brackets between the first and last
bracket must be in alignment with each other.
Installation with mounting brackets (cont.)
5698324

19
Note for type SV
For snow loads of 4.80 kN/m2, fit 3 mounting brackets
one above the other; see diagram on page 13.
90°
c
5.
3.
4.
Fig. 18
Number of collectors 1 2 3 4 5 6 8 10
c in mm
Type SV 99 100 86 124 125 126 150 174
Type SH 117 134 152 169 187 204 239 274
Installation with mounting brackets (cont.)
5698324

20
Note for type SV
For snow loads of 4.80 kN/m2 supporting rails must be
fitted; see diagram below.
Ø 8.5
90 °
6.
7.
Fig. 19
Installing the collectors
Fig. 20
Installation information
■The first and last collector must be positioned with
the type plate facing outwards (observe label).
■On just one of the collectors, fit the pipework at the
side opposite the type plate side.
!Please note
The connection pipes must be free of any signs
of damage.
Only use the special grease provided to lubri-
cate the O-rings.
Installation with mounting brackets (cont.)
5698324
