ViewSonic VMP30 User manual

VMP30
Digital Media Player
Model No.: VS12770
- User Guide
- Guide de l’utilisateur
- Guía del usuario
- Bedienungsanleitung
- Pyководство пользователя
- 使用手冊

iViewSonic VMP30
Compliance Information
CE Conformity for European Countries
The device complies with the EMC Directive 2004/108/EC and Low Voltage Directive 2006/95/EC.
Following information is only for EU-member states:
The mark is in compliance with the Waste Electrical and Electronic Equipment Directive 2002/96/EC (WEEE).
The mark indicates the requirement NOT to dispose the equipment including any spent or discarded batteries or
accumulators as unsorted municipal waste, but use the return and collection systems available.
If the batteries, accumulators and button cells included with this equipment, display the chemical symbol Hg, Cd, or
Pb, then it means that the battery has a heavy metal content of more than 0.0005% Mercury or more than, 0.002%
Cadmium, or more than 0.004% Lead.

iiViewSonic VMP30
Important Safety Instructions
1. Do not use the equipment near water.
2. Wipe the machine with a soft and dry cloth.
3. Do not block any vent holes. Please install the product in accordance with the manufacturer’s instructions.
4. Do not use the product on your legs for a long time because it gets hot and you may be burned.
5. Please avoid installing the product in a place where the temperature is above 40°C or lower than 0°C, or in a place
that is moist or wet.
6. Protect the power cord plug, outlet, and connections to other equipment from damage by trapping and squeezing.
7. Pleaseonlyusedevicesandaccessoriesspeciedbythemanufacturer.
8. The unit is hot pluggable. However it is recommended that the power be turned off before the memory card is
inserted or removed.
9. Do not remove the memory card during data access. The data may be lost and the product could be damaged.
10. Disconnect the power cord if the product will not be used for an extended period.
11. Donotrepair,disassemble,ormodifytheproduct.OnlyqualiedViewSonicpersonnelcancheckandrepairany
damage to the machine.
12. Theunauthorizedplayingofcertainaudioorimagelesmayinfringetherelatedcopyrightlawsundercertain
circumstances.
13. Do not adjust the volume to a high level, or the sounds may distort and become unpleasant.
14. When you view pictures for an extended period of time your eyes may become strained.
15. Careful attention should always be paid when moving the digital media player.
16. Make sure the place where the digital media player is placed is clean and dry.
17. If there is smoke, a strange smell or an abnormal noise, immediately turn off the digital media player and contact
yourdealerorViewSonic.

iiiViewSonic VMP30
Declaration of RoHS Compliance
This product has been designed and manufactured in compliance with Directive 2002/95/EC of the European Parliament
andtheCouncilonrestrictionoftheuseofcertainhazardoussubstancesinelectricalandelectronicequipment(RoHS
Directive) and is deemed to comply with the maximum concentration values issued by the European Technical Adaptation
Committee (TAC) as shown below:
Substance Proposed Maximum Concentration Actual Concentration
Lead (Pb) 0.1% < 0.1%
Mercury (Hg) 0.1% < 0.1%
Cadmium (Cd) 0.01% < 0.01%
Hexavalent Chromium (Cr6+) 0.1% < 0.1%
Polybrominated biphenyls (PBB) 0.1% < 0.1%
Polybrominated diphenyl ethers (PBDE) 0.1% < 0.1%
CertaincomponentsofproductsasstatedaboveareexemptedundertheAnnexoftheRoHSDirectivesasnotedbelow:
Examples of exempted components are:
1.Mercuryincompactuorescentlampsnotexceeding5mgperlampandinotherlampsnotspecicallymentionedinthe
AnnexofRoHSDirective.
2.Leadinglassofcathoderaytubes,electroniccomponents,uorescenttubes,andelectronicceramicparts(e.g.
piezoelectronic devices).
3. Lead in high temperature type solders (i.e. lead-based alloys containing 85% by weight or more lead).
4. Lead as an allotting element in steel containing up to 0.35% lead by weight, aluminium containing up to 0.4% lead by
weight and as a cooper alloy containing up to 4% lead by weight.

ivViewSonic VMP30
Copyright Information
Copyright©ViewSonicCorporation,2009.Allrightsreserved.
ViewSonic,thethreebirdslogo,OnView,ViewMatch,andViewMeterareregisteredtrademarksofViewSonicCorporation.
Disclaimer:ViewSonicCorporationshallnotbeliablefortechnicaloreditorialerrorsoromissionscontainedherein;norfor
incidental or consequential damages resulting from furnishing this material, or the performance or use of this product.
Intheinterestofcontinuingproductimprovement,ViewSonicCorporationreservestherighttochangeproduct
specicationswithoutnotice.Informationinthisdocumentmaychangewithoutnotice.
No part of this document may be copied, reproduced, or transmitted by any means, for any purpose without prior written
permissionfromViewSonicCorporation.
For Your Records
Product Name:
Model Number:
Document Number:
SerialNumber:
Purchase Date:
VMP30
ViewSonicDigitalMediaPlayer
VS12770
VMP30-P_UG_ENG Rev. 1A 07-08-09
__________________________________
__________________________________
Product disposal at end of product life
ViewSonicisconcernedaboutthepreservationofourenvironment.Pleasedisposeofthisproductproperlyattheendofits
useful life. Your local waste disposal company may provide information about proper disposal.

1ViewSonic VMP30
Table of Contents
Simple Operation ...................................................................................................2
Please read before operating the media player ..................................................4
End-user License Agreement ...............................................................................5
Precautions ............................................................................................................5
Functional Description ......................................................................................... 7
Packing List............................................................................................................8
Connection of signal and Memory Devices.........................................................8
Player Setup ...........................................................................................................9
Playing Operations ..............................................................................................10
1) Photo playing ................................................................................................10
2) Music playing ................................................................................................11
3) Movie playing ................................................................................................12
4) E-book playing ..............................................................................................13
Specications.......................................................................................................14
Appendix...............................................................................................................15
Customer Support ...............................................................................................16

2ViewSonic VMP30
Simple Operation

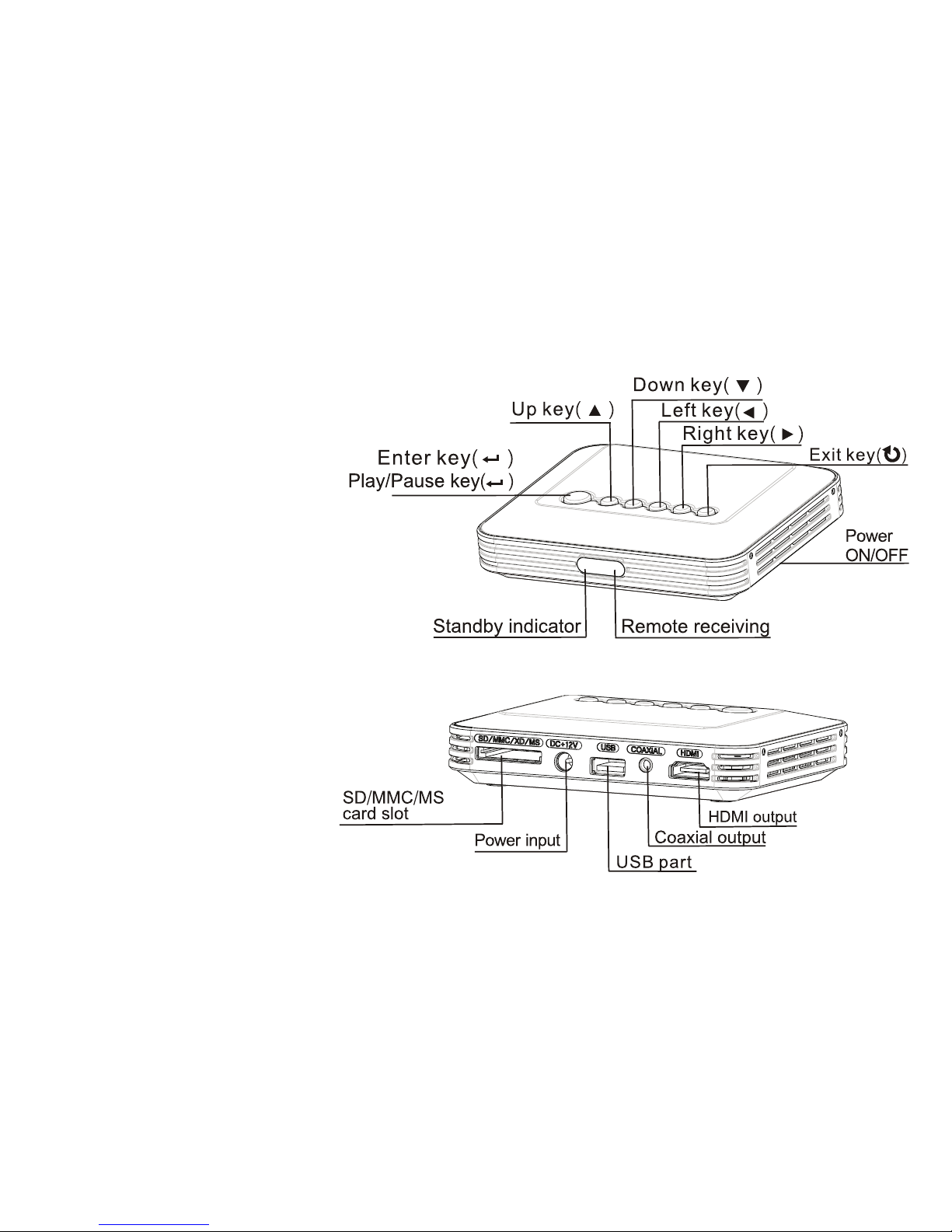

Front side
Rear side

3ViewSonic VMP30
Remote Control
1 11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
2
3
4
5
6
7
8
9
10

4ViewSonic VMP30
Please read before operating the media player

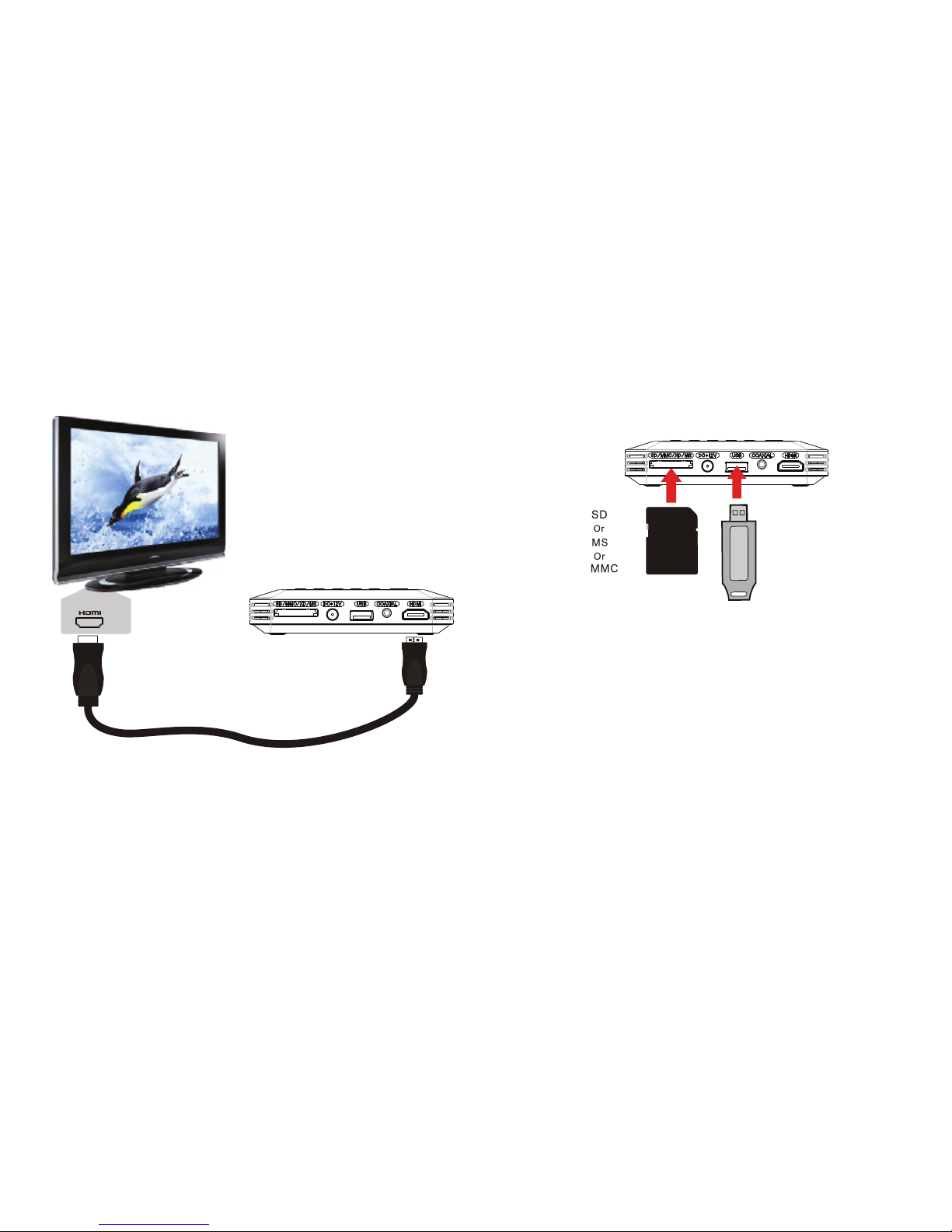

1. Connect device to TV with HDMI cable. 2. InsertUSBdeviceormemorycardwith
mediales
3. SelecttheTVsHDMIinputandpowerup
the media player, after a few seconds the
media player menu will be displayed"

5ViewSonic VMP30
End-user License Agreement
Please read this agreement carefully before using the product:
Please ensure:
1) Do not dismantle the product for improper purposes.
2) Unauthorized access to hardware or software will result in a voided warranty.
How to use this User Manual:
Please read the User Manual carefully before using the product. Our company is not liable for any direct
orindirectlossesarisingfromhardwaredamage,programdamage,lelossandsystembreakdowndue
to improper operations.
Precautions
Dear customer, thank you for purchasing this product. We hope this product will meet your expectations
and provide an enjoyable user experience. Please carefully read and pay special attention to the following
before using the product:
 ●Donotexposetheproducttomoistureordampenvironmentstopreventreorelectricshock.
 ●Thisproductisintendedforinternaluseonly,donotuseexternallywhereriskofmoistureingress
may occur as this could result in harm to the product or user.

6ViewSonic VMP30
Safety Instructions
1) Use only the supplied power adaptor.
2) Do not place the power cord and plug of the adapter near heat sources.
3) Do not place any weight on the power cord and plug of the adapter.
4) Do not dismantle or modify the adapter and its power cord.
5) Do not open the enclosure of the product to ensure your safety. Please ask service-trained profes-
sionals to conduct maintenance if necessary.
Maintenance Tips
1) The product is highly integrated and sophisticated, so only trained professionals are allowed to
open the product to prevent damage.
2) Do not dismantle components of the product on your own. The warranty will be invalidated auto-
matically if you dismantle or modify.
3) Please contact our local warranty department to arrange maintenance or repair if necessary.
4)Toreplacedevicesoraccessories,pleaseselecttheoriginalonesspeciedbythemanufacturer.

7ViewSonic VMP30
Functional Description
 ●HDMIdigitalinterfacewith720P/1080P(1920*1080)resolution.
 ●SupportH.264,MPEG1/2/4,DIVX,XVID,realHDformatsetc.
 ● SupportHDVideoformatssuchasTS,MKV,RM/RMVB,TP,AVI,VOB,DAT,MPG,MPEG,MOV
etc.
 ●SupportBTSC/A2/EIA-J,MPEG-1,MPEG-2(LayerI/II),AAC,HE-AACaudioformats.
 ●Read.TXTwithbackgroundmusic.SupportE-bookreading.
 ●720P/1080PoutputviaHDMIslot.
 ●Selectablecolourtemperaturemodes
 ●Selectableaudiomodes
 ●Selectablevideomodes
 ●Supportmulti-subtitlesandmulti-audiotracks.
 ●Fullfunctionremotecontrol.
 ●SupportSD/MMC/MScards.
 ●USB2.0Host.
 ●Coaxialdigitalaudiooutput.

8ViewSonic VMP30
Packing List
VMP30 Digital Media Player........1SET QSG.............................................1PCS
Remote control ............................ 1PCS Adapter........................................1PCS
HDMI cable..................................1PCS
In case of missing items, please feel free to contact your dealer without delay.
Connection of Signal and Memory Devices
1) The HDMI cable carries Video and Audio signals and can be connected directly to a suitable home
cinema receiver/processor.
2) To connect display device
Connect the HDMI cable to the corresponding HDMI input of the display device.
3) Connection to Memory Devices
a) TheplayerhasUSBHOSTinterface,whichcanbeusedforconnectingUSBashdevice,
externalHDDandotherUSBmemorydevices.
b) Theplayerhasa3inlcardslotcompatiblewithSD,MMC,MScards.

9ViewSonic VMP30
Player Setup
After connecting as described previously, turn on the player, then
it will start initialization (the green indicator will be illuminated),
and the screen will display “Loading…”. After the completion of
initialization, the main menu page will display, including photo,
music,movie,textandsettingicons.Press◄/►keyofRCto
select “Setting” icon, then it will show as below picture:
In this page, press ENTERkeytoconrm,andpressUP/DOWN
key to select icon, and press◄/►key to adjust data.
The parameter setup includes the following items:
 ●Language:SelectOSD8languages(English/TraditionalChinese/French/German/Italian/Spanish/
Polish/Russian)
●Repeat:Settherepeatmodes.ThereareRepeatAll/None/Selectforoptions.
 ●Slideshow speed:Setthepictureslideshowrefreshspeed,ThereareMedium/Slow/Fastforop-
tions.
 ●Movie screen:Setmovieaspectratio,Fullscreen/Normalratioforoption.
 ●Setting: 1080P or 720P .
 ●Restore Factory Default:FactoryDefault.

10ViewSonic VMP30
Playing Operations
1) Photo playing
Correctly insert memory device, In the main menu page, press ◄/►key to select “Photo” icon, then
allthelenamesinthisfolderwillbelisted,pressENTER key to enter folder and press UP/DOWN key
and ENTERkeytoselectdesiredletoplay.Pictureprolewillbeshownontherightofthescreen,and
preview starts in thumbnail window.
A. In the photo content page, you can
 ●Press UP/DOWNkeytoselect“UpFolder”,andpressENTER key to return to the previous menu page.
 ●Press / key to turn to previous or next page .
 ●PressUP/DOWN key to move the cursor to select desired picture.
 ●Press key to play single picture in full screen, and slideshow will start.
 ●Press MENU key to return to main menu page.
 ●Press SELECT key to select repeat playing function: when the cursor moves to the folder name.
Press ENTER key, it will pop up “select all” or “unselect”. Press ◄/► key to select, and Press EN-
TERkeytoconrm;ifthecursormovestothele,pressSELECT key to tick, player will repeat
playthetickedleuntilthetickiscanceled.
B. In the full-screen picture display status, you can
 ●PressMENUkeyor■keytoreturntothelescontentpage.
 ●Press key to pause slideshow, and display single picture. Press again to restart.
 ●Press / key to play previous/next picture.
 ●PressINFO key, the relevant information of the picture will be shown on the screen.

11ViewSonic VMP30
2) Music playing
In main menu, press ◄/► key to select “Music” icon, then press UP/DOWN key to choose folder. All the
available folder names will be listed. Press ENTER key to enter the desired folder. Press UP/DOWN key
and ENTERkeytochoosedesiredle.Audioleprolewillappearinbottomrightofdisplayandpreview
starts in thumbnail window. Press ENTER key to enter playing page. ID3 info, process bar, time and
frequencyspectrumwillappearinbottomrightofdisplay.Songscontentsaredisplayedontheleft.
A.Inmusiclecontentpage,youcan:
 ●Press UP/DOWNkeytoselect“UpFolder”,andpressENTER key to return to the previous menu
page.
 ●PressUP/DOWN key to move cursor, to select desired song by SELECT key.
 ●Press / key for previous/next page.
 ●PressENTER key to enter music playing mode.
 ●PressMENU key to return to main menu.
 ●Press key to play music and enter music playing mode.
B. In music playing mode, you can:
 ●PressMENUkeyor■keytoreturntolecontentpage.
 ●PressMUTE key to mute the sound. Press again to resume.
 ●Presskeytoplayorpausemusic.
 ●PressVOL+/- key to adjust volume.
 ●PressUP/DOWN key to move cursor, press SELECT key to play selected song.
 ●Press / key to select previous or next song.
 ●Press / key for fast backward and fast forward. 2x/4x/8x/16x are available.

12ViewSonic VMP30
3) Movie playing
Inmainmenupage,press◄/►keytoselect“Movie” icon, then press UP/DOWN key to select folder. All
the folder names name will be listed. Press ENTER key to enter the desired folder. Press UP/ DOWN key
and ENTER keytoselectdesiredle.Videoleprolewillappearinrightofdisplayandpreviewstarts
in right thumbnail window.
A.Inmovielecontentpage,youcan:
 ●PressUP/DOWNkeySelect“UpFolder”,andpressENTERkeytoreturntothepreviousmenupage.
 ●PressUP/DOWN key to move cursor to select desired movie by select key.
 ●Press / key for previous/next page.
 ●PressENTER key to enter movie playing page.
 ●Press / key for previous/next page.
 ●PressENTER key to enter movie playing page.
 ●PressMENU key to return to main menu page.
 ●PressENTER key to play movie.
B.Inmovieplayingmode,youcan:
 ●PressMENUkeyor■keytoreturntolecontentpage.
 ●PressMUTE key to mute sound, press again to recover.
 ●PressVOL+/- key to adjust volume.
 ●Press key to play or pause.
 ●PressINFOkeytodisplayvideoleprole.
 ●Press /keytoselectpreviousornextvideole.
 ●Press / key for fast backward and fast forward. 2x/4x/8x/16x are available.

13ViewSonic VMP30
4) E-book playing
Inmainmenupage,press◄/►keytoselect“TEXT”icon.ThenpressUP/DOWNkeyandENTERkeyto
enter desired one.
In E-book playing mode, you can:
 ●PressMENUkeyor■keytoreturntolecontentpage.
 ●Press /keyforpreviousornexttextle.
 ●Press / key for page down.

14ViewSonic VMP30
Specications
Output interface
Coaxial audio output 1 jack
HDMI output 1 jack
Power voltage 12V
Power
consumption
≤ 10W
Dimensions 121x101x26.5mm Weight about 138g
*Asimplelefoldersystemwillgreatlyacceleratetheresponsespeedofthesystem.Morecomplicated
lefolderswillbringextraloadtothesystem,andaffecttheprocessingspeedofthesystem.Asingle
lefoldersystemisrecommended.
*TrytouseEnglishandChinesecharacterforthefoldername.charactesnomorethan10.
*Whenthesystemisbusyinprocessingyourpreviousoperation,pleasedonotpresskeysexcessively
frequently;otherwise,theprocessingspeedofthesystemwillbeadverselyaffected.
*Ifanyfaultoccursduetomisoperation,pleaserestartandthesystemwillre-initialise.
Note 1: Due to continuous development of the system, the actual display and operation may differ
from the operating instructions.
Note 2: The design and specications of the product are subject to change without prior notice.

15ViewSonic VMP30
Function Module Container Resolution / Max specication
Movie
.avi 1080p/1080i/720p
.vob 480i/576i
.ts 1080p
.tp 1080P
.mov 1080p
.mkv 1080P
.dat 480i
.mpg 1080p
Music MP3 Sampling: 8k~48kHz
Bit rate: 32k~320KHz
WMA
JPEG
6000x6000BMP
PNG
Subtitle .SRT/.SSA Video and Subtitle need same le name.
Movie File Format
MPEG1 .DAT/.MPG \
MPEG2 .MPG Up to 40Mbps
MPEG4 .Avi, Divx, Xvid Up to 20Mbps
H.264 .MKV/.MOV Up to 20Mbps
Text .txt
Note 1: Video does not support Divx3, Divx6, VC1,WMV,RV20 and MP42.
Note 2: Audio does not support Dolby HD, DTS, Sony ATRAC3
Appendix
Support media format
