ViewZ VZ-CM-V1 User manual

INSTALLATION MANUAL
Flat Panel Ceiling Mount Accessory
ISSUED: MAR. 2013
7
43"
MAX
75x75/100x100
200x100/200x200
21
Package M

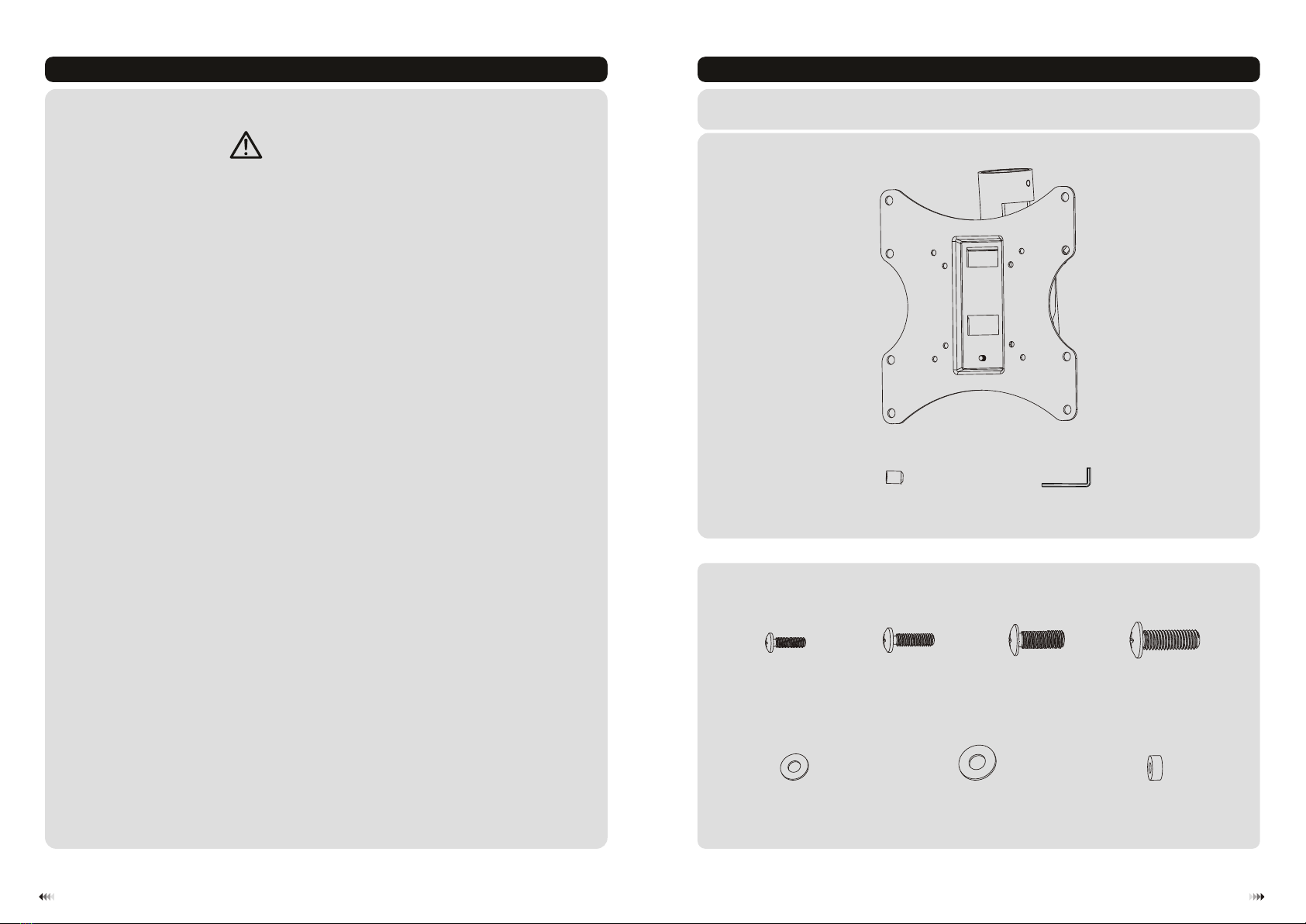

NOTE: Read the entire instruction manual before you start installation and assembly. Component Checklist
WARNING
• Do not begin the installation until you have read and understood all the instructions
and warnings contained in this installation sheet. If you have any questions
regarding any of the instructions or warnings, please contact your local distributor.
• This mounting bracket was designed to be installed and utilised ONLY as
specified in this manual. Improper installation of this product may cause damage
or serious injury.
• Always use an assistant or mechanical lifting equipment to safely lift and position
the equipment.
• Tighten screws firmly, but do not over tighten. Over tightening can cause damage
to the items, This greatly reduces their holding power.
• This product is intended for indoor use only. Using this product outdoors could
lead to product failure and personal injury.
IMPORTANT: Ensure that you have received all parts according to the component checklist prior to installation.
If any parts are missing or faulty, telephone your local distributor for a replacement.
D8 washer (x4)
M-F
D5 washer (x4)
M-E
small spacer (x8)
M-G
M5x14 (x4)
M-B
M6x14 (x4)
M-C
M8x20 (x4)
M-D
M4x14 (x4)
M-A
set screw(x1)
B
Allen key (x1)
C
ceiling plate (x1)
A
4
3
1. Separating the VESA Plate
Tighten all screws but do not over tighten.
Note: Choose the appropriate screws, washers and spacers (if necessary) according to the type of screen.
Screw the VESA plate onto the display.
3.Installing the VESA Plate
M-A
M-B
M-C
M-D
M-E
M-F
or
M-G
M-F
M-D
M-G
M-G
M-F
M-D
2. Attaching the VESA Plate to the Pipe
1-1/2" internal diameter
Thread and tighten the VESA plate
onto the pipe(not included).
or
Top of the display
Use a proper screwdriver to loosen
the screw to separate the VESA plate
from the ceiling mount accessory.
BC
Top of the display
65
1b. Solid Brick and Concrete Block Mounting: 4. Hanging the Display onto the Ceiling Mount Head 5. Adjustment
Maintenance
• Check that the bracket is secure and safe to use at regular intervals(at least every three months).
• Please contact your dealer if you have any questions.
+5°
-12°
1-1/2" internal diameter
Hook the VESA plate (attached the display) onto the ceiling mount head and tighten the screw to secure it.
adjustment handle
Loosen the adjustment handle to adjust the display to obtain the desired angle then tighten it.
