INSTALLATION
INSTRUCTIONS
BUILT-IN ELECTRIC COOKTOP
VIKING RANGE CORPORATION
111 Front Street
Greenwood, Mississippi 38930 USA
[phone]
IMPORTANT: PLEASE READ AND FOLLOW
•Before beginning, please read these instructions completely and carefully.
•Do not remove permanently affixed labels, warnings, or plates from the product. This may void the warranty.
•Please observe all local and national codes and ordinances.
•Please ensure that this product is properly grounded.
•The installer should leave these instructions with the consumer who should retain for local inspector’s use and for
future reference.
•Installation must conform with local codes or, in the absence of codes, the National Electrical Code, ANSI/NFPA 70-
latest edition.
IN CANADA: Electrical installation must be in accordance with the current CSA C22.1 Canadian Electrical Codes Part 1
and/or local codes.
GENERAL INFORMATION
1. WARNING: The use of cabinets for storage above the appliance may result in potential burn hazard. Combustible
items may ignite, metallic items may become hot and cause burns. If a cabinet storage is to provided the risk can
be reduced by installing a range hood that projects horizontally a minimum of 5 in. beyond the bottom of the
cabinets.
2. WARNING: This appliance shall not be used for space heating. This information is based on safety considerations.
3. All openings in the wall behind the appliance in the floor under the appliance shall be sealed.
4. Keep appliance area clear and free from combustible materials, gasoline, and other flammable vapors.
5. Disconnect the electric supply to the appliance before cleaning or servicing.
6. When removing the cooktop for service and/or cleaning, disconnect AC power supply.
7. Electrical Requirement:
Listed on Specifications/Wiring Diagram Sheet - Minimum Recommended Electric Circuit.
ELECTRICAL GROUNDING
INSTRUCTIONS
This cooktop must be electrically grounded in
accordance with local codes or, in the absence of
codes, with the National Electrical Code,
ANSI/NFPA 70-latest edition.
WARNING!

2
Description DECU106 30” W. DECU166 36” W. DECU155 45” W.
Cutout Width Minimum 28 5/8” (72.7 cm) 34 3/4” (88.3 cm) 42 7/8” (108.9 cm)
Maximum 29 7/8” (75.9 cm) 35 7/8” (91.1 cm) 44 1/8” (112.1 cm)
Cutout Height Minimum 3 1/8” (7.9 cm)
Cutout Height with Conduit 4 1/8” (10.5 cm)
Cutout Depth Minimum 19 3/4” (50.2 cm) Maximum - 20 1/8” (51.1 cm)
Overall Width 30 3/4” (78.1 cm) 36 3/4” (93.3 cm) 45” (114.3 cm)
Overall Height from Bottom 4 1/2” (11.4 cm)
Overall Depth from Rear 21” (53.3 cm)
Electrical Requirements 240 - 208/120 VAC/60 Hz - 3-wire conduit with a No. 10 ground wire. Connect with
locally supplied 3-wire with ground, flexible cord rated 60 amp 125-250 VAC minimum.
Cord must be agency approved for use with household electric cooktops.
Maximum Amp Usage 240V 8.4 kW; 35.0 amps 10.9 kW; 44.0 amps 11.8 kW: 49.0 amps
208V 6.3 kW; 30.0 amps 8.2 kW; 34.0 amps 8.9 kW; 43.0 amps
Surface Element Rating 240V 208V 240V 208V 240V 208V
Right Front 1500 1125 watts 1500 1125 watts 1500 1125 watts
Right Rear 2500 1875 watts 2200 1650 watts 2200 1650 watts
Center Right N/A N/A 2500 1875 watts 1200 900 watts
Center Left N/A N/A N/A N/A 2500 1875 watts
Left Front 1800 1350 watts 1800 1350 watts 1800 1350 watts
Bridge 800 600 watts 800 600 watts 800 600 watts
Left Rear 1800 1350 watts 1800 1350 watts 1800 1350 watts
Approximate Shipping Weight 52 lb. (23.4 kg) 60 lb. (27.0 kg) 71 lb. (32.0 kg)
SPECIFICATIONS - DECU ELECTRIC COOKTOP
Description VECU106 30” W. VECU166 36” W.
Cutout Width Minimum 28 3/4” (73.0 cm) Minimum 34 3/4” (88.3 cm)
Maximum 29 5/8” (75.2 cm) Maximum 35 1/2” (90.2 cm)
Cutout Height Minimum - 3 1/8” (7.9 cm)
Cutout Depth Minimum - 19 1/8” (48.6 cm) Maximum - 19 7/8” (50.5 cm)
Overall Width 30 3/4” (78.1 cm) 36 3/4” (93.3 cm)
Overall Height from Bottom 5” (12.7 cm)
Overall Depth from Rear 21” (53.3 cm)
Electrical Requirements 240 - 208/120 VAC/60 Hz - 3-wire conduit with a No. 10 ground wire.
40 amp connection 60 amp connection
Maximum Amp Usage 240V 8.4 kW; 35.0 amps 11.8 kW 49.2 amps
208V 6.3 kW; 30.3 amps 8.9 kW 42.6 amps
Surface Element Rating 240V 208V 240V 208V
Right Front 1500 1125 watts 1200 900 watts
Right Rear 2500 1875 watts 2500 1875 watts
Center Front N/A N/A 1800 1350
Bridge 800 600 watts 800 600 watts
Center Rear N/A N/A 1800 1350
Left Front 1800 1350 watts 2200 1650 watts
Left Rear 1800 1350 watts 1500 1125 watts
Approximate Shipping Weight 52 lb. (23.4 kg) 63 lb. (28.4 kg)
SPECIFICATIONS - VECU ELECTRIC COOKTOP

3
ELECTRICAL REQUIREMENTS
Check your local codes regarding this unit. This cooktop is supplied with a 3-wire, A.C. 208/120 volt or 120/240 volt,
60 HZ electrical system. A white (neutral) is not needed for this unit. See next section for grounding instructions. It
should be fused separately. CAUTION: Be sure the electric power is off from the breaker box to the junction box until
the cooktop is installed and ready to operate. The junction box should be connected to a suitable ground. Do not use
a GFI circuit.
Refer to the sepcifications chart and the identification label on the bottom of the burner box for kilowatt rating and
recommended amperage. House wiring and fusing must comply with local codes. If no local codes are applicable,
wire in accordance with the National Electrical Code, ANSI/NFPA 70-latest edition.
ELECTRICAL CONNECTION
WARNING: The electrical power to the unit must be shut off while line connections are being made. Failure
to do so could result in serious injury or death.
When making the wire connections, use the entire length of the conduit provided (3 feet). The conduit must not be
cut. Connect the red and black leads from the unit conduit to the corresonding leads in the junction box. The green
ground wire in the conduit is connected to the unit frame. When connecting to a 3-conductor branch circuit, if local
codes permit, connect the green ground connector lead of the unit to the branch circuit neutral (gray or white in color).
WARNING! DO NOT USE AN EXTENSION CORD WITH THIS APPLIANCE. SUCH USE MAY
RESULT IN A FIRE, ELECTRICAL SHOCK OR OTHER PERSONAL INJURY.

4
PROXIMITY TO SIDE CABINET INSTALLATION
1. The cooktop may be installed directly to existing base cabinets.
2. The cooktop CANNOT be installed directly adjacent to sidewalls, tall cabinets, tall appliances, or other side vertical
surfaces above 36” (91.4 cm) high. There must be a minimum of 6” (15.2 cm) side clearance from the cooktop to
such combustible surfaces above the 36” (91.4 cm).
3. Within the 6” (15.2 cm) side clearance to combustible vertical surfaces above 36” (91.4 cm), the maximum wall
cabinet depth must be 13” (33.0 cm) and wall cabinets within this 6” (15.2 cm) side clearance must be 18” (45.7 cm)
above the 36” (91.4 cm) high countertop.
4. Wall cabinet above the cooktop must be a minimum of 36” (91.4 cm) above the countertop for a full width of the
cooktop. This minimum height requirement does not apply if a rangehood is installed over the cooking surface.
NOTE: Refer to Installation of Hold Down Brackets on page 7 for minimum clearances under counter.

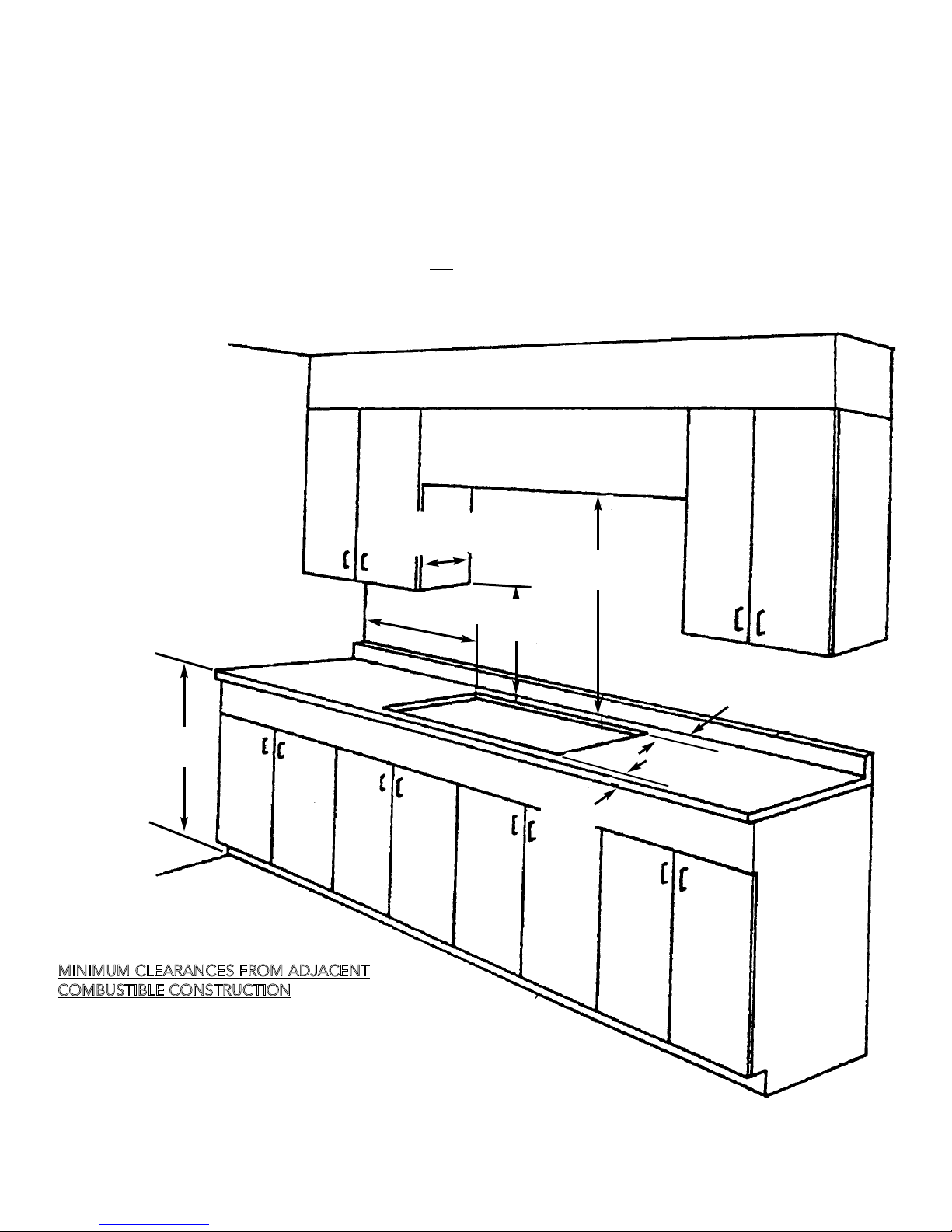

MINIMUM CLEARANCES FROM ADJACENT
COMBUSTIBLE CONSTRUCTION
•Above countertop (above 36” [91.4 cm])
•Side 6” (15.2 cm)
•Rear 0” (0 cm)
•Within 8” side clearance. Wall cabinets no deeper
than 13” (33.0 cm)
•Must be minimum 18” (45.7 cm) above countertop
•Wall cabinets directly above the product must be
minimum 36” (91.4 cm) above the countertop.
13” Max
(33.0 cm)
36” Min.
(91.4 cm)
6” Min.(15.2 cm)
18” Min.
(45.7 cm)
36” Min.
(91.4 cm)
3 1/8”
(7.9 cm)
0” Min.
(0 cm)

5
WOOD/COMPOSITE OVERLAY INSTALLATION
The bottom of the hood should be 30” (76.2 cm) min. to 36” (91.4 cm) max. above the countertop. This would
typically result in the bottom of the hood being 66” (167.6 cm) to 72” (182.9 cm) above the floor. Refer to the
rangehood installation instructions for further information. These dimensions provide for safe and efficient operation
of the hood.
30” (76.2 cm) min
36” (91.4 cm) max
30” (76.2 cm) min
36” (91.4 cm) max
66” - 72”
(167.6 cm -
182.9 cm)
66” - 72”
(167.6 cm -
182.9 cm)
36”
(91.4 cm)
ISLAND INSTALLATION
WALL INSTALLATION
36”
(91.4 cm)
Metal Hood Metal Hood
Wood/Composite Overlay
Wood/Composite Overlay
Countertop Countertop
DIMENSIONS
2 13/16”
(7.1 cm)
3 1/16”
(7.8 cm) 5”
(12.7 cm)
VECU HEIGHT

6

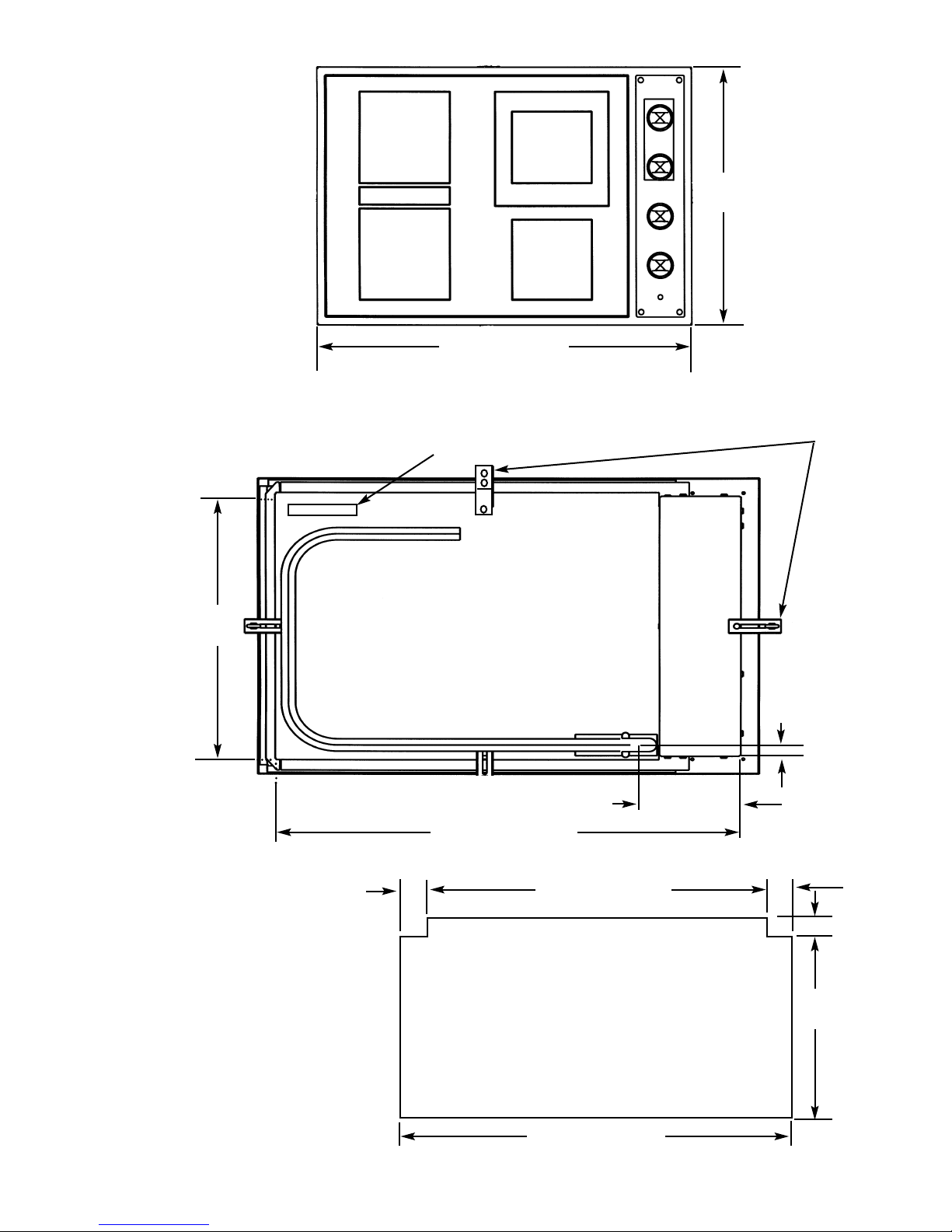

30” W. VECU TOP
30” W. VECU CUTOUT
w/VIPR101 DOWNDRAFT
30 3/4” (78.1 cm)
21”
(53.3 cm)
28 11/16” (72.9 cm)
5 3/4” (14.6 cm)
19”
(48.3 cm)
15/16”
(2.4 cm)
28 3/4” (73.0 cm)
20 1/4”
(51.4 cm)
2 1/4”
(5.7 cm)
7/8”
(2.2 cm)
7/8”
(2.2 cm)
27” (68.6 cm)
30” W. VECU BURNER BOX Indentification
Label Location
Hold down
Brackets

7

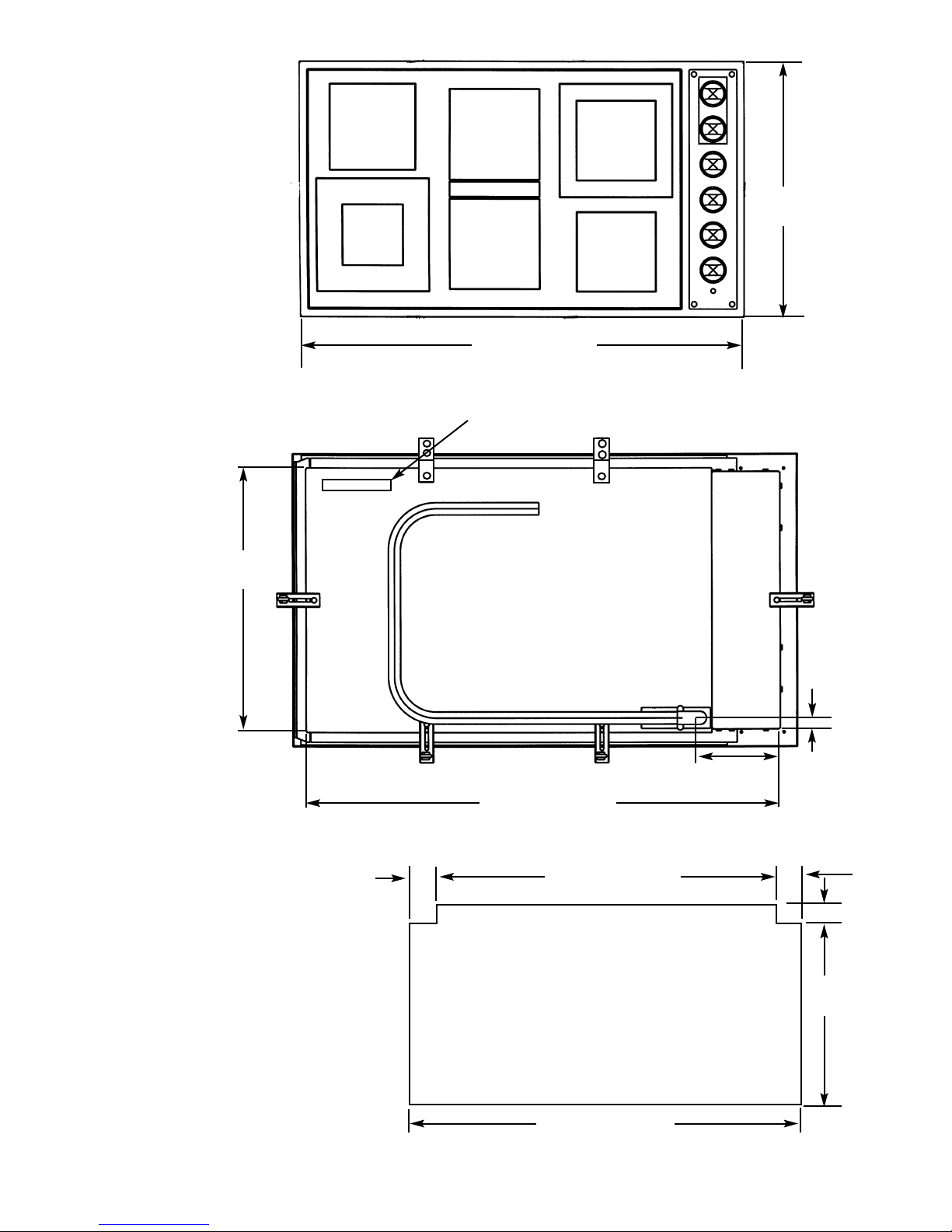

36” W. VECU TOP
36” W. VECU BURNER BOX
21”
(53.3 cm)
36 3/4” (93.3 cm)
19”
(48.3 cm)
34 5/8” (87.9 cm)
6”
(15.2 cm)
15/16”
(2.4 cm)
36” W. VECU CUTOUT
w/VIPR161 DOWNDRAFT
34 3/4” (88.3 cm)
20 1/4”
(51.4 cm)
2 1/4”
(5.7 cm)
7/8”
(2.2 cm)
7/8”
(2.2 cm)
33” (83.8 cm)
Indentification Label Location

8
INSTALLATION OF HOLD DOWN BRACKET
VECU Models
Front Brackets
After installating cooktop with two of the sheet metal
screws (Item 1), locate the sheet metal screw hole in
the rear of the burner box. Screw hold down brackets
(Item 2) using the third sheet metal screw (Item 3) to
the burner box.
Rear and Side Brackets
1. After installation of cooktop, locate the two
sheet metal screw holes on each end of the
bottom of the burner box. Screw hold down
bracket (Item 1) with sheet metal screw (Item 2)
to the burner box.
2. Screw the eye bolt (Item 3) into the self-
retaining nut (Item 3) and tighten firmly against
bottom of countertop.
Cooktop
Countertop
Item 4
Item 3
Item 2
Item 1
Cooktop
Countertop
Item 1
Item 2
Item 3

9
WIRING DIAGRAM
30” W. VECU ELECTRIC COOKTOP
WARNING- THIS UNIT MUST BE GROUNDED. SEE
INSTALLATION INSTRUCTIONS FOR
PROPER GROUNDING PROCEDURES
NOTE: TRAILERS OR STRIPES WILL BE THE
SECOND COLOR IN A COLOR
COMBINATION

10

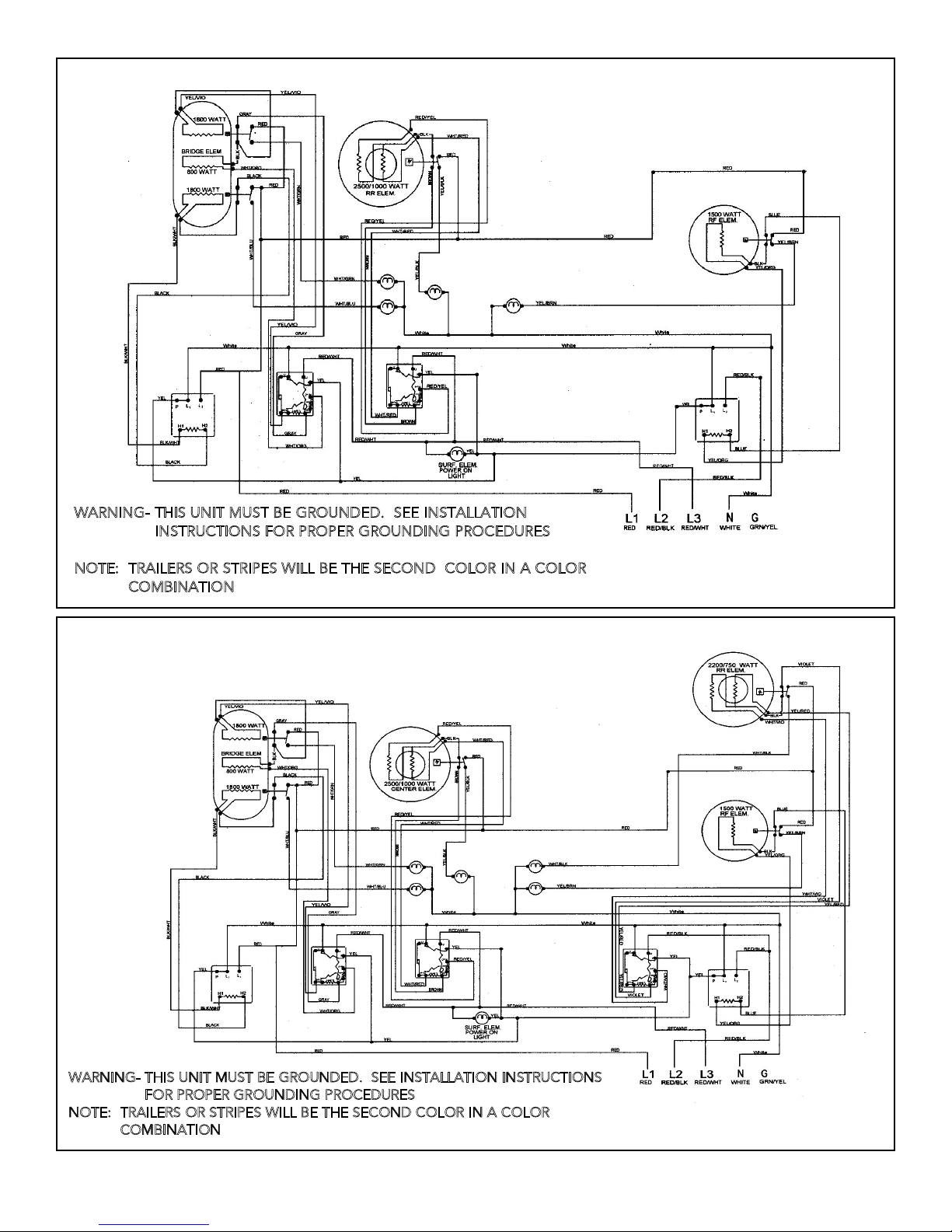

WIRING DIAGRAM
36” W. VECU ELECTRIC COOKTOP
WARNING- THIS UNIT MUST BE GROUNDED. SEE INSTALLATION INSTRUCTIONS FOR PROPER GROUNDING
PROCEDURES
NOTE: TRAILERS OR STRIPES WILL BE THE SECOND COLOR IN A COLOR COMBINATION

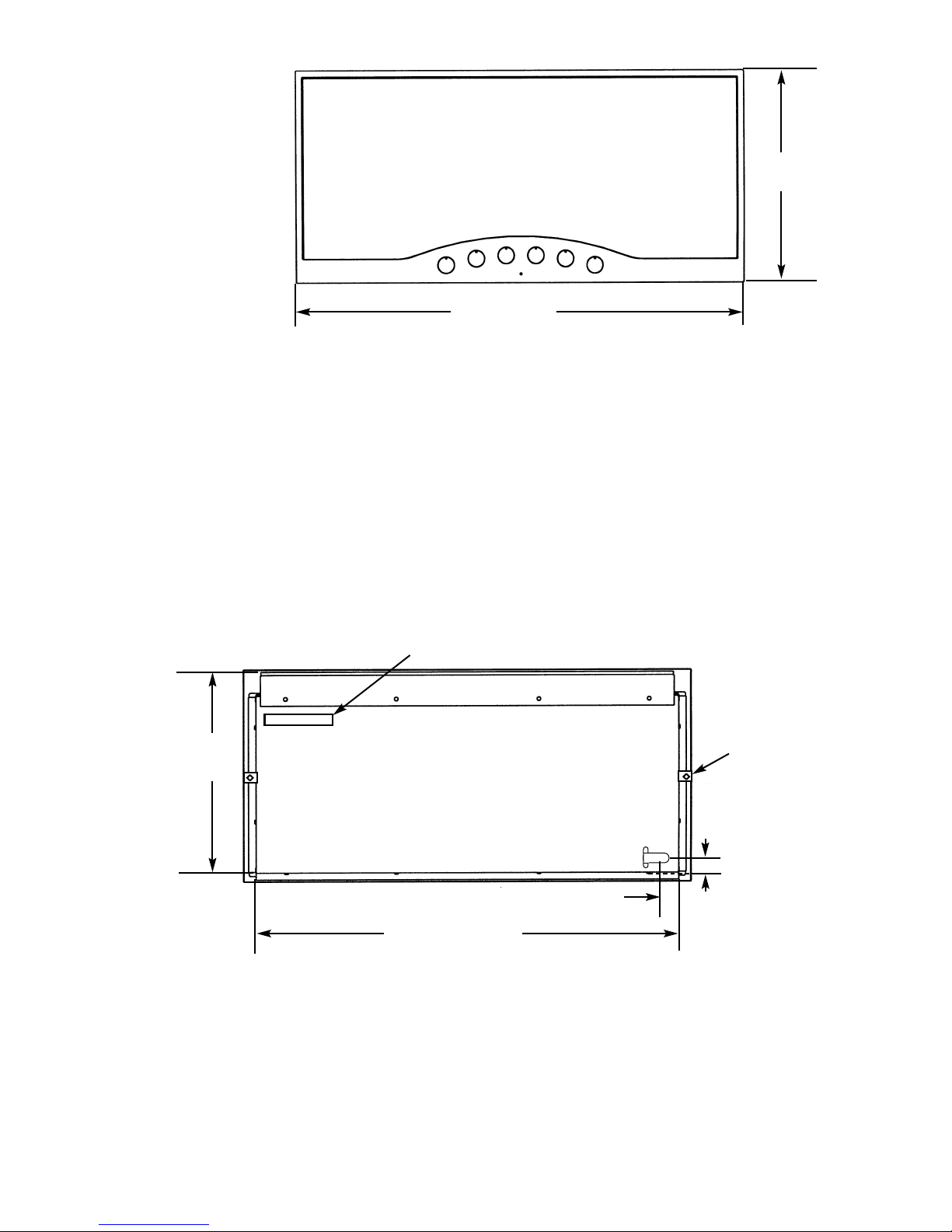

30” W. DECU TOP
30” W. DECU
BURNER BOX
30 3/4” (78.1 cm)
21”
(53.3 cm)
11
28 1/2” (72.4 cm)
1 3/16” (3.0 cm)
19 11/16”
(50.0 cm)
1 3/16”
(3.0 cm)
DIMENSIONS
3 1/16”
(7.7 cm)
3 1/2”
(8.9 cm)
4 1/2”
(11.4 cm)
DECU HEIGHT
Indentification
Label Location
Hold down
bracket
(one on
each side)

12
34 5/8” (87.9 cm)
36” W. DECU TOP
36” W. DECU
BURNER BOX
36 3/4” (93.3 cm)
21”
(53.3 cm)
19 11/16”
(50.0 cm)
1 3/16”
(3.0 cm)
1 3/16”
(3.0 cm)
Indentification Label Location
Hold down
bracket
(one on
each side)

13
45” W. DECU
BURNER BOX
19 11/16”
(50.0 cm)
42 3/4” (108.6 cm)
1 3/16”
(3.0 cm)
1 3/16”
(3.0 cm)
45” W. DECU TOP
45” (114.3 cm)
21”
(53.3 cm)
Indentification Label Location
Hold down
bracket
(one on
each side)

14

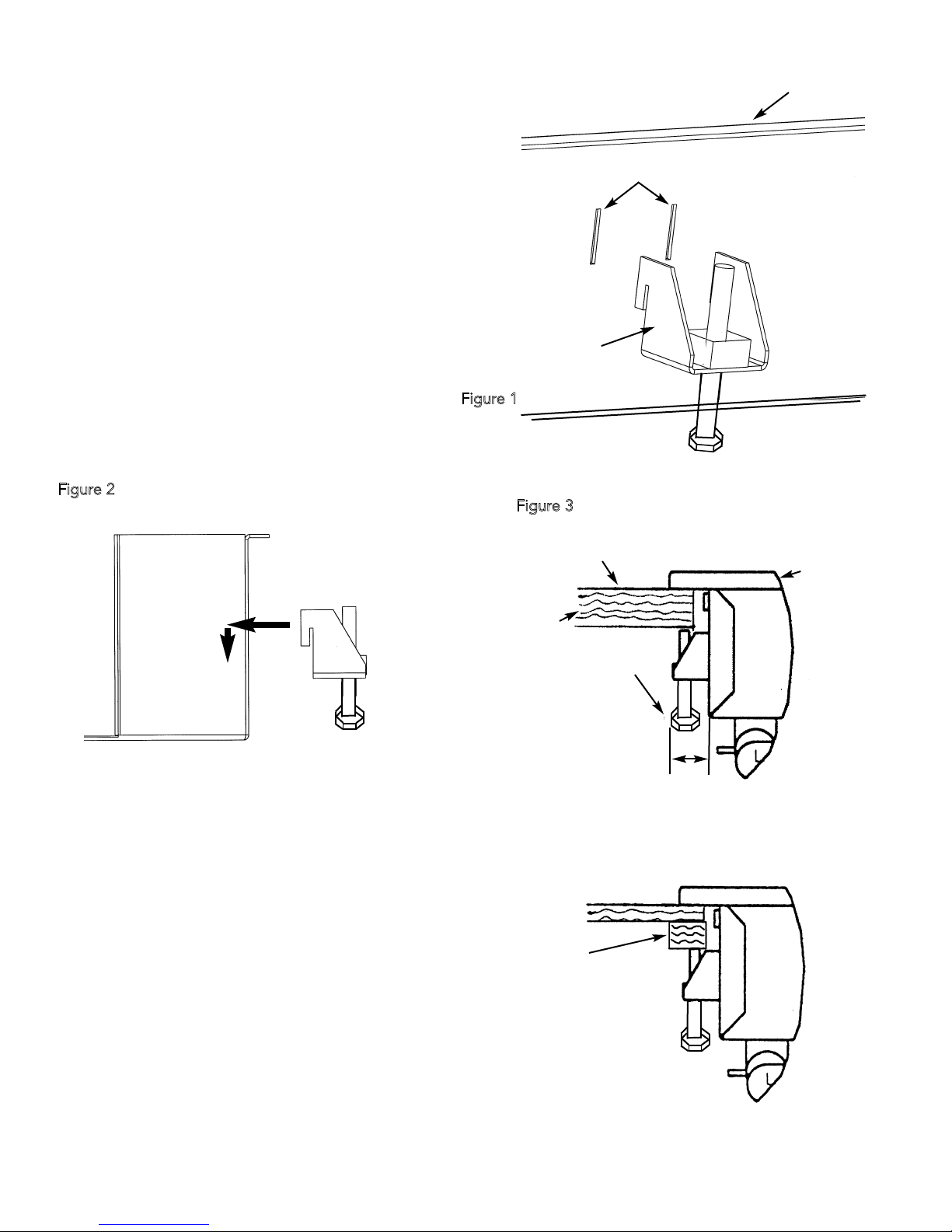

INSTALLATION OF HOLD DOWN BRACKET - DECU MODELS
Two (2) hold brackets will be provided with your unit.
After cooktop has been installed into the countertop, locate
the bracket in the slots as needed (Figure 1). Place a
bracket in the slots and lower until the bracket catches.
(Figure 2). Use the bolt to tighten the cooktop to the
countertop. (Figure 3)
Slots
Mounting
bracket
Push into slots
and down
Figure 1
Figure 2 Figure 3
bolt
Cooktop
Countertop
Top of cooktop
1 1/2” (3.8 cm)
Max. thickness
NOTE: If countertop is less than 1 1/2” (3.8 cm)
thick, a filler block will have to be used for bolt to
push against. (See figure 4)
Filler block
*There must be a 1” (2.5 cm) clearance under counter on the left and
right side of the cooktop for pull down brackets to be attached.
Do not install brackets on front and rear of cooktop
1” (2.5 cm)
Min. *

15
WARNING- THIS UNIT MUST BE GROUNDED. SEE INSTALLATION
INSTRUCTIONS FOR PROPER GROUNDING PROCEDURES
NOTE: TRAILERS OR STRIPES WILL BE THE SECOND COLOR IN A COLOR
COMBINATION

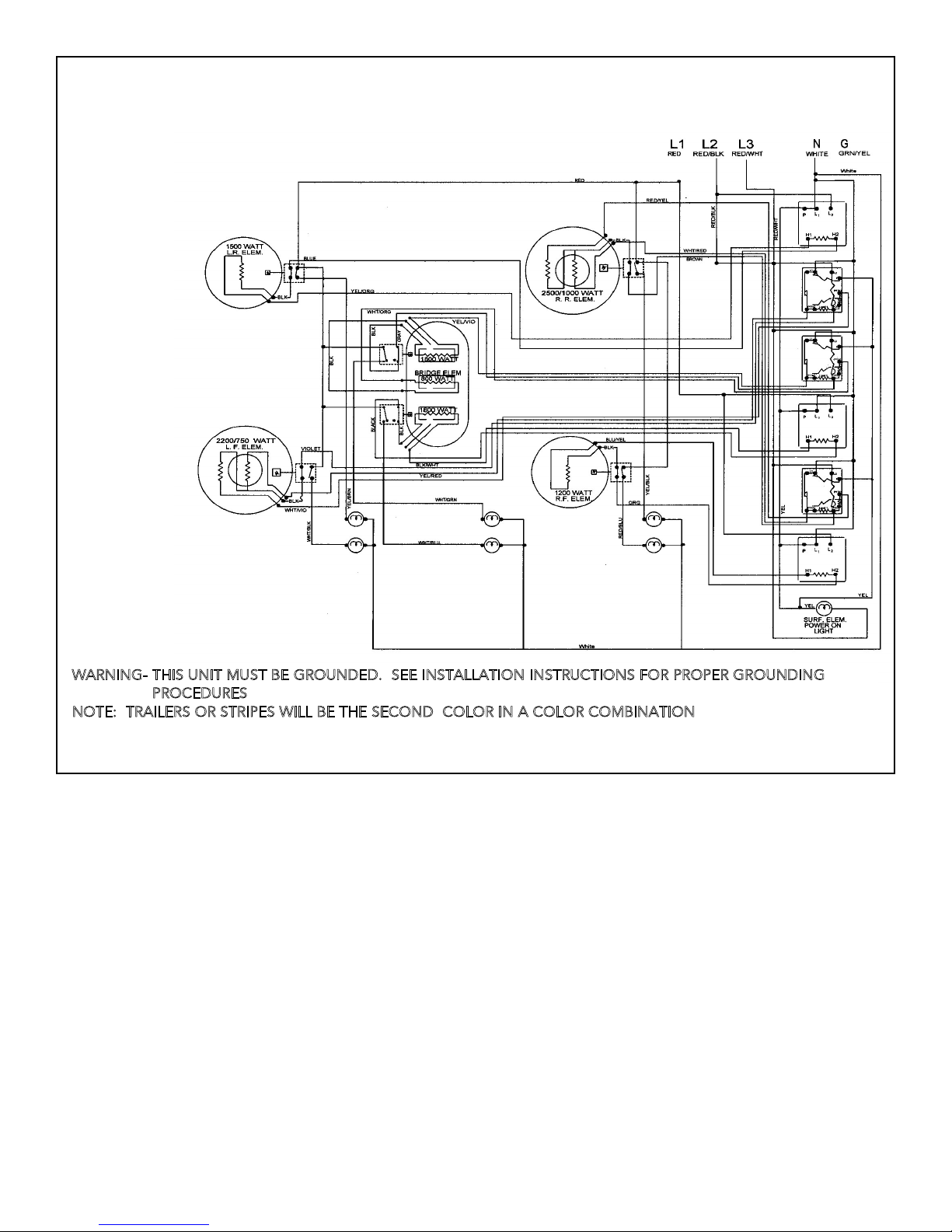

WIRING DIAGRAM
30” W. DECU ELECTRIC COOKTOP

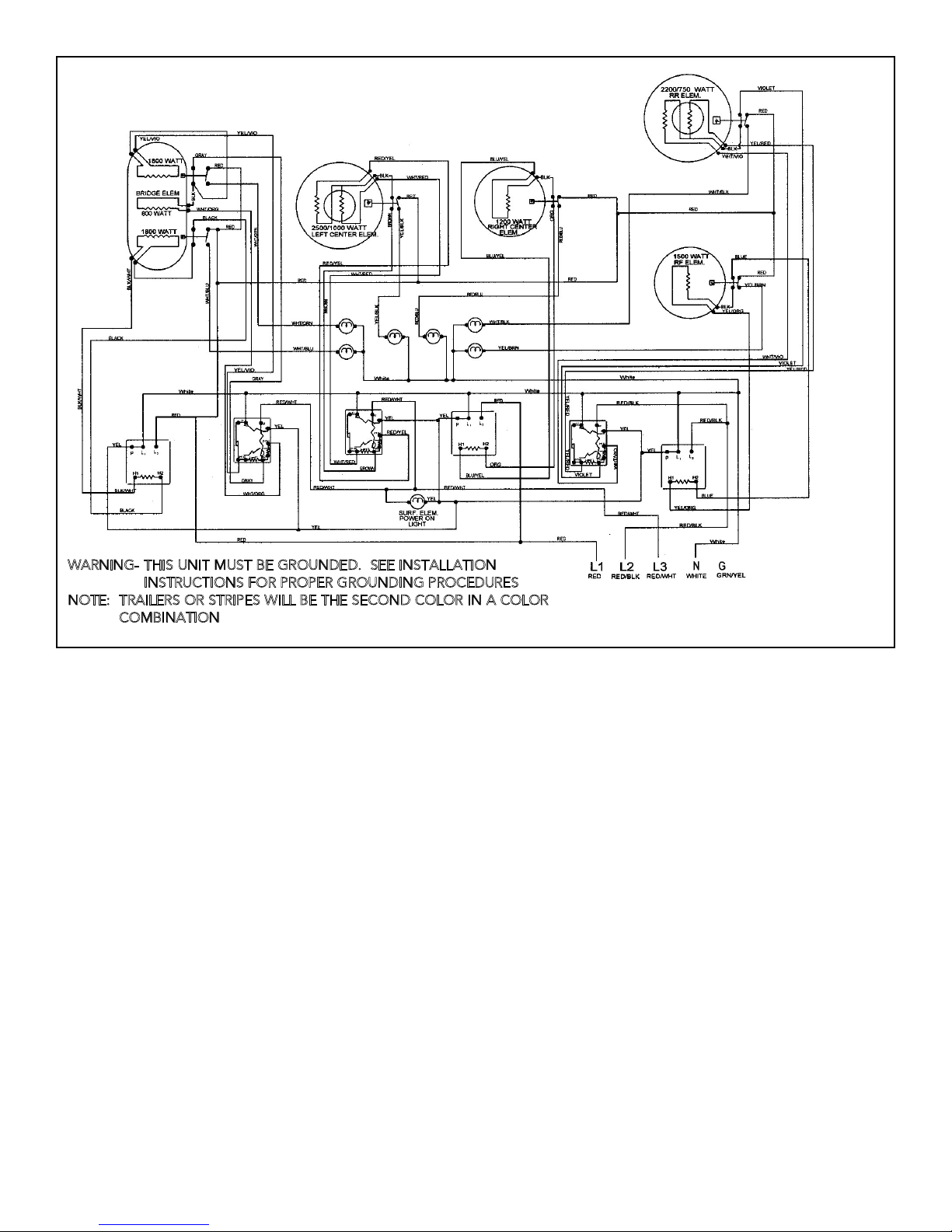

WIRING DIAGRAM
36” W. DECU ELECTRIC COOKTOP
WARNING- THIS UNIT MUST BE GROUNDED. SEE INSTALLATION INSTRUCTIONS
FOR PROPER GROUNDING PROCEDURES
NOTE: TRAILERS OR STRIPES WILL BE THE SECOND COLOR IN A COLOR
COMBINATION

VIKING RANGE CORPORATION
111 Front Street • Greenwood, Mississippi 38930 USA • [phone]
Specifications subject to change without notice
F20034K (PS042607J)
WARNING- THIS UNIT MUST BE GROUNDED. SEE INSTALLATION
INSTRUCTIONS FOR PROPER GROUNDING PROCEDURES
NOTE: TRAILERS OR STRIPES WILL BE THE SECOND COLOR IN A COLOR
COMBINATION
PERFORMANCE CHECKLIST
A qualified installer should carry out the following checks:
1. Check top surface elements - glow red when turned on.
2. Check hot surface indicator lights - glow red when corresponding element is hot.
Any adjustments necessary that are a result of the installer not following instructions will be the responsibility of the
installer, dealer of the end user of this product.
FINAL PREPARATION
1. Some stainless steel parts may have a plastic protective wrap which must be peeled off.
2. All stainless steel body parts should be wiped with hot, soapy water and with a liquid cleaner designed for this
material. If buildup occurs, do not use steel wool, abrasive cloths, cleaners, or powders! If it is necessary to scrape
stainless steel to remove encrusted materials, soak with hot, wet cloths to loosen the material, then use a wood or
nylon scraper. Do not use a metal knife, spatula, or any other metal tool to scrape stainless steel! Scratches are
almost impossible to remove.
REPLACEMENT PARTS
Only authorized replacement parts may be used in performing serivce on the cooktop. Do not repair or replace any
part of the appliance unless specifically recommended in the manual. All other servicing should be referred to a
qualified technician.
WIRING DIAGRAM
45” W. DECU ELECTRIC COOKTOP
