Vikre Handel AS JIT-2333J User manual

SHELTER
MODEL: JIT-2333J
L10.0xW7.0xH4.8m
Assembly Manual
www.vikre.no

Congratulations on your purchase of our instant shelter. This unit is a combination
of excellent manufacturing and design. It is comprised of a rigid frame and a durable
cover. For easy assembly,we have marked all the parts with codes. With proper
installation,use and maintenance,your unit will provide mang years of good and
suitable service.
READ ALL THE INSTRUCTIONS BEFORE ASSEMBLY !
1.The proper erection and installation of this building requires a high level of care and
safety. We recommend the safety regulations be complied with during the installation.
It includes but is not limited to:
- Safety hats, protective eyewear and protective clothing
- Safety harnesses for all elevated workers
- Proper ladder, cage, and safety operation
2. Site selection: Choose a solid level location for your building. Do not install the
building where the ground could not keep the building steady. Do not install the
building where the ground could not bear the weight of the building. Do not install the
building in soft grass ground or wetland.
3. Be cautions with the surroundings. Keep work area clean. Do not set up it near
snow drifts, n slippery places, or in wet location, The cover of the building will
protect against normal falling leaves and light debris, however, large, fast or sharp
falling items etc. may cause a puncture or tear in the cover material. So keep the
building away from such harmful things. Be careful with power and heat sources. Do
not keep heat sources near the tarpaulin. Do not expose to open flame.
4. Chose a windless day to install the building. It is very difficult to attach the in
heavy wind.
5. All snow accumulation on the main cover should be removed as soon as possible.
Otherwise, when old snow on the roof becomes hard with new snow falling in,it will
increase the burden of the roof badly and will damage the roof.
6. Try to keep the building, especially its base, in a dry condition. This will help the
building to have a longer life than keeping it in a wet conditions.
7. The user should be responsible for the parts missing or damage occurred during the
installation.
8. Do not make alteration of the frame. Do not hang anything besides included parts
to the frame. Damages, consequential damages, or injuries caused by improper
installation, alteration, improper use, or damages caused by snow, wind, or any acts of
nature are owing to the user. The building is not intended for occupancy for any
length of time。

ASSEMBLY PROCEDURE
1. Prepare location and place all unit boxes near location sight. Perform an inventory check before
beginning, to be certain all components are available for installation.
2. Secure base plates flanges to vase surface.
3. Assemble every group of arch.
4. Begin frame assembly with front end arch,first interior arch,purlins,etc.
5. Add to assemble other groups of arches.
6. Install main cover over frame.
7. Install end covers over end panels.
Read all the detailed instructions and notices in the following assembly instructions!
MAINTENANCE AND CARE
1. If some parts or the cover were accidently damaged during the use, contact the local supplier for
advises in the repairing method or replacements, so the to prevent from further damage and keep
the building in a good condition.
2. When replacing the parts, male certain the whole frame and the parts connected to the replaced
parts be well fixed or supported.
3. Same with when attaching the cover, choose a windless day to replace the cover. Begin with
making certain all the bolts of the frame and the tensioning equipments be well fixed. When
taking off the cover, make sure the related ropes, etc. Be taken off, and the cover will not be
blocked during the way. Avoid taking off the cover with heavy big power equipments.
4. For the building with mechanical door. Keep the door closed if it is not used for long time. This
helps the mechanical door to have a longer life.
5. To enlongate the life of the cover, put small duct tape or foam rubber(provide it by yourself)on
the frame that comes to in contact with cover. The tape and foam rubber acts as a cushion to avoid
rubbing damage to the cover over years.
6. Periodically(once in half a year or more often),the building should be completely inspected and
maintained internally and externally to make certain the building remains properly installed and
secured. Including: check all bolts and hardware connectors to be certain they are in place and
tightened, he base plates are still fixed firmly, check and adjust the ropes if in need, clean the
cover with suitable washing. Allowing dirt and debris to sit on cover over an extended time will
damage cover irreparably.
Thanks again for choosing this quality product. The following is the
detailed assembly instructions for you starting the assembly.

Part Code Description Quantity
1Top curved rooftube 6
2 Side rooftube 8
2A Side rooftube in front panel 2
2B Side rooftube in back panel 2
3 Lower rooftube 8
3A Lower rooftube in front panel 1
3B Lower rooftube in back panel 2
3C Lower rooftube at right offront panel 1
4 Roofpurlin and horizontal tube 25
5 Slanting support tube 4
5A Support beam 4
6L Corner base plate at left side 2
6R Corner base plate at right side 2
7L Side base plate at left side 4
7R Side base plate at right side 4
8 Base plate at front panel 2
9 Base plate at back panel 2
10 Door beam 2
11 Upper door track 2
12 Lower door track 1
12A Lower door track to connect the lower beam 1
13 Upper beamoffront panel 2
13A Lower beamoffront panel 1
14 Upper leg ofback panel 2
15 Lower leg ofback panel 2
16 Middle beamfor back panel 1
17 Side beamfor back panel 2
18 Tube clip for slanting support tube and support beam 16
19 Tensioning tube for lower roofcover 2sets
20 Bottomtensioning tube offront cover 2
21 Bottomtensioning tube ofback cover 3
22 Components for mechanical door 1set
23 Stake peg 44
24 Tie down ratchet 12
25 Bolt M10x75 110
26 Carrige Bolt M10x85 35
27 Bolt M10x85 8
28 Bolt M10x30 28
PartListof JIT-2333J

29 Bolt M10x12 for tie down ratchet 24
30 Roofcover 1
31 Top cover above the door 1
31A Door cover 1
32 Back cover 1
33 Side cover beside the door 2
34 Band for tie down ratchet 12
35 Rope for fastening the two ends ofroofcover, the
front,door&back cover
11
36 Plastic cap for tensioning tube 6+4
37 Door dropping tube in the middle 6sets
38 Door dropping tube at the bottom 1set
39 Felts to stick on the connection for protecting the cover 24

1
2B
3B
2
3
4
5
6L 6R
7R
7L
8
9
10
11 12 12A 13
13A
14
15
16
17
20
21
3B
25
2B
4
26

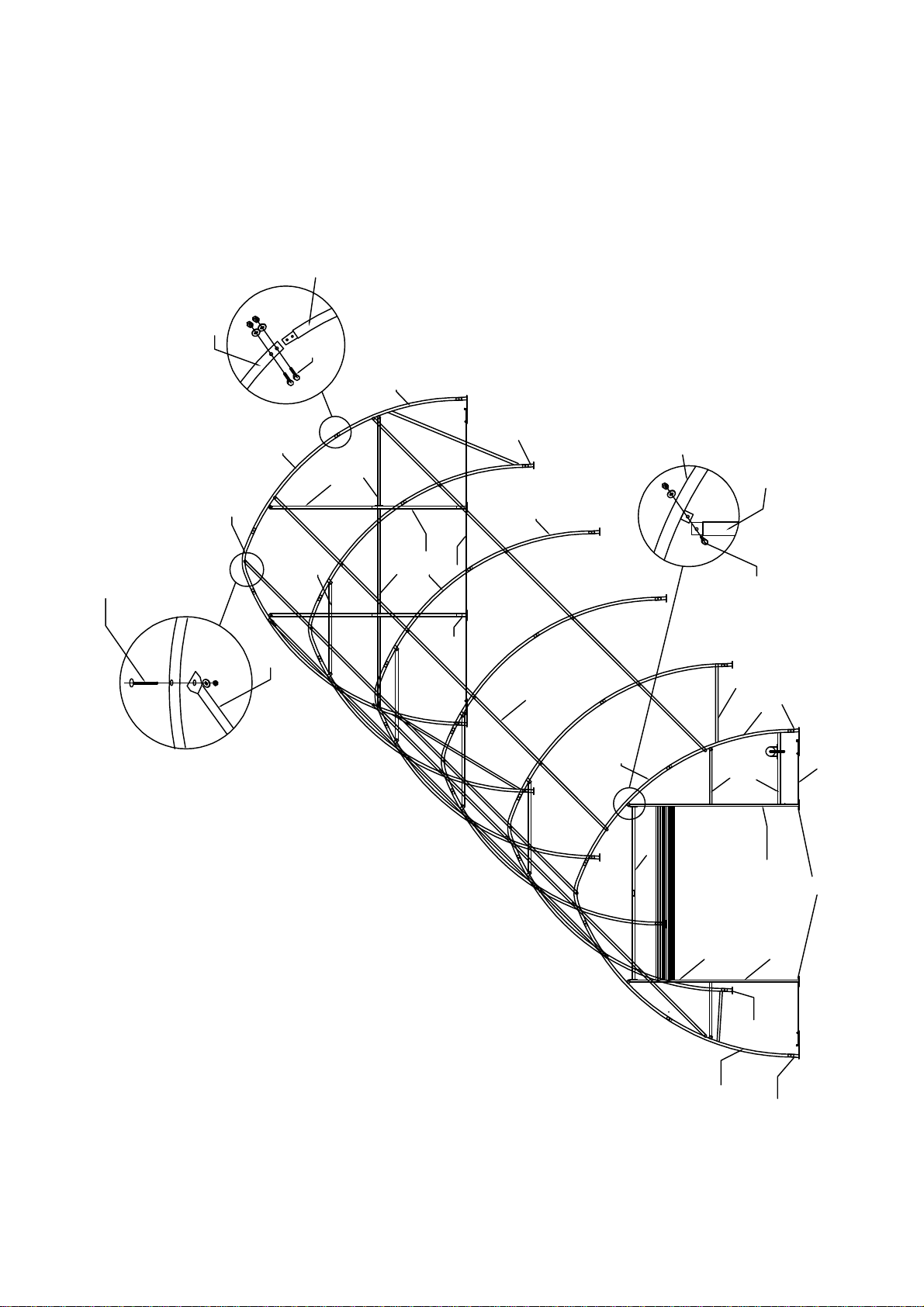

Figure1 SketchofJIT-2333J
2A
28 11
2A
3A
3C
5A

Figure2 Position ofBaseFlanges
Begin by determining exact
location ofthefour(4)cornersof
thebuilding. Mark frontedgeand
side-to-sidewidthofassembly on
ground. Drivealignmentstakes
into theground outsideofthe
markings,anddrawalignment
stringsalongboth endsand sides
ofthebuilding to thedimensions
shownin Figure2. Theoutlineof
thestringswillrepresentthefinal
location ofthebaseflanges. The
initial location ofeachCorner
BaseFlanges(part#6L&6R)is
critical to thealignmentandfit of
theframecomponentsand cover.
Step#1--SECURINGBASEFLANGES
Sit thebuildingboxesinthechosenlocation.Removeallthecomponentsfrom
packagingtoensureall componentsarepresentbychecking with thePartList.
6L
6R
2.0m2.0m2.0m2.0m
2.29m
7R
8
3.7m
Diagonalsareequal
10.0m
2.0m
FRONT
7m
7L
9
1.65m
1.65m
LocatetheLeftCornerBaseFlangeand
RightCornerBaseFlange(part
#6L&6R).Securethebaseflangeswith
StakePegs(Part#23). Measurements
showninFigure2aretothecenterofthe
uprightsocketson each BaseFlange.
TheSheltermustbesecuredto afirm
surfacethat canreceiveandretain augers
and pegsfirmly in position. Theshelter
should beinstalled on FIRMGROUND,
noton SWAMP,SOFT/WET
GROUND.TheBaseFlangesmustbe
secured sothey cannotbemoved.
Archesaretensioned attheirbaseas
theyinsertintotheBasePlate sockets.
2.355m2.355m
23
Figure 3
AsFigure3shows,each base
flangeisequippedwiththree
stakepegs.

Figure 4 The arch installation
Assemble each arch on ground. Each arches
consist of:
One Top roof tube (Part #1)
Two Roof curving tube (Part # 2/2A/2B)
Two Sidewall tube (Part # 3/3A/3B/3C)
Connect the arches by Using the hexagon
bolts with washers and nuts through predrilled
holes in frame members. Do not tighten down
the nuts completely until frame is fully
assembled and set in place.
Step #2 --ARCH ASSEMBLY
THE FRONT AND BACK PANEL
FRAME ASSEMBLY
Assemble the front and back panel frame.
According to Figure 5&6, connect the end
wall frame by Using the bolts with washers
and nuts through predrilled holes in frame
members. Do not tighten down the nuts
completely until frame is fully assembled and
set in place.
Figure 6 Frame Installation
for Back Panel
NOTE: Please notice that the part code of the
arch sections. The sections of different arches
are not the same. Check with the Part List and
the Sketch Figure #1.
NOTE: The Arches, the Front and Back panel
should be assembled well on the ground, before
erected into the Base Flanges.
1
2/2A/2B
3/3A/3B/3C

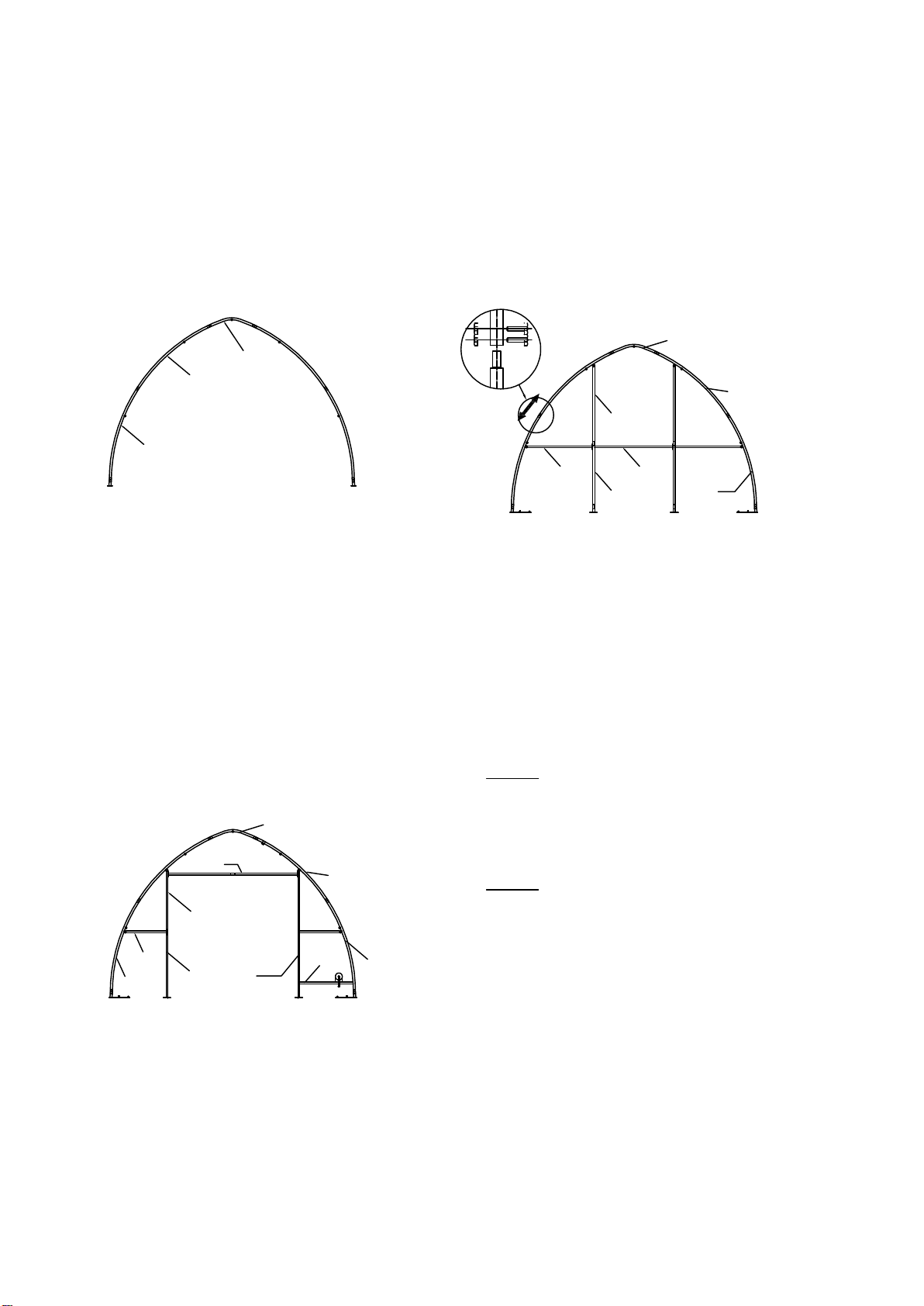

Figure 5 Frame Installation
for Front Panel
10
11
12 12A
13 13A 3C
2A
1
3A
1
2B
3B
1617
14
15

Figure 7 Attaching Arches to Base Flanges
Figure 8
Step #3 --ERECTING ARCHES
Begin frame assembly by erecting Front Arch into
Front Corner Base Flanges. Place left frame
sidewall tubing into the upright tube socket into the
Left Base Flange. Place Hexagonal Bolt through
base flange socket and arch sidewall tube hole.
In order to insert Right Sidewall Tube into Right
Front Corner flange, it is necessary to support arch
on left side to prevent movement. Position the
Right Sidewall Tube over the Right Corner Base
Flange.
Once the Right Sidewall Tube is placed into right
corner base flange, insert a hexagonal bolt and nut
to prevent it from popping out of the socket while
assembly continues.
Next stand first interior arch up to repeat insertion
into Base flanges.
Immediately after putting first interior arch
into place, connect Front Arch and Interior
arch using Roof Purlin Tubes at top ridge and
side shoulder cures of arches. Secure the Roof
Purlin tubes into place using carriage bolts and
nuts.
Next install the Slanting support tube(part #5)
and Tube Clip(part #18) that connect the Front
Arch to the first Interior Arch. The Wind
Braces give the arch assemblies strength as a
unit.Use Bolt M10X30 at the end of each Wind
Brace Support to secure.
Continue to install other Arches Assemblies in
the same manner. Overlap pinched ends of
Roof Purlin onto same carriage bolts inside
frame assembly.
Next check entire frame assembly for square
and plumb. Next tighten frame bolts
adequately. DO NOT over tighten bolts so as
to oval or compress frame components.
4

Step#4 --BOLTRATCHETSTO
BASEFLANGES
AttachTieDownRatchetto eachBaseFlange
along Sidewall.Usetwo BoltsM10x15 for
eachsidewallratchettosecureto BaseFlange.
ROOFCOVER
INSTALLATION
Step#5 --POSITION ROOF
COVER

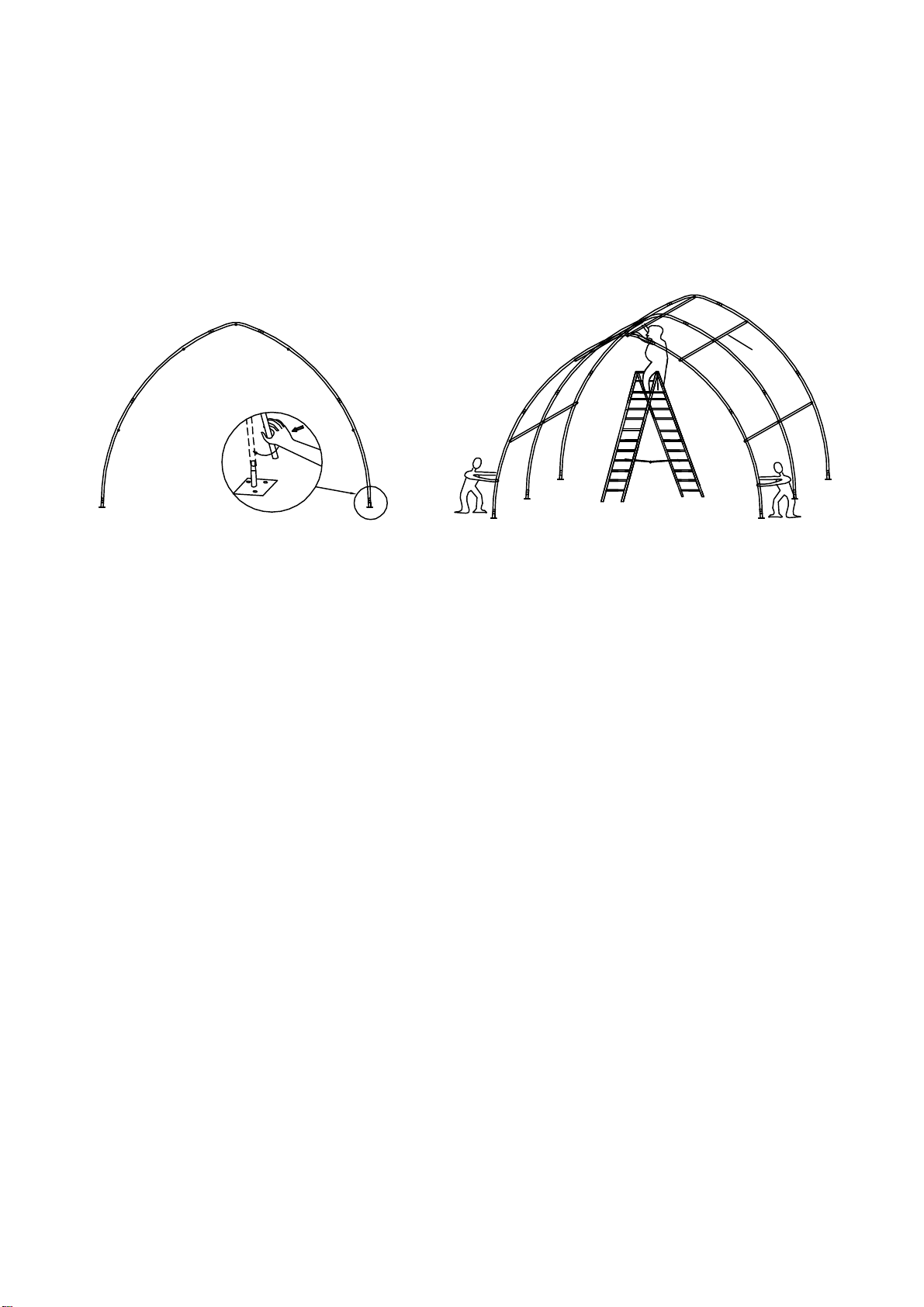

Asfigure 9 shows,when ready to install
RoofCover, unpackcover and lay
parallelto building frameon oneside.
Covermustbepulled overtop offrame
assembly withoutbeingsnagged or
stressedonanyframemembers. Use
multipleropesovertop offrameas
showninpicture below. Having another
personinsideframeonaladder to assist
in gettingRoofCover overframewill
insure thecoverwill go on withoutany
damage.
E:\MyPictures\pic\1850\ 村\复件 TSU-1850 (20).JPG

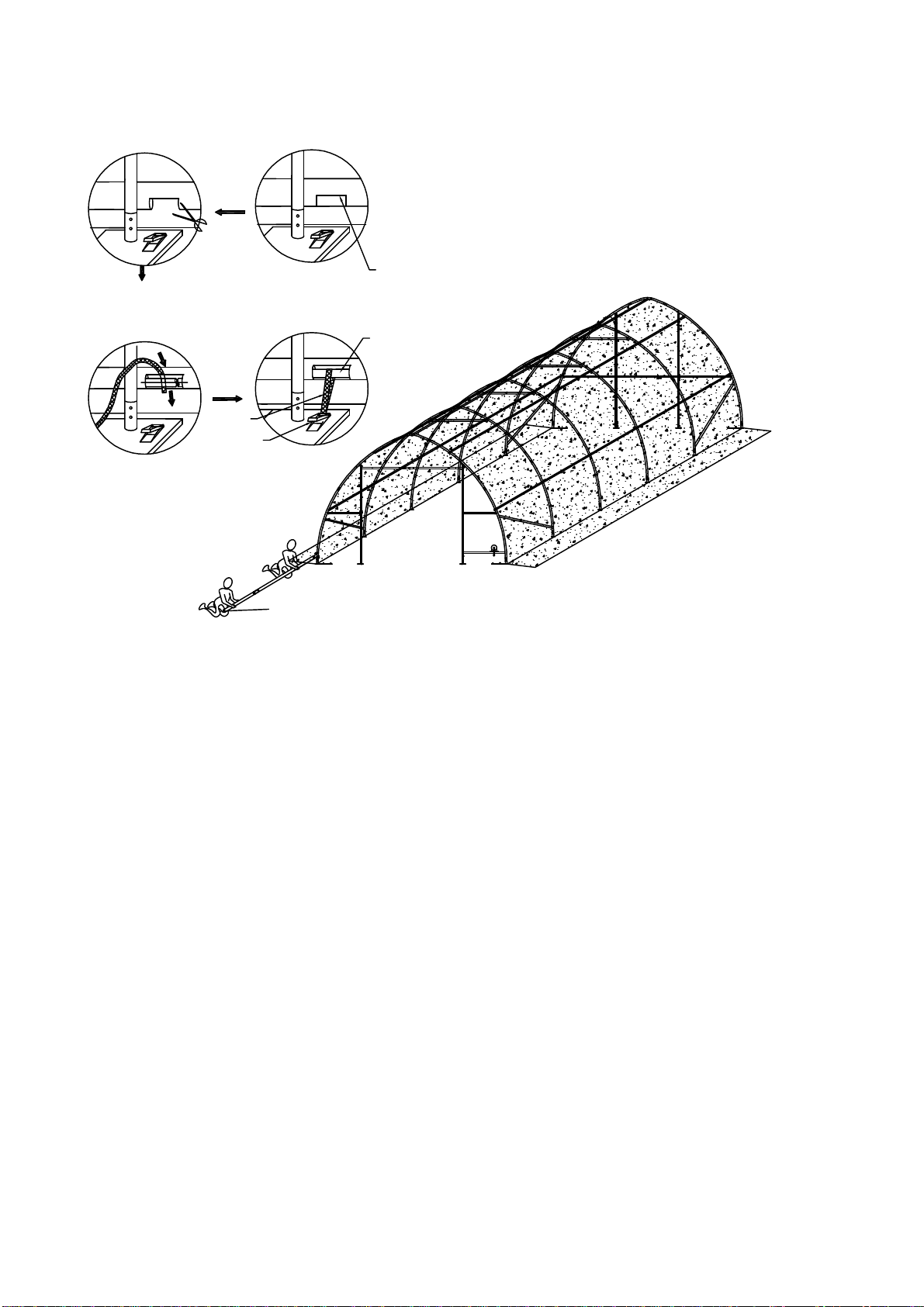

Figure9:PulltheRoofCoverovertheframeevenly

Figure10:FasteningtheRoofCover
First circlethe band for tie
down ratchet(part#34)around
thetensioning tubethrough the
cuts on thepocket of the roof
cover.
Step#6--TENSIONCOVERON
FRAMEFROMSIDE-TO-SIDE
As Figure10 shows,whenRoof Cover is over top
ofFrameAssembly,insertCoverTensioning
Tubes intopocketsalong both sides of Roof
Cover.CenterRoofCoveroverFrameassembly
both sideto sideandfront to back. Align oneside
of RoofCoverevenly frontto back. Add Band for
TieDownRatchetateachpointalong thecover
opening, as shown.Put Band forTieDown
Ratchets overCoverTensioning Tubesateach
BasePlatealongoneside. Bands donotattachto
TensioningTubes, butlooparound andsecureat
bothendson ratchet.
Next takeup slackintiebandsbyratcheting the
mechanisms,tighteningcover.Evenlyadjust
ratchetsonboth sidesofroof cover totake
wrinkles outofroof cover. DONOT fullytighten
cover yet.Leaveadequateslacksothatcover can
alsobeadjustedfronttobackinnextstep.
Step#7--TIGHTENROOFCOVER
ONFRAMEFRONTTOBACK
Theroof cover is tensionedfromfrontto backby
theropelacingto grommetflapsinsidethemain
cover,insidetheunitatboth frontand rear arches.
Usingtheropeprovided,lacethemain cover
grommetflaparoundthemain framefrontand rear
archpieces.Startinthetopmiddleofeacharch, and
lacetoeachside.Addropelengthbytyingpieces
togetherorcuttingas necessary.
Laceallgrommetsoncoverinsideflapwithrope.
Startingatthemiddletoppointover thedoor,
tightenlacingonlyenoughto takewrinklesoutof
thecover.RepeatfortheRearArch. DONOT over
tightenlacingtopulloutthegrommets.
Aftertheroofcoverlacingisadjustedevenlyacross
thegrommetflap,gobackandre-adjustthe
TensioningRatchetsalongthesideedgesofthe
RoofCover.Atthispoint,themaincover canbe
pulledtaut enoughtotakeallexcess materialand
wrinklesoutofcover.Itwillbenecessarytorepeat
thisstep2-3weeksafterunitassemblyis complete
and roof overhas achanceto stretchoutover the
framecompletely.
Before insertingthecovertensioning
tube(part#19)intopocket ofroof
cover,youneedto makecutsforband
ofRatchetonthecoverfirst. Firstly
pleasedrawtheoutlineofthecuts
accordingto thepositionofRatchet.
Theposition of cuts should beright
upon theratchets.
draw theoutline ofcuts
Thenmake the cuts using
forfex along theoutlines.
24
34
19
Then put thebands through
the reel of the ratchet, and
tension theband by ratchet.
ba
cd
36

Figure 11 Fastening the two ends of the Roof
Cover
Figure 12 Installation of the Front Cover Figure 13 Installation of the Back Cover
33
32
31
35

Step#8--ASSEMBLE
FRONT&REAR COVER
SecuretheFrontandBack
Covertothearchpanelby using
theropesprovided.
MainCover Edge Tie Off -
OncebothFrontand Rear
Coversareinstalled,theRoof
CoverEdgeflap,frontandrear,
shouldbetightenedandtiedoff.
Beginbypullingtheremaining
RoofCoverovertheFramearch,
sotheropepocketisover the
edgeoftheframe.Tieoffthe
ropethatgoesthroughtherope
pocketononeside.Theropeties
offtotheloopthatislocatedon
theBaseFlangeinCorner(part
#6).Movingtotheother side,
begintopulltheropedown.
Holdtheropeinhand,and
pushdownatthebottom of
theropewithafoot.Pull the
ropetight,andtieofftothe
weldedhoopontheBase
Flange.Asyouarepulling
theedgerope,itwill be
necessarytoadjustthe
excess material that will
collectalongtherope
packet.Adjustthematerial
sothatitisnotbunchedup
anditdoesnotpull theroof
covertoonesideor the
other.OncetheFront is
completed,repeatthe
processontheRearflapof
theRoofCover.

10
The doordroppingtube assembly
38 37
11
13A
22
31A
Installation ofmechnical door
(Seeingfrom inside)
Figure14
Installation oftheMechanical Door
Step#9--MECHANICALDOOR
INSTALLATIONSTEPS
1.InstallMainDoorPulleys(leftandright)over theTop
oftheDooroneachsideofthe DoorBeam(Part #10).
2.NextmounttheWinch Mechanismtothe Front Panel
LowerBeam(Part#13A).
3.Slide BottomDoorDroppingTube (Part38) intothe
bottomhorizontalfabricpocketontheDoorCover (Part
#31A).Thenslide the sixremainingDoor Dropping
Tubes(Part#37)intothe remaininghorizontal fabric
pocketsintheDoor Cover
4.Fromthe bottomofthedoortracks(11,12,12A), gently
raiseandslide one doordroppingtube(37,38) intothe
tracks.Andthen feedthe otherremainingdoor dropping
tubes(37,38)intothe door tracks.
5.Nextinstallthesteelwirethatleadsfromthe bottom
ofthedoordroppingtubestothedoorwinching
assembly.TakeoneoftheSteelWiresinthe Door kit,
andfeeddownfromthetopoftheDoortracktothe
BottomDoorTubeDroppingTube(#38)onthe right
handsideofthedoor(facingfromtheinside). When
thesteelwiregoesdownthoughtheholeinthe Bottom
DroppingTube,tieaknotinthesteelwire sothat it
cannotpassbackupthroughthe hole.
6.FromtheWinchAssemblyrouteleadingendof the
LongerSteelCablethroughtheUpperRollerof the
doublethepulleyneardoortrackandthenthrough the
SingleRolleronthedoortrackfarthestfromthe Winch
Assembly.
ThendownthroughtheBottomDoorDropping Tube
(#38).Whenthesteelcablegoesdownthough the hole
intheBottomDoorDroppingTube,tieaknot inthe
steelcable.Doorcannowbeoperating the Winch
Assembly.Raiseandlowerthedoorseveraltimestobe
certaindoortubeendsarenotbindingon track..
Lubricateifnecessary.
12
13
12A
