Vintage Air 473068 User manual

903068 REV B 9/18/14 , 1968-69 CHEVELLE CNTRL PNL INSTR PG 1 OF 8
CONTROL PANEL CONVERSION KIT
473068
1968-69 CHEVELLE
OFF
HI
DEF
COLD
DASH
HOT
FLR
AC
an ISO 9001:2008 Registered Company

2
1968-69 CHEVELLE CNTRL PNL
903068 REV B 9/18/14 , 1968-69 CHEVELLE CNTRL PNL INSTR PG 2 OF 8
PAGES
1.
2.
3.
4.
5.
6.
7.
8.
COVER
TABLE OF CONTENTS
PACKING LIST/ PARTS DISCLAIMER
REMOVING OEM CONTROL PANEL
CONTROL PANEL & CONTROL HARNESS INSTALLATION
WIRING DIAGRAM
OPERATION OF CONTROLS
CONTROL PANEL KIT PACKING LIST
Table of Contents

3
1968-69 CHEVELLE CRTL PNL
903068 REV B 9/18/14 , 1968-69 CHEVELLE CNTRL PNL INSTR PG 3 OF 8
** BEFORE BEGINNING INSTALLATION OPEN ALL PACKAGES AND CHECK CONTENTS OF SHIPMENT.
PLEASE REPORT ANY SHORTAGES DIRECTLY TO VINTAGE AIR WITHIN 15 DAYS. AFTER 15 DAYS,
VINTAGE AIR WILL NOT BE RESPONSIBLE FOR MISSING OR DAMAGED ITEMS.
N o. Q TY. PART N o. DESC RIPTIO N
1.
2.
1
1
473067 1968-69 CHEVELLE CNTRL PNL ASM
232007-VUR
GEN IV UNIVERSAL CONTROL HARNESS (TYPE C)
NOTE: IMAGES MAY NOT DEPICT ACTUAL PARTS AND QUANTITIES.
REFER TO PACKING LIST FOR ACTUAL PARTS AND QUANTITIES
OFF
DASH
HOT
FLR
HI
D
EF
COLD
AC
CONTROL KIT PACKING LIST
CONTROL KIT
473068

4
1968-69 CHEVELLE CNTRL PNL
903068 REV B 9/18/14 , 1968-69 CHEVELLE CNTRL PNL INSTR PG 4 OF 8
1968-69 CHEVELLE CONTROL PANEL
CONVERSION KIT INSTRUCTIONS
DISCONNECT BATTERY GROUND CABLE.
REMOVE THE DASH PAD BY REMOVING (6) OEM SCREWS.(RETAIN)
LOWER STEERING COLUMN, PROTECT STEERING COLUMN WITH A CLOTH.
DISCONNECT ALL WIRE AND CABLES FROM INSTRUMENT PANEL, SPEEDOMETER, CONTROL PANEL,
AND RADIO.
REMOVE INSTRUMENT PANEL RETAINING SCREWS AT TOP, BOTTOM, AND SIDE OF PANEL.
REMOVE CONTROL PANEL FROM INSTRUMENT PANEL.
REMOVING OEM CONTROL PANEL
68 CHEVELLE SHOWN
FIGURE 1
REMOVAL OF DASHBOARD REQUIRED TO INSTALL THE CONTROL PANEL. VINTAGE AIR
RECOMMENDS THAT YOU UTILIZE THE FACTORY SERVICE MANUAL WHEN YOU DISASSEMBLE
AND REASSEMBLE THE DASHBOARD.
NOTE:
HOT
HEATER
DE-ICE
FAN
OFF
A/C
OFF
COLD
VENT

5
1968-69 CHEVELLE CRTL PNL
903068 REV B 9/18/14 , 1968-69 CHEVELLE CNTRL PNL INSTR PG 5 OF 8
CONTROL PANEL AND CONTROL HARNESS INSTALLATION
INSTALL CONTROL PANEL ASM TO BACK SIDE OF INSTRUMENT PANEL AS SHOWN IN FIGURE 2 BELOW.
SECURE THE CONTROL PANEL ASM TO INSTRUMENT PANEL USING OEM SCREWS AS SHOWN IN FIGURE
2 BELOW.
PLUG THE CONTROL PANEL HARNESS INTO ECU AS SHOWN IN FIGURE 2 BELOW. PLUG THE OPPOSITE
END OF THE HARNESS INTO THE CONTROL PANEL PC BOARD AS SHOWN IN FIGURE 2 BELOW.
473067
CONTROL PANEL
ASM
FINAL STEPS
REINSTALL ALL PREVIOUSLY REMOVED
ITEMS ( INSTRUMENT PANEL, RADIO
AND WIRING)
REINSTALL DASH PAD USING THE
(6) OEM SCREWS.
FIGURE 2
232007-VUR
CONTROL PANEL
HARNESS
PLUG FROM
WIRING HARNESS
232001-VUR
ECU
NOTE: ECU MODULE LOCATED
ON EVAPORATOR SUBCASE
OFF
HI
DEF
COLD
DASH
HOT
FLR
AC
(4) OEM
SCREWS
BACK OF OEM
DASH

6
1968-69 CHEVELLE CNTRL PNL
903068 REV B 9/18/14 , 1968-69 CHEVELLE CNTRL PNL INSTR PG 6 OF 8
WHT/GRN
WHT/YEL
WHT/RED
RED
WHT
BACKLIGHT NEG
FAN WIPER
MODE WIPER
TEMP WIPER
5V-SW
GND
BACKLIGHT POS
AC ANNUNCIATOR
PRE-WIRED
GEN IV WIRING DIAGRAM
REV D, 5/6/2014
GEN IV ECU
PROGRAM
Wiring Diagram
TEMP
MODE
FAN
A/C
(IF USED)
232007-VUR
232002-VUA
** CIRCUIT
BREAKER
30 AMP
*** WIDE OPEN
THROTTLE
SWITCH
(OPTIONAL)
* DASH LAMP
(IF USED)
Dash Lamp Is Used Only With Type 232007-VUR Harness.
Warning: Always Mount Circuit Breaker As Close to the Battery As Possible. (NOTE: Wire Between
Battery and Circuit Breaker Is Unprotected and Should Be Carefully Routed to Avoid a Short
Circuit).
Wide Open Throttle Switch Contacts Close Only at Full Throttle, Which Disables A/C
Compressor.
JF8
BLK
ORA
TAN
VIEWED FROM WIRE SIDE
•
•
•
HEATER
CONTROL VALVE

7
1968-69 CHEVELLE CRTL PNL
903068 REV B 9/18/14 , 1968-69 CHEVELLE CNTRL PNL INSTR PG 7 OF 8

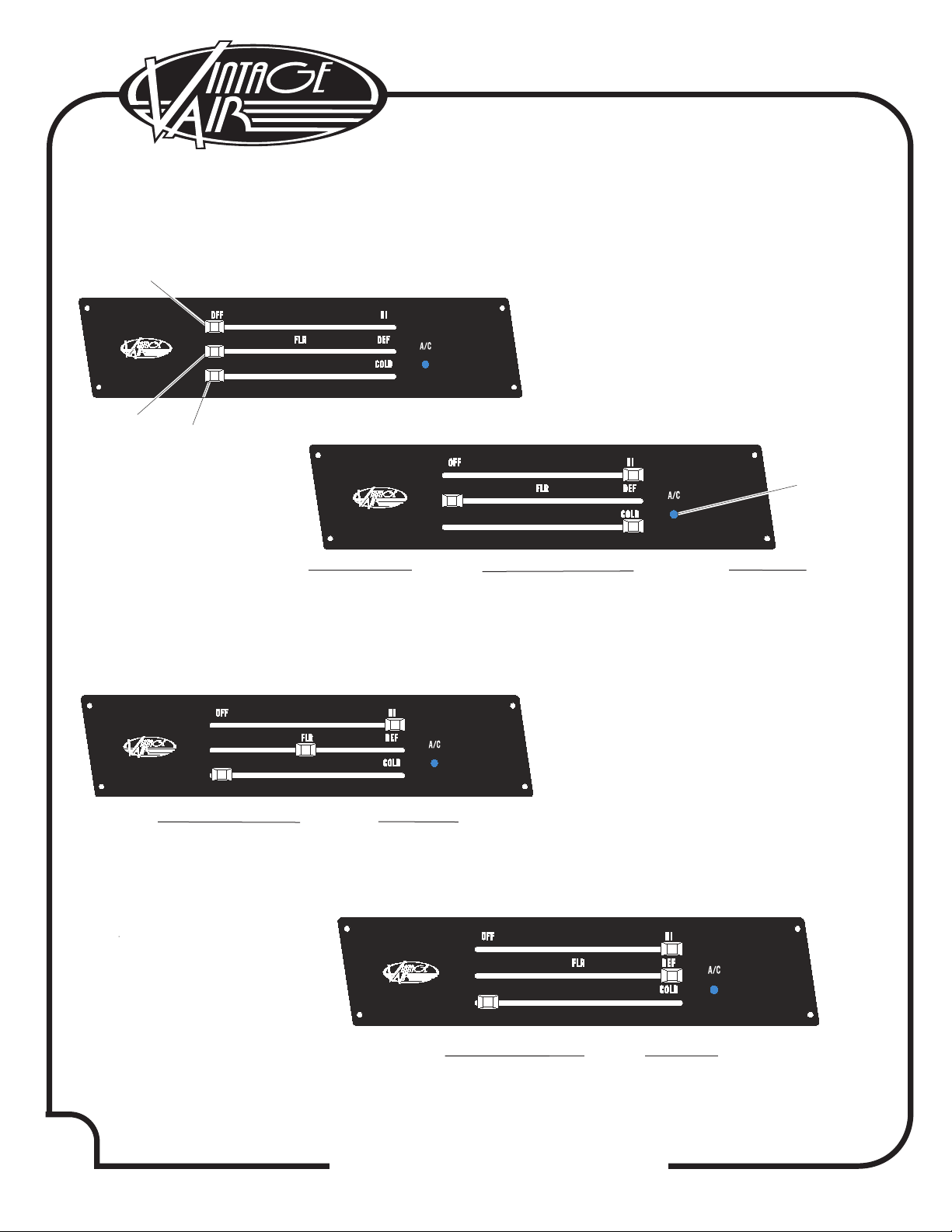

OPERATION OF CONTROLS
A/C THERMOSTAT
IN DEF MODE SLIDE THE
THERMOSTAT LEVER ALL THE
WAY TO THE LEFT TO THE
HOT POSITION, FOR MAXIMUM HEATING
(SLIDE LEVER LEFT OR RIGHT TO
ADJUST DESIRED TEMPERATURE)
LEVER MODE
SLIDE THE LEVER TO
THE “DEF” POSITION
LEVER
DEFROST MODE
MODE
LEVER THERMOSTAT
SYSTEM OFF
BLOWER
SPEED
DASH
HOT
BLOWER SPEED
THIS LEVER CONTROLS
THE BLOWER SPEED,
FROM OFF TO HI
A/C THERMOSTAT
IN A/C MODE SLIDE THE THERMOSTAT LEVER
ALL THE WAY RIGHT TO THE COLD POSITION,
FOR MAXIMUM COOLING. BLUE AC INDICATOR
LIGHT WILL COME ON ONLY WHEN AC COMPRESSOR
IS ENGAGED (SLIDE LEVER LEFT OR RIGHT
TO ADJUST DESIRED TEMPERATURE)
LEVER MODE
SLIDE THE LEVER TO
THE “DASH” POSITION
LEVER
A/C MODE
DASH
HOT
BLUE AC
INDICATOR
LIGHT
A/C THERMOSTAT
THERMOSTAT LEVER ALL THE
WAY TO THE LEFT TO THE
HOT POSITION, FOR MAXIMUM HEATING
(SLIDE LEVER LEFT OR RIGHT TO
ADJUST DESIRED TEMPERATURE)
LEVER MODE
SLIDE THE LEVER TO
THE “FLR” POSITION
(SLIDE THE LEVER TO THE
LEFT OR RIGHT,
TO ADJUST DESIRED DASH/
FLR/ DEF LOCATION
LEVER
HEAT MODE
DASH
HOT
DASH
HOT
NOTE: WHEN BATTERY POWER IS FIRST CONNECTED TO THE ECU, THE COMPUTER GOES THROUGH AN INITIALIZATION
SEQUENCE.THIS INITIALIZATION MAY TAKE UP TO 30 SECONDS. DURING INITIALIZATION THE BLOWER WILL NOT OPERATE,
BUT THE DOORS INSIDE THE UNIT WILL BE OPERATING. A LOW BATTERY OR DISCONNECTING THE BATTERY MAY ALSO
TRIGGER ARE-INITIALIZATION. DURING START UP, A LOW BATTERY MAY DROP BELOW 7 VOLTS, TRIGGERING RE-INITIALIZATION.
IN HEAT MODE SLIDE THE

8
1968-69 CHEVELLE CNTRL PNL
903068 REV B 9/18/14 , 1968-69 CHEVELLE CNTRL PNL INSTR PG 8 OF 8
C HEC KED BY:
PAC KED BY:
DATE:
2
1
NOTE: IMAGES MAY NOT DEPICT ACTUAL PARTS AND QUANTITIES.
REFER TO PACKING LIST FOR ACTUAL PARTS AND QUANTITIES
N o. Q TY. PART N o. DESC RIPTIO N
1.
2.
1
1
473067 1968-69 CHEVELLE CNTRL PNL ASM
232007-VUR
GEN IV UNIVERSAL CONTROL HARNESS (TYPE C)
OFF
DASH
HOT
FLR
HI
D
EF
COLD
AC
CONTROL KIT PACKING LIST
CONTROL KIT
473068
