VIRTUFIT Row 1.0 User manual

Row 1.0 Rowing Machine
User Manual
EN

VirtuFit Row 1.0 Rowing Machine 2
EN
INDEX
3 - 4
5 - 6
7 - 12
13
14 -15
16
17 - 18
19
20
21
SAFETY INSTRUCTIONS
CHECKLIST
ASSEMBLY INSTRUCTIONS
FOLDING INSTRUCTIONS
MAINTENANCE
TROUBLE SHOOTING
CONTROL PANEL
EXPLODED DRAWING
PARTS LIST
TRAINING INSTRUCTIONS

VirtuFit Row 1.0 Rowing Machine
3EN
SAFETY INSTRUCTIONS
– It is important to read this entire manual before assembling and using the equipment. Safe and
eective use can only be achieved if the equipment is assembled, maintained and used properly.
It is your responsibility to ensure that all users of the equipment are informed of all warnings and
precautions.
– Before starting any exercise program, you should consult your doctor to determine if you have
any medical or physical conditions that could put your health and safety at risk, or prevent you
from using the equipment properly. Your doctor’s advice is essential if you are taking medication
that aects your heart rate, blood pressure or cholesterol level.
– Be aware of your body’s signals. Incorrect or excessive exercise can damage your health. Stop
exercising if you experience any of the following symptoms: pain, tightness in your chest, irregular
heartbeat, extreme shortness of breath, lightheadedness, dizziness or feelings of nausea. If you do
experience any of these conditions you should consult your doctor before continuing with your
exercise program.
– Keep children and pets away from the equipment. The equipment is designed for adult use only.
– Use the equipment on a solid, at level surface with a protective cover for your oor or carpet. To
ensure safety, the equipment should have at least 0.5 metres of free space all around it.
– Before using the equipment, check that the nuts and bolts are securely tightened.
– The safety of the equipment can only be maintained if it is regularly examined for damage and/or
wear and tear.
– Always use the equipment as indicated. If you nd any defective components while assembling or
checking the equipment, or if you hear any unusual noises coming from the equipment during use,
stop immediately. Do not use the equipment until the problem has been rectied.
ATTENTION
WARNING:
Before beginning any exercise program consult your physician. This is especially
important for people who are over 35 years old or who have pre-existing health
problems. Read all instructions before using any tness equipment. Do not operate this
exercise equipment without properly tted guards, as the moving parts can present a
risk of serious injury if exposed.

VirtuFit Row 1.0 Rowing Machine 4
EN
SAFETY INSTRUCTIONS
– Wear suitable clothing while using the equipment. Avoid wearing loose clothing that may get caught
in the equipment or that may restrict or prevent movement.
– The max user weight is 115 KGS. Braking ability is independent of speed.
– The equipment is not suitable for therapeutic use.
– Care must be taken when lifting or moving the equipment so as not to injure your back. Always use
proper lifting techniques and/or seek assistance if necessary.
– Please keep the space at least 1 to 2 meter at the end of base frame to escape any accidents!
– Place the device on a clean and at surface. Do not place the equipment on a thick carpet.
– The device is for indoor use and not for outdoor use to prevent damage. Keep the storage location
dry, clean and at. It is forbidden to use the device for purposes other than training.
– Only use the machine in an environment with an ambient temperature between 10 ° C and 35 ° C.
Only store the device at an ambient temperature between 5 ° C and 45 ° C
Warranty claim is excluded if the cause of the defect is the result of:
• Maintenance assembly and repair work not carried out by an ocial dealer.
• In the event of improper use, neglect and / or poor maintenance.
• Failure to maintain the tness equipment in accordance with the manufacturer’s instructions (see
the enclosed manual).

VirtuFit Row 1.0 Rowing Machine
5EN
CHECKLIST
TOOLKIT

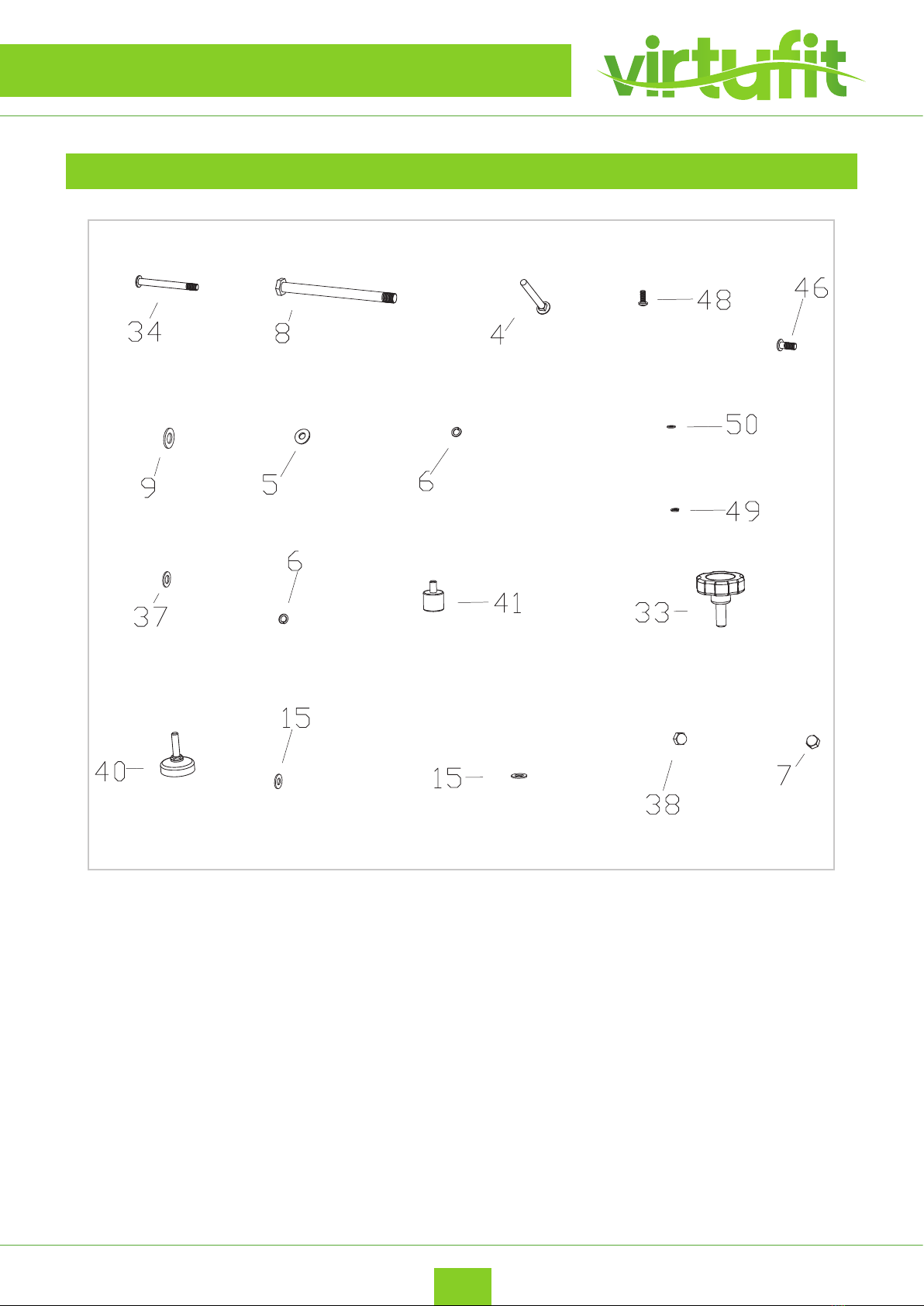

When you open the carton, you will nd the below parts in the carton.
1 2
45
10 (2x)
22 (2x)
47
52
51

VirtuFit Row 1.0 Rowing Machine 6
EN
TOOLKIT
CHECKLIST

VirtuFit Row 1.0 Rowing Machine
7EN
STEP 1
Missing parts: If you think you are missing certain parts in your package, carefully check the styrofoa and
the rowing machine. Some parts (bolts, screws, etc.) are already attached to / in the rowing machine.
Error message: Ensure that all cables are carefully attached. The aluminum legs are very sensitive and
must remain straight. Do you receive an error message after mounting your rowing machine? Then you
have to straighten these aluminum legs again, this may cause the error message to disappear.
Socket screws: The rowing machine contains socket screws, make sure that the allen key is rmly in the
bolt before you apply force to the key. In this way you prevent the head of the socket head screw from
being rotated.
• Attach the handlebar (22) to the axle (24).
ASSEMBLY INSTRUCTIONS

VirtuFit Row 1.0 Rowing Machine 8
EN
STEP 2
• Attach the front stabilizer (2) to the main frame (1) with the bolt (4), washer (5), spring washer (6)
and nut (7).
• Mount the adjustable cushion (40) on the main frame (1). Set to the appropriate position to the rail
frame (45).
ASSEMBLY INSTRUCTIONS

VirtuFit Row 1.0 Rowing Machine
9EN
STEP 3
• Attach the pedals (10) to the main frame (1) with the bolts (8) and the at washers (9).
ASSEMBLY INSTRUCTIONS

VirtuFit Row 1.0 Rowing Machine 10
EN
STEP 4
• Attach the saddle (52) to the saddle frame (51) with the screw (48) spring washers (49) and at
washers (50).
• Attach the rear support frame (47) to the rail frame (45) with the screw (46) spring washers (6) and
at rings (15).
• First remove the cushion (41) and then install the seat post (51) on the rail frame (45). Attach the
cushion (41) nally on rail frame (45).
ASSEMBLY INSTRUCTIONS

VirtuFit Row 1.0 Rowing Machine
11 EN
STEP 5
• Connect the wire (36) with the sensor wire (35). The sensor wire (35+36) must be around part “40”.
This reduces the chance of the cable getting pinched.

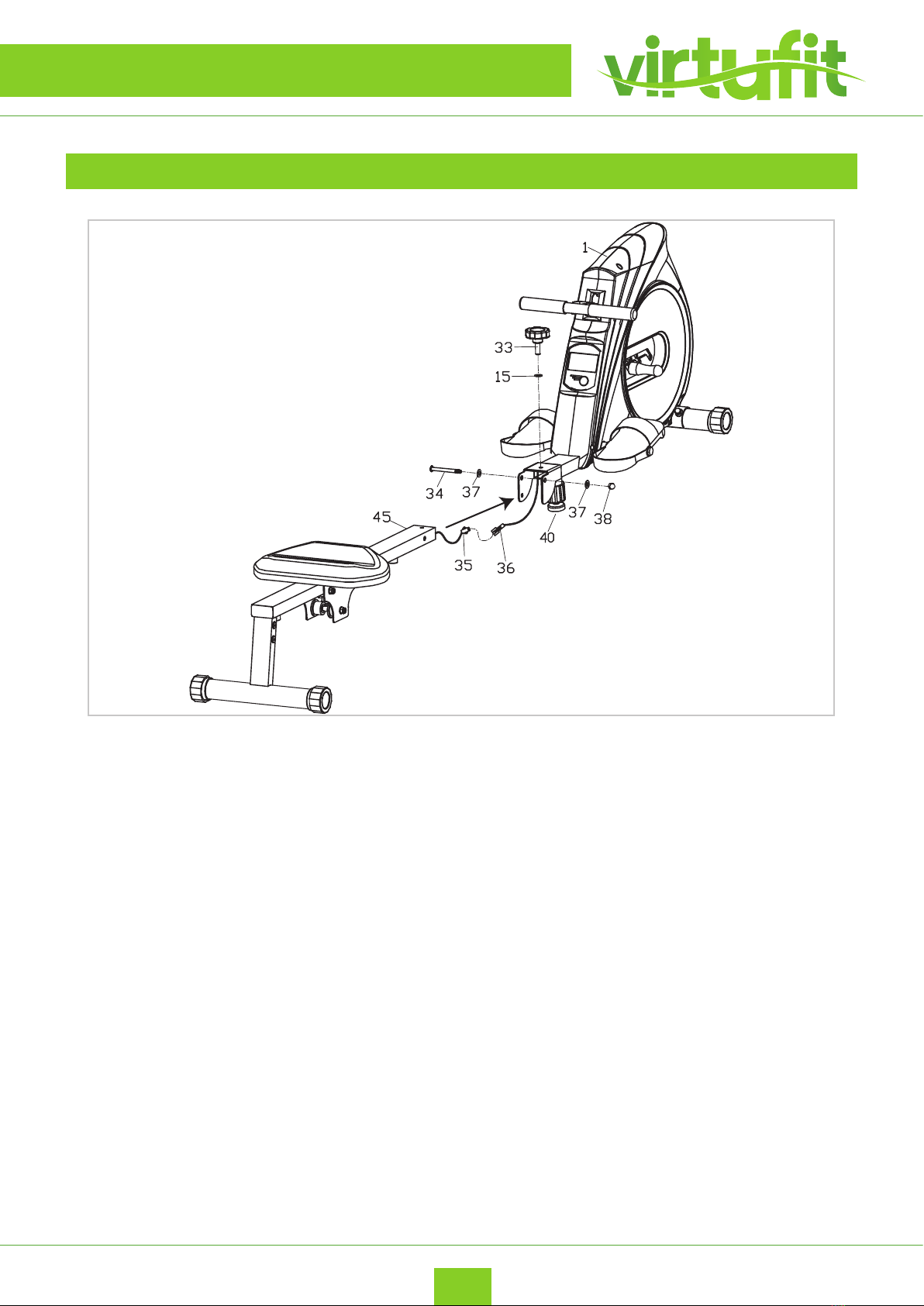

• Attach the rail frame (45) to the main frame (1) with the bolts (34), washers (37) and nuts (38).
• Then attach the bolt (33) and the at washer (15) to the main frame (1).
ASSEMBLY INSTRUCTIONS

VirtuFit Row 1.0 Rowing Machine 12
EN
STEP 6
• Pull the handlebar (22) out of the groove as indicated by the arrow, pull the handlebar (22) forwards
or backwards, then insert the handlebar into a dierent groove.
Adjusting the support feet
The equipment is equipped with 4 support feet. If the equipment is not stable, the support feet can be
adjusted. Turn the support feet as required to put the equipment in a stable position.
NOTE! The machine is the most stable when all support feet are turned fully in. Therefore start
to level the machine by turning all support feet fully in, before turning out the required support
feet to stable the machine.
ASSEMBLY INSTRUCTIONS

VirtuFit Row 1.0 Rowing Machine
13 EN
NOTE! Store your machine in a dry area away from children and high trac areas as shown in
the illustration. Be sure it is secure and cannot fall onto small animals or children.
FOLDING
UNFOLDING
Unscrew the locking pin (33), then remove
the locking pin and at washer (15), at the
same time fold the rails upwards. Replace
the locking pin (33) with at washer (15).
Unscrew the locking pin (33), then remove
the locking pin and at washer (15), at the
same time unfold the rails towards the
ground. Replace the locking pin (33) with at
washer (15).
FOLDING INSTRUCTIONS

VirtuFit Row 1.0 Rowing Machine 14
EN
SEMI-ANNUAL MAINTENANCE
DAILY MAINTENANCE
• Clean and remove sweat after each use. Do not use aggressive cleaning agents and ensure that
the device remains free of moisture.
• Check that the rail and the wheels under the seat are free from dust and dirt.
• Inspect all bolts and nuts in connection with moving parts of the device, tighten as required.
• Check the mobility of moving parts and components of the use equipment, silicone spray if
necessary.
TENSION KNOB
TENSION KNOB ADJUSTMENT
You could adjust the tension for varied
resistance as shown in the illustration.
NOTE: You should begin your “Exercise
Period” at the resistance level and speed
to suit your needs. Remember to start out
slow and easy, and work your way up to the
tness level you desire.
Safeandeectiveusecanonlybeachievedifthedevicewillbeassembledandmaintained
well. It is your responsibility to ensure that the equipment is regularly maintained. Parts
that are already used and / or damaged must be replaced before continuing using. The
rower machine may only be used indoors and stored away, prolonged exposure to
weathering and changes in temperature / humidity can have a serious impact on the
electrical components and moving parts of the rowing machine.
MAINTENANCE

VirtuFit Row 1.0 Rowing Machine
15 EN
BATTERY
AA BATTERIJEN

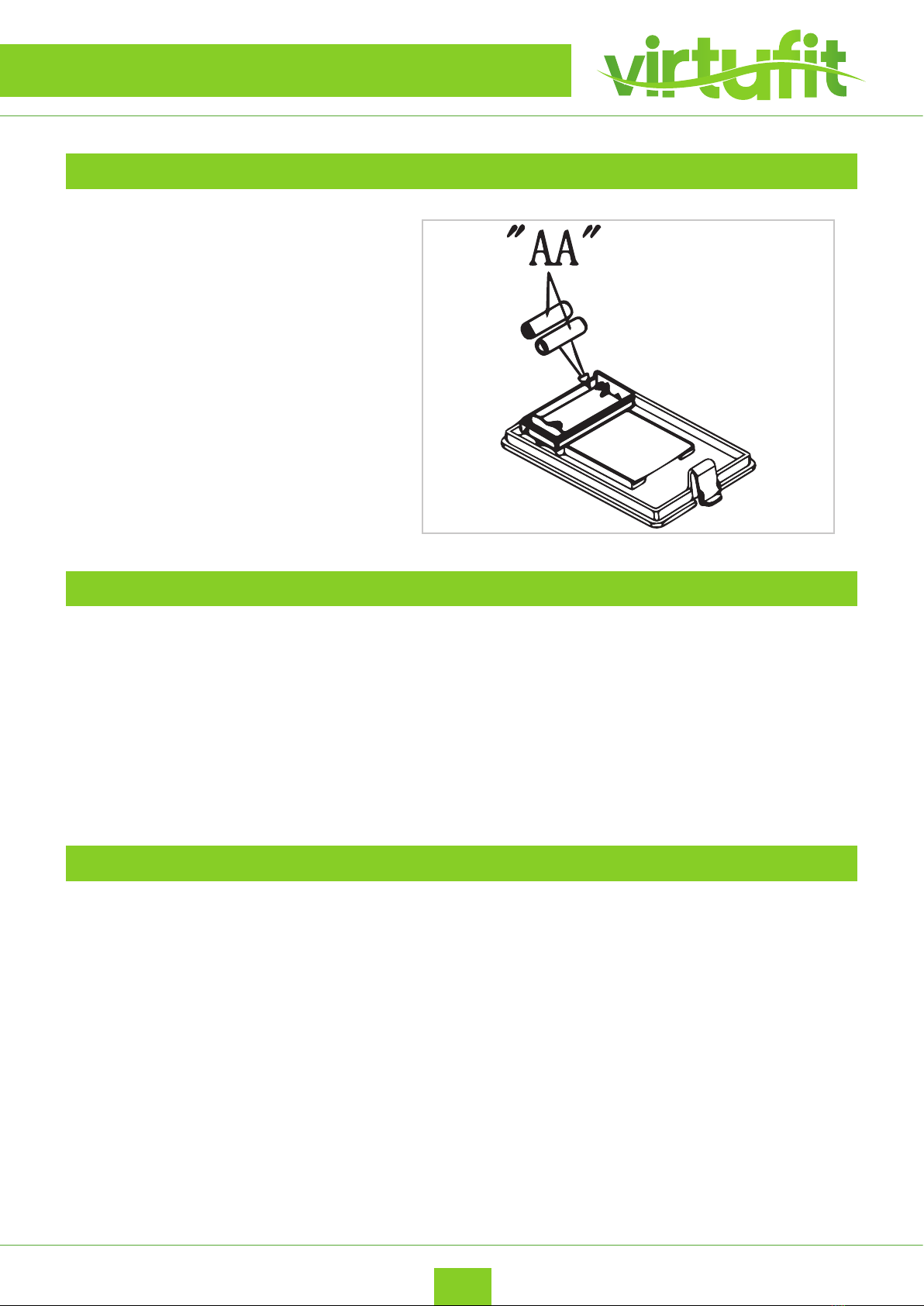

The monitor uses on “AA” battery. You can
replace the battery through the back of the
unit.
The batteries must be installed correctly. If
the screen is unreadable or only parts of the
image work, follow the next step: Remove
the batteries and wait 15 seconds, then
reinsert the batteries correctly.
ADVICE FOR HANDLING BATTERIES
CHANGING THE BATTERIES
1. Remove the batteries when they are exhausted or if you do not use the product for an extended
period of time in order to avoid hazards through leaking batteries.
2. Do not recharge batteries nor dissemble or throw then into re. Danger of explosion!
3. Pay attention to the polarity (+) and (-). Always replace all the batteries; do not mix old and new batteries,
or dierent battery types.
4. Use preferably alkaline batteries, as they have a longer operation time then usual zinc-coalbatteries.
5. A change of batteries is necessary when the display becomes weaker or completely faded.
1. If you see an improper display on the monitor, please replace the batteries to have a good result.
2. Please use 2pcs of 1.5v AA batteries as a power supply.
MAINTENANCE

VirtuFit Row 1.0 Rowing Machine 16
EN
TROUBLE SHOOTING
Display does not work
If the display no longer works, you can replace the batteries. These are at the back of the display.
Display shows no values
If the display does not show any values, you can try to check the sensor cables and the cables in the back
of the display. If this still does not work, you can move the sensor slightly.
Rowing machine beeps
Check that all bolts and nuts are tightened securely. Spray silicone spray if necessary. Also check the wheels
under the seat.
PROBLEM SOLUTIONS

VirtuFit Row 1.0 Rowing Machine
17 EN

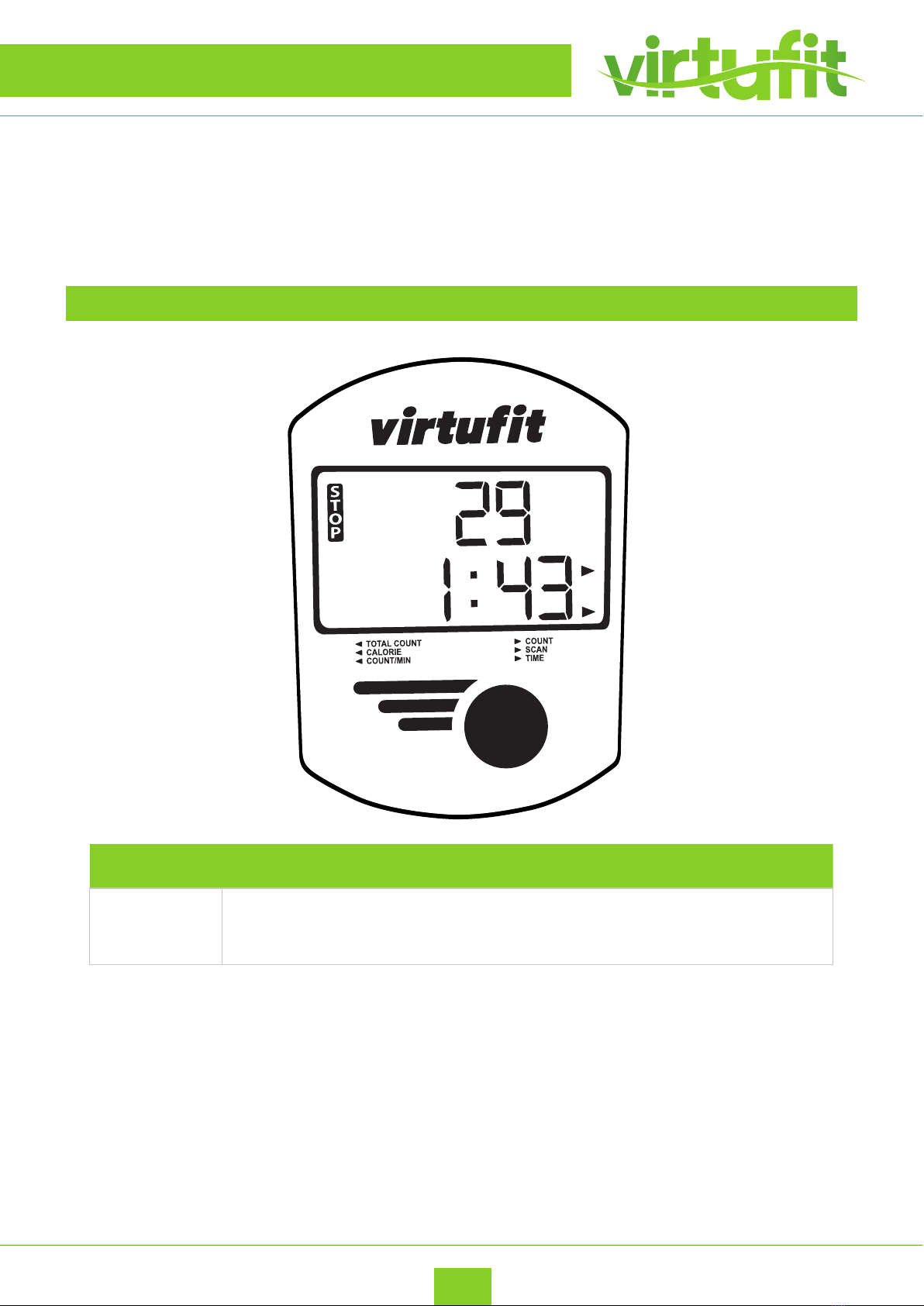

CONSOLE
BUTTON FUNCTION
MODE Press Mode/ Reset button to select console functions.
CONTROL PANEL
NOTE:
Keep the console away from direct sunlight. Dry the surface of the console when it is
covered with drops of sweat. Do not lean on the console. Only touch the display with the
tip of your nger. Make sure that your nails or sharp objects do not touch the display.

VirtuFit Row 1.0 Rowing Machine 18
EN
BUTTON EXPLANATION
SCAN The following functions are displayed in the SCAN position: TIME, COUNT, TOTAL
COUNT, CALORIE, COUNT / MIN.
TIME Counts rowing time from the beginning of the exercise to the end.
COUNT Counts the rowing strokes from start to nish.
TOTAL
COUNT Counts the total rowing strokes from start to nish.
CALORIES Counts total calories from the beginning to the end of rowing.
COUNT/MIN Displays the current rowing strokes per minute or the frequency per minute.
AUTO ON/
OFF & AUTO
START/STOP
Without any signal being transmitted into the monitor for 4 minutes the monitor
will enter SLEEP mode automatically. Active training data will be lost. When you
start rowing or press the button, the monitor is working again.
FUNCTION
CONTROL PANEL

VirtuFit Row 1.0 Rowing Machine
19 EN
EXPLODED DRAWING

VirtuFit Row 1.0 Rowing Machine 20
EN
#DESCRIPTION QTY
1 Mainframe 1
2 Front stabilizer 1
3 End cap 4
4 Bolt M8*65 2
5 Arc washer d8*1.5*Φ20*R30 2
6 Spring washer D8 6
7 Nut M8 2
8 Bolt φ12.5*130*M12*16 2
9 Flat washer D13*φ26*2 4
10 Pedal 2
11 Screw ST4.2*18 10
12 Computer 1
13 L/R Chain cover 1 pr
14 Bolt M8*62 4
15 Flat washer D8*φ19*1.5 19
16 Bushing φ12*φ8.5*10.5 4
17 Bearing 608 4
18 Wheel 2
19 Idler wheel 2
20 Fixed sleeve 1
21 Nulon nut M8 7
22 Handlebar 2
23 End cap 3
24 Axle M10*φ12*95 1
25 Bearing φ32*φ12*11 2
26 Wheel 1
27 U-shaped washer 1
28 Rope lock 2
#DESCRIPTION QTY
29 Plug 2
30 Handlebar 1
31 Foam grip 2
32 Rope 1
33 Bolt 1
34 Bolt M10x80 1
35 Sensor wire 1
36 Extended wire 1
37 Flat washer D10*φ20*1.5 2
38 Nut M10 1
39 End cap 1
40 Adjustable support leg 1
41 Cushion pad 2
42 Sensor 1
43 Screw ST3*10 2
44 End cap 1
45 Rail tube 1
46 Screw M8*16 4
47 Rear support frame 1
48 Bolt M6*15 4
49 Spring washer D6 4
50 Flat washer D6 4
51 Saddle post 1
52 Saddle 1
53 Bolt M8*90 3
54 Wheel 6
55 Bushing φ12*φ8*20 3
56 Bearing 12
PARTS LIST
