VIRTUFIT Ultimate Pro 2i User manual

Ultimate Pro 2i Ergometer Rowing Machine
User manual
EN

VirtuFit Ultimate Pro 2i Ergometer Rowing Machine 2
EN
SAFETY INSTRUCTIONSSAFETY INSTRUCTIONS
CHECKLISTCHECKLIST
NOTESNOTES
ASSEMBLY INSTRUCTIONSASSEMBLY INSTRUCTIONS
CONSOLECONSOLE
APPSAPPS
EXPLODED DRAWINGEXPLODED DRAWING
PARTS LISTPARTS LIST
3 - 4
5 - 6
7
8 - 14
15 - 22
23
24
25 - 27
INDEX

VirtuFit Ultimate Pro 2i Ergometer Rowing Machine
3EN
SAFETY INSTRUCTIONS
– It is important to read this entire manual before assembling and using the device. Safe and
effective use can only be achieved if the device is assembled, maintained and used properly.
It is your responsibility to ensure that all users of the device are informed of all warnings and
precautions.
– Before starting any exercise program, you should consult your doctor to determine if you have
any medical or physical conditions that could put your health and safety at risk, or prevent you
from using the device properly. Your doctor’s advice is essential if you are taking medication
that affects your heart rate, blood pressure or cholesterol level.
– Be aware of your body’s signals. Incorrect or excessive exercise can damage your health. Stop
exercising if you experience any of the following symptoms: pain, tightness in your chest, irregular
heartbeat, extreme shortness of breath, lightheadedness, dizziness or feelings of nausea. If you do
experience any of these conditions you should consult your doctor before continuing with your
exercise program.
– Keep children and pets away from the device. The device is designed for adult use only.
– Use the device on a solid, flat level surface with a protective cover for your floor or carpet. To
ensure safety, the device should have at least 0.5 metres of free space all around it.
– Before using the device, check that the nuts and bolts are securely tightened.
– The safety of the device can only be maintained if it is regularly examined for damage and/or
wear and tear.
ATTENTION
WARNING:
Before beginning any exercise program consult your physician. This is especially
important for people who are over 35 years old or who have pre-existing health
problems. Read all instructions before using any fitness equipment. Do not operate this
device without properly fitted guards, as the moving parts can present a risk of serious
injury if exposed.

VirtuFit Ultimate Pro 2i Ergometer Rowing Machine 4
EN
– Always use the device as indicated. If you find any defective components while assembling or
checking the device, or if you hear any unusual noises coming from the device during use,
stop immediately. Do not use the device until the problem has been rectified.
– Wear suitable clothing while using the device. Avoid wearing loose clothing that may get caught
in the device or that may restrict or prevent movement.
– The max user weight is 230 KGS. Braking ability is independent of speed.
– The device is not suitable for therapeutic use.
– Care must be taken when lifting or moving the device so as not to injure your back. Always use
proper lifting techniques and/or seek assistance if necessary.
– Please keep the space at least 1 to 2 meter at the end of base frame to escape any accidents!
– Place the device on a clean and flat surface. Do not place the device on a thick carpet.
– The device is for indoor use and not for outdoor use to prevent damage. Keep the storage location
dry, clean and flat. It is forbidden to use the device for purposes other than training.
– Only use the machine in an environment with an ambient temperature between 10 °C and 35 °C.
Only store the device at an ambient temperature between 5 °C and 45 °C.
Warranty claim is excluded if the cause of the defect is the result of:
– Maintenance assembly and repair work not carried out by an official dealer.
– In the event of improper use, neglect and / or poor maintenance.
– Failure to maintain the device in accordance with the manufacturer’s instructions (see the enclosed
manual).
SAFETY INSTRUCTIONS

VirtuFit Ultimate Pro 2i Ergometer Rowing Machine
5EN
K
E
C
A
G
F
H
D
B

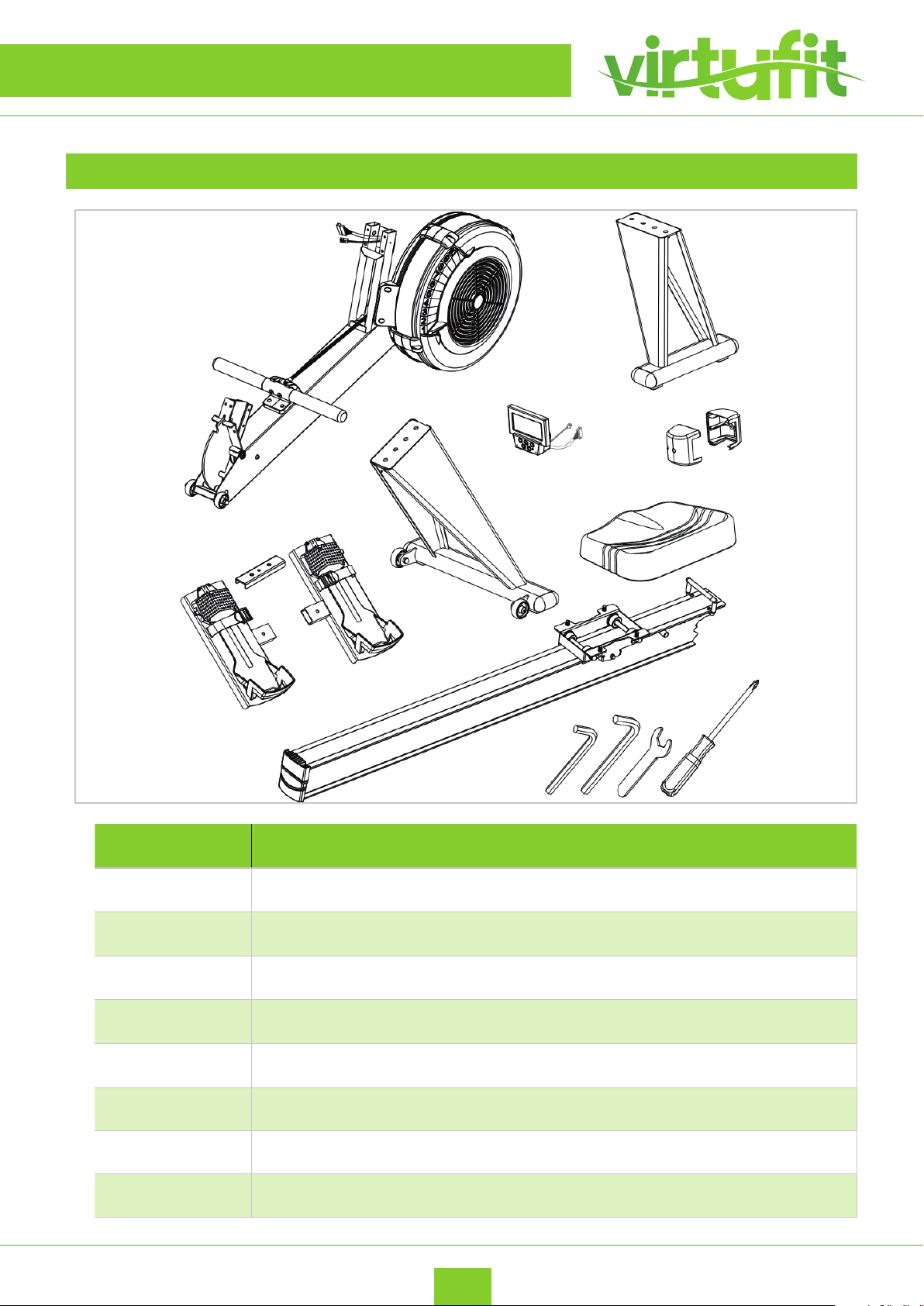

CHECKLIST
TOOLKIT
NUMBER DESCRIPTION
AMain frame
BAluminum rails
CFront stabilizer
DRear stabilizer
EPedals
FSeat
GConsole
HConsole cover

VirtuFit Ultimate Pro 2i Ergometer Rowing Machine 6
EN

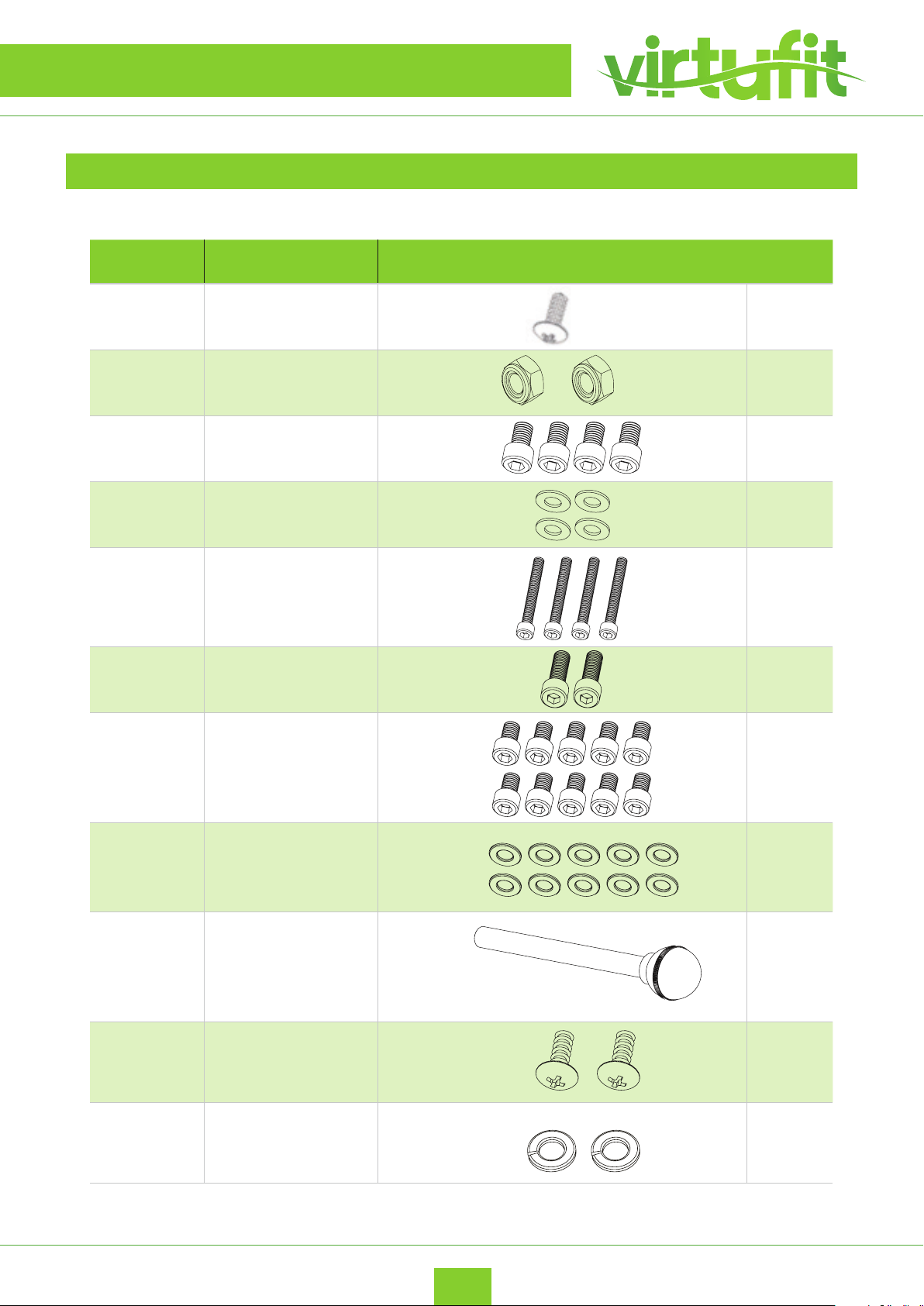

CHECKLIST
NUMBER DESCRIPTION SHAPE QT Y.
J4 M4 x 12.7 mm Screw 3
J0 M8 Nylon Nut 2
J1 Bolt M10 x 16 mm 4
J2 Washer M10 x 1.5t 4
J3 Bolt M6 x 50 mm 4
J5 Bolt M8 x 25 mm 2
J6 Bolt M8 x 16 mm 10
J7 Washer M8x1.5t 10
J8 Pull pin 1
J9 Screw M4 x 10 mm 2
J10 Spring washer 2
ONDERDELEN

VirtuFit Ultimate Pro 2i Ergometer Rowing Machine
7EN
NOTE: Before assembly please lay out ALL pieces accordingly to ensure you
are not missing any items
PLEASE BE CAUTIOUS: As some components may be sharp and can cause
harm if not handled correctly. Always use safety measurements when
assembling any piece of equipment or machinery.
NOTES

VirtuFit Ultimate Pro 2i Ergometer Rowing Machine 8
EN

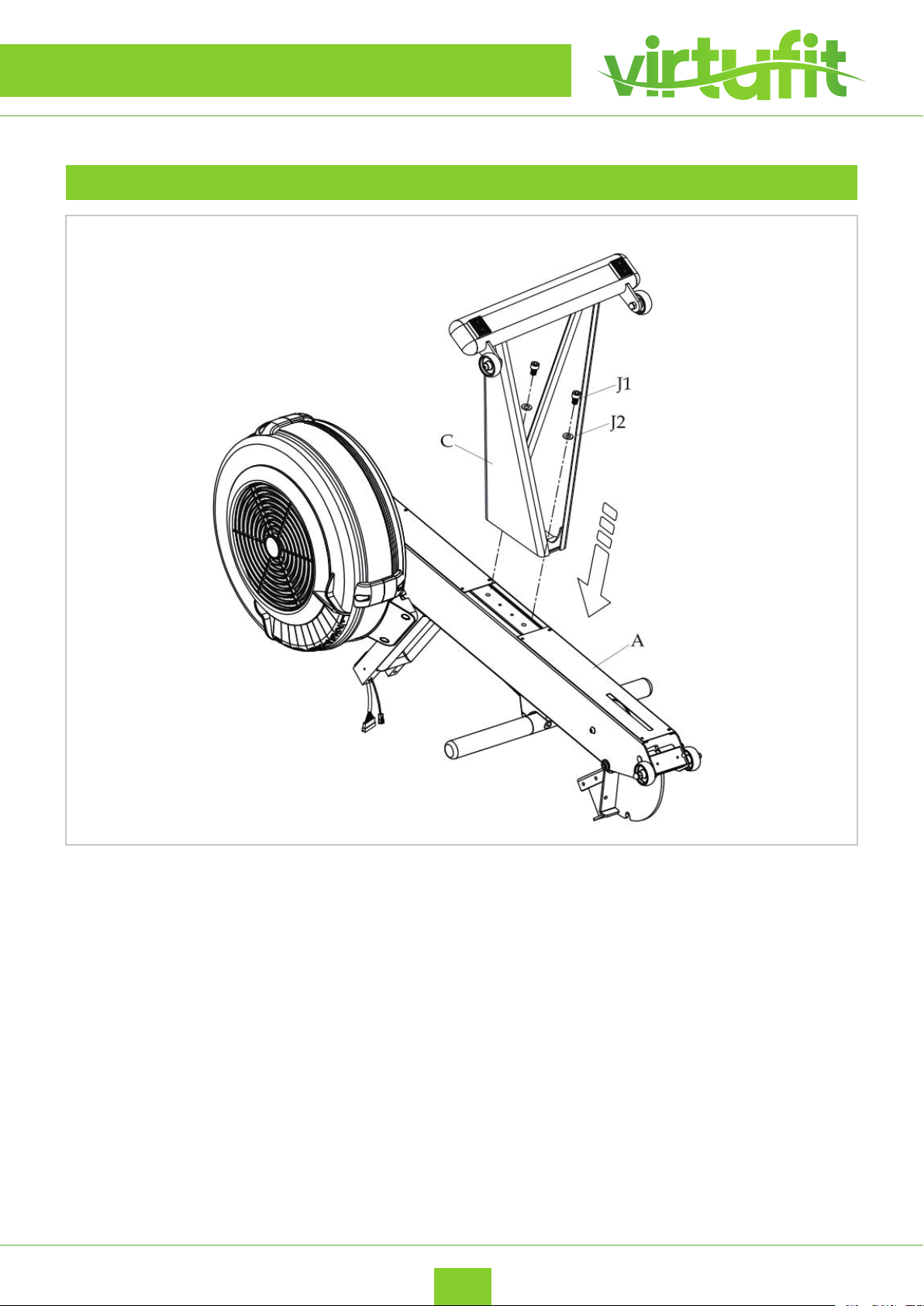

• For best results place Forward Base (A) (Damper Fan) upside down on a soft and secure surface
Once this is done, the pre- screwed holes for Forward Base Leg (C) will be visible. To bolt in
Forward Base Leg (C) into Forward Base (A), place directly on top of pre-screwed holes. Secure
with 2 (J1) Bolt(s) and (J2) Washer(s).
ASSEMBLY INSTRUCTIONS
STEP 1

VirtuFit Ultimate Pro 2i Ergometer Rowing Machine
9EN

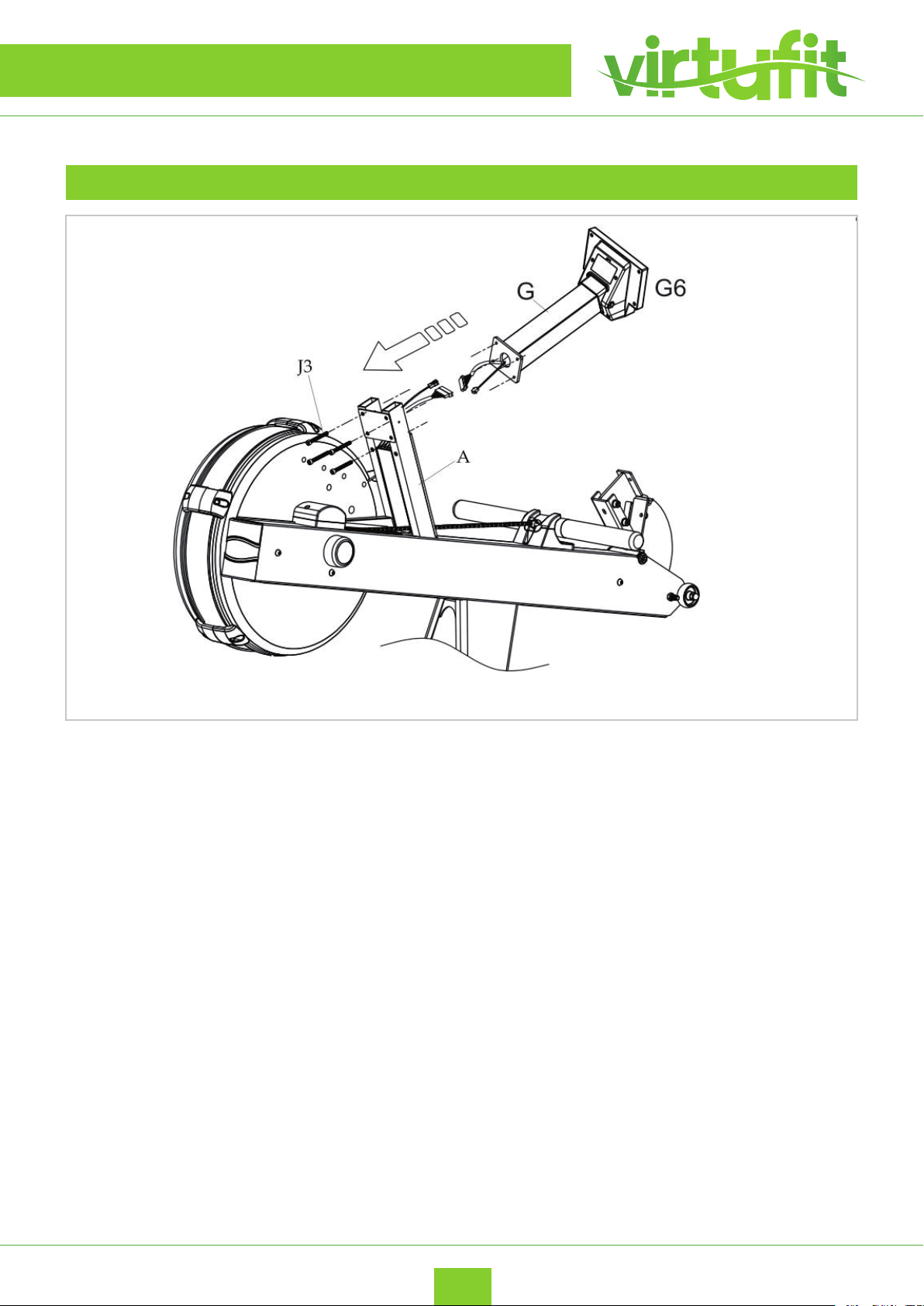

• (1)Please LIGHTLY pull wires so that they do not recede into the stem of Base Leg (A). DO NOT CUT
WIRES; wires will connect to console tube when installing console. CAUTION: Please handle with
care, as electrical wires are delicate. If wires are handled too aggressively they will dislocate.
• (2)Once wires are connected CAREFULLY secure Console Tube (G) to the stem of Base Leg (A). Please
be careful of exposed wire ends. The wires should recede back into stem once connected in order to
prevent damage or dislocation.
STEP 2
ASSEMBLY INSTRUCTIONS
1
2

VirtuFit Ultimate Pro 2i Ergometer Rowing Machine 10
EN
D
B
ASSEMBLY INSTRUCTIONS
STEP 3
STEP 4
• To nish securing Console (G) onto Forward Base (A) please attach Place Holder (H). Place Holder (H)
willbreak up into 2 components (H1) and (H2). These components will rejoin together once attached onto
forward Base (A). Once rejoined please secure with 2 screws (J9) and 1 screw(J4).
• To install Rear Base Leg (D), face Base Railing (B) face down so that the receiving device for the seat cushion
is on the oor. Place Rear Base Leg (D) above the pre-screwed holes of the Base Rail (B). Once placed secure
with 2 (J1) Bolt(s) and (J2) washer(s).

VirtuFit Ultimate Pro 2i Ergometer Rowing Machine
11 EN
J5
E2
AK
E1
J0
ASSEMBLY INSTRUCTIONS
STEP 5
• To install foot pedals (E1) and (E2) into (A) Forward Base join the together by Steel Bracket (K). Steel
Bracket (K) should slide into place of Foot Pedal (E1). Once placed secure with 2 (J5) bolts, 2 (J10)
spring washers and 2 (J0) nuts.
NOTE: You must install foot pedals before moving forward with the assembly process. Should Step 5 be skipped
the Pre-screwed holes on the base railing would cover up the pre screwed holes on the Forward Base leg where
the foot pedals are to be installed. So make sure you do not skip step 5.

VirtuFit Ultimate Pro 2i Ergometer Rowing Machine 12
EN
ASSEMBLY INSTRUCTIONS
STEP 6
• To install Seating place Seat Cushion (F) above the pre-screwed holes of Base Railing (B). The high
angled read end of Seat Cushion (F) should face the back end of Base Railing (B). Secure with 4 Bolts
(J6) and 4 washers (J7).
• To install Pull pin (J8) locate the pre-screwed bolt at the end of Forward Base (A) and turn clockwise
until the bolt is securely fastened.
• Align Forward Base (A) with Base Railing (B) until the pre-screwed holes are aligned with one
another. Secure Forward Base (A) to Base Railing (B) with 4 Bolts (J6) and 4 Washers (J7).
• NOTE: Please be sure to tighten and secure ALL BOLTS AND WASHERS IN THEIR PLACE TO ENSURE A SOLID
AND SECURE foundation to the rower.
F
B
A
J7
J7
J8
J6
J6

VirtuFit Ultimate Pro 2i Ergometer Rowing Machine
13 EN
STEP 7
ASSEMBLY INSTRUCTIONS
Rower storage
• To fold the VirtuFit Ultimate Pro 2i Ergometer Rowing Machine, simply pull the PULL PIN (J8) while
holding the Rail Handle (B21) located between Forward Base (A) and Base Railing (B). Gently set
Forward Base (A) down to ground by controlling Rail Handle (B21) gently downwards. This will cause
Forward Base (A) to drop down and will allow you to raise Base Railing (B) until it clicks securely
into a folded position. When you are ready to unfold the VirtuFit Ultimate Pro 2i Ergometer Rowing
Machine again, simply pull on PULL PIN (J8) while holding onto Base Railing (B). Gently set Base
Railing (B) onto ground, then use Rail Handle (B21) to pull upwards until rower clicks into unfolded
position.
Please use a rm grip on ALL MOVING PARTS when folding the VirtuFit Ultimate Pro 2i Ergometer
Rowing Machine. The weight of the rower will cause Forward Base (A) to drop aggressively when folding and
will cause Base Railing (B) to drop aggressively when unfolding.

VirtuFit Ultimate Pro 2i Ergometer Rowing Machine 14
EN
Foot height adjuster
Push down to adjust the position of the heel support
Damper level
ASSEMBLY INSTRUCTIONS

VirtuFit Ultimate Pro 2i Ergometer Rowing Machine
15 EN



METERS
Displays total distance
rowed in meters
AVERAGE 500M PACE
FORCE CURVE MAX WAT T WATT CHART AVERAGE WATT
MAX HEART RATE CALORIES PER HOUR
AVERAGE METER
PER STROKE
PULSE
Displays heart rate
when connected to
a heart rate monitor
TIME/500M
Displays projected time
needed to complete 500
meters based on current
stroke
LARGE TOGGLE DISPLAY FOR 9 PERFORMANCE MEASUREMENTS
Track total workout time in minutes and seconds or toggle between
9 dierent performance measurements to display at the center of the screen:
WATTS
Displays watts per
pull
SPM (Strokes Per Minute)
Displays strokes
per minute (stroke rate)
CALORIES
Displays total calories
STROKES
Displays total number
of strokes
TIME
Displays amount of time
spent rowing
(does not count rest)
Projected time needed
to complete 500 meters
based on all strokes
Graphically represents
how force is applied
during the rowing stroke
Maximum watts produced
during all strokes
Graphically represents
watts produced relative
to other strokes during
the workout
Average watts per stroke
based on all strokes
Average meters rowed
per stroke
Maximum heart rate
during workout
Projected calories burned
per hour based on all
pulls during the workout
PRE-BUILT PROGRAMS
Toggle through the menu using the up/down arrows to select from the various
pre-built programs: Quick Start, Competition Racing, Interval/Tabdata, Target
Time, Target Calories, Target Strokes or Target Distance
CONSOLE ROWING MACHINE
CONSOLE

VirtuFit Ultimate Pro 2i Ergometer Rowing Machine 16
EN
CONSOLE



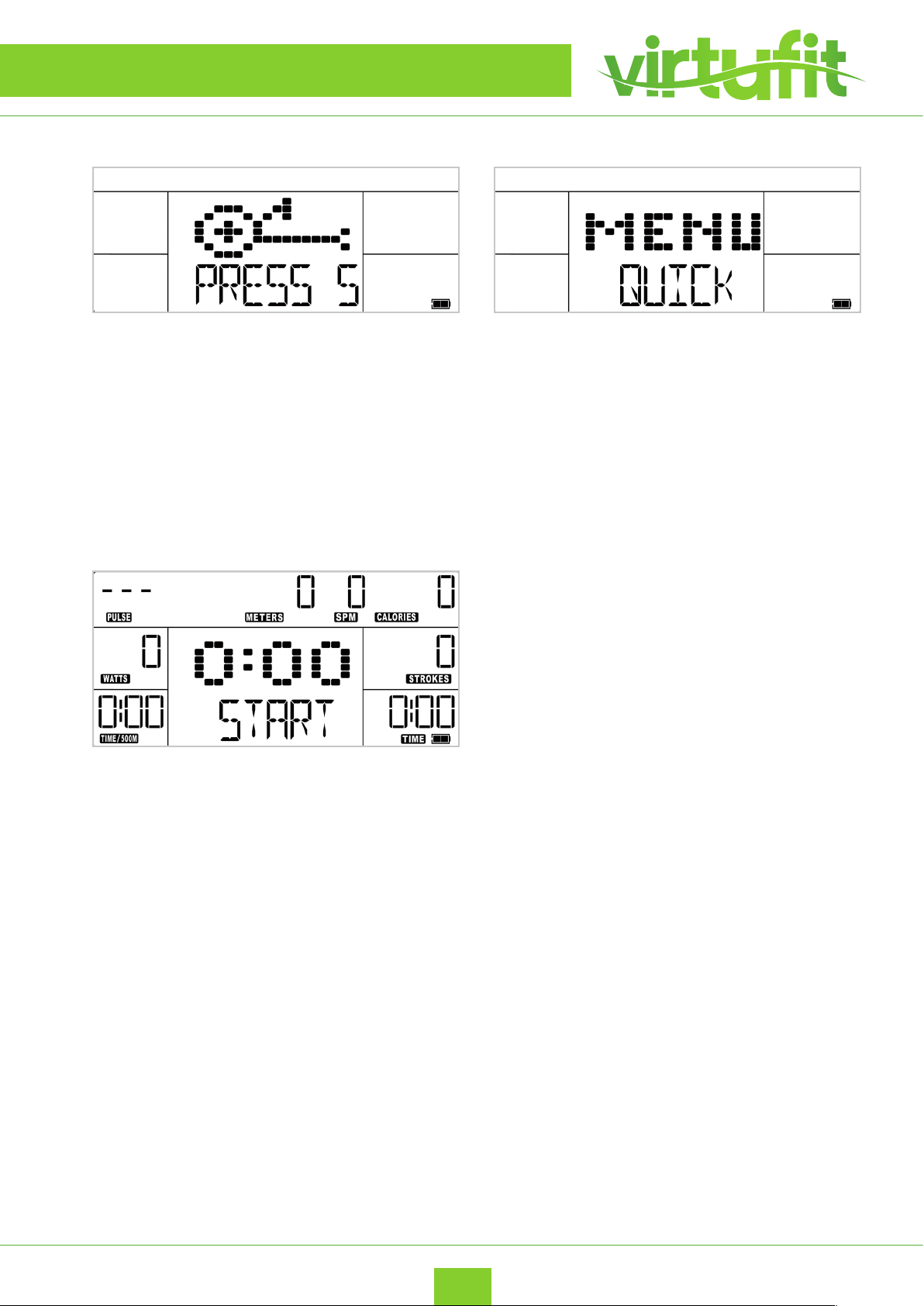

1. Press START to turn on console. You will see “PRESS START TO QUICKSTART OR SELECT PROGRAM” on
the meter display
2. To choose QUICKSTART, press again and begin your workout.
3. To choose a program, press the“UP/ DOWN” key to make your program selection
between the following programs:
QUICKSTART / RACE / INTERVAL / TIME / DISTANCE / CUSTOM
1. The monitor will default to the QUICKSTART mode when you press “START/STOP” or start
rowing and do not choose a program.
2. During use, the monitor will display the following metrics TIME / STROKES / CALORIES
/ METERS / WATTS / TIME/500M / PULSE / STROKES PER MINUTE (SPM) Each metric will
count up in increments.
3. Press the UP / DOWN button to display other metrics such as the TOTAL TIME, AVG / 500M,
AVG METER / STROKE, MAX HR, MAX WATT, AVG WATT, CAL / HR, WATT CHART, and FORCE
CURVE in the middle window.
4. If you stop rowing, the time shown on the lower right window of the monitor will pause.
When you start rowing again, it will continue operating from where you left o.
5. Press the STOP button to pause the monitor.

1. QUICKSTART

VirtuFit Ultimate Pro 2i Ergometer Rowing Machine
17 EN
CONSOLE
1. The monitor will default to the QUICKSTART mode when you press “START/STOP” or start rowing and do not
choose a program.
2. During use, the monitor will display the following metrics TIME / STROKES / CALORIES / METERS / WATTS /
TIME/500M / PULSE / STROKES PER MINUTE (SPM)
3. Press the UP / DOWN button to display other metrics such as the TOTAL TIME, AVG / 500M, AVG METER /
STROKE, MAX HR, MAX WATT, AVG WATT, CAL / HR, WATT CHART, and FORCE CURVE in the middle window

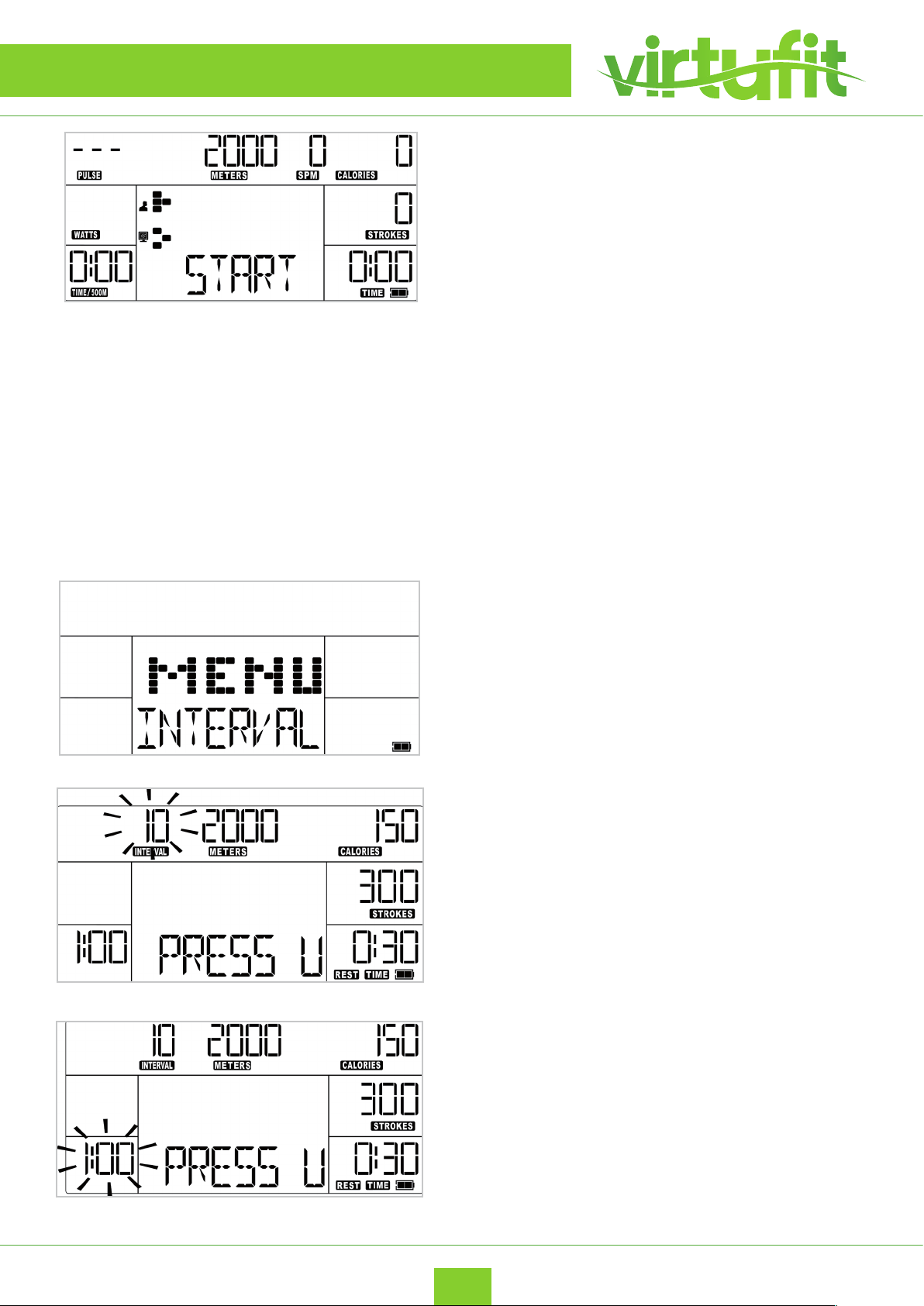

1. In the start menu, use the “UP / DOWN” key to select RACE, and then press the ENTER key to choose the
program
2. When you select the RACE program, the program defaults to a 2000 meter distance.
3. You can use the “UP / DOWN” button to change the target race distance. Press the ENTER key when
nished. Once your target race distance is set, the program defaults to a 2:15 TIME / 500M setting.
4. You can use the “UP / DOWN”button to change the “TIME / 500M”settings. Press the ENTER key
when nished.

1. QUICK - PROGRAM



4. If you stop rowing, the time shown on the lower right window of the monitor will pause. When you start rowing
again, it will continue operating from where you left o.
5. Press the STOP button to pause the monitor.
2. RACE - PROGRAM

VirtuFit Ultimate Pro 2i Ergometer Rowing Machine 18
EN
CONSOLE

5. During the RACE program, the following metrics “TIME / STROKES / CALORIES / WATTS /” will count up. The
METERS metric will count down to your target race distance.
6. During the race, the dot matrix will show YOUR position and the COMPUTER’s position; the monitor will
display the meter distance between the two. After the end of the race, the computer will show either the
COMPUTER or YOU as the winner.
7. If you stop rowing, the time shown on the lower right window of monitor will pause. When you start
rowing again, it will continue operating from where you left o.
8. Press the STOP button to pause the monitor.
3. INTERVAL - PROGRAM



1. In the start menu, use the “UP / DOWN” key to select
INTERVAL, and then press the ENTER key to choose the
program.
2. Note that the program has default settings for
the number of intervals, work time, rest time, strokes,
calories and meters.
You can change any of the defaults with the
directions below. At any time, press START or
begin rowing to begin the program with the
default settings or mix of your changes and
default setting.
3. When the user selects the INTERVAL program, the
program defaults to 10 intervals.
4. You can use the “UP / DOWN” button to change the
number of intervals. Press the ENTER key when you are
nished.
5. Once your number of intervals is set, the program will
default to 1:00 of work time.
6. You can use the “UP / DOWN” button to change the
amount of work time. Press the ENTER key when you are
nished.

VirtuFit Ultimate Pro 2i Ergometer Rowing Machine
19 EN
CONSOLE

5. During the RACE program, the following metrics “TIME / STROKES / CALORIES / WATTS /” will count up. The
METERS metric will count down to your target race distance.
6. During the race, the dot matrix will show YOUR position and the COMPUTER’s position; the monitor will
display the meter distance between the two. After the end of the race, the computer will show either the
COMPUTER or YOU as the winner.
7. If you stop rowing, the time shown on the lower right window of monitor will pause. When you start
rowing again, it will continue operating from where you left o.
8. Press the STOP button to pause the monitor.
3. INTERVAL - PROGRAM



1. In the start menu, use the “UP / DOWN” key to select
INTERVAL, and then press the ENTER key to choose the
program.
2. Note that the program has default settings for
the number of intervals, work time, rest time, strokes,
calories and meters.
You can change any of the defaults with the
directions below. At any time, press START or
begin rowing to begin the program with the
default settings or mix of your changes and
default setting.
3. When the user selects the INTERVAL program, the
program defaults to 10 intervals.
4. You can use the “UP / DOWN” button to change the
number of intervals. Press the ENTER key when you are
nished.
5. Once your number of intervals is set, the program will
default to 1:00 of work time.
6. You can use the “UP / DOWN” button to change the
amount of work time. Press the ENTER key when you are
nished.

VirtuFit Ultimate Pro 2i Ergometer Rowing Machine 20
EN
CONSOLE

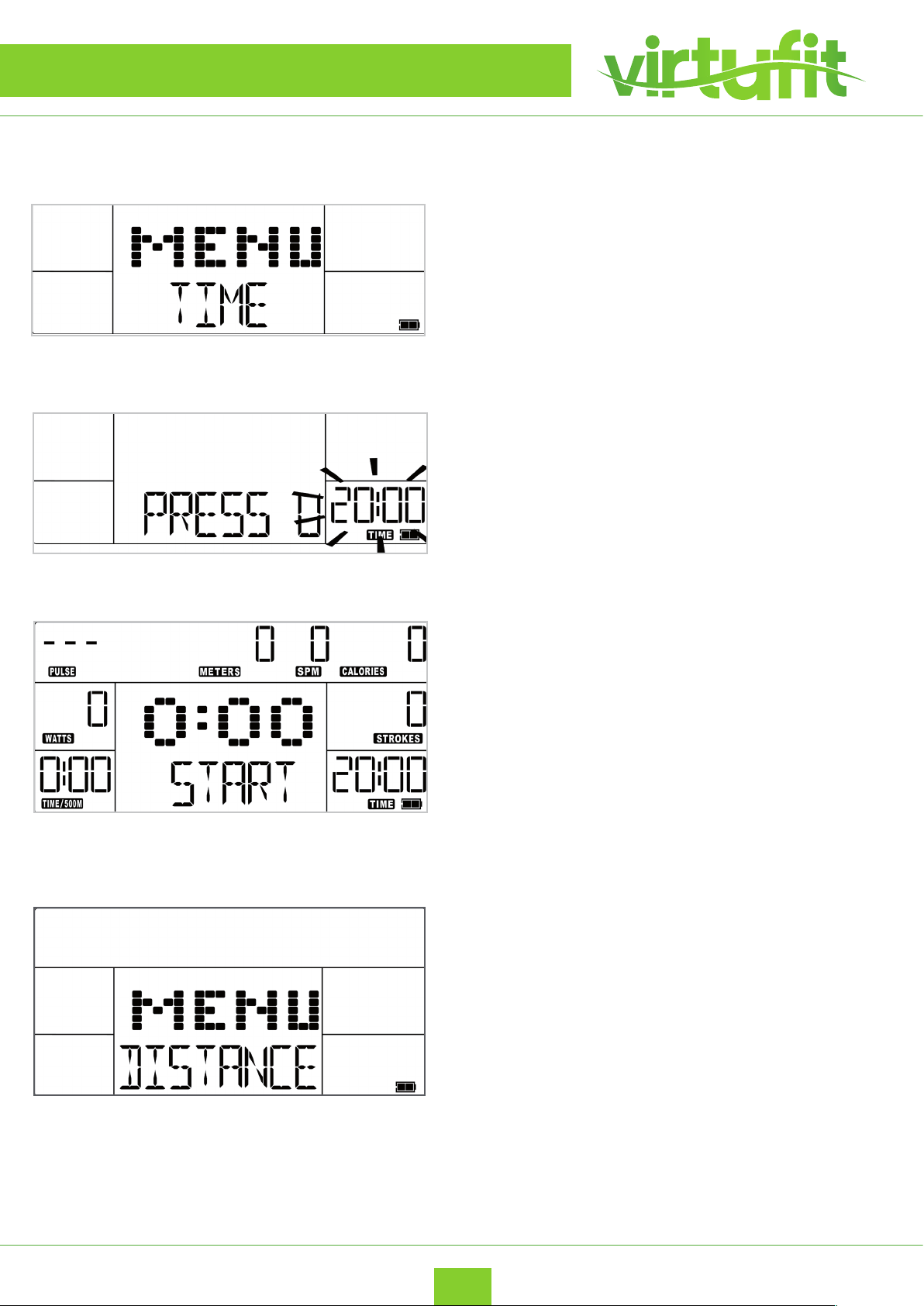

4. TIME – PROGRAM
1. In the start menu, use the “UP / DOWN” key to select
TIME, and then press the ENTER key to choose the
program.
2. When you select the TIME program, the program
defaults to a time of 20 minutes.
3. You can use the “UP / DOWN” button to change the
amount of time. Press the ENTER key when nished.
4. During the program, the TIME display on the bottom right
will count down to 0:00. The STROKES, CALORIES, and
METERS metrics will count up.
5. Press the UP / DOWN button to display other metrics
such as the TOTAL TIME, AVG / 500M, AVG METER / STROKE,
MAX HR, MAX WATT, AVG WATT, CAL / HR, WATT CHART, and
FORCE CURVE in the middle window.
6. If you stop rowing, the time shown on the lower right
window of monitor will pause. When you start rowing again,
it will continue operating from where you left o.
7. Press the STOP button to pause the monitor.



5. DISTANCE- PROGRAM

1. In the start menu, use the “UP / DOWN” key to
select DISTANCE, and then press the ENTER key
to choose the program.
