VIRTUFIT Water Resistance Row 800 User manual

Water Resistance Row 800 Rowing Machine
User Manual
EN

TITEL HOOFDSTUK
VirtuFit Water Resistance Row 800 Rowing Machine
2EN
INDEX
SAFETY INSTRUCTIONSSAFETY INSTRUCTIONS
CHECKLISTCHECKLIST
ASSEMBLY INSTRUCTIONSASSEMBLY INSTRUCTIONS
MOVING THE ROWING MACHINEMOVING THE ROWING MACHINE
FILL AND EMPTY THE WATER TANKFILL AND EMPTY THE WATER TANK
MAINTENANCEMAINTENANCE
CONTROL PANELCONTROL PANEL

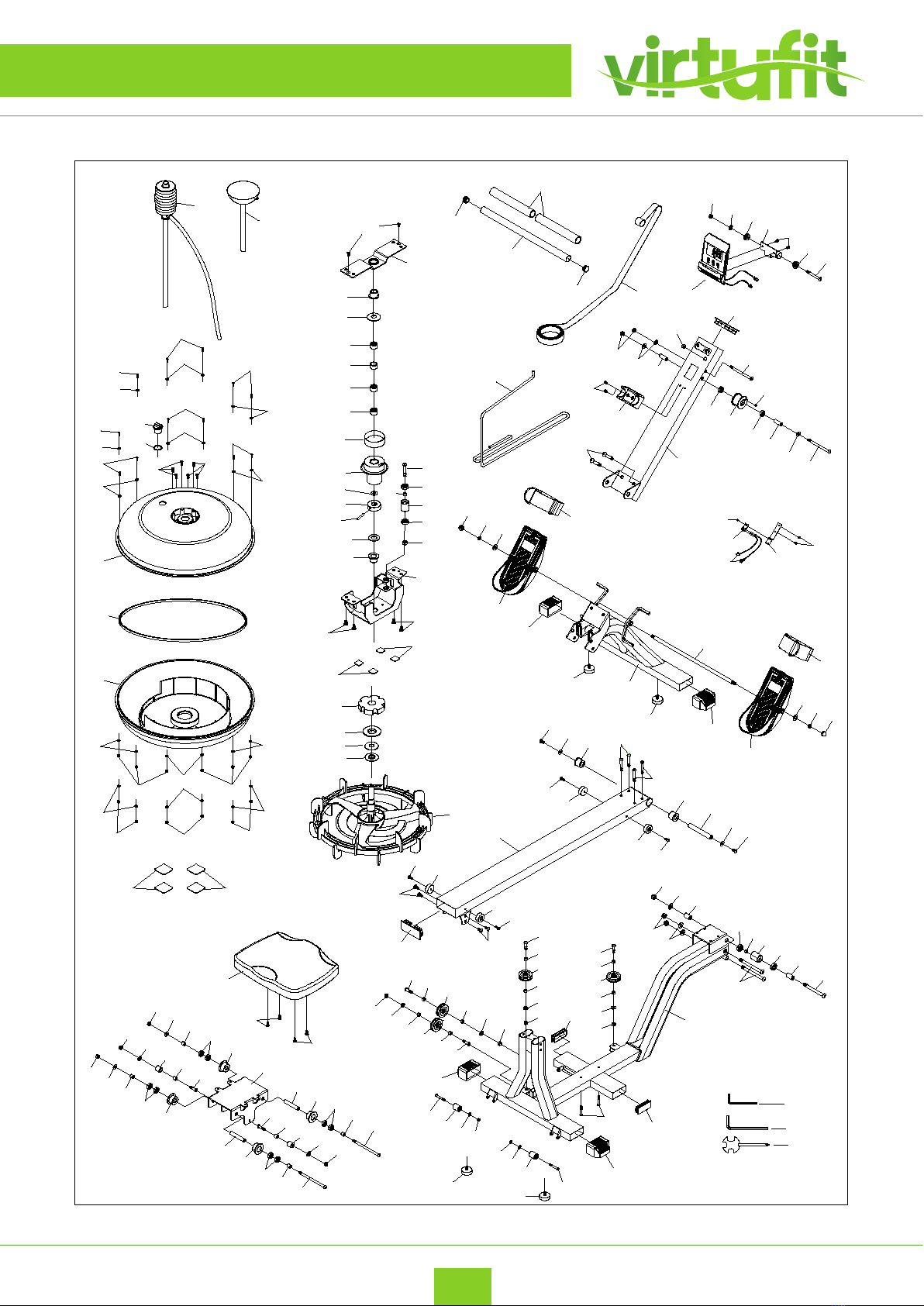

EXPLODED DRAWINGEXPLODED DRAWING
PARTS LISTPARTS LIST
TRAINING INSTRUCTIONSTRAINING INSTRUCTIONS
3 - 4
5 - 6
7 - 10
11
12
13 - 14
15 - 17
18
19 - 20
21 - 23

VirtuFit Water Resistance Row 800 Rowing Machine 3
EN
– It is important to read this entire manual before assembling and using the equipment. Safe and
effective use can only be achieved if the equipment is assembled, maintained and used properly.
It is your responsibility to ensure that all users of the equipment are informed of all warnings and
precautions.
– Before starting any exercise program, you should consult your doctor to determine if you have
any medical or physical conditions that could put your health and safety at risk, or prevent you
from using the equipment properly. Your doctor’s advice is essential if you are taking medication
that affects your heart rate, blood pressure or cholesterol level.
– Be aware of your body’s signals. Incorrect or excessive exercise can damage your health. Stop
exercising if you experience any of the following symptoms: pain, tightness in your chest, irregular
heartbeat, extreme shortness of breath, lightheadedness, dizziness or feelings of nausea. If you do
experience any of these conditions you should consult your doctor before continuing with your
exercise program.
– Keep children and pets away from the equipment. The equipment is designed for adult use only.
– Use the equipment on a solid, flat level surface with a protective cover for your floor or carpet. To
ensure safety, the equipment should have at least 0.5 metres of free space all around it.
– Before using the equipment, check that the nuts and bolts are securely tightened.
– The safety of the equipment can only be maintained if it is regularly examined for damage and/or
wear and tear.
– Always use the equipment as indicated. If you find any defective components while assembling or
checking the equipment, or if you hear any unusual noises coming from the equipment during use,
stop immediately. Do not use the equipment until the problem has been rectified.
ATTENTION
WARNING:
Before beginning any exercise program consult your physician. This is especially
important for people who are over 35 years old or who have pre-existing health
problems. Read all instructions before using any fitness equipment. Do not operate this
exercise equipment without properly fitted guards, as the moving parts can present a
risk of serious injury if exposed.
SAFETY INSTRUCTIONS

VirtuFit Water Resistance Row 800 Rowing Machine
4EN
– Wear suitable clothing while using the equipment. Avoid wearing loose clothing that may get
caught in the equipment or that may restrict or prevent movement.
– The max user weight is 140 KGS. Braking ability is independent of speed.
– The equipment is not suitable for therapeutic use.
– Care must be taken when lifting or moving the equipment so as not to injure your back. Always use
proper lifting techniques and/or seek assistance if necessary.
– Please keep the space at least 1 to 2 meter at the end of base frame to escape any accidents!
– Place the device on a clean and flat surface. Do not place the equipment on a thick carpet.
– The device is for indoor use and not for outdoor use to prevent damage. Keep the storage location
dry, clean and flat. It is forbidden to use the device for purposes other than training.
– Only use the machine in an environment with an ambient temperature between 10 ° C and 35 ° C.
Only store the device at an ambient temperature between 5 ° C and 45 ° C
Warranty claim is excluded if the cause of the defect is the result of:
• Maintenance assembly and repair work not carried out by an official dealer.
• In the event of improper use, neglect and / or poor maintenance.
• Failure to maintain the fitness equipment in accordance with the manufacturer’s instructions (see
the enclosed manual).
SAFETY INSTRUCTIONS

VirtuFit Water Resistance Row 800 Rowing Machine 5
EN

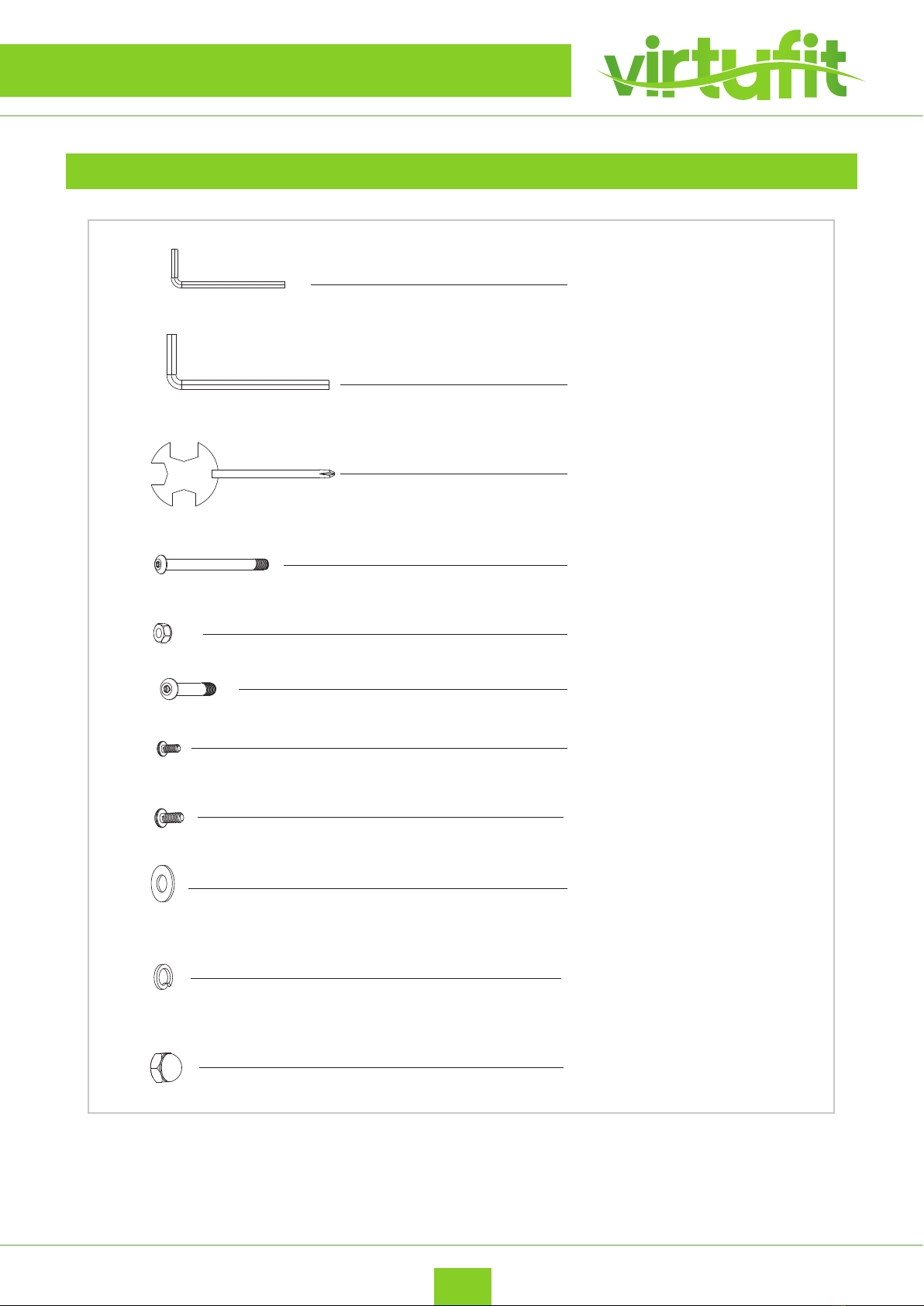

CHECKLIST
TOOLKIT
When you open the carton, you will find the below parts in the carton:
NO.101
NO.100
NO.1
NO.39
NO.45 NO.12
NO.43L/R NO.54
#DESCTIPTION QTY
1Main Frame 1
12 Pedal Shaft 1
39 Seat 1
43 L/R Pedal 2
#DESCTIPTION QTY
45 Handlebar Holder 1
54 Console 1
100 Syphon pump 1
101 Funnel 1

VirtuFit Water Resistance Row 800 Rowing Machine
6EN
CHECKLIST
TOOLKIT
#104 S13-17 2PCS
#103 S6 1PC
#102 S4 1PC
#63 M10x115 1PC
#82 M10 3PCS
#87 M10 1PC
#65 M10*55 2PCS
#58 M5*10 2PCS
#75 M6*16 6PCS
#81 M10 2PCS
#86 M10 2PCS

VirtuFit Water Resistance Row 800 Rowing Machine 7
EN
STEP 1
Missing parts: If you think you are missing certain parts in your package, carefully check the styrofoa and
the rowing machine. Some parts (bolts, screws, etc.) are already attached to / in the rowing machine.
Error message: Ensure that all cables are carefully attached. The aluminum legs are very sensitive and
must remain straight. Do you receive an error message after mounting your rowing machine? Then you
have to straighten these aluminum legs again, this may cause the error message to disappear.
Socket screws: The rowing machine contains socket screws, make sure that the allen key is firmly in the
bolt before you apply force to the key. In this way you prevent the head of the socket head screw from
being rotated.
• Unfold the Front Support (2) away from the Main Frame (1);
• Unfold the Upright (4) away from the Rail (3).
ASSEMBLY INSTRUCTIONS

VirtuFit Water Resistance Row 800 Rowing Machine
8EN

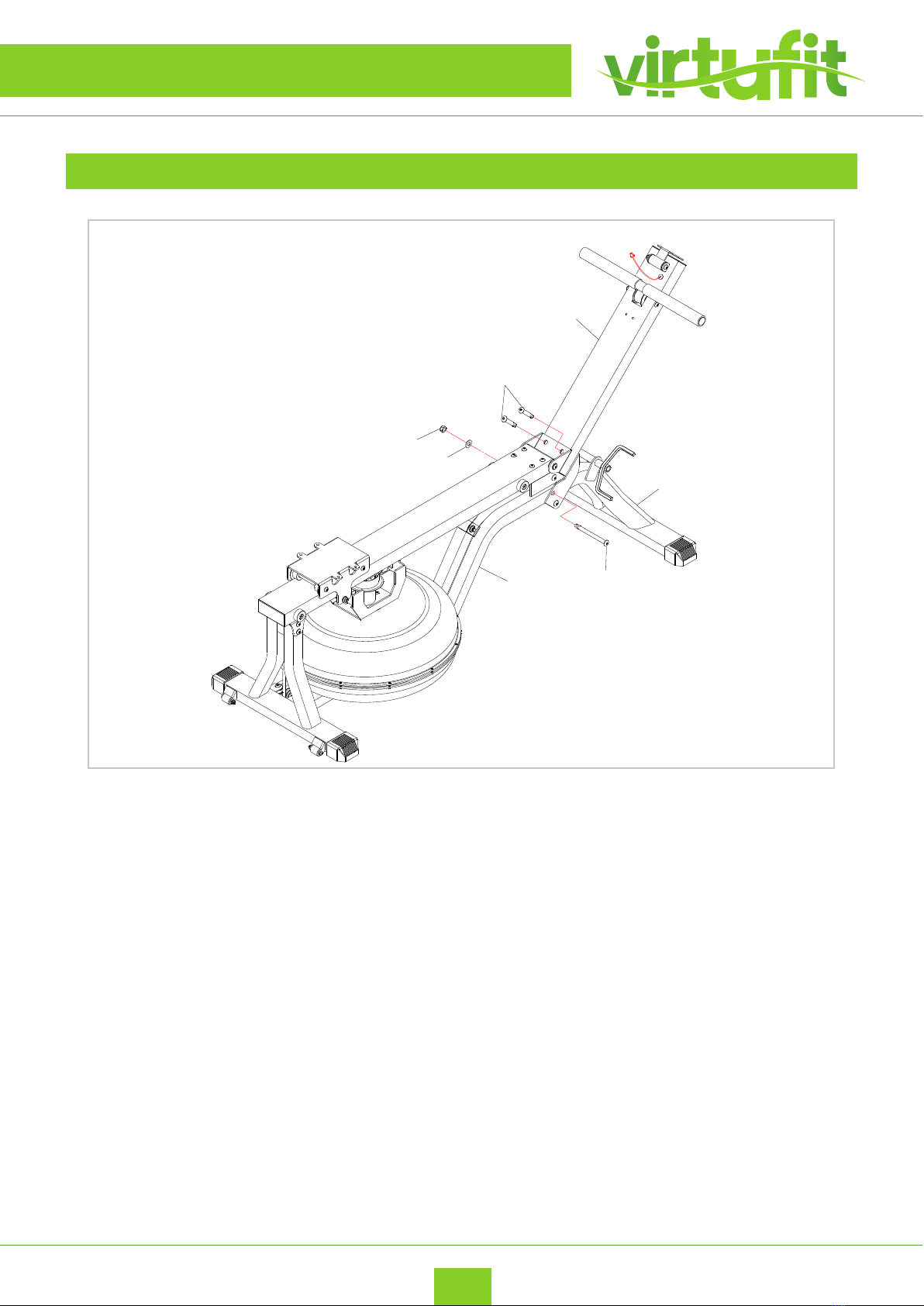

STEP 2
• Bolt the Front Support (2) to the Main Frame (1) with Button Head Bolt ( M10 X 1.5 X 115mm)(63)
Washer(M10)(82), and Nylock Nut (M10 X 1.5)(87);
• Attach the Upright (4) to the Front Support(2) with Button Head Bolt (M10 X 1.5 X 55mm)(65).
65
2
4
63
82
87
1
ASSEMBLY INSTRUCTIONS

VirtuFit Water Resistance Row 800 Rowing Machine 9
EN
STEP 3
12
82
81
86
82
81
86
1
43R
43L
2
R ack
L
R
• There is an“L” decal on the left Pedal Cap(43L), and an “R” decal on the right Pedal Cap (43R);
• Insert the Pedal Shaft (12) through the tube located on the Front Support (2);
• Slide the right Pedal Cap (43R) onto the right side on the Pedal Shaft (12) and make it ride on the
Rack on the Front Support (2);
• Slide the left Pedal Cap (43L) onto the left side on the Pedal Shaft (12) and make it ride on the
Rack on the Front Support(2);
• Then secure the Pedal Caps (43R, 43L) with Washers(M10)(82), Lock Washer (M10)(81), and Acorn
Nuts (M10 X 1.5)(86) at both ends of the Pedal Shaft (12);
• You need to use two combination Wrenches to tighten the Acorn Nuts (M10 X 1.5)(86) at both
ends of the Pedal Shaft(12) at the same time.
ASSEMBLY INSTRUCTIONS

VirtuFit Water Resistance Row 800 Rowing Machine
10 EN
STEP 4
45
75
4
6
75
39
75
54
76
55
6
5
45
10
5
• Attach the Seat(39) to the Seat Carriage(10) with 4x Button Head Bolts (M6 X 1 X 15mm)(75);
• Attach the Handlebar Holder (45) to the Upright(4) with 2x Button Head Bolts
(M6 X 1 X 15mm(75). Place the Handlebar(5) onto the Handlebar Holder (45).
• Install two AAA batteries into the Meter(54), check page 15 for detailed battery installation
instructions. Attach the Meter(54) to the Meter Plate(6) with 2x Round Head Bolts
(M5 X 0.8 X 10mm)(76). Plug the Sensor Wires(55) into the connecting wires of the Meter(54), and
push the excess wires back into the Upright(4).
ASSEMBLY INSTRUCTIONS

VirtuFit Water Resistance Row 800 Rowing Machine 11
EN
MOVING THE ROWING MACHINE
4
36
2
NOTE! Store your machine in a dry area away from children and high traffic areas as shown in
the illustration. Be sure it is secure and cannot fall onto small animals or children.
MOVING THE MACHINE
ADJUSTING BALANCE
To move the machine, lift up the Front
support (2)until the Moving Wheels (36)
on the main frame touch the ground.
With the wheels on the ground, you can
transport the rower to the desired location
with ease.
NOTE! The seat can slide.
Adjust the Stand (59) below the Stabilizers of
the machine if it is unbalanced during use.
59
59

VirtuFit Water Resistance Row 800 Rowing Machine
12 EN
FILL AND EMPTY THE WATER TANK
21
100
D .
NOTE!
•Fill the tank with municipal water, do not use well water. If municipal water is unavailable, use
distilled water. Refer to the Maintenance section for recommendations on water treatment.
•The water in the tank is not human or animal consumption. Please dispose of the water properly
after removal from the tank.
FILL AND EMPTY THE WATER TANK
21
100
101
1
2
3
4
5
6
7
8
C .
18
C .
• Remove the Fill Plug(21) from the upper tank(18). To fill
with water, refer to illustration C. Place the Funnel(101) into the
tank. Use a water cup, or the Syphon Pump(100) and a bucket to
fill the tank. Use Water level gauge on the side of tank to
measure volume of water in tank to the desired level.
• To empty the tank, refer to illustration D. Place a bucket next to
the rower. Use the Syphon Pump(100) to pump out the water in
the tank to the desired leve.
• Once completed, inset the Fill Plug(21) into the Upper Tank(18).
Please wipe excess water from the frames after filling.
WATER LEVEL
Refer to the detail view of illustration C. The water level
gauge is positioned on the side of the tank. DO NOT fill
above the Maximum level - this could void the warranty.
The amount of resistance is dictated by the amount of water in the
tank. For example level 2 of water offer light resistance, Level 6 offers
a heavier resistance.

VirtuFit Water Resistance Row 800 Rowing Machine 13
EN
SEMI-ANNUAL MAINTENANCE
DAILY MAINTENANCE
• Clean and remove sweat after each use. Do not use aggressive cleaning agents and ensure that
the device remains free of moisture.
• Check that the rail and the wheels under the seat are free from dust and dirt.
• Sit on the seat and pull on the handlebar to verify that the water system provides resistance and the
seat travel is smooth and stable
• Inspect all bolts and nuts in connection with moving parts of the device, tighten as required.
• Check the mobility of moving parts and components of the use equipment, silicone spray if
necessary.
• Periodic maintenance is required to maintain proper condition of the water in the tank. The water
must be refreshed periodically by adding a water purification tablet, such as sodium dichlor (56%
chlorine) every 4-6 months. NEVER USE POOL CHLORINE (TRICHLOR 90% CHLORINE) OR CHLORINE
BLEACH. Use of these products will void the warranty and damage the product.
NOTE! It is the user / owner’s responsibility to ensure that periodic maintenance is performed.
Worn or damaged components shall be replaced immediately. Contact your dealer for help.
Safeandeffectiveusecanonlybeachievedifthedevicewillbeassembledandmaintained
well. It is your responsibility to ensure that the equipment is regularly maintained. Parts
that are already used and / or damaged must be replaced before continuing using. The
rower machine may only be used indoors and stored away, prolonged exposure to
weathering and changes in temperature / humidity can have a serious impact on the
electrical components and moving parts of the rowing machine.
MAINTENANCE

VirtuFit Water Resistance Row 800 Rowing Machine
14 EN

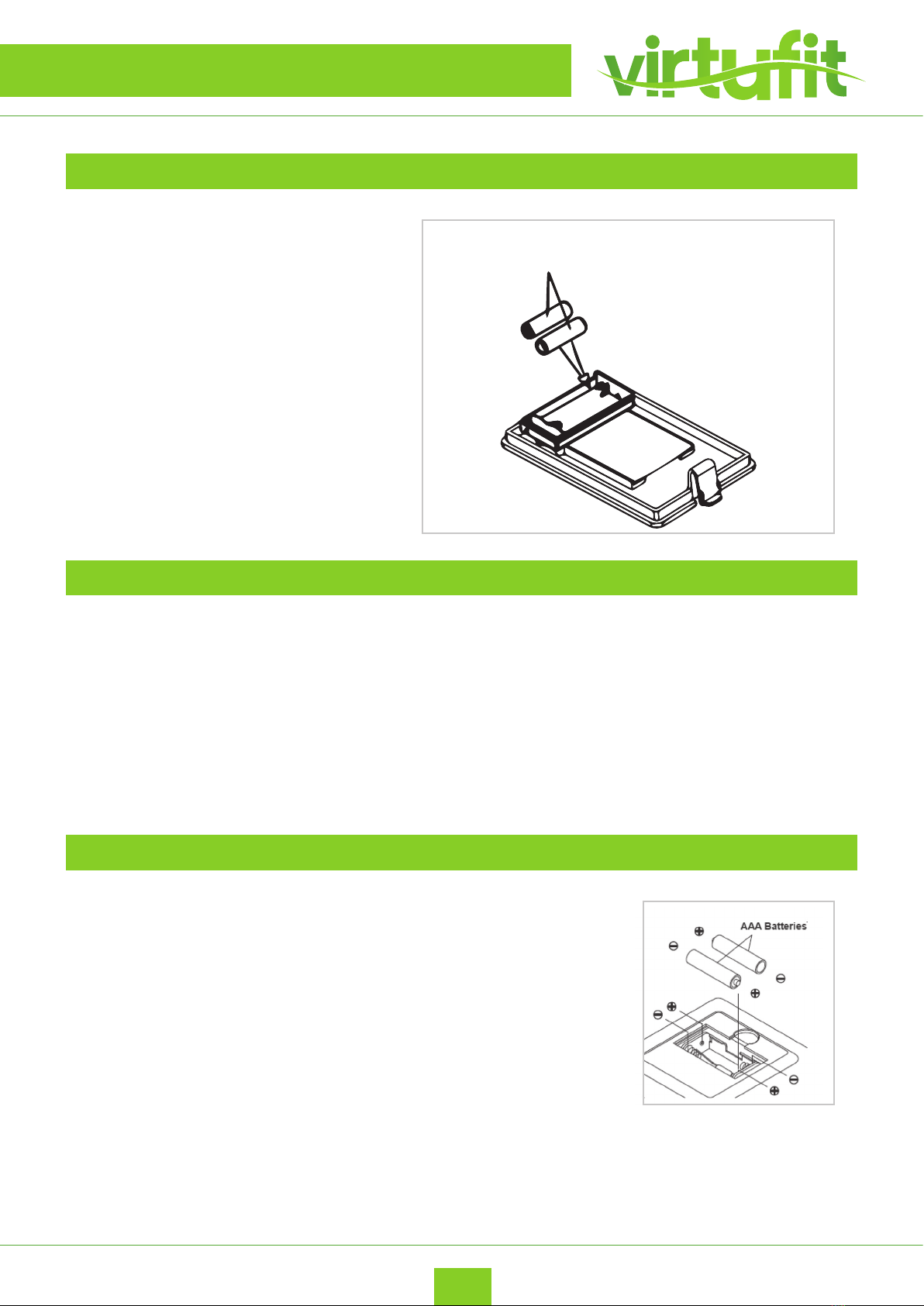

BATTERY
AAA BATTERIJEN
The monitor uses on “AAA” battery. You can
replace the battery through the back of the
unit.
The batteries must be installed correctly. If
the screen is unreadable or only parts of the
image work, follow the next step: Remove
the batteries and wait 15 seconds, then
reinsert the batteries correctly.
ADVICE FOR HANDLING BATTERIES
CHANGING THE BATTERIES
1. Remove the batteries when they are exhausted or if you do not use the product for an extended
period of time in order to avoid hazards through leaking batteries.
2. Do not recharge batteries nor dissemble or throw then into fire. Danger of explosion!
3. Pay attention to the polarity (+) and (-). Always replace all the batteries; do not mix old and new batteries,
or different battery types.
4. Use preferably alkaline batteries, as they have a longer operation time then usual zinc-coalbatteries.
5. A change of batteries is necessary when the display becomes weaker or completely faded.
1. If you see an improper display on the monitor, please replace the
batteries to have a good result.
2. Use 2 pcs 1.5 AAA batteries as power supply. See image opposite to
install or replace the images.
“AAA”
MAINTENANCE

VirtuFit Water Resistance Row 800 Rowing Machine 15
EN
NOTE:
Keep the console away from direct sunlight. Dry the surface of the console when it is
covered with drops of sweat. Do not lean on the console. Only touch the display with the
tip of your finger. Make sure that your nails or sharp objects do not touch the display.
CONTROL PANEL
CONSOLE
BUTTON EXPLANATION
(1) POWER
ON
Start rowing or press any button.
(2) POWER
OFF Automatically shuts off after 4 minutes of inactivity.
(3) MODE
In the setting mode, press and release to select each function for preset target
values for Time, Count, Distance, Calories, and Pulse. Press amd release to select
functions for display for Time, Count, Distance, Calories, and Pulse.
(4) SET
In the setting mode, press to set target values. Press the button and hold it
down for two seconds, the meter will continue to add the values, release the
button to stop.
(5) RESET In the setting mode, press the button to reset the setting values to zero. Press the
button and hold it down for two seconds to reset all functions to zero

VirtuFit Water Resistance Row 800 Rowing Machine
16 EN
BUTTON EXPLANATION
(6) SCAN
Automatically scans Time, Count, Distance, Calories, and Pulse in sequence with
a change every six seconds. Press and release the Mode button until“Scan”
appears on display.
(7) TIME Displays the time from 1 sec. Up to 99:59 minutes
(8) COUNT Displays the total number of strokes you have taken from zero to 9999 strokes.
(9)
DISTANCE Displays distance from zero to 9999 meters.
(10)
CALORIES
Displays the calories burned from zero to 9999 Kcal. The calorie readout is an
estimate for an average user. It should be used only as a comparison.
(11) PULSE
Displays the heart rate, from 40 to 240 beats per minute. To use this function,
you must wear the Heart Rate Transmitter around your chest so the receiver
which is built into the rower registers your heart rate from the
Heart Rate Transmitter for displaying. Each heart rate signal will be
accompanied with one““ symbol ash.
NOTE! The Heart Rate Transmitter(95) is not a medical device. Maintaining a consistent signal can be
dicult due to the varying distances experienced during the rowing stroke. The pulse function is a great
tool to optimize your workout, but should be used as a reference only.
FUNCTONS
CONTROL PANEL

VirtuFit Water Resistance Row 800 Rowing Machine 17
EN
CONTROL PANEL
PRESET VALUES OPERATION
You can pull on the Handlebar (5) to power on the meter and workout with the meter directly. Or, you can
preset the function values for counting down.
Press and release the Mode button until “SCAN” does not appear on dispay, the meter will enter setting
mode. Use Set and Reset buttons to input the values, and press Mode to conrm. Or, just press the Mode
button to skip the setting and move to the next function. After all the desired settings are chosen, begin
pulling on the Handlebar (5) to start the workout. Time (1:00 to 99:00) Count (10 to 9990) Distance (100 to
9900 meter) Calories (10 to 9990 Kcal).
NOTE!
•You may preset values for several functions. The preset function values will start to count down.
When you complete one of the preset functions, the value of this completed function will start to
count up, while the other preset functions will continue to count down.
•The Meter will shut off automatically after 4 minutes of inactivity. All function values will be kept.
You can continue to work out with these function values. Or, press the Reset or Mode button and
hold it down for two seconds to reset all functions to zero.

VirtuFit Water Resistance Row 800 Rowing Machine
18 EN
5
51
53
49 50
49
100
101
1
2
3
4
6
18
19
43
46
46
46
48
47
47
45
20
31
40
42
42
42
42
37
36
44
48
40
21
22
61
61
17
17
75
75
75
78
69
68
68
13
72
72
72
72
64
63
71
74
73
85
83
91
91
83
83
82
82
88
88
88
54
12
57
58
59
59
46
81
86
81
86
44
41
76
41
88
65
56
79
75
75
14
60
32
60
82
87
82
87
84
36
84
89
73
59
83
37
71
88
83
37
71
37
83
88
23 23
90
90
90
90
85
85
90
85 85
77
85
77
85
77
77
85
85
85
77
77
85
77
85
75
75
10
35
35
16
16
67
80
80
88
34
15
61
61
34
83
83
88
83
88
16
67
34
15
61
16
88
61
34
83
75
39
75
14
11
43
55
70
70
59
89
7
8
27
32
25
26
25
28
24
52
62
65
30
72
72
87
60
60
24
29
52
66
92
93
92
38
38
38
38 38
38
38
38
71
97
97
83
94
95
102
103
104
96
98
98
99
9
EXPLODED DRAWING

VirtuFit Water Resistance Row 800 Rowing Machine 19
EN
#DESCRIPTION QTY
1 Main frame 1
2 Front stabilizer 1
3 Rail 1
4 Upright 1
5 Handlebar 1
6 Meter Plate 1
7 Mounting Bracket 1
8 Tank Brace 1
9 Impeller 1
10 Seat Carriage 1
11 Sensor Bracket 1
12 Pedal Shaft 1
13 Rail Shaft 1
14 Idle Roller Spacer 2
15 Roller Long Spacer 2
16 Roller Short Spacer 4
17 Strap Pulley Spacer 2
18 Upper Tank 1
19 Lower Tank 1
20 Rubber Ring Seal 1
21 Fill Plug 1
22 Fill Plug Seal 1
23 Lower Pad 4
24 Strap / Bungee Pulley Bushing 2
25 Plastic Washer 2
26 Shaft Retainer 1
27 Strap / Bungee Pulley 1
28 Hook pad 1
29 One-way Bearing HF2016 1
30 Spring Pin Ø6X40mm 2
31 Strap Pulley
#DESCRIPTION QTY
32 Idle Roller 2
34 Seat Roller 4
35 Lower Seat Roller 2
36 Moving Wheel 2
37 Bungee Pulley 4
38 Spacer for Bungee Ø8.1XØ12X 8
39 Seat Pulley 6.5mm 1
40 Rail Bushing Ø16 X 31.8 X 12.5 mm 2
41 Meter Plate Bushing Ø8.2xØ27x10mm 2
42 Stopper 4
43 Pedal 2
44 Pedal Strap 2
45 Handlebar Holder 1
46 Endcap 30mm X 70mm 1
47 Rectangular Plug 40mm X 100mm 2
48 Rectangular Plug 30mm X 60mm 2
49 Round plug Ø28.6mm 2
50 Strap 1
51 Bungee cord 1
52 Needle Roller Bearing HK2010 2
53 Hand Grip 2
54 Console 1
55 Sensor Wire 2
56 Sensor Holder 1
57 Magnet 1
58 Nut 1
59 Stand 4
60 Beaering 6000zz 6
61 Bearing 608zz 10
62 Bolt Flat Sock Head M10x1.5x115mm 2
63 Bolt M10 X 1.5 X 105 mm 1
PARTS LIST

VirtuFit Water Resistance Row 800 Rowing Machine
20 EN
#DESCRIPTION QTY
64 Bolt M10 X 1.5 X 55mm 3
65 Bolt M10 X 1.5 X 55mm 3
66 Bearing Spacer 1
67 Bolt M8 X 1.25 X 135mm 2
68 Bolt M8 X 1.25 X 110mm 2
69 Bolt M8 X 1.25 X 135mm 1
70 Bolt M8 X 1.25 X 50mm 4
71 Bolt M8 X 1.25 X 30mm 4
72 Bolt M8 X 1.25 X 15mm 10
73 Bolt M6 X 1 X 45mm 2
75 Bolt M6 X 1 X 15mm 10
76 Bolt M5 X 0.8 X 10mm 2
77 Screw, Round Head M3 X 0.5 X 20mm 12
78 Screw, Round Head M4 X 16mm 2
79 Screw, Round Head M4 X 12m 1
80 Bolt Ø10X12.5mm, M8X1.25X15mm 2
81 Lock Washer M10 5
82 Washer M10 12
83 Washer M8 2
84 Washer M6 2
85 Washer M3 25
86 Arcon Nut M10 X 1.5 4
87 Arcon Nut M10 X 1.5 5
88 Nylock Nut M8 X 1.25 11
89 Nylock Nut M6 X 1 2
90 Nylock Nut M3 X 0.5 12
91 Large Washer M8 X Ø20mm 2
92 Upper pad 25mm X 25mm 4
93 Impeller Seal 1
94 Tank Seal 1
95 Foam Spacer 1
#DESCRIPTION QTY
96 PC Plate 1
97 Roller Spacer Ø8.1 X Ø10 X 13mm 1
98 Idle Roller Spacer 2
99 Stainless Washer 1
100 Syphon Pump 1
101 Funnel 1
102 Allen Wrench 4mm 1
103 Allen Wrench 6mm 1
104 Combination Wrench 1
105 Screw ST5.5*16 4
106 Ribbon guide wheel 1
107 Bolt, button head M10x60 1
PARTS LIST
