VIRTUFIT Water Resistance Row 1000 User manual

1
VirtuFit Water Resistance Row 1000
Water Resistance Row 1000
ENG
User Manual

ENG
2
VirtuFit Water Resistance Row 1000
INDEX
Safety instructions 3-4
Checklist 4-5
Assembly instructions 6-8
Fill and empty tank 9
Adjustment Guide 10-11
Store 12
Maintenance 13
Operating Guide 14-17
Exercise Guide 18-21
Technical drawing 22
Parts List 23-26

ENG
3
VirtuFit Water Resistance Row 1000
SAFETY INSTRUCTIONS
WARNING: BEFORE BEGINNING ANY EXERCISE PROGRAM, CONSULT YOUR PHYSICIAN.
THIS IS ESPECIALLY IMPORTANT FOR INDIVIDUALS OVER THE AGE OF 35 OR PERSONS
WITH PRE-EXISTING HEALTH PROBLEMS. READ ALL INSTRUCTIONS BEFORE USING
ANY FITNESS EQUIPMENT. SAVE THESE INSTRUCTIONS.
ATTENTION
- Before starting any exercise program you should consult your physician to determine if you
have any medical or physical conditions that could put your health and safety at risk or
prevent you from using the equipment properly. Your physician’s advice is essential if you are
taking any medication that may aect your heart rate, blood pressure, or cholesterol level.
- Be aware of your body’s signals. Incorrect or excessive exercise can damage your health.
Stop exercising if you experience any of the following symptoms: pain, tightness in your chest,
irregular heartbeat, shortness of breath, lightheadedness, dizziness, or feelings of nausea. If
you do experience any of these conditions, you should consult your physician before
continuing with your exercise program.
- Keep children and pets away from the equipment. The equipment is designed for adult use only.
- Use the equipment on a solid, at level surface with a protective cover for your oor or carpet.
To ensure safety, the equipment should have at least 2 feet of free space all around it.
- Ensure that all nuts and bolts are securely tightened before using the equipment. The safety
of the equipment can only be maintained if it is regularly examined for damage and/or wear
and tear.
- Always use the equipment as indicated. If you nd any defective components while
assembling or checking the equipment, or if you hear any unusual noises coming from the
equipment during exercise, stop using the equipment immediately and don’t use the
equipment until the problem has been rectied.
- Wear suitable clothing while using the equipment. Avoid wearing loose clothing that may
become entangled in the equipment.
- Do not place ngers or objects into the moving parts of the equipment.
- The maximum user weight of this rower is 227KG.
- Move with caution when lifting and moving the equipment. Always use proper lifting technique
and seek assistance if necessary.
- Your product is intended for use in cool, dry conditions. You should avoid storage in extreme
cold, hot, or damp areas as this may lead to corrosion and other related problems.
- This equipment is designed for indoor use only! It is not intended for commercial use or medical
treatment!

ENG
4
VirtuFit Water Resistance Row 1000
CHECKLIST

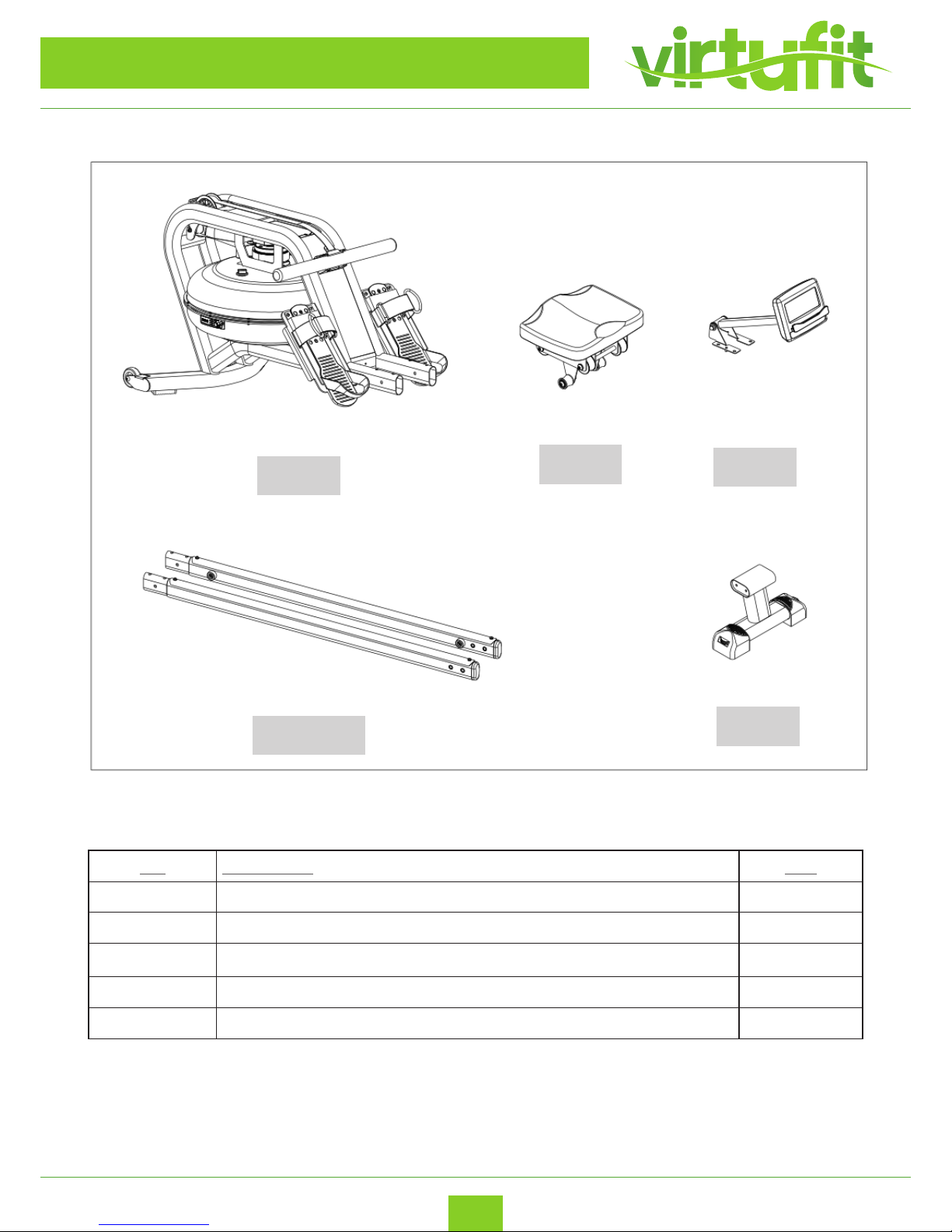

No. 1 No. 38 No. 51
No. 3 L/R No. 2
No. Description QTY
1 Main frame 1
2 Rear Stabilizer 1
3 L/R Slide rail 2
38 Seat 1
51 Computer 1

ENG
5
VirtuFit Water Resistance Row 1000
CHECKLIST

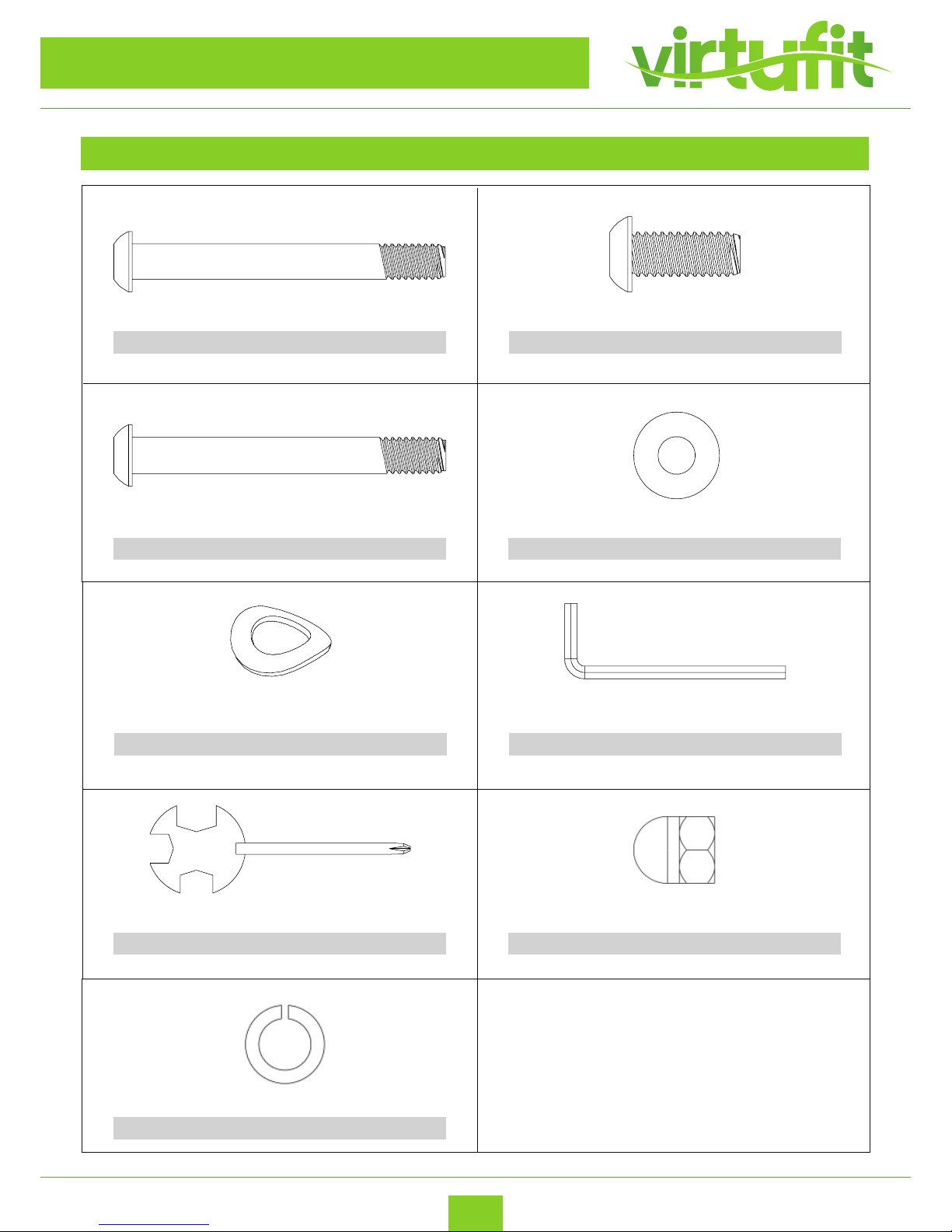

TOOL KIT
#57 - M8*45 - 6 pcs
#61 - M8*75 - 4 pcs
#71 - M8 - 8 pcs #89 - S5 - 1 pc
#90 - S13-17 - 1 pc
#95 - M8 - 6 pcs
#94 - M8 - 6 pcs
#68 - OD20*ID8.5*1.5 - 12 pcs
#58 - M8*15 - 4 pcs

ENG
6
VirtuFit Water Resistance Row 1000
ASSEMBLY INSTRUCTIONS
Open the box and remove all parts from the packaging and place them on the oor.
Missing parts: If you think you are missing certain parts in your package, carefully check the styrofoa and
the treadmill. Some parts (bolts, screws, etc.) are already attached to / in the treadmill.
Error message: Make sure that all cables are carefully attached. The aluminum legs are very sensitive and
should remain straight. Do you get an error message after mounting your rowing machine? Then you
should bend these copper feet straight again, this may cause the error message to disappear.
Allen bolts: Make sure that the Allen key ts securely into the bolt before you apply force to the key. In
this way you prevent the head of the socket head from being turned.
STEP 1

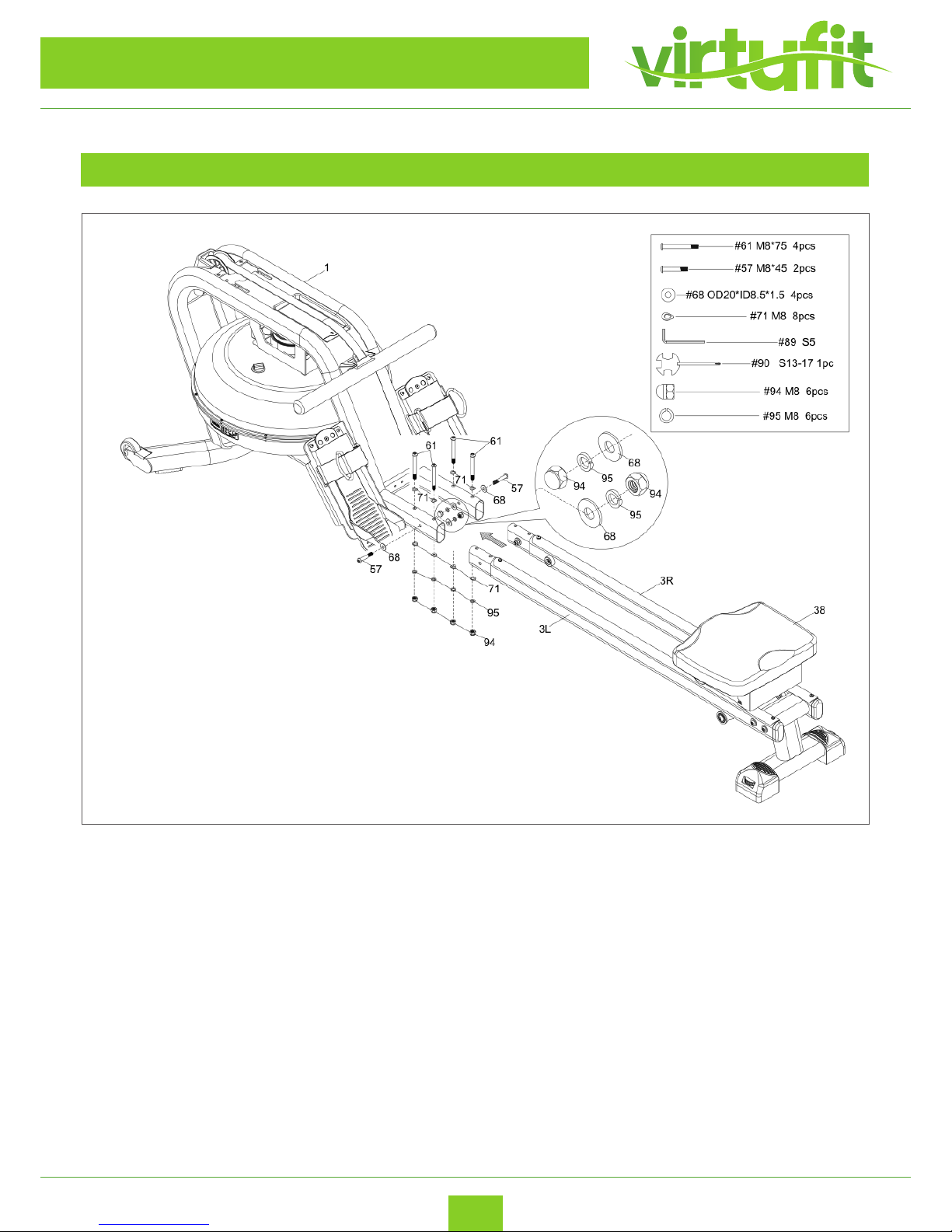

- Turn over the Slide Rail (3), the Rear Stabilizer (2) and the seat (38) as above picture;
- Install the slide rail (3 L/R) into the seat;
- Attach the Rear Stabilizer (2) to the Slide Rail (3), tighten with 4 Washers (68) and 4 screws (57).

ENG
7
VirtuFit Water Resistance Row 1000
STEP 2
ASSEMBLY INSTRUCTIONS
- Attach the Slide Rail (3) to the Main Frame (1), tighten with 8 Arc Washers (71), 4 screws (61), 4 screws
(61), 4 spring washers (95) and 4 cap nut (94) 4 washers (68), 4 screws (57), 2 spring washers (95) and
2 cap nut (94).

ENG
8
VirtuFit Water Resistance Row 1000

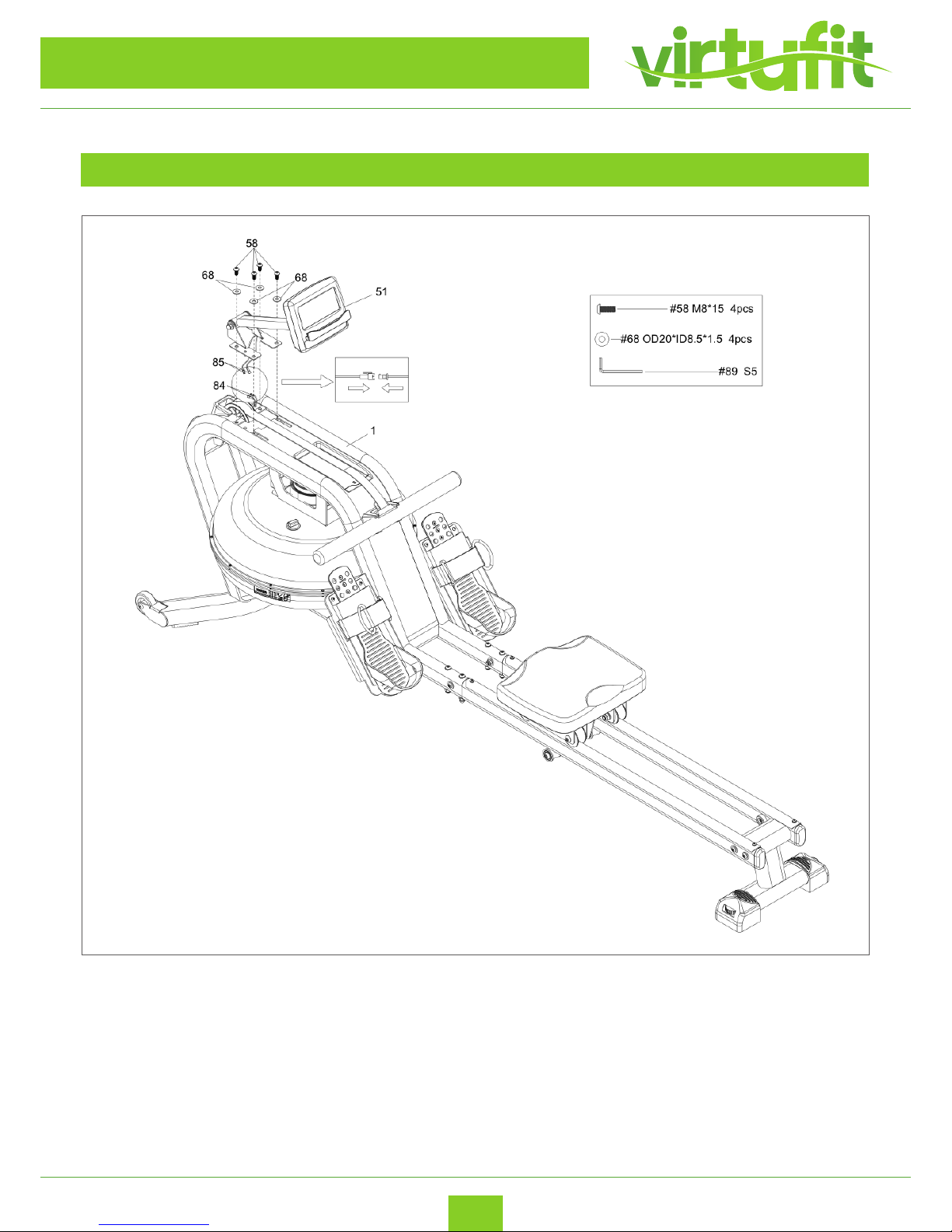

STEP 3
ASSEMBLY INSTRUCTIONS
- Connect the connection wire (85) to the sensor wire (84).
- Attach the Support for computer (51) to Main Frame, tighten with 4 Washers (68) and 4 screws (58).
- If the seat makes noise, the wheels under the seat should be slightly greased with the supplied
supplied silicone oil.

ENG
9
VirtuFit Water Resistance Row 1000
HOW TO FILL AND EMPTY THE TANK

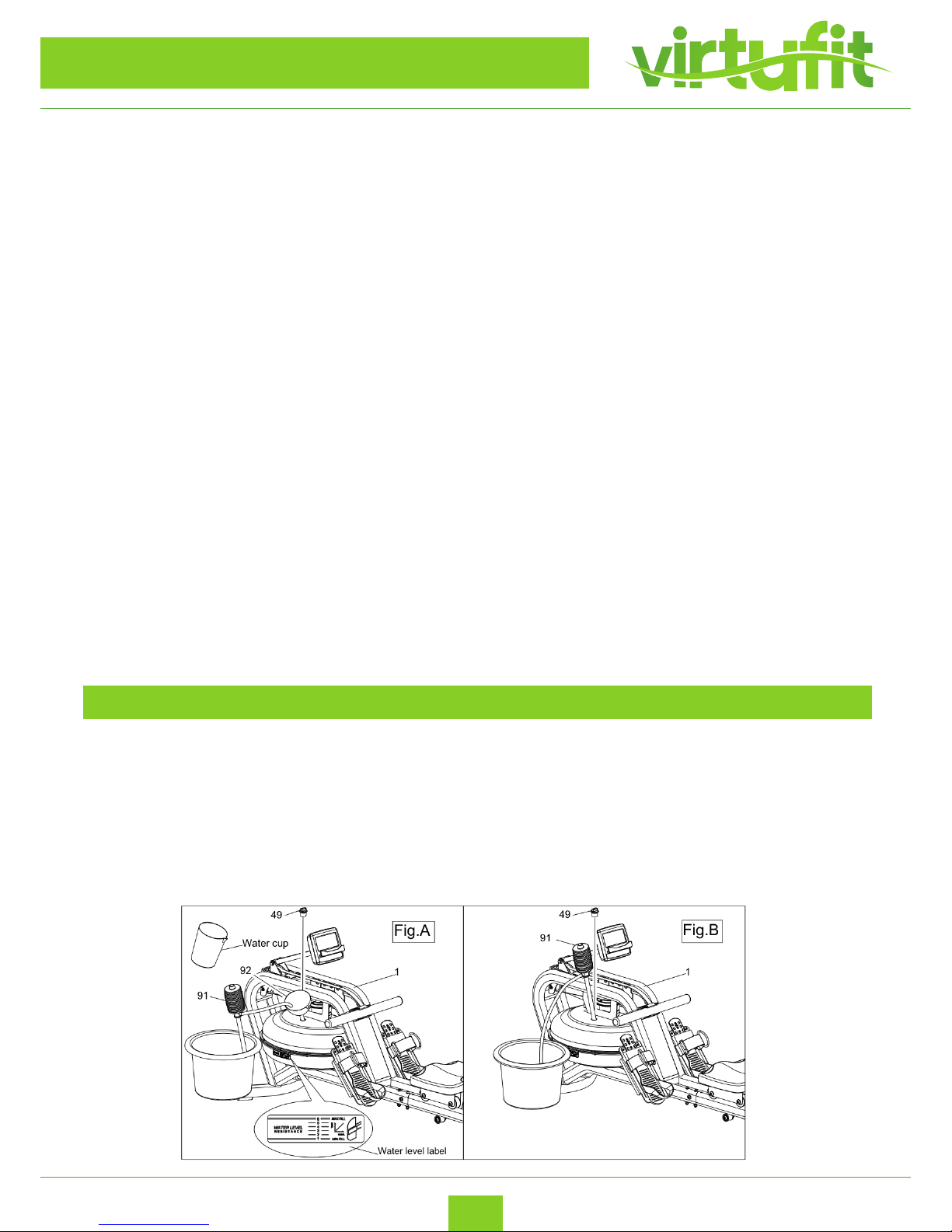

1. Remove the Fill Plug (49) from the Upper Tank Cover;
2. To ll tank with water, refer to Fig. A. Insert the Funnel (92) into the tank, then use a cup or the Pumping
siphon (91) and a bucket to ll the tank. Use the water level gauge on the side of the tank to measure
desired water level in the tank.
3. To empty the tank, refer to Fig. B. Place a bucket next to the rower, and use the Pumping siphon (91) to
pump out the water from the tank into the bucket.
4. Insert the Fill Plug (49) into the Upper Tank Cover. Wipe excess water o of the frame.
NOTE:
– Fill the tank only with tap water. Add 1 water-purication tablet (1 packet is included.). Never use pool
chlorine or chlorine bleach. This will damage the tank and void the warranty.
– Add a water purication tablet every 6 months or as needed. If water remains cloudy, replace the water
in the tank.
– Water from the tank is not suitable for consumption. Dispose the water after pumping it out from the
tank.
– See Fig. A. The water level gauge is on the side of the tank. The maximum ll is the top bar. Never ll it
over this limit. Filling the tank over this limit will void the warranty.
– The resistance depends on the water level in the tank. Water level 1 is the lowest resistance. Level 6 is
a higher resistance.
WATER LEVEL

ENG
10
VirtuFit Water Resistance Row 1000
ADJUSTMENT GUIDE
PEDAL ADJUSTMENT
MOVING THE MACHINE

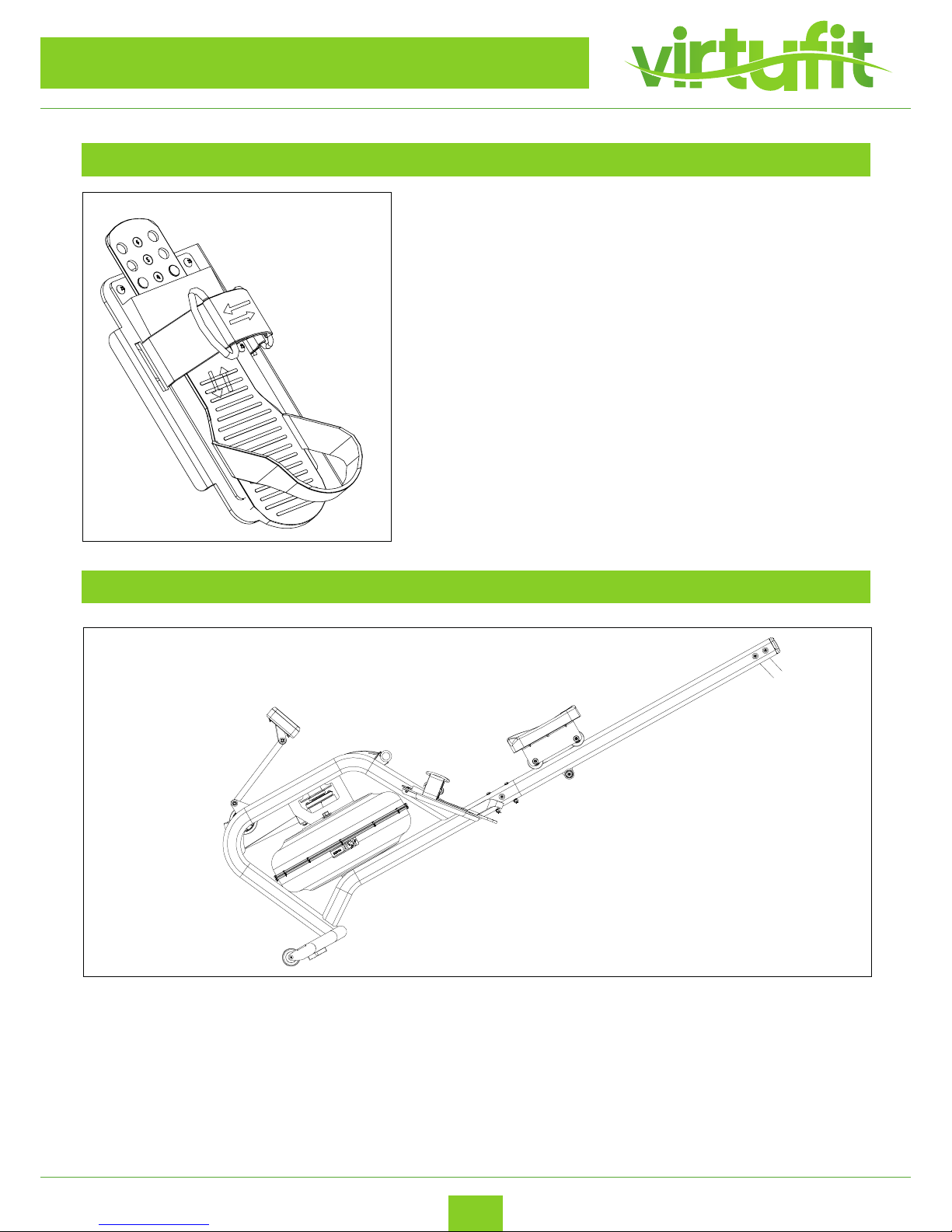

The pedal strap is adjustable and can be personalized to
t the user’s foot size.
To adjust the pedal strap, remove the Velcro end of the
strap from the mesh side by pulling it upward then to the
left.
Once removed, you may increase the opening of the
pedal strap by pulling the mesh end up and to the right.
To tighten, pull the Velcro end of the pedal strap upward
then to the right and down to secure it to the mesh side
of the strap.
To move the machine, lift up the rear stabilizer until the transportation wheels on the front stand touch the
ground. With the wheels on ground, you can transport the rower to the desired location with ease.
Caution: the seat moves.

ENG
11
VirtuFit Water Resistance Row 1000
ADJUSTMENT GUIDE
ADJUSTING THE BALANCE

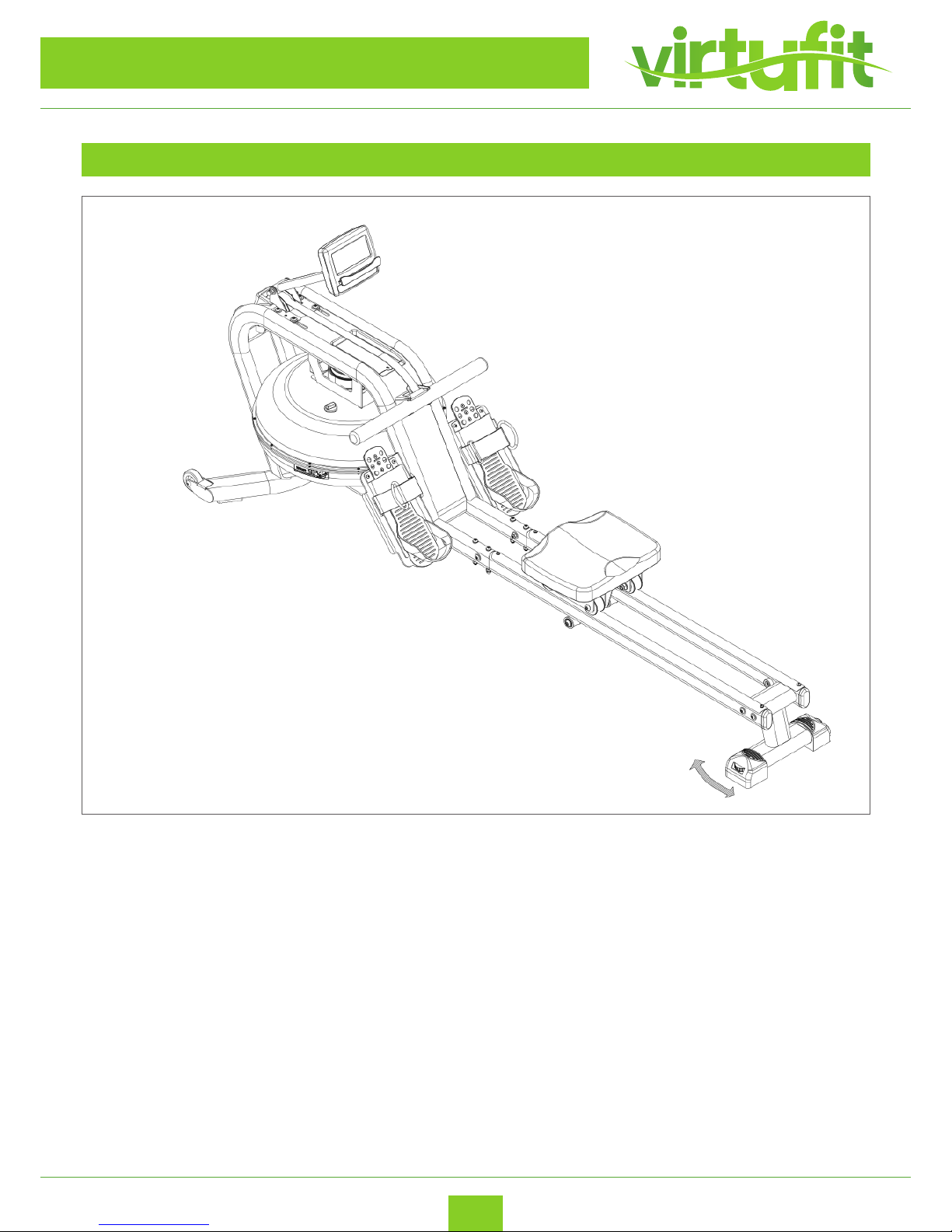

Adjust the Rear Stabilizer of the machine if the machine is unbalanced during use.
Caution! Moving parts, such as the seat, could crush and cut your body. Please do not touch the slide
rail when using the machine.

ENG
12
VirtuFit Water Resistance Row 1000
STORAGE
When not in use, you can save space by storing the rower vertically. If not using the rower for more than a
month, empty the tank before storing.
Caution: When you stand the rower up, the Seat will slide down.
Caution: Move with caution when you raise the rower up, as your head may touch the Rear Stabilizer.

ENG
13
VirtuFit Water Resistance Row 1000
MAINTENANCE
MAINTENANCE
The safety and integrity designed into the Water rowing machine can only be maintained when the
Water rowing machine is regularly examined for damage and wear. Special attention should be given
to the following:
1. Sit on the seat and pull on the handlebar to verify that the water system provides
resistance and the seat travel is smooth and stable
2. Periodic maintenance is required to maintain proper condition of the water in the tank. The water
must be refreshed periodically by adding a water purication tablet, such as sodium dichlor
(56% chlorine) every 4-6 months. NEVER USE POOL CHLORINE (TRICHLOR 90% CHLORINE) OR
CHLORINE BLEACH. Use of these products will void the warranty and damage the product.
3. Clean the roller tracks on the rails with an absorbent cloth. Do not let dirt accumulate. Check
before every training.
4. It is the sole responsibility of the user/owner to ensure that regular maintenance is performed.
5. Worn or damaged components shall be replaced immediately. Contact your dealer for help.
6. Add a bit of silicone oil on rails and wheels for smooth training. Depending on usage this needs
to be done every 3 months.

ENG
14
VirtuFit Water Resistance Row 1000
OPERATING GUIDE
COMPUTER INSTRUCTIONS
Power on
The full LCD display will be shown 2 seconds after the installation of batteries. It will enter the workout
intensity of selection mode from L1 to L6 by pressing “v” or “^” to select ( the default is L6) then press
Enter to conrm and enter the standby mode.
Function buttons
• Recovery: Press this button to test the pulse recovery for 60 seconds , the computer need to have
the pulse singal input.
• Reset: 1. Press it to back the preset value during the parameter setting mode, press again to back
program selection.
2. Press it to go back to the standy mode during training.
3. Hold it 2 seconds, the computer will reset.
• Start / Stop: To start and stop your selected workout program.
• Enter: 1. Conrm the selection of program.
2. Conrm the setting of parameter and enter the next parameter setting.
3. Press it to switch the function value display during the training.
• “^” 1. Increase the setting parameter.
2. Select the program (QUICK, STANDARD, TARGET, SINGLE, TARGET INTERVALS, CUSTOM, RACE).
• “v” 1. Decrease the setting parameter.
2. Select the program (QUICK, STANDARD, TARGET, SINGLE, TARGET INTERVALS, CUSTOM, RACE).
Remark: Press “^”/”v” to display the function value in the large middle display window.

ENG
15
VirtuFit Water Resistance Row 1000
OPERATING GUIDE
Default Increment
Decrement
Setting range Display range
TIME 0:00 ±1 0:00~99:00 0:00~99:59
DISTANCE 0±100 0~99900 0~99999
STROKES 0±10 0~99990 0~99999
CALORIES 0±10 0~9990 0~9999
Remark: TIME and DISTANCE can’t be set together but can choose TIME or DISTANCE to set.
Display functions
• TIME: Display the training time.
• TIME/500M: The average 500 meter time will automatically displayed and continuously updated.
• SPM: Strokes per minute.
• DISTANCE: Display the training distance.
• STROKES: Display the currect strokes.
• TOTAL STROKES: Accumulates total strokes.
• CALORIES: Display the consumption calories.
• PULSE: Display user’s heart rate during the training.
• DRAG FORCE: Display the current drag force.
• WATT: Display the current watt.
• A+: Display the average function value of time, calories, watt and pulse.
Operation guide
• QUICK START: Press“^” / “v” to choose Quick Start then press“START/STOP” to start the training.
1. Press “ENTER” to switch the function value to display in the large middle display during the training.
2. The program prole with 16 columns, each columns equal to 100 meter.
• STANDARD: Press “^” / “v” to choose Standard then press “ENTER” to conrm and enter ve training
mode selection of: 2000m, 5000m, 10000m, 30:00, 500m/1:00. After that press “START/STOP” to start the
training. The preset function value will count down, other function value will count up. Press “RESET”
back to standy mode when the preset function value counts down to zero.
• TARGET SINGLE: Press “^” / “v” to choose Target Single then press “ENTER” to conrm and enter four
Single setting of Single Time, Single Distance, Single Calories, Single THR.
A) Single Time: Only can preset the time ,press START/STOP to start the training after setting nished.
B) Single Distance: Only can preset the distance ,press START/STOP to start the training after setting
nished.
C) Single Calories :Only can preset the calories ,press START/STOP to start the training after setting
nished.
D) Single T.H.R: Only can preset the Target Heart Rate form 90 to 200 Bpm, press START/STOP to start the
training after setting nished. It will have beep beep sound then the heart rate is higher than THR.

ENG
16
VirtuFit Water Resistance Row 1000
OPERATING GUIDE
• TARGET INTERVAL: Press “^” / “v” to choose Target Interval then press ENTER to conrm and enter to
three Intervals setting mode of Intervals Time, Intervals Distance, Intervals Variable.
A) Intervals Time :Press “^” / “v” to set the training time then press ENTER to conrm and set the REST
TIME .Press “^” / “v” START/STOP to start the training after setting nished.
B) Intervals Distance: Press “^” / “v” to set the training distance then press ENTER to conrm and set the
REST TIME .Press START/STOP to start the training after setting nished.
C) Intervals Variable: Press “^” / “v” to set the training time then press ENTER to conrm and set the train-
ing distance. Press ENTER to conrm and set the REST TIME then press START/STOP to start the training
after setting nished.
• CUSTOM: Press“^”/ “v” to choose CUSTOM then press ENTER to conrm and enter to four Custom mode
of V :30/:30R, V1:00/1:00R…7, V2000m/3:00R…4, V1:40/:20R.
A) V :30/:30R, Training 30 seconds, Rest 30 seconds.
B) V1:00/1:00R…7, Training one minute, Rest one minute, Repeat 7 times.
C) V2000m/3:00R…4, Training 2000m, Rest three minutes, Repeat 4 times.
D) V1:40/:20R, Training one minute forty seconds, Rest 20 seconds, Repeat 9 times.
• RACE: Press “^” / “v” to choose RACE then press ENTER to conrm then press “^” / “v” to select L1~L15.
Press ENTER to conrm and enter DISTANCE setting, DISTANCE will blink then press UP or DOWN to
adjust. Press ENTER to STOP mode then press STARTt to train.
The dot-matrix will show U and PC graphic to race.
Once PC or User reach the end of training, the computer will stop.
TIME winder can press ENTER to switch display TIME and TIME/500M A+,SPM window can press ENTER
to switch display SPM and SPM A+, DISTANCE display training distance ,TOTAL STROKES window press
ENTER to switch display STROKES and TOTAL STRKOES, CALORIES window press ENTER to switch display
CALORIES and WATT A+, PULSE window display PULSE A+, The dot-matrix will show PC WIN or USER WIN
Renmark: RACE PROGRAM, :only can set DISTANCE, TIME/500M is xed , TIME/500M for L1-L15 is as
below.
L1 8:00 L6 5:30 L11 3:00
L2 7:30 L7 5:00 L12 2:30
L3 7:00 L8 4:30 L13 2:00
L4 6:30 L9 4:00 L14 1:30
L5 6:00 L10 3:30 L15 1:00

ENG
17
VirtuFit Water Resistance Row 1000
OPERATING GUIDE
Recovery
This meter works with a 5.3 KHz chest strap heart rate monitor (not included). After exercising for a period
of time, keep wearing chest strap monitor and press “RECOVERY” button. All function displays will stop
except “TIME” starts counting down from 00:60 to 00:00. Your condition will be measured.
1. Screen will display your heart rate recovery status with the F1, F2….to F6.
2. F1 is outstanding. F6 is poor. User may keep exercising to improve the heart rate recovery status.
(Press the “RECOVERY” button again to return the main display.)
Alarm
Alarm only works while the computer is in sleep mode. Alarm will not sound during exercise. Press and hold
“RESET” to go to clock screen to set up “ALARM”.
Sleep mode
The computer will go into sleep mode after about 4 minutes of inactivity.
Battery
This meter uses 2 AA batteries, which are included. Changing the batteries will reset all values. If there is
a problem with the display, try changing the batteries rst. When changing the batteries, change both of
them. Do not mix battery types. Do not mix old and new batteries. Dispose of old batteries according to
your regional guidelines.

ENG
18
VirtuFit Water Resistance Row 1000
EXERCISE GUIDE
Rowing is an extremely eective form of exercising. It strengthens your heart and improves blood
circulation as well.
There are involved all major muscle groups of back, waist, arms, shoulders, hips and legs.
Sit on the saddle and fasten your feet to the pedals using Velcro straps. Then take hold of the rowing bar.
Take the start position, lean forward with your arms straight and knees bent as shown in Fig. 1. Push your
body backwards while simultaneously straightening your back and legs (Fig. 2). Continue this movement
until you are leaning slightly backwards.Bring your arms out of the side during this phase (Fig. 3). Thereafter
return to the second position and repeat it as shown below.
Rowing is a strenuous training style. Because of it, it is better to start with a short and easy program and
continue to a longer and intensive workout. Start rowing for about 5 minutes and increase the workout
length gradually to improve your tness. Finally, you should be able to row for 15-20
minutes. Don’t try to do it too quikly. Try to train on alternate days, 3 times a week. Take recovery time
between workouts.
EXERCISE GUIDE
TRAINING TIME

ENG
19
VirtuFit Water Resistance Row 1000
EXERCISE GUIDE
ONLY ARM ROWING: This workout should tone your arm, shoulder, back and abdominal muscles. Sit on the
machine as shown in Fig. 4. Straight your legs, lean forward and grasp the handles. Control your moving and
gradually lean back to just past the up-right position (Fig. 5) and continue to pull the handles towards your
chest (Fig. 6). Return to the starting position and repeat.
ROWING STYLE ALTERNATION
ONLY LEG ROWING: This workout helps toning your leg and back muscles. Keep your back straight and
arms out-stretched, bend your legs until you will grasp the rowing handles in the starting position (Fig. 7).
Use your legs to push your body back (Fig. 8) while keeping your arms and back straight as shown in Fig. 9.

ENG
20
VirtuFit Water Resistance Row 1000
EXERCISE GUIDE
This phase should help improving blood circulation and make your muscles working properly while reduc-
ing a cramp risk or injury. It is advisable to do a few stretching exercises as shown below. Each stretching
exercise should be taken for approx. 30 seconds. Don’t overstretch and don’t jerk your muscles. If you feel
pain, stop immediately.
WARMUP PHASE
Side bends
Forward bends
Outer thigh
Inner thigh
Calves and achilles tendon
