WARRANTYGENERAL
T10
Non-Folding Treadmill
OWNER’S GUIDE

Congratulations on choosing a Vision Fitness® treadmill. You’ve
taken an important step in developing and sustaining an exercise
program! Your treadmill is a tremendously effective tool for
achieving your personal fitness goals. Regular use of your treadmill
can improve the quality of your life in so many ways…
Here are just a few of the health benefits of aerobic exercise:
• Weight loss
• A healthier heart
• Improved muscle tone
• Increased daily energy levels
• Reduced stress
• Help in countering anxiety and depression
• An improved self image
The key to reaping these benefits is to develop the exercise habit.
Your new treadmill will help you eliminate the obstacles that
prevent you from getting in your exercise time. Snow and rain and
darkness won’t interfere with your workout when you have your
treadmill in the comfort of your home. This owner’s guide provides
you with basic information on starting an exercise program. A
more complete knowledge of your new treadmill will assist you in
realizing your goal of a healthy lifestyle.
Service to your treadmill should only be performed by your
Vision Fitness retailer. Please contact your authorized Vision Fitness
retailer should service be required. If a question or problem arises
which cannot be handled by your Vision Fitness retailer, please
contact us:
Vision Fitness
1600 Landmark Drive
Cottage Grove, WI 53527
Ph: 1.800.335.4348
www.visionfitness.com

Table of Contents
SAFETY INSTRUCTIONS ............................................. 2
GROUNDING INSTRUCTIONS,
POWER REQUIREMENTS .......................................... 3
OTHER SAFETY TIPS .................................................... 4
ASSEMBLY & PLACEMENT ....................................... 5
POWER SWITCH & SAFETY KEY ......................... 8
QUICK SPEED & ELEVATION KEYS ..................... 7
CONTACT HEART RATE ............................................. 8
TREADMILL OVERVIEW ............................................. 9
MOVING & LEVELING ................................................. 10
HOME WARRANTY ....................................................... 16
INTRODUCTION ............................................................... 11
CONSOLE DISPLAY ...................................................... 12
CONSOLE WARRANTYGENERAL
GENERAL
CONSOLE
WARRANTY

2
IMPORTANT SAFETY INSTRUCTIONS
This treadmill is intended for household use only. When using this
treadmill, basic precautions should always be followed, including the
following: Read all instructions before using this treadmill:
DANGER: TO REDUCE THE RISK OF ELECTRIC SHOCK:
• Always unplug the treadmill from the electrical outlet immediately
after using and before cleaning.
WARNING: TO REDUCE THE RISK OF BURNS, FIRE,
ELECTRIC SHOCK, OR INJURY TO PERSONS:
• Do not remove the treadmill motor covers or roller covers. Service
should be performed only by an authorized Vision Fitness retailer.
• Connect this treadmill to a properly grounded outlet only. See
Grounding Instructions.
• The treadmill should never be left unattended when plugged in.
Unplug from outlet when not in use, and before putting on or
taking off parts.
• Do not operate under blanket or pillow. Excessive heating can
occur and cause fire, electric shock, or injury to persons.
• Close supervision is necessary when this treadmill is used by, on, or
near children, invalids, or disabled persons.
• Use this treadmill only for its intended use as described in this
manual. Do not use attachments not recommended by the
manufacturer.
• Never operate this treadmill if it has a damaged cord or plug, if
it is not working properly, if it has been dropped or damaged, or
dropped into water. Return the treadmill to a service center for
examination and repair.
• Do not carry this treadmill by supply cord or use cord as a handle.
• Keep the cord away from heated surfaces.
• Never operate the treadmill with the air openings blocked. Keep
the air openings free of lint, hair, and the like.
• Never drop or insert any object into any opening.
• Do not use outdoors.
• Do not operate where aerosol (spray) products are being used or
where oxygen is being administered.
• To disconnect, turn all controls to the off position, then remove
plug from outlet.
• Never place the power cord under carpeting or place any object
on top of the power cord, which may pinch and damage it.
• Unplug your Vision Fitness treadmill before moving it.
SAVE THESE INSTRUCTIONS
GENERAL

3
GROUNDING INSTRUCTIONS
This treadmill must be grounded. If it should malfunction or
breakdown, grounding provides a path of least resistance for electric
current to reduce the risk of electric shock. This treadmill is equipped
with a cord having an equipment-grounding conductor and a
grounding plug. The plug must be plugged into an appropriate outlet
that is properly installed and grounded in accordance with all local
codes and ordinances.
DANGER: Improper connection of the equipment-grounding
conductor can result in a risk of electric shock. Check with a qualified
electrician or serviceman if you are in doubt as to whether the
treadmill is properly grounded. Do not modify the plug provided with
the treadmill – if it will not fit the outlet, have a proper outlet installed
by a qualified electrician.
POWER REQUIREMENTS
This treadmill is rated for more than 15 amperes and is for use on a
circuit having a nominal rating of 120 volts and is factory-equipped
with a specific electric cord and plug to permit connection to a
proper electric circuit. Make sure that the treadmill is connected to
an outlet having the same configuration as the plug. No adapters,
extension cords, or surge protectors should be used with this
product. If the treadmill must be reconnected for use on a different
type of electric circuit, the reconnection should be made by qualified
service personnel. Also, a GFI protected receptacle should not be
used. It is recommended to use a 20 amp dedicated circuit.
GENERAL

4
OTHER SAFETY TIPS FOR YOUR VISION FITNESS
TREADMILL
CAUTION: RISK OF INJURY TO PERSONS
To avoid injury, stand on the siderails before starting treadmill. Read
Instruction Manual before using.
CAUTION: If you experience chest pains, nausea, dizziness
or shortness of breath, stop exercising immediately and consult your
physician before continuing.
• Do not wear clothing that might catch on any part of the treadmill.
• Read this Owner’s Guide before operating this treadmill.
GENERAL

5
ASSEMBLY
Vision Fitness recommends this treadmill be assembled and delivered
by qualified personnel. If you have elected to assemble this treadmill
yourself, for your safety please read and follow each of the steps in
the enclosed Assembly Guide. It is recommended, when possible, that
assembly be performed by an authorized Vision Fitness retailer. If you
have any questions regarding any part or function of your treadmill,
contact your Vision Fitnes retailer.
PLACEMENT IN YOUR HOME
It is important that you place your treadmill in a comfortable and inviting
room. Your treadmill is designed to use minimal floor space. Many
people will place their treadmills facing the TV or a picture window.
If at all possible, avoid putting your treadmill in an unfinished
basement. To make exercise a desirable daily activity for you, the
treadmill should be in an attractive setting.
NOTE: If you place your treadmill facing out from a wall, you should
leave three feet between the wall and the treadmill to ensure safe
operation.
GENERAL

6
POWER SWITCH
Ensure that your treadmill is
properly connected to a power
outlet, then turn on the Power
switch, located at the front of
the main frame.
SAFETY MAGNET KEY
& CLIP
Your Vision Fitness treadmill
will not start unless the Safety
Magnet Key is inserted into the
circle in the front of the console.
You should attach the clip end
to your clothing. If at any time
you need to stop the treadmill
quickly, simply pull the Safety
Magnet Key off the console.
This will cut all power to the
treadmill, and it will come to
a complete stop. To resume
your workout, place the Safety
Magnet Key back in place. This
will send you back to the start-
up mode.
GENERAL

7

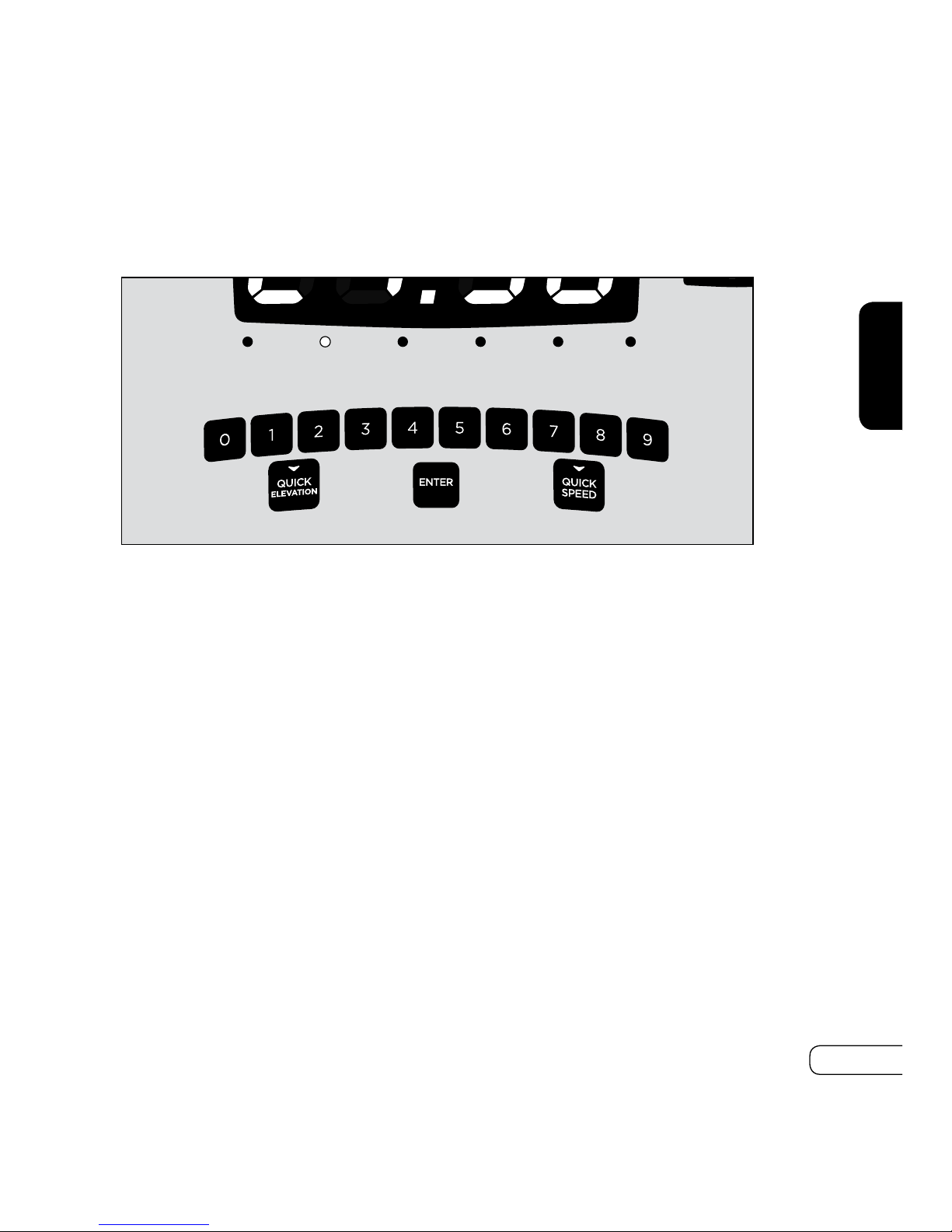

QUICK SPEED AND QUICK ELEVATION KEYS
Use the QUICK SPEED and QUICK ELEVATION keys as an option
to increase and decrease the speed and elevation to your desired
setting. First press the QUICK SPEED or QUICK ELEVATION key,
then press the numbered keys (0-9).
QUICK SPEED*
Examples of the QUICK SPEED key operation: to change the speed
to 4.0 mph/kph, press QUICK SPEED, then 4. To change the speed to
4.5 mph/kph, press QUICK SPEED, then 4, then 5. The Quick Speed
keys adjust the speed in 0.1 mph/kph increments. The maximum
speed using the Quick Speed keys is 9.9 mph/kph.
QUICK ELEVATION*
Examples of the QUICK ELEVATION key operation: to change to 6%
elevation, press QUICK ELEVATION, then 6. To go to 10% elevation,
press QUICK ELEVATION then 1, then 0. The Quick Elevation keys
adjust the elevation in 1% increments.
* May operate differently outside North America.
HEART R ATE
ELEVATION TIME DISTANCE CALORIES SPEED PACE
Hold to Scan
Change
Display
T10
Start
Press for Easy Start
Stop
Hold to Reset
GENERAL

8

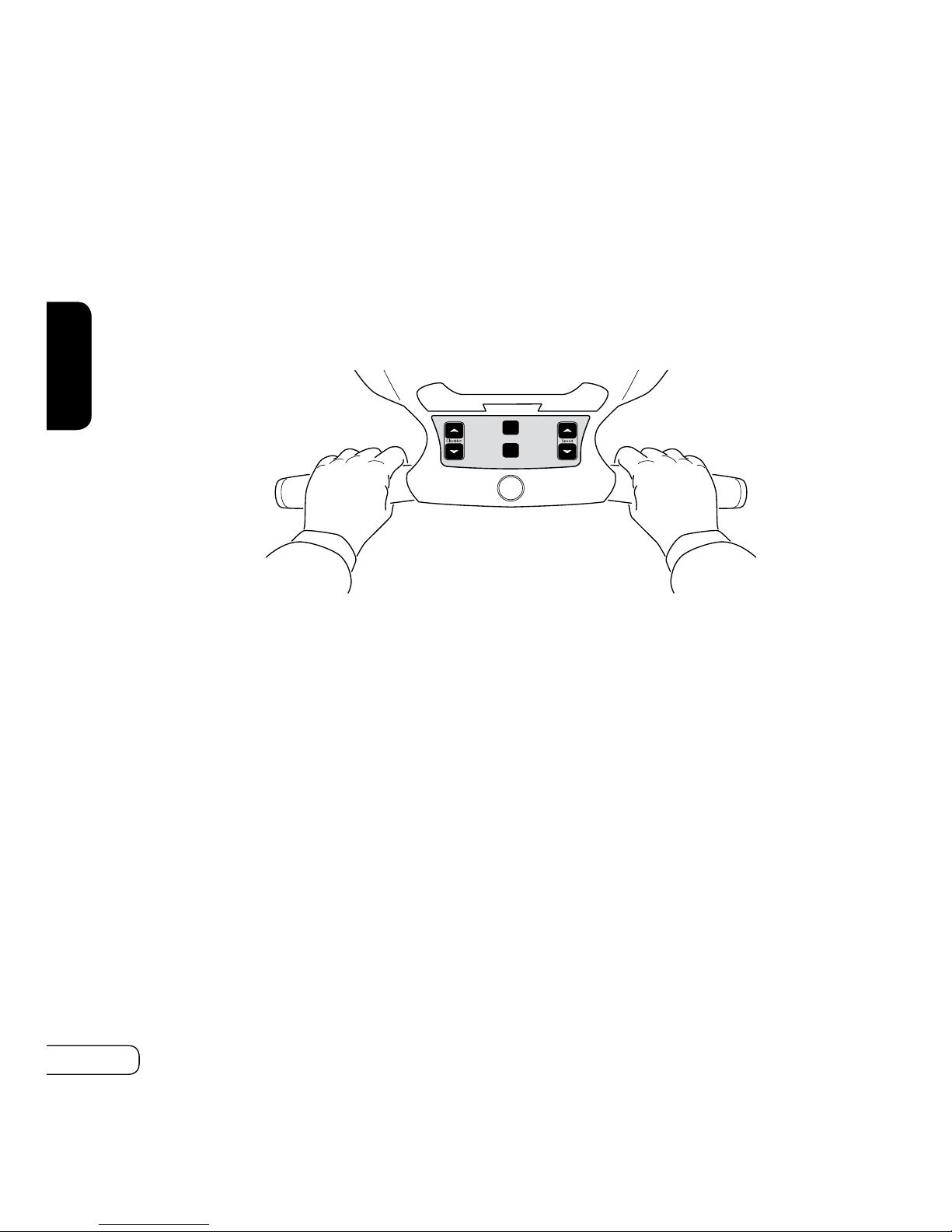

CONTACT HEART RATE
HAND PULSE HEART RATE SENSORS
The Contact Hand Pulse Sensors are included on this treadmill to
monitor your heart rate. To use, grasp both of the sensors with a
comfortable grip during your workout. The console will display your
heart rate. Although your signal will be displayed immediately, it may
take the system a few seconds to zero in on your actual heart rate.
Start
Press for Easy Start
Stop
Hold to Res et
GENERAL

9
TRANSPORT WHEELS
CONSOLE
HANDLEBARS
SIDE
RAILS
MOTOR
COVER
LEVELERS
RUNNING
BELT
GENERAL

10
MOVING YOUR VISION FITNESS TREADMILL
Your Vision Fitness treadmill has a pair of transport wheels built
into the front legs. To move, firmly grasp the back end of the frame,
carefully lift and roll.
CAUTION: Our treadmills are well-built and heavy, weighing
up to 300 pounds! Use care and additional help if necessary.
LEVELING
Your treadmill should be level for optimum use. Once you have
placed your treadmill where you intend to use it, raise or lower
one or both of the adjustable levelers located on the back of the
treadmill frame. A carpenter’s level is recommended. If your treadmill
is not level, the running belt may not track properly. Once you have
leveled your treadmill, lock the levelers in place by tightening the
nuts against the frame.
GENERAL

11

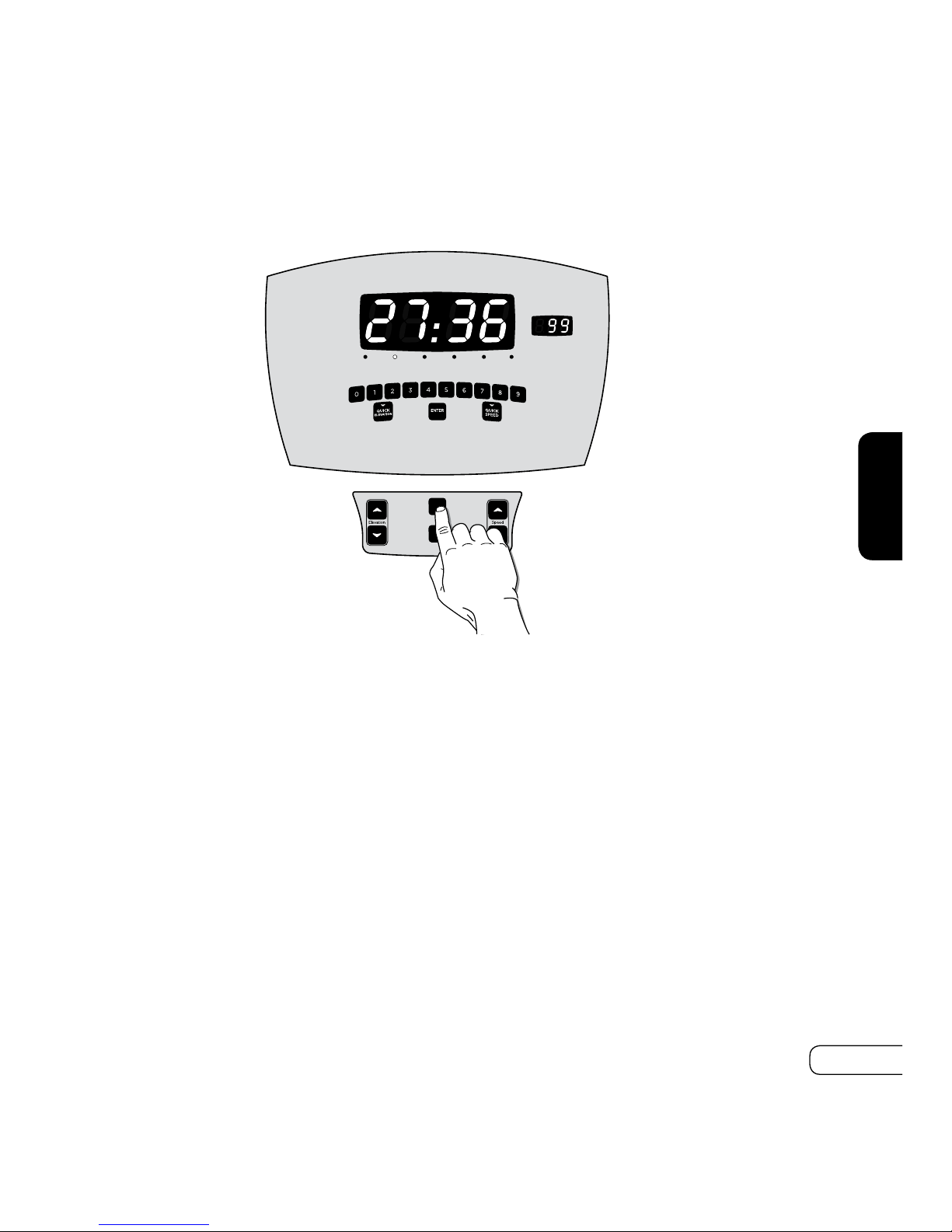

CONSOLE INTRODUCTION
Simply press the START key to begin exercising, or you can select
a workout time and enter your weight.
CHOOSING A TIME
Use the number keys or either set of arrow keys to select a workout
time. Press START to start the workout or ENTER to enter your
weight.

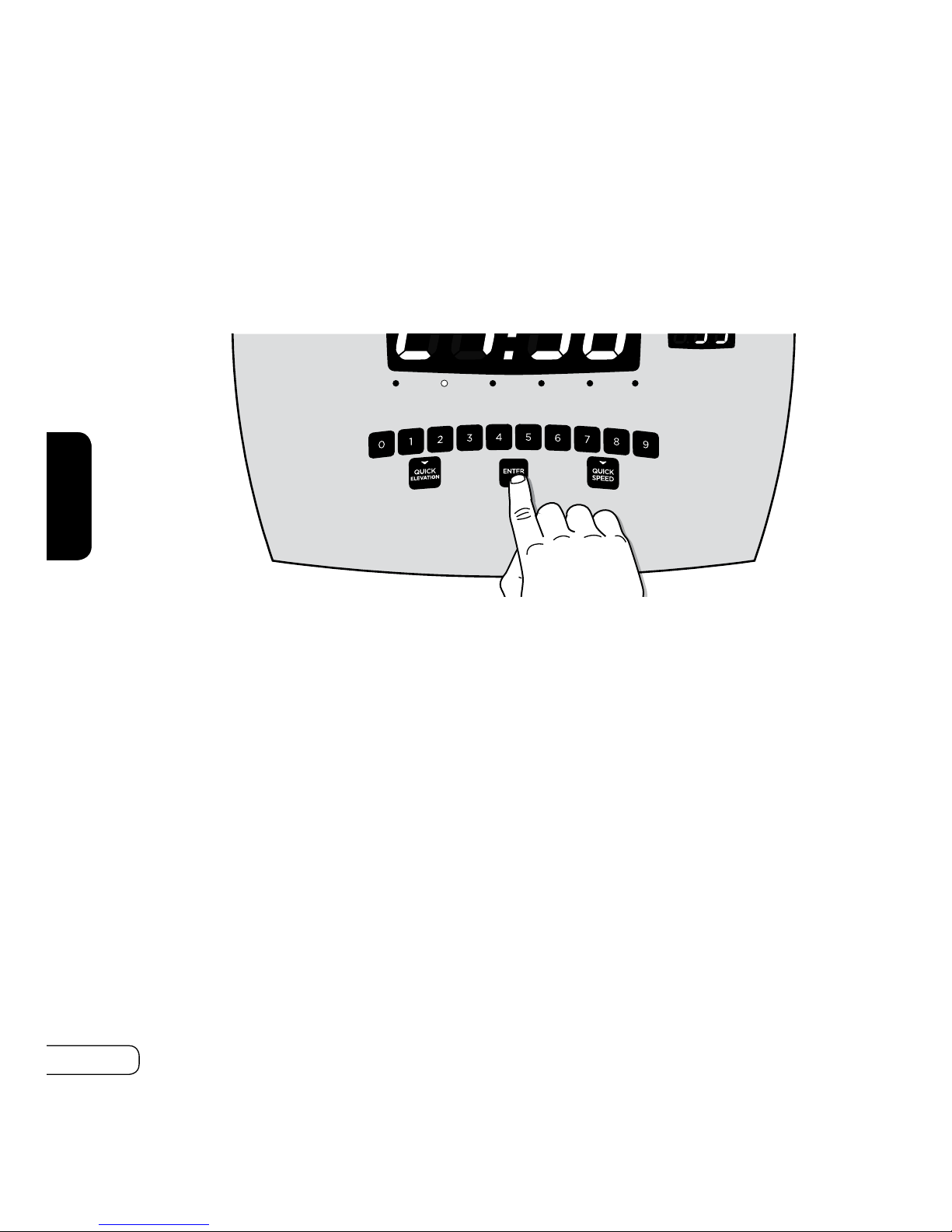

ENTERING YOUR WEIGHT
After selecting your workout time, you may enter your weight. Use
the number keys or either set of arrow keys to enter your weight.
Press ENTER. By selecting your weight, the totals for calories will be
adjusted according to your entered weight.
If you are ready to begin exercising, press START.
PAUSE
Press STOP to pause during your workout.
RESET
Press and hold STOP to reset the treadmill.
HEAR T R AT E
ELEVATION TIME DISTANCE CALORIES SPEED PACE
Hold to S can
Change
Display
T10
Start
Press for Easy Start
Stop
Hold to Reset
CONSOLE

12
CONSOLE DISPLAY
SCAN FUNCTION
To scan through the functions during your workout, press the
ENTER key. To continuously scan, press and hold ENTER until the
console double-beeps (about two seconds). The selected function is
displayed when the function light is on above the word.
ELEVATION
Shown as a percentage of incline. This indicates how steeply inclined
the running surface is to simulate walking/running on a hill.
TIME
Shown as (Minutes:Seconds). View the Time elapsed in your workout.
DISTANCE
Shown as miles or kilometers. View Distance traveled during workout.
CALORIES
Shown as estimated accumulated Calories burned during workout.
SPEED
Shown as Miles/Hour or Kilometers/Hour. This Indicates how fast the
running surface is moving to simulate outdoor walking/running.
PACE
Shown as time (Minutes:Seconds) required to travel one mile/
kilometer at current speed.
HEART RATE
Shown as beats per minute (BPM). You can monitor your heart rate
by gripping the hand pulse heart rate sensors.
HE ART R ATE
ELEVATION TIME DISTANCE CALORIES SPEED PACE
Hold to Scan
Change
Display
T10
Start
Press for Easy Start
Stop
Hold to Reset
CONSOLE

13
USER ENGINEERING MODE
Your treadmill offers a User Engineering Mode that can access
certain data and help to troubleshoot your treadmill. The User
Engineering Mode is designed for you to access functions that will
not affect important treadmill settings. To access this mode, please
hold down the SPEED DOWN and ENTER keys while the treadmill
is at the start-up mode. When in User mode, “USER” is displayed
in the data window. Press ENTER. Use either set of arrow keys to
access the available functions/data. Press ENTER to select the data/
function. To save data, hold down ENTER until the treadmill beeps.
To exit, press STOP.
UNITS
P6 represents units, Metric or English. You can change this
configuration for your treadmill. When you enter P6, the large
window shows the model number and the small window shows the
units. An even number represents English units (miles/mph), and
an odd number represents Metric units (kilometers/kph). You can
change the number using the SPEED arrow keys. Press and hold
ENTER to save the data.
MAxIMUM TIME
P7 represents the maximum time the treadmill can be used (shown
as minutes:seconds). Use the number keys or the SPEED arrow keys
to change the time. To save the time, hold down ENTER until there
are two beeps.
DEFAULT WEIGHT
P8 represents the default weight. You can change this configuration
for your treadmill. To modify the weight, use the number keys or
press the SPEED arrow keys. To save the new default weight, hold
down ENTER until there are two beeps
ACCUMULATED TIME
P9 represents accumulated time in hours. This information is for
viewing only; the data cannot be modified.
ACCUMULATED DISTANCE
P10 represents accumulated distance, either in miles or kilometers.
This information is for viewing only; the data cannot be modified.
CONSOLE

14
USER ENGINEERING MODE (CONTINUED)
PAUSE TIME
P14 represents the pause time. The default pause time is five minutes.
You can modify the pause time from 20 seconds to 10 minutes. You
can modify this time by using the number keys or the SPEED arrow
keys. Press and hold ENTER to save the new value.
DEFAULT TIME
P15 represents the program default time. You can modify this time by
using the number keys or the SPEED or ELEVATION arrows. Press
and hold ENTER to save the new value.
CONSOLE

15
CONSOLE
AUTO-CALIBRATION
DO NOT STAND ON THE BELT WHEN PERFORMING THE AUTO
CALIBRATION!
“AUTO” appears in the data window for the auto-calibration
function. To begin auto-calibration, press START. The treadmill will
run through minimum and maximum speed and elevation. The auto-
calibration will take three to five minutes. When auto-calibration is
complete, “End” will appear in the data window. The treadmill will
reboot and return to the start-up screen.
ExIT USER ENGINEERING MODE
P16 represents exit mode. When you press ENTER to select the
function, the console performs a reboot, returning to the start-up
screen.

16
LIMITED HOME USE WARRANTY*
Vision Fitness extends the following exclusive, limited warranty, which shall
apply only to the use of the device in the home, for residential, non-commercial
purposes only. Any other use of the device shall void this warranty.
Vision fitness hereby extends the following limited warranties for the
following components of the device, for the time period indicated:
FRAME - LIFETIME
Vision Fitness warrants the Frame against defects in
workmanship and materials for the life of the product, so long as it remains in
the possession of the original owner.
MOTOR - LIFETIME
Vision Fitness warrants the Motor against defects in workmanship and
materials for the life of the Product, so long as the device remains in the
possession of the original owner.
ELECTRONICS & PARTS - FIVE YEARS
Vision Fitness warrants the Electronic components and
all original Parts (other than the Motor) against defects in
workmanship and materials for a period of five years from the date of original
purchase, so long as the device remains in the possession of the original
owner.
LABOR - TWO YEARS
Vision Fitness shall cover the Labor cost for the repair of the device for a
period of two years from the date of original purchase, so long as the device
remains in the possession of the original owner.
*Limited Home-Use Warranty valid only in North America.
WARRANTY
