Visonic CLIP SMA User manual

Motion Sensor Battery Installation - Visonic CLIP SMA
What You’ll Need
•CLIP SMA Motion Sensor
•A Phillips-head screwdriver
•One CR123A battery
•Double-sided tape (optional)
How to Install the Battery
Before proceeding, please be sure that your system is disarmed. Working on devices while the system is armed can
generate false alarms.
Did You Know? You may want to have some double-sided tape on hand if you need to remove your Sensor from the
wall to install a battery. Cut the tape to size and reattach your Sensor if the existing adhesive fails to hold it in place.

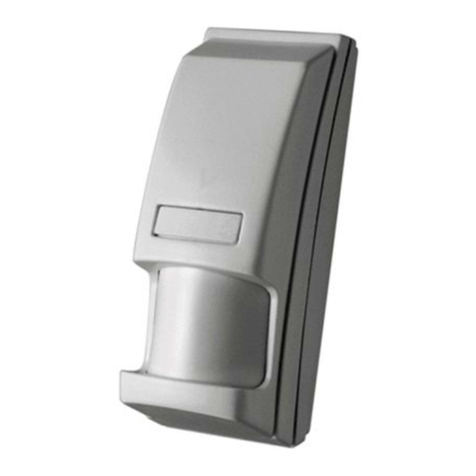

Is This Your Sensor? Make sure that your
Sensor looks like the one in the image. If it
does, you have the right document to find out
how to install a battery in your Sensor.
1. Locate the screw on the top of the Sensor.
2. Using a Phillips-head screwdriver, turn the
screw counterclockwise until the cover is
loose.
3. Gently pull the top of the cover away from
the screw, then pull down to free the
bottom tab on the cover from the slot in the
bottom of the Sensor. The battery slot is on
the circuit board.

Take a Look. If a battery is already present,
remove it by using your fingertip to gently pull
one end of the battery up until the battery is
loose and you can pull it free from the slot.
4. Install a CR123A battery by aligning the
positive (+) and negative (-) ends of the
battery with the positive (+) and negative
(-) indicators on the circuit board and
pressing the battery into the battery clasps.
5. When the battery is inserted correctly, the
red light on the circuit board will light up.
Did You Know? The Motion Sensor and
tamper are exposed once you remove the
cover (shown below within the blue squares).
Take care not to touch them. Repeated contact
with the Sensor may compromise the
functionality of your device and pressing down
the tamper will default the Sensor.
6. Slide the tab on the bottom of the cover
into the slot at the bottom of the Motion
Sensor.
7. Press and hold the top of the cover against
the Sensor's body and use a Phillips-head
screwdriver to turn the screw clockwise
until tight.
Confirm that the low battery alert has resolved and the equipment appears on your list of connected devices. You
should also ensure that sensor events such as door opening or motion registers as an activity on your system.
Need Help? Find these instructions online at
https://customer.xfinity.com/help-and-support/home-security/installing-battery-clip-sma-motion-sensor. Get more
troubleshooting support at https://www.xfinity.com/support/gettingstarted/troubleshooting/ or contact a customer service
expert at 1-800-XFINITY.
Help Protect Our Environment: Please properly recycle your discarded batteries. For your convenience, batteries are
accepted for recycling at various locations. Check www.call2recycle.org or call 1-800-8-Battery (1-800-8-228-8379) to
find a recycling location near you.
