Volvo SENSUS User manual

SENSUS NAVIGATION

Types of roads Color
Freeways Orange
Main roads Dark gray
Secondary main roads Gray
Normal roads Light gray
Local roads White
Text and symbols on the screen
Action to take at the next guidance point
Distance to the next guidance point
Name of the next street or road
Facility/point of interest (POI)
Intermediate destination in an itinerary
Symbol for destination/final destination
Calculated remaining time to destination
Calculated remaining distance to destination
The vehicle’s current location
Map scale
Stored location
Route
Final destination
Name of the current road/street at the vehicle's current location (9)
Compass
Section of the route affected by traffic information
Traffic information

SENSUS NAVIGATION
Sensus Navigation is a satellite-based guidance and traffic information
system.
The system includes features that enable you to set itineraries, search
for certain types of points of interest along your route, store special des-
tinations, obtain traffic information en route, etc.
The system indicates the vehicle’s current location, and shows part or all
of the route to your destination, depending on the settings you have
made. If at any time you should decide to deviate from the route origi-
nally set by the system, a new route to the destination will automatically
be calculated.
By enabling you to reach your destination quickly and by the most direct
route, Volvo's navigation system also helps contribute to improving the
environment.
NOTE
•Do not export your Volvo to another country before investi-
gating that country's applicable safety and exhaust emission
requirements. In some cases it may be difficult or impossible
to comply with these requirements. Modifications to the
emission control system(s) may render your Volvo not certifi-
able for legal operation in the U.S., Canada and other coun-
tries.
•All information, illustrations and specifications contained in
this manual are based on the latest product information
available at the time of publication. Please note that some
vehicles may be equipped differently, depending on market-
specific adaptations or special legal requirements. Optional
equipment described in this manual may not be available in
all markets.
•Some of the illustrations shown are generic and are
intended as examples only, and may not depict the exact
model for which this owner's information is intended.
•Volvo reserves the right to make model and product
changes at any time, or to change specifications or design
without notice and without incurring obligation.

2
INTRODUCTION
Introduction 6
Sensus Navigation 7
Sensus navigation 11
Navigation – text wheel and keypad 13
Navigation – voice control 14
SETTING A DESTINATION,
ITINERARY AND ROUTE
Navigation: setting a destination 18
Navigation – points of interest (POI)
symbols 22
Navigation – itineraries 23
Navigation – routes 24
Navigation – route options 27
Navigation – map options 29
Navigation – guidance alternatives 31
Navigation – importing/exporting
stored locations 34
TRAFFIC INFORMATION
Navigation – traffic information 36
Navigation–Real Time Traffic
Information (RTTI) 39
TABLE OF CONTENTS

3
MAP AND SYSTEM INFORMATION
Navigation – map and system information 42
Navigation – Menu overview 43
Navigation – troubleshooting 46
Navigation – License agreements
and copyrights 48
INDEX
Index 55

INTRODUCTION

INTRODUCTION
6
Introduction
This supplement complements your vehicle's
owner's information.
If you are uncertain as to any of your vehicle's
features or functions, consult your printed own-
er'smanual or the on-board owner's information.
If you have any further questions, please contact
a Volvo retailer or other representative of the
Volvo Car Corporation.
All information, illustrations and specifications
contained in this owner's information are based
on the latest product information available at the
time of publication. Volvo reserves the right to
make model changes at any time, or to change
specifications or design without notice and with-
out incurring obligation.
©Volvo Car Corporation
Options and accessories
Optional or accessory equipment described in
this manual is indicated by an asterisk.
Optional or accessory equipment may not be
available in all countries or markets. Please note
that some vehicles may be equipped differently,
depending on special legal requirements.
Contact your Volvo retailer for additional informa-
tion.
NOTE
•Do not export your Volvo to another
country before investigating that coun-
try's applicable safety and exhaust emis-
sion requirements. In some cases it may
be difficult or impossible to comply with
these requirements. Modifications to the
emission control system(s) may render
your Volvo not certifiable for legal opera-
tion in the U.S., Canada and other coun-
tries.
•All information, illustrations and specifica-
tions contained in this manual are based
on the latest product information availa-
ble at the time of publication. Please note
that some vehicles may be equipped dif-
ferently, depending on special legal
requirements. Optional equipment descri-
bed in this manual may not be available in
all markets.
•Some of the illustrations shown are
generic and may not depict the exact
model for which this manual is intended.
•Volvo reserves the right to make model
changes at any time, or to change speci-
fications or design without notice and
without incurring obligation.
The owner's manual in mobile devices
NOTE
The owner's manual mobile app can be down-
loaded at www.volvocars.com.
The mobile app also contains videos and
searchable content, and provides easy naviga-
tion between the various articles.

INTRODUCTION
}}
7
Sensus Navigation
This section provides a description and overview
of the Sensus Navigation system.
The system calculates routes, travel time and dis-
tance to the selected destination and provides
instructions to help guide you there.
If you do not follow the planned route during your
trip, the system will automatically calculate a new
one. The system can also be used even if a desti-
nation has not been selected.
The system is delivered with default settings but
will start with the most recently used ones.
Volvo Sensus Navigation uses the WGS84 refer-
ence system, which provides your location includ-
ing longitude and latitude.
Keep in mind
This system provides road and map information
that helps you to reach your destination. Road
conditions may make certain recommendations
less reliable. Always adhere to road and traffic
regulations and use good judgement while driv-
ing. Always focus all of your attention on the road
and your concentration primarily on driving.
WARNING
•Always use good judgment when follow-
ing navigation system guidance, and do
not follow guidance that seems contrary
to your own best judgment.
•Never use the navigation system or any
other feature in your vehicle in a way that
distracts you from the task of driving
safely. Distraction can lead to a serious
accident.
•Set and make changes in your navigation
system only with the vehicle parked.
•Be aware of the current traffic situation.
•Always comply with relevant traffic regu-
lations.
•Due to weather conditions or time of year
affecting the road conditions, some rec-
ommendations may be less reliable.
System overview
Steering wheel keypad for navigating in
menus and adjusting volume and voice guid-
ance.
The screen displays maps and provides
detailed information about routes, distances,
etc.
The keys in the center console can be used
to navigate in menus, confirm selections,
adjust volume, etc.
USB connection.
Microphone for giving voice commands.

||
INTRODUCTION
8
NOTE
Throughout the navigation system informa-
tion, the text "press the thumb wheel/OK/
MENU" refers to the thumb wheel on the
steering wheel keypad and the control on the
center console respectively.
Audio from the navigation system comes from
the infotainment system's front speakers.

INTRODUCTION
}}
9
Map overview

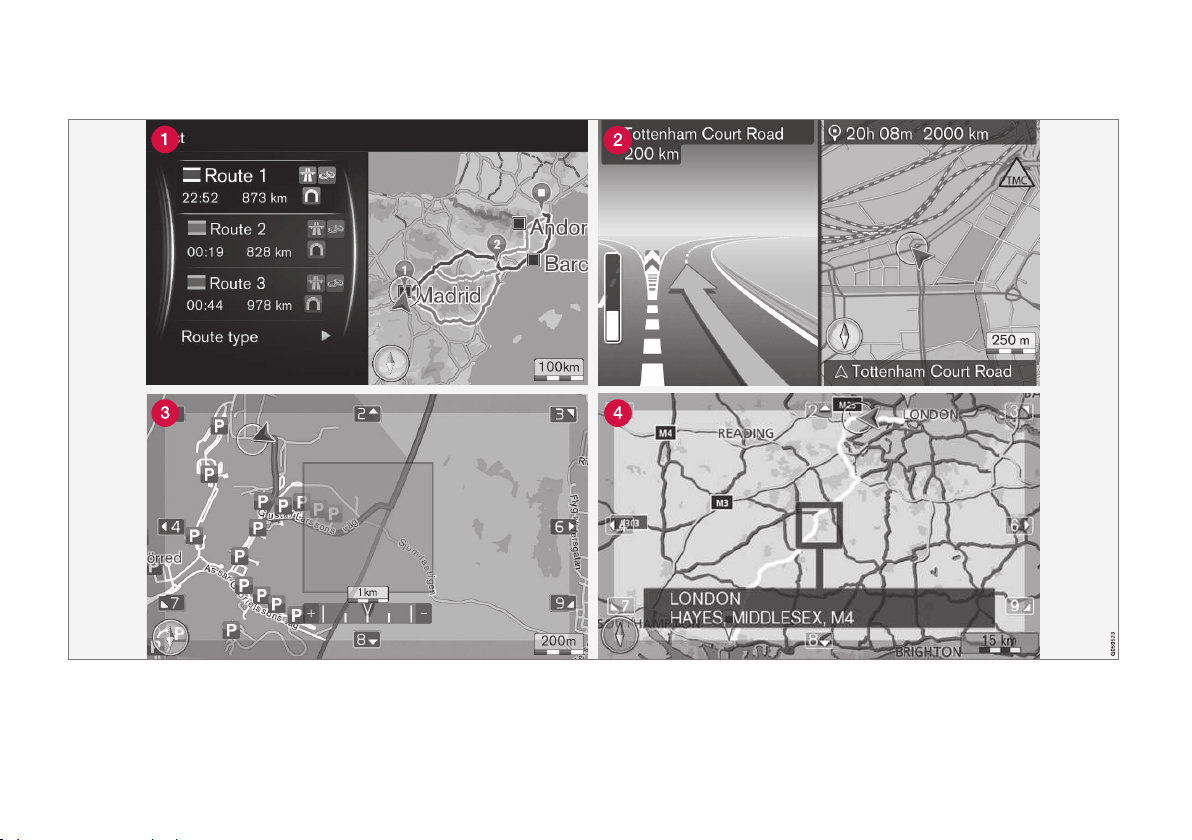

Generic examples of map views
The type of information shown on the screen is
determined by geographic location, the system
settings that have been applied, the points of
interest chosen for display, etc.

||
INTRODUCTION
10
For an explanation of text, signs and symbols
used, see the inside of this manual's front cover.
When a route is calculated, three alternatives
are presented, see (p. 27).
Detailed intersection information: the left
side of the screen shows an enlarged view of
the next intersection/turn. Voice instructions
are also provided, see (p. 27).
An area selected to be avoided, see (p. 27).
Scroll mode, seek (p. 11).
Related information
•Sensus navigation (p. 11)
•Navigation – voice control (p. 14)

INTRODUCTION
}}
11
Sensus navigation
This article provides basic information and exam-
ples about operating the Sensus Navigation sys-
tem.
The navigation system can be operated from the
center console, the steering wheel keypad and in
certain cases by using voice control.
Activating Sensus Navigation
–Press the NAV button on the center console.
> After a short wait, a map of the current
area will appear on the screen. The loca-
tion of your vehicle will be indicated by a
blue triangle.
WARNING
•Always use good judgment when follow-
ing navigation system guidance, and do
not follow guidance that seems contrary
to your own best judgment.
•Never use the navigation system or any
other feature in your vehicle in a way that
distracts you from the task of driving
safely. Distraction can lead to a serious
accident.
•Set and make changes in your navigation
system only with the vehicle parked.
•Be aware of the current traffic situation.
•Always comply with relevant traffic regu-
lations.
•Due to weather conditions or time of year
affecting the road conditions, some rec-
ommendations may be less reliable.
The navigation system cannot be turned off and
remains active in the background. However, it
switches off automatically when the ignition is
switched off.
NOTE
The system can be used even when the
engine is not running but will be switched off
automatically if the battery's charge level is
low.
Menus
The navigation system's menus consist of short-
cuts, main menus and scroll menus. See the info-
tainment information in the vehicle's owner's
manual for additional information.
In Scroll mode, the cursor is moved across the
map using number keys on the center console.
Scroll mode and cursor1.
Activating/deactivating Scroll mode
–Activate: press one of the center console's
number keys 0–9.
–Deactivate: press EXIT or NAV.
1The cursor can be set to show a name or GPS coordinates, see (p. 29).

||
INTRODUCTION
12
Scrolling
–Press one of the center console's number
keys 1-2-3-4-6-7-8-9: an arrow showing
the direction will appear in the margin com-
bined with the number to be used to scroll in
the desired direction.
Zooming
–Turn TUNE on the center console.
Centering the map
Pressing key 5in Scroll mode will cen-
ter the map around the vehicle's cur-
rent location.
If an itinerary with intermediate destinations is
activated, the map will be centered on one of the
intermediate destinations each time the key is
pressed.
Scroll menu
1. While in Scroll mode, press the thumb
wheel/OK/MENU.
> A menu will open for the point on the map
that the cursor is pointing to.
2. Select a function:
•Set single destination: any previous
destinations in the itinerary will be erased
and guidance will start on the map.
•Add as waypoint: the marked location
will be added to the itinerary.
•POI information: the name and address
of a point of interest closest to the cursor
will be displayed. For additional informa-
tion, see (p. 18).
•Traffic information on map: makes it
possible to see any available traffic infor-
mation for the marked location2.
•Information: displays any available infor-
mation about the marked location.
•Save: stores the marked location in the
system's memory.
Example
Guidance to a point of interest (POI)
1. If the map is not displayed on the center
console screen, press NAV.
> The map will be displayed.
2. Press NAV.
> The Shortcut menu will open.
3. Mark Set point of interest and confirm by
pressing the thumb wheel/OK/MENU.
4. Mark e.g., Near the car and confirm by
pressing the thumb wheel/OK/MENU.
> A list of search results will be displayed.
5. Mark e.g., Nearest tourist attraction and
confirm by pressing the thumb wheel/OK/
MENU.
> A list of search results will be displayed.
6. Mark your choice in the list and confirm by
pressing the thumb wheel/OK/MENU.
> A pop-up menu will be displayed.
7. Mark Set single destination and confirm
by pressing the thumb wheel/OK/MENU.
> Guidance will begin and instructions/
directions will be provided.
See also the example in the Voice con-
trol(p. 14) article.
2Not available in all areas.

INTRODUCTION
}}
13
Navigation – text wheel and keypad
Use the text wheel or the center console keypad
to enter text or to display information about e.g.,
an address or point of interest.
Generic screen view showing the free-text field at the
top
Activating a choice
When the desired function/menu selection has
been chosen by turning the thumb wheel on the
steering wheel keypad or TUNE on the center
console, press the thumb wheel/OK/MENU to
display the function/menu's next level.
Using the text wheel
Text wheel (generic view)
1. Mark a text field.
2. Press thumb wheel/OK/MENU to display
the text wheel.
3. Select a character with the thumb wheel/
TUNE and enter it by pressing the thumb
wheel/OK/MENU.
Entering text using the center console
keypad
Keypad (generic illustration)
The center console number keys 0–9, *and #
can also be used to enter characters.
For example, press 93to display all of
the characters that can be entered by
pressing this key, which can be for
example: w, x, y, zand 9. Press the button briefly
to move the cursor to each available character.
•Stop on the desired character to select it and
it will appear in the text field.
•Delete or cancel with EXIT.
Other characters
The inset menu in the text wheel shows other
special characters or numbers. Note that grayed-
3The characters for each respective key may vary, depending on the language selected and the market

||
INTRODUCTION
14
out characters cannot be selected in the current
context:
•123/ABC + thumb wheel/OK/MENU: tog-
gle between numbers and letters/other char-
acters.
•MORE + thumb wheel/OK/MENU: press
to display special characters on the text
wheel.
•=> + thumb wheel/OK/MENU: the cursor
moves to the list at the right of the screen.
Selections can be made here by pressing
OK/MENU.
•Zip code + thumb wheel/OK/MENU: the
cursor moves to the list at the right of the
screen. Selections can be made here by
pressing OK/MENU, see Setting a destina-
tion (p. 18).
List of alternatives
A list matching the characters entered (generic illustra-
tion)
When searches are performed, alternatives
matching the characters entered will be dis-
played.
The number "149"in the upper right corner of
the screen indicates that the there are 149 alter-
natives containing the characters entered "LON".
No list
An empty list and the characters *** in the upper
right corner indicates that there are over 1,000
alternatives containing the characters entered. If
there are fewer alternatives, they will automati-
cally be displayed.
To reduce the number of alternatives on the list,
enter additional characters.
Related information
•Sensus navigation (p. 11)
Navigation – voice control
This article provides examples of voice com-
mands that can be used with the navigation sys-
tem.
See your owner's manual for more detailed infor-
mation about voice control.
The following dialogs are examples and the sys-
tem's responses may vary depending on the sit-
uation.
Starting guidance
The following voice control dialog starts guidance
according to the currently set itinerary.
–Say "Start route guidance."
>The system will respond with: "Start
guidance."
Canceling guidance
The following voice control dialog cancels guid-
ance.
1. Say "Cancel route guidance".
>The system will respond with: "Do you
want to cancel guidance and clear
itinerary?."
2. Say "Yes."
>The system will respond with: "Cancel
guidance."

INTRODUCTION
15
Using a point of interest (POI) as a
destination
The following voice control dialog starts guidance
to the nearest gas station but can also be used
for points of interest such as hotels or restau-
rants.
1. Say "Nearest gas station."
> The system will respond by asking you to
say a line number.
2. Say a line number of the desired gas station
(e.g., line 5) "5".
> The system will respond by confirming line
5 and asking if you want to use this as a
waypoint or a final destination.
3. Say "Yes".
> The system will respond by asking if you
would like to start guidance.
4. Say "Yes."
> A route will be calculated and guidance
will begin.
Additional commands
Additional navigation system voice commands
can be found in the normal view for MY CAR by
pressing OK/MENU and selecting Settings
Voice control settings Command list
Navigation commands.
Related information
•Sensus navigation (p. 11)

SETTING A DESTINATION, ITINERARY AND
ROUTE

SETTING A DESTINATION, ITINERARY AND ROUTE
18
Navigation: setting a destination
This article explains how to set a destination in
the navigation system.
Each time a destination is set, it can be saved as
a Stored location or Home. The navigation sys-
tem provides guidance to the destination and up
to four intermediate destinations can be added to
an itinerary. In many cases, the system can also
provide additional Information about destina-
tions.
If the vehicle is connected to the Internet, map
destinations can be sent to the navigation system
from a web browser using the "Send to Car" app
or by using the Volvo On Call mobile app. See
also the vehicle's owner's information and the
support site at support.volvocars.com.
To set a destination, in the navigation system's
normal view, press the thumb wheel/OK/MENU
and select Set destination.
Setting a destination using Home
A home location must have been stored before it
can be used.
–In the navigation system's normal view, press
the thumb wheel/OK/MENU and select
Set destination Home.
> Guidance will begin.
Setting a destination using an address
It is enough to enter the name of a city, area,
town, etc. in order to be guided to its center.
NOTE
The definition of a city or area may vary from
state to state, and also within the same state.
It will sometimes be an entire city, or a partic-
ular section of a city.
1. In the navigation system's normal view, press
the thumb wheel/OK/MENU and select
Set destination Address.
2. Fill in one or more of the following:
•Country:
•City:
•Street:
•Number:
•Intersection
3. For additional information about the destina-
tion, select Information followed by the type
of information desired:
•Map: displays a map of the location with
additional information when available.
•Call number1: A call will be initiated if a
phone number has been provided.
•Online info.1: Additional information can
be downloaded from the Internet2.
4. To store an address in the system's memory,
select Save followed by Stored location or
Home.
1Requires a paired and connected cell phone, see the owner's information.
2Requires an Internet connection.
