VQ AICHI D3A1 VAL VQA138 GREEN User manual

SPECIFICATIONS
Wingspan:......................................1540mm
Length:...........................................1120mm
Electric Motor:.....................See next pager
Glow Engine:.................... .46 2-T / .70 4-T
Radio:....................6 Channel / 8-9 Servos
Function: Ailerons-Elevator-Rudder-Throttle
Flaps.
WARNING! This radio controlled model is NOT a toy. If modified or flown carelessly it could go out of controll and
cause serious human injury or property damage. Before flying your airplane, ensure the air field is spacious enough.
Always fly it outdoors in safe areas and seek professional advice if you are unexperienced.
ACHTUNG! Dieses ferngesteuerte Modell ist KEIN Spielzeug! Es ist für fortgeschrittene Modellflugpiloten bestimmt,
die ausreichende Erfahrung im Umgang mit derartigen Modellen besitzen. Bei unsachgemässer Verwendung kann
hoher Personen- und/oder Sachschaden entstehen. Fragen Sie in einem Modellbauverein in Ihrer Nähe um
professionelle Unterstätzung, wenn Sie Hilfe im Bau und Betrieb benötigen. Der Zusammenbau dieses Modells ist
durch die vielen Abbildungen selbsterklärend und ist für fortgeschrittene, erfahrene Modellbauer bestimmt.
Radio control model / Flugmodel
ALL BALSA, PLYWOOD CONSTRUCTION AND ALMOST READY TO FLY
JAPANESE DIVE BOMBER
Instruction manual / Montageanleitung
TECHNISCHE DATEN
Spannweite:...................................1540mm
Lange:............................................1120mm
Elektroantrieb.............(siehe nächste Seite)
Verbrennerantrieb:...............7.45cc - 11.5cc
Fluggewicht:.......................................3.5Kg
Fernsteuerung..........6 Kanal / 8-9 Servos
VQ No: VQA138 GREEN
AICHI D3A1 “VAL”
RTF Weight: 3.5Kg (will vary with equipment
use)
VQ No: VQA138 GRAY

1.5mm
AB
!
CA L/R Assemble left and right
sides the same way. X
Drill holes using the stated
size of drill
(in this case 1.5 mm )
Use epoxy glue
Take particular care here
Hatched-in areas:
remove covering
film carefully
Not included.
These parts must be
purchased separately
Check during assembly that these
parts move freely, without binding
Apply cyano glue
SILICON
CA
GLUE
Silicon sealer Cyanoacrylate Glue (thin type)
Minimum 6 channel radio .60 ~.70 - 4 cycle
10.5x6 for .40 - 2 cycle engine
11x6 for .46 - 2 cycle engine
12x6 for .60 - 4 cycle engine
12x7 for .70 - 4 cycle engine
13x7 - 13x8 for electric motor
Silicone tube
Aileron: 50cmx2 pcs
.46 ~ .50 - 2 cycle
TOLLS REQUIRED
Hobby knife
Needle nose Pliers
Phillip screw driver
Awl
Scissors
Wire Cutters
(Purchase separately) Hex Wrench
.........................................................
.........................................................
.........................................................
.........................................................
.........................................................
.........................................................
.........................................................
.........................................................
.........................................................
.........................................................
.........................................................
Sander
Masking tape - Straight Edged Ruler - Pen or pencil - Drill and Assorted Drill Bits
Read through the manual before you begin, so you will have an overall idea of what to do.
Symbols used throughout this instruction manual, comprise:
(Purchase separately)
CONVERSION TABLE
1.0mm = 3/64”
1.5mm = 1/16”
2.0mm = 5/64”
2.5mm = 3/32”
3.0mm = 1/8”
4.0mm = 5/32”
5.0mm = 13/64”
6.0mm = 15/64”
10mm = 13/32”
12mm = 15/32”
15mm = 19/32”
20mm = 51/64”
25mm = 1”
30mm = 1-3/16”
45mm = 1-51/64”
If exposed to direct sunlight and/or heat, wrinkels can appear. Storing the
model in a cool place will let the wrinkles disappear. Otherwise, remove
wrinkles in covering film with a hair dryer, starting with
low temperature. You can fix the corners by using a hot iron.
Bei Sonneneinstrahlung und/oder Wärme kann die Folie erschlaffen bzw. Falten
entstehen. Verwenden Sie ein Warumluftgebläse (Haartrockner) um evtl. Falten aus der Folie
zu bekommen. Die Kanten können Sie mit einem Bügeleisen behandeln. Nicht zuviel Hitze anwenden !
REQUIRED FOR OPERATION (Purchase separately)
Low seting
700-800W Brushless Motor
5 cell 4500mAh LiPo battery
Rx battery pack: 20cmx1 pcs
EPOXY A
EPOXY B
Epoxy Glue
(30 minute type)
Standard Mini Micro
Elevator : 1 standard servo
Rudder: 1 standard servo
Aileron: 2 mini servo
Flaps: 4 micro servo
Throttle: 1 standar servo (for glow engine only)
Flap: “Y” x2 pcs
Aileron: “Y”x1pcs Flap: 30cmx2 pcs

FRONT-VIEW
A
BB’
A
B=B’

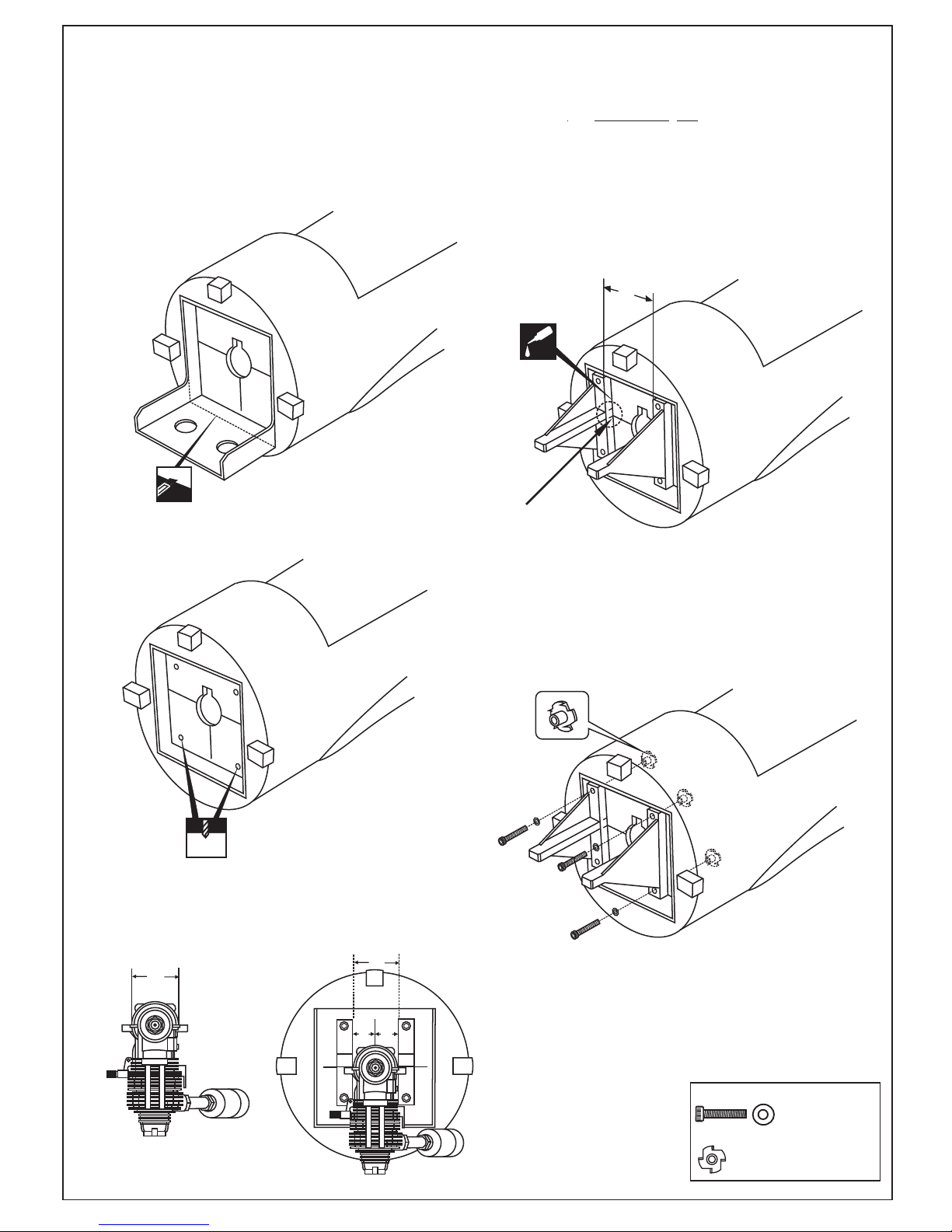

Cut the wood along the line as shown
(1A) in case of 4T engine using
! Align the mark on both engine mount
beams with the mark on the fuselage
Attach the engine mount beams onto the fire-wall
so the distance between of two engine mount beams
is “A”,and B=B’ as show.
Secure the engine mount beams onto the fire-wall
with litter CA glue (1B)
Using a pencil or felt tipped pen, mark
the fire wall where the four holes are to
be drilled(1B))
Carefully remove the engine mount beams
and drill a 6mm hole through the fire-wall
at each of the four marks made above (1C)
6mm
A
Reposition the engine mount beams on to the fire-wall
and secure them with four 4x25mm screw (1D)
...................4
....................4
4x25mm screw - washer
Blind-nut
Insert the blind-nut onto each
of the four holes make above (1D).
! Align the mark on both
engine mount beams with
the mark on the fire-wall.
Push left (or right) the magnetic fuel tank hatch
and full it out of the fuselage.
1- ENGINE MOUNT
1A
CA
1B
1C
1D 1D

! Engine thrust on balk head
is already adjust at factory
SIDE-VIEW
122-124mm
FUSELAGE

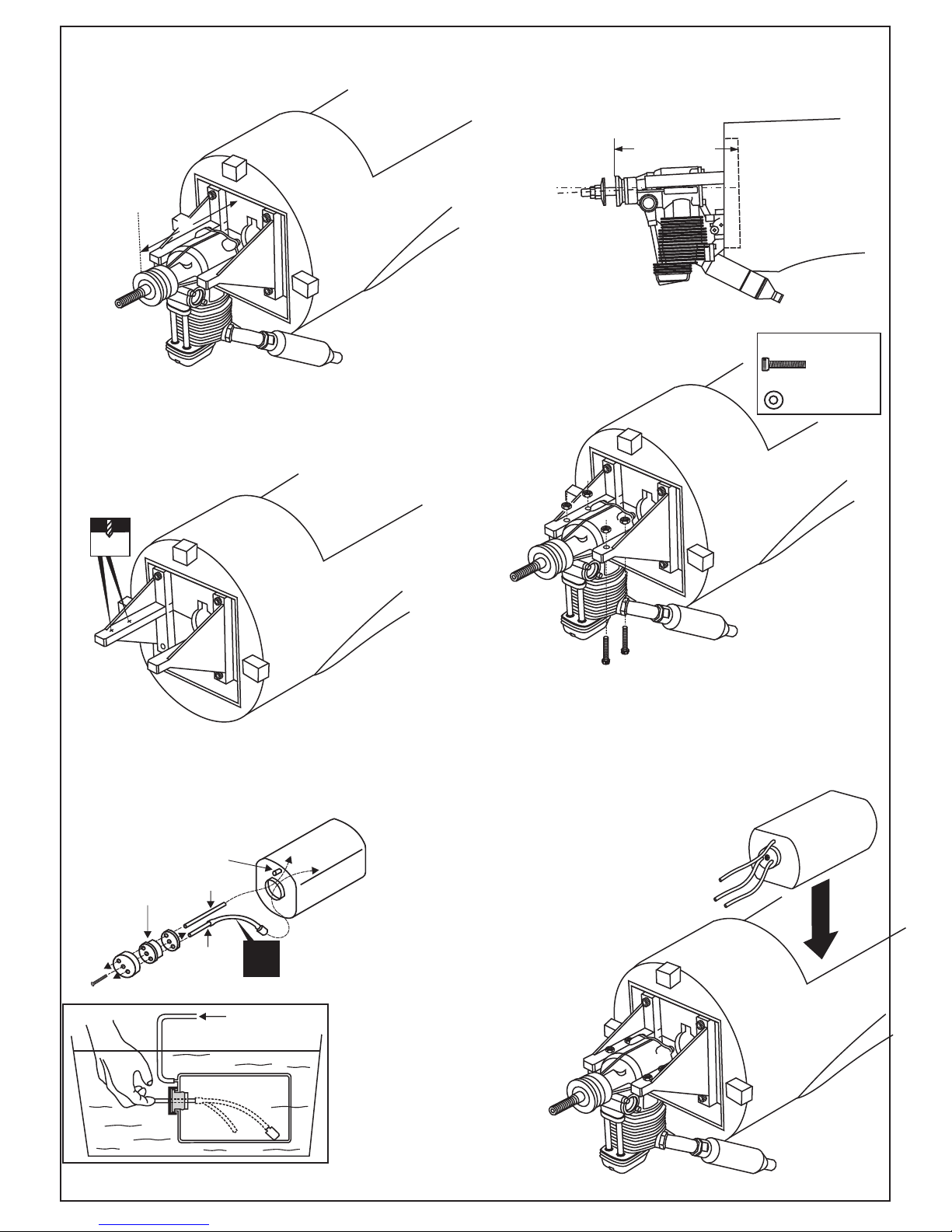

Position the engine to the engine mounts so the distance from the prop hub
to the fire-wall is 122 - 124mm.
Mark the engine mounting plate where the four holes are to be drilled (2A)
Remove the engine and drill a 3mm holes through the beam at each
of the four marks made above (2B)
Reposition the engine on the engine mount
beams, aligning it with the holes. Secure the
engine to the engine mount using four
3x25mm screws (2C)
Note: Apply Silicon sealer to each of the
3x25mm screw and nut.
.......4
3x25mm screw
Washer .......4
C=122-124mm
Marking sure that you drill the hole perpendicular to the beam of the
engine mount.
3mm
X
To muffler
Filler tube
To engine
3x35mm screw
Rubber stopper
Checking for leaks - block the vents
and blow into the feed - if in doubt
submersing the tank in a blow of
water will show up any problems.
Blow
Water
Carefully install the fuel tank
to ensure that they will not
shift during flight (2F).
2- ENGINE
2A
2B
2C
2D
2E
2F
C

B=B’

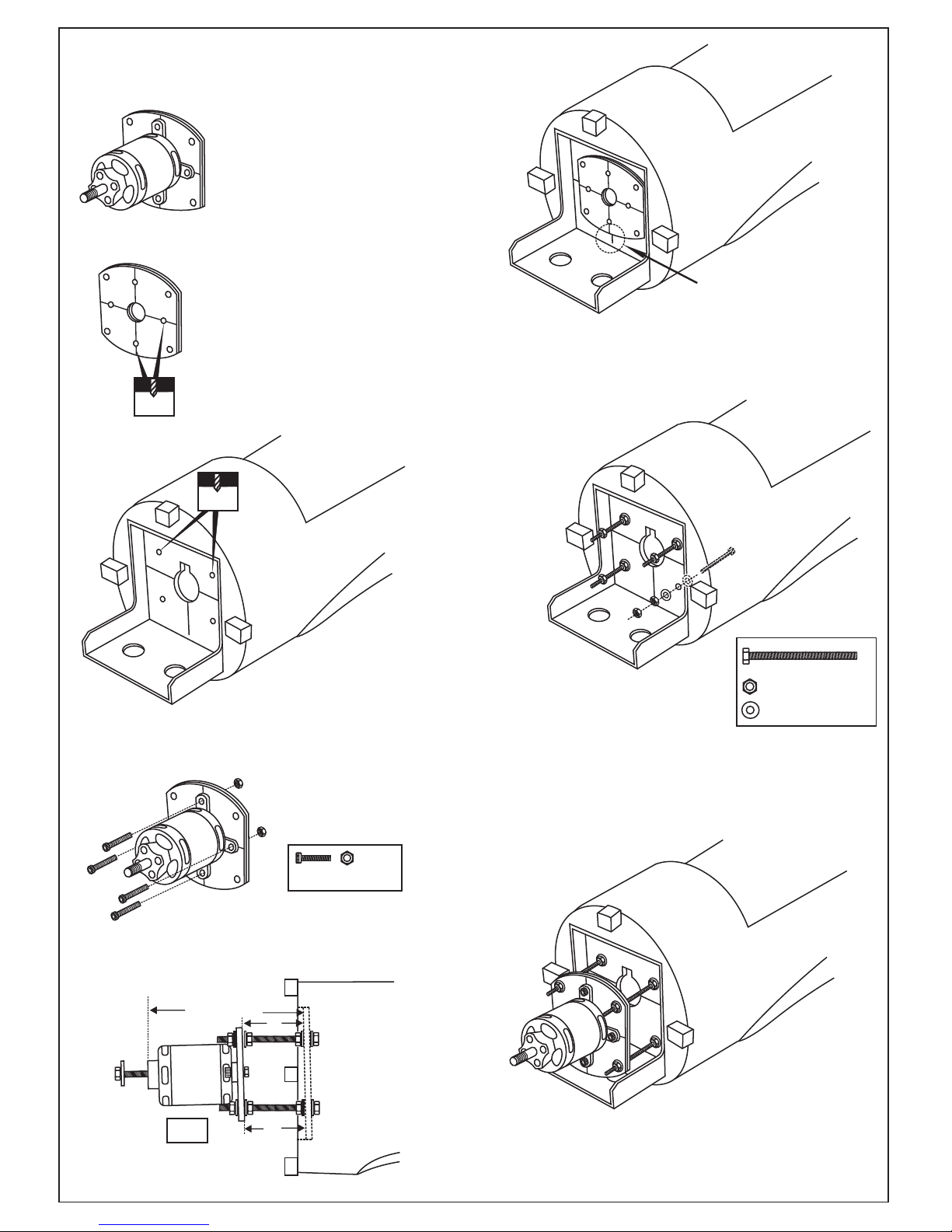

! Motor thrust on balk head
is already adjust at factory
Using a wooden motor mounting plate as a template,
mark the fire-wall where the four holes are to be drilled (3C).
Remove the wooden motor mounting
plate and drill a 6mm hole through
the fire-wall at each of the four marks
marked (3D) .
SIDE-VIEW / Seitenansicht
Using a aluminum motor mounting plate
as a template, mark the plywood motor
mounting plate where the four holes are
to be drilled.
Remove the aluminum motor mounting
plate and drill a 1/8”(3mm) hole through
the plywood at each of the four marks
marked .
3mm
B’
B
FUSELAGE
122-124mm
Attach the four 5x70mm bolts
and nuts to the fire-wall as
shown (3E).
3mm bolt / nut...4
Secure the Motor to the wooden
motor mounting plate using the
four 3mm bolts.
3- ELECTRIC MOTOR
3A
3B
3C
! Align the mark on wooden motor
mounting plate with the mark on
the fire-wall.
3D
3E
3F
3G
6mm
6x100mm bolt.....4
6mm nut..........12
6mm washer...16

2x6mm self tapping
screw ..........8 ....2
...2
4mm collar
Wheel pant mount
Secure the wheel pant
mount in place using the
3mm screw set.
CA
1.5mm
1.5mm
1.5mm

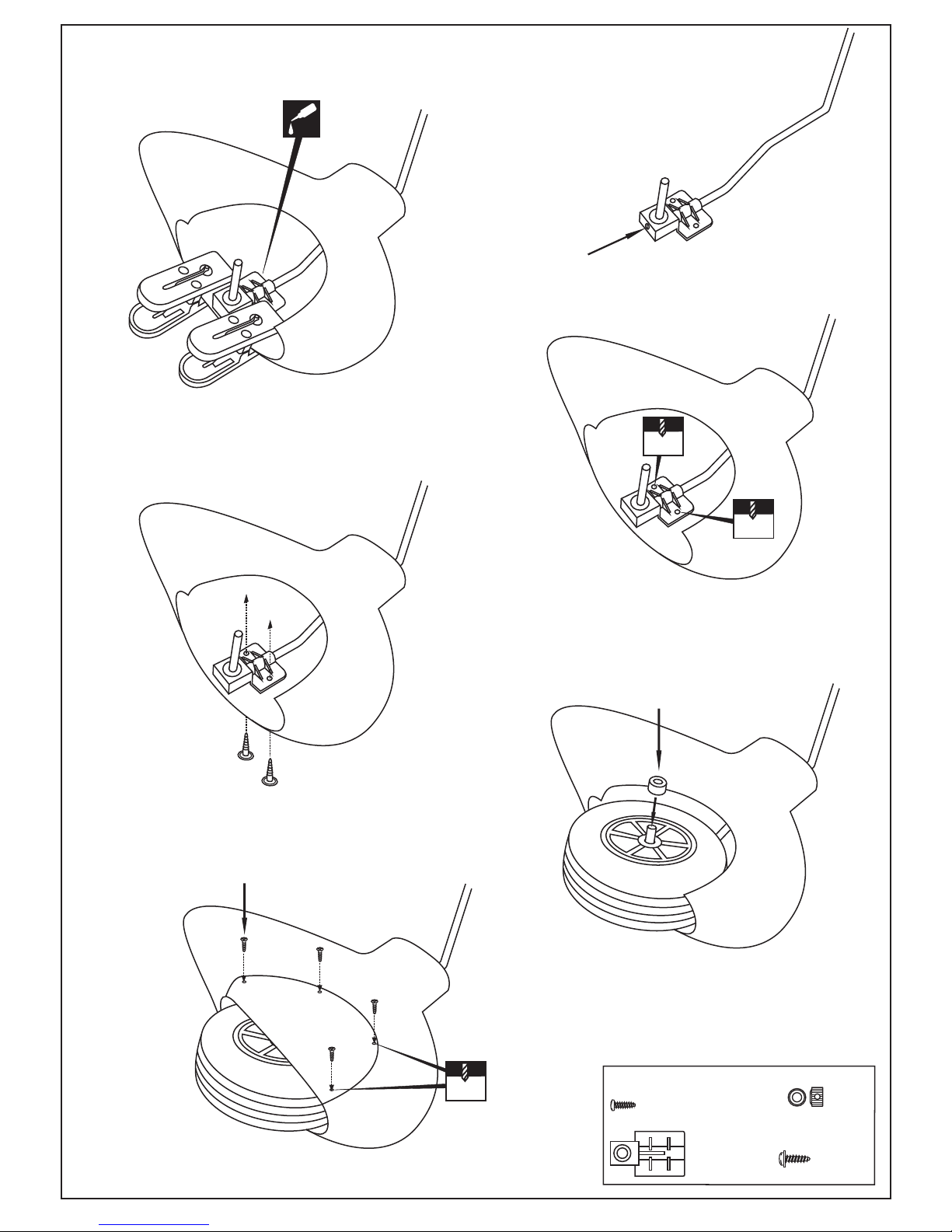

Slide the wheel pant mount
onto the landing gear
4- WHEEL PANT
4A
4B
Slide the landing gear with the wheel pant into the
fiber glass wheel pant and secure it in place using
the two clothespin and litter thin CA glue as shown (4B).
4C
Remove the clothespin and drill the two 1.5mm holes
as shown (4C).
2.5x10mm
self tapping screw
2x6mm self tapping screw
2.5x10mm self
tapping screw
..........4
4mm collar
4D 4E
4F

5- WHEEL PANT continued
5A
5B
5C
3x10mm self tapping
screw
Nylon gear strap
..............8
...........4

Plastic control horn
......2 set
Cut away only
the covering
Cut away only
the covering
Cut away only
the covering
6- WHEEL PANT continued
6A

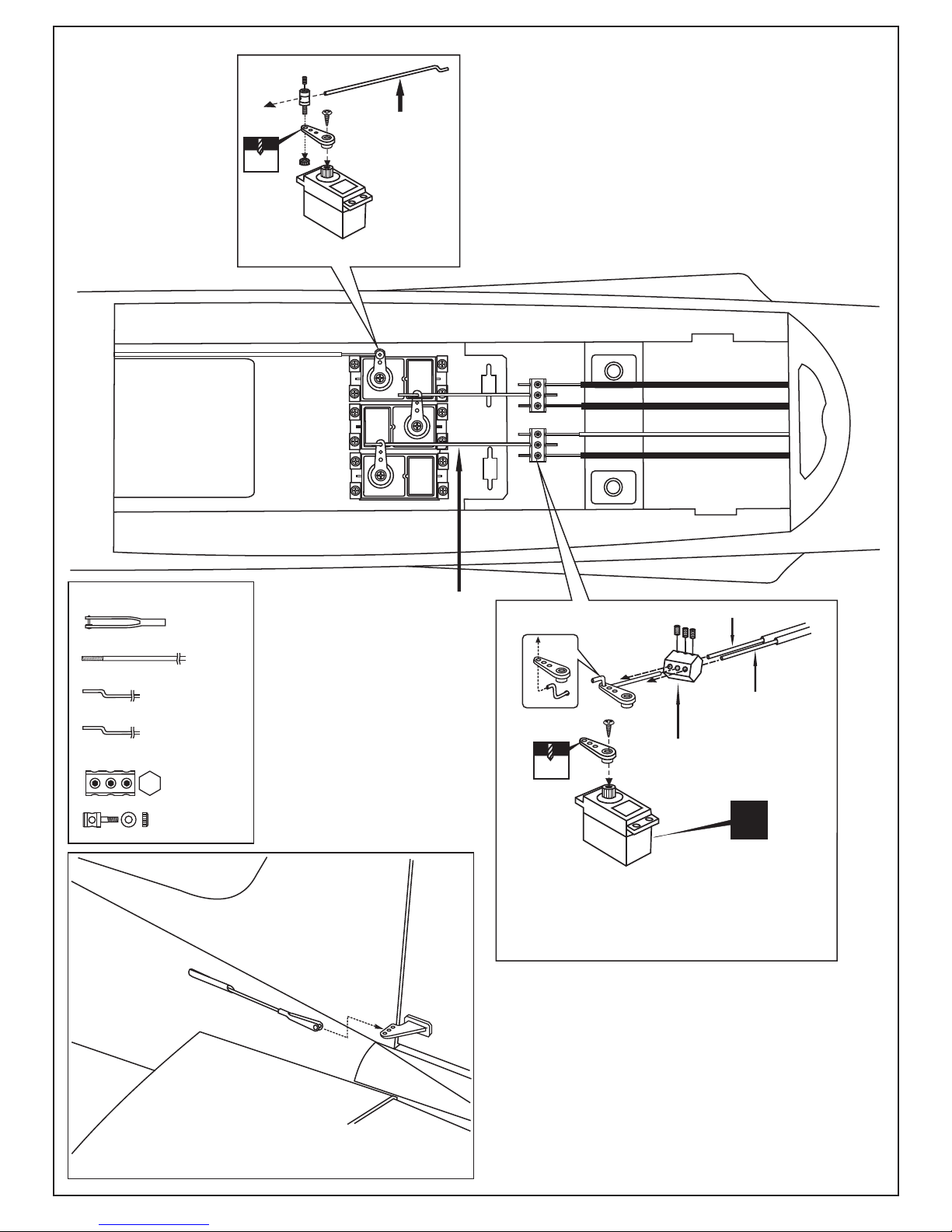

7- SERVO & CONTROL HORN
X
2x6mm self tapping
screw
.............8

2 mm
Flap servo
Flap push-rod
Secure the plastic control horn
in place using the thin CA glue.
Push the wooden dowel to the hole on the rib as show
Ensure that the dowel is rectangular with the rib.
Secure it in place using the thin CA glue.
Flap push rod (1.2x120mm)
............2
............2
2mm
Connector
CA
CA
Wooden dowel
CA
Thin CA
Thin CA
Thin CA
CA
Plastic control horn
............2 set
Plastic control horn
............2 set
8- LINKAGES
9- OUTER WING: SERVO & CONTROL HORN
X
X
2x30mm screw
......4

30 min.
Epoxy
CA
Thin CA
2 mm
Flap servo
Flap push-rod
2 mm
Aileron servo
Aileron push-rod
............4
2mm
Connector
Plastic control horn
............2 set
2x30mm screw
..............4
Aileron push rod 2x175mm
......2
.....2
Plastic control horn
............2 set
Steel clevis
Flap push rod 1.2x120mm
............2
10- OUTER WING: LINKAGES
2X175mm
1.2x120mm
11- JOINING THE WING
Without using Epoxy yet, trial fit the wing joiner into one
of the wing panels.
Next, slide the other wing half onto the dihedral brace until the
wing panels meet. If the fit is overly tight, it may be necessary to lightly
sand the dihedral brace.

30 min.
Epoxy
12- JOINING THE WING continued
Carefully slide the wing halves together, ensuring that
they are accurately aligned.
Firmly press the two halves together, allowing the excess epoxy
to run out. Using a paper towel, clean off the excess epoxy.
Please do not clean off the excess epoxy on the wing with strong solvent or pure alcohol
to keep the colour of your model not fade.
NOTE:
12A
12B

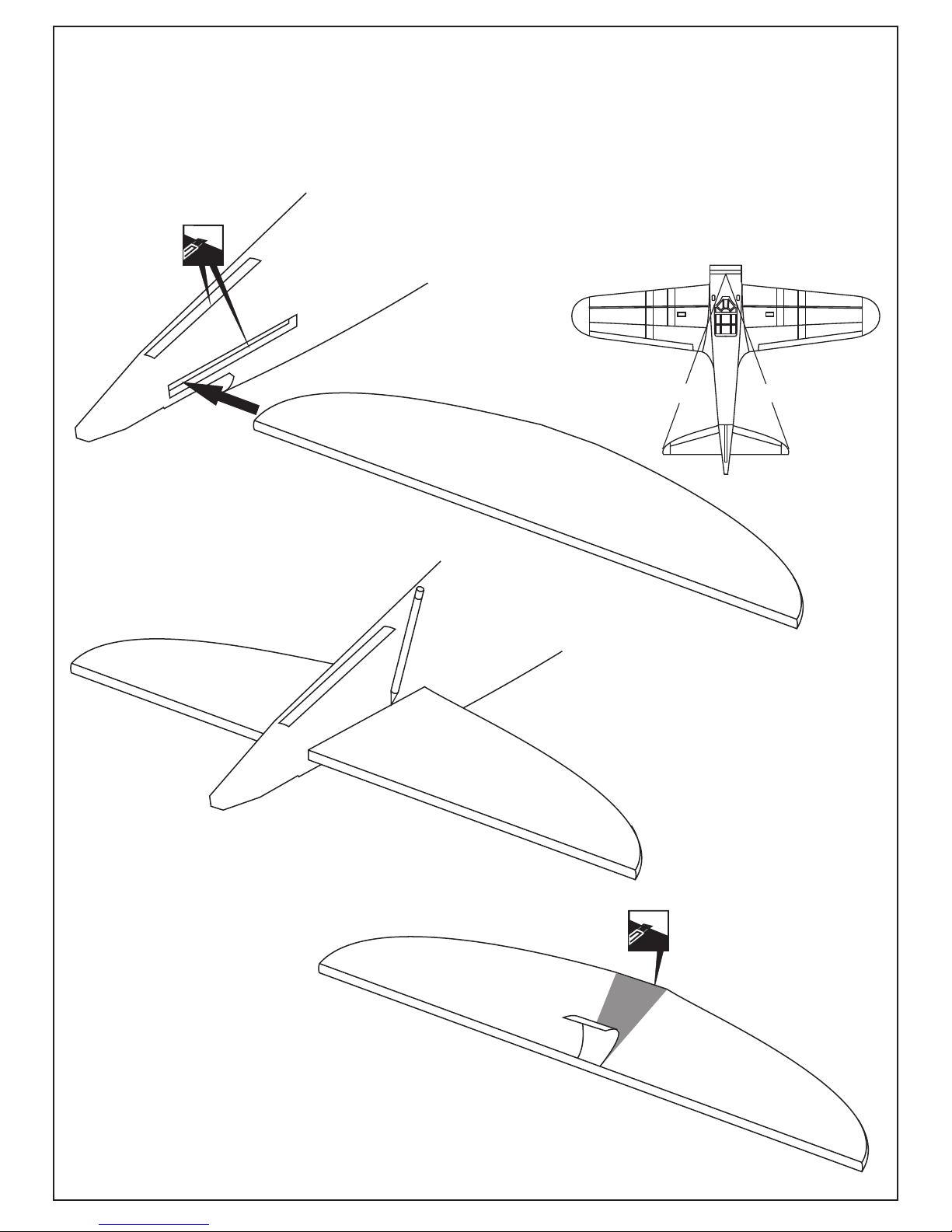

Push the horizontal stabilizer into the slot on the fuselage
as show. Check the alignment of the horizontal stabilizer
by measuring from a fixed point along the center line of
the fuselage to the leading edge on each side of the
horizontal stabilizer. The distance must be equal on both
sides . If not, adjust the stabilizer until the measurements
are the same (see picture below: A=A’).
When you are satisfied with the alignment, use
a pencil to trace around the top and bottom of
the stabilizer where it meets the fuselage (13B).
Cut away only
the covering
both side
Remove the horizontal stabilizer
from the fuselage. Using a straight edge
and a sharp hobby knife, carefully cut away
the covering inside the lines which were marked
above. Be cautious not to cut into the wood-this
will weaken the structure (13C).
Remove the left and right elevator out of the horizontal stabilizer.
Using a sharp hobby knife, carefully cut away the covering
around of all slots for the horizontal stabilizer and vertical
fin installation.
Cut away only
the covering A = A’
A’
A
13- HORIZONTAL STABILIZER
13A
13B
13C

! Securely glue together. If coming off during fly,
you lose control of your air plane.
Apply CA glue
both sides.
(thin CA)
CA
Apply thin CA glue into the slot where
the fuselage meet the horizontal stabilizer.
Install the horizontal stabilizer onto the fuselage and adjust the alignment as
described in steep 13A.
Note: it is important to ensure that the horizontal stabilizer is also level in regards to the
fuselage.
Apply the thin CA along the area where the covering was removed in the previous step and to the
fuselage where the horizontal stabilizer mounts .
BB’
B=B’
Trial fit the vertical fin in position. Using
a 90 degree triangle, ensure that the
vertical stabilizer is perpendicular to the
horizontal stabilizer (14C).
Using a pencil, trace around the vertical
stabilizer where it meets the fuselage.
Remove the vertical stabilizer from the
fuselage.
Pull the rudder out of the vertical fin.
Carefully, push the vertical fin into the
slot on the fuselage as shown (14B).
CA
90 degree
triangle
14- HORIZONTAL STABILIZER & VERTICAL STABILIZER
14A
14B
14C

Insert the vertical fin into the fuselage, precisely align the vertical stabilizer
as described in step 14C.
Apply the thin CA glue on the vertical stabilizer where it contacts the fuselage.
! Securely glue together. If coming off during fly, you lose control of your
air plane.
Remove the vertical stabilizer from the fuselage.
Using s sharp hobby knife, carefully cut away the
covering below the lines which were drawn in the
previous steep. Do not cut into the woods as this
will affect the structural integrity of the stabilizer (15A).
Without using glue yet, push the elevator and its
hinges into the hinge slots in trailing edge of the
horizontal stabilizer (15C).
CA
Apply thin CA
glue on the top
of the hinge
Apply a thin layer of petroleum jelly
HORIZONTAL STABILIZER
HORIZONTAL STABILIZER
TOP-SIDE
TOP-SIDE
Do the same way with the bottom side
of elevator and with the second elevator.
Cut away only
the covering
CA
Apply thin CA
glue both side
Apply thin CA
glue on the top
and bottom
of the hinge
CA
15- VERTICAL STABILIZER
15A
15B
15C
15D
! Securely glue together. If coming off
during fly, you lose control of your
air plane.

STABILIZER
Apply thin CA
glue on the left
and right
of the hinge
Apply a thin layer
of petroleum jelly
CA
FIN FIN
RUDDER RUDDER
CA
CA
3x10mm screw
.........4
16- CONTROL HORN
Cut away only
the covering
Plastic control horn
............2 set
! Securely glue together. If coming off during fly,
you lose control of your air plane.

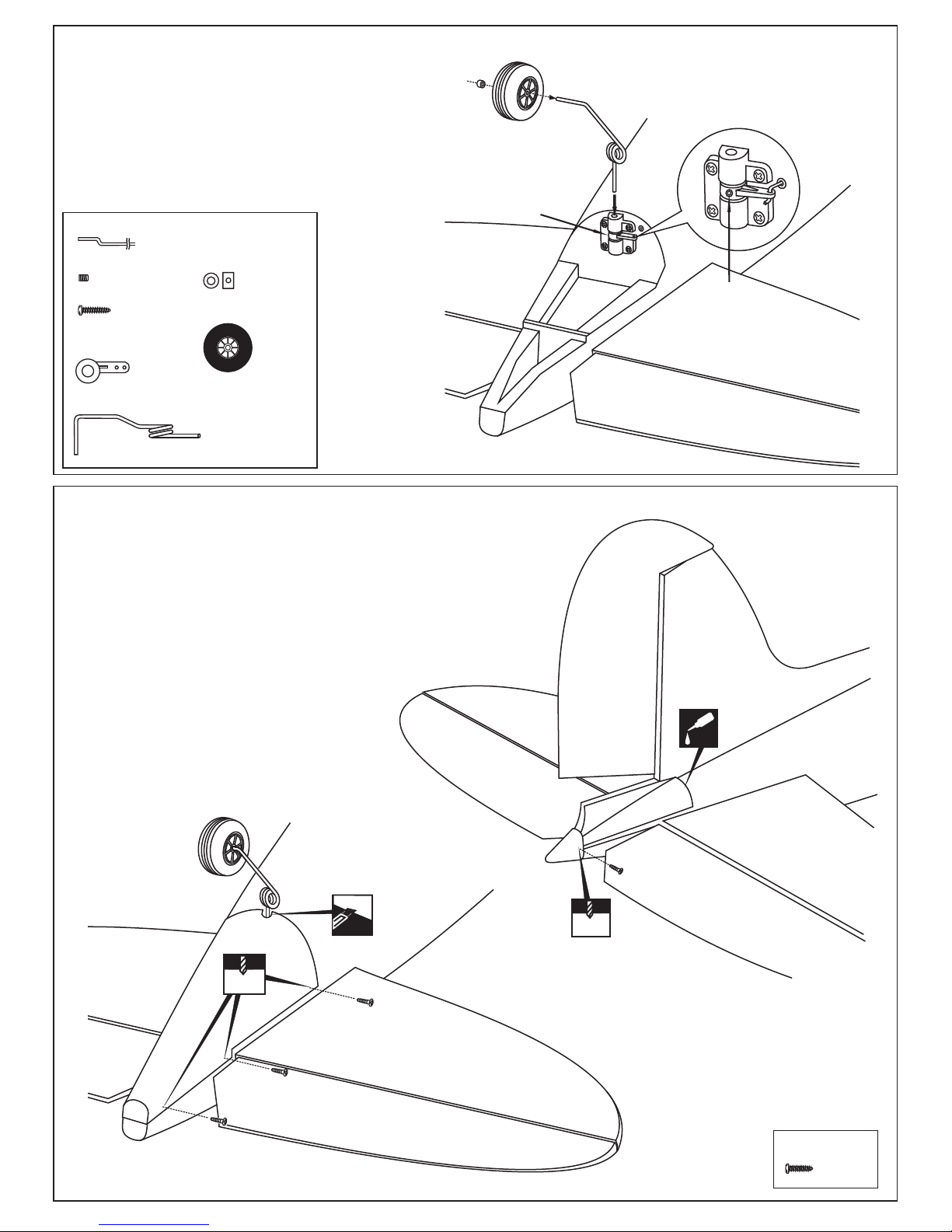

17- TAIL WHEEL

25mm wheel
Insert the tail wheel push-rod into the hole on the
tail gear control horn as show (18A).
Install the tail wheel control horn in place (18C).
Secure the tail wheel control horn in place using a
2mm screw set (18E).
...............1
Tail landing gear
..........1
............1
3x3mm screw
............4
3x10mm screw
.................1
Tail wheel control-
horn
2mm I.D collar
Instal the tail wheel gear in place (18D).
..........1
2x8mm screw
.........6
...................................1
1.2x800mm rod
1mm
1mm
CA
Insert the tail wheel push-rod with the tail gear control horn
connected into the fuselage (18B).
18- TAIL WHEEL continued
18A-B
18C
18D
18E
19- PLASTIC SHIELD
19A
19B

................2
....................1
2mm
Triple connector
.......3
2x950mm rod
Steel clevis
.......3
(2 x120mm) rod
............2
(1.2 x500mm) throttle rod
............1
X
Rudder push-rod
2x950mm
3mm set Screw
2 mm
Tail gear push-rod 1.2x800mm
2 mm
Throttle servo
Throttle push-rod
In case of Glow engine using
2x120mm rod
1.2x500mm
Cut the rudder push-rod excess length.
Cut the tail wheel push-rod excess length.
Insert all into the triple connector and tighten everything.
Triple connector
Do the same way with the elevator linkages.
Insert the rudder push-rod from the rear of the fuselage.
Screw the clevis mid-thread, then connect to the rudder
control horn.
20- SERVO & LINKAGES

Note: Cut out the stickers and apply them in the proper area. Do not
peel the backing paper off all at once.
Peel off one corner of the backing and cut off with scissors.
Arrange sticker on model and when satisfied adhere the corner without
backing.
Carefully peel back the rest of the backing while at the same time
adhering the rest of the sticker.
Try not to make air bubbles, if there are some, carefully puncture sticker
(center of bubble) but not model surface with
the tip of the knife or sharp pin and squeeze out the air.
At curves stretch sticker and apply a little heat so that no ceases occur.
Cut off the excess that is produced.
2mm
2.5x10mm screw
.........4
2mm
AICHI DECAL SHEET 40X36 VQ MODELS
21- COWLING
22- GUN & DECAL

6x50mm nylon bolt
.....2

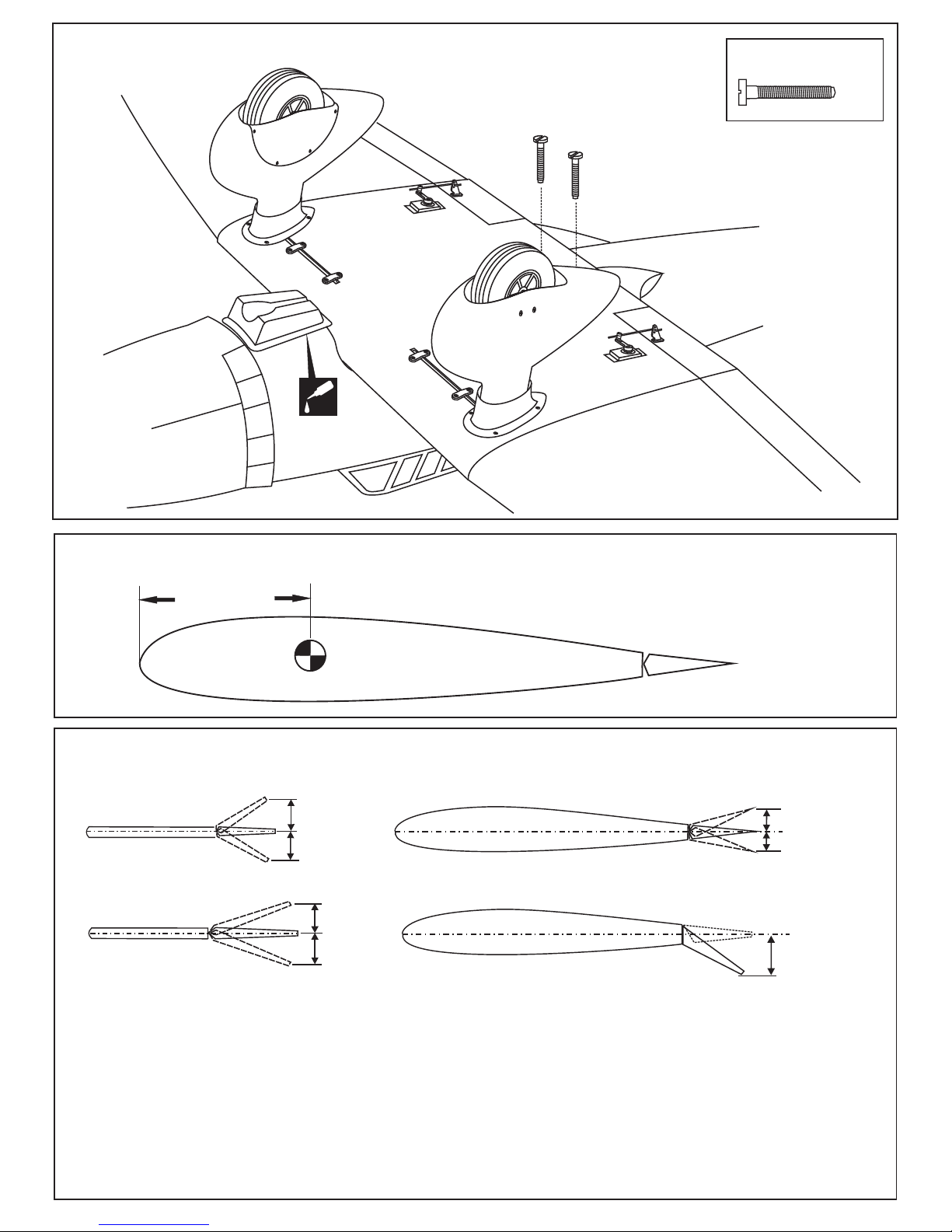

AILERON STROKE
ELEVATOR STROKE
RUDDER STROKE
Adjust the travel of the control surfaces to achieve the values stated in the diagrams.
These value will be suitable for average flight requirements. Adjust the values to suit your particular needs.
(97 ~ 102mm) Note: Adjust the location of the battery pack to achieve this C.G location.
DO NOT try to fly an out-of balance model!
Wing center section
FLAPS STROKE
(25-30mm)
(15mm)
(15mm)
(25mm)
(25mm)
(10mm)
(10mm)
IMPORTANT: Please do not clean your model with strong solvent or pure alcohol to keep the
colour of your model not fade.
24-BALANCE
25-CONTROL SURFACE
CA
23- INSTALLATION THE WING
