VQ F8F RareBear User manual

SPECIFICATIONS
Wingspan:.........................2020mm (79.5in)
Length:..............................1 mm (6 .6 in)590 2
Electric Motor:.....................See next pager
Gas Engine:....................4T 40cc / 2T 40cc
RTF Weight: 7. Kg / 1 lbs8-8.1 7.2-17.8
Radio:...............8-9 Channel / 8-9 Servos
Function: Ailerons-Elevator-Rudder-Throttle
Flaps-Optional Retractable Landing Gear.
WARNING! This radio controlled model is NOT a toy. If modified or flown carelessly it could go out of controll and
cause serious human injury or property damage. Before flying your airplane, ensure the air field is spacious enough.
Always fly it outdoors in safe areas and seek professional advice if you are unexperienced.
ACHTUNG! Dieses ferngesteuerte Modell ist KEIN Spielzeug! Es ist für fortgeschrittene Modellflugpiloten bestimmt,
die ausreichende Erfahrung im Umgang mit derartigen Modellen besitzen. Bei unsachgemässer Verwendung kann
hoher Personen- und/oder Sachschaden entstehen. Fragen Sie in einem Modellbauverein in Ihrer Nähe um
professionelle Unterstätzung, wenn Sie Hilfe im Bau und Betrieb benötigen. Der Zusammenbau dieses Modells ist
durch die vielen Abbildungen selbsterklärend und ist für fortgeschrittene, erfahrene Modellbauer bestimmt.
Radio control model / Flugmodel
ALL BALSA, PLYWOOD CONSTRUCTION AND ALMOST READY TO FLY
Instruction manual / Montageanleitung
TECHNISCHE DATEN
Spannweite 0mm:...................................202
Lange 1 0mm:............................................ 59
Elektroantrieb (siehe nächste Seite).............
Verbrennerantrieb:.......................... 0cc.....4
Fluggewicht:......... ..... Kg................... 7.8-8.1
Fernsteuerung Kanal / Servos......8-9 8-9
VQ No: VQA135RB
F8F

1.5mm
A
B
!
CA
L/R
Assemble left and right
sides the same way.
X
Drill holes using the stated
size of drill
(in this case 1.5 mm )
Use epoxy glue
Take particular care here
Hatched-in areas:
remove covering
film carefully
Not included.
These parts must be
purchased separately
Check during assembly that these
parts move freely, without binding
Apply cyano glue
SILICON
CA
GLUE
Silicon sealer
Cyanoacrylate Glue (thin type)
8 standard servos and 1 mini
servo (for gas engine).
Extension cord for aileron servos: 80cm(x2)
TOLLS REQUIRED
Hobby knife
Needle nose Pliers
Phillip screw driver
Awl
Scissors
Wire Cutters
(Purchase separately) Hex Wrench
.........................................................
.........................................................
.........................................................
.........................................................
.........................................................
.........................................................
.........................................................
.........................................................
.........................................................
.........................................................
.........................................................
Sander
Masking tape - Straight Edged Ruler - Pen or pencil - Drill and Assorted Drill Bits
Read through the manual before you begin, so you will have an overall idea of what to do.
Symbols used throughout this instruction manual, comprise:
(Purchase separately)
.Motor control x1(for GP) .Elevator x2
.Rudder x1. Aileron x2. Flap x2
CONVERSION TABLE
1.0mm = 3/64”
1.5mm = 1/16”
2.0mm = 5/64”
2.5mm = 3/32”
3.0mm = 1/8”
4.0mm = 5/32”
5.0mm = 13/64”
6.0mm = 15/64”
10mm = 13/32”
12mm = 15/32”
15mm = 19/32”
20mm = 51/64”
25mm = 1”
30mm = 1-3/16”
45mm = 1-51/64”
If exposed to direct sunlight and/or heat, wrinkels can appear. Storing the
model in a cool place will let the wrinkles disappear. Otherwise, remove
wrinkles in covering film with a hair dryer, starting with
low temperature. You can fix the corners by using a hot iron.
Bei Sonneneinstrahlung und/oder Wärme kann die Folie erschlaffen bzw. Falten
entstehen. Verwenden Sie ein Warumluftgebläse (Haartrockner) um evtl. Falten aus der Folie
zu bekommen. Die Kanten können Sie mit einem Bügeleisen behandeln. Nicht zuviel Hitze anwenden !
REQUIRED FOR OPERATION (Purchase separately)
Low seting
Extension cord for flap servos: 50cm(x2)
Extension cord for retract servos: 50cm(x2)
Extension cord for Rx battery pack: 30cm(x1)
.Gear door x1
EPOXY A
EPOXY B
Epoxy Glue
(5 minute type)
Gas engine:
2T 40 cc-45
Extension cord for gear door servo: 30cm(x1)
Gas engine:
4T 40cc
Minimum 8-9 channels radio
(OS GF-40)
Electric retract-Struts
VQ-ARE24S
Struts: VQ-AS11

1-Move the aileron and flap servo hatch out of the wing
2-Install the aileron servo to the aileron servo hatch as shown.
3-Install the flap servo to the flap servo hatch as shown.
Control horn
................1
2x30mm
..........2
Aileron servo
Hatch
Servo
mount
AIL.
2x30mm screw
Control horn back flat
Control horn
Aileron push rod
Servo hatch
Servo mount
Servo hatch Servo mount
Aileron and flap servo hatch
(Top view)
Control horn
............1
2x12mm
..........2
SECTION 1- WING: FLAP-AILERON
Step 1A
Step 1B
Step 1C
Step 1B
Step 1C
Step 1D
Step 1D
Connector
...1
Connector
Connector
...1
CA
Do the same way with other wing half.
Clevis
1
Clevis
1
X
Note: If you use only one channel for both the left and right
Flap, in this case, remember to install the left and right
flap servo in a same direction.
CA
Securely glue together. If coming off during
flight, you lose control of your air plane.
Flap, Ailerons Safety: See Section 11, Step 11c
!VERY IMPORTANT
If you not make this step, the ailerons and flaps may be comming off when your
airplane flying with high speed. You will lose control of your airplane.

3x15mm
screw
2mm
2mm
2mm
3mm
Step 2D
Step 2E
Step 2F
2mm
3x20mm
Nylon gear
strap 2mm
3x20mm
Ply gear
mount flat
Square
plastic
2mm
Step 2A
Main
landing gear
Gear
mount
Step 2B Step 2C
...1
.......2
...1
...........1
3x12mm screw
5mm collar
Do the same way with other wing half.
RARE BEAR
SECTION 2 - FIXED GEAR

Step 3A
CA
Step 3B
Step 3C Step 3D
Note: Do not glue the gear door to the strut at this time
SECTION 3 - STRUTS RARE BEAR

5mm
Dowel
Wing (front-view)
Step 4A
CA
8mm dowel
Glue the dowel to the rib root, marking sure
that the dowel perpendicular to surface of
the rib root.
2mm
A1=A2 B1=B2
Mark the plywood where the four holes are to be drilled.
6mm
Step 5B
Step 5C
SECTION 5 - ENGINE
Step 4B
A
B
A1 A2
B1
B2
Fuselage - front view
Step 5A
Engine mount
6X40 screw
not included
68x 0mm screw ....4
6mm nut ........12
6mm washer
..........8
Note: Turn the plastic bolts on the
left and right side of the fuselage,
full the canopy hatch out of the
fuselage first.
RARE BEAR
SECTION 4 - RETRACT LANDING GEAR

Note: secure the mm6
nuts in place using
silicon sealer.
X
E1
E2
E3
E4
E1=E2=E3=E4 (The long of the aluminum tubes are the same and depend
of your engine)
Note: The aluminum tubes for the engine installation not include.
Step 6A
Please Note: This plane was design to use
for 0cc gasoline-2 stroke engine or 40cc-4 stroke engine.4
Incase you want to use bigger engine, please reinforce the
firewall and other connection by Epoxy
!
Step 6B
145mm
Adjuting the distance from the fire-wall to the hub of
engine is .145mm Filler tube
To engine
Rubber
stopper
Cap
Stopper
Air tube
FUEL TANK ASSEMBLY
Step 6C
!If you attach too large engine, this can destroy
the structure of your model and cause an accident.
RARE BEAR
SECTION - ENGINE continued6

-Using a aluminum motor mounting plate as a template,
mark the plywood motor mounting plate where the four
holes are to be drilled.
-Remove the aluminum motor mounting plate and drill a
7/32”(5mm) hole through the plywood at each of the four
marks marked .
Note: The aluminum motor mounting included with electric
motor set.
Motor mounting plate
The long of the aluminum tubes are same
.and depend of your motor
Note: The aluminum tubes for the motor
installation not include.
Fuselage - front view
Step 7A
Step 7B
Li-Po battery stand
Step 7D: Battery stand
Step 7C: gear door servo
Secure the battery stand
using four 3x10mm screws
FUSELAGE TOP-VIEW
gear door
gear door
68x 0mm screw ....4
6mm nut ........12
6mm washer
..........8
Adjuting the distance from the fire-wall to
the hub of motor is .145mm
RARE BEAR
SECTION 7 - ELECTRIC MOTOR

CA
25x10mm
aluminum tube
Step 8A
Step 8B
Gear door push rod ........1 (for each side)
Do the same way with other side
10x25mm aluminum tube
........3 (for each side)
Bend the gear door push rod for smooth work.
A
B
5 minutes
RARE BEAR
SECTION 8 - GEAR DOOR

Step 9A
Step 9B
25x870mm aluminum tube
12x390mm aluminum tube
RARE BEAR

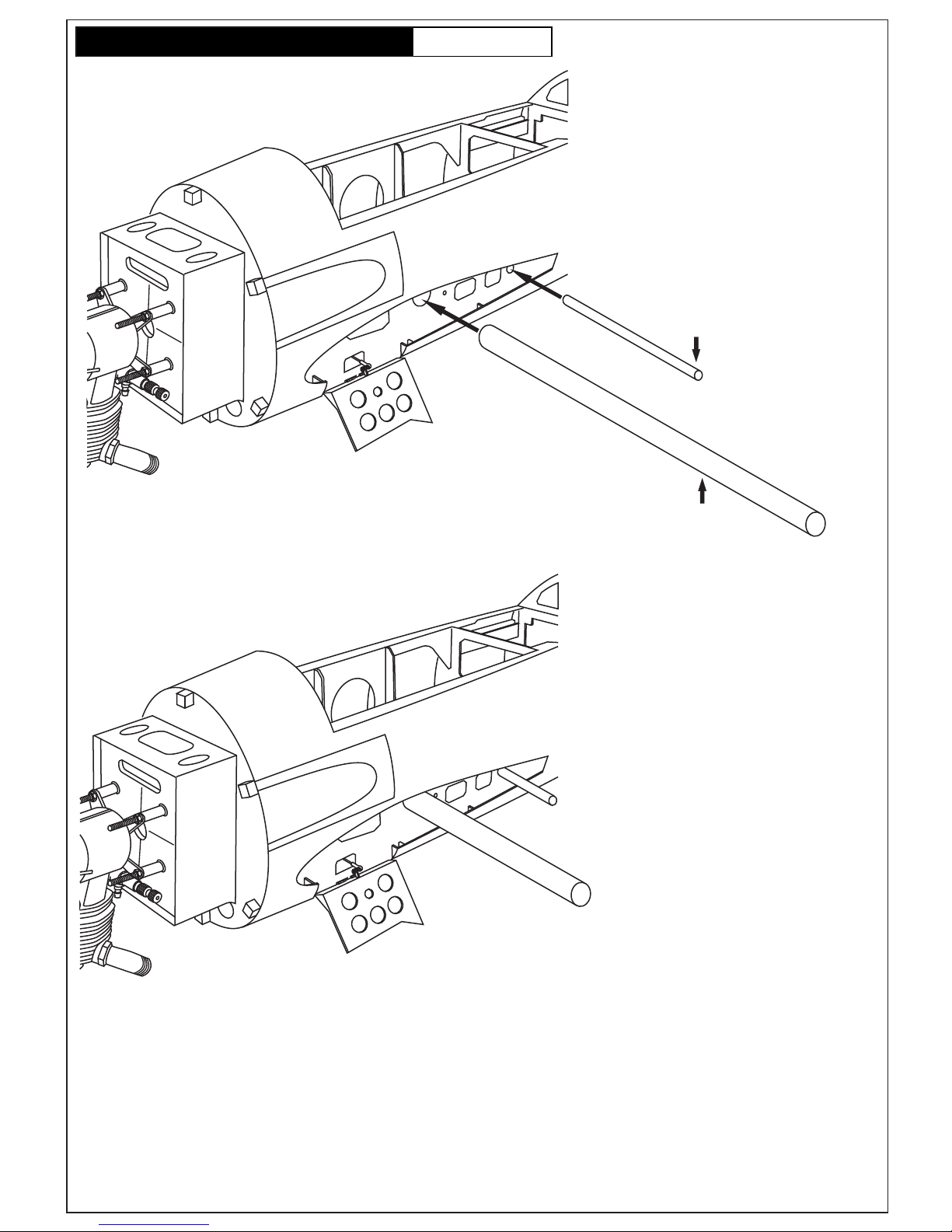

SECTION 9 - JOINING THE WING

Step 10A
Slowly, push the wing nto the fuselage with carei
Note: To fit the wing into the fuselage is easier, you should
have two people to do this.
RARE BEAR
SECTION - JOINING THE WING continued10

A
A’
B
B’
Trial fit the horizontal stabilizer in place on the fuselage. Check the alignment
of the horizontal stabilizer. The distance must be equal on both sides
. If not, adjust the stabilizer until the measurements(A=A’ and B=B’ and C=C’)
are the same.
If the fit is overly tight, it may be necessary to
lightly sand the hole on the fuselage.
Step 1 A2
* WARNING: When removing any covering from the airframe, please ensure that you secure the
cut edge with CA or similar cement. This will ensure the covering remain tight.
Cut away only
the covering*
Step 11A
5x20mm screw
CC’
5x20mm screw
...1 (for each side)
RARE BEAR
SECTION - JOINING THE WING continued11
RARE BEAR

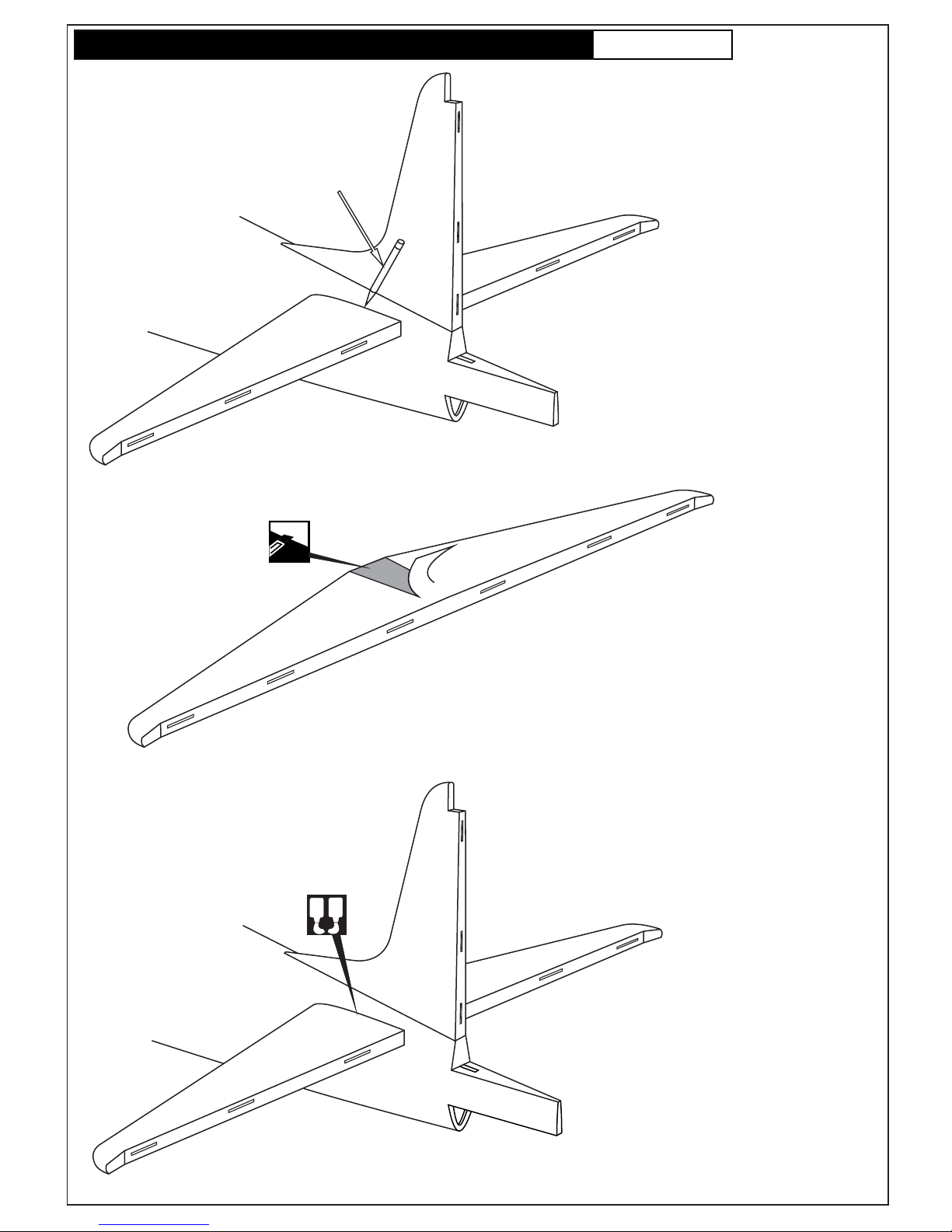

SECTION 1 - HORIZONTAL STABILIZER2

When you are satisfied with the alignment , use a pencil to
carefully trace around the top and bottom of the stabilizer
where it meets the fuselage. Note, it is important not to
disturb the alignment of the stabilizer. The pencil should
leave a light indentation in the covering.
Pencil
Remove the horizontal stabilizer from the fuselage. Using a sharp hobby
knife, carefully cut away the covering inside the lines which were marked
in Step .13A
Be cautious not to cut into the wood-this will weaken the structure.
Step 13A
Step 13B
Step 13C
Again, trial fit the horizontal stabilizer in place on
the fuselage and adjust the alignment as described
in Step A.12
Secure the stabilizer in place using the .5 minutes Epoxy
5 minutes
Securely glue together. If coming off during flight,
you lose control of your air plane.
RARE BEAR
SECTION 1 - HORIZONTAL STABILIZER continued3
A
B

1.5mm
1.5mm
1.5mm
1.5mm
1.5mm
1.5mm
CA Thin CA glue
Toothpick
HORIZONTAL STABILIZER
Elevator Safety.
Toothpick
(x 12pcs)
Petroleum jelly
Apply a thin layer of machine oil or
petroleum jelly to only the pivot point
and the leading edge of the elevator.
HORIZONTAL STABILIZER
AB
When satisfied with the and alignment, hinge the elevator to the horizontal
stabilizer using 5 minute epoxy. Make sure to apply a thin layer of epoxy to
the top and bottom of both hinges and to inside the hinge slots. Repeat the previous
procedures to hinge the second elevator to the other side of the horizontal stabilizer.
5 minutes
AB
Please do not clean off the excess epoxy on the horizontal stabilizer and
the elevator with strong solvent or pure alcohol, only use kerosene to keep
the colour of your model not fade.
Step 14A
Step 14B
Step 14D
Step 14C
Step 14E
Cut the excess toothpick and secure it
in place using little Thin CA glue.
NOTE: You may need to open up the slots
so that the hinges are not too difficult to
push in.
Not include
RARE BEAR

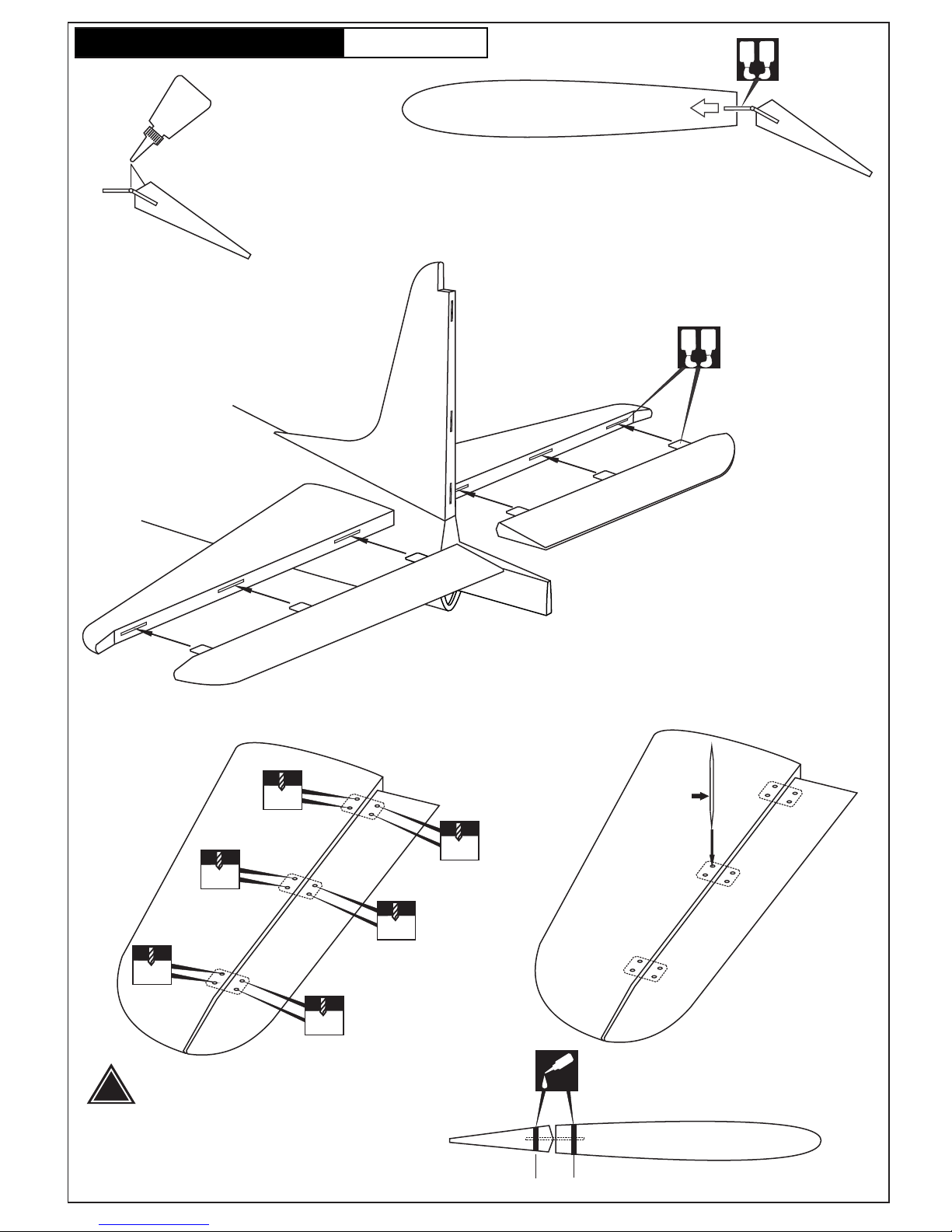

SECTION 14 - ELEVATOR
5 minutes
!VERY IMPORTANT
If you not make this step, the elevator may be
comming off when your airplane flying with
high speed. You will lose control of your airplane.

1- Cut 22mm (7-8”) long slot along the hinge line in the trailing edge of the vertical stabilizer
for the rudder torque rod bearing.
2- Apply a thin layer of petroleum jelly to only the pivot of the torque rod bearing.
Glue the rudder torque rod bearing into the slot you cut previously in the vertical stabilizer
Using the thin CA glue.
CA
Nylon adjustable control horn
Turn the rudder torque rod bearing, Thread the nylon
adjustable control horn onto the end of rudder torque
rod, making sure that the adjustable control horn face forward.
Petroleum jelly
Step 1 A5
Step 1 B5
Step 1 C5
A
B
RARE BEAR
SECTION 1 - RUDDER TORQUE ROD BEARING5

Without using glue yet, push the rudder and its hinges
into the hinge slots in the trailing edge of the vertical
stabilizer. There should be a minimal hinge gap and the
end of the rudder should not rub against the vertical
stabilizer.
When satisfied with the alignment, mark the mounting
hole position, where the rudder torque rod meets the
rudder with a pencil.
Cut the rudder torque rod mounting slot.
Again, push the rudder and its hinges into the hinge
slots, secure it place using 5 minutes Epoxy.
3mm
Rudder torque rod mounting slot
Remove the rudderand drill 1/8” (3mm)
diameter hole, making sure that you
drill the hole perpendicular to the
leading edge of the rudder.
Mark the mounting hole position.
A
B
5 min.
Step 1 A6
Step 1 B6
Step 1 C6
NOTE: You may need to open up the slots
so that the hinges are not too difficult to
push in.
RARE BEAR
SECTION 1 - RUDDER6

Plastic control horn
................2
2x20mm screw
...............6
18A- Slide the wire , straight end first, into the(2 mm diameter)
.push rod tube
18B- Insert the Z-bend into the hole on the
tail wheel control arm.
18C- Place the tail wheel control arm to the
center of the tail wheel mount.
18D- Insert the tail gear assembly
through the tail gear mount.
2mm
Elevator push rodElevator push rod
Elevator control horn
Elevator control horn
Bottom-view
RARE BEAR
SECTION 1 - ELEVATOR CONTROL HORN7
RARE BEAR
SECTION 1 - TAIL WHEEL8

2mm
Cut the opening Cut the opening
2mm
2mm
Secure the plastic dummy engine in place using 5 min.Epoxy
Step 18A
Step 18B
Step 18C
2.5x10mm screw
........6
2.5x10mm screw
2x8mm
1mm
1mm
RARE BEAR
2x6mm screw
.........8
SECTION 1 -9 TAIL COVER
RARE BEAR
SECTION - COWLING20

Left elevator servo Right elevator servo
Rudder and tail wheel
servo
Gear door servo
Throttle servo (in case of gas engine using) and position
of the throttle servo depend of engine
Switch hole
X
3mm set Screw
2 mm
Push rod
D=3mm
Connector
....7
RARE BEAR
SECTION - SERVO21

With the retract in the retracted position, carefully move the gear door on the strut until the gear door nearest with the
gear door on the fuselage, mark on the struts.
With the retract in the extended position, Glue the rings of
gear door to the struts with thin CA glue.
Gear door
Wooden ringStrut
Sand here
Sand here
Lightly sand the wooden rings to be sure that
the struts locks in position.retracted
CA
RARE BEAR
SECTION - STRUTS22
Important: When you “on” the retract swicth, if the retract
gear does not retracted completely, you immediately “off”
the retract switch. If the retract gear does not extend, use
your finger to push the retract gear to the completely
retrated position, it will extend.
Then use the hobby knife to remove the place where the
retract gear is entangled.
