MODEL VSX5G
GAS COUNTER CONVECTION STEAMER
MODEL: VSX5G Gas Counter Convection Steamer
■■VSX5G 5 pan capacity
STANDARD FEATURES
■304 series stainless steel exterior.
■Stainless steel cooking compartment with coved interior
corners.
■High output 45,000 BTU/hr. stainless steel steam generator.
■Manual controls.
■Heavy duty "slammable" door and door latch mechanism.
■4" stainless steel legs.
■3/4" rear gas connection and gas pressure regulator.
■Requires 120/60/1 power supply, 2.0 amps maximum draw.
6 foot power cord with 3 prong plug.
■Split water line connection.
■Single drain connection.
■One year limited parts and labor warranty.
OPTIONS
■■Second year extended limited parts and labor warranty
contract.
ACCESSORIES
■■12" x 20" stainless steel pans:
-1" deep (solid) (perforated) Qty.____.
-2
1/2" deep (solid) (perforated) Qty.____.
-4" deep (solid) (perforated) Qty.____.
■■Stainless steel pan cover. Qty.____.
■■28" open leg stand with pan slides 24"w x 28"h.
■■34" open leg stand with pan slides 24"w x 34"h.
■■Set of two universal pan slides.
■■Removable sliding shelf. Qty.____.
■■Water treatment system.
SPECIFICATIONS:
Single compartment gas counter convection steamer, Vulcan-
Hart Model No. VSX5G. 304 series stainless steel exterior.
Stainless steel cooking compartment with coved interior corners.
High output 45,000 BTU/hr. stainless steel steam generator.
Manual controls. Heavy duty "slammable" door and door latch
mechanism. 4" stainless steel legs. 3/4" rear gas connection and
gas pressure regulator. Requires 120/60/1 power supply, 2.0
amps maximum draw. 6 foot power cord with 3 prong plug. Split
water line connection. Single drain connection.
Exterior dimensions: 24"w x 32"d x 44.38"h on 4" legs.
CSA design certified. NSF listed.
SPECIFY TYPE OF GAS WHEN ORDERING.
SPECIFY ALTITUDE WHEN ABOVE 2,000 FT.

Printed On Recycled Paper
VULCAN-HART COMPANY, P.O. BOX 696, LOUISVILLE, KY 40201, TEL. [phone]
502-778-2791 QUOTE & ORDER FAX: [phone]
NOTE: In line with its policy to continually improve its products, Vulcan-Hart Company reserves the right to change materials and
specifications without notice.
F-32295 (8-04)
MODEL VSX5G
GAS COUNTER CONVECTION STEAMER

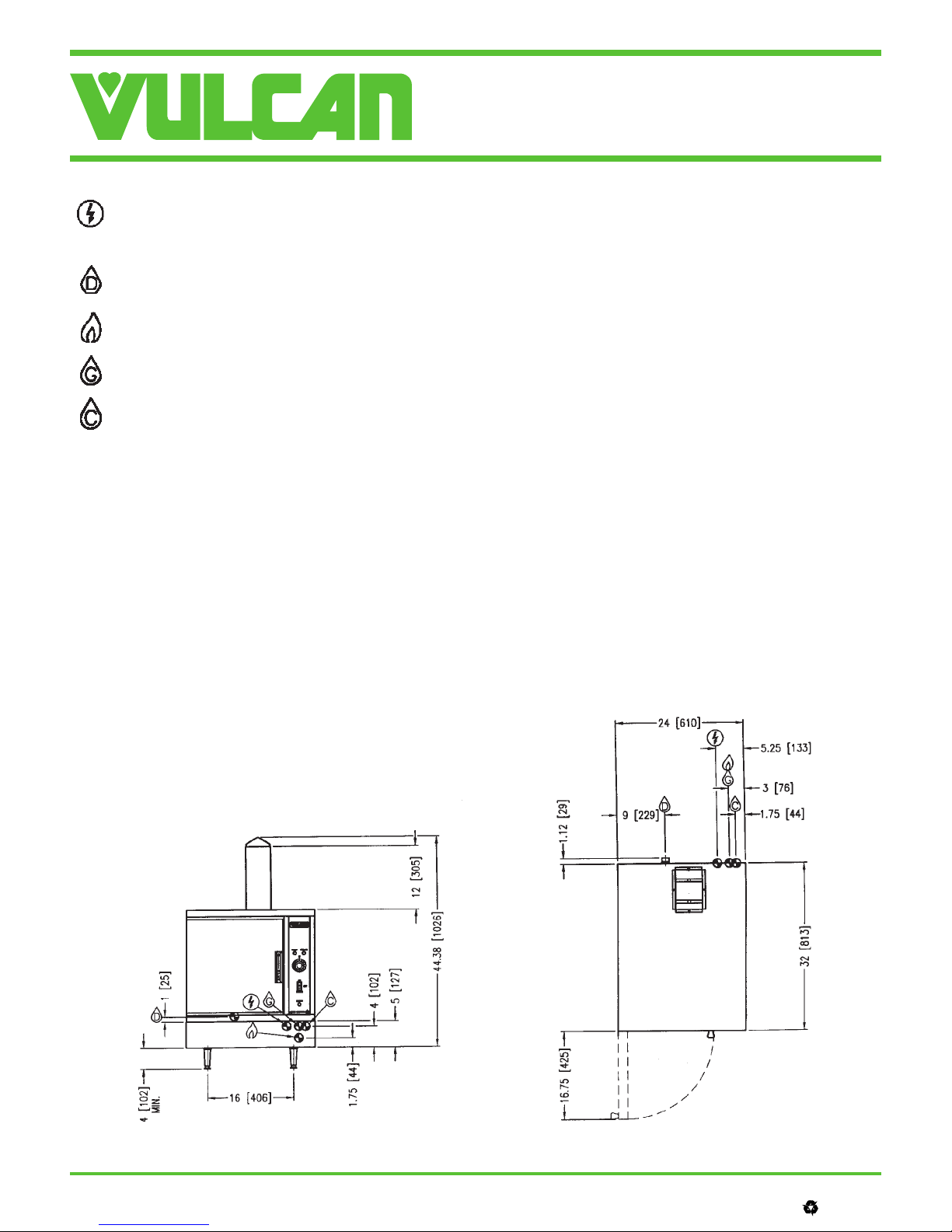

SERVICE CONNECTIONS:
