Vulcan-Hart VECTS16 User manual

Item # __________________________
C.S.I. Section 11420
VULCAN-HART COMPANY, P.O. BOX 696, LOUISVILLE, KY 40201, TEL. [phone]
502-778-2791 QUOTE & ORDER FAX: [phone]
A2780
ISO9001
Vulcan-Hart Co.
F-32279 (01-02)
SPECIFICATIONS:
Round electric tilting braising pan, Vulcan-Hart Model
No. VECTS16. Stainless steel front and sides. 10 gauge
polished stainless steel pan body with coved interior corners.
Stainless steel 3/8" clad cooking surface. Formed pouring lip.
The pan pivots on trunnions. Pan can be fully tilted. Solid
sheathed tubular heating elements affixed to pan bottom for
even heat distribution. Elements shut off when pan is tilted 5°.
Faucet bracket. Controls include a snap acting thermostat
adjustable from 100° to 450°F. Requires a 208 or 240 volt, 60
Hz, 1 or 3 phase power supply.
Exterior dimensions: 291/4"w x 29"d x 227/8" overall height; with
handle 353/4"h.
NSF listed. U L listed.
MODEL VECTS16
ROUND ELECTRIC TILTING BRAISING PAN
MODEL: VECTS16 Round Electric Tilting Braising Pan
STANDARD FEATURES
■Stainless steel front and sides. 10 gauge polished stainless
steel pan body with coved interior corners.
■Stainless steel 3/8" clad cooking surface. Formed pouring
lip.
■The pan pivots on trunnions. Pan can be fully tilted.
■Solid sheathed tubular heating elements affixed to pan
bottom for even heat distribution. Elements shut off when
pan is tilted 5°.
■Faucet bracket.
■Controls include a snap acting thermostat adjustable from
100° to 450°F.
■Requires a 208 or 240 volt, 60 Hz, 1 or 3 phase power
supply.
■One year limited parts and labor warranty.
OPTIONS
■■Etched gallon markings.
■■Pour lip strainer.
■■Correction facility package:
- Control cover (lock by others).
- Security type tamper resistant fasteners with tack welds.
■■480 volt, 50 Hz, 3 phase, includes stepdown transformer.
■■Second year extended limited parts and labor warranty.
ACCESSORIES
■■12" swing faucet, single temperature.
■■12" swing faucet, dual temperature.
■■18" swing faucet, single temperature.
■■18" swing faucet, dual temperature.
■■Steaming pan insert rack to hold 12" x 20" food pan.
■■Lift off cover.
■■VSKT30 stand see spec sheet F-32474.

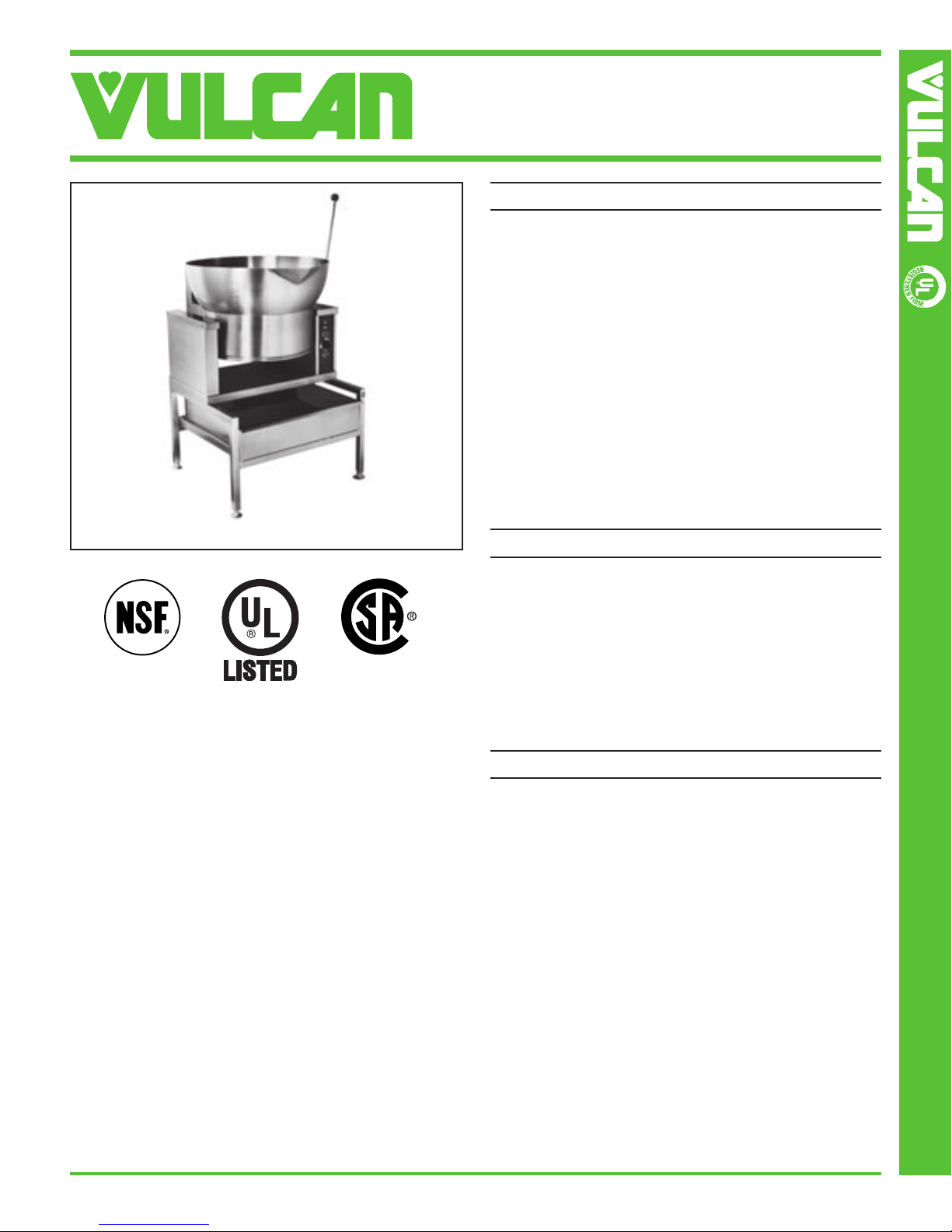

Shown on Optional Stand

Printed On Recycled Paper
VULCAN-HART COMPANY, P.O. BOX 696, LOUISVILLE, KY 40201, TEL. [phone]
502-778-2791 QUOTE & ORDER FAX: [phone]
NOTE: In line with its policy to continually improve its products, Vulcan-Hart Company reserves the right to change materials and
specifications without notice.
F-32279 (01-02)
MODEL VECTS16
ROUND ELECTRIC TILTING BRAISING PAN
SERVICE CONNECTIONS:
Electrical Connection: Heating element power 13/8"
diameter (1" conduit). See capacity schedule.
208V 240V 480V BRIMFUL 4 OZ
MODEL PH KW AMP KW AMP KW AMP CAPACITY SERVINGS
VECTS16 1 7.5 36.0 7.5 31.3 - - 16 gallons 512
3 7.5 20.8 7.5 18.1 7.5 9.0 60 liters
MOUNTING DETAIL
