Vulcan-Hart G260 Manual

F-35647 Rev. A (5-07)
CATALOG OF
REPLACEMENT PARTS
ENDURANCE SERIES
GAS RANGES
MODELS
G36 ML-136472
G36C ML-136746
G36F, X ML-136474, ML-136475

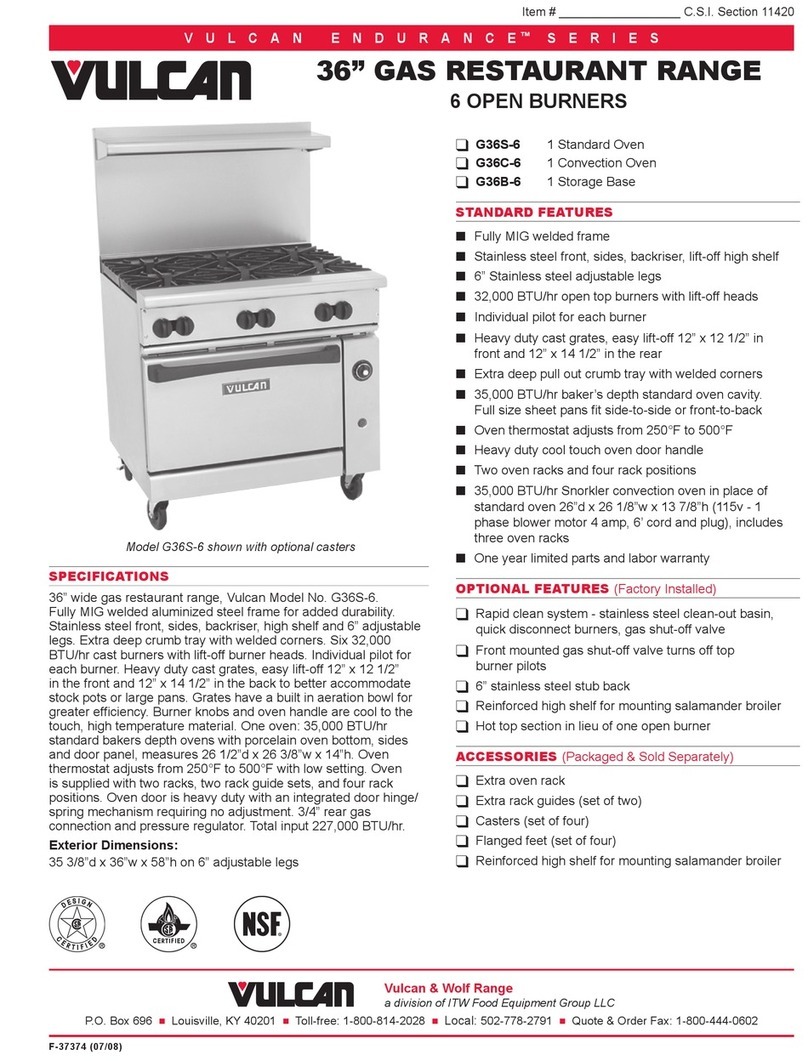

G36S ML-136473
G48 ML-136491
G48C ML-136493
G48F ML-136492
G60 ML-136479
G60C ML-136482
G60CC ML-136485
G60F, X ML-136480, ML136481
G60FC ML-136483
G60XC ML-136484
G60FCC ML-136486
G60XCC ML-136487
G260 ML-136488
G260C ML-136489
G260CC ML-136490
For additional information on Vulcan-Hart or to locate an authorized parts
and service provider in your area, visit our website at www.vulcanhart.com
VULCAN-HART
DIVISION OF ITW FOOD EQUIPMENT GROUP, LLC
WWW.VULCANHART.COM
P.O. BOX 696, LOUISVILLE, KY 40201-0696
TEL. [phone]

- 2 -
ENDURANCE SERIES GAS RANGES
OVEN BODY
Fig. 1

- 3 -
ENDURANCE SERIES GAS RANGES
ILLUS. PART NO. NAME OF PART AMT.
Fig. 1
G36, F G36C, FC G60 G60C G60CC G260 G260C G260CC
1 00-428642-00001 Back Splash ...................................... 1, 1 1, 1
00-428745-00001 Back Splash ......................................... 1 1 1
00-428805-00001 Back Splash ......................................... 1 1 1
2 00-428641-00001 Rear Heat Shield ............................... 1, 1 1, 1
00-428744-00001 Rear Heat Shield .................................. 1 1 1
00-428804-00001 Rear Heat Shield .................................. 1 1 1
3 00-428504-00001 Bayonet Channel .............................. 2, 2 2, 2 222222
4 00-428936-000G1 Plate Shelf Assy ............................... 1, 1 1, 1
00-497021-000G1 Plate Shelf Assy .................................. 111111
5 00-428879-00001 Front Grate Casting .......................... 3, 3 3, 3 555333
6 00-428880-00001 Rear Grate Casting ........................... 3, 3 3, 3 555333
00-498132-0000A Weldment, Bullnose ..........................0, 1 0, 1
7 00-428666-000G1 Front Top Assembly .......................... 1, 1 1, 1
00-428731-000G1 Front Top Assembly ............................. 1 1 1
00-428766-000G1 Front Top Assembly ............................. 1 1 1
8 00-428788-000G1 Broiler Front Top Assembly ................. 1 1 1
9 00-428362-00001 Grate Support ................................... 2, 2 2, 2 444222
10 00-428639-00001 Manifold Cover, Std. Oven ................1, 1 1, 1
00-428736-00001 Manifold Cover, Std. Oven ................... 1
00-497236-00001 Manifold Cover, Conv. Oven ................ 1 1
00-428789-00001 Manifold Cover, Std. Oven ................... 1
00-497206-00001 Manifold Cover, Conv. Oven ................ 1 1
11 00-497032-000G1 Oven Control Panel, Std. ................... 1, 1
00-497151-000G1 Oven Control Panel, Conv. ................... 1, 1
12 00-428959-000G2 Oven Liner, Left ................................1, 1 1, 1 2 1 2 1
13 00-428959-000G1 Oven Liner, Right .............................. 1, 1 1, 1 2 1 2 1
14 00-428630-00001 Oven Bottom ..................................... 1, 1 1, 1 2 1 2 1
15 00-428499-00001 Oven Rack ........................................ 1, 1 2, 2 234234
16 00-497028-000G1 Door Assembly ................................. 1, 1 1, 1 222222
17 00-428618-00001 Door Handle ...................................... 1, 1 1, 1 222222
18 00-428948-000G1 Kick Panel Assembly ........................ 1, 1 1, 1
00-497018-000G1 Kick Panel Assembly ........................... 111111
19 00-413112-00012 Leg, 6" Adjustable, SST .................... 4, 4 4, 4 444444
20 00-406734-00001 Electrical Junction Box ........................ 1, 1 1 1 1 1
21 00-406734-00002 Electrical Junction Box Cover ............. 1, 1 1 1 1 1
22 00-405016-00001 Cord, Electrical Supply ........................ 1, 1 1 1 1 1
23 00-411496-000B1 Oven Switch ........................................ 1, 1 1 2 1 2
24 00-411496-000F1 Door Limit Switch ................................. 1, 1
00-411496-000F7 Door Limit Switch ................................. 1 2 1 2
25 00-428790-00001 Manifold Cover, Broiler ........................ 1 1 1
26 00-497027-00001 Door Spring Hinge, RH ......................1, 1 1, 1 222222
00-497027-00002 Door Spring Hinge, LH ...................... 1, 1 1, 1 222222
SC-081-78 Bolt, Hex Head 1/4-20 X 4
(Attach Shelf to Riser) ..................... 4, 4 4, 4 444444
* 00-497001-00001 Caster (W/O Brake) .......................... AR AR AR AR AR AR AR AR
* 00-497001-00002 Caster (W/Brake) .............................. AR AR AR AR AR AR AR AR
* Not Shown
OVEN BODY
