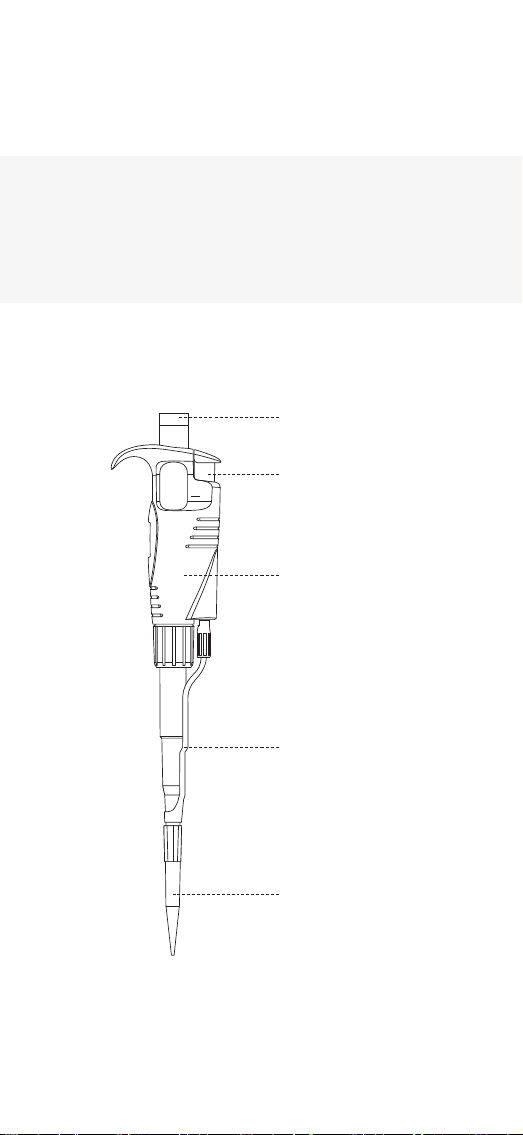

Getting started
Volume lock
(VWR® EHP and
VWR® UHP only)
Volume display
Push button
Tip ejector
Shaft
Ejector button
Variable volume pipettors
Intended Use
VWR® Pipettors are volumetric instruments designed to
measure and transfer liquids precisely and safely with the
use of disposable pipet tips. The pipettors operate on the
air-cushion principle (i.e., the aspirated liquid does not
come in contact with the shaft or plunger of the pipettor).
1696 VWR Short users manual 2023-03-20 print.indd 3 20.03.2023 10:53
VWR® EHP, fixed volume
They can accommodate volumes from 0.1 µL to 10,000µL
depending on the model. They are available insingle-,
8-and 12-channel variable volume as well as fixed
volume single-channel versions.
Handle
Push button
Tip ejector
Shaft
Ejector button
1696 VWR Short users manual 2023-03-20 print.indd 4 20.03.2023 10:53

VWR® EHP, fixed volume
They can accommodate volumes from 0.1 µL to 10,000µL
depending on the model. They are available insingle-,
8-and 12-channel variable volume as well as fixed
volume single-channel versions.
Handle
Push button
Tip ejector
Shaft
Ejector button
1696 VWR Short users manual 2023-03-20 print.indd 4 20.03.2023 10:53

VWR® EHP VWR® Standard
Step 1
Set the volume
1
2
5
2
1
6
2.16 µL 1.25 mL
VWR® UHP
20.42 µL 1,000 µL
2
0
4
2
1
0
0
0
Lock the volume
VWR® EHP VWR® UHP
NOTE: VWR® Standard Single- and Multi-channel
Pipettors do not feature a volume lock function.
1696 VWR Short users manual 2023-03-20 print.indd 5 20.03.2023 10:53

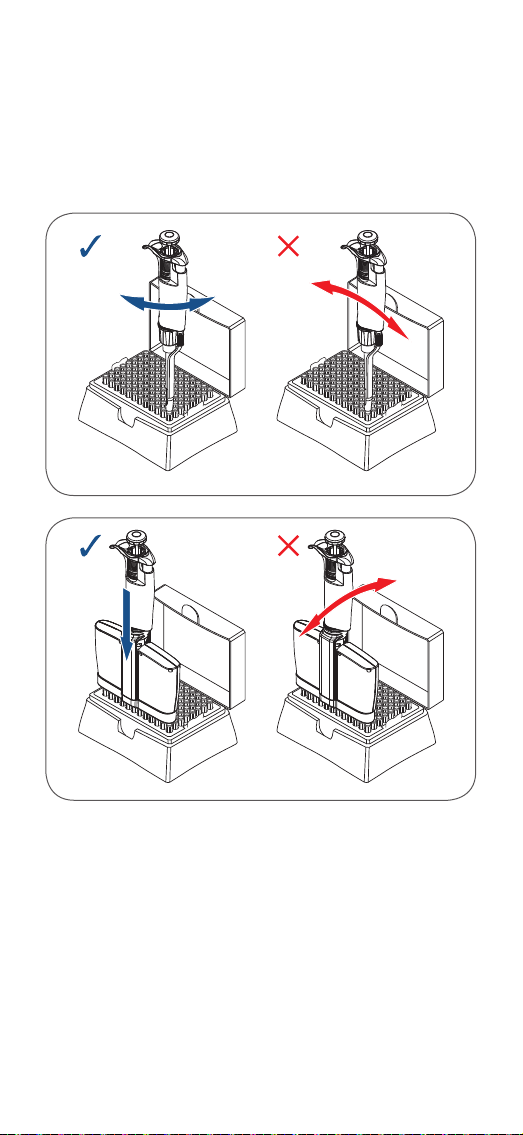

Step 2
Insert the tip
1696 VWR Short users manual 2023-03-20 print.indd 6 20.03.2023 10:53

Step 2
Insert the tip
1696 VWR Short users manual 2023-03-20 print.indd 6 20.03.2023 10:53

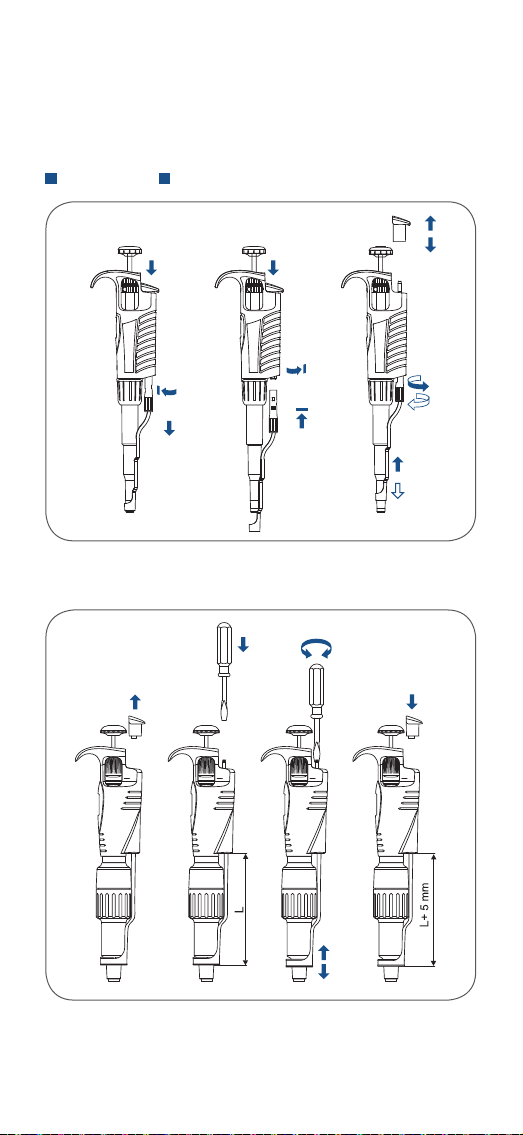

Step 2
Insert the tip Ejector adjustment
VWR® EHP VWR® Standard
NOTE: Ejector adjustment is not necessary in VWR® UHP
pipettors as they feature a long ejector stroke.
Pipettors 5,000 and 10,000 µL
1696 VWR Short users manual 2023-03-20 print.indd 7 20.03.2023 10:53

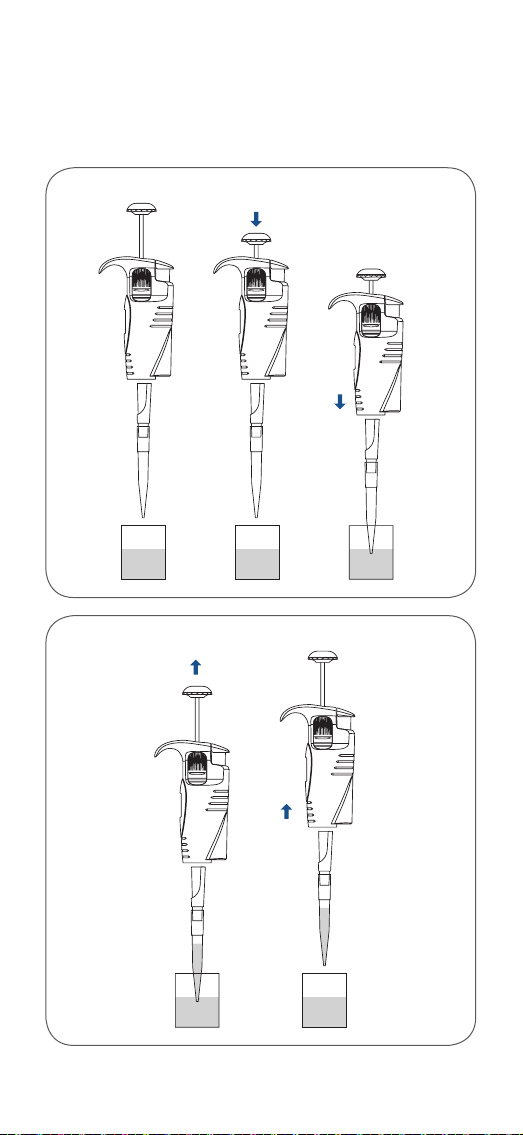

Step 3
Aspirate the liquid
10°-40°
~1 sec.
10°-40°
~1 sec.
1696 VWR Short users manual 2023-03-20 print.indd 8 20.03.2023 10:53

Step 3
Aspirate the liquid
10°-40°
~1 sec.
10°-40°
~1 sec.
1696 VWR Short users manual 2023-03-20 print.indd 8 20.03.2023 10:53

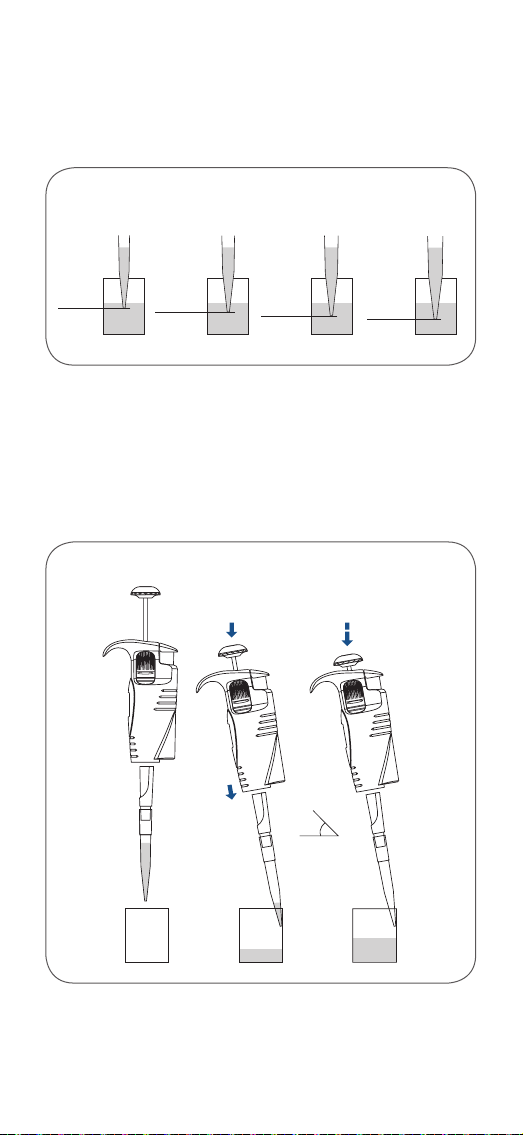

Step 4
Dispense the liquid
Recommended depth
0.1-1 µL 1-100 µL 101-1,000 µL > 1,000 µL
≤1 mm 2-3
mm 2-4
mm 5-7
mm
10°-40°
~1 sec.
1696 VWR Short users manual 2023-03-20 print.indd 9 20.03.2023 10:53

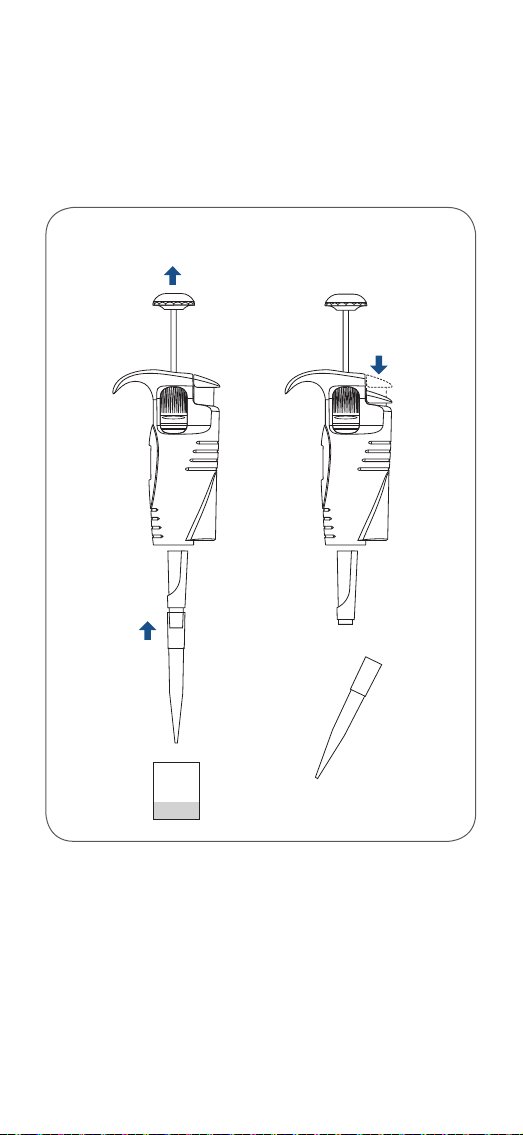

Step 5
Eject the tip
1696 VWR Short users manual 2023-03-20 print.indd 10 20.03.2023 10:53

Step 5
Eject the tip
1696 VWR Short users manual 2023-03-20 print.indd 10 20.03.2023 10:53

NOTE: Before calibration, in the VWR® EHP and VWR®
UHP lines, always remember to lock the volume using
the lock function and for the VWR® Standard hold the
calibration knob.

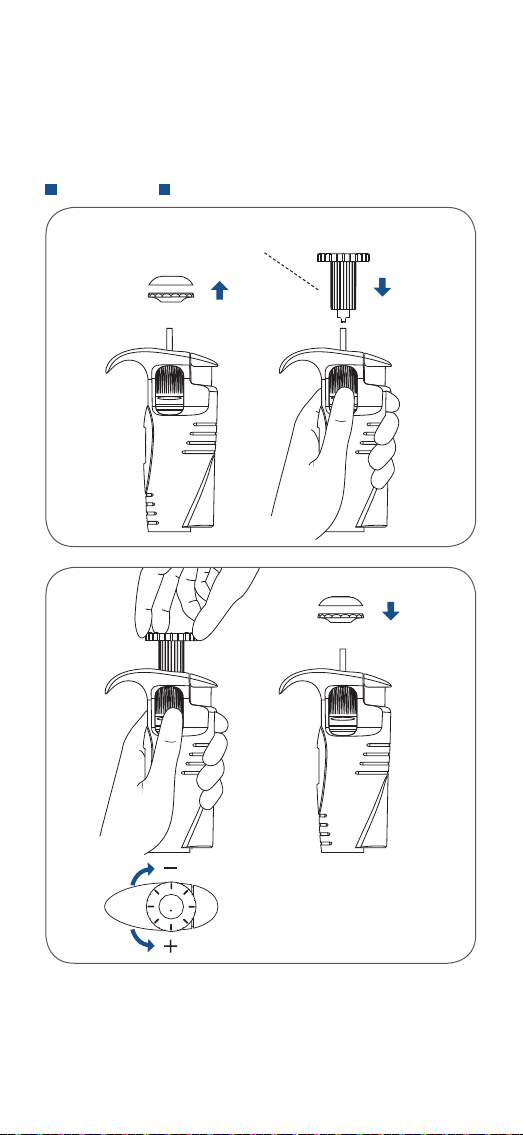

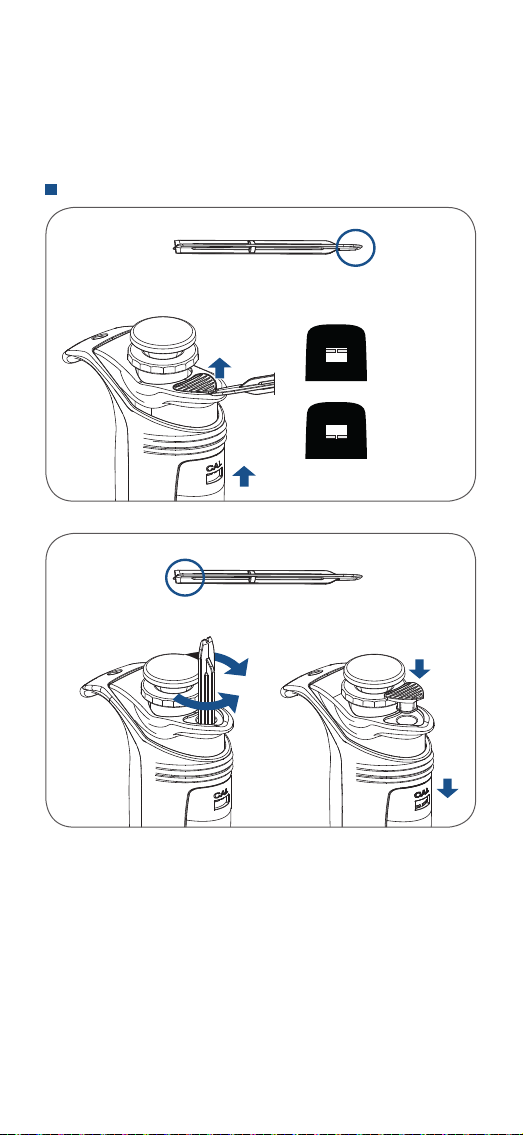

Step 6
Calibration
VWR® EHP VWR® Standard
Calibration key
1696 VWR Short users manual 2023-03-20 print.indd 11 20.03.2023 10:53
VWR® UHP
Calibration key – flat end
Calibration key – cross end
“Calibration”
position
“Operating”
position
CAL
CAL
1696 VWR Short users manual 2023-03-20 print.indd 12 20.03.2023 10:53

VWR® UHP
Calibration key – flat end
Calibration key – cross end
“Calibration”
position
“Operating”
position
CAL
CAL
1696 VWR Short users manual 2023-03-20 print.indd 12 20.03.2023 10:53

VWR warrants that this product will be free from defects
in material and workmanship for a period of five (5) years
from date of delivery. If a defect is present, VWR will, at
its option and cost, repair, replace, or refund the purchase
price of this product to the customer, provided it is
returned during the warranty period. This warranty does
not apply if the product has been damaged by accident,
abuse, misuse, or misapplication, or from ordinary wear
and tear. If the required maintenance and inspection
services are not performed according to the manuals and
any local regulations, such warranty turns invalid, except
to the extent, the defect of the product is not due to such
non-performance.
Items being returned must be insured by the customer
against possible damage or loss. This warranty shall be
limited to the aforementioned remedies. IT IS EXPRESSLY
AGREED THAT THIS WARRANTY WILL BE IN LIEU OF
ALL WARRANTIES OF FITNESS AND IN LIEU OF THE
WARRANTY OF MERCHANTABILITY.
Warranty
1696 VWR Short users manual 2023-03-20 print.indd 13 20.03.2023 10:53
Safety Notes
•The pipettor is designed for the transfer of liquids only
using the tip. Do not aspirate liquids without the tip
attached. The aspirated liquid should not enter the
pipettor, asit may cause damage.
•Single-use tips reduce the risk of contamination of
samples.
•Keep the pipettor clean, avoiding the use of abrasive
or corrosive cleaning agents (e.g., acetone).
•Keep the pipettor upright when there is liquid in the tip.
•Only using the pipettor in accordance with the
manufacturer’s instructions ensures the correct pipettor
parameters are maintained.
•After replacing the plunger or the shaft, the pipettor
should be calibrated.
•In the case of incorrect operation, the device should
be cleaned in accordance with the Instructions for Use
ortransferred to a service point.
•Ambient operating temperature is +5°C to 45°C.
•Ambient storage conditions (in the original packaging
during transport and short storage) is -25°C to 55°C.
•Follow general work safety regulations regarding
hazards related to work in the laboratory.
•Take special care when pipetting aggressive substances.
•Use appropriate protective attire (e.g. clothing, goggles
and gloves).
•Avoid pointing the pipettor at yourself or others during
use.
•Only use parts and accessories recommended by the
manufacturer.
Cleaning
•External parts may be cleaned with a swab moistened
with isopropyl alcohol.
•Pipettors can be autoclaved at 121°C for 20 minutes.
Prior to autoclaving, untighten the pipettor shaft,
remove the filter from 5 and 10 mL pipettor shafts.
•The outer body of the pipettor is UV-resistant. The
recommended distance from the radiation source to
exposed element should not be less than 50 cm.
•Prolonged and very intense UV exposure can cause
de-coloration of pipettor parts but does not affect its
performance.
1696 VWR Short users manual 2023-03-20 print.indd 14 20.03.2023 10:53

Safety Notes
•The pipettor is designed for the transfer of liquids only
using the tip. Do not aspirate liquids without the tip
attached. The aspirated liquid should not enter the
pipettor, asit may cause damage.
•Single-use tips reduce the risk of contamination of
samples.
•Keep the pipettor clean, avoiding the use of abrasive
or corrosive cleaning agents (e.g., acetone).
•Keep the pipettor upright when there is liquid in the tip.
•Only using the pipettor in accordance with the
manufacturer’s instructions ensures the correct pipettor
parameters are maintained.
•After replacing the plunger or the shaft, the pipettor
should be calibrated.
•In the case of incorrect operation, the device should
be cleaned in accordance with the Instructions for Use
ortransferred to a service point.
•Ambient operating temperature is +5°C to 45°C.
•Ambient storage conditions (in the original packaging
during transport and short storage) is -25°C to 55°C.
•Follow general work safety regulations regarding
hazards related to work in the laboratory.
•Take special care when pipetting aggressive substances.
•Use appropriate protective attire (e.g. clothing, goggles
and gloves).
•Avoid pointing the pipettor at yourself or others during
use.
•Only use parts and accessories recommended by the
manufacturer.
Cleaning
•External parts may be cleaned with a swab moistened
with isopropyl alcohol.
•Pipettors can be autoclaved at 121°C for 20 minutes.
Prior to autoclaving, untighten the pipettor shaft,
remove the filter from 5 and 10 mL pipettor shafts.
•The outer body of the pipettor is UV-resistant. The
recommended distance from the radiation source to
exposed element should not be less than 50 cm.
•Prolonged and very intense UV exposure can cause
de-coloration of pipettor parts but does not affect its
performance.
1696 VWR Short users manual 2023-03-20 print.indd 14 20.03.2023 10:53
