Wärme WH-20P User manual

Technical Data
Safety Instructions
Product Description
Display
Control Panel
Assembly
• Free Standing Option
• Wall Mounting
Use and Operation
• Switching Your Wärme Designer Heater On/O
• Child Lock Function
• Setting The Temperature
• Timer Function
• Setting The Time
• Memory
• Open Window Function
Heating Mode
• Instant Heating Mode
• Programmed Weekly Heating Mode
Cleaning And Care
• Maintenance
• Storage
• Hints On Disposal
• Declaration Of Conformity
03
03
04
05
05
06
07
09
11
For more information visit: www.designerheater.com
TABLE OF
CONTENTS
01

For more information visit: www.designerheater.com
PRODUCT
DESCRIPTION
02
03
Dear Customer,
Thank you for purchasing a Wärme Designer Heater. Please read this user manual carefully and take care of the follow-
ing hints to avoid damages. Any failure caused by ignoring the items and cautions mentioned in this user manual are not
covered by our warranty.
TECHNICAL DATA
Item number WH-20P
Power supply 230 V ~ 50 Hz
Power consumption 2000 W
Safety Instructions
• Read all instructions carefully before use.
• Make sure the voltage is the same as that indicated on the rating plate of the appliance.
• Do not operate this appliance if the cable or plug becomes damaged.
• Keep the appliance and cable away from sources of heat, sharp objects or anything that may cause damage.
•If the power cord is damaged it must be replaced by the manufacturer, its service agent or similarly qualified person
in order to avoid a hazard.
• Ensure the appliance is switched o before connecting to the mains power supply.
•Switch o the power supply and disconnect from mains supply when not in use, before cleaning or during any maintenance.
•To disconnect the appliance, switch it “OFF”, and then remove the plug from outlet. Do not pull the cord to disconnect
the plug. The heater must not be located immediately below a power socket.
• Do not operate in areas where gasoline, paint or other flammable liquids are used or stored.
• Indoor use only. In order to avoid overheating, do not cover the heater.
• To prevent a possible fire, do not block or cover air intakes or exhaust.
• Do not touch the hot surfaces.
•Do not insert or allow foreign objects to enter any ventilation or exhaust opening, as this may cause an electric shock,
fire or damage to the appliance.
•Always ensure that hands are dry before operating or adjusting any switch on the product or touching the plug and
socket-outlet.
•This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capa-
bilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of
the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• Do not leave this appliance unattended when it’s in use.
•The most common cause of overheating is deposits of dust or flu in the appliance. Ensure these deposits are
removed regularly by disconnecting the appliance and vacuum cleaning air vents and grilles.
• Do not place the cable under carpets. Arrange cord away from traic areas so that it will not be tripped over.
• Do not use this heater in the immediate surroundings of a bath, shower or a swimming pool.

For more information visit: www.designerheater.com
PRODUCT
DESCRIPTION
02
04

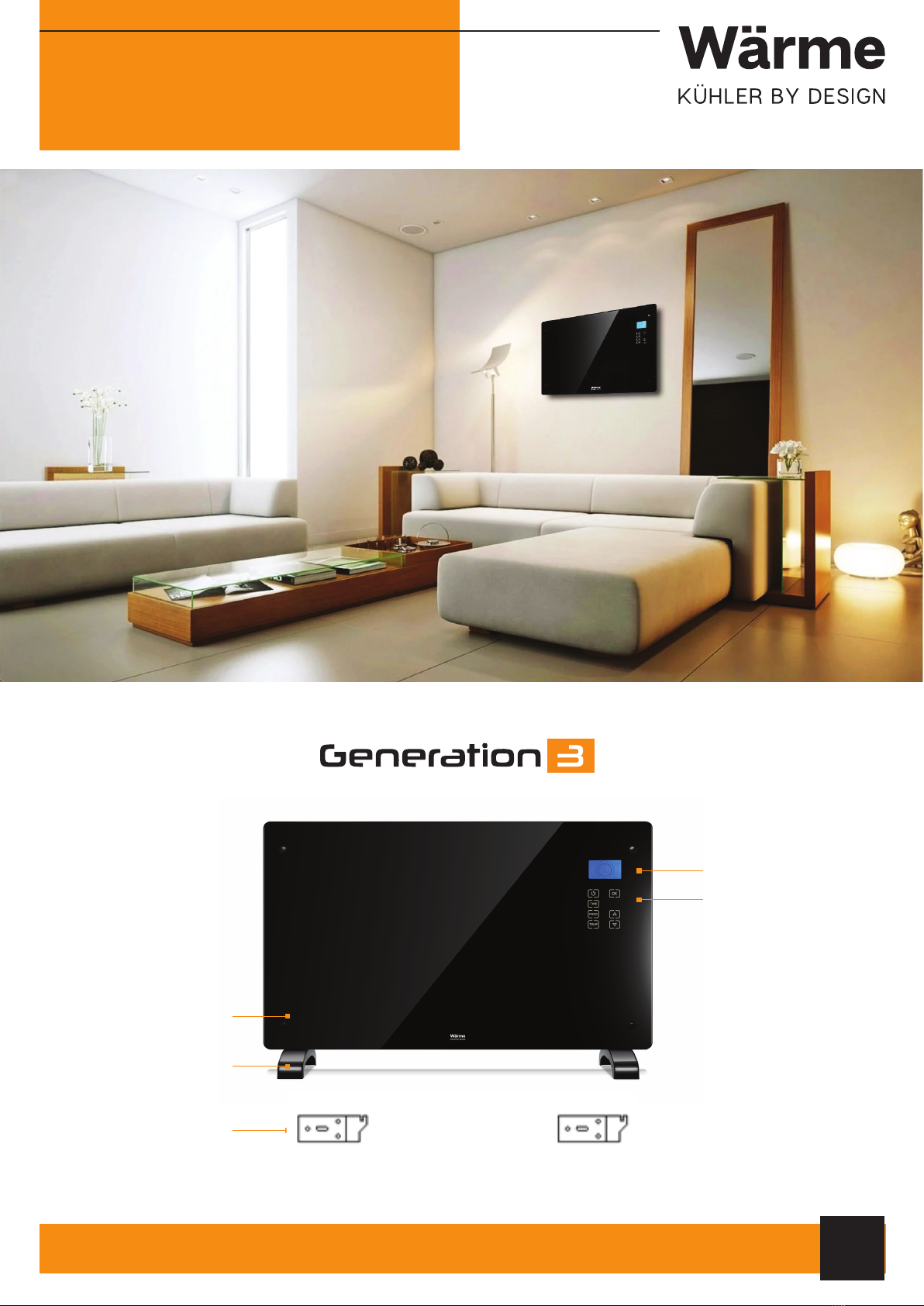

Glass Screen
LCD Screen
Foot
Wall Bracket
Control Panel

Standby key: Switching
the appliance on/o.Seng the
temperature.
Adjusng value up.
Seng the me.
Conrming an input/
entering menu.
Adjusng value down.
Seng the program
mode.
Control Panel
For more information visit: www.designerheater.com
PRODUCT
DESCRIPTION
02
05
OK
Instant heating modeProgrammed weekly heating mode
Monday
Tuesday
Wednesday
Thursday
Friday
Saturday
Sunday
Comfort mode
Economy mode
Free-frost mode
Temperature
24 hour scale (each dot
represents 30 minutes)
Heating icon-if on,
indicates that heating
process is activated
Clock
TIME
PROG
TEMP
Child Lock
Display

For more information visit: www.designerheater.com
Assembly
03
06
Free Standing Option
Wall Mounting
1. Attach the two plastic feet to the bottom of the appliance with the
delivered screws.
2. Be sure to place your Wärme Designer Heater on a flat surface.
Finding a suitable location:
Your Wärme Designer Heater must be installed so that
airflow is not obstructed. The installation must be done by
a qualified person in order to avoid a hazard. Respect the
minimal distances between your heater and the walls, the
ground, the furniture etc. (as requested in the picture):
• To the ceiling min. 30cm
• Left, right and in front of the appliance min. 30cm
Installing and fixing the device:
1. Position and fix 2 x brackets to
the wall 450mm apart.
2. Position and fix the remaining
2 x brackets on to the bottom
of the heater.
3. Slide the heater on to the wall
bracket and installation is
complete.

Switching Your Wärme Designer Heater On/Off
For more information visit: www.designerheater.com
Use and
Operation
04
07
1. Plug the heater into a safe and convenient place.
2. Press the key to activate the menu.
3. The LCD display will show the current temperature and the set time (default 12:00).
Child Lock Function
1. To unlock the heater, press and hold the key for 5 seconds until it beeps.
2. You will see the padlock image unlock on the LCD screen.
3. Reverse the process to lock.
4. The heater will automatically lock if no button is pressed for two minutes.
Setting The Temperature
1. To set the temperature press the key.
2. The temperature will start to flash on the LCD display.
3. Use the and arrows to select the desired target temperature.
4. Press the key again to confirm.
Timer Function
1. In the instant heating mode, the digital clock is a countdown timer, which can be set in hours and minutes to keep
the heater on, for example, whilst you go to sleep for as long as you desire (maybe 1 hour before bed).
2. In weekly heating mode, the same digital display is a 24 hour clock and can be set as a clock (see setting the time).
OK
TEMP
TEMP

Setting The Time
Use and
Operation
04
For more information visit: www.designerheater.com 08
1. To set the time press the key.
2. The hour will flash on the LCD display.
3. Set the hour using the and arrows.
4. Confirm by pressing the key again.
5. Now the minutes will flash on the LCD display.
6. Set the minutes using the and arrows.
7. Confirm by pressing the key again.
Open Window Function
Memory
1. Your Wärme Designer Heater has an in-built memory to protect your weekly heating schedule in the event of a
power cut or power loss.
2. To activate your settings once the power has been lost you MUST set the clock and the temperature manually.
3. Your weekly heating schedule will be saved.
1. Your Wärme Designer Heater is fitted with state-of-the-art energy saving technology such as the ‘open window
function’
2. To activate the ‘open window function’, press and hold the key for 5 seconds. The open window icon will
appear on the LCD display.
3. When activated, your Wärme Designer Heater will automatically stop heating when the room temperature drops by
4°C in 20 minutes.
4. To deactivate, press and hold the key for 5 seconds and the icon will then disappear.
5. To resume heating, you must first unlock the heater (if locked) and then press the key twice to restore to the
heating mode selected before the window was open.
TIME
TIME
TIME
TEMP
TEMP
Please note, you must set the time in weekly program mode.

Heating Modes
Instant Heat Mode
For more information visit: www.designerheater.com
Heating
Modes
05
09
Your Wärme Designer Heater has two dierent heating modes:
• Instant Heat Mode
• Programmed Weekly Heating Mode
Instant heating mode provides three additional heating functions:
Press the key and use the and arrows to select the desired mode. The icon of the selected mode
will be highlighted at the bottom of the LCD display.
PROG
PROG
PROG
1. To enter Instant heat mode unlock the heater, press the key and use the and arrows until the is
highlighted on the bottom right hand side of the LCD display.
2. Once the in the bottom right is highlighted, press the key again.
3. Wait for 15 seconds.
4. Use the and arrows to select the desired heat function (Comfort, Economy, Frost free).
5. You will see the cursor on the right hand side of the menu toggle between the heat settings.
6. Leave the cursor on the one you want to select.
7. Your heater will now heat to the target temperature you have set.

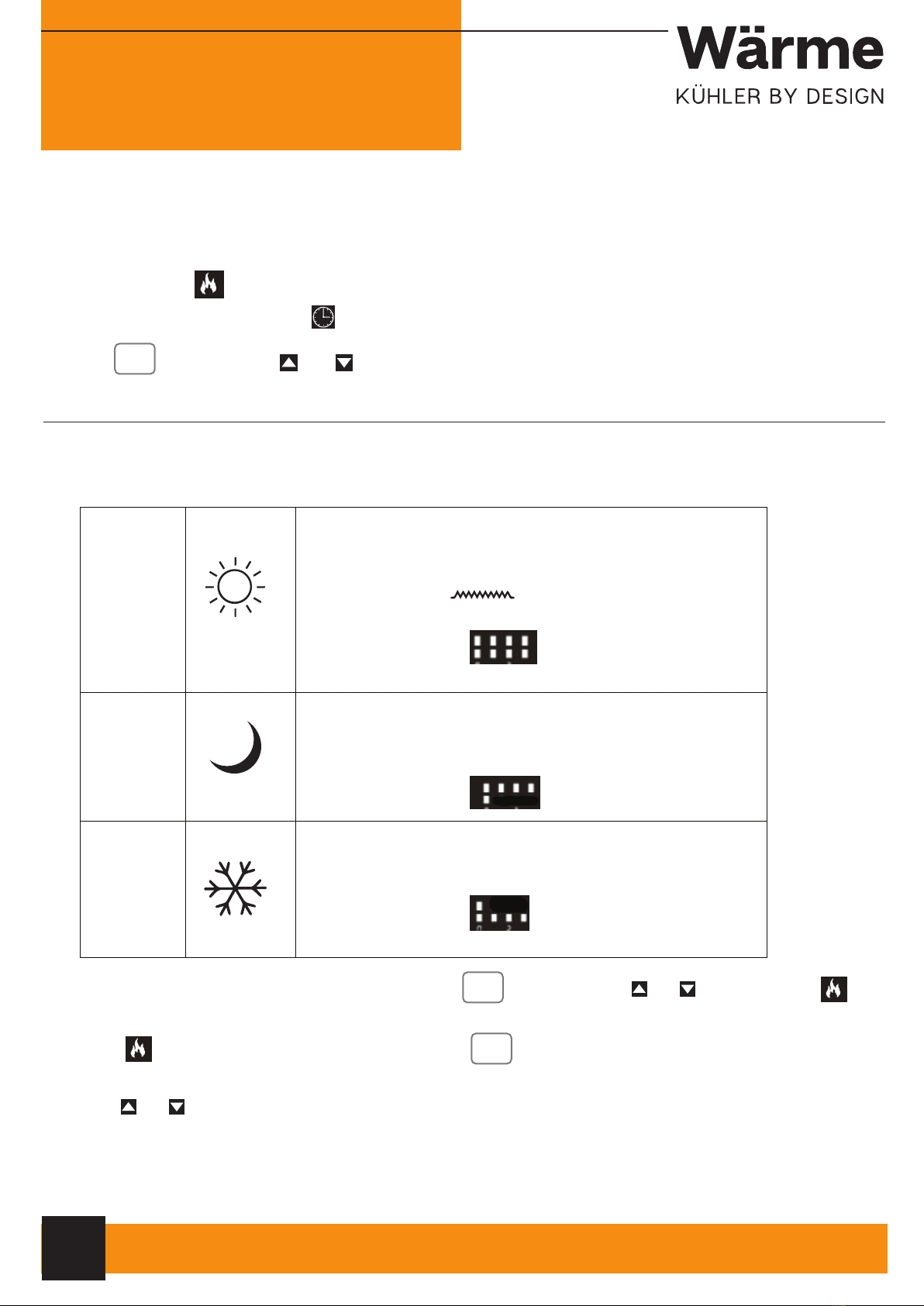

Comfort
Comfort funcon is intended to heat the room at the set
temperature.
When acvated icon
Default heang temperature is set to 35°c.
The mode display icon is
Economy
Economy funcon is intended to maintain an average room
temperature. When the room temperature drops to 3°C below the
target temperature, the heater will automacally switch back on.
The mode display icon is
Frost-free
Frost-free funcon is intended to keep the minimum temperature of
5°C inside the room (this temperature cannot be adjusted).
The mode display icon is
appears on the LCD display.

Heating
Modes
05
For more information visit: www.designerheater.com 10
Programmed weekly heating mode
1. To enter Programmed weekly heating mode, press the key and use the and arrows until the
is highlighted on the bottom left hand side of the LCD display.
2. Press
3. The cursor will then move to the days of the week down the left hand side of the LCD display.
4. When the 1 is highlighted, use the and arrows to select the day to be programmed.
5. When the 1 is highlighted, press the key to start programming.
6. Press the key. The cursor will highlight the dierent heat modes on the right hand side of the menu (comfort,
economy, frost free).
7. With the desired heat mode selected, press the arrow and move around the segment timer until you reach a time
you want to change the heat mode.
8. Press to change the heat mode again. Use the arrow until you reach the next time you want to change the
heat mode.
9. Repeat this process as desired until you reach midnight.
10. Once you have one day programmed, you can copy it on to the following day. To do this, move the cursor to
highlight the next day (for example 2), and simply hold down the key for 5 seconds.
TIME
PROG
PROG
OK
OK
OK
24-HOURS SCALE
THE DRAWING ILLUSTRATES THE FOLLOWING SETTING.
This mode is designed to represent a segment plug timer. Please note: the circle that goes around the time and
temperature starts at midnight and each dot represents half an hour.

Maintenance
Always disconnect your Wärme Designer Heater and let it completely cool before any maintenance. Use a vacuum
cleaner to remove dust on the grilles. Clean the outside of the unit with glass cleaner. Never immerse the unit in water
nor let water drip into the unit.
Storage
Always disconnect your Wärme Designer Heater and let it completely cool before storing. If you do not use it for a long
period of time store it in the original carton in a dry and ventilated place. Do not place any heavy items on top of your
heater as this may cause damage.
According to the European waste regulation 2002/96/EC this symbol on the product or on
its packaging indicates that this product may not be treated as household waste. Instead
it should be taken to the appropriate collection point for the recycling of electrical and
electronic equipment. By ensuring this product is disposed of correctly, you will help pre-
vent potential negative consequences for the environment and human health, which
could otherwise be caused by inappropriate waste handling of this product. For more
detailed information about recycling of this product, please contact your local council or
your household waste disposal service.
Cleaning and Care
Hints on Disposal
Declaration of Conformity
Cleaning
And Care
08
For more information visit: www.designerheater.com
11
Producer: Wärme Limited, Leicestershire, LE7 4UW, UK
This product is conform to the following European Directives:
2004/108/EC (EMC)
2011/65/EU (RoHS)
2006/95/EC (LVD)

www.designerheater.com
