WAGO 787-1668/0000-0080 User manual

Manual
787-1668/0000-0080
Electronic Circuit Breaker
DC 24 V, 8 × 1 … 10 A
Version 1.1.0, valid from firmware 2.4.0

2
787-1668/0000-0080 Electronic Circuit Breaker
Manual
Version 1.1.0, valid from firmware 2.4.0
© 2019 WAGO Kontakttechnik GmbH & Co. KG
All rights reserved.
WAGO Kontakttechnik GmbH & Co. KG
Hansastraße 27
D-32423 Minden
Phone: [phone] – 0
Fax: [phone] – 1 69
E-Mail: [email protected]
Web: www.wago.com
Technical Support
Phone: [phone] – 4 45 55
Fax: [phone] – 84 45 55
E-Mail: [email protected]
Every conceivable measure has been taken to ensure the accuracy and
completeness of this documentation. However, as errors can never be fully
excluded, we always appreciate any information or suggestions for improving the
documentation.
E-Mail: [email protected]
We wish to point out that the software and hardware terms as well as the
trademarks of companies used and/or mentioned in the present manual are
generally protected by trademark or patent.
WAGO is a registered trademark of WAGO Verwaltungsgesellschaft mbH.

Table of Contents 3
787-1668/0000-0080 Electronic Circuit Breaker
Manual
Version 1.1.0, valid from firmware 2.4.0
Table of Contents
1Notes about this Documentation .............................................................5
1.1 Copyright................................................................................................5
1.2 Symbols .................................................................................................6
1.3 Number Notation ....................................................................................8
1.4 Font Conventions ...................................................................................8
2Important Notes ........................................................................................9
2.1 Legal Bases............................................................................................9
2.1.1 Subject to Changes............................................................................9
2.1.2 Personnel Qualifications ....................................................................9
2.1.3 Use of the 787 Series in Compliance with Underlying Provisions.......9
2.1.4 Technical Condition of Specified Devices.........................................10
2.2 Safety Advice (Precautions) .................................................................11
3Device Description..................................................................................14
3.1 View .....................................................................................................15
3.2 Connectors ...........................................................................................16
3.2.1 Power Supply...................................................................................16
3.2.2 Fuse-Protected Outputs ...................................................................17
3.2.3 Communication................................................................................17
3.3 Display Elements..................................................................................18
3.4 Operating Elements..............................................................................19
3.4.1 Button ..............................................................................................19
3.4.2 Rotary Switch...................................................................................20
3.5 Technical Data .....................................................................................21
3.5.1 Device Data .....................................................................................21
3.5.2 Technical Data for “Input".................................................................22
3.5.3 Technical Data for “Output"..............................................................23
3.5.4 Technical Data for “Ambient Conditions”..........................................24
3.5.5 Technical Data for “Signaling" ..........................................................24
3.5.6 Technical Data “Communication” .....................................................24
3.6 Approvals .............................................................................................25
3.7 Standards and Guidelines ....................................................................26
4Mounting..................................................................................................27
4.1 Mounting ..............................................................................................27
4.2 Mounting the Device on the DIN 35 Rail ...............................................27
4.3 Removing the Device from the DIN 35 Rail...........................................28
5Connect Devices .....................................................................................29
5.1 Connection Example ............................................................................29
6Function Description ..............................................................................30
6.1 Undervoltage and Overvoltage Detection .............................................30
6.2 Tripping Characteristics........................................................................30
6.3 Activating Capacitive Loads..................................................................31
6.3.1 Reference Values for 787-1668/0000-0080......................................31
6.4 General Operating Statuses .................................................................32
6.5 ON Delay for Specific Channels ...........................................................34

4 Table of Contents
787-1668/0000-0080 Electronic Circuit Breaker
Manual
Version 1.1.0, valid from firmware 2.4.0
6.6 “Status query via channel 8” Function...................................................35
7IO-Link Interface......................................................................................36
7.1 Cyclic Process Data .............................................................................36
7.1.1 Output Data .....................................................................................36
7.1.2 Input Data ........................................................................................38
7.2 Acyclic Data..........................................................................................42
7.3 “IODD” Device Description File.............................................................45
7.3.1 Graphical User Interface ..................................................................45
7.3.1.1 “Identification” Menu Item ............................................................46
7.3.1.2 “Parameters” Menu Item..............................................................47
7.3.1.3 “Observation” Menu Item.............................................................49
7.3.1.4 “Diagnosis” Menu Item ................................................................50
7.3.1.5 “Process Data” Menu Item...........................................................51
7.3.1.6 “Process Data Structure” Menu Item ...........................................52
7.3.1.7 “Events” Menu Item .....................................................................53
7.3.1.8 “Info” Menu Item ..........................................................................54
7.3.1.9 “Connection Info” Menu Item .......................................................55
List of Figures ..................................................................................................56
List of Tables....................................................................................................57

Notes about this Documentation 5
787-1668/0000-0080 Electronic Circuit Breaker
Manual
Version 1.1.0, valid from firmware 2.4.0
1 Notes about this Documentation
Always retain this documentation!
This documentation is part of the product. Therefore, retain the documentation
during the entire service life of the product. Pass on the documentation to any
subsequent user. In addition, ensure that any supplement to this documentation
is included, if necessary.
Documentation Validity for Variants
Unless otherwise indicated, the information given in this documentation applies
to listed variants.
1.1 Copyright
This Manual, including all figures and illustrations, is copyright-protected. Any
further use of this Manual by third parties that violate pertinent copyright
provisions is prohibited. Reproduction, translation, electronic and phototechnical
filing/archiving (e.g., photocopying) as well as any amendments require the
written consent of WAGO Kontakttechnik GmbH & Co. KG, Minden, Germany.
Non-observance will involve the right to assert damage claims.

6 Notes about this Documentation
787-1668/0000-0080 Electronic Circuit Breaker
Manual
Version 1.1.0, valid from firmware 2.4.0
1.2 Symbols
Personal Injury!
Indicates a high-risk, imminently hazardous situation which, if not avoided, will
result in death or serious injury.
Personal Injury Caused by Electric Current!
Indicates a high-risk, imminently hazardous situation which, if not avoided, will
result in death or serious injury.
Personal Injury!
Indicates a moderate-risk, potentially hazardous situation which, if not avoided,
could result in death or serious injury.
Personal Injury!
Indicates a low-risk, potentially hazardous situation which, if not avoided, may
result in minor or moderate injury.
Damage to Property!
Indicates a potentially hazardous situation which, if not avoided, may result in
damage to property.
Damage to Property Caused by Electrostatic Discharge (ESD)!
Indicates a potentially hazardous situation which, if not avoided, may result in
damage to property.
Important Note!
Indicates a potential malfunction which, if not avoided, however, will not result in
damage to property.

Notes about this Documentation 7
787-1668/0000-0080 Electronic Circuit Breaker
Manual
Version 1.1.0, valid from firmware 2.4.0
Additional Information:
Refers to additional information which is not an integral part of this
documentation (e.g., the Internet).

8 Notes about this Documentation
787-1668/0000-0080 Electronic Circuit Breaker
Manual
Version 1.1.0, valid from firmware 2.4.0
1.3 Number Notation
Table 1: Number Notation
Number Code
Example
Note
Decimal
100
Normal notation
Hexadecimal
0x64
C notation
Binary
'100'
'0110.0100'
In quotation marks, nibble separated
with dots (.)
1.4 Font Conventions
Table 2: Font Conventions
Font Type
Indicates
italic
Names of paths and data files are marked in italic-type.
e.g.: C:\Program Files\WAGO Software
Menu
Menu items are marked in bold letters.
e.g.: Save
>
A greater-than sign between two names means the selection of a
menu item from a menu.
e.g.: File > New
Input
Designation of input or optional fields are marked in bold letters,
e.g.:
Start of measurement range
“Value”
Input or selective values are marked in inverted commas.
e.g.: Enter the value “4 mA” under
Start of measurement range
.
[Button]
Pushbuttons in dialog boxes are marked with bold letters in square
brackets.
e.g.: [Input]
[Key]
Keys are marked with bold letters in square brackets.
e.g.: [F5]

Important Notes 9
787-1668/0000-0080 Electronic Circuit Breaker
Manual
Version 1.1.0, valid from firmware 2.4.0
2 Important Notes
This section includes an overall summary of the most important safety
requirements and notes that are mentioned in each individual section. To protect
your health and prevent damage to devices as well, it is imperative to read and
carefully follow the safety guidelines.
2.1 Legal Bases
2.1.1 Subject to Changes
WAGO Kontakttechnik GmbH & Co. KG reserves the right to provide for any
alterations or modifications. WAGO Kontakttechnik GmbH & Co. KG owns all
rights arising from the granting of patents or from the legal protection of utility
patents. Third-party products are always mentioned without any reference to
patent rights. Thus, the existence of such rights cannot be excluded.
2.1.2 Personnel Qualifications
All sequences implemented on 787 Series devices may only be carried out by
electrical specialists with sufficient knowledge in automation. The specialists must
be familiar with the current norms and guidelines for the devices and automated
environments.
2.1.3 Use of the 787 Series in Compliance with Underlying
Provisions
The 787 Series power supply system provides DC voltage to electric or electronic
devices, such as industrial control systems or display, communication and
measuring devices.
The devices have been developed for use in an environment that meets the IP20
protection class criteria. Protection against finger injury and solid impurities up to
12.5 mm diameter is assured; protection against water damage is not ensured.
Unless otherwise specified, operation of the components in wet or dusty
environments is prohibited.
The devices are designed for installation in an enclosure. Under no
circumstances may they be used in control systems for planes or in nuclear
facilities, as any malfunction in these applications could result in severe injuries
or risk of death.

10 Important Notes
787-1668/0000-0080 Electronic Circuit Breaker
Manual
Version 1.1.0, valid from firmware 2.4.0
2.1.4 Technical Condition of Specified Devices
The devices to be supplied ex works are equipped with hardware and software
configurations, which meet the individual application requirements. These
modules contain no parts that can be serviced or repaired by the user. The
following actions will result in the exclusion of liability on the part of WAGO
Kontakttechnik GmbH & Co. KG:
• Repairs,
• Changes to the hardware or software that are not described in the
operating instructions,
• Improper use of the components.
Further details are given in the contractual agreements. Please send your
request for modified and new hardware or software configurations directly to
WAGO Kontakttechnik GmbH & Co. KG.

Important Notes 11
787-1668/0000-0080 Electronic Circuit Breaker
Manual
Version 1.1.0, valid from firmware 2.4.0
2.2 Safety Advice (Precautions)
For installing and operating purposes of the relevant device to your system the
following safety precautions shall be observed:
Do not work on devices while energized!
All power sources to the device shall be switched off prior to performing any
installation, repair or maintenance work.
Installation only in appropriate housings, cabinets or in electrical operation
rooms!
Always install devices of the 787 Series in enclosures, cabinets or electrical
equipment rooms which can be closed and locked. Ensure that access to this
equipment/these rooms is possible only by authorized specialists with the
appropriate key or tools.
Do not use these devices in control systems for planes, trains or nuclear
facilities!
Never use these devices in control systems for planes, trains or nuclear facilities,
as any malfunction in these applications can result in severe injuries or risk of
death!
Ensure a standard connection!
To minimize any hazardous situations resulting in personal injury or to avoid
failures in your system, the data and power supply lines shall be installed
according to standards, with careful attention given to ensuring the correct
terminal assignment. Always adhere to the EMC directives applicable to your
application.
Switch off power supply to defective device!
Switch off power supply to the device immediately if the device malfunctions or is
damaged! Control systems connected to the device may also be damaged!
Return the defective device directly to WAGO.

12 Important Notes
787-1668/0000-0080 Electronic Circuit Breaker
Manual
Version 1.1.0, valid from firmware 2.4.0
Do not plug in or disconnect the female connector while a load is applied!
Only plug in or disconnect the female connectors when the device is not live!
Failure to observe this can result in damage to the contacts due to arcing!
Plug the female connectors all the way into the male connectors!
Always plug the female connectors all the way in to the male connectors. This
ensures proper contact at all times.
Attach the free ends of the conductors using a strain relief device!
Female connectors can be pulled out of the male connectors by high vibration
levels or shock impacts!
Provide appropriate strain relief means to attach and cap any free ends of the
conductors!
Protect the components against materials having seeping and insulating
properties!
The components are not resistant to materials having seeping and insulating
properties such as: aerosols, silicones and triglycerides (found in some hand
creams). If you cannot exclude that such materials will appear in the component
environment, then install the components in an enclosure being resistant to the
above-mentioned materials. Clean tools and materials are imperative for
handling devices/modules.
Clean only with permitted materials!
Clean housing and soiled contacts with propanol.
Do not use any contact spray!
Do not use any contact spray. The spray may impair contact area functionality in
connection with contamination.
Do not reverse the polarity of connection lines!
Avoid reverse polarity of data and power supply lines, as this may damage the
devices involved.

Important Notes 13
787-1668/0000-0080 Electronic Circuit Breaker
Manual
Version 1.1.0, valid from firmware 2.4.0
Avoid electrostatic discharge!
The devices are equipped with electronic components that may be destroyed by
electrostatic discharge when touched. Please observe the safety precautions
against electrostatic discharge per DIN EN 61340-5-1/-3. When handling the
devices, please ensure that environmental factors (personnel, work space and
packaging) are properly grounded.

14 Device Description
787-1668/0000-0080 Electronic Circuit Breaker
Manual
Version 1.1.0, valid from firmware 2.4.0
3 Device Description
The 787-1668/0000-0080 electronic circuit breaker reliably protects up to 8 load
circuits against short circuiting and overloading. The 24 VDC input voltage
applied to 8 output channels, each of which can be provided with separate fuse
protection:
Table 3: Channel Fuse Protection
Version
Fuse Protection per Channel
787-1668/0000-0080
1 A, 2 A, 3 A, 4 A, 6 A, 8 A, 10 A
The electronics can accommodate brief current peaks.
The IO-Link interface can be used to set all listed trip currents. The device also
has 8 rotary switches which can be used to set 5 different trip currents.
The actual status of the output channel is indicated by a multi-colored LED.
In the event of a short circuit or overloading, the individual channel is de-
energized after a defined trip time.
Wait for temperature to return to normal!
If a channel has been de-activated due to short-circuiting or overloading, wait
until the temperature returns to its normal range (cooling period) before re-
activating the channel.
The terms “switched ON” and “switched OFF”, as well as “tripped” are used in
this manual. To clearly delineate these terms, they are explained as follows:
Table 4: Definition of Terms
Designation
Definition
Switched ON
The user has activated the electronic circuit breaker
manually from the button or by a corresponding
interface command. The load circuit is closed, the
current flows.
Switched OFF
The user has deactivated the electronic circuit
breaker manually from the button or by a
corresponding interface command. The load circuit
is open, the current flow is interrupted.
Tripped
The electronics of the electronic circuit breaker have
been tripped due to overcurrent, undervoltage or
overvoltage. The load circuit is open, the current
flow is interrupted.

Device Description 15
787-1668/0000-0080 Electronic Circuit Breaker
Manual
Version 1.1.0, valid from firmware 2.4.0

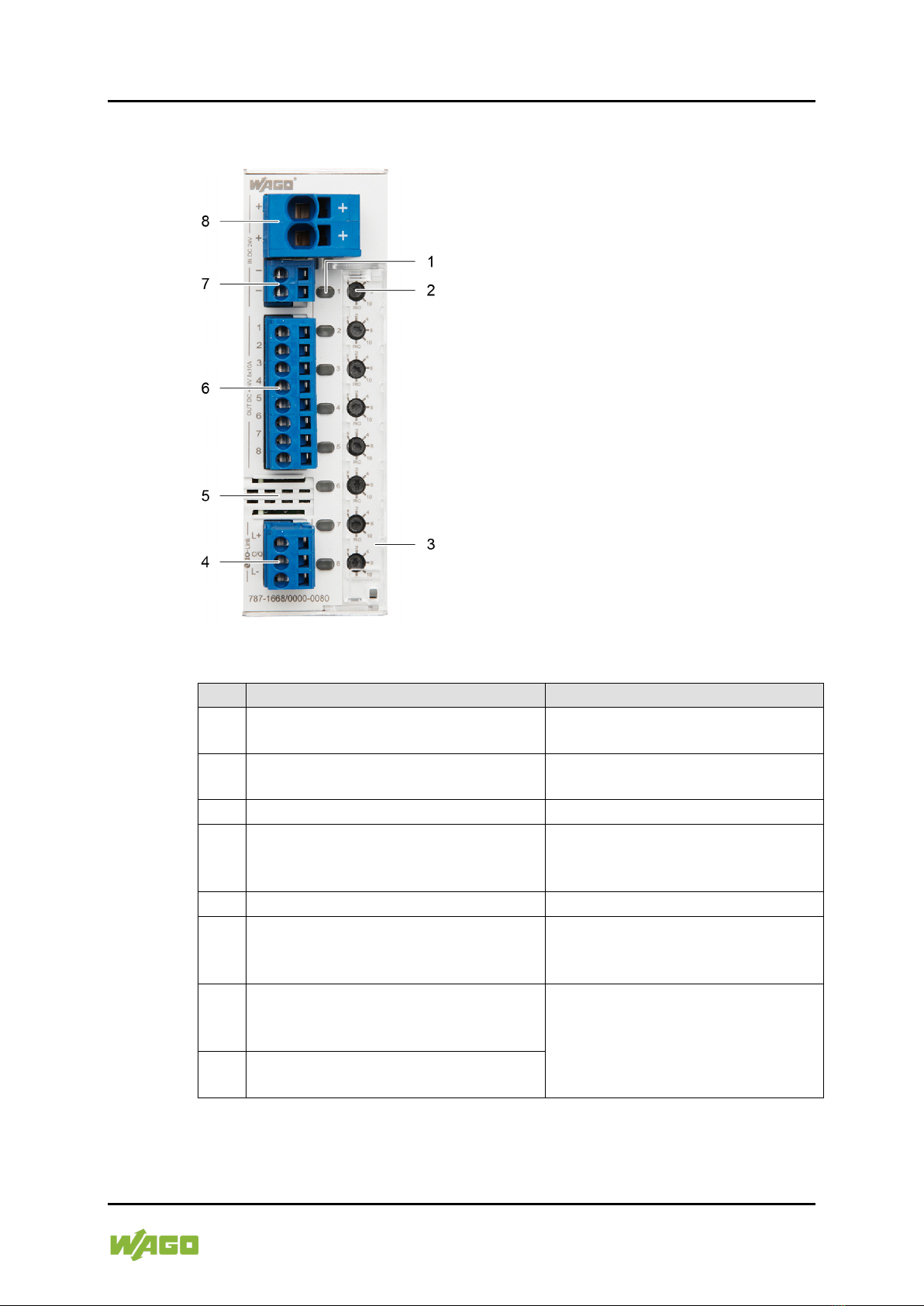

3.1 View
Figure 1: View of device
Table 5: Key for "Device view" figure
No.
Designation
Reference
1
Switch
“Device Description” >
“Operating Elements” > “Button”
2
Rotary switch
“Device Description” > “Operating
Elements” > “Rotary Switch”
3
Cover, sealable 1
4
CAGE CLAMP®connections
L+, C/Q, L-
“Device Description” >
“Connectors” >
“Communication”
5
Marking field 2
6
CAGE CLAMP®connections
for fuse-protected channels
“Device Description” >
“Connectors” >
“Fuse-Protected Outputs”
7
CAGE CLAMP®connections
for 0V reference potential
(for internal supply only)
“Device Description” >
“Connectors” > “Power Supply”
8
CAGE CLAMP®connections
for 24V input voltage
1Can also be marked using TOPJOB® S marking strips (Item No. 2009-110)
2Can be marked using TOPJOB® S marking strips (Item No. 2009-110) or the
WMB Multi marking system (Item No. 793-501)

16 Device Description
787-1668/0000-0080 Electronic Circuit Breaker
Manual
Version 1.1.0, valid from firmware 2.4.0
3.2 Connectors
Do not plug in or disconnect the female connector while a load is applied!
Only plug in or disconnect the female connectors when the device is not live!
Failure to observe this can result in damage to the contacts due to arcing!
Plug the female connectors all the way into the male connectors!
Always plug the female connectors all the way in to the male connectors. This
ensures proper contact at all times.
Attach the free ends of the conductors using a strain relief device!
Female connectors can be pulled out of the male connectors by high vibration
levels or shock impacts!
Provide appropriate strain relief means to attach and cap any free ends of the
conductors!

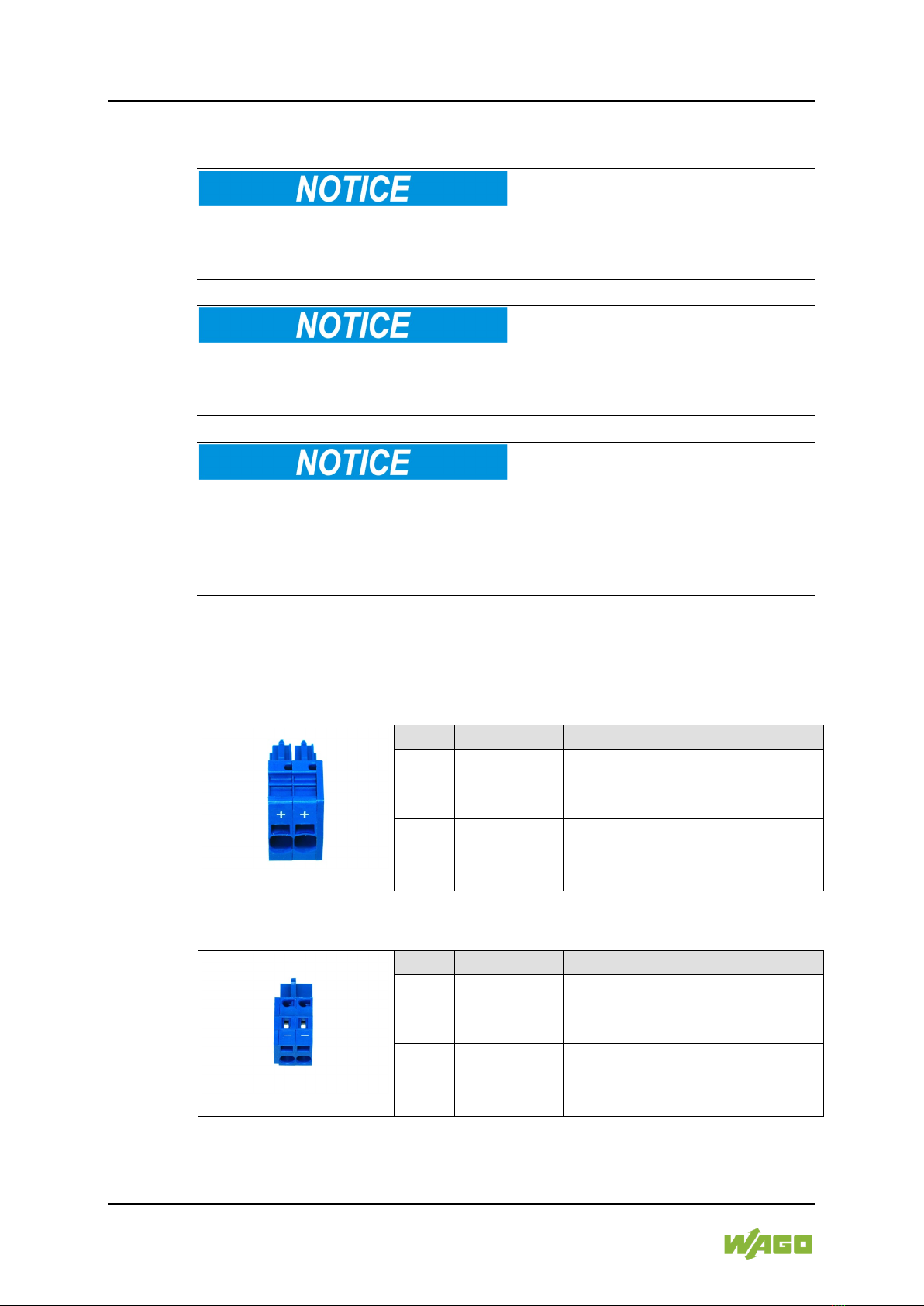

3.2.1 Power Supply
Table 6: Power supply connections
Figure 2: 24 V input
No.
Designation
Function
1
+
24 V input voltage
2
+
24 V input voltage
Table 7: Power supply connections
Figure 3: 0 V input
No.
Designation
Function
1
-
Reference potential 0 V
2
-
Reference potential 0 V

Device Description 17
787-1668/0000-0080 Electronic Circuit Breaker
Manual
Version 1.1.0, valid from firmware 2.4.0
Total current exceeds 40 A!
Distribute the current to input terminals "IN1" and "IN2" when the total current
should exceed 40°A, as otherwise the plug-in connectors will become overheated
and can be damaged or destroyed.
3.2.2 Fuse-Protected Outputs
Table 8: Connections – Fuse-protected outputs
Figure 4: Fuse-protected
outputs Ch1 … Ch8
No.
Designation
Function
1 … 8
Ch1 … Ch8
Fuse-protected outputs
Ch1 … Ch8
3.2.3 Communication
Table 9: Communication
Figure 5: Communication
Contacts
No.
Designation
Function
1
L+
Power supply +
2
C/Q
Communication signal
IO-Link
3
L-
Power supply -

18 Device Description
787-1668/0000-0080 Electronic Circuit Breaker
Manual
Version 1.1.0, valid from firmware 2.4.0
3.3 Display Elements
A multi-colored LED, integrated in a button, is assigned to each channel. The
LED indicates the current operating status of the channel.
Figure 6: Display Elements
Detailed Information on the Individual Operating Statuses
The table below provides a brief overview of the individual button colors and
corresponding meaning.
Detailed information on the individual operating statuses is available in the
“General Operating Statuses” table.
Table 10: Display Elements
LED
Button color
Explanation
1 … 8
Green
Channel switched ON.
Green, flashing
Channel switched ON.
Load current greater than threshold
Red
Channel switched OFF.
Red, flashing
Channel tripped.
Wait for temperature to return to normal.
Yellow, flashing
Channel tripped.
Temperature returned to normal.

Device Description 19
787-1668/0000-0080 Electronic Circuit Breaker
Manual
Version 1.1.0, valid from firmware 2.4.0
3.4 Operating Elements
3.4.1 Button
A button is assigned to each output channel. Depending on the operating mode
the button can have two different functions:
• During operation, the channel can be activated and de-activated.
• If an error is present, the channel can be reset.

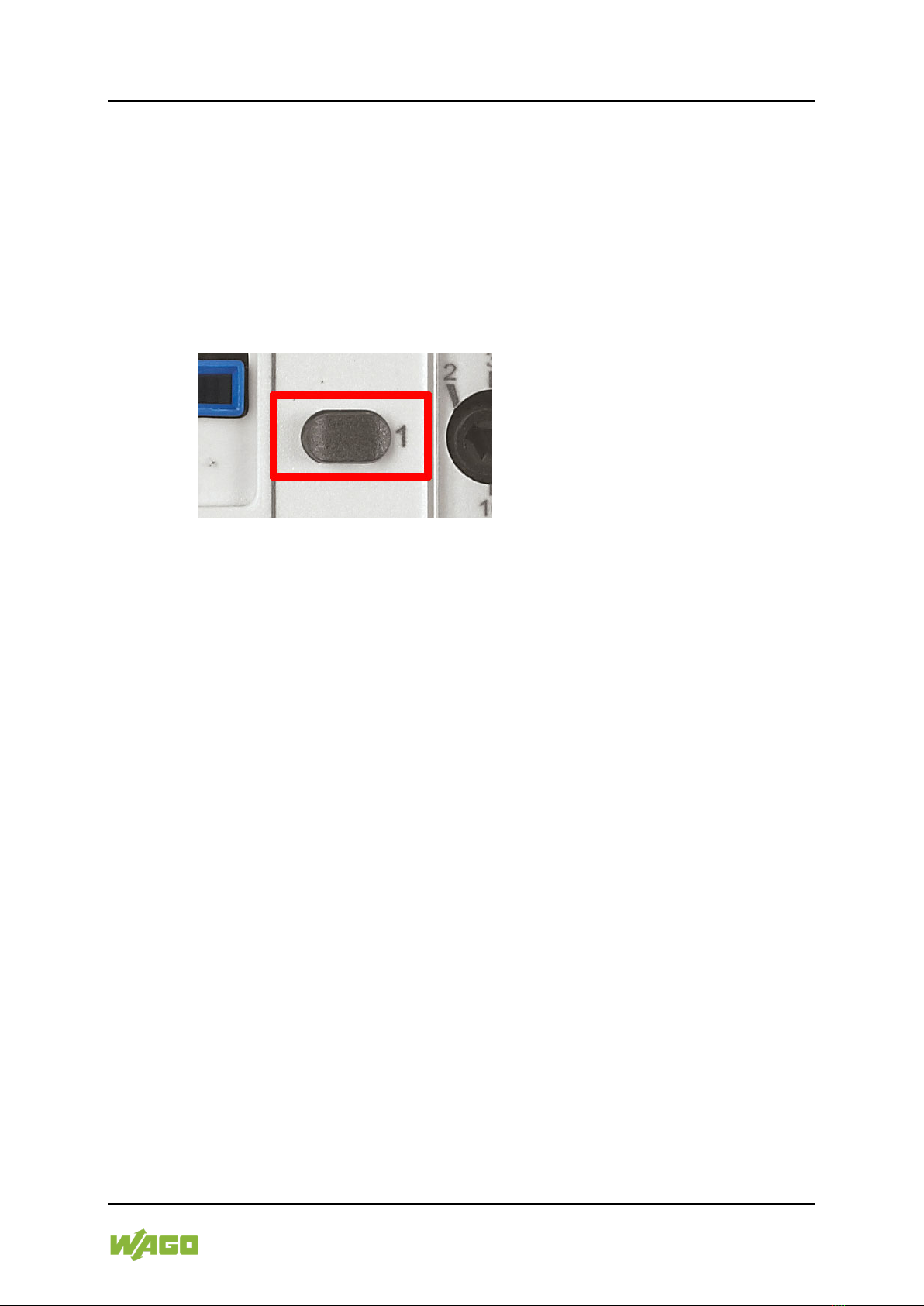

Figure 7: Button

20 Device Description
787-1668/0000-0080 Electronic Circuit Breaker
Manual
Version 1.1.0, valid from firmware 2.4.0
3.4.2 Rotary Switch
A rotary switch, which can be used to set the trip current for the individual
channel, is assigned to each channel. The following settings are possible:
• 1 A
• 2 A
• 4 A
• 6 A
• 10 A
• RC
Figure 8: Rotary switch
“RC” (Remote Control) Setting:
The IO-Link interface can be used to set the trip current in this setting. This can
be done acyclically from a program or via corresponding control software with
installed device description file “IODD”.
Observe trip curve!
Observe the trip curve given in the Section "Function Description" when setting
the individual channels.
