Waring PJE SERIES User manual

PROFESSIONAL JUICE EXTRACTOR
For your safety and continued enjoyment of this product,
always read the instruction book carefully before using.
PJE & PJC SERIES

CONTENTS
ImportantSafeguards............................1
Disassembling..................................3
Assembling ....................................3
Parts..........................................4
A Delicious Nutritional Experience. . . . . . . . . . . . . . . . . . 4
CleaningInstructions ............................5
Helpful Hints When Juicing . . . . . . . . . . . . . . . . . . . . . . . 6
Important Facts You Should Know . . . . . . . . . . . . . . . . . 6
Suggestions For Juice Combinations . . . . . . . . . . . . . . . 7
UseofPulp ....................................8
Optional Citrus Juicer Attachment. . . . . . . . . . . . . . . . . . 8
Recipes ......................................10
IMPORTANT: Always unplug the Waring Pro®
Professional Juice Extractor from outlet when
disassembling and assembling.
IMPORTANT SAFEGUARDS
1. READ ALL INSTRUCTIONS.
2. To protect against electrical hazards, do not immerse
the Waring Pro®Juice Extractor in water or other
liquid.
3. This appliance should not be used by or near children
or individuals with certain disabilities.
4. Unplug from outlet when not in use, before putting on
or taking off parts and before cleaning.
5. Avoid contact with moving parts.
6. Do not operate the Waring Pro®Juice Extractor or
any other electrical equipment with a damaged cord
or plug, or after the unit malfunctions, or is dropped
or damaged in any manner. Return it to the nearest
authorized service facility for examination, repair, or
adjustment.
7. The use of any attachments not recommended or sold
by Waring may cause fire, electric shock, or injury.
1

8. Do not use outdoors.
9. Do not let power cord hang over edge of table or
counter, or touch hot surfaces.
10. Always make sure juice extractor cover is secure
beneath spring clips before motor is turned on. Do not
loosen cover while juice extractor is in operation.
11. Be sure to turn switch to OFF position and unplug from
outlet after each use of your juice extractor. Make sure
the motor stops completely before disassembling.
12. Do not put your fingers or other objects into the juice
extractor feed chute while extractor is in operation.
If food becomes lodged in opening, use plunger or
another piece of fruit or vegetable to push piece of
food down. When this method doesn’t work, turn the
motor off, unplug from outlet and disassemble juice
extractor to move any remaining food.
13. This appliance has a polarized plug (one blade is wider
than the other). To reduce the risk of electric shock,
this plug will fit in a polarized outlet only one way. If
the plug does not fit fully in the outlet, reverse the
plug. If it still does not fit, contact a qualified electri-
cian. Do not modify the plug in any way.
IMPORTANT NOTE: For your safety and protection,
this juice extractor is equipped with a thermal protec-
tor. Should your juice extractor overheat, the motor will
automatically shut off. To restart, follow these steps:
• Move the toggle switch to the OFF position.
• Unplug juice extractor from electrical outlet.
• Let motor cool down for approximately 5 to
10 minutes.
• Once the motor has cooled down, plug unit into
electrical outlet.
• Move toggle switch to ON position to continue
juicing.
SAVE THESE INSTRUCTIONS
FOR HOUSEHOLD USE ONLY
2

DISASSEMBLING
Important: Juice extractor should be unplugged from
outlet when disassembling.
• After removing your new juice extractor from the box,
you may want to familiarize yourself with the parts
by disassembling the unit and washing the top parts
(pusher, cover, clutch, cutter blade, strainer basket,
and juice collector bowl, see Figure 1).
• With juice extractor facing you (spout front), put your
hands on both sides of the cover. Using the side
arms for leverage, push back with your left hand
and pull forward with your right, turning the cover
clockwise. This will disengage the cover from the
spring clips and disengage the lid safety interlock.
• Look into juice extractor and remove clutch by
unscrewing counterclockwise.
• Lift out cutter blade.
• Lift out strainer basket.
• Lift off bowl.
ASSEMBLING
• Place bowl on motor base housing and place the spout
facing front between the two raised projections on the
motor base housing.
• Place strainer basket inside the bowl over the hex
drive. Be certain the strainer basket sits flat.
• Place cutter blade inside strainer basket with teeth up.
• Tighten clutch finger until it is tight or snug.
• If using disposable filter, insert it flat against the holes
around the inside of the strainer basket. Once the juice
extractor is running, centrifugal force will push the filter
into perfect position.
• Place cover on bowl with feed chute at the rear, grip
the sides of the lid firmly and turn counter clockwise to
engage the spring clips and the safety interlock.
• IMPORTANT NOTE: The juice extractor will not operate
until the cover is properly assembled to the unit.
3

1. 2.
3.
4.
5.
6.
7.
9.
8.
Fig. 1
PARTS
1. Pusher
2. Cover
3. Clutch
4. Cutter Blade
5. Strainer Basket
6. Juice Collector Bowl
7. Base
8. ON/OFF Switch (not shown)
9. Citrus Juice Attachment
(Included with model PJC44)
10. Drip Spout
11. Safety Interlock Switch (hidden)
A DELICIOUS NUTRITIONAL EXPERIENCE AWAITS
YOU AND YOUR FAMILY
Raw juices derived from fresh fruits and vegetables are
invaluable as an aid in the maintenance of a balanced
diet. Raw juice is easily assimilated and contains, in a
most natural and complete form, precious vitamins, min-
erals, bioflavonoids and enzymes. Nutritional authorities
state that raw juice is food in an easily digestible form.
Be sure to use your Waring Pro®Professional Juice
Extractor daily, or as often as you can manage, in the
manner recommended in this instruction manual.
Because of the cleansing and rebuilding properties
contained in juices, it is recommended that you use
juices in small amounts the first week and then
gradually increase the amounts as you can comfortably
enjoy them.
Vegetable juices can be mixed, but if fruit juices are
added, do not use more than one kind. We recommend
that fruit juices be taken alone, between meals, and at
room temperature.
4
10.
11.

For further information on the consumption of juices, we
recommend that you visit your health food store or book
store and pick up one or more of the many books
available on juicing.
The Waring Pro®Professional Juice Extractor is the
result of years of intensive research and scientific
developments, and we feel sure you will be delighted
with its precision performance.
LID SAFETY INTERLOCK
The safety interlock switch prevents operation of the
machine unless the lid is in its proper position.
CLEANING INSTRUCTIONS
• Follow disassembling instructions.
• Use cool or cold tap water when washing.
• The plunger, cover, bowl, and clutch only
require rinsing.
• Blade should be washed under running water,
using a stiff brush.
• After removing most of the pulp and filter (if used)
from strainer basket using a spoon, your hands, or the
disposable filter, hold basket under cold running water
while you brush the holes from the outside. After
the holes are clean, take a damp sponge or towel
and wipe out the remaining particles. All stainless
steel parts are dishwasher safe. Plastic parts may be
placed on top rack of dishwasher.
NOTE: In case mineral stains appear after repeated use,
soak the cover, bowl, strainer basket, cutter blade,
and clutch overnight in cold water into which
Cascade®detergent (8 tablespoons to a gallon
of water) has been dissolved. Make sure all parts
soaking are completely covered with water.
5

HELPFUL HINTS WHEN JUICING
The Waring Pro®Juice Extractor is a precision made
machine. The following hints will help you get optimum
performance from your extractor.

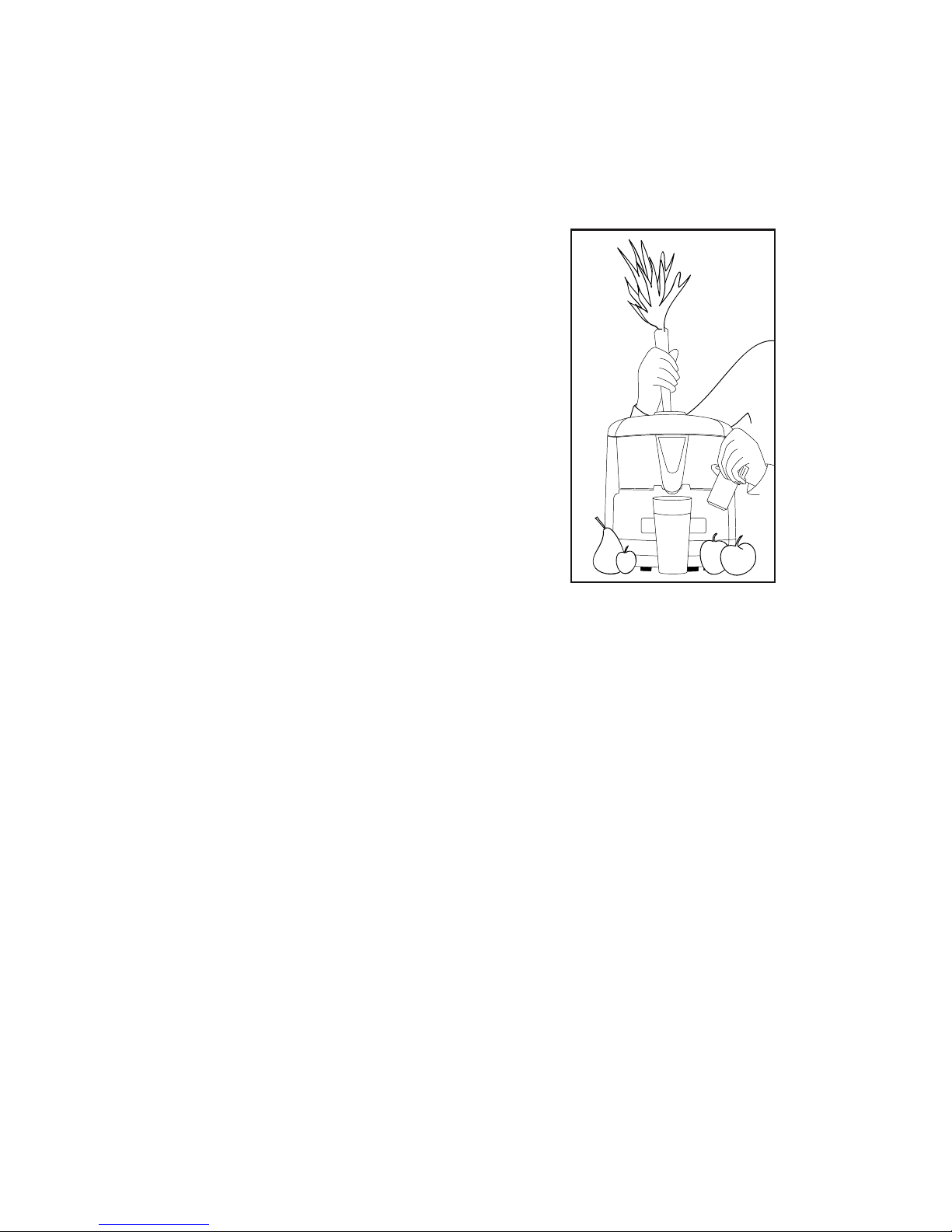

• Vegetables should always be
fresh and crisp. All fruits and
vegetables should be fed into
the feed chute as illustrated in
Figure 2. Feed all vegetables
in the largest pieces possible.
With hard fruits and vegetables
(carrots, beets, celery, etc.), we
recommend feeding through
using a hard, uneven motion.
• For optimum juicing with leafy
vegetables, we recommend
that they be rolled up and
then processed.
• With softer fruits and vegetables such as apples, we
recommend a slow, even motion when pushing down
the feed chute to allow the skins to be torn apart
completely.
IMPORTANT FACTS YOU SHOULD KNOW ABOUT
YOUR JUICE EXTRACTOR
• Your Waring Pro®Juice Extractor has a permanently
lubricated induction motor and should never be oiled.
• Do not put any parts of your Waring Pro®Juice
Extractor on the stove or in the oven.
• Be sure strainer basket and cutter blade are dry for
proper processing.
• When placing the cover on top of the machine, make
sure the feed chute is to the rear of the machine.
• After you finish feeding through the vegetables, turn
6
Fig. 2

machine off and allow the machine to come to a
complete stop for maximum juice extraction.
• The amount of juice you can make before emptying
Strainer Basket depends on what you are juicing
and the amount of juice that the fruit or vegetable
contains.
• For easier cleaning, disposable filters are available.
(See card insert and sam-
ples enclosed.) Filtering is
most effective when juicing
softer fruits and vegetables,
or when making only a few
glasses of juice at one time.
• For juicing all citrus fruits,
we advise the use of the
Citrus Juicer Attachment (PCA45) that fits the Waring
Pro®Juice Extractor. See Figure 3.
SUGGESTIONS FOR JUICE COMBINATIONS
Most everyone enjoys the juice in its fresh form just as it
comes from the juice extractor. If this is not the case with
you, you can combine different juices in proportions to
suit your taste. After experimenting with different juices,
every member of the family will find the combinations
that he or she enjoys. It is very much a matter of individ-
ual taste, and ideas of taste-tempting juice combinations
vary considerably.
Vegetable and fruit cocktails can be enjoyed at any time.
Nothing surpasses them for helping to quicken energy,
and they are delicious, nutritious drinks.
Here are some tasty juice combinations you may
wish to try:
• 2/3carrot juice with 1 /3celery juice. For improved
flavor, add a few drops of lemon juice.
7
Cone/
Drain Spout
Fig. 3

• ½ carrot juice with ½ apple juice
• ¾ carrot juice with ¼ cabbage juice
• 2/3celery juice with 1
/3apple juice
• 5 oz. carrot juice with 2 oz. cucumber juice and 1 oz.
beet juice
• 4 oz. carrot juice with 3 oz. celery juice and 1 oz.
parsley juice (or any leafy green juice)
• 6 oz. apple juice with 8 oz. carrot juice and 2 oz.
spinach juice
• 2 oz. carrot juice with 4 oz. apple juice and 2 oz.
cabbage juice
• 7 oz. celery juice with 1 oz. lemon juice
USE OF PULP
With the Waring Pro®Juice Extractor, nothing is wasted.
The leftover pulp may be used for flavoring in soups,
casseroles, breads, cakes, salads, and Jello molds.
Many people also use the pulp as compost for gardens,
shrubbery, flowers and plants.
OPTIONAL CITRUS JUICER ATTACHMENT (PCA45)
An optional citrus juicer attachment is available to enable
you to easily juice citrus fruits with your Waring Pro®
Juice Extractor. (The citrus attachment is included with
the Waring Pro®Juicing Center model PJC44.)
• Before using the citrus juicer attachment, remove
cover, clutch, cutter blade, and strainer basket from
the juice extractor. These parts are not used with the
citrus juicer attachment.
• Following Figure 4, place citrus juicer attachment on
juice extractor bowl with drain spout to the left of
center front, and turn the Attachment counterclock-
wise to secure beneath spring clips. The drain spout
8

will then line up
with the bowl
spout. Be sure
that the cone/
strainer is firmly
seated in the
citrus juicer
attachment.
• Turn on juice
extractor switch,
and allow a few
seconds for motor
to reach normal speed before juicing.
• Cut citrus fruit in half crosswise. Place fruit, cut side
down, on the cone/strainer and push down firmly.
Cone/strainer will not turn until pressure is applied.
Cone/strainer will stop turning when pressure is
released. CAUTION: Keep fingers away from
moving parts.
• For cleaning, turn the attachment clockwise to release
from spring clips. Remove the attachment, take cone/
strainer out, and place both bottom side up under
running water, or place on top rack of dishwasher.
• After removing the attachment, remove the juice
extractor bowl and rinse with cool water, or place on
top rack of dishwasher.
9
Cone/Strainer
Drain Spout
Bowl Spout
Spring Clips
Juice Extractor Base
Citrus Juicer
Attachment
(PCA45)
Fig. 4

RECIPES
Apple Tea
Courtesy of Burt Wolf, New York City
1 quart cold water
8 tea bags
2 cups freshly extracted apple juice
juice of 1 lemon
Fill a pitcher with cold water. Place the tea bags in the
pitcher. Cover the pitcher and let it stand overnight at
room temperature.
The following day, remove the tea bags. Add the apple
juice and the lemon juice and stir.
Makes 4 servings.
Adam’s Kiss
Courtesy of Southampton Princess Hotel, Bermuda
¼ cup sugar
1
/8cup water
1 quart freshly extracted apple juice
1 cup orange juice
1 cup cranberry juice cocktail
1 pint fresh strawberries
1 liter bottle chilled club soda
½ lime, thinly sliced
In a saucepan, bring the sugar and water to a boil.
Simmer for 5 minutes and then cool.
Put one dozen ice cubes in a punch bowl large enough
to hold all the ingredients. Pour in the sugar syrup, the
apple juice and the orange and cranberry juice.
Add the strawberries and stir.
Pour in the club soda, then garnish the punch with the
lime slices and serve.
Makes 10 servings. 10

© 2007 Waring Products
Division of Conair Corporation
150 Milford Road
East Windsor, NJ 08520
www.waringproducts.com
Printed in China
07wr32054
IB-026188
Any trademarks or service marks of third parties used herein are the trademarks
or service marks of their respective owners.
