Installation Manual:
Undertile
Heating Mat

Components NOT included as part of your Warmup®
Undertile Heating Mat Kit:

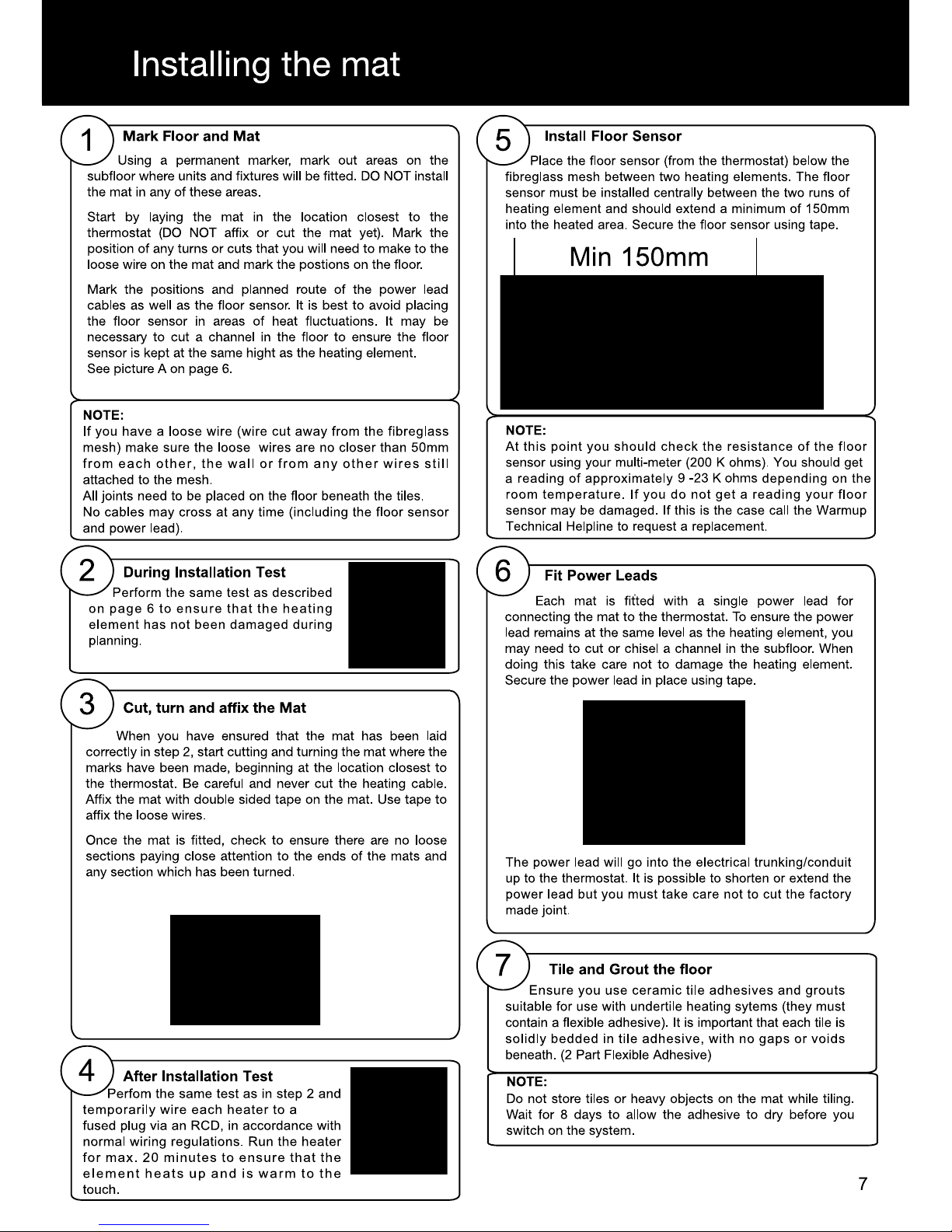

The mat is available in 2 different wattages. Each mat is designed to pro-
duce a specific amount of heat based on its length. For this reason you
must never shorten the mat.
Specification for 150W Undertile Heating Mat
Mat Size(m2) Nominal Watts Amps@230v
1 150 0.65
1.5 240 1.05
2 301 1.31
3 420 1.83
4 601 2.61
5 827 3.59
6 918 3.99
7 1043 4.54
8 1319 5.74
9 1461 6.35
10 1618 7.03
11 1775 7.72
15 2250 9.78
Specification for 200W Undertile Heating Mat
Mat Size(m2) Nominal Watts Amps@230v
0.5 101 0.44
1 205 0.90
1.5 319 1.40
2 401 1.70
3 575 2.50
4 795 3.50
5 972 4.20
6 1245 5.40
7 1439 6.30
8 1546 6.70
9 1729 7.50
10 1909 8.30

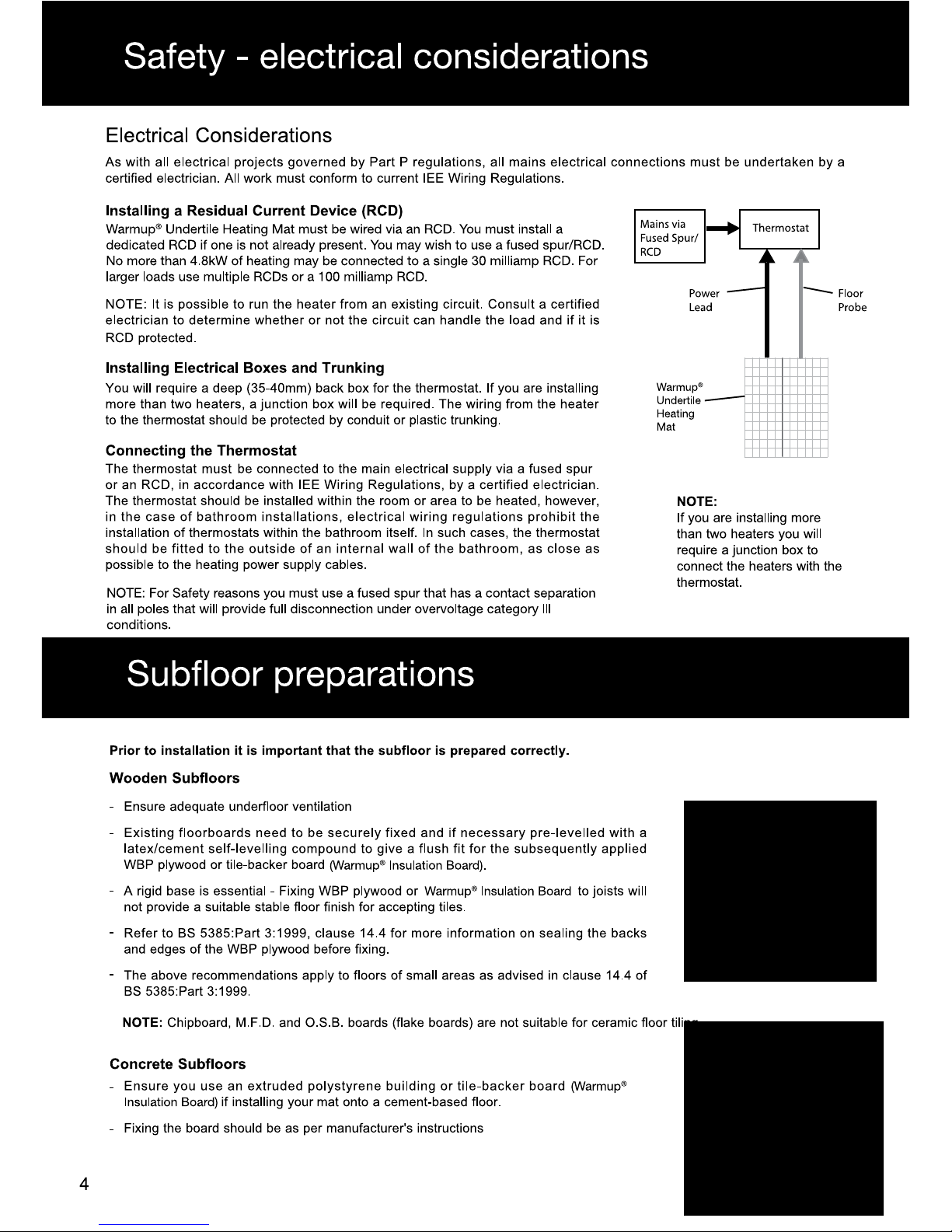

NOTE:
The Warmup® XSTAT thermostat can switch up to 16
amps. If you are installing more than two heaters you
may require a junction box. (see Page 4 - Electrical
Considerations for details).

Specification for 150W Undertile Heating Mat
Mat Size(m2) Ohms@230VAC
0.5 352.70
1 220.00
1.5 176.00
2 126.00
3 88.00
4 64.00
5 57.60
6 50.70
7 40.10
8 36.20
9 32.70
10 29.80
15 23.51
Specification for 200W Undertile Heating Mat
Mat Size(m2) Ohms@230VAC
0.5 526.2
1 257.9
1.5 165.8
2 132.0
3 92.0
4 66.5
5 54.4
6 42.5
7 36.8
8 34.2
9 30.6
10 27.7
If at any time your readings are not
in line with the guidelines above,
or you suspect there is a problem,
please call the Warmup Technical
Helpline at 0845 345 2288

Please complete the control card in the back of the manual and
display at the consumer unit along with the installation instructions,
heater location/layout plan and any wiring diagrams as per 17th
Edition wiring regulations.

Name Address Post code Telephone number E-mail Installer name Date of purchase Batch No. Serial No. Please state which room the heater(s) is installed:
I
hereby
confirm that I have read and understand the contents of the Installation Manual, and that the heater has been installed as specified therein. I acknowledge that no claim can be brought against the manufacturer or its agents for any consequential loss or damage whatsoever. I confirm that the heater was working prior to the commencement of tiling.
other
Kitchen Bathroom Conservatory Hall
Fill in your registration online at www.warmup.co.uk to choose your FREE GIFT.

Heater Location _________________________
Total Wattage __________________________
Place this card in a visible spot close to the consumer unit.
SignedDate Company stamp/name
CAUTION
Radiant Floor Heating Systems
Warming-Risk of electric shock
Electric-wiring and heating panels
contained below the floor. Do not
penetrate with nails, screws, or similar
devices. Do not restrict the thermal
emission of the heated floor.
Attention:
Do not cut or shorten the heating element.
Ensure that the entire heating elements including the joints are installed under the
tiles in the installation.
The Heating element must be used in conjunction with a 30mA RCD.
Heater Model Resistance Before Resistance After Insulation Resistance
This form must be completed as part of the Warmup Guarantee. Ensure that
the values are as per the instruction manual.
This card must be situated close to the consumer unit in a visible place.
Note: Draw a Plan showing the layout of the heater.
