Installation Guide
Cell Signal Booster
Home Room
A WILSON ELECTRONICS BRAND
NEED HELP? weboost.ca 866.294.1660

Package Contents 1
Preparation 2
STEP 1-A & B: Connect Inside Antenna To Booster 3
STEP 2-A: Point Outside Antenna Toward Nearest Cell Tower 4
STEP 2-B: Mount Bracket To Outside Antenna 5
STEP 3: Route & Connect Cable To System 7
STEP 4: Power Up The Booster & Optimize System 8
Measuring Booster Performance 10
Light Patterns 12
Troubleshooting 13
Safety Guidelines 14
Specifications 17
Warranty 18
______
Index

1
HOME ROOM CELL PHONE SIGNAL BOOSTER
ENGLISH
______
Package
Contents
Home
Room
Inside
Antenna
Outside
Antenna
Cable
Connector
Window
Entry Cable
Roof/Pole
Mount
Bracket
Wall Mount
Bracket
Power
Supply
30' Cables
Qty. 2

2CELL PHONE SIGNAL BOOSTER HOME ROOM
ENGLISH
______
Preparation
You Will Need (tools not included)
Make sure the following materials are prepared and ready for your
installation.
o Ladder
o Phillips-head screwdriver
o 10mm open-end wrench or adjustable wrench
o Drill (if routing cable through wall)
o 1.25”-2” diameter pole existing pole (or order #901117)
o Recommended: Power Strip with surge protection
1 to 2 hours
2 people (a person to help with antenna calibration)

3
HOME ROOM CELL PHONE SIGNAL BOOSTER
ENGLISH
NOTE: Do not connect booster to power until the system is fully installed.
______
Step 1-A & B: Connect Inside
Antenna To Booster
Connect Inside Antenna cable to the bottom port on Home Room booster
labeled ‘INSIDE’ and place Inside Antenna in weak signal area at least 18
inches away from booster.
Inside
Antenna
Booster

4CELL PHONE SIGNAL BOOSTER HOME ROOM
ENGLISH
______

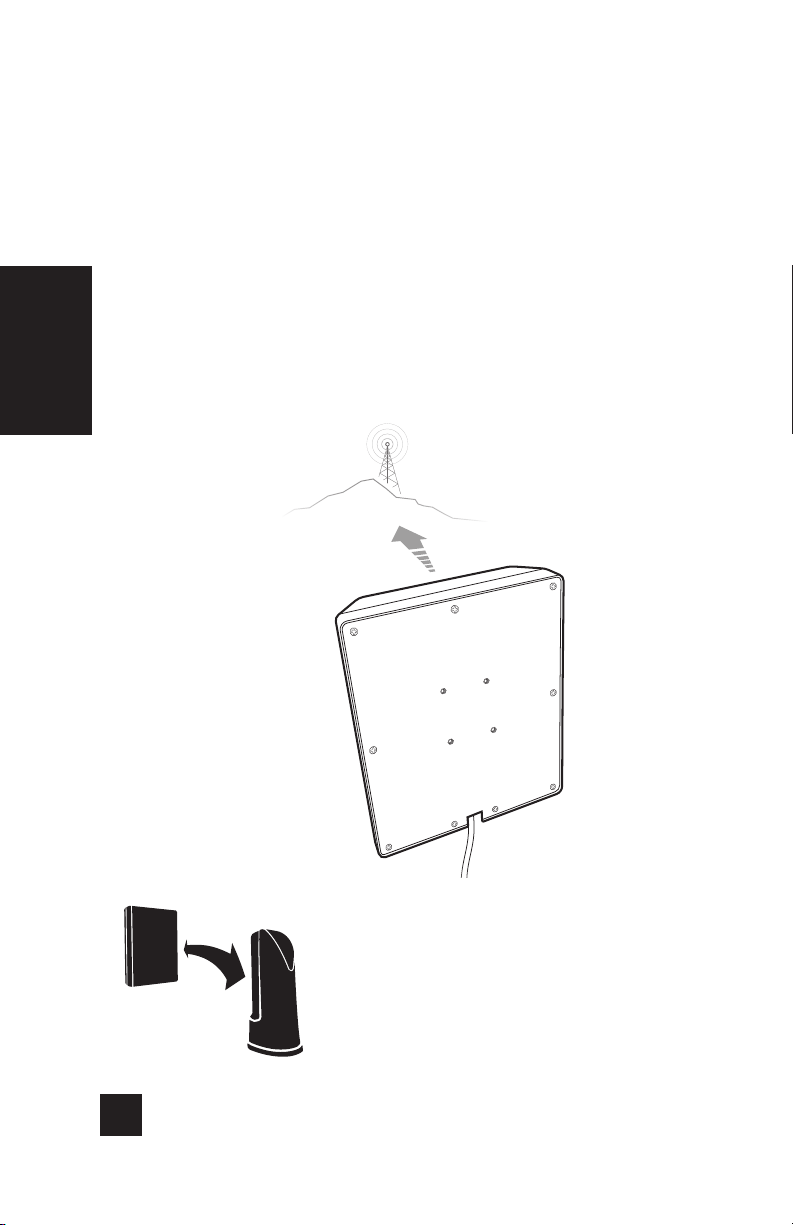

Step 2-A: Point Outside
Antenna Toward Nearest
Cell Tower
Point the Outside Antenna toward the nearest cell phone tower. To find the
nearest tower, use an app such as ‘Open Signal’. After locating a cell tower’s
aproximate locationThis is the most critical step of the installation process
because it will determine the overall performance of the booster system.
Cell Tower
Outside Antenna
NOTE: The Outside Antenna must be at least
20 feet horizontal or 50 feet vertical from the Inside
Antenna for best performance. Make sure the Inside
Antenna and Outside Antennas are setup so they are
facing away from each other.
f
a
c
i
n
g
a
w
a
y

5
HOME ROOM CELL PHONE SIGNAL BOOSTER
ENGLISH
______

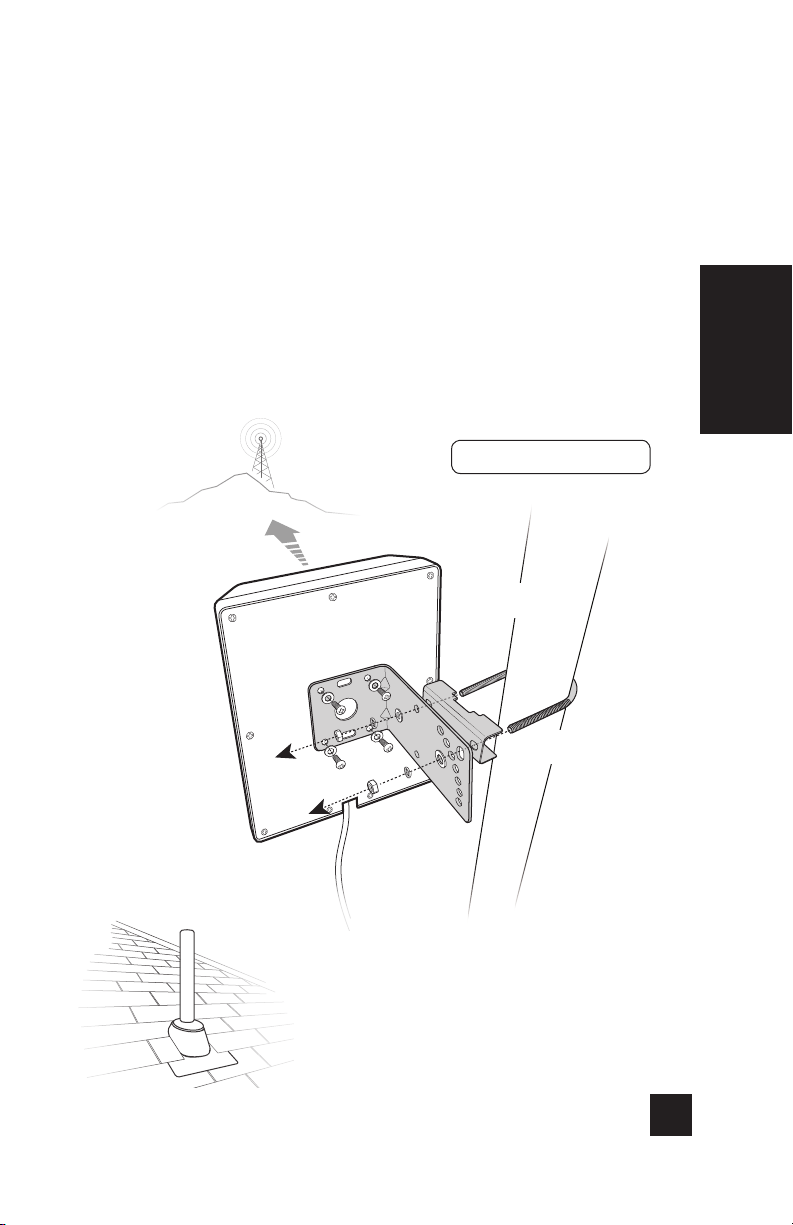

Step 2-B: Mount Bracket To
Outside Antenna
Pole Mounting and Wall Mounting Options are included. The pole mounting
option is preferred because it would be easier to adjust to the direction
of the cell tower.
Attach the L-Bracket to the Outside Antenna and use the U-Bolts/Pole
Bracket to attach the L-Bracket to a pole.
NOTE: Mounting on existing roof exhaust pipe would
be a good time-saver option.
Cell Tower
Outside Antenna
Pole
(1.25”-2.0”dia.)
U-bolt &
Pole Bracket
L-Bracket
Pole Mounting Option

6CELL PHONE SIGNAL BOOSTER HOME ROOM
ENGLISH
______
(STEP 2-B cont.)
Drill holes using
3/16 inch bit
Tap anchors in
Fasten bracket to back
of Outside Antenna Secure bracket to wall
mounting
Outside Antenna
on wall bracket
sideview
Wall Mounting Option

7
HOME ROOM CELL PHONE SIGNAL BOOSTER
ENGLISH
______

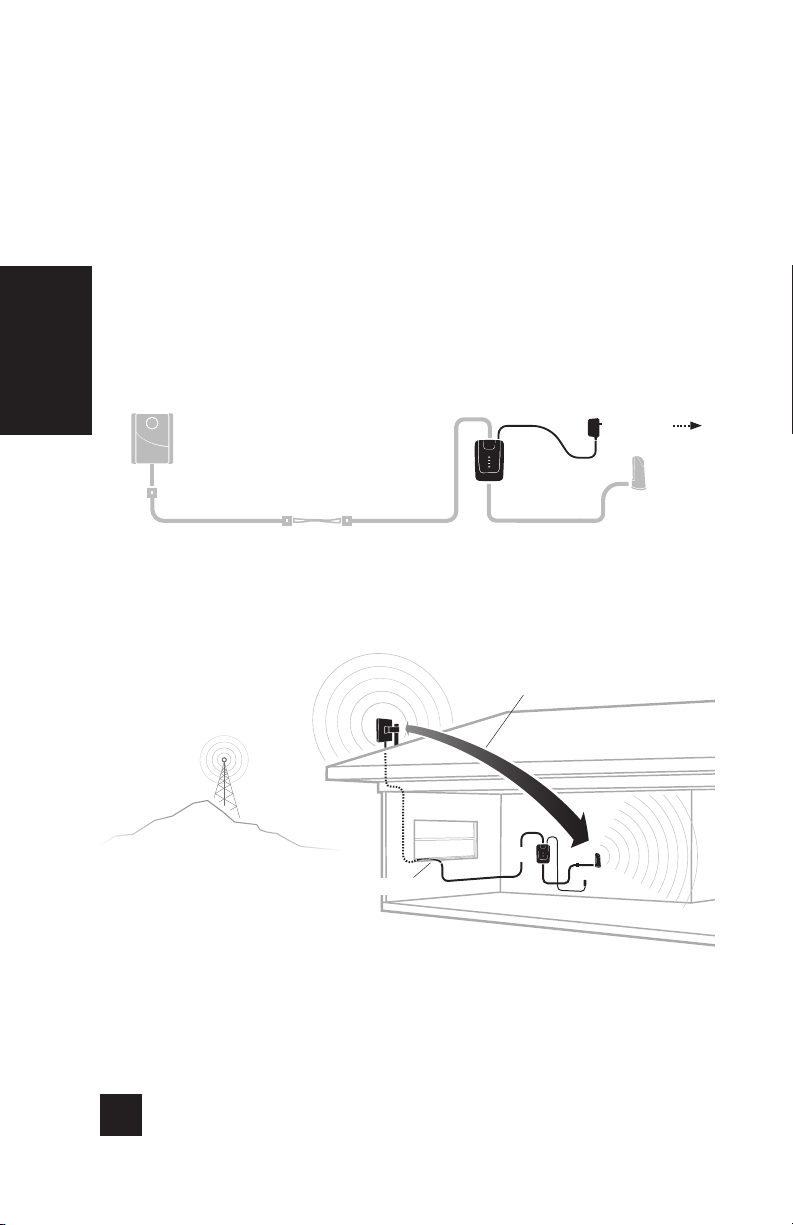

Step 3: Route & Connect
Cable To System
Connect the white RG-6 Cable to Outside Antenna and route cable
into the home. All connections should be hand tightened only.
A Window Entry Cable is provided to help make cable entry easier. Route
cable to the Home Room booster and connect to top port
labeled ‘OUTSIDE’.
Outside
Antenna
Inside
Antenna
Outside
Antenna
Cell
Tower
Inside
Antenna
RG-6 Cable RG-6 Cable
Window
Entry Cable
Booster
Window Entry Cable
Booster

8CELL PHONE SIGNAL BOOSTER HOME ROOM
ENGLISH
______
Step 4: Power Up The
Booster & Optimize the
System
5
0
F
E
E
T
H
O
R
I
Z
O
N
T
A
L
O
R
2
0
F
E
E
T
V
E
R
T
I
C
A
L
D
I
S
T
A
N
C
E
5
0
F
E
E
T
H
O
R
I
Z
O
N
T
A
L
O
R
2
0
F
E
E
T
V
E
R
T
I
C
A
L
D
I
S
T
A
N
C
E
Plug the Power Supply into wall outlet then connect to Home Room Booster.
Outside
Antenna
Outside
Antenna
Cell
Tower
Inside
Antenna
RG-6 Cable RG-6 Cable
Window
Entry Cable
Booster
to power
Inside
Antenna
Power Supply
Window Entry Cable
50 FEET HORIZONTAL OR 20 FEET
VERTICAL DISTANCE
Booster

9
HOME ROOM CELL PHONE SIGNAL BOOSTER
ENGLISH
After powering up your system, you are now ready to optimize your system.
Rotate the outside antenna in 1/4 turn increments (within the cell towers
general location) and each time observing the signal level on your cell
phone from the inside antenna’s projected area.
______
(STEP 4 cont.)
after each rotation, observe signal level
on your cell phone from the inside
antenna’s projected area

10 CELL PHONE SIGNAL BOOSTER HOME ROOM
ENGLISH
______
Measuring Booster
Performance
Settings > About Phone > Status or Network > Signal Strength or
Network Type and Strength (exact options/wording depends on
phone model).
Android™
iPhone is a registered trademark of Apple Inc. Android is a trademark of Google Inc.
iOS 11 and later no longer displays the decibel (dBm) reading
in ‘Field Test Mode’. Tip: Using the signal bars and performing
data speed tests on your cell phone can assist you in finding
the strongest signal direction as well as placing calls in dierent
locations. For changes/updates on this issue, periodically go to
weboost.ca/signalstrength.
iPhone®
How To Get Signal Strength As A Number
All Other Phones & Alternate Methods
Go to www.weboost.ca/test-mode-instructions/

11
HOME ROOM CELL PHONE SIGNAL BOOSTER
ENGLISH

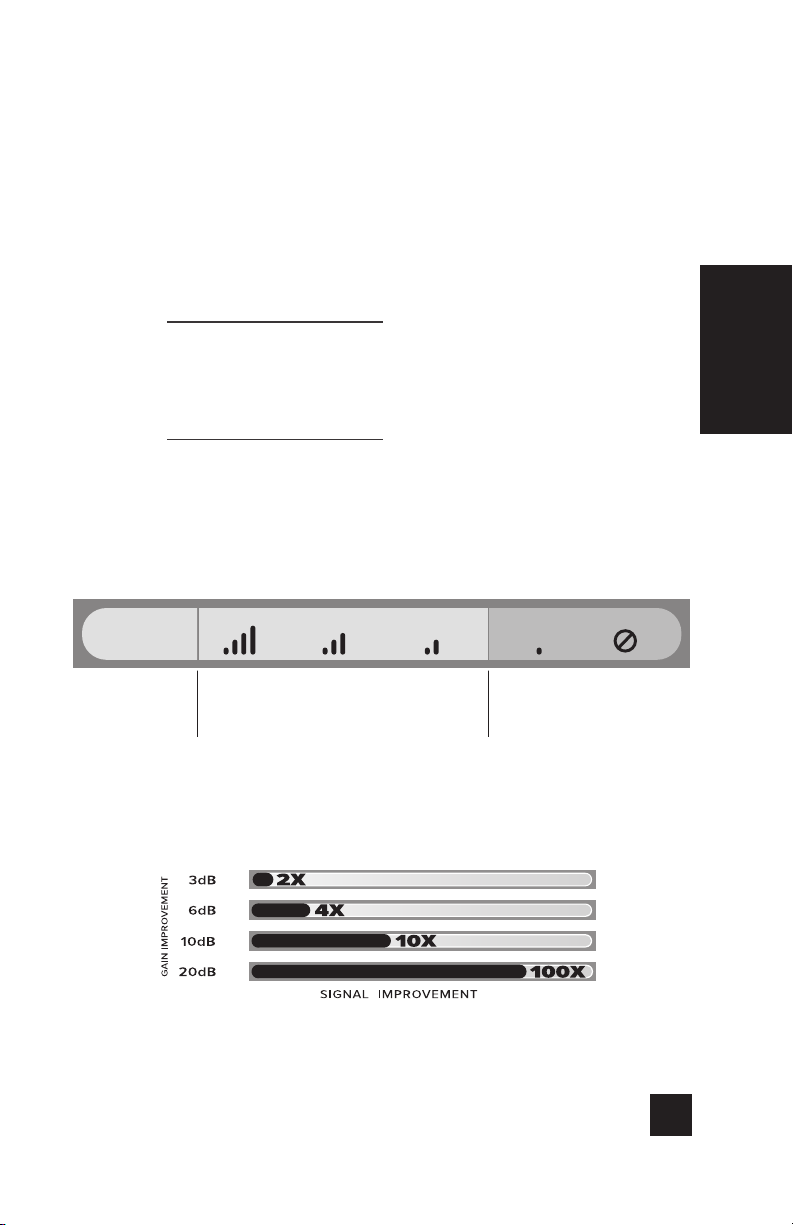

EXCELLENT GOOD FAIR POOR DEAD ZONE
3G/1x
4G/LTE
-70dBm
-90dBm
-71 to -85dBm
-91 to -105dBm
-86 to -100dBm
-106 to -110dBm
-101 to -109dBm
-111 to -119dBm
-110dBm
-120dBm
SIGNAL
STRENGTH
EXCELLENT GOOD FAIR POOR DEAD ZONE
3G/1x
4G/LTE
-70dBm
-90dBm
-71 to -85dBm
-91 to -105dBm
-86 to -100dBm
-106 to -110dBm
-101 to -109dBm
-111 to -119dBm
-110dBm
-120dBm
SIGNAL
STRENGTH
Having an accurate measurement of signal strength in decibels (dBm) is crucial when
installing your system. Decibels accurately measure the signal strength you are receiving.
DID YOU KNOW a signal increase of just 3dB is 2
times the power and signal amplification!
Compare Results
______
(MEASURING BOOSTER PERFORMANCE cont.)
Signal Strength without Booster
Note here:
Signal Strength with Booster
Note here:

12 CELL PHONE SIGNAL BOOSTER HOME ROOM
ENGLISH
______
Light Patterns
Solid Green
This indicates that your booster is
functioning properly and there are no
issues with installation.
Blinking Green, Then Red
Band has reduced gain. This indicates that one or more of the booster bands has reduced
power due to a feedback loop condition called oscillation. This is a built in safety feature
to prevent harmful interference with a nearby cell tower. If you are already experiencing
the desired signal boost, then no further adjustments are necessary. If you are not
experiencing the desired boost in coverage then refer to the Troubleshooting section.
Solid Red
Band has shutoff. This is due to a feedback loop condition called oscillation.
This is a built in safety feature that causes a band to shut off to prevent harmful
interference with a nearby cell tower. Refer to Troubleshooting section.
Blinking Green, Orange
Band has reduced gain. This indicates that one or more of the booster bands has reduced
power due to overload from nearby cell tower. This is a built in safety feature to
prevent harmful interference with a nearby cell tower. If you are already experiencing
the desired signal boost, then no further adjustments are necessary. If you are not
experiencing the desired boost in coverage then refer to the Troubleshooting section.
Solid Orange
Band has shutoff due to overload from nearby cell tower. Outside Antenna must be
adjusted. Refer to Troubleshooting section.
Light O
If the Signal Booster’s light is off, verify your power supply has power.

13
HOME ROOM CELL PHONE SIGNAL BOOSTER
ENGLISH
______
Troubleshooting
FIXING ANY RED LIGHT ISSUES
FIXING ANY ORANGE LIGHT ISSUES
1
2
3
Verify Outside Antenna faces away from the Inside Antenna. Un-plug and re-
plug in power supply.
Verify the Inside Antenna is at least 18” from the Booster and pointed away
from the Booster. Unplug and re-plug in power supply.
Tighten all cable connections (be sure to handtighten only, do NOT use tools).
You may want to undo and redo the connection completely. Unplug and re-
plug in power supply.
Increase the distance (horizontally or vertically) between the Outside and
Inside antenna. Add included cable if needed. Un-plug and re-plug in
power supply.
Outside Antenna must be adjusted. Wait 10 seconds between adjustments for
the lights to reset.
4
This involves Solid Red & Blinking Green/Red lights.
This involves Solid Orange & Blinking Green/Orange lights.
IF YOU ARE HAPPY WITH THE COVERAGE, THESE LIGHT ISSUES DON’T HAVE TO
BE RESOLVED. YOUR CARRIER’S BAND HAS NOT BEEN AFFECTED.
Pole Mount Option: Rotate the Outside Antenna away from the strongest
cellular signal in small increments (45°) until the light turns green. Unplug
and re-plug in power supply.
Wall Mount Option: Change mount location. Move the Outside Antenna
to a wall outside the building to see if the lights turn green. Un-plug and
re-plug in power supply.

14 CELL PHONE SIGNAL BOOSTER HOME ROOM
ENGLISH
______
Safety Guidelines
To uphold compliance with network protection standards, all active cellular devices
must maintain at least six feet of separation distance from Inside Panel and Dome
antennas and at least four feet of separation distance from desktop Antenna.
Use only the power supply provided in this package. Use of a non-weBoost product
may damage your equipment.
The Signal Booster unit is designed for use in an indoor, temperature-controlled
environment (less than 100 degrees Fahrenheit). It is not intended for use in attics or
similar locations subject to temperatures in excess of that range.
RF Safety Warning: Any antenna used with this device must be located at least 8
inches from all persons.
AWS Warning: The Outside Antenna must be installed no higher than 10 meters (31’9”)
above ground.
FOR MORE INFORMATION ON REQUIREMENTS SET OUT IN ISED CPC-2-1-05,
SEE BELOW:
http://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf08942.html
This is a CONSUMER device.
BEFORE USE, you MUST meet all requirements set out in CPC-2-1-05.
You MUST operate this device with approved antennas and cables as specified by the
manufacturer. Antennas MUST NOT be installed within 20 cm of any person.
You MUST cease operating this device immediately if requested by ISED or licensed
wireless service provider.
WARNING. E911 location information may not be provided or may be inaccurate for calls
served by using this device.
This device may operate in a fixed location only, for in-building use.

15
HOME ROOM CELL PHONE SIGNAL BOOSTER
ENGLISH
______
Antenna Kit Options
Outside antenna maximum permissible
antenna gain (dBi) 50
Inside antenna maximum permissible
antenna gain (dBi) 50
4.50 4.20
4.16 4.16 3.73 6.60
BAND 12/17 BAND 13 BAND 5 BAND 4 BAND 25/2
Ω
50
50
50
75
75
50
50
70
75
75
50
Antenna Type
4G Dome
4G Dome
4G Dome
4G Dome
4G Dome
Wall Mount Panel Antenna
Wall Mount Panel Antenna
Wall Mount Panel Antenna
Wall Mount Panel Antenna
Wall Mount Panel Antenna
RV Desktop Antenna
Coax Type
RG-174
Wilson-400
RG-58
RG-6
RG-11
Wilson-400
RG-58
RG-6
RG-11
Wilson-400
RG-58
Kit #
304412-17410
304412-40010
304412-5810
304419-0610
304419-1110
311135-40060
311135-5820
311155-0630
311155-1150
311155-40060
311160
Ln(ft)
10
10
10
10
10
60
20
30
50
60
13
FIXED INSIDE ANTENNA KIT OPTIONS
3.71 4.92
This radio transmitter 4726A-460020 has been approved by Innovation, Science and
Economic Development Canada to operate with the antenna types listed below, with the
maximum permissible gain indicated. Antenna types not included in this list that have a
gain greater than the maximum gain indicated for any type listed are strictly prohibited for
use with this device.
4.90
3.49

16 CELL PHONE SIGNAL BOOSTER HOME ROOM
ENGLISH
Ω
75
50
75
50
75
75
50
50
75
50
50
50
50
50
50
50
50
75
75
75
75
Antenna Type
Yagi Directional
Yagi Directional
Yagi Directional
Yagi Directional
4G Omni
4G Omni
4G Omni
4G Omni
4G Omni
4G Omni
4G Omni
Omni-Directional
Omni-Directional
Wide Band Directional
Wide Band Directional
Pole Mount Panel
Pole Mount Panel
Pole Mount Panel
Pole Mount Panel
Wide Band Directional
Wide Band Directional
Coax Type
RG-6
RG-58
RG-11
Wilson-400
RG-11
RG-6
Wilson-400
RG-58
RG-11
RG-58
RG-174
Wilson-400
RG-58
Wilson-400
RG-58
RG-58
Wilson-400
RG-6
RG-11
RG-6
RG-11
Kit #
301111-0675
301111-5850
301111-11140
301111-400170
304421-1120
304421-0610
304422-40020
304422-5810
304422-1120
304421-5810
304421-17410
311203-40020
311203-5820
314411-40075
314411-5825
314453-5825
314453-40075
314473-0640
314473-1175
314475-0630
314475-1175
Ln(ft)
75
50
140
170
20
10
20
10
20
10
10
20
20
75
25
25
75
40
75
30
75
FIXED OUTSIDE ANTENNA KIT OPTIONS
______
(ANTENNA KIT OPTIONS cont.)

17
HOME ROOM CELL PHONE SIGNAL BOOSTER
ENGLISH
______
Specifications
Home Room™
Product Number U652020
Model Number 460020
IC IC: 4726A-460020
Connectors SMA-Female on the Inside Antenna / F-Female on the Outside Antenna
Antenna Impedance 50 Ohms / 75 Ohms
Frequency 698-716 MHz, 746-787 MHz, 824-894 MHz, 1850-1995 MHz, 1710-1755/2110-2155 MHz
Power output for single cell phone
(Uplink) dBm
700 MHz
Band17
700 MHz
Band13
800 MHz
Band 5
1700 MHz
Band 4
1900 MHz
Band 2
23.94 24.19 23.49 24.55 23.61
Power output for single cell phone
(Downlink) dBm
700 MHz Band17
Band17
700 MHz Band13
Band13
800 MHz
Band 5
2100 MHz
Band 4
1900 MHz
Band 2
11.64 11.92 12.1 11.9 9.5
Noise Figure 5 dB nominal
Isolation > 110 dB
Power Requirements AC / DC 5V, 4A, w/2.5x5.5mm Jack
The term “IC” before the radio certification number only signifies that Industry Canada technical
specifications were met.
This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic
Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: (1) This device
may not cause interference, and (2)) This device must accept any interference, including interference that may
cause undesired operation of the device. Changes or modifications not expressly approved by weBoost could
void the authority to operate this equipment.

3301 East Deseret Drive, St. George, UT
866.294.1660 www.weboost.ca
Copyright © 2016 weBoost. All rights reserved.
weBoost products covered by U.S. patent(s) and pending application(s)
For patents go to: weboost.com/us/patents
NOT AFFILIATED WITH WILSON ANTENNA
2 YEAR WARRANTY
weBoost Signal Boosters are warranted for two (2) years against defects in
workmanship and/or materials. Warranty cases may be resolved by returning the
product directly to the reseller with a dated proof of purchase.
Signal Boosters may also be returned directly to the manufacturer at the
consumer’s expense, with a dated proof of purchase and a Returned Material
Authorization (RMA) number supplied by weoost. weBoost shall, at its option,
either repair or replace the product.
This warranty does not apply to any Signal Boosters determined by weBoost
to have been subjected to misuse, abuse, neglect, or mishandling that alters or
damages physical or electronic properties.
Replacement products may include refurbished weBoost products that have been
recertified to conform with product specifications.
RMA numbers may be obtained by contacting Customer Support
DISCLAIMER: The information provided by weBoost is believed to be complete
and accurate. However, no responsibility is assumed by weBoost for any business
or personal losses arising from its use, or for any infringements of patents or other
rights of third parties that may result from its use.
