weBoost DRIVE 4G-X RV User manual

______
Index
Package Contents 1
STEP 1: Mount Outside Antenna 2
STEP 2: Cable Entry 3
STEP 3: Connect Cable To Outside Antenna 4
STEP 4: Booster Location 5
STEP 5: Connect Outside Antenna Cable To Booster 6
STEP 6: Mount Cable Entry Cover 7
STEP 7: Connect Inside Antenna Cable To Booster 8
STEP 8: Power Up & Compare Results 9
Light Patterns 12
Troubleshooting 13
Safety Guidelines 15
Specifications 16
Warranty 18

DRIVE 4G-X RV CELL PHONE SIGNAL BOOSTER 1
ENGLISH
THE ALUMINUM CASING OF YOUR SIGNAL BOOSTER WILL ADJUST TO THE
TEMPERATURE OF ITS ENVIRONMENT, BUT IS DESIGNED TO PROTECT THE SIGNAL
BOOSTER TECHNOLOGY. FOR EXAMPLE, IN THE SUMMER, THE SIGNAL BOOSTER CASE
MAY BE AS HOT AS 150 DEGREES INSIDE YOUR VEHICLE. THESE HIGH TEMPERATURES
WILL NOT DAMAGE THE SIGNAL BOOSTER, NOR DO THEY POSE A FIRE RISK TO THE
VEHICLE. AGAIN, BE SURE TO PLACE YOUR SIGNAL BOOSTER IN A LOCATION WITH
ADEQUATE VENTILATION AND AWAY FROM DIRECT SUNLIGHT OR MOISTURE.
THE DRIVE 4G-X SIGNAL BOOSTER MAY REMAIN ON, IN VEHICLES WHOSE 12V DC POWER
SOURCES DO NOT AUTOMATICALLY SHUTDOWN WHEN THE VEHICLE IS TURNED OFF.
THIS COULD RESULT IN DISCHARGING THE VEHICLES BATTERY IN ONE TO TWO DAYS.
________
Package
Contents
Drive 4G-X
Booster
Outside
Antenna Kit
Inside Antenna +
13 foot Cable
20 Foot Cable
AC/DC Power
Supply
Hardwire Power
Supply
Cable Mounts +
Ties
Hole Saw
Bit
Cable Entry
Cover

!!!

10 CELL PHONE SIGNAL BOOSTER DRIVE 4G-X RV
ENGLISH
______
Measuring Booster
Performance
Put your cell phone in field test mode and determine the signal
inside your trailer. Note it here:
Dial *3001#12345#* then press Call.
1Hold down power button until you see 'Slide to
Power O'.
2Then release the power button.
3 Hold the Home button until your main screen appears.
If you want to check 3G/1x but your iPhone is picking up 4G/
LTE signal, go to Settings>Cellular>Cellular Data Options>En-
able LTE>Select O.
After you system is set up, you can go back to the dots signal
by once again dialing *3001#12345#* then pressing call.
When the menu comes back up, tap “phone” in the top left
corner of your phone.
Settings > About Phone > Status or Network > Signal Strength
or Network Type and Strength (exact options/wording
depends on phone model).
iPhone®
Android™
iPhone is a registered trademark of Apple Inc. Android is a trademark of Google Inc.
iOS 11 no longer displays the decibel (dBm) reading in ‘Field
Test Mode’. Tip: Using the bar indicator on your cell phone can
assist you in finding the strongest signal direction as well as
placing calls in dierent locations. For changes/updates on
this issue, periodically go to weboost.com/signalstrength.
iPhone®
iOS 11 - current
866.294.1660

DRIVE 4G-X RV CELL PHONE SIGNAL BOOSTER 11
ENGLISH
All Other Phones & Alternate Methods
• https://www.weboost.com/test-mode-instructions/
All Phones:
• Keep track of the network (3G or 4G) phone is connected to.
• Any signal readings you take are valid for that phone’s carrier. To get readings
from other carriers, you’ll need phones from each carrier.
• When system is set-up, you can easily revert back to the “bar display” by dialing
*3001#12345#* press Call, press the signal strength at the top left of screen to
toggle between numbers and bars, then press the Home button to exit Field
Test mode.

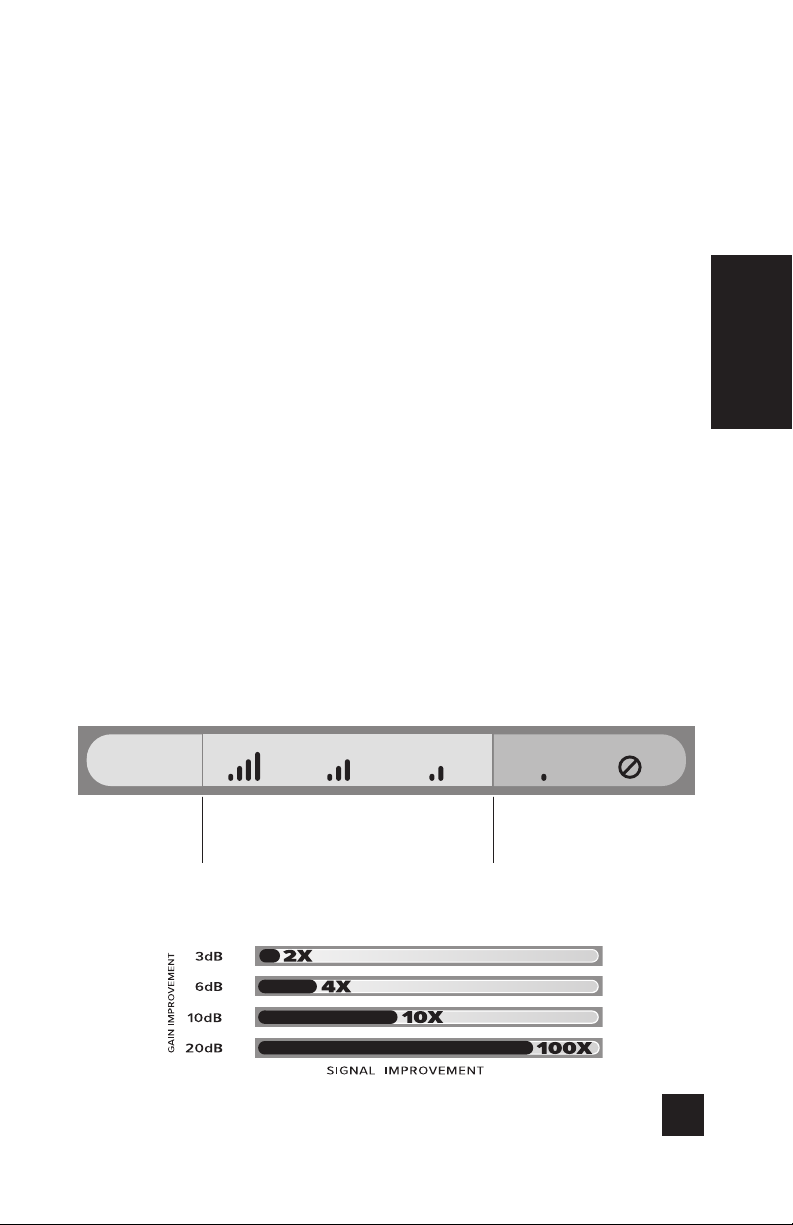

EXCELLENT GOOD FAIR POOR DEAD ZONE
3G/1x
4G/LTE
-70dBm
-90dBm
-71 to -85dBm
-91 to -105dBm
-86 to -100dBm
-106 to -110dBm
-101 to -109dBm
-111 to -119dBm
-110dBm
-120dBm
SIGNAL
STRENGTH
EXCELLENT GOOD FAIR POOR DEAD ZONE
3G/1x
4G/LTE
-70dBm
-90dBm
-71 to -85dBm
-91 to -105dBm
-86 to -100dBm
-106 to -110dBm
-101 to -109dBm
-111 to -119dBm
-110dBm
-120dBm
SIGNAL
STRENGTH
Having an accurate measurement of signal strength in decibels (dBm) is crucial when
installing your system. Decibels accurately measure the signal strength you are receiving.
Did you know a signal increase of just 3dB is 2 times the power and signal amplification!
Compare Results
______
(MEASURING BOOSTER PERFORMANCE cont.)

12 CELL PHONE SIGNAL BOOSTER DRIVE 4G-X RV
ENGLISH
______
Light Patterns
Solid Green
This indicates that your booster is functioning properly and there are no issues with
installation.
Blinking Red, Then Solid Green
This indicates that one or more of the booster bands has reduced power due
to a feedback loop condition called oscillation. This is a built in safety feature
to prevent harmful interference with a nearby cell tower. If you are already
experiencing the desired signal boost, then no further adjustments are necessary.
If you are not experiencing the desired boost in coverage then refer to the
Troubleshooting section below.
Solid Red
This is due to a feedback loop condition called oscillation. This is a built in safety
feature that causes a band to shut off to prevent harmful interference with a nearby
cell tower. Refer to Troubleshooting section below.
Light O
If the Drive 4G-X Signal Booster’s light is off, verify your power supply has power.
NOTE: The Signal Booster can be reset by disconnecting and reconnecting
the power supply.
After troubleshooting you must initiate a new power cycle by disconnecting and
then reconnecting power to the Booster.
NEED HELP? support.weboost.com 866.294.1660

DRIVE 4G-X RV CELL PHONE SIGNAL BOOSTER 13
ENGLISH
FREQUENTLY ASKED QUESTIONS
What hours can I contact customer support?
Customer Support can be reached monday thru friday by calling 866.294.1660, or
through our support site at support.weboost.com.
Why do I need to create distance between the booster and the antenna?
Antennas connected to a booster create spheres of signal. When these spheres
overlap, a condition called oscillation occurs. Oscillation can be thought of as noise,
which causes the booster to shut down to prevent damage. The best way to keep
these spheres of signal from overlapping is to maximize separation between the
Booster and Antenna.
______
Troubleshooting
FIXING BLINKING OR SOLID RED ISSUES
This section is only applicable if the booster is red or blinking red and you are not
experiencing the desired signal boost.
1
2
3
Unplug the Booster’s power supply.
Relocate the inside and outside antenna further from each other. The objective
is to increase the separation distance between them, so that they will not
create this feedback condition discussed before.
Plug power supply back in.
Monitor the indicator light on your booster. If, after a few seconds of ‘power
on’, a solid or blinking red light appears, repeat steps 1 through 3. Increase the
separation distance until the condition is corrected and/or desired coverage
area is achieved. Note: Horizontal separation of the two antennas typically
requires a shorter separation distance than perpendicular separation.
If you are having any diculties while testing or installing your booster, contact
our weBoost Customer Support team for assistance (866.294.1660).
4
5
NEED HELP? support.weboost.com 866.294.1660

14 CELL PHONE SIGNAL BOOSTER DRIVE 4G-X RV
ENGLISH
______
Antenna Kit Options
MOBILE
Inside Antenna Options
Slim Low Profile
301152 - w/ 10’ RG174
Low Profile
311106 - w/ 10’ RG58
Desktop
311249 - w/ 13’ RG58
Outside Antenna Options
Mini-Mag
301126 w/ 12.5 RG174 cable - SMA
301113 w/ 12.5 RG174 cable - FME
12” Mag Mount w/12.5’ RG58
301103
311125
311128
311703
4G Trucker Antenna w/15’ RG58
304415
304414
4G Marine Antenna w/20’ L-195
304420
Glass Mount w/14’ RG58
311102
NMO Antenna w/RG58
Kit 311104-5810
800/1900 NMO Antenna
10’ RG58 Cable
Kit 311112-5810
800/1900 NMO Antenna
10’ RG58 Cable
Kit 314203-5810
800/900/1900 NMO Antenna
10’ RG58 Cable
INSIDE FIXED
Inside Antenna Expansion Kit
Kit 309900-50N40090
2 - Wall Panel antennas
1 - 50 ohm 3-Way Splitter
Kit 309905-50N
3 - Wall Panel Antennas
3 - 2-Way 50 Ohm Splitters
20’ RG174
Kit 309902-75F
2 - Wall Panel Antennas
1 - 3-Way 75Ohm Splitter
Kit 309903-75F
3 - Wall Panel Antennas
3 - 2-Way 75Ohm Splitters
Kit 309904-75F
1 - Wall Panel Antenna
1 - 2-Way 75 Ohm Splitter
Inside Antenna Kits
Kit 311155-0630
75 Ohm Wall mount Panel Antenna
30’ RG6 Cable
Kit 311135-5820
50 Ohm Wall mount Panel Antenna
20’ RG58 Cable
Kit 311135-40060
50 Ohm Wall mount Panel Antenna
60’ Wilson 400
Kit 311155-1150
75 Ohm Wall mount Panel Antenna
50’ RG11 cable
Kit 311155-40060
75 Ohm 4G Dome Antenna
60’ Wilson 400 cable
Kit 304412-40010
50 Ohm 4G Dome Antenna
10’ Wilson 400 cable
Kit 304412-5810
50 Ohm 4G Dome Antenna
10’ RG 11 cable
Kit 304419-1110
75 Ohm 4G Dome Antenna
10’ RG11 cable
Kit 304419-17410
75 Ohm 4G Dome Antenna
10’ RG174 cable
May need separate adapter
Kit 304419-1610
75 Ohm 4G Dome Antenna
10’ RG6 cable
OUTSIDE FIXED
50 Ohm Outside Antenna Kits
Kit 314453-5825
50 Ohm Pole Mount Panel Antenna
25’ RG58 Cable
Kit 314411-5825
50 Ohm Wide Band Directional
25’ RG58 Cable
Kit 301111-5850
Yagi Directional Antenna
50’ RG58 Cable
Kit 311203-5820
Omni-Directional antenna
20’ RG58 Cable
Kit 314411-40075
50 Ohm Wide Band Directional
75’ LMR400 Cable
Kit 311203-40020
Omni-Directional antenna
20’ LMR400 Cable
Kit 301111-400170
Yagi Directional w/ N-Female
170’ LMR400
Kit 314453-40075
50 Ohm Pole Mount Panel Antenna
75’ LMR400 Cable
Kit 304422-40020
50 Ohm 4G Omni Antenna
20’ Wilson400 cable
Kit 304422-5810
50 Ohm 4G Omni Antenna
10’ RG58 cable
Kit 304422-1120
50 Ohm 4G Omni Antenna
20’ RG11 cable
May need separate adapter
75 Ohm Outside Antenna Kits
Kit 301111-0675
Yagi Directional Antenna
75’ RG6 Cable
N-Male to F-Female adapter
Kit 311201-0620
Omni Directional w/ F-Female
20’ RG6 Cable
Kit 314473-0640
75 Ohm Pole Mount Panel Antenna
40’ RG6 Cable
Kit 311141-0620
75 Ohm Grey Brick Antenna
20’ RG6 Cable
Kit 301111-11140
Yagi Directional Antenna
140’ RG11 Cable
N-Male to F-Female adapter
Kit 311201-1120
Omni Directional w/ F-Female
20’ RG11 Cable
Kit 314473-1175
75 Ohm Pole Mount Panel Antenna
75’ RG11 Cable
Kit 314475-0630
75 Ohm Wide Band Directional
30’ RG6 Cable
Kit 314475-1175
75 Ohm Wide Band Directional
75’ RG11 Cable
Kit 311141-1120
75 Ohm Grey Brick Antenna
20’ RG11 Cable
Kit 304421-17410
75 Ohm 4G Omni Antenna
10’ RG174 cable
Kit 304421-0610
75 Ohm 4G Omni Antenna
10’ RG6 cable
Kit 304421-5810
75 Ohm 4G Omni Antenna
10’ RG58 cable
May need separate adapter
Kit 304421-1120
75 Ohm 4G Omni Antenna
20’ RG 11 cable

DRIVE 4G-X RV CELL PHONE SIGNAL BOOSTER 15
ENGLISH
______
Safety Guidelines
Use only the power supply provided in this package. Use of a non-weBoost product may damage
your equipment.
The Signal Booster unit is designed for use in an indoor, temperature-controlled environment
(less than 150 degrees Fahrenheit). It is not intended for use in attics or similar locations subject to
temperatures in excess of that range.
The desktop antenna must have at least 3’ of separation distance from all active users. All inside
panel and dome antennas must have at least 6’ of separation distance from all active users, and low
profile antennas must have at least 1.5’ separation distance from all active users.
Connecting the Signal Booster directly to the cell phone with use of an adapter will damage the
cell phone.
RF Safety Warning: Any antenna used with this device must be located at least 8 inches from all
persons.
AWS Warning: The Outside Antenna must be installed no higher than 31 feet 9 inches (10 meters)
above ground.
This is a CONSUMER device.
FOR MORE INFORMATION ON REGISTERING YOUR SIGNAL BOOSTER WITH YOUR
WIRELESS PROVIDER, PLEASE SEE BELOW:
Sprint: http://www.sprint.com/legal/fcc_boosters.html
T-Mobile/MetroPCS: https://support.t-mobile.com/docs/DOC-9827
Verizon Wireless: http://www.verizonwireless.com/wcms/consumer/register-signal-booster.html
AT&T: https://securec45.securewebsession.com/attsignalbooster.com/
U.S. Cellular: http://www.uscellular.com/uscellular/support/fcc-booster-registration.jsp
BEFORE USE, you MUST REGISTER THIS DEVICE with your wireless provider and have your
provider’s consent. Most wireless providers consent to the use of signal boosters. Some providers
may not consent to the use of this device on their network. If you are unsure, contact your provider.
In Canada, BEFORE USE you must meet all requirements set out in ISED CPC-2-1-05. You MUST
operate this device with approved antennas and cables as specified by the manufacturer. Antennas
MUST be installed at least 20 cm (8 inches) from (i.e., MUST NOT be installed within 20 cm of) any
person.
You MUST cease operating this device immediately if requested by the FCC (or ISED in Canada) or
licensed wireless service provider.
WARNING. E911 location information may not be provided or may be inaccurate for calls served by
using this device.

DRIVE 4G-X RV CELL PHONE SIGNAL BOOSTER 17
ENGLISH
______
(SPECIFICATIONS cont.)
The term “IC” before the radio certification number only signifies that Industry Canada technical specifications
were met.
Each Signal Booster is individually tested and factory set to ensure FCC compliance. The Signal Booster cannot
be adjusted without factory reprogramming or disabling the hardware. The Signal Booster will amplify, but not
alter incoming and outgoing signals in order to increase coverage of authorized frequency bands only. If the
Signal Booster is not in use for five minutes, it will reduce gain until a signal is detected. If a detected signal is
too high in a frequency band, or if the Signal Booster detects an oscillation, the Signal Booster will automatically
turn the power o on that band. For a detected oscillation the Signal Booster will automatically resume normal
operation after a minimum of 1 minute. After 5 (five) such automatic restarts, any problematic bands are
permanently shut o until the Signal Booster has been manually restarted by momentarily removing power from
the Signal Booster. Noise power, gain, and linearity are maintained by the Signal Booster’s microprocessor.
The Manufacturer’s rated output power of this equipment is for single carrier operation. For situations when
multiple carrier signals are present, the rating would have to be reduced by 3.5 dB, especially where the output
signal is re-radiated and can cause interference to adjacent band users. This power reduction is to be by
means of input power or gain reduction and not by an attenuator at the output of the device.
This device complies with Part 15 of FCC rules. Operation is subject to two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any interference received, including interference
that may cause undesired operation. Changes or modifications not expressly approved by weBoost could void
the authority to operate this equipment.

3301 East Deseret Drive, St. George, UT
866.294.1660 www.weboost.com support.weboost.com
Copyright © 2016 weBoost. All rights reserved.
weBoost products covered by U.S. patent(s) and pending application(s)
For patents go to: weboost.com/us/patents
NOT AFFILIATED WITH WILSON ANTENNA
2 YEAR WARRANTY
weBoost Signal Boosters are warranted for two (2) years against defects in
workmanship and/or materials. Warranty cases may be resolved by returning the
product directly to the reseller with a dated proof of purchase.
Signal Boosters may also be returned directly to the manufacturer at the
consumer’s expense, with a dated proof of purchase and a Returned Material
Authorization (RMA) number supplied by weoost. weBoost shall, at its option,
either repair or replace the product.
This warranty does not apply to any Signal Boosters determined by weBoost
to have been subjected to misuse, abuse, neglect, or mishandling that alters or
damages physical or electronic properties.
Replacement products may include refurbished weBoost products that have been
recertified to conform with product specifications.
RMA numbers may be obtained by contacting Customer Support
DISCLAIMER: The information provided by weBoost is believed to be complete
and accurate. However, no responsibility is assumed by weBoost for any business
or personal losses arising from its use, or for any infringements of patents or other
rights of third parties that may result from its use.
