Weider 150 TC User manual

Model No. WEEVBE5909.0
Serial No.
Write the serial number in the
space above for reference.
Serial Number Decal (under seat)
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Save this manual
for future reference.
USERʼS MANUAL
www.iconeurope.com
QUESTIONS?
If you have questions, or if there are
missing parts, please contact us:
Call: 08457 089 009
From Ireland: 053 92 36102
Website: www.iconsupport.eu
E-mail: Visit www.iconsupport.eu
Write:
ICON Health & Fitness, Ltd.
c/o HI Group PLC
Express Way
Whitwood, West Yorkshire
WF10 5QJ
U
All manuals and user guides at all-guides.com
all-guides.com

2

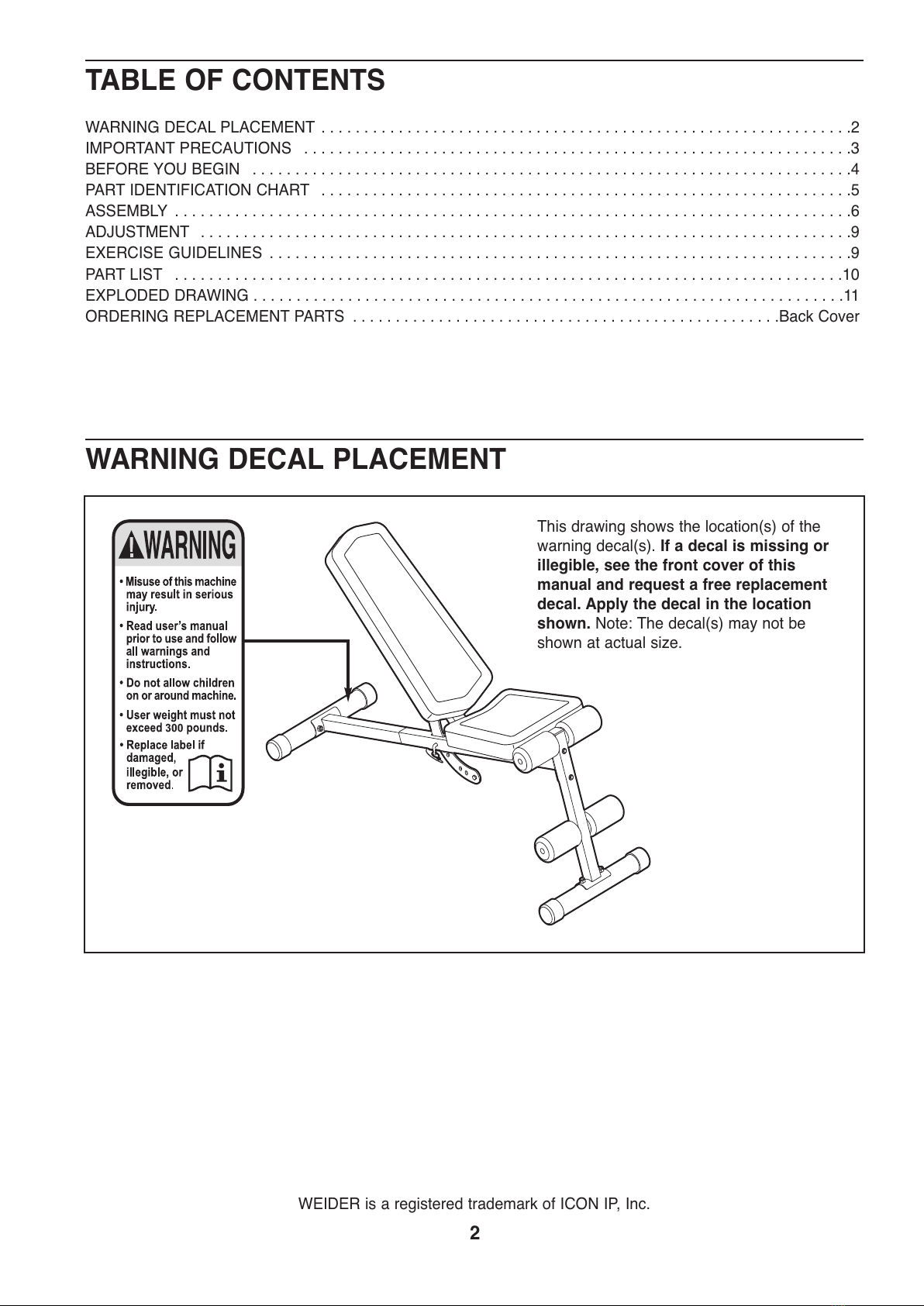

WARNING DECAL PLACEMENT
TABLE OF CONTENTS
WARNINGDECALPLACEMENT ..............................................................2
IMP RTANTPRECAUTI NS ................................................................3
BEF REY UBEGIN ......................................................................4
PARTIDENTIFICATI NCHART ..............................................................5
ASSEMBLY ...............................................................................6
ADJUSTMENT ............................................................................9
EXERCISEGUIDELINES ....................................................................9
PARTLIST ..............................................................................10
EXPL DEDDRAWING.....................................................................11
RDERINGREPLACEMENTPARTS ..................................................BackCover
This drawing shows the location(s) of the
warning decal(s). If a decal is missing or
illegible, see the front cover of this
manual and request a free replacement
decal. Apply the decal in the location
shown. Note: The decal(s) may not be
shown at actual size.
WEIDER is a registered trademark of IC N IP, Inc.
All manuals and user guides at all-guides.com

3
IMPORTANT PRECAUTIONS
1. Before beginning any exercise program,
consult your physician. This is especially
important for persons over age 35 or per-
sons with pre-existing health problems.
2. It is the responsibility of the owner to ensure
that all users of the weight bench are ade-
quately informed of all precautions.
3. The weight bench is intended for home use
only. Do not use the weight bench in a com-
mercial, rental, or institutional setting.
4. Use the weight bench only on a level sur-
face. Cover the floor beneath the weight
bench to protect the floor.
5. Inspect and properly tighten all parts regu-
larly. Replace any worn parts immediately.
6. eep children under age 12 and pets away
from the weight bench at all times.
7. The weight bench is designed to support a
maximum weight of 410 lbs. (186 kg) includ-
ing a maximum user weight of 300 lbs. (136
kg). Do not use more than 110 lbs. (50 kg) of
weight with the weight bench. Note: The
weight bench does not include weights.
8. Wear appropriate exercise clothes while
exercising; do not wear loose clothes that
could become caught on the weight bench.
Always wear athletic shoes for foot protec-
tion while exercising.
9. eep hands and feet away from moving
parts.
10. Always make sure that the locking pin is
fully inserted into the frame and the pivot
bracket before you exercise.
11. Over exercising may result in serious injury
or death. If you feel faint or if you experience
pain while exercising, stop immediately and
cool down.
12. Use the weight bench only as described in
this manual.
WARNING: To reduce the risk of serious injury, read all important precautions and
instructions in this manual and all warnings on your weight bench before using your weight bench.
ICON assumes no responsibility for personal injury or property damage sustained by or through the
use of this product.
All manuals and user guides at all-guides.com

4
Backrest
Front Leg
Locking Pin
Pivot Bracket Foam Pad
Seat
BEFORE YOU BEGIN
Thank you for selecting the versatile WEIDER®150
TC weight bench. The 150 TC weight bench is
designed to help develop the major muscle groups of
the upper body. Whether your goal is to tone your
body, build dramatic muscle size and strength, or
improve your cardiovascular system, the weight bench
will help you to achieve the specific results you want.
For your benefit, read this manual carefully before
you use the weight bench. If you have questions
after reading this manual, please see the front cover
of this manual. To help us assist you, note the product
model number and serial number before contacting
us. The model number and the location of the serial
number decal are shown on the front cover of this
manual.
Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
ASSEMBLED DIMENSI NS:
Height: 4 ft. 6 in. (137 cm)
Width: 1 ft. 6 in. (46 cm)
Depth: 3 ft. 4 in. (102 cm)
All manuals and user guides at all-guides.com

5
M10 x 63mm Bolt (16)
M10 x 85mm Bolt (23)
M10 x 20mm Bolt (25)
M6 Washer (22) M10 Locknut (19)
M4 x 16mm
Screw (28)
M10 x 70mm Bolt (26)
M10 x 63mm Carriage Bolt (18)
M6 x 60mm Screw (17)
M6 x 16mm
Screw (24)
M10 Washer (20)
M10 Large Washer (27)

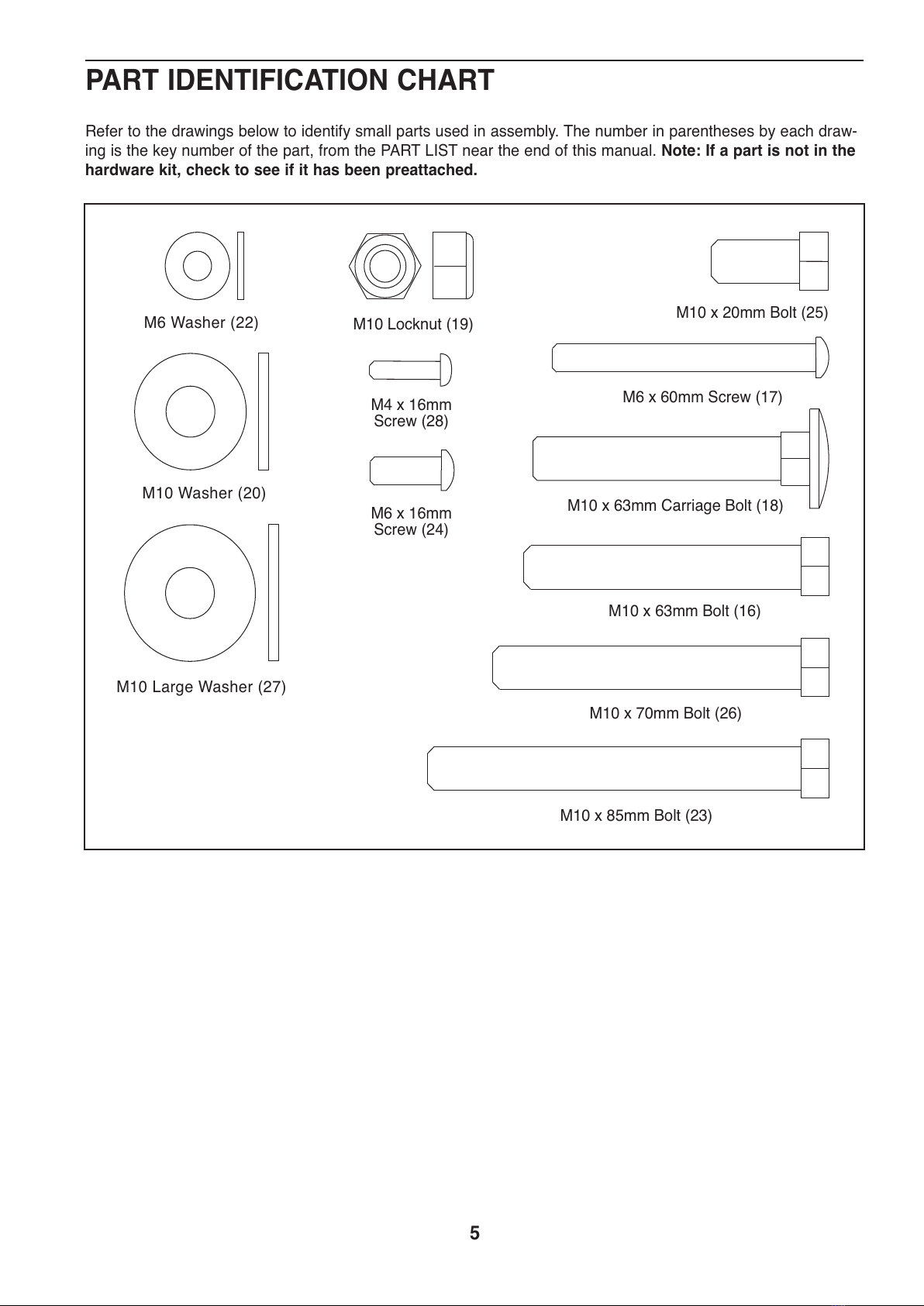

Refer to the drawings below to identify small parts used in assembly. The number in parentheses by each draw-
ing is the key number of the part, from the PART LIST near the end of this manual. Note: If a part is not in the
hardware kit, check to see if it has been preattached.
PART IDENTIFICATION CHART
All manuals and user guides at all-guides.com

6
ASSEMBLY
1.
Locate the Stabilizer (4) without the warning
decal.
Attach the Stabilizer (4) to the Front Leg (2) with
two M10 x 63mm Carriage Bolts (18) and two
M10 Locknuts (19). Do not tighten the
Locknuts yet.
1
2
19
19
18
4
To make assembly easier, make sure
that you understand the information in
the box above.
2
119
16
2
27
27
2. Attach the Frame (1) to the Front Leg (2) with
two M10 x 63mm Bolts (16), two M10 Large
Washers (27), and two M10 Locknuts (19). Do
not tighten the Locknuts yet.
To make assembly easier, carefully read the
following information and instructions:
• Assembly requires two persons.
• Because of its weight and size, the weight bench
should be assembled in the location where it will
be used. Make sure that there is enough clear-
ance to walk around the weight bench as you
assemble it.
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until assembly is completed.
• For help identifying small parts, use the PART
IDENTIFICATI N CHART on page 5.
• The following tools (not included) may be required
for assembly:
two adjustable wrenches
one rubber mallet
one standard screwdriver
one Phillips screwdriver
Assembly may be more convenient if you have a
socket set, a set of open-end or closed-end
wrenches, or a set of ratchet wrenches.
All manuals and user guides at all-guides.com
all-guides.com

7

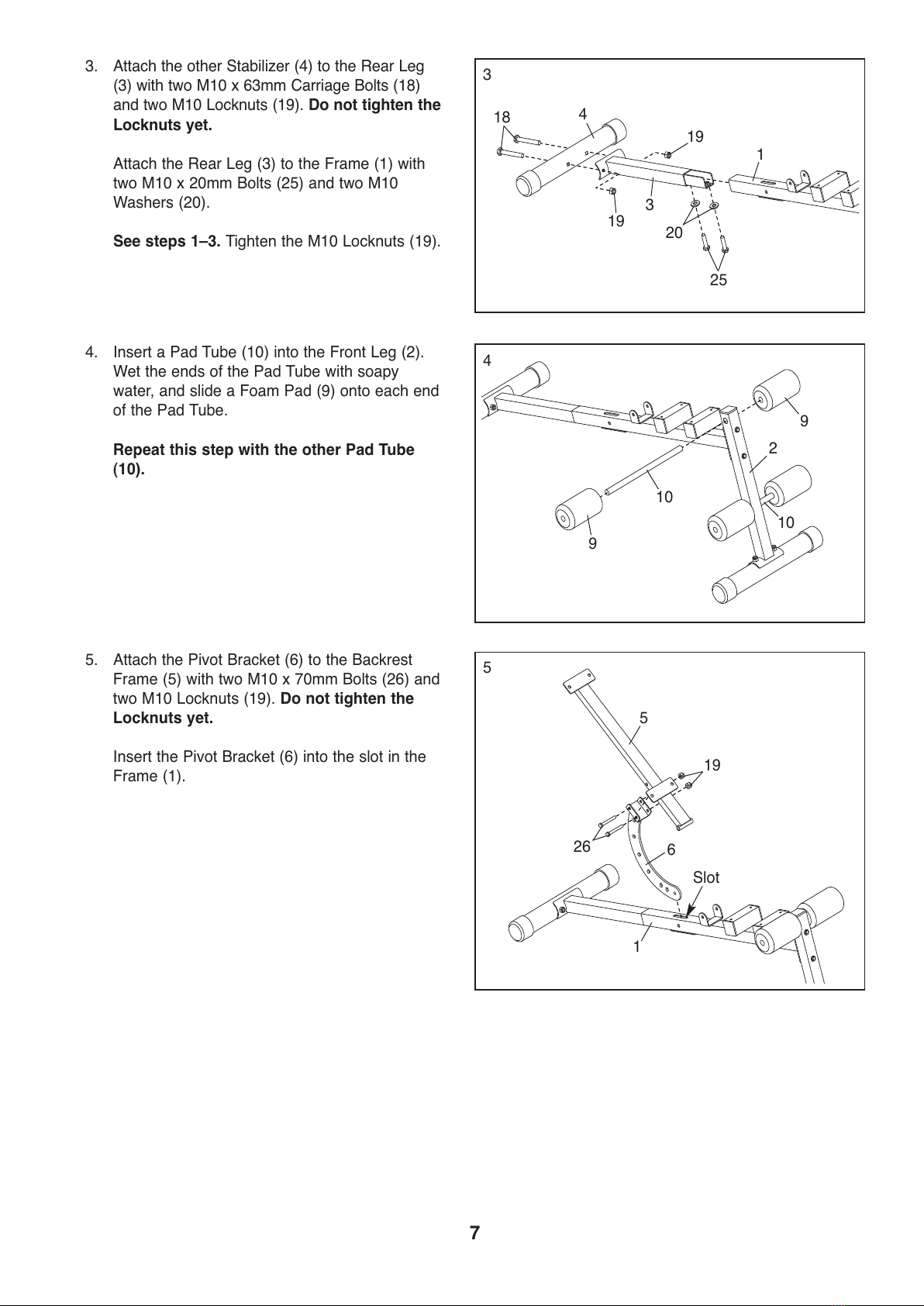

3. Attach the other Stabilizer (4) to the Rear Leg
(3) with two M10 x 63mm Carriage Bolts (18)
and two M10 Locknuts (19). Do not tighten the
Locknuts yet.
Attach the Rear Leg (3) to the Frame (1) with
two M10 x 20mm Bolts (25) and two M10
Washers (20).
See steps 1–3. Tighten the M10 Locknuts (19).
3
20
25
19
19
4
18
3
1
4. Insert a Pad Tube (10) into the Front Leg (2).
Wet the ends of the Pad Tube with soapy
water, and slide a Foam Pad (9) onto each end
of the Pad Tube.
Repeat this step with the other Pad Tube
(10).
4
10
2
9
10
9
5. Attach the Pivot Bracket (6) to the Backrest
Frame (5) with two M10 x 70mm Bolts (26) and
two M10 Locknuts (19). Do not tighten the
Locknuts yet.
Insert the Pivot Bracket (6) into the slot in the
Frame (1).
5
19
26 6
5
1
Slot
All manuals and user guides at all-guides.com

8
6. Apply some of the included grease to an M10 x
85mm Bolt (23). Attach the Backrest Frame (5)
to the Frame (1) with the Bolt and an M10
Locknut (19). Do not overtighten the Locknut;
the Backrest Frame must pivot easily.
Attach the tether on the Locking Pin (21) to the
bottom of the Frame (1) with an M4 x 16mm
Screw (28). Next, insert the Locking Pin into the
Frame and into an adjustment hole in the Pivot
Bracket (6).
Attach an M10 x 20mm Bolt (25) and an M10
Locknut (19) to the hole in the end of the Pivot
Bracket (6).
See step 5. Tighten the M10 Locknuts (19).
6
5
1
25
19
19
6
21
Tether 28
7. Orient the Backrest (7) as shown. Attach the
Backrest to the Backrest Frame (5) with four M6
x 16mm Screws (24).
7
7
5
24
24
8. Attach the Seat (8) to the Frame (1) with four
M6 x 60mm Screws (17) and four M6 Washers
(22).
8
1
22
22
8
17
9. Make sure that all parts are properly tightened before you use the weight bench.
Grease
23
All manuals and user guides at all-guides.com

9
ADJUSTING THE BAC REST
The Backrest (7) can be used in a declined posi-
tion, a level position, or any of four inclined
positions.
To adjust the Backrest, first remove the Locking Pin
(21) from the Frame (1). Move the Backrest to the
desired position, and reinsert the Locking Pin into
the Frame and an adjustment hole in the Pivot
Bracket (6).
7
21
6
1
Adjustment
Holes
ADJUSTMENT
WARNING: Make sure that the
Locking Pin (21) is fully inserted into the
Frame (1) and the Pivot Bracket (6).
EXERCISE GUIDELINES
FOUR TYPES OF STRENGTH WOR OUTS
Note: A “repetition” is one complete cycle of an exer-
cise, such as one sit-up. A “set” is a series of
repetitions.
Muscle Building—Work your muscles near their max-
imum capacity and progressively increase the intensity
of your exercise. Adjust the intensity level of an indi-
vidual exercise as follows:
• Change the amount of resistance used.
• Change the number of repetitions or sets performed.
Use your own judgment to determine the amount of
resistance that is right for you. Begin with 3 sets of 8
repetitions for each exercise you perform. Rest for 3
minutes after each set. When you can complete 3 sets
of 12 repetitions without difficulty, increase the amount
of resistance.
Toning—Tone your muscles by working them to a
moderate percentage of their capacity. Select a mod-
erate amount of resistance and increase the number
of repetitions in each set. Complete as many sets of
15 to 20 repetitions as possible without discomfort.
Rest for 1 minute after each set. Work your muscles
by completing more sets rather than by using high
amounts of resistance.
Weight Loss—To lose weight, use a low amount of
resistance and increase the number of repetitions in
each set. Exercise for 20 to 30 minutes, resting for a
maximum of 30 seconds between sets.
Cross Training—Combine strength training and aero-
bic exercise by following this type of program:
• Strength training workouts on Monday, Wednesday,
and Friday.
• 20 to 30 minutes of aerobic exercise on Tuesday
and Thursday.
• ne full day of rest each week to give your body
time to regenerate.
All manuals and user guides at all-guides.com

10
Note: Specifications are subject to change without notice. For information about ordering replacement parts, see
the back cover of this manual. *These parts are not illustrated.
ey No. Qty. Description ey No. Qty. Description
11Frame
21Front Leg
31Rear Leg
42Stabilizer
51Backrest Frame
61Pivot Bracket
71Backrest
81Seat
94Foam Pad
10 2 Pad Tube
11 4 19mm Round Inner Cap
12 4 50mm Round uter Cap
13 4 50mm Square Inner Cap
14 1 45mm Square Inner Cap
15 1 25mm x 50mm Inner Cap
16 2 M10 x 63mm Bolt
17 4 M6 x 60mm Screw
18 4 M10 x 63mm Carriage Bolt
19 10 M10 Locknut
20 2 M10 Washer
21 1 Locking Pin
22 4 M6 Washer
23 1 M10 x 85mm Bolt
24 4 M6 x 16mm Screw
25 3 M10 x 20mm Bolt
26 2 M10 x 70mm Bolt
27 2 M10 Large Washer
28 1 M4 x 16mm Screw
*– Userʼs Manual
*– Exercise Guide
*– Grease Packet
PART LIST—Model No. WEEVBE5909.0 R0909A
WOR OUT GUIDELINES
Familiarize yourself with the equipment and learn the
proper form for each exercise. Use your own judgment
to determine the appropriate length of time for each
workout, and the numbers of repetitions and sets to
complete. Progress at your own pace and be sensitive
to your bodyʼs signals. Follow each workout with at
least one day of rest.
Warming Up—Start with 5 to 10 minutes of stretching
and light exercise. A warm-up increases your body
temperature, heart rate, and circulation in preparation
for exercise.
Working Out—Include 6 to 10 different exercises in
each workout. Select exercises for every major muscle
group, emphasizing areas that you want to develop.
To give balance and variety to your workouts, vary the
exercises from workout to workout.
Cooling Down—Finish with 5 to 10 minutes of
stretching. Stretching increases the flexibility of your
muscles and helps to prevent post-exercise problems.
EXERCISE FORM
Move through the full range of motion for each exer-
cise and move only the appropriate parts of the body.
Perform the repetitions in each set smoothly and with-
out pausing. The exertion stage of each repetition
should last about half as long as the return stage.
Exhale during the exertion stage of each repetition
and inhale during the return stroke. Never hold your
breath.
Rest for a short period of time after each set:
• Muscle Building—Rest for three minutes after each
set.
• Toning—Rest for one minute after each set.
• Weight Loss—Rest for 30 seconds after each set.
STAYING MOTIVATED
For motivation, keep a record of each workout. Write
the date, the exercises performed, the resistance
used, and the numbers of sets and repetitions com-
pleted. Record your weight and key body
measurements once a month. To achieve good
results, make exercise a regular and enjoyable part of
your life.
All manuals and user guides at all-guides.com

11
1
4
12
12
18
19
3
19 20 20
25
21
13
19
23 13
28
19
19
27
27
16
22
22
17
17
8
14
9
9
11
11
2
11 4
12
12
19
18
19
7
15
24
5
24
6
26
19
19
25
9
10
11
9
10
EXPLODED DRAWING—Model No. WEEVBE5909.0 R0909A
All manuals and user guides at all-guides.com
all-guides.com

Part No. 288871 R0909A Printed in China © 2009 IC N IP, Inc.
ORDERING REPLACEMENT PARTS
To order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to
provide the following information when contacting us:
• the model number and serial number of the product (see the front cover of this manual)
• the name of the product (see the front cover of this manual)
• the key number and description of the replacement part(s) (see the PART LIST and the EXPL DED
DRAWING near the end of this manual)
All manuals and user guides at all-guides.com
