Weider Ultramax 1033 User manual

MODEL
NO.
1033
«Маа
SERIAL
NO.
Write serial number in the space
above for reference.
SERIAL
NUMBER
DECAL
WAIT, READ THIS FIRST!
If you find this unit to have missing or defective parts
please have ready the following Information listed
below before calling the 800 NUMBER.
The ASSEMBLY MANUAL
MODEL NUMBER of this UNIT
PART NAME or DESCRIPTION
ORDERING NUMBER
THE QUANTITY of each part that you need.
THE MODEL NUMBER of this unit can be found
in the UPPER LEFT-HAND or RIGHT-HAND CORNER
of this page. The MODEL NUMBER Is a series of FOUR
or FIVE NUMBERS, or a NUMBER preceeded by TWO
LETTERS.
THE PART NAME or DESCRIPTION and the
ORDERING NUMBER can be found on the PARTS
weider |
OWNER’S MANUAL
—— o a ——— —
MADE IN CANADA l
WEIDER is committed to providing you complete customer satisfaction. If you have any questions concerning the assembly of this
product or find damaged or missing parts, we guarantee you direct assistance. AVOID THE HASSLE OF CONTACTING THE
STORE FOR PARTS. Call our "CUSTOMER ASSISTANCE LINE" for assistance with parts and information by calling our toll free
number 1-800-225-0653, Mon.-Frl., 8am-Spm CST.
IMPORTANT: Read all safety precautions and instructons in this manual carefully before using this equipment. Save this manual
for future reference.
Printed in CANADA
WEIDER SPORTING GOODS, INC.
21100 Erwin Street, Woodland Hills, CA. 91367 USA

PAGE 1 WEIDER SPORTING GOODS
TABLE OF CONTENTS
Table of Contents ................................. 1
Important Safety PrecautionS ....................... 1
Introduction... den se аа eek ERE Ra n RR Fee 1
Assembly. SIDS е сана beet ee ewes 5-1 1
Maintenance Tips ................................. 3
Parts БЕ coss ER EG ee eae eee eS TX Kawa es 2-3
Ordering Parts os sc voces а ewes rrr eee ees 4
Thank
you
for
choosing
Weider
fitness
equipment.
Your
Weight
Bench
is
designed
and
engineered
to
give
you
many
hours
of weight
conditioning.
This
manual
is
provided
to
help
you
understand
the
simple
assembly,
adjustments,
and
use
of
the
Weight
Bench.
In
addition
to
assembly
instructions
it
also
contains
conditioning
guides,
maintenance
tips,
and
parts
information.
Please take the time to read all the information contained in this manual and after assembly is completed
keep it for future reference.
WARNING: то reduce the risk of serious injury, read the important safety
precautions before using this equipment.
1. Read all instructions in this manual before using this equipment.
2. Usethis equipment only as described in this Owner's Guide.
3. Inspect and tighten all parts each time this equipment is used. Replace any worn parts immediately.
4. Keep hands away from moving parts other than the designated handles.
5. Keep small children away from this equipment during use.
. WARNING: Before beginning this or any exercise program consult your physician.
This is especially important for individuals over the age of 35 or persons with
pre-existing health problems. Read all instructions before using. Weider assumes no
responsibility for personal injury or property damage sustained by or through the use of
this product.
SAVE THESE INSTRUCTIONS

1033 PART LIST
UPRIGHT
BASE FRAME
MAIN FRAME
| BACKREST
SEAT
C1260-G01*G01
C4193-G01*G01
C4194-G01*G01
C1421-G01*G01
С1422-001*601 |
C6293-GO1*GO1 |
C7312-G01*G01
С4195-601*001 |
C7313-F01*GO1 |
С7314-601*601 |
C0411-C04*G01
C6660-G01*G01
C6661-G01*G01
C4196-G01*G01
C4197-G01*G01
C7735-G01*G01
AA-8034*G01
|
10
(jweeHrBAR-tXIZ
—
O
|
n
JFOAMROLLERPAD
-
3"X51/2"
|
m
—
jeE-Loa
|
|
19
—
caBLE-sHoRt
O
O
,
|
|
14
——
MasrToPsECTON
=i
|
1:5
MAsrBOTTOMsECTON
=
ee
CUN
ла
|
|
0€
І
NEM
MEN
[|
ae
FOAM GRIP - 1" Х5"
C0417-B05*G01
C4198-G01*G01
C4199-G01*G01
C7315-GO1*G01
C7316-G01*G01
C1261-G01*GO1
C6403-G01*G01
C1423-G01*G01
C6294-G01*G01
D up
|
з
|616"
X2
1/27
HEX
HEAD
BOLT
|32
|sne"
Хз
1/4"
HEX
HEAD
BOLT
HH-5297*G01
з
jene"
Х1
3/4"
EYELET
BOLT
5/16" X 2" CARRIAGE BOLT
5/16" ACORN NUT
5/16" X 5" HEX HEAD BOLT
5/16" X 2" HEX HEAD BOLT
5/16" X 2 1/4" HEX HEAD BOLT
1/4" NYLON LOCK NUT
1/4" X 3/4" ROUND HEAD MACHINE SCREW
1/4" X 2" ROUND HEAD MACHINE SCREW

1033 PART LIST
HH-5088*G01
HH-5018*G01
HH-5068*G01
HH-5244*G01
WW-7038'G01 |
AA-8002*G01 |
AA-8070*G01
AA-8004*G01
AA-8005*G01
AA-8093*G01
АА-8088*601 |
AA-8001*G01 |
WW-7002*G01
3/8" NYLON LOCK NUT
3/8" X 2 1/2" HEX HEAD BOLT
3/8" X 1 1/2" HEX HEAD BOLT
3/8" X 2" HEX HEAD BOLT
STOPPER PIN
67 1/2" О.р. X 3/4" LONG METAL SPACER NEXU
| 68 2" О.р. Х1 3/8" LONG METAL SPACER |o 30 |
-8128*G01
1/2" O.D. X 3" LONG PLASTIC SPACER
S-HOOK -7030*G01
WEIGHT STOP AA-8112*GO1 |
| т |PLASTICSLEEVE - 1 1/8" O.D. X 2" LONG | 2 | AAs0901'G01
jit
UPRIGHT DECAL DE-4373*G01
ASSEMBLY MANUAL CNN-1255*G01
70 ў
71
72
|
—
|HARDWARE
BAG
(BOLTS
&
NUTS)
|
1
[|
care9-cot'G0!
HARDWARE BAG (PLASTICS) C8790-G01*G01 |
MAINTENANCE TIPS
Keeping your weight bench in good condition will help insure you many hours of safe,
enjoyable exercise. Following an easy maintenance routine will prevent premature wear
and unnecessary parts replacement.
1. Check all fasteners, nuts and bolts, and caps to see that they are tight and fitted
properly.
2. Lubricate all moving parts frequently to keep handles and other parts moving smoothly
and eliminate squeaks and excessive noise. l
3. Painted surfaces can be cleaned with a soft cloth and a mild, non-abrasive detergent.

PAGE 4 WEIDER SPORTING GOODS

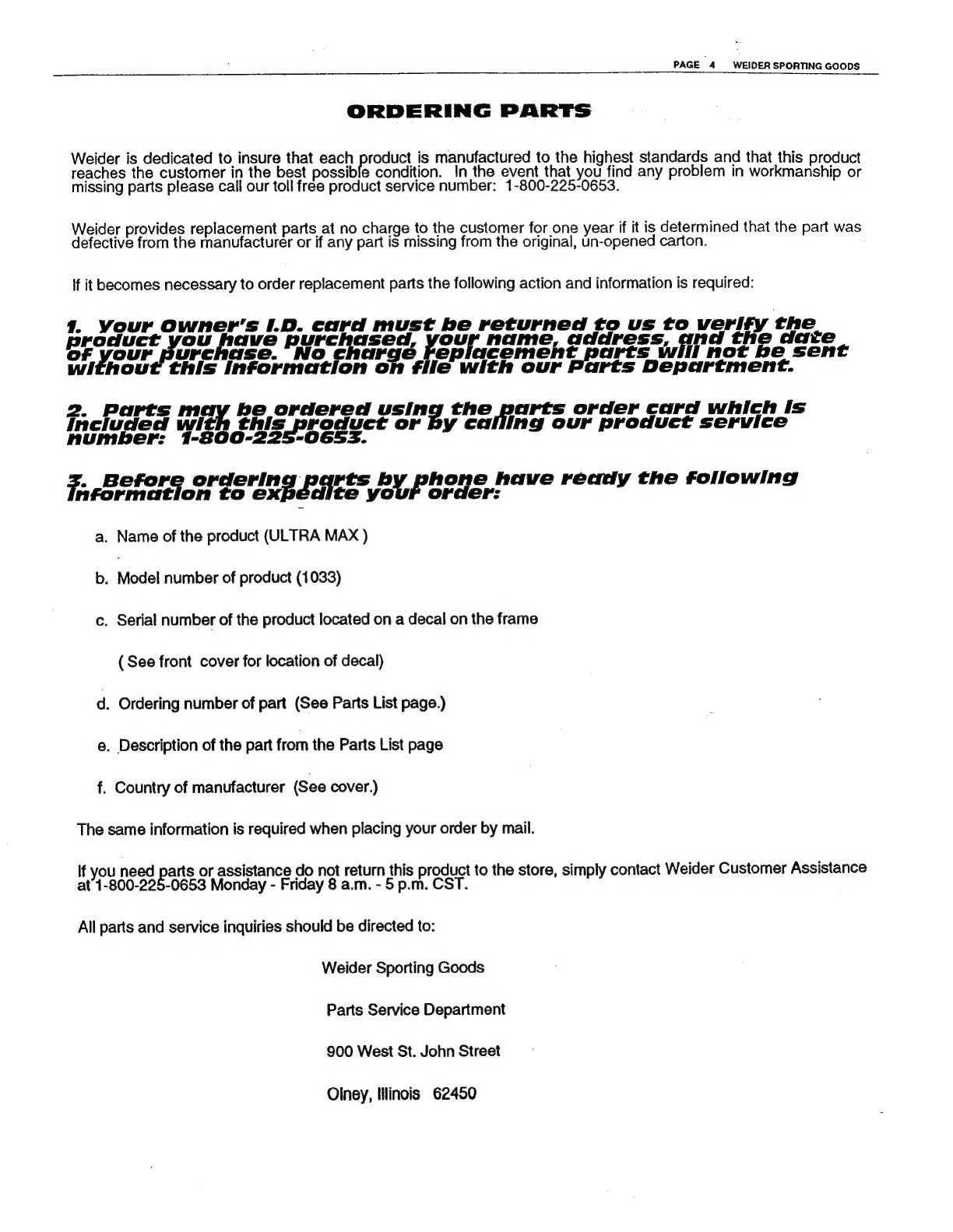

ORDERING PARTS
Weider is dedicated to insure that each product is manufactured to the highest standards and that this product
reaches the customer in the best possible condition. In the event that you find any problem in workmanship or
missing parts please call our toll free product service number: 1-800-225-0653.
Weider
provides
replacement
parts
at
no
charge
to
the
customer
for
one
year
if
it
is
determined
that
the
part
was
defective from
the
manufacturer
or if
any
part
is
missing
from
the
original,
ün-opened
carton.
If
it
becomes
necessary
to
order
replacement
parts
the
following
action
and
information
is
required:
1. Your Owner's I.D. card must be returned to us to verify the
product you have purchased, your пате, address, and the date
о
urchase.
Мо
charge
ep.
acemeht
parts
will
not
be
sent
without this Information on file with our Parts Department.
2.
Parts
may
be
ordered
using
the
parts
order
card
which
Is
Included
wi
this
product
or
by
calling
our
product
service
number:
1-800-225-0653.
Fie
RSIS
ST
ES
ORE
PUES
AK
PDI,
heo
госту
спе
following
a. Name of the product (ULTRA MAX )
b. Model number of product (1033)
c. Serial number of the product located on a decal on the frame
( See front cover for location of decal)
е.
. Ordering number of part (See Parts List page.)
e. Description of the part from the Parts List page
f. Country of manufacturer (See cover.)
The same information is required when placing your order by mail.
If
you
need
parts
or
assistance
do
not
return
this
product
to
the
store,
simply
contact
Weider
Customer
Assistance
at
1-800-225-0653
Monday
-
Friday
8
a.m.
- 5
p.m.
CST.
All parts and service inquiries should be directed to:
Weider Sporting Goods
Parts Service Department
900 West St. John Street
Olney, Illinois 62450

PAGE 5 WEIDER SPORTING GOODS
STEP 1
FRAME ASSEMBLY
L] Begin by pressing 2" SQUARE PLASTIC INSERT CAPS (55) into the
bottom ends of the UPRIGHT (1).
[30 5/16" NYLON LOCK NUT
| 31 5/16" X2 1/2" НЕХ HEAD BOLT
| 39 5/16" X2 1/4" HEX HEAD BOLT
[55 2" SQUARE PLASTIC INSERT CAP
[56 11/2" SQUARE PLASTIC INSERT CAP
L] Align the BASE FRAME (2) with the UPRIGHT (1) and secure using
5/16" X 2 1/2" HEX HEAD BOLTS (31) to bolt through the bracket of
the Base Frame and into the front of the Upright. Secure with 5/16"
NYLON LOCK NUTS (30).
C] Assemble the MAIN FRAME (3) to the UPRIGHT (1) and BASE FRAME (2) by positioning the rear U-bracket of the Main
Frame over the cross-member tube of the Upright and positioning the front U-bracket over the Base Frame tube.
[C] Secure the rear U-bracket at the UPRIGHT (1) using 5/16" X 2 1/4" HEX HEAD BOLTS (39) to bolt through the U-bracket
and then through the front of the Upright. Secure with 5/16" NYLON LOCK NUTS (30).
L] Secure the front U-bracket at the BASE FRAME (2) using a 5/16" X 2 1/4" HEX HEAD BOLT (39) and bolting through the
U-bracket and then through the Base Frame. Secure with a 5/16" NYLON LOCK NUT (30).
[) Press 1 1/2" SQUARE PLASTIC INSERT CAPS (56) onto the ends of the BASE FRAME (2).
[7 Remove the backing from the UPRIGHT DECAL (80) and affix to the front of one side of the UPRIGHT (1).
U-BRACKET 39
31 iiu oi
4 39 4 0-6
E
gee 30

PAGE 6 WEIDER SPORTING GOODS
STEP 2 BACKREST & SEAT ASSEMBLY
30 5/16" NYLON LOCK NUT
32 5/16" X 3 1/4" HEX HEAD BOLT
41
| 1/4" X 3/4" ROUND HEAD MACHINE SCREW
[65 5/16" 1.0. X 13 /32" LONG METAL SPACER
C] тит the BACKREST (4) over
to expose the threaded holes.
Position the LONG ANGLE’
IRONS (6) so that the flat side
faces the inside of the
Backrest. Fasten with 1/4" X
3/4" ROUND HEAD MACHINE
SCREWS (41). DO NOT
COMPLETELY TIGHTEN
THESE SCREWS AT THIS
TIME!
[J The bottom end ої the.
BACKREST (4) is the end that
the LONG ANGLE IRONS (6).
extend past. This is the end
that is assembled to the MAIN
FRAME (3).
[] straddle the LONG ANGLE
IRONS (6) on the BACKREST
(4) over the bolt hole location
on the MAIN FRAME (3).
Assemble a 5/16" X 3 1/4"
HEX HEAD BOLT (32) into the
large hole at the very end of
one of the Long Angle Irons
and then into a 5/16" І.Ю. X
13/32" LONG METAL
SPACER (65). The Hex Head 4
Bolt will then go all the way
through the Main Frame. As
the Bolt comes out of the Main
Frame on the other side, place
another 13/32" LONG METAL
SPACER (65) onto the Bolt and
push the Bolt the rest of the
way through into the opposite
Long Angle Iron. Secure with a
5/16" NYLON LOCK NUT (30). 6
5
SEAT BRACKET
[] TIGHTEN ALL SCREWS ON
THE BACK OF THE
BACKREST AT THIS TIME.
C] Align the SEAT (5) onto the
Seat Bracket on the MAIN
FRAME (3) and attach with
1/4" X 3/4" ROUND HEAD
MACHINE SCREWS (41) by
bolting up through the Seat
Bracket and then into the Seat.

PAGE 7 WEIDER SPORTING GOODS
STEP 5 LEG EXTENSION ASSEMBLY
О
О
б
О
О
О First, insert the WEIGHT PIN (7) through the angled hole іп the
lower front of the LEG EXTENSION (8). Align the bolt holes and
secure using a 5/16" X 2" HEX HEAD BOLT (38) to bolt through
the Leg Extension and then through the Weight Pin. Secure with
a5/16" NYLON LOCK NUT (30).
5/16" NYLON LOCK NUT
5/16" X 1 3/4" EYELET BOLT
5/16" X 2" HEX HEAD BOLT
3/8" NYLON LOCK NUT
3/8" X 2 1/2" HEX HEAD BOLT
1" ROUND PLASTIC COVER CAP
3/4" ROUND PLASTIC INSERT CAP
L] Place a 1" ROUND PLASTIC COVER CAP - 15° (57) over the
rear extended portion of the WEIGHT PIN (7). Slide a WEIGHT
1" ROUND PLASTIC INSERT CAP STOP (71) (flared side out) over the Weight Pin until it is against
1
1/2"
SQUARE
PLASTIC
INSERT
CAP
(#240)
the
LEG
EXTENSION
(8)
Frame.
Press
а
1“
ROUND
PLASTIC
WEIGHT STOP f INSERT CAP (59) into the end of the tube.
LEG EXTENSION 58 9
BRACKETS
“а [аз lm | |а few [-а fe [м
Insert а 1 1/2" SQUARE PLASTIC INSERT CAP (#240 - 14-16 GA. - WRITTEN INSIDE) (61) into the upper end of the LEG
EXTENSION (8).
Position the LEG EXTENSION (8) between the Leg Extension Brackets on the MAIN FRAME (3). Secure using a 3/8" X 2
1/2" HEX HEAD BOLT (46) to bolt through the Bracket and then through the Leg Extension. Secure with a 3/8" NYLON
LOCK NUT (45). DO NOT OVER TIGHTEN OR THE LEG EXTENSION WILL NOT BE ABLE TO SWING FREELY!
Select the WEIGHT BAR (10) - a round tube 1" in diameter and 12" long with a hole in the center. Press 1" ROUND
PLASTIC INSERT CAPS (59) into the ends of the tube. Assemble the Weight Bar into the large hole at the very end of the
LEG EXTENSION (8). Align the bolt holes and secure using a 5/16" X 1 3/4" EYELET BOLT (34) to Бой through the top of
the Leg Extension and then through the Weight Bar. Secure with a 5/16" NYLON LOCK NUT (30).
Select the two PAD BARS (9) - round tubes 3/4" in diameter and 13 1/4" long. Press 3/4" ROUND PLASTIC INSERT CAPS
(58) into both ends of the tubes.
NOTE: 7o each end of the PAD BARS (9), wipe a small amount of liquid dish detergent along the length of the Bars. This
helps in the assembly of the Foam Roller Pads. When the detergent dries, it acts as an adhesive.
Onto one end of each PAD BAR (9), press a3" X 5 1/2" FOAM ROLLER PAD (11).
Assemble one PAD BAR (9) into the lower hole location on the LEG EXTENSION (8). Assemble another 3" X 5 1/2" FOAM
ROLLER PAD (11) onto the opposite end of the Bar.
Assemble the other PAD BAR (9) into the hole location on the upper LEG EXTENSION (8). Assemble another 3* X 5 1/2"
FOAM ROLLER PAD (11) onto the opposite end of the Bar.

PAGE 8 WEIDER SPORTING GOODS
STEP 4 ADJUSTABLE UPRIGHT ASSEMBLY
[64 LOCKING EIN: SMALL
[O insert the ADJUSTABLE UPRIGHT (24)
into the UPRIGHT (1).
QO oooo]J
L] Use LOCKING PINS - SMALL (64) to
adjust the height of the ADJUSTABLE
UPRIGHTS (24).
[J Press a 3/4" ROUND PLASTIC INSERT
CAP (58) into the handle end of the 25
BACKREST ADJ BAR (25). Slide the
Backrest Adj Bar into any of the hole 58
patterns on the UPRIGHT (1). This Bar is
used to adjust the incline of the BACKREST
(4) and the height of the ADJUSTABLE
UPRIGHTS (24) when using the Backrest in jns о
ап incline position. When the Backrest is іп
the flat position, the height of the Adjustable
Uprights can be adjusted by the use of the
LOCKING PINS - SMALL (64).
STEPS ARM CURL ASSEMBLY
26
41 1/4" X 3/4" ROUND HEAD MACHINE SCREW
[З Assemble the ARM
CURL PAD (26) to
the PAD SUPPORT
(27) using 1/4" X 3/4"
ROUND HEAD
MACHINE SCREWS
(41)
to
bolt
through
és
the
Support
and
into
27
the Pad. ў
L] To use the Ат Curl
Pad, insert the PAD
SUPPORT (27) into
the top of the MAIN
FRAME (8) and adjust
to the desired height
by inserting a
LOCKING PIN -
SMALL (64) into the
appropriate hole and
allowing it to rest on
top of the Frame.
(You will need to use
one of the Locking
Pins from the
Adjustable Uprights.)

PAGE 9 WEIDER SPORTING GOODS
STEP 6 MAST ASSEMBLY
РАВТ:МА
30 5/16" NYLON LOCK NUT rae
[34 5/16" X 1 3/4" EYELET BOLT
5/16" X 2" CARRIAGE BOLT
|36 5/16" ACORN NUT
145 3/8" NYLON LOCK NUT
47 38" X1 1/2" HEX HEAD BOLT
| 4 3/8" X 2" HEX HEAD BOLT
56 11/2" SQUARE PLASTIC INSERT CAP
6
59-A 1" ROUND PLASTIC COVER CAP - (9-1)
8
7 1/2" O.D. X 3/4" LONG METAL SPACER
68 1/2" O.D. X 1 3/8" LONG METAL SPACER
О Connect the MAST
TOP SECTION (14)
and the MAST
BOTTOM
SECTION (15)
using MAST
CONNECTOR
PLATES (16) and
securing with 5/16"
X 2" CARRIAGE
BOLTS (35) by
bolting through the
Plates and then
through the Mast
Sections. Fasten
with 5/16° ACORN
NUTS (36).
O insert a 1/2" О.р. X
3/4" LONG METAL
SPACER (67) into
the PULLEY (17).
Drape the SHORT
CABLE (13) over
the Pulley and
assemble the
Pulley into the
Pulley Plates at the
bottom of the
MAST BOTTOM
SECTION (15),
trapping the Cable
behind the Pulley.
Secure in place
using a 3⁄8" X 1
12" HEX HEAD
BOLT (47) and
bolting through the
Plates and into the
Pulley. Secure with
a 3/8" NYLON
LOCK NUT (45).

PAGE 10 WEIDER SPORTING GOODS
(О insert a 1/2" О.р. X 1 3/8" LONG METAL SPACER. (68) into a PULLEY (17).. Insert the Pulley into the top of the TOP
MAST SECTION (14) and using à 3/8" X 2" HEX HEAD BOLT (48), bolt ir place-by-belting-through the top of the Mast and
then through the Pulley. Secure with a 3/8" NYLON LOCK NUT (45). а
LJ Drape the LONG CABLE (12) over the PULLEY (17).
О
Cap the top of the MAST TOP SECTION (14) with а 1 1/2" SQUARE PLASTIC INSERT CAP (56).
L} Press 1" ROUND PLASTIC COVER CAPS - (9-1 Written Inside) (59-A) into each end of the LAT BAR (18). Apply a small
amount of liquid dish detergent to each end of the Lat Bar and assemble the FOAM GRIPS (19) onto each end of the Lat Bar.
[] Thread a 5/16" NYLON LOCK NUT (30) onto an 5/16" X 1 3/4" EYELET BOLT (34) - а// the way to the top of the threads -
and then insert the Вой down through the top of the center hole in the LAT BAR (18). Secure with a 5/16" ACORN NUT
(36). :
C] inset S-HooKS (70) through the one loop end of each CABLE (12) and (13).
USING MAST ASSEMBLY
STEP 1 ROWING AND CURLS
Insert the Mast Assembly into the MAIN FRAME (3). Connect the loop of the LONG CABLE (12)
into the 5/16" X 1 3/4" EYELET BOLT (34) on the LEG EXTENSION (8). Connect the S-HOOK (70)
end of the LONG CABLE (12) to the loop end of the SHORT CABLE (13) and then connect the
S-Hook end of the SHORT CABLE (13) to the LAT BAR (18). With this configuration, Rowing and
Curl Exercises may be performed. Free weights can be loaded on either or both the WEIGHT PIN
(7) or the WEIGHT BAR (10).
STEP 2 LAT PULL DOWNS
To do Lat Work, either sitting or standing; connect the LAT BAR (18) directly to the S-HOOK (70)
end of the LONG CABLE (12). Load weight on either the Leg Extension WEIGHT PIN (7) or the
WEIGHT BAR (10).

PAGE 11 WEIDER SPORTING GOODS

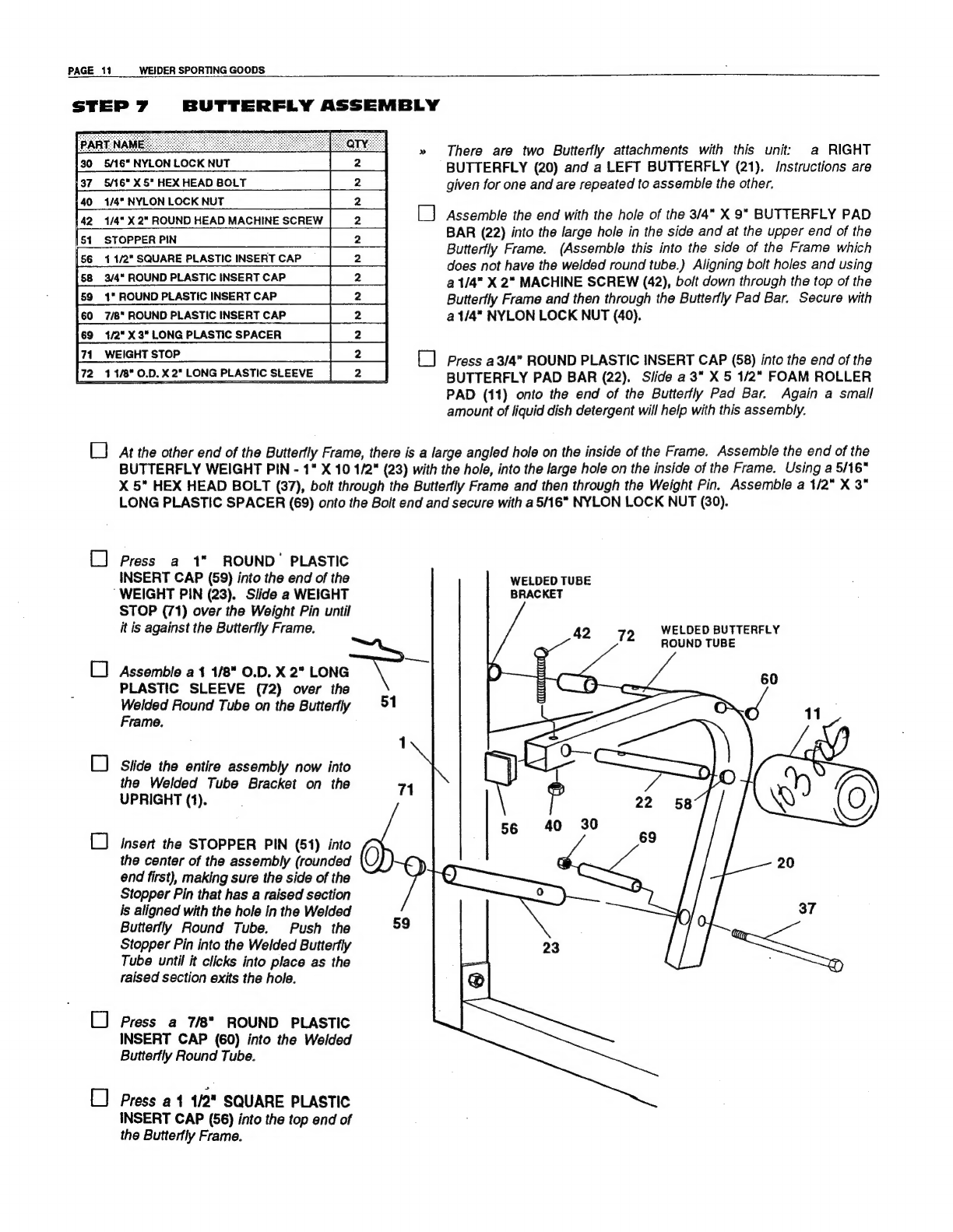

STEP 7
[37 5/16" X 5" HEX HEAD BOLT
[40 1/4" NYLON LOCK NUT
142 1/4" X2" ROUND HEAD MACHINE SCREW
51 STOPPER PIN
[Бе 11/2" SQUARE PLASTIC INSERT CAP — |
[58 sa'RouNDPLAsTICINSERTCAP — |
[Ta 3 1/8" 0.0. X 2" LONG PLASTIC SLEEVE
BUTTERFLY ASSEMBLY
There are two Butterfly attachments with this unit: а RIGHT
BUTTERFLY (20) and a LEFT BUTTERFLY (21). Instructions are
given for one and are repeated to assemble the other.
O Assemble the end with the hole of the 3/4" X 9" BUTTERFLY PAD
BAR (22) into the large hole in the side and at the upper end of the
Butterfly Frame. (Assemble this into the side of the Frame which
does not have the welded round tube.) Aligning bolt holes and using
a 1/4" X 2" MACHINE SCREW (42), bolt down through the top of the
Butterfly Frame and then through the Butterfly Pad Bar. Secure with
a 1/4" NYLON LOCK NUT (40).
Press a 3/4" ROUND PLASTIC INSERT CAP (58) into the end of the
BUTTERFLY PAD BAR (22). Slide a 3" X 5 1/2" FOAM ROLLER
PAD (11) onto the end of the Butterfly Pad Bar. Again a small
amount of liquid dish detergent will help with this assembly.
[ ] At the other end of the Butterfly Frame, there is a large angled hole on the inside of the Frame. Assemble the end of the
BUTTERFLY WEIGHT PIN - 1" X 10 1/2" (23) with the hole, into the large hole on the inside of the Frame. Using a 5/16"
X 5" HEX HEAD BOLT (37), bolt through the Butterfly Frame and then through the Weight Pin. Assemble a 1/2" X 3"
LONG PLASTIC SPACER (69) onto the Bolt end and secure with a 5/16" NYLON LOCK NUT (30).
L] Press a 1" ROUND’ PLASTIC
INSERT CAP (59) into the end of the
"WEIGHT PIN (23). Slide a WEIGHT
STOP (71) over the Weight Pin until
it is against the Butterfly Frame.
C Assemble a 1 1/8" O.D. X 2" LONG a6
PLASTIC SLEEVE (72) over the
Welded Round Tube on the Butterfly 51
Frame.
[] Slide the entire assembly now into
the Welded Tube Bracket on the
UPRIGHT (1).
(0 insert the STOPPER PIN (51) into
end first), making sure the side of the
Stopper Pin that has a raised section
is aligned with the hole in the Welded
Butterfly Round Tube. Push the
Stopper Pin into the Welded Butterfly
Tube until it clicks into place as the
raised section exits the hole.
the center of the assembly (rounded ў
[] Press a 7/8' ROUND PLASTIC
INSERT CAP (60) into the Welded
Butterfly Round Tube.
C Press a 1 1/2" SQUARE PLASTIC
INSERT CAP (56) into the top end of
the Butterfly Frame.
WELDED TUBE
BRACKET
72 WELDED BUTTERFLY
ROUND TUBE
