Weinmann ULM CASE I User manual

ULM CASE I / VALISE ULM I /
VALIGIA ULM I
Emergency Case / Valise d'urgence /
Valigia per l'emergenza medica WM 8840
Description and instructions for use /
Description de l'appareil et mode d'emploi /
Descrizione dell'apparecchio e istruzioni per l'uso

English 3
Français 20
Italiano 38

EN 3
Contents
1 Overview....................................................................... 4
1.1 Special markings on the device............................... 5
2 Device Description.......................................................... 6
2.1 Purpose of use ..................................................... 6
2.2 Functional description............................................ 6
3 Safety Instructions .......................................................... 7
4 Assembly....................................................................... 8
4.1 Assembly of wall mounting ..................................... 8
5 Operation...................................................................... 9
5.1 Space Dividers .................................................... 9
5.2 Tube Holders ....................................................... 9
5.3 Ampoule Holders ................................................. 9
5.4 Inserting Oxygen Cylinders .................................. 10
5.5 MEDUMAT Holder ............................................. 10
5.6 OMNIVAC holder ............................................. 11
6 Hygiene preparation .................................................... 11
7 Functional Test.............................................................. 12
8 Maintenance ................................................................ 12
8.1 Intervals............................................................ 12
8.2 Disposal ........................................................... 13
9 Supply Schedule........................................................... 13
9.1 Standard Supply Schedule ................................... 13
9.2 Accessories ....................................................... 14
9.3 Replacement Parts ..............................................14
10 Technical Specifications................................................. 16
11 Warranty..................................................................... 17
12 Declaration of conformity ............................................. 18

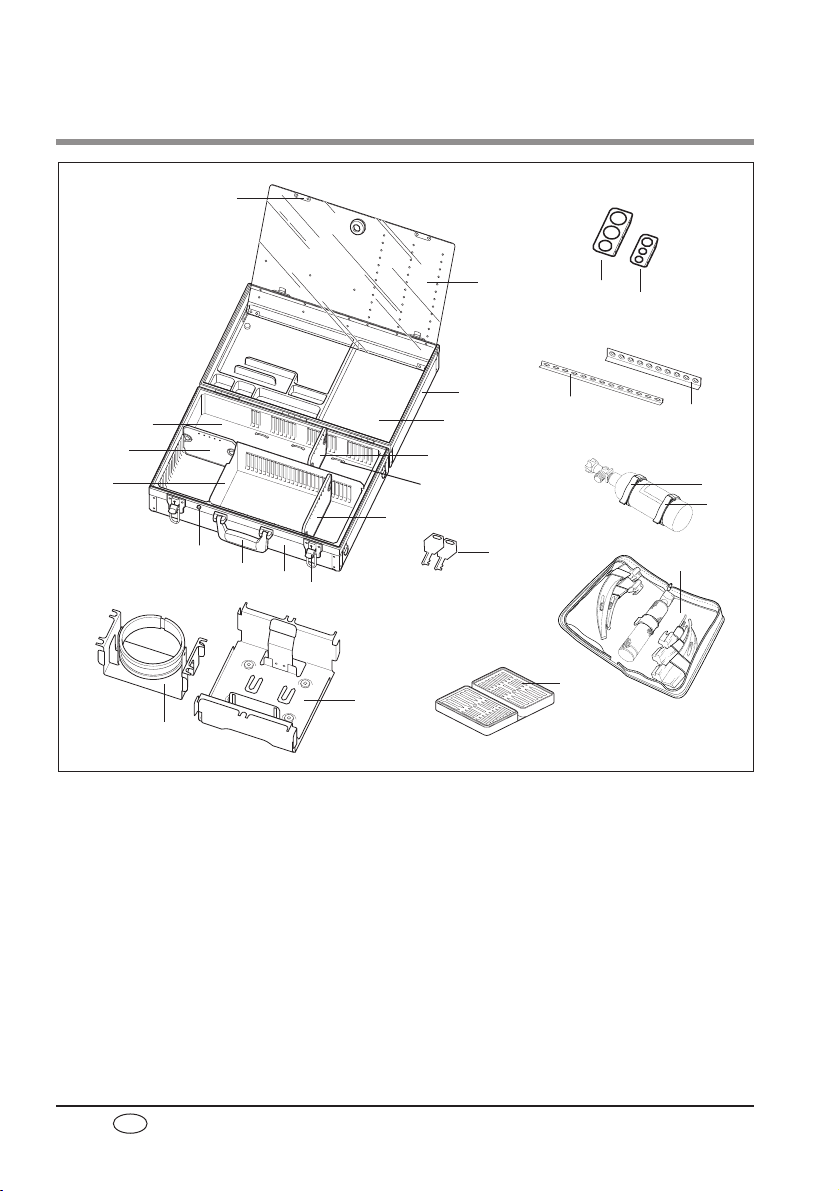

4EN Overview
Legend
1 Magnetic closing
2 Cover
3 Case top
4 Upper insert
5 Short (121mm) bottom divider
6 Retaining clamp
7 Oxygen cylinder compartment
8 Lower insert
9 Case bottom
10 Case lock
11 Case handle
12 Long (211mm) bottom divider
1 Overview
13 Lead seal
14 Medium (147 mm) bottom divider
15 Tube holder:
a) Oropharyngeal tubes, large
b) Oropharyngeal tubes, small
16 Keys
17 Set of two belts for oxygen cylinder
18 Laryngoscope bag
19 Ampoule holder 200 mm (10 places for ampoules)
20 Ampoule holder 260 mm (13 places for ampoules)
21 Ampoularium
22 MEDUMAT holder
23 OMNIVAC holder
1
2
3
4
5
6
7
8
13
10
11
12
9
14
ab
16
17
18
19
20
21
22
23
15

Overview EN 5
1.1 Special markings on the device
No. Symbol Meaning
Device ID plate ULM CASE I
1 SN Serial number
Year of manufacture
CE marking
Other markings
2Removing the bars
2
1

6EN Device Description
2 Device Description
2.1 Purpose of use
ULM CASE I is used to hold and transport emergency
medical devices, instruments, medicines, bandages and
other parts.
2.2 Functional description
ULM CASE I has been perfectly equipped for each time
of use. The interior of the case bottom can be set up with
dividers to fit your specific needs. Accessories, such as am-
poule holders, tube holders and belts for oxygen cylinders
provide further customization potential.
ULM CASE I can also be equipped with individual holders
for the ventilation device MEDUMAT and the OMNIVAC
suction system.

Safety Instructions EN 7
3 Safety Instructions
For your own safety, the safety of your patients, and to
comply with the requirements of EU Directive 93/42/
EEC, please observe the following points:
• Please follow the instructions in this User’s Manual. They
are a part of the case and therefore must be available
at all times.
• Prerequisites for use of this case include thorough
knowledge and observation of this User’s Manual.
• The case is intended only for the described purpose.
• If third-party items are used, functional failures may oc-
cur and fitness for use may be restricted. Biocompatibi-
lity requirements may also not be met. Please note that
in such cases, any claim under warranty and liability
will be voided if neither the accessories nor genuine
replacement parts recommended in the instructions for
use are used.
• Be sure that spilled liquids (for example, from ampou-
les) are cleaned up immediately. Observe the warning
and disposal regulations of the manufacturers involved.
• To prevent infection or bacterial contamination, observe
the instructions in Section “6 Hygiene preparation” on
page 11.
• If the case is equipped with oxygen cylinders and other
devices, be sure to observe the accompanying User’s
Manuals and special instructions.
• Protect the oxygen cylinders from accidents.
• Keep the devices free from oil and grease.
• Make sure you wash your hands before handling
oxygen cylinders.
• When assembling the parts and when changing cylinders,
turn all screws by hand. Do not in any event use tools.
• Always open the cylinder valve slowly.
• Smoking and open flames are strictly forbidden in the
vicinity of oxygen-related equipment.
• Make sure you always have adequately filled oxygen
cylinders. It is recommended that you keep a full
oxygen cylinder in reserve.

8EN Assembly
4 Assembly

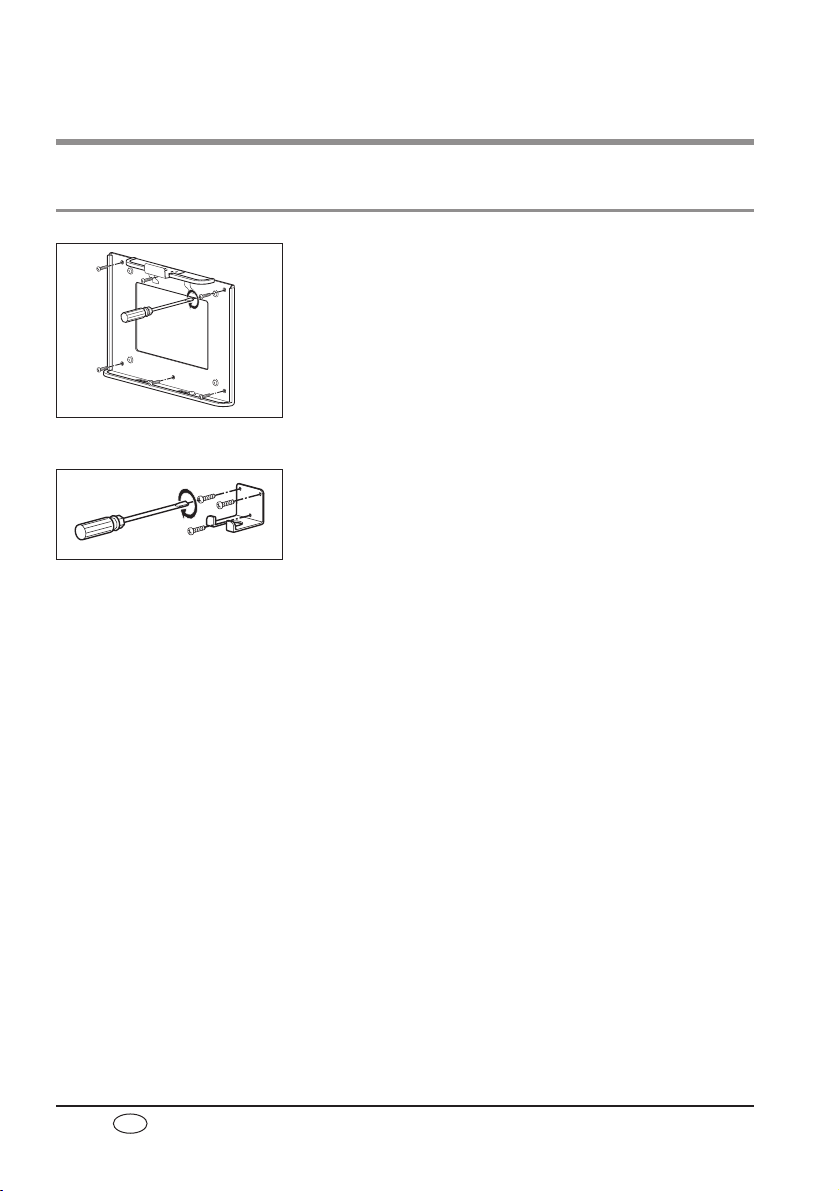

4.1 Assembly of wall mounting
If you would like to mount the case on the wall of a
vehicle, use wall mounting WM 15370 (see Section “9
Supply Schedule” on page 13).
If you would like to mount the case on the wall of a buil-
ding, use the appropriate wall mounting WM 15731 (see
Section “9 Supply Schedule” on page 13).
1. Mark the spots for the holes on the surface where you
want to fasten the case.
You can use the wall mounting as a stencil.
2. Drill the holes:
– in vehicles: with a drill bit of 3 mm in diameter
– in buildings: with an appropriate bit for the requi-
red dowel.
3. Screw the wall mounting tightly into place.
Wall mounting WM 15370
Wall mounting WM 15371

Operation EN 9
5 Operation
5.1 Space Dividers
The interior of the case bottom can be separated as desi-
red with the space dividers (5, 12 and 14). See Illustration
1, Device Overview, for an example.
Observe the following when using the dividers:
• proper positioning as illustrated
• right-angle placement in the opposing grooves
• correct clicking-in of the snap elements
To remove a divider, press both circular snap elements
together (as shown) and lift the divider.
5.2 Tube Holders
The manufacturer has supplied tube holders 15 a) and
15 b) as sets with the fastening elements. You can fasten
the tube holders to any divider in the case bottom (see
illustration).
5.3 Ampoule Holders
The ampoule holders (19 and 20), delivered as a set with
the fastening elements or as replacement parts, can be
attached (as shown) to the desired spot on the inside of the
cover (2)).
Important!
Make sure that when you close the cover, no ampoules
are crushed by a divider or other equipment.
WEINMANN : HAMBURG
WEINMANN : HAMBURG

10 EN Operation
5.4 Inserting Oxygen Cylinders
Be sure to wash your hands before you insert or change
oxygen cylinders.
If you want to fasten an oxygen cylinder of 0.8 liters or
2.0 liters into the case bottom
(9), use accessory WM 15141, Set of two belts for
oxygen cylinders (17). Fasten the oxygen cylinder in the
oxygen cylinder compartment (7) as shown in the illustra-
tion. To fasten a 2.0-liter oxygen cylinder, use the outer
clamp (6) on the floor of the case. If you want to fasten an
0.8-liter cylinder, use the middle and left clamps. Be sure
that you pull the belts tightly during assembly in order to
prevent the cylinders from slipping out of place.
5.5 MEDUMAT Holder
To fasten a MEDUMAT ventilation device into the case
bottom, use the holder for MEDUMAT (22). Click the ME-
DUMAT holder into place in the case bottom as shown in
the illustration. Then place the MEDUMAT so that the lower
grid on the device catches in the gap in the holder. Press
the MEDUMAT up into the holder until you hear it click into
place.
Important!
Your hands must be free of
grease and products contai-
ning alcohol when you insert
or change oxygen cylinders.
Fire hazard!
WEINMANN : HAMBURG
WEINMANN : HAMBURG

Hygiene preparation EN 11

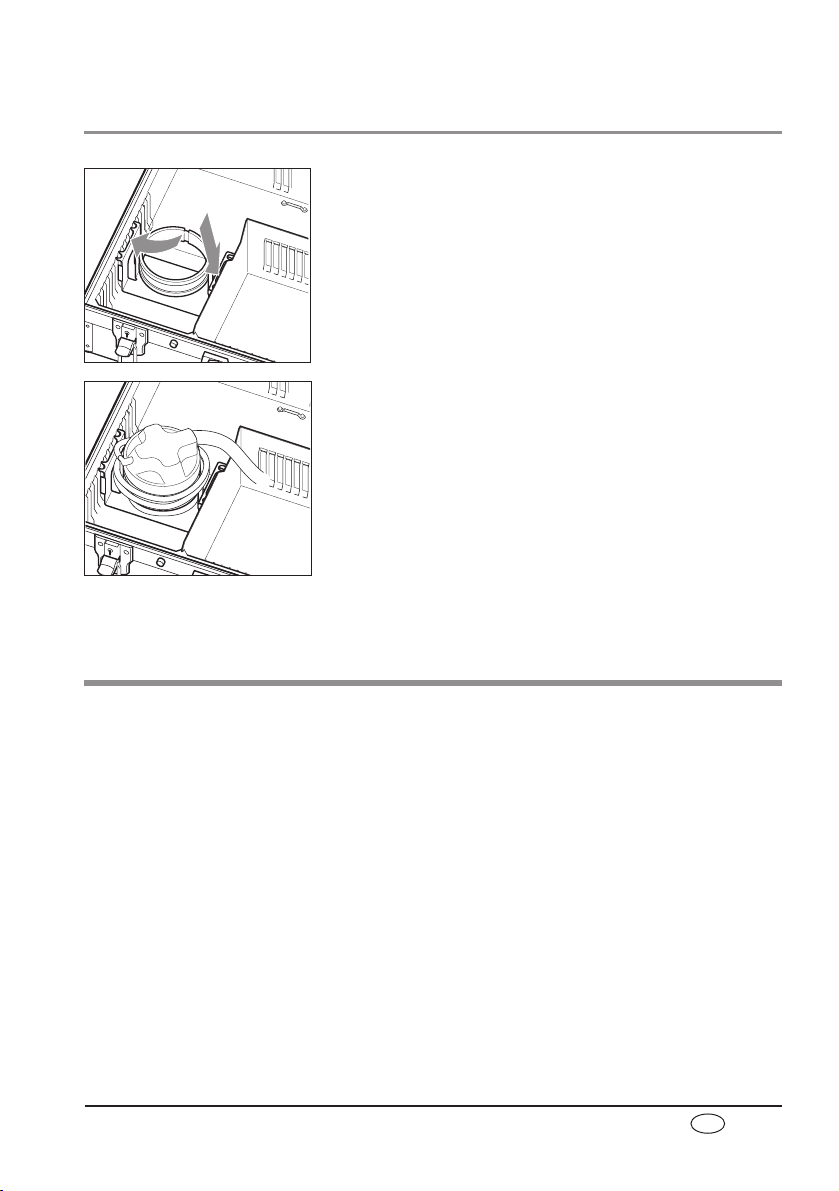

5.6 OMNIVAC holder
To fasten the OMNIVAC secretion pump into the case
bottom, use the holder for the OMNIVAC (23). Click the
holder into the case bottom as shown in the illustration.
If the distance between the case and the patient is too
great, it may be necessary to remove the collection contai-
ner from the holder and take advantage of the length of the
extension hose.
Important
Always hold the collection container upright. You can
prevent activation of the overflow protection and thus avoid
interrupting suction activity.
6 Hygiene preparation
Clean the case inside and out with a simple disinfectant
as required. Observe the User’s Manual for the disinfec-
ting product used. We recommend Terralin®. You are
recommended to wear suitable gloves (e.g. household or
disposable gloves) during disinfection procedures. Take all
the devices and materials out of the case.
If your case is equipped with an oxygen cylinder, the
external fittings have to be cleaned. For this purpose, use a
clean, dry cloth or a cloth slightly dampened with water.
Equipment components
Follow instructions for cleaning, disinfecting or, if required,
sterilizing in the accompanying directions.
Important:
When cleaning the equi-
pment, do not use any
cleaning product that con-
tains alcohol. Fire hazard!

12 EN Functional Test
7 Functional Test
Carry out a functional test of the case after each use (or at
least every two years if the case is not used). If you disco-
ver an error during the test, you are not permitted to use the
emergency case again until the error has been resolved.
Follow these instructions for a functional test:
1. Make sure the inserts, cover, ampoule holders, case
corners and the handle are not damaged.
2. Check that the case locks are easy to open and close.
3. Make sure the case hinges and cover can be moved
easily and are correctly secured.
Replace defective parts.
8 Maintenance
8.1 Intervals
The emergency cases are maintenance-free. Observe the
intervals for regular functional tests (see Section “7 Functio-
nal Test” on page 12).
We recommend allowing the manufacturer’s (Weinmann)
expert personnel to carry out maintenance and repairs.

Supply Schedule EN 13
8.2 Disposal
Do not dispose of the therapy device in domestic waste. To
dispose of the therapy device properly, contact an appro-
ved, certified electronics scrap dealer. You can obtain the
address from your Environment Officer or your local autho-
rity. The device packaging (cardboard and inserts) can be
disposed of in paper recycling facilities.
9 Supply Schedule
9.1 Standard Supply Schedule
ULM CASE I, empty WM 8840
Case equipped with:
1 Long divider (211 mm) WM 8741
1 Medium divider (147 mm) WM 8742
1 Short divider (121 mm) WM 8743
1 Holder for oropharyngeal tubes, small* WM 15142
1 Holder for oropharyngeal tubes, large* WM 15143
1 Ampoule holder, 260 mm, set of two* WM 15586
ULM CASE I can also be delivered with other equipment
variations.
* includes fastening elements

14 EN Supply Schedule
9.2 Accessories
The following accessories are not included in the Supply
Schedule and must be ordered separately:
Wall mounting, adjustable*
(for installation in vehicles) WM 15370
Case wall mounting*
(for installation in buildings) WM 15371
Laryngoscope bag WM 8775
Ampoularium WM 8427
* includes fastening elements
Pull seals available from www.ESTO.de
• Pull Tight pull seal 250 mm red, sealing tape Ø 2.3
mm
• Pull Fly pull seal 125 mm, sealing tape Ø 1.8 mm
• Bi-Lok pull seal 215 mm, sealing tape Ø 1.9 mm
9.3 Replacement Parts
Standard symbol stickers:
Oxygen WM 0900
Wear protective gloves WM 0970
Bandage case WM 0971
Needles WM 1040
ECG WM 1041
Intubation WM 1042
Infusion WM 1043
Medicines CIRCULATION WM 1044
Medicines RESPIRATION WM 1045
Medicines Universal WM 1046
Ventilation WM 1047
Cannulae WM 1070
Tubes WM 1071

Supply Schedule EN 15
Clamps WM 1072
Poison WM 1073
Infant, red WM 1074
Infant, green WM 1075
Miscellaneous
1 Long divider (211 mm) WM 8741
1 Medium divider (147 mm) WM 8742
1 Short divider (121 mm) WM 8743
MEDUMAT holder WM 8845
OMNIVAC‚ holder WM 8850
Set, two belts for oxygen cylinders WM 15141
Holder for oropharyngeal tubes, small*
(for small children and infants) WM 15142
Holder for oropharyngeal tubes, large*
(for adults, juveniles and children) WM 15143
Case handle* WM 15145
Lead seal, set of two* WM 15147
Ampoule holder, 260 mm, set of two* WM 15586
Ampoule holder, 200mm* WM 15587
Ampoule holder, 200mm, set of three WM 15588
User’s Manual WM 16794
To replace the following fittings, it is necessary to rebore
the rivets for the parts to be changed. Rivet the new fittings
with blind rivet pliers.
Case footing, set of two* WM 15149
Case hinges, set of three* WM 15150
Case lock, set of two* WM 15151
Retaining clamp, set of six* WM 15152
Case corners, set of four* WM 15274
Cover* WM 15589

16 EN Technical Specifications
To replace the following inserts, it is necessary to disassem-
ble the entire outer casing.
To do this, you have to rebore the rivets for all the fittings
such as locks, hinges, etc.
After you have replaced the inserts, rivet the new fittings
into place with blind rivet pliers.
Insert, upper* WM 15590
Insert, lower, variable* WM 15591
* includes fastening elements
10 Technical Specifications
Emergency Case
Device category (93/42/EEC) I
Standards met E DIN 13232
EN 1789
Dimensions (LxBxH)
(outer measurements including projecting ends
such as case corners, footings, handle, etc.)
526 x 400 x 170 mm
Weight, empty 6.5 kg
Temperature range
- Operation
- Storage
20 °C to + 50 °C
- 30 °C to + 70° C
Material:
– Case shell
– Upper insert
– Lower Insert, variable
– Dividers
– Cover
anodised Al 1.5 mm thick
PS
ABS
ABS
PC
Subject to technical change without notice.

Warranty EN 17
11 Warranty
• Weinmann offers a warranty that the product, when
used in accordance with requirements, will remain free
from defects for a period of two years from date of
purchase.
• For products whose durability is clearly indicated
as lessthan two years, the warranty expires on the expi-
ration date indicated on the packaging or in the user’s
manual.
• Claims against the warranty can be made only when
accompanied by the sales receipt, which must show
salesperson and date of purchase.
• We offer no warranty in the case of:
– Disregard of usage instructions
– Operating errors
– Improper use or improper handling
– Third-party intervention by non-authorized persons
for the purpose of device repair
– Acts of God, e.g., lightning strikes, etc.
– Transport damage as a result of improper packa-
ging of returned items
– Lack of maintenance
– Operational and normal wear and tear, which
includes, for example, the following components:
– Filter
– Batteries and recheargable batteries
– Articles for one-time usage, etc.
– failure to use original spare parts.
• Weinmann is not liable for consequential harm caused
by a defect if it is not based on intention or gross negli-
gence. Weinmann is also not liable for minor physical
injury to life or limb resulting from negligence.
• Weinmann reserves the right to decide whether to elimi-
nate defects, to deliver a defect-free item or to reduce
the purchase price by a reasonable amount.
• If Weinmann rejects a claim against the warranty, it
assumes no expense for transport between customer
and manufacturer.

18 EN Declaration of conformity
• Implied warranty claims remain unaffected by these
changes.
12 Declaration of conformity
Weinmann Geräte für Medizin GmbH + Co. KG
declares herewith that the product complies fully with
the respective regulations of the Medical Device Directive
93/42/EEC. The unabridged text of the Declaration of
Conformity can be found on our website at:
www.weinmann.de

20 FR
Sommaire
1 Vue d’ensemble............................................................ 21
1.1 Marquage spécifique de l'appareil........................ 22
2 Description de l’appareil............................................... 23
2.1 Application ....................................................... 23
2.2 Description fonctionnelle ...................................... 23
3 Consignes de sécurité ................................................... 24
4 Montage...................................................................... 25
4.1 Montage d’un support mural.................................25
5 Utilisation .................................................................... 26
5.1 Cloisons séparatrices .......................................... 26
5.2 Porte-tubes ........................................................ 26
5.3 Porte-ampoules...................................................26
5.4 Mise en place de la bouteille d’oxygène ................ 27
5.5 Support pour MEDUMAT .................................... 27
5.6 Support pour OMNIVAC .................................... 28
6 Procédures d'hygiène................................................... 28
7 Contrôle fonctionnel ..................................................... 29
8 Maintenance ................................................................ 29
8.1 Périodicité......................................................... 29
8.2 Elimination ........................................................ 30
9 Gamme de produits...................................................... 30
9.1 Livraison standard............................................... 30
9.2 Accessoires ....................................................... 31
9.3 Pièces de rechange ............................................ 31
10 Caractéristiques techniques........................................... 34
11 Garantie ...................................................................... 35
12 Déclaration de conformité............................................. 36
