Weinmann OXYWAY Click Operating and installation instructions

OXYWAY Click Distributor
Regleta de distribución OXYWAY Click
Oxygen supply unit for disaster medicine
Unidad de suministro de oxígeno para la medicina de
catástrofes
OXYWAY Click Distributor
Regleta de distribución OXYWAY Click WM 3880
Device description and instructions for use
Descripción del aparato e instrucciones de manejo

English 3
Español 20

Overview 3
English
Overview
Key
1 Dial head
A quadruple design of dial head is attached to the
distributor and allows individual adjustment of
the flow for up to four patients. The flow is
adjustable to 1, 2, 3, 4, 5, 6, 9, 12 or 15 l/min.
2 Connection for oxygen masks
For connecting ventilation masks through which
patients are supplied with oxygen
3 Connection for oxygen supply
The oxygen passes from the supply unit through
the connector to the OXYWAY Click distributor.
O2
WEINMANN
O2
WEINMANN
O2
WEINMANN
O2
WEINMANN

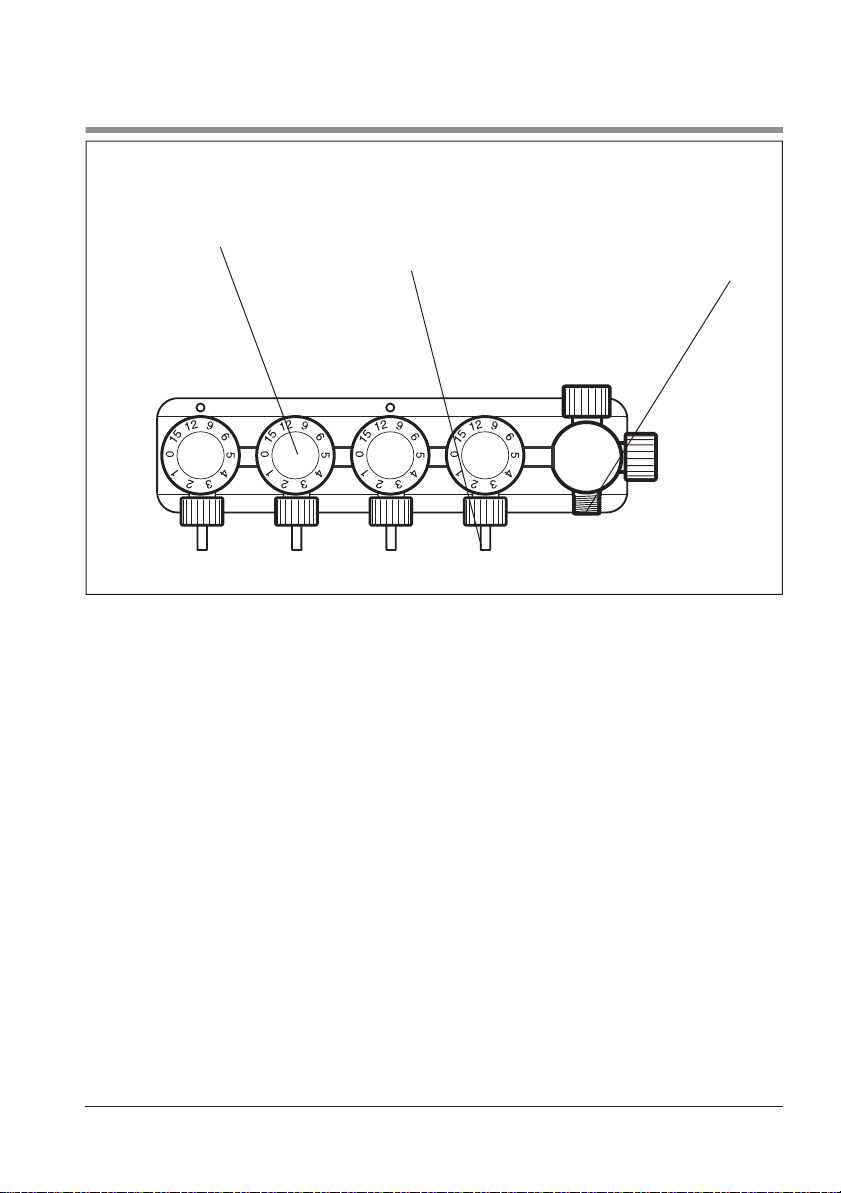

OXYWAY Click distributor
1Dial head 2Connection for
oxygen masks 3Connection for
oxygen supply

4 Markings on the device information plate
Markings on the device information plate
Safety information in this manual
Safety information in these instructions for use is marked as follows:
Warning!
Warns of risk of injury and potential material damage.
Caution!
Warns of material damage and potentially false therapy results.
Note:
Contains useful tips.
Symbol Signifi cance
Year of manufacture
SN Serial number of device
CE marking as per Directive 93/42/EEC relating to medical devices
Service label

Contents 5
Contents
1. Description of device . . . . . . . . . . . . 6
1.1 Intended use . . . . . . . . . . . . . . . . . . 6
1.2 Description of function . . . . . . . . . . 6
2. Safety instructions . . . . . . . . . . . . . . 7
2.1 Safety information . . . . . . . . . . . . . 7
3. Starting up . . . . . . . . . . . . . . . . . . . . 9
3.1 Fitting the distributor . . . . . . . . . . . 9
3.2 Connecting an oxygen supply to
the distributor . . . . . . . . . . . . . . . . . 9
3.3 Operation with external devices . . 10
4. Hygiene treatment . . . . . . . . . . . . . 11
5. Function check . . . . . . . . . . . . . . . . 12
5.1 Intervals . . . . . . . . . . . . . . . . . . . . 12
5.2 Performing the function check . . . 12
6. Troubleshooting . . . . . . . . . . . . . . . 13
7. Servicing . . . . . . . . . . . . . . . . . . . . . 13
7.1 Intervals . . . . . . . . . . . . . . . . . . . . 13
7.2 Method . . . . . . . . . . . . . . . . . . . . 13
7.3 Storage . . . . . . . . . . . . . . . . . . . . 14
7.4 Disposal . . . . . . . . . . . . . . . . . . . . 14
8. Scope of supply . . . . . . . . . . . . . . . . 15
8.1 Standard scope of supply . . . . . . . 15
8.2 Accessories . . . . . . . . . . . . . . . . . 15
8.3 Replacement parts . . . . . . . . . . . . 15
9. Technical data . . . . . . . . . . . . . . . . .16
9.1 Specifications. . . . . . . . . . . . . . . . 16
9.2 Quantity of oxygen supplied by
the OXYWAY Click distributor . . . 16
10. Warranty . . . . . . . . . . . . . . . . . . . . .17
11. Declaration of Conformity . . . . . . .18
12. Index . . . . . . . . . . . . . . . . . . . . . . . .19

6Description of device
1. Description of device
1.1 Intended use
The distributor is used mainly at accident sites with large numbers of injured/patients and
serves primarily to supply up to four patients simultaneously with medical oxygen.
1.2 Description of function
The OXYWAY Click distributor is equipped with four click dial-adjusted flowmeters for ad-
ministering medical oxygen from central gas supplies or oxygen cylinders. The oxygen flow
can thus be individually adjusted for up to four patients.
In operation, the oxygen leaves the supply at a pressure of 4.5 bar and passes through the
connector into the OXYWAY Click distributor. In the dial head is an orifice disk with a va-
riety of orifice diameters which are lined up with the oxygen outlet by means of a click dial
system. This enables you to set the following flow rates: 1, 2, 3, 4, 5, 6, 9, 12, 15 l/min.
There are three screwed connections and four connectors at the distributor to allow the
following connection options:
• central gas supply/oxygen cylinder
• operation/oxygen supply from external devices e.g. MEDUMAT or
OXYMAND demand valve
• oxygen masks to supply patients

Safety instructions 7
2. Safety instructions
2.1 Safety information
Read these instructions for use carefully. They form part of the OXYWAY Click distributor
and must be available at all times. Use the distributor exclusively for the intended purpose
described (see "1.1 Intended use" on Page 6).
For your own safety and the safety of your patients and in accordance with the require-
ments of Directive 93/42 EEC, please note the following.
Use of the OXYWAY Click distributor
Caution!
•Use the OXYWAY Click distributor only if you are medically trained and
have received instruction in the ventilation technique. Severe physical
damage can result from incorrect use.
• Before working with the OXYWAY Click distributor, you must have
understood how to use it.
• Do not throw the OXYWAY Click distributor.
• Do not place the OXYWAY Click distributor in liquids (water or similar).
• Always keep the distributor clean, as well as free from oil and grease.
• Please observe Section "4. Hygiene treatment" on Page 11 to prevent
infection or bacterial contamination.
Oxygen
Warning!
Spontaneous explosive reactions can occur if highly-compressed oxygen comes into
contact with flammable substances (grease, oil, alcohol etc.).
• Always keep the devices and all screwed connections free of oil and
grease.
• Prevent liquid penetrating.
• Always wash your hands before starting to work on the oxygen supply.
• Smoking and naked flames are strictly prohibited in the vicinity of any
fittings transporting oxygen.

8Safety instructions
Caution!
• It is essential also to observe the instructions for use of all other devices
being used.
Accessories/replacement parts
Caution!
If third-party articles are used, functional failures and bioincompatibility may occur.
Please note that in these cases, any claim under warranty and liability will be
invalidated if neither the accessories nor genuine replacement parts recommended
in the instructions for use are used.
Maintenance
Caution!
Have servicing and repair work carried out only by the manufacturer, Weinmann, or
by trained staff.

Starting up 9
3. Starting up
3.1 Fitting the distributor
1. Find a suitable location to attach the distributor.
2. Mark all six drill-holes at the attachment point.
3. Drill the holes using a Ø 3 mm drill bit.
4. Screw on the distributor using the six screws enclosed.
The distributor must be fitted horizontally.
Caution!
The surface for attachment must be sufficiently
sound to hold the distributor safely to DIN EN 1789
(ambulances).
3.2 Connecting an oxygen supply to the
distributor
Example: connecting the distributor to an oxygen cylinder
1. Close the cylinder valve.
2. Connect the threaded connector of the pressure tube
to the free threaded connection on the distributor.
3. Connect the free connector of the pressure tube to the
corresponding connector on the oxygen supply.
60 mm
121 mm 121 mm
Bohrmuster
Drilling template
O2
WEINMANN
O2
WEINMANN
O2
WEINMANN
O2
WEINMANN

10 Starting up
3.3 Operation with external devices
The OXYWAY Click distributor is designed so that external devices can be operated with it.
These include for example:
• MEDUMAT Easy
• MEDUMAT Standard
• MEDUMAT Standard a
• MEDUMAT Basic p
• OXYMAND demand valve
• OMNIVAC secretion suction
Caution!
• If external devices are used, pay particular attention that the total flow
taken off does not exceed the maximum flow of the pressure reducer.
• If all inhalation outputs and an external device are used simultaneously,
oxygen output may be slightly reduced (see "9.2 Quantity of oxygen sup-
plied by the OXYWAY Click distributor" on Page 16).

Hygiene treatment 11
4. Hygiene treatment
The OXYWAY Click distributor must be cleaned and disinfected after every use.
You can use a commercially-available household cleaning agent for cleaning.
1. Wipe down the OXYWAY Click distributor with a soft damp cloth.
Warning!
If, in exceptional cases, you have to perform disinfecting by wiping, take particular
care that no liquid gets into the distributor or the pressure tubes. Otherwise there is
a risk of disinfectant getting into the patient's respiratory tract with the oxygen,
leading to injury.
We recommend using the disinfectant TERRALIN for disinfecting by wiping; this can
be ordered from Schülke & Mayr, Robert-Koch-Str.2, D-22851 Norderstedt.
It is recommended that suitable gloves (e.g. household or disposable gloves) are used
for disinfecting.
2. Always perform a function check afterwards (see "5. Function check" on Page 12).
Accessories
To clean the accessories, see the section entitled "Cleaning" in the corresponding
instructions for use.
To disinfect/sterilize the accessories, see the section entitled "Hygiene treatment" in the
corresponding instructions for use.

12 Function check
5. Function check
5.1 Intervals
Perform a function check before each use, but in any case at least every 6 months.
Warning!
If you discover faults during the function check, you may not use the OXYWAY Click
distributor until the faults have been rectified.
5.2 Performing the function check
1. Check the distributor for visible mechanical damage.
2. Ensure that the click dials of the flowmeters are in position "0".
3. Connect the distributor to an oxygen cylinder using a pressure tube.
4. Check that the connections between the distributor, the pressure tube and the oxygen
cylinder are tight.
5. Slowly open the cylinder valve.
6. Now use the click dials to adjust all dial positions one after the other and in each case
check at the oxygen outlet whether the flow is rising in accordance with the setting.
7. Return the click dials to setting "0".
8. Check that the screwed connections on the distributor are tight.
9. Prepare a soap-and-water solution using perfume-free soap.
10.Wet all screwed and tube connections with the solution. If there are any leaks, you will
now find them, as bubbles will form.
11.Close the cylinder valve.
12.Depressurize the system by opening a metering unit until the pressure has dropped to
0 bar.
13.In the event of leaks, contact your distributor or the manufacturer, Weinmann.
Caution!
• The distributor is not a shutoff valve. Small amounts of oxygen can still
escape, even if the distribution points are completely closed. To shut off
the O2supply, close the cylinder valve/disconnect the distributor from the
central gas supply.

Troubleshooting 13
• Use the OXYWAY Click distributor only if all the click dials are working
properly.
6. Troubleshooting
7. Servicing
7.1 Intervals
Have a control measurement performed every four years to check metering accuracy.
We recommend having repair work performed by the manufacturer, Weinmann, or by
trained experts expressly authorized by Weinmann.
7.2 Method
The device should be cleaned and disinfected beforehand (see "4. Hygiene treatment" on
Page 11).
The following points should be taken into account.
• Visual inspection:
– mechanical damage
– labeling of components
• System leaktight
Fault Cause of fault Remedy
Unusually high oxygen consumption Leak in the system Find and eliminate leak
Inadequate O2supply on inhalation
Leak in the system Find and eliminate leak
Distributor defective or
contaminated from the
inside
Have distributor repaired
Distributor not working
Distributor defective Have distributor repaired
Oxygen source defective or
empty Check oxygen source

14 Servicing
• Quantity of oxygen delivered
• Final test
Please also note the intervals for the function check (see "5. Function check" on Page 12).
7.3 Storage
If the OXYWAY Click distributor is not used for a prolonged period, we recommend the
following procedure:
1. clean the device (see "4. Hygiene treatment" on Page 11).
2. store the OXYWAY Click distributor dry.
7.4 Disposal
Do not dispose of the distributor with domestic waste. For proper disposal, con-
tact a licensed, certified electronic scrap disposal merchant. This address is avail-
able from your Environment Officer or from your local authority.

Scope of supply 15
8. Scope of supply
8.1 Standard scope of supply
OXYWAY Click distributor WM 3880
8.2 Accessories
The following accessories can be ordered separately if required.
8.3 Replacement parts
Parts Order number
OXYWAY Click distributor WM 3880
Instructions for use OXYWAY Click distributor WM 66571
Parts Order number
OXYMAND demand valve WM 22190
OMNIVAC secretion suction, 250 ml WM 2265
OMNIVAC secretion suction, 500 ml WM 2285
OMNIVAC secretion suction, adjustable, 500 ml WM 2205
OMNIVAC secretion suction, adjustable, 1000 ml WM 2206
Parts Order number
Connector WM 1415
Sealing washer WM 1145/31

16 Technical data
9. Technical data
9.1 Specifications
The right to make design modifications is reserved
9.2 Quantity of oxygen supplied by the OXYWAY
Click distributor
The quantity of oxygen supplied to the individual inhalation outlets may fluctuate depending
on the extent to which distributor capacity is being utilized. The values quoted in the table be-
low assume that a cylinder pressure reducer with an output of at least 120 l/min is being used.
OXYWAY Click distributor
Product class in compliance with 93/42/EEC IIa
Dimensions WxHxD in mm
(external dimensions including projections
such as corners, feet, handle etc.)
300 x 90 x 85
Weight
– excluding oxygen cylinders approx. 2.2 kg
Temperature range
– operation -18 °C to +60 °C
– storage -40 °C to +70 °C
Permitted humidity for storage max 90 % relative humidity
Tolerances for the set flow per inhalation outlet in l/min
1 2 3 4 5 6 9 12 15
up to 2 outlets open ± 0.5 ± 0.5 ± 0.5 ± 0.5 ± 0.5 ± 0.6 ± 0.9 ± 1.2 ± 1.5
up to 4 outlets open ± 0.5 - 0.5 - 0.5 - 1.0 - 1.0 - 1.0 - 2.0 - 2.0 - 3.0
up to 4 outlets open +
external device ± 0.5 - 0.5 - 0.5 - 1.0 - 1.0 - 1.0 - 2.0 - 3.0 - 4.0

Warranty 17
10. Warranty
•Weinmann offers a warranty that the product, when used in accordance
with requirements, will remain free from defects for a period of two years
from date of purchase. For products whose durability is clearly indicated
as less than two years, the warranty expires on the expiration date indi-
cated on the packaging or in the user’s manual.
•Claims against the warranty can be made only when accompanied by the
sales receipt, which must show salesperson and date of purchase.
• We offer no warranty in the case of:
– Disregard of usage instructions
– Operating errors
– Improper use or handling
–Third-party intervention by non-authorized persons for the purpose of device
repair
– Acts of God, e.g., lightning strikes, etc.
– Transport damage as a result of improper packaging of returned items
– Lack of maintenance
– Operational and normal wear and tear, which includes, for example, the
following components.
– Filter
– Batteries / recheargable batteries
– Articles for one-time usage, etc.
– Failure to use original spare parts.
•Weinmann is not liable for consequential harm caused by a defect if it is
not based on intention or gross negligence. Weinmann is also not liable
for minor physical injury to life or limb resulting from negligence.
•Weinmann reserves the right to decide whether to eliminate defects, to
deliver a defect-free item or to reduce the purchase price by a reasonable
amount.
•If Weinmann rejects a claim against the warranty, it assumes no expense
for transport between customer and manufacturer.
• Implied warranty claims remain unaffected by these changes.

18 Declaration of Conformity

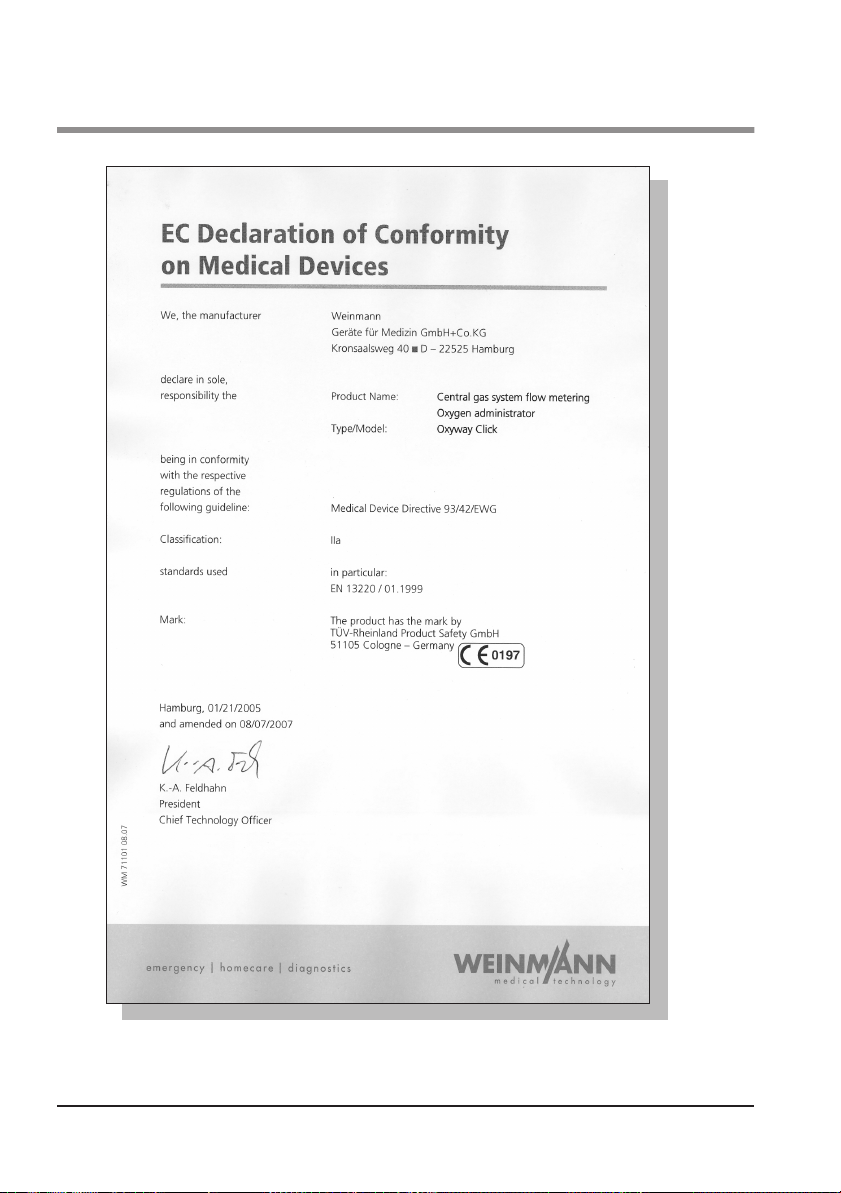

11. Declaration of Conformity

Index 19
12. Index
A
Accessories 8, 11
D
device information plate 4
dial head 3
disinfecting by wiping 11
distributor 12
E
external devices 10
F
Function check 12
M
Maintenance 8
markings 4
O
Oxygen 7
oxygen supply 9
R
Replacement parts 8
S
Safety instructions 7
Servicing 8
W
warranty 17

20 Vista general
Español
Vista general
Leyenda
1Cabezal encajable
El cabezal encajable está instalado en la regleta de
distribución por cuadruplicado y permite ajustar el
caudal de forma individual para hasta cuatro
pacientes. El caudal se puede ajustar a 1, 2, 3, 4,
5, 6, 9, 12 ó 15 l/min.
2Conexión para máscaras de oxígeno
Sirve para conectar las máscaras de respiración
mediante las cuales se suministra oxígeno a los
pacientes
3Conexión para suministro de oxígeno
A través de la conexión penetra oxígeno
procedente de la unidad de suministro en la
regleta de distribución OXYWAY Click .
O2
WEINMANN
O2
WEINMANN
O2
WEINMANN
O2
WEINMANN
Regleta de distribución OXYWAY Click
1Cabezal encajable 2Conexión para
máscaras de oxígeno 3Conexión para
suministro de
oxígeno
