Welch Allyn LS-135 User manual

Exam/Procedure Light
Service Manual
WelcJ^AUyn
LS-135 & LS-150 Halogen Exam Lights
Owner's Manual

TABLE OF CONTENTS
LS-135 & LS-150 HALOGEN EXAM LIGHT.1
ASSEMBLY INSTRUCTIONS FOR LS-135 & LS-150 . . .3
OPERATION OF FLEXIBLE ARM .7
LAMP REPLACEMENT.8
CLEANING .10
WARRANTY .10
ORDERING INFORMATION .10
SPECIFICATIONS .11
SERVICE INFORMATION .13
DISASSEMBLY INSTRUCTIONS
14

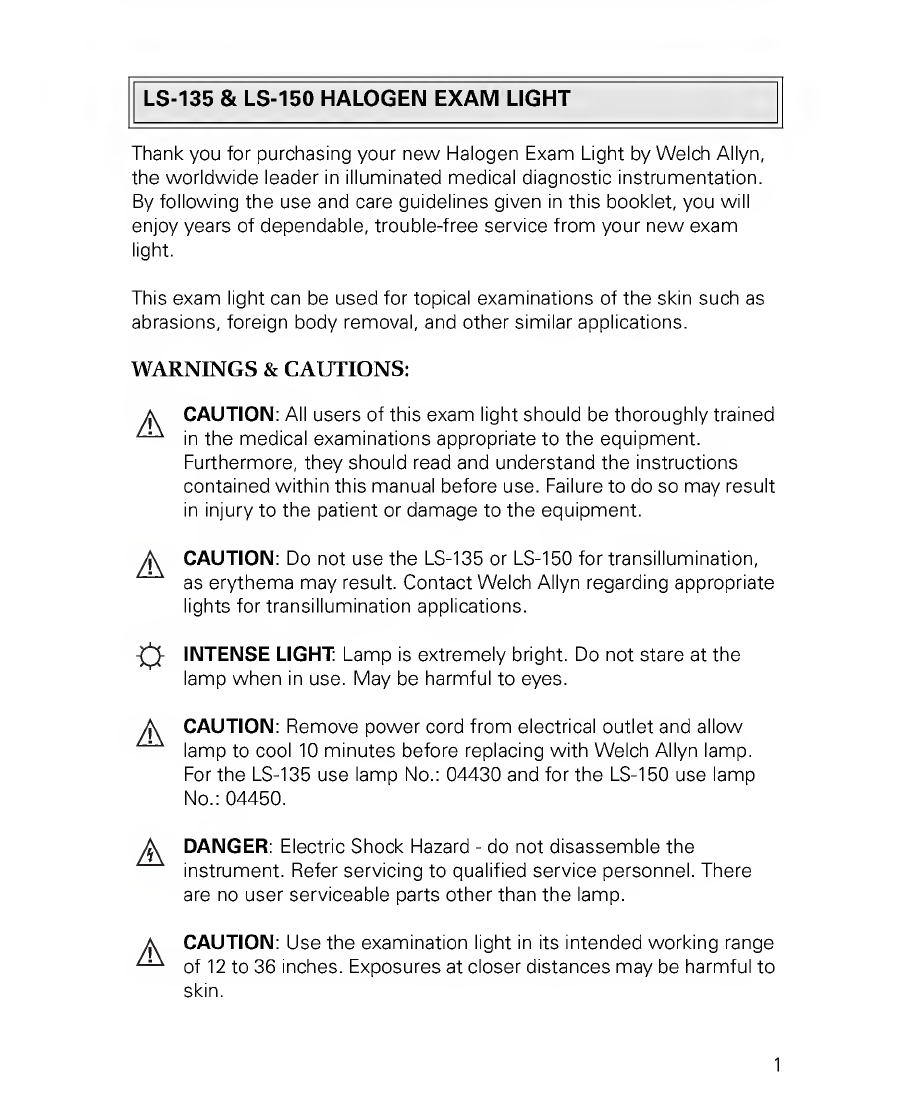

LS-135 & LS-150 HALOGEN EXAM LIGHT
Thank you for purchasing your new Halogen Exam Light by Welch Allyn,
the worldwide leader in illuminated medical diagnostic instrumentation.
By following the use and care guidelines given in this booklet, you will
enjoy years of dependable, trouble-free service from your new exam
light.
This exam light can be used for topical examinations of the skin such as
abrasions, foreign body removal, and other similar applications.
WARNINGS & CAUTIONS:
CAUTION: All users of this exam light should be thoroughly trained
in the medical examinations appropriate to the equipment.
Furthermore, they should read and understand the instructions
contained within this manual before use. Failure to do so may result
in injury to the patient or damage to the equipment.
^ CAUTION: Do not use the LS-135 or LS-150 for transillumination,
as erythema may result. Contact Welch Allyn regarding appropriate
lights for transillumination applications.
■ 0- INTENSE LIGHT Lamp is extremely bright. Do not stare at the
lamp when in use. May be harmful to eyes.
^ CAUTION: Remove power cord from electrical outlet and allow
lamp to cool 10 minutes before replacing with Welch Allyn lamp.
For the LS-135 use lamp No.: 04430 and for the LS-150 use lamp
No.: 04450.
A
DANGER: Electric Shock Hazard - do not disassemble the
instrument. Refer servicing to qualified service personnel. There
are no user serviceable parts other than the lamp.
CAUTION: Use the examination light in its intended working range
of 12 to 36 inches. Exposures at closer distances may be harmful to
skin.
1

*>c?
A
DANGER: Risk of explosion if used in the presence of Flammable
anesthetics.
^ IPX0: Not protected against the ingress of water.
HOT SURFACE: Lamp surface is hot. May be harmful to skin if
touched.
/j\ Guidelines for the safe use of the LS-135 & LS-150 include:
General good practices to minimize risk of harm to the skin from
optical radiation hazards include: minimizing illumination intensity
at the tissue examination site, minimizing exposure times, and
taking additional precautions when skin sensitivity has been
altered through tissue trauma or the use of anesthesia.
General good practices to minimize risk of harm to the eyes from
optical radiation hazards include: avoiding looking at bright light
sources and their reflections, and protecting eyes where normal
pupil sizes and aversion responses are not present.
SWITCH: Switch operation is described as follows:
Off position when rocker switch is oriented towards this
marking.
On or full light intensity position.
On or low light intensity position (LS-135 only).
NOTE: This product complies with current required standards for
electromagnetic interference and should not interfere with other
equipment or be affected by other compliant devices. As a pre¬
caution, avoid using this device in close proximity to other equip¬
ment.
2

ASSEMBLY INSTRUCTIONS FOR LS-135 & LS-150
Required tools for assembly: Phillips #2 or #3 screwdriver.
1. Remove all items from the
shipping carton. Check for
damage or missing
components. Refer to
photo 1 and table 1. Notify
Welch Allyn, or your
nearest Service Center of
any damage or missing
parts using the appropriate
phone number listed on
page 13.
2. With the Base Assembly
placed on a suitable
surface (5' x 2' table or
carpeted floor), identify the
flange end of the pole.
Feed the electrical
connector through the
center hole of the base,
taking care not to pull the
twist tie holding the
electrical connector at the
other end of the pole into
the pole. Refer to photo 2.
No.
Description
1
Base Assembly
2 Luminaire-Flexible Arm Assembly
3 Pole Assembly
4
Parts Kit
• Base Cover Plate
• Screw 1/4-20 x 1" Phillips
•1/4" External Lockwasher
3

3. T ake care to orient the pole tab to
base notch. Push pole into base.
Refer to photo 3.
4. T ip the base/pole onto its side and
grasp the wire harness white
connector. Align the harness
connector to the corresponding
connector in the base and connect
each together by firmly pressing
into place. Refer to photo 4.
5. F rom the parts kit, obtain the base
cover plate and attach the
remaining wire connector to the
corresponding tab located on the
cover plate. Refer to photo 5.

6. From the parts kit, obtain the
screw and external lockwasher and
install through the plate, place the
plate into the base, threading
screw clockwise into pole. Tighten
firmly, using screwdriver. Refer to
photo 6.
7 With the base/pole still lying on its
side, gently pull the electrical
connector from inside of the pole
using the twist tie. Remove and
discard twist tie. Refer to photo 7
Orient the Luminaire-flexible arm
assembly's electrical connector to
the remaining pole electrical
connector and connect each by
firmly pressing together. Refer to
photo 8.

8 .
Connect the flexible arm to the
pole by lining up the slots on the
black plastic connector (nearest the
electrical connector) above the
pole cut outs. Push flexible arm
into pole until it clicks into place.
Refer to photo 9.
Pole Cut Out
#9
9. Stand light assembly up onto its
base and plug into an appropriate
outlet. Please refer to warnings
and caution section as well as the
operations section prior to use.
6

OPERATION OF FLEXIBLE ARM
Your new LS-135 & LS-150 light has been carefully designed to give you
optimum performance to enable you to easily articulate and place the
light exactly where you need it. These design attributes include:
• The lamp has been offset at a 12° angle relative to the Luminaire
housing, allowing the physician an unobstructed view of the field
of interest.
• A pole to flexible arm joint that allows the flexible arm to be freely
rotated about the pole 270°.
• A flexible arm to Luminaire joint that allows rotation of the
Luminaire about the flexible arm 300°.
• A 24" flexible arm that allows you to easily articulate and hold the
Luminaire in an infinite number of positions.
Please use the following guidelines for proper articulation of the flexible
arm:
• The flexible arm should be articulated (bent), NOT TWISTED.
Twisting of the flexible arm beyond its rotation stops will
decrease the life of the arm and can cause it to lose its ability to
hold position.
• Failure of the flexible arm due to twisting may void the warranty.
Special Note: We recommend that you DO NOT acutely bend the
flexible arm as shown below.
7

LAMP REPLACEMENT
A
Disconnect power cord from electrical outlet prior to replacement.
^ Allow lamp to cool 10 minutes prior to replacement.
1. Exposing the Lamp (Refer to photo 1)
• Turn power switch to the off (" H ") position and unplug power
cord from outlet.
• Rotate Light Assembly ® so that the lamp points up (towards
ceiling).
• Completely loosen screw in Lamp Housing ® and lift to expose
the Lamp ©.
2. Freeing the Lamp and Lamp Socket (Refer to photo 2)
• Release the Lamp Retaining Wire ® from the Lamp Housing ® by
pushing on wire "ears" towards Lamp Socket and swing out as
shown to free the Lamp © and Lamp Socket ®.
3. Removing the Lamp Socket (Refer to photos 3 and 4)
• Hold the Lamp © by its outer rim. Grasp the white sides of the
Lamp Socket ® as shown, pull on the Lamp Socket ® while
rocking it slightly to remove it from the Lamp ©. Do not pull on
Lamp Socket Wires ©.
8

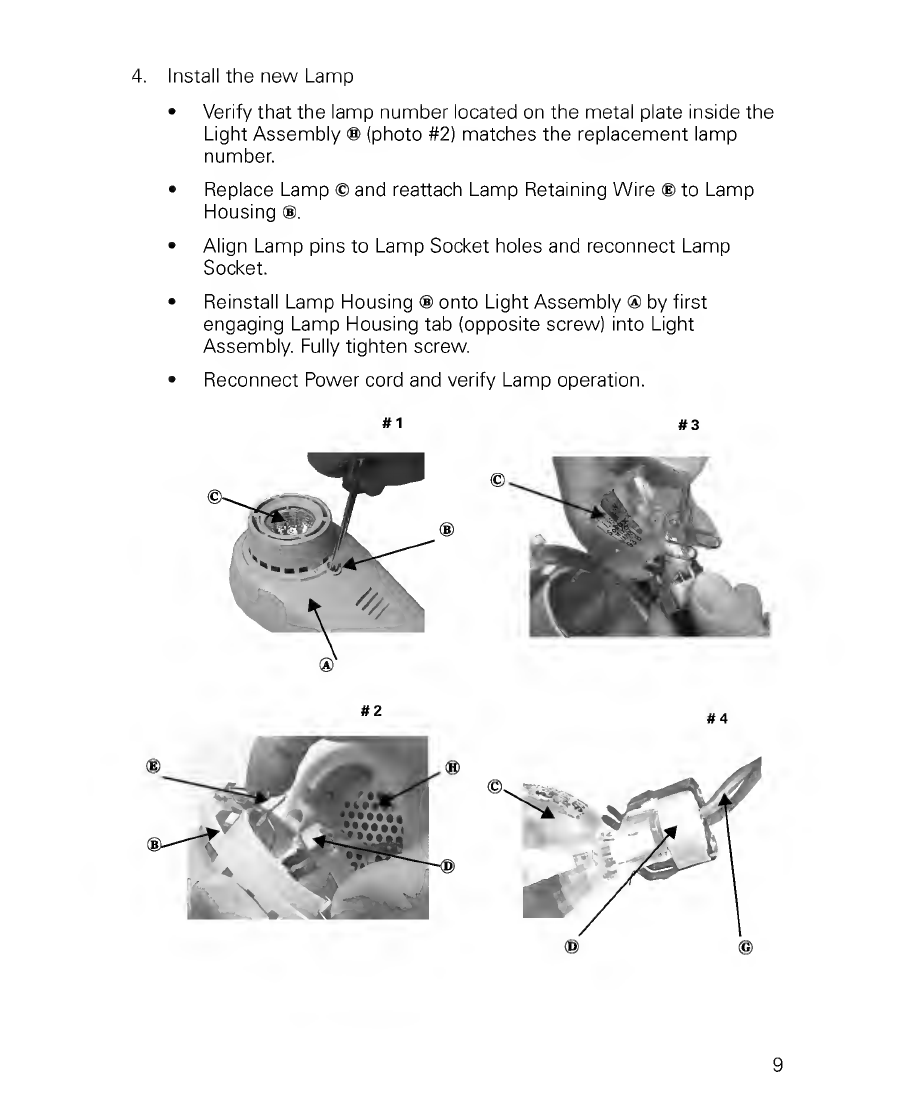

4. Install the new Lamp
• Verify that the lamp number located on the metal plate inside the
Light Assembly ® (photo #2) matches the replacement lamp
number.
• Replace Lamp © and reattach Lamp Retaining Wire ® to Lamp
Housing ®.
• Align Lamp pins to Lamp Socket holes and reconnect Lamp
Socket.
• Reinstall Lamp Housing ® onto Light Assembly ® by first
engaging Lamp Housing tab (opposite screw) into Light
Assembly. Fully tighten screw.
• Reconnect Power cord and verify Lamp operation.
#1 #3
©
9

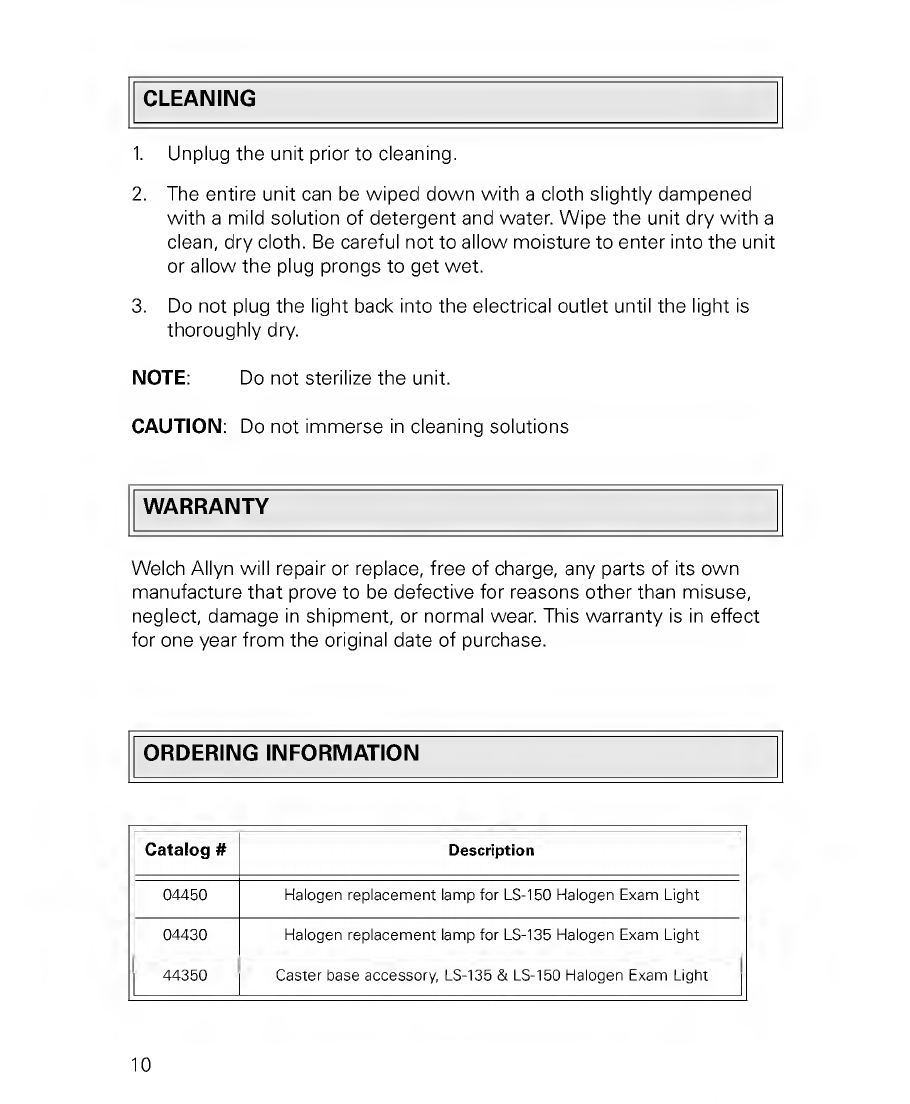

CLEANING
1. Unplug the unit prior to cleaning.
2. The entire unit can be wiped down with a cloth slightly dampened
with a mild solution of detergent and water. Wipe the unit dry with a
clean, dry cloth. Be careful not to allow moisture to enter into the unit
or allow the plug prongs to get wet.
3. Do not plug the light back into the electrical outlet until the light is
thoroughly dry.
NOTE Do not sterilize the unit.
CAUTION: Do not immerse in cleaning solutions
WARRANTY
Welch Allyn will repair or replace, free of charge, any parts of its own
manufacture that prove to be defective for reasons other than misuse,
neglect, damage in shipment, or normal wear. This warranty is in effect
for one year from the original date of purchase.
ORDERING INFORMATION
Catalog # Description
04450
Halogen replacement lamp for LS-150 Halogen Exam Light
04430
Halogen replacement lamp for LS-135 Halogen Exam Light
44350
Caster base accessory, LS-135 & LS-150 Halogen Exam Light
10

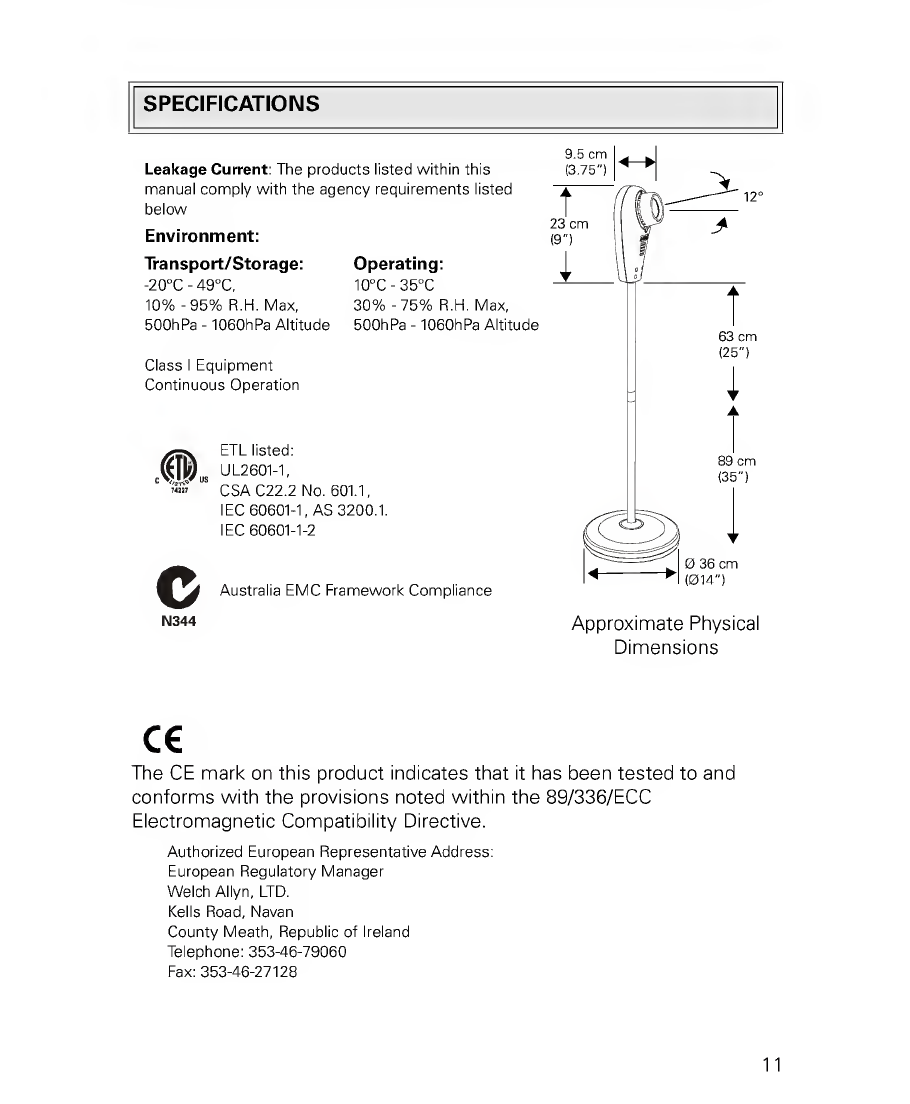

SPECIFICATIONS
Leakage Current: The products listed within this
manual comply with the agency requirements listed
below
Environment:
Transport/Storage:
-20°C - 49°C,
10% -95% R.H. Max,
500hPa - 1060hPa Altitude
Class I Equipment
Continuous Operation
Operating:
10°C - 35°C
30% -75% R.H. Max,
500hPa - 1060hPa Altitude
Approximate Physical
Dimensions
ETL listed:
UL2601-1,
CSA C22.2 No. 601.1,
IEC 60601-1, AS 3200.1.
I EC 60601-1-2
N344
Australia EMC Framework Compliance
C€
The CE mark on this product indicates that it has been tested to and
conforms with the provisions noted within the 89/336/ECC
Electromagnetic Compatibility Directive.
Authorized European Representative Address:
European Regulatory Manager
Welch Allyn, LTD.
Kells Road, Navan
County Meath, Republic of Ireland
Telephone: [phone]
Fax: [phone]

Cord
Length
2.9
M
(9.5')
2.9
M
(9.5')
2.9
M
(9.5')
2.9
M
(9.5')
2.9
M
(9.5')
2.9
M
(9.5')
2.9
M
(9.5')
2.9
M
(9.5')
2.9
M
(9.5')
2.9
M
(9.5')
Total
Weight
78
kg
(173
lbs)
78
kg
(173
lbs)
78
kg
(173
lbs)
78
kg
(173
lbs)
78
kg
(173
lbs)
79
kg
(174
lbs)
79
kg
(174
lbs)
79
kg
(174
lbs)
79
kg
(174
lbs)
79
kg
(174
lbs)
Lamp
Life
5,000
hrs
(4)
5,000
hrs
(4)
5,000
hrs
(4)
5,000
hrs
(4)
5,000
hrs
(4)
3,000
hrs
(4)
3,000
hrs
(4)
3,000
hrs
(4)
3,000
hrs
(4)
3,000
hrs
(4)
Color
Temper¬
ature
3000K 3000K 3000K
v
o
o
o
CO
3000K
4700K 4700K 4700K 4700K 4700K
Working
Distance
30.5
cm
min
(12"
min)
(2)
30.5
cm
min
(12"
min)
(2)
30.5
cm
min
(12"
min)
(2)
30.5
cm
min
(12"
min)
(2)
30.5
cm
min
(12"
min)
(2)
30.5
cm
min
(12"
min)
(2)
30.5
cm
min
(12"
min)
(2)
30.5
cm
min
(12"
min)
(2)
30.5
cm
min
(12"
min)
(2)
30.5
cm
min
(12"
min)
(2)
Spot
Size
@
65
cm
(24")
29
cm
(11.4")
29
cm
(11.4")
29
cm
(11.4")
29
cm
(11.4")
29
cm
(11.4")
33
cm
(13")
33
cm
(13")
33
cm
(13")
33
cm
(13")
33
cm
(13")
Inten¬
sity
525fc
(1)
525fc
(1)
525fc
(1)
525fc
(1)
525fc
(1)
576fc 576fc 576fc 576fc 576fc
Watt¬
age
35w 35w 35w 35w 35w
50w 50w 50w 50w 50w
Fuse
(3)
250v,
500mA
250v,
315mA
250v,
630mA
250v,
315mA
250v,
315mA
350v,
800mA
250v,
500mA
250v,
1000mA
250v,
500mA
250v,
500mA
Out¬
put
12v~ 2.9A 12v~ 2.9A 12v~ 2.9A 12v~ 2.9A 12v~ 4.2A 12v~ 4.2A 12v~ 4.2A 12v~ 4.2A 12v~ 4.2A
Input
120v~60Hz,
400mA
230v~50Hz,
250mA
100v~50/
60Hz,
500mA
230/
240v~50Hz,
250mA
240v~50Hz,
250mA
120v~60Hz,
600mA
230v~50Hz,
350mA
100v~50/
60Hz,
750mA
230/
240v~50Hz,
350mA
240v~50Hz,
350mA
Model
44300
44302 44303 44304 44306
44500
44502 44503
44504
44506
(1) Full intensity
(2) Recommended minimum working distance, see cautions regarding skin exposure.
(3) Non-user serviceable in-line single acting type.
(4) Lamp life may vary slightly due to usage patterns.
12

SERVICE INFORMATION
For Technical Support or to obtain return instructions, please contact your
nearest Welch Allyn service center listed below:
Welch Allyn, Inc. Welch Allyn, GmbH PSC
4341 State Street Road Zollerstrasse 2-4
Skaneateles Falls, NY 13153-0220
72417 Juningen, Germany
Phone: [phone] Phone: [phone]
Fax: [phone] Fax: [phone]
Welch Allyn, Ltd. - Canada Welch Allyn, LTD - Singapore
160 Matheson Blvd. E., Unit #2 300 Beach Road #25-08
Mississauga, Canada L4Z 1V4
The Concourse
Phone: [phone] Singapore 199589
Fax: [phone] Phone: [phone]
Fax: [phone]
Welch Allyn, Ltd. - UK
Cublington Road Welch Allyn China Service Center
Aston Abbots, Buckinghamshire
Room 708, 227 Fluang Pi Road, North
England HP22 4ND
Central Plaza
Phone: [phone] Shanghai 200003, China
Fax: [phone]
Phone: [phone]
Fax: [phone]
Welch Allyn France
814 rue Charles de Gaulle
Welch Allyn, Ltd. - Australia
77100 Mareuil les Meaux Metro Center Unit 5
France 38 South Street
Phone: [phone]
Rydalmere NSW 2116, Australia
Fax: [phone]
Phone: [phone]
Fax: [phone]
For service in Latin America and the Caribbean region, contact:
MD International
11300 N.W. 41st Street
Miami, FL 33178 USA
Phone: [phone]
Fax: [phone]
13

DISASSEMBLY INSTRUCTIONS
If returning a floor stand unit for service, disassemble the flexible arm
from the pole to prevent damage.
1. Turn the power switch to the OFF position ( a ) and unplug the
cord from the outlet.
2. Using a small flat head screwdriver, CAREFULLY pull back the
tabs at the top of the pole slightly - just enough to disengage
them from the black plastic insert in the pole.
3. Pull up on the bottom end of the flexible arm. Unplug the
electrical connector and remove Luminaire-Flexible Arm
assembly from the pole.
4. Tilt the pole/base onto its side and unscrew the large phillips
head screw located on the bottom center of the base.
5. Remove the metal base cover plate and disconnect the
connector attached to it.
6. Disconnect the remaining electrical connector from the base and
pull the pole out of the base.
7 Securely wrap the three components (base, pole, and Luminaire
assembly) and loose parts in suitable protective packaging) for
shipment to your authorized service center.
NOTE: This product contains no materials classified as hazardous.
Therefore, its disposal is not deemed as harmful to the the environment
or health risk to individuals disposing of the product. As a precaution, it is
recommended you contact your local disposal and/or recycling authority
for information regarding the disposal of the equipment.
14

Welcl^Allyn®
Welch Allyn, Inc.
4341 State Street Road
PO Box 220
Skaneateles Falls, NY 13153-0220
U.S.A.
Telephone: [phone] or
315-685-4100
Fax: [phone]
Part No. 443011 Rev. A
Printed in U.S.A.
