H-636& H-706 BUILT-IN HOTPLATES
WE L L S M A N U F A C T U R I N G
H-636 & H-706 BUILT-IN HOTPLATES
I T E M N O .
H-706
H-636

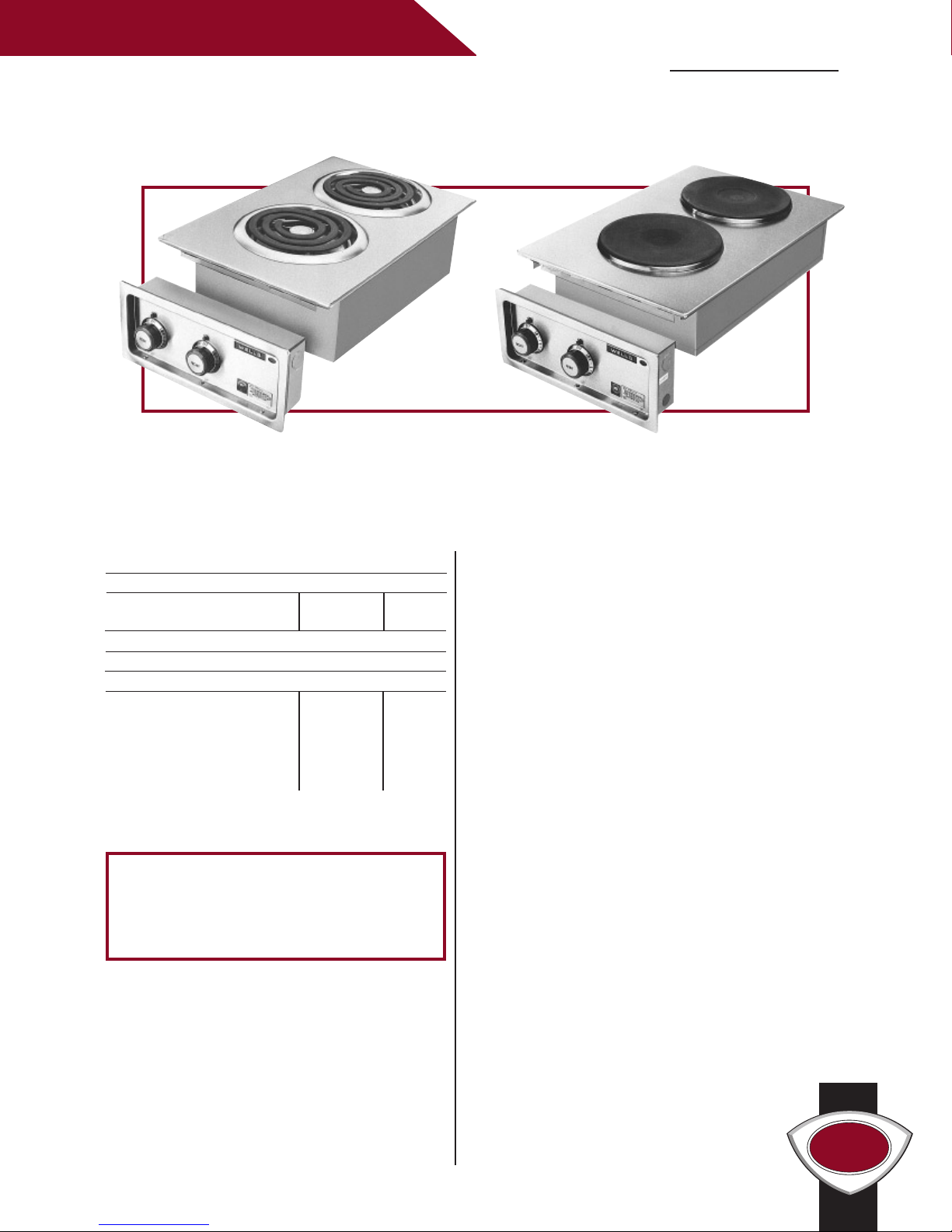

Features
• The H-636 has eight-inch diameter, spiral
pattern elements that provide both radiant
and contact heat.
• The H-706 has french plate elements that are
nine inches in diameter. The larger surface area
allows even heat distribution that is ideal for
heating stock pots.
• An infinite control regulates temperature and
has a positive-off position. A signal light indicates
a power-on condition
• Control knobs are front-mounted in a recessed,
one-piece, drawn, stainless steel panel to help
prevent accidental temperature changes.
• The H-636 elements are self-cleaning with
removable drip trays.
• Wellslok allows for quick and easy installation
in stainless steel countertops.
• A terminal block is provided for field wiring
connection to the main power supply.
• The H-636 and H-706 hotplates are
Underwriters Laboratories, Inc.
Recognized and meet NSF
International standards.
• A one-year warranty against
defects covers parts and labor.
Specifications
Overall Dimensions: Inches MM
Width 14 3/4 375
Depth 23 1/2 597
Temperature Settings: OFF/LO to HI
Number of Controls: 2
Weights: Lbs. KG
H-636
Installed 20 9
Shipping 24 11
H-706
Installed 25 11
Shipping 29 13
Export
The following model is available for export
and meet the standards for CE:
• H-706EU, 220-240V, 1Ø, 4 KW
Wells H-636 and H-706 Built-in hotplates offer versatility with a choice of heating elements. The
flat, spiral elements on the H-636 provide a wide cooking area for more surface contact and are
self-cleaning. The solid cast-iron elements on the H-706 are engineered for uniform heat distribution,
which is ideal for heating stock pots.

(597)
23 1/2
(114)
4 1/2
(375)
14 3/4
(359)
14 1/8
(159)
6 1/4
MODELS VOLTS WATTS AMPS PER LINE PHASE 3 AMPS POWER
SINGLE PHASE SUPPLY CORD
H-636 208 3900 16.3 9.4 9.4 18.8 NONE
H-636 240 5200 18.8 10.8 10.8 21.7 NONE
H-706 208 3000 12.5 7.2 7.2 14.4 NONE
H-706 240 4000 14.4 8.3 8.3 16.7 NONE
H-706EU 220-240 4000 - - - 16.7 NONE
MODELS
H-636, H-706
B U I LT- I N H O T P L AT E S
WE L L S M A N U F A C T U R I N G
H - 6 3 6 , H - 7 0 6 E L E C T R I C A L S P E C I F I C AT I O N S :
NOTE: Specifications are subject to change without notice. See installation instructions prior to installing the unit.
This document is not for installation purposes. The installation of recognized component units requires additional
evaluations to Underwriters Laboratories Inc. standards. Depending on the installation, clearances can be changed
upon further evaluations to UL standards.
THIS UNIT IS DESIGNED TO BE INSTALLED IN METAL COUNTERS ONLY
DIMENSIONS:
LISTED STD.4
E6070
SUGGESTED CLEARANCE FROM
UNIT TO THE NEAREST SURFACE
BACK SIDE BOTTOM TOP
1 2 9 1
(25) (51) (229) (25)
L1 L2 L3
INCH
(MM)
WELLS MANUFACTURING COMPANY
2 ERIK CIRCLE, PO BOX 280, VERDI, NV 89439 U.S.A.
USA PHONE: [phone] • FAX: [phone]
FOR ORDERS ONLY: [phone] • FAX: [phone]
www.wells-mfg.com
© 2002 WELLS MANUFACTURING • PRINTED IN THE U.S.A.
08/02 • REV(J) • PART NO. 37118
R
STD.4
R
E6070
EXPORT
MODELS
ONLY
Denotes export (EU) products.
