Wells H-706 User manual

WELLS MANUFACTURING
10 Sunnen Dr., St. Louis, MO 63143
telephone: [phone]
fax: [phone]
www.wellsbloomfield.com
IMPORTANT: DO NOT DISCARD THIS MANUAL
This manual is considered to be part of the appliance and is to be given to the OWNER or
MANAGER of the restaurant, or to the person responsible for TRAINING OPERATORS of
this appliance. Additional manuals are available from your WELLS DEALER.
THIS MANUAL MUST BE READ AND UNDERSTOOD BY ALL PERSONS USING OR
INSTALLING THIS APPLIANCE. Contact your WELLS DEALER if you have any
questions concerning installation, operation or maintenance of this equipment.
OWNERS MANUAL
for
BUILT-IN
ELECTRIC
HOTPLATES
Models:
H336, H636 and
H706
Includes
INSTALLATION
USE & CARE

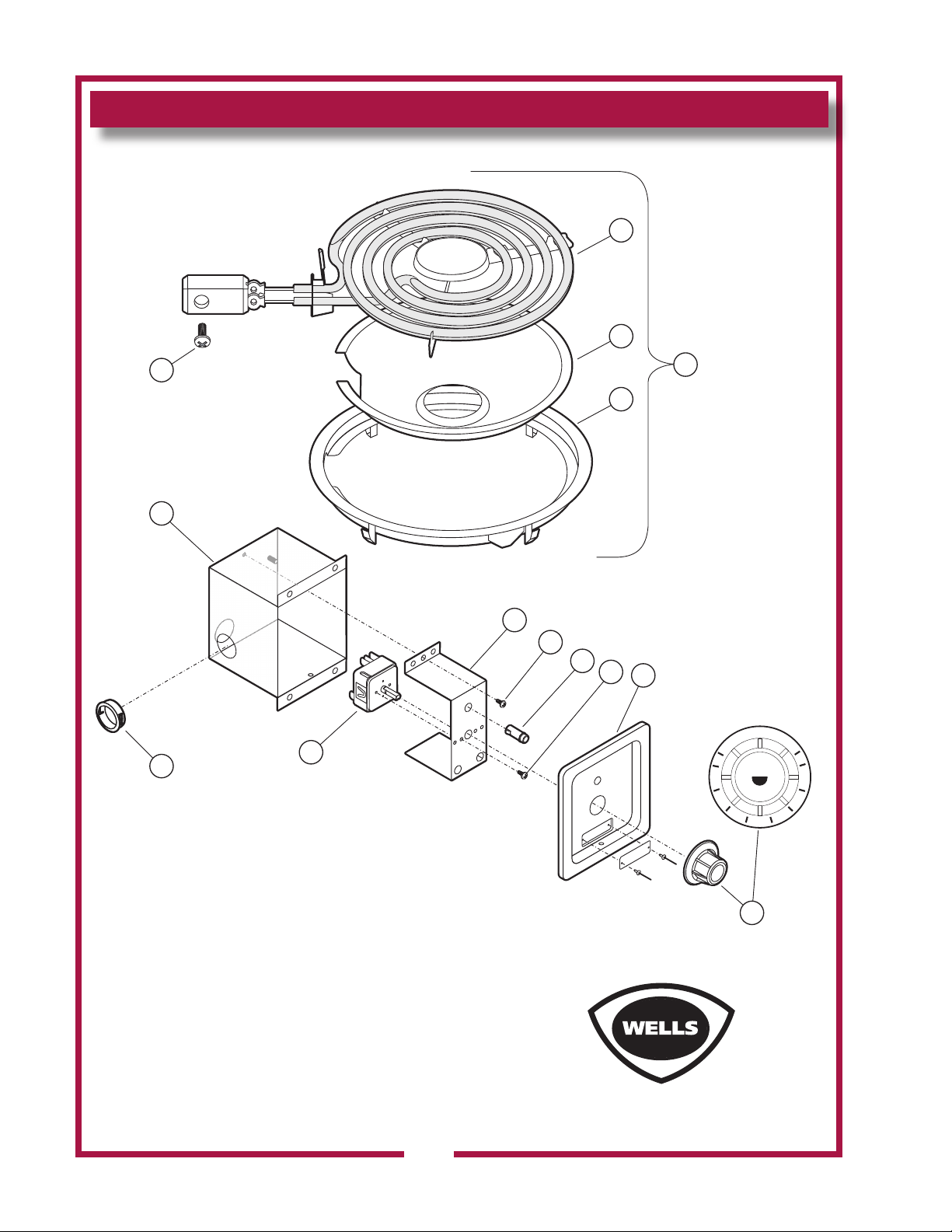

EXPLODED VIEW
PARTS LIST

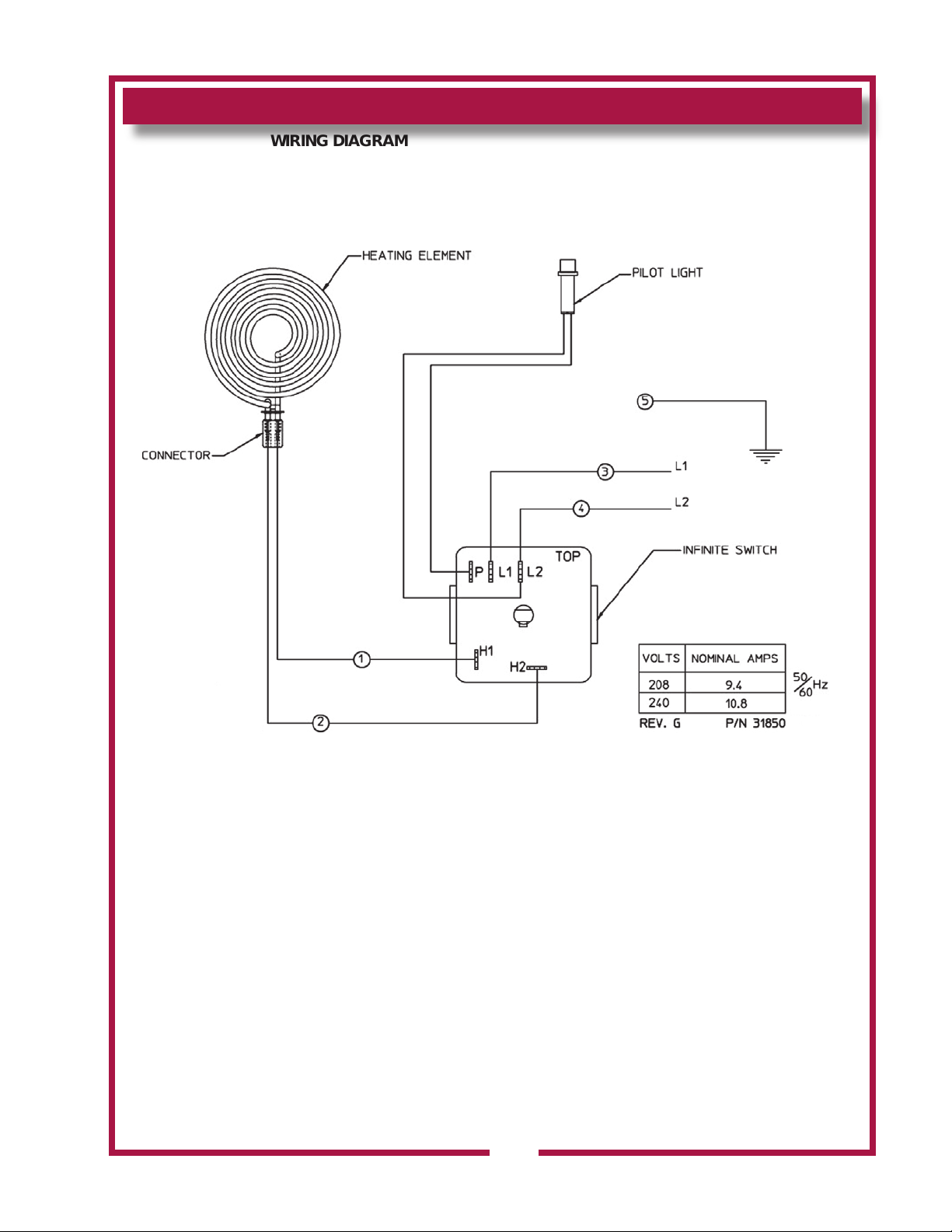

WIRING DIAGRAM
222
p/n 2M-303734 Rev. D M222 110121
Model H336
Model H706

222 p/n 2M-303734 Owners Manual Built-In Hotplates
Unless otherwise specied, all commercial cooking
equipment manufactured by Wells Manufacturing is
warranted against defects in materials and workmanship
for a period of one year from the date of original installation
or 18 months from the date of shipment from our factory,
whichever comes rst, and is for the benet of the original
purchaser only.
THIS WARRANTY IS THE COMPLETE AND ONLY
WARRANTY, EXPRESSED OR IMPLIED IN LAW
OR IN FACT, INCLUDING BUT NOT LIMITED TO,
WARRANTIES OF MERCHANTABILITY OR FITNESS
FOR ANY PARTICULAR PURPOSE, AND/OR FOR
DIRECT, INDIRECT OR CONSEQUENTIAL DAMAGES IN
CONNECTION WITH WELLS BLOOMFIELD PRODUCTS.
This warranty is void if it is determined that, upon inspection
by an authorized service agency, the equipment has been
modied, misused, misapplied, improperly installed, or
damaged in transit or by re, ood or act of God. It also
does not apply if the serial nameplate has been removed,
or if service is performed by unauthorized personnel. The
prices charged by Wells Manufacturing for its products are
based upon the limitations in this warranty. Seller’s obligation
under this warranty is limited to the repair of defects without
charge by a Wells Manufacturing factory authorized service
agency or one of its sub-service agencies. This service will
be provided on customer’s premises for non-portable models.
Portable models (a device with a cord and plug) must be
taken or shipped to the closest authorized service agency,
transportation charges prepaid, for service. In addition to
restrictions contained in this warranty, specic limitations are
shown in the Service Policy and Procedure Guide. Wells
Manufacturing authorized service agencies are located in
principal cities. This warranty is valid in the United States and
Canada and void elsewhere. Please consult your classied
telephone directory, your foodservice equipment dealer or
contact: Wells Manufacturing
10 Sunnen Dr., St. Louis MO 63143 USA
phone [phone] or fax [phone]
for information and other details concerning warranty.
LIMITED WARRANTY STATEMENT
SERVICE POLICY AND PROCEDURE GUIDE and ADDITIONAL WARRANTY EXCLUSIONS
NOTE: For your protection, please note that equipment
in this shipment was carefully inspected and packaged
by skilled personnel before leaving the factory. Upon
acceptance of this shipment, the transportation company
assumes full responsibility for its safe delivery.
IF SHIPMENT ARRIVES DAMAGED:
1. VISIBLE LOSS OR DAMAGE: Be certain that any
visible loss or damage is noted on the freight bill or
express receipt, and that the note of loss or damage is
signed by the delivery person.
2. FILE CLAIM FOR DAMAGE IMMEDIATELY:
Regardless of the extent of the damage.
3. CONCEALED LOSS OR DAMAGE: if damage is
unnoticed until the merchandise is unpacked, notify the
transportation company or carrier immediately, and le
“CONCEALED DAMAGE” claim with them. This
should be done within fteen (15) days from the date
the delivery was made to you. Be sure to retain the
container for inspection.
Wells Manufacturing cannot assume liability for damage or
loss incurred in transit. We will, however, at your request,
supply you with the necessary documents to support your
claim.
SHIPPING DAMAGE CLAIM PROCEDURE
xi
1. Resetting of safety thermostats, circuit breakers, over
load protectors, and/or fuse replacements are not
covered by this warranty unless warranted conditions
are the cause.
2. All problems due to operation at voltages or phase
other than specied on equipment nameplates are
not covered by this warranty.
Conversion to correct voltage and/or phase must be
the customer’s responsibility.
3. All problems due to electrical connections not made
in accordance with electrical code requirements
and wiring diagrams supplied with the equipment are
not covered by this warranty.
4. Replacement of items subject to normal wear, to
include such items as knobs, light bulbs; and, normal
maintenance functions including adjustments of
thermostats, adjustment of micro switches and
replacement of fuses and indicating lights are not
covered by warranty.
5. Damage to electrical cords and/or plug due to exposure
to excessive heat are not covered by this warranty.
6. Full use, care, and maintenance instructions supplied
with each machine. Noted maintenance and
preventative maintenance items, such as servicing and
cleaning schedules, are customer responsibility. Those
miscellaneous adjustments noted are customer
responsibility. Proper attention to preventative
maintenance and scheduled maintenance procedures
will prolong the life of the appliance.
7. Travel mileage is limited to sixty (60) miles from an
Authorized Service Agency or one of its sub-service
agencies.
8. All labor shall be performed during regular working
hours. Overtime premium will be charged to the buyer.
9. All genuine Wells replacement parts are warranted
for ninety (90) days from date of purchase on non-
warranty equipment. This parts warranty is limited only
to replacement of the defective part(s). Any use of
non-genuine Wells parts completely voids any
warranty.
10. Installation, labor, and job check-outs are not
considered warranty and are thus not covered by this
warranty.
11. Charges incurred by delays, waiting time or operating
restrictions that hinder the service technician’s ability to
perform service are not covered by warranty. This
includes institutional and correctional facilities.

222 p/n 2M-303734 Owners Manual Built-In Hotplates
WARRANTY xi
SPECIFICATIONS 1
FEATURES & OPERATING CONTROLS 2
PRECAUTIONS & GENERAL INFORMATION 3
AGENCYAPPROVAL INFORMATION 3
INSTALLATION 4
OPERATION 5
CLEANING INSTRUCTIONS 6
TROUBLESHOOTING 7
EXPLODED VIEW & PARTS LIST 8
PARTS & SERVICE 12 - 17
WIRING DIAGRAM 18 - 19
CUSTOMER SERVICE DATA 19
TABLE OF CONTENTS
SPECIFICATIONS
Thank You for purchasing this Wells Manufacturing appliance.
Proper installation, professional operation and consistent maintenance of this equipment will ensure that it
gives you the very best performance and a long, economical service life.
This manual contains the information needed to properly install this equipment, and to use and care for
the equipment in a manner which will ensure its optimum performance.
INTRODUCTION
1
MODEL ELEMENT VOLTS AMPS kW *DIMENSIONS
H336 Single 8” Coil 208 V 1ø 9.4A 2.0 kW 10” outside diameter
240 V 1ø 10.8A 2.6 kW
H636 Dual 8” Coils 208 V 1ø 18.8A 3.9 kW 14-3/4” W x 23-1/2” D
240 V 1ø 21.7A 5.2 kW
H706 Dual 9” french plates 208 V 1ø 14.4A 3.0 kW 14-3/4” W x 23-1/2” D
240 V 1ø 16.7A 4.0 kW
Refer to Installation Instructions for cutout dimensions.

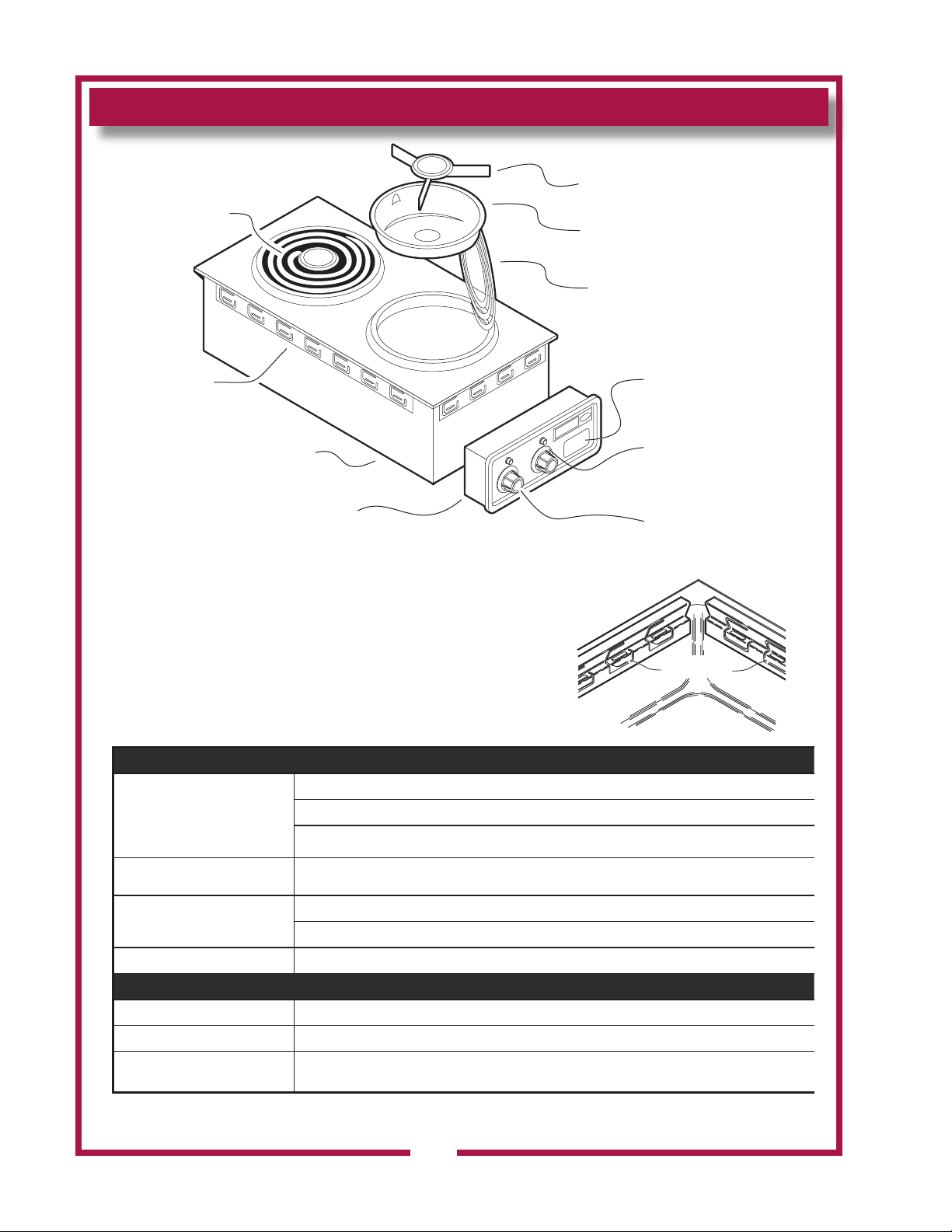

FEATURES & OPERATING CONTROLS
Heating
Element
Heating Element
(Lifted)
Temperature
Control
Indicator
Light
Name Plate
Element Support
Drip Pan
Wellslok
Hotplate Unit
Control Unit
IL2187
2
WELLSLOKS
IL2188
222 p/n 2M-303734 Owners Manual Built-In Hotplates
HOTPLATE UNIT:
Heating Element Provides heat for food preparation
Coil-type elements rotate for access to drip pan
Note: Solid (french plate) elements on model H-706 do not lift
Element Support* Holds coil-type element in proper position
Drip Pan* Collects drippings and holds element support.
Also deects heat from element for more efcient cooking
Wellslok Mounts hotplate unit to counter
CONTROL UNIT:
Temperature Control Innite switch to control temperature of heating element
Indicator Light Clows any time temperature control is on
Name Plate List manufacturer, model number and serial number, also lists voltage and wattage rating.
* = not used on model H706

222 p/n 2M-303734 Owners Manual Built-In Hotplates
This appliance is intended for use in commercial establishments only.
This appliance is intended to prepare food for human consumption.
No other use is recommended or authorized by the manufacturer or its
agents.
Operators of this appliance must be familiar with the appliance use,
limitations and associated restrictions. Operating instructions must be
read and understood by all persons using or installing this appliance.
Cleanliness of this appliance is essential to good sanitation. Read and
follow all included cleaning instructions and schedules to ensure the
safety of the food product.
Hotplates with coil-type heating elements must be operated with drip
pan and element support properly installed.
Disconnect the hotplate from electrical power before performing any
maintenance or servicing.
DO NOT splash or pour water over or into interior of hotplate,
control panel or wiring.
The technical content of this manual, including any wiring diagrams,
schematics, parts breakdown illustrations and/or adjustment
procedures, is intended for use by qualied technical personnel.
Any procedure that requires the use of tools must be performed by a
qualied technician.
This manual is considered to be a permanent part of the appliance.
This manual and all supplied instructions, diagrams, schematics,
parts breakdown illustrations, notices and labels must remain with the
appliance if it is sold or moved to another location.
This appliance is made in the USA. Unless otherwise noted, this
appliance has American sizes on all hardware.
This appliance conforms to NSF Standard 4 for sanitation only if
installed in accordance with the supplied Installation Instructions.
This appliance is Underwriters Laboratory recognized ( ).
Since this appliance is only a single component of a complete
installation, the nished installation of this unit requires
additional evaluations to Underwriters Laboratory standards.
This unit is designed to be installed in a metal counter only.
WARNING:
ELECTRIC SHOCK
HAZARD
All servicing requiring
access to non-insulated
electrical components must
beperformed by a factory
authorized technician.
DO NOT open any access
panel that requires the use
of tools. Failure to follow this
warning can result in severe
electrical shock.
CAUTION:
RISK OF DAM-
AGE
DO NOT connect and/or
energize this appliance until
all installation instructions are
read and followed. Damage
to the appliance will result
if these instructions are not
followed.
PRECAUTIONS AND GENERAL INFORMATION
AGENCY APPROVAL INFORMATION
STD 4
3

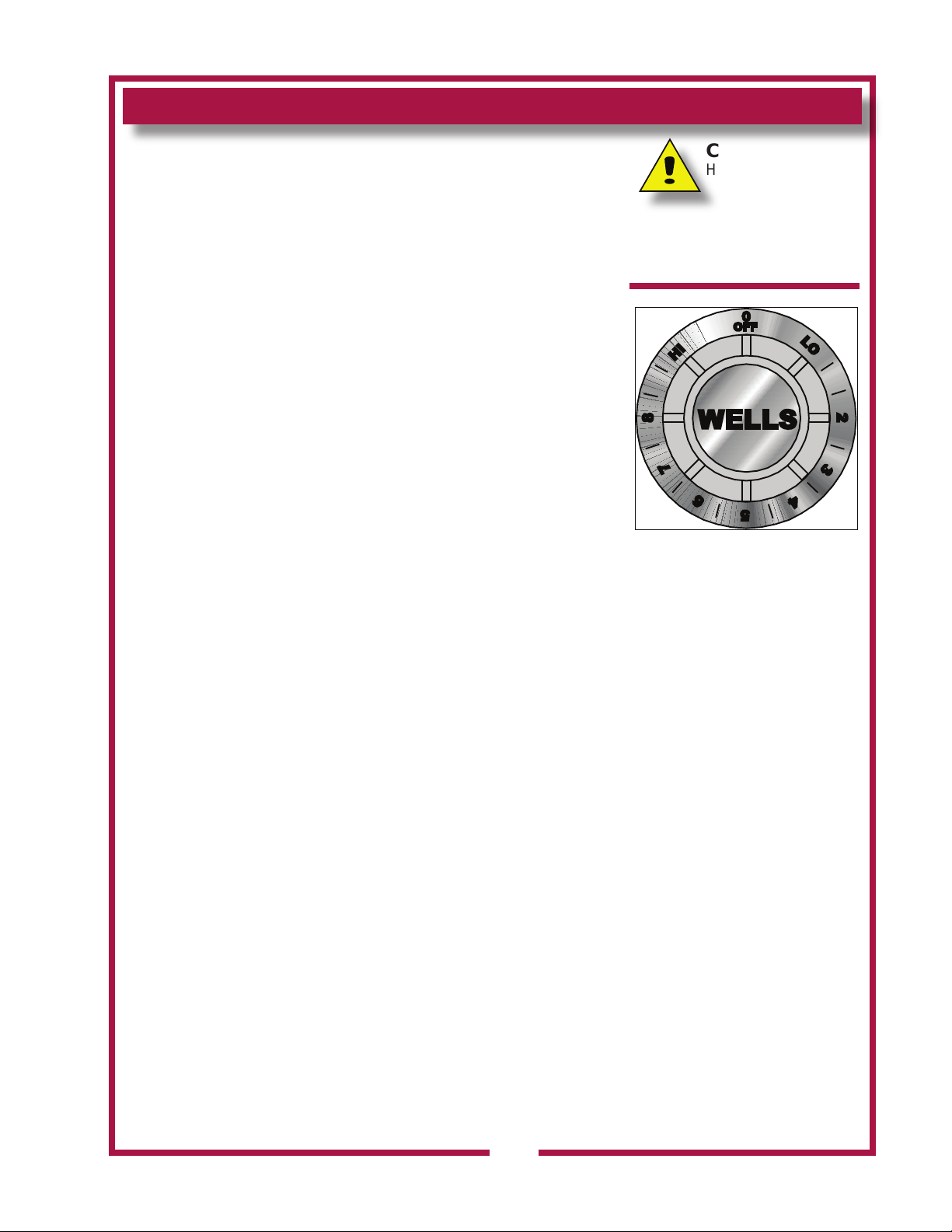

INSTALLATION
NOTE: DO NOT discard
the carton or other packing
materials until you have
inspected the appliance for
hidden damage and tested it
for proper operation.
Refer to SHIPPING
DAMAGE CLAIM
PROCEDURE on the inside
front cover of this
manual.
IMPORTANT:
Water damage caused by
failure to seat Wellsloks or
failure to install gasket or to
seal ange to counter is NOT
covered by warranty
IMPORTANT:
Contact a licensed electrician
to install and connect electrical
power to the hotplate.
IMPORTANT:
Damage due to being
connected to the wrong voltage
or phase is NOT covered by
Warranty.
UNPACKING & INSPECTION
Carefully remove the hotplate from the carton. Remove all
protective plastic lm, packing materials and accessories from the
hotplate before connecting the hotplate to electrical power or other-
wise performing any installation procedure.
Carefully read all instructions in this manual and the Installation
Instruction Sheet packed with the hotplate before starting any
installation.
Read and understand all labels and diagrams attached to the
hotplate.
Carefully account for all components and accessories before
discarding packing materials. Store all accessories in a convenient
place for later use.
PREPARATION
Carefully the Installation Instruction Sheet packed with the hotplate for
cutout dimensions and restrictions.
Hotplate must be installed in a metal counter only.
Supplied gasket must be installed under the mounting ange, and
the Wellsloks turned out to seal the hotplate and control unit to the
counter.
Apply a thin bead of food-grade silicone sealant where the ange
meets the counter.
ELECTRICAL
Hotplate must be installed by a licensed electrician in accordance with
all applicable codes and ordinances.
Refer to the nameplate. Verify the electrical service power. Voltage
and phase must match the nameplate specications. Connecting the
hotplate to the wrong voltage can severely damage the equipment or
cause noticeably decreased performance.
The ground lug of the hotplate and control unit must be connected to
a suitable building ground.
INSTALLATION NOTE: The installation of units requires
additional evaluations to Underwriters Laboratory standards.
BOTTOM OF COUNTER
IL2189
4
222 p/n 2M-303734 Owners Manual Built-In Hotplates

222 p/n 2M-303734 Owners Manual Built-In Hotplates
OPERATION
GENERAL OPERATIONAL NOTES
Carefully read the description of the hotplate operation on the
specication sheet.
DO NOT attempt to perform any maintenance or service unless the
hotplate is disconnected from electrical power.
DO turn the circuit breaker for the hotplate off before cleaning,
servicing or performing any maintenance.
DO NOT use sharp objects or metal implements to clean the heating
element(s).
DO use a plastic spatula or plastic scouring pad to remove burned-on
food product.
OPERATION
Each heating element is controlled by an innite switch temperature
control:
OFF removes power from the element
LOW thru 8 are temperature settings
Higher numbers indicate higher temperatures
There is a continuous range of settings between LOW and HI
HI is a continuous ON setting
The indicator light will glow any time the temperature control is on.
Cooking Recommendations:
Save energy by turning the temperature control off any time the
hotplate is not in use. The coil-type heating elements will provide full
heat within 30 seconds, while french plate heating elements will reach
full heat within 2 minutes, making it unnecessary to leave the unit on
during intermittent use.
Each heating element can hold up to a 16 quart pot or pan. For
efcient heating of food product, pots and pans should be no more
than 10” in diameter.
Maximize the efciency of solid (french plate) elements by using at-
bottom pots and pans.
Stir thick liquids frequently to maintain a consistent temperature.
CAUTION:
HOT SURFACES
Exposed surfaces can be hot
to the touch and may cause
burns.
IMPORTANT:
The dial markings are an
INDICATION of temperature
only. The temperature of the
food product depends on many
factors, including the size,
shape and material of the food
container, and the quantity and
consistency of the food
product.
5

CAUTION:
ELECTRIC SHOCK
HAZARD
Disconnect hotplate from
electric power before
cleaning.
CAUTION:
BURN HAZARD
Allow hotplate element and
cabinet to cool completely
before cleaning.
CAUTION:
ELECTRIC SHOCK
HAZARD
Do not submerge hotplate in
water.
IMPORTANT: DO NOT spill
or pour water into interior of
hotplate.
IMPORTANT: DO NOT spill
or pour water into controls,
control panel or wiring.
DO NOT submerge
hotplate in water. Damage
to internal components will
occur. Damage to internal
components from water
damage is NOT covered by
warranty.
DO NOT use metal
implements, steel wool or
metal scouring pads to clean
heating elements.
CLEANING INSTRUCTIONS
PREPARATION
Unplug or disconnect hotplate from electrical power before cleaning.
Allow hotplate to cool completely before cleaning.
FREQUENCY
Daily
TOOLS
Plastic Spatula and Plastic Scouring Pad
Clean Cloth or Sponge
Mild Detergent or Cleaner Formulated for Stainless Steel
Warm Water
CLEANING
Disconnect hotplate from electrical power and allow heating elements
to cool completely before cleaning.
COILED HEATING ELEMENTS:
Lift coiled heating elements and remove drip pans. Clean drip pans
with a plastic spatula or plastic scouring pad, mild detergent and warm
water. DO NOT use metal implements, steel wool or metal scouring
pads to clean drip pans. Rinse drip pans by wiping with a clean cloth
or sponge dampened with clean water.
Clean heating elements with a plastic spatula or plastic scouring pad,
mild detergent and warm water. DO NOT use metal implements, steel
wool or metal scouring pads to clean elements. Rinse by wiping with a
clean cloth or sponge dampened with clean water.
Reinstall drip pans and gently lower heating element.
FRENCH PLATE HEATING ELEMENTS:
French plate elements do not lift. Clean heating elements with a
plastic spatula or plastic scouring pad, mild detergent and warm water.
DO NOT use metal implements, steel wool or metal scouring pads to
clean elements. Rinse by wiping with a clean cloth or sponge
dampened with clean water.
Dry exposed portions of hotplate unit and control unit by wiping with a
clean soft dry cloth.
6
222 p/n 2M-303734 Owners Manual Built-In Hotplates

222 p/n 2M-303734 Owners Manual Built-In Hotplates
TROUBLESHOOTING
NOTE: There are no user serviceable components in this
appliance. In all cases of damage or component malfunction,
contact your Authorized Wells ServiceAgency for repairs.
7
SYMPTOM POSSIBLE CAUSE SUGGESTED REMEDY
Hotplate won’t heat Disconnect OFF or circuit breaker tripped Turn disconnect ON Check / reset
circuit breaker
One or more sections
won’t heat
Temperature control not on Turn temperature control to desired
setting
Damaged temperature control, element or
other internal component ContactAuthorized Wells Service Agency for repairs
Hotplate not hot
enough
Temperature control not set Adjust for desired temperature
Operating 208/240V unit at 120V Be sure supply voltage matches
nameplate voltage
Damaged temperature control, element or
other internal component ContactAuthorized Wells Service Agency for repairs

EXPLODED VIEW: H336
8
222 p/n 2M-303734 Owners Manual Built-In Hotplates
H336 BUILT-IN ELECTRIC HOTPLATE - 208/240V - SPIRAL ELEMENT
Model: H336
Built-In Electric Hotplate - 208/240V Spiral Element
PL222 IL1799 Rev. A 6/24/09
2
2.1
2.2
2.3
1
3
5
6
11
78910
4

PARTS LIST: H336
222 p/n 2M-303734 Owners Manual Built-In Hotplates
9
H336 Built-n Electric Hotplate, Spiral Element
Fig No Part No Qty Description
1 2C-33977 2 SCREW, 8-32X3/8-PHBNDHD
2 WS-50293 1 ELEMENTASSY KIT, 240V @ 2600W
2.1 2N-30293ELUL 1 ELEMENT 240V 2600W
2.2 2P-6468 1 RING-ELEMENTADAPTOR
2.3 2D-30293DT 1 DRIPTRAY
3 P2-31033 1 BOX CONTROL
4 2K-31040 1 BUSHING HEYCO 7/8” OD
5 2E-30562 1 SWITCH INFINITE 240V
6 P2-40843 1 BRKT MTG THERMO/INFINITE
7 2C-33935 1 SCREW 6ABX5/16 PH PAN SMS
8 WS-50385 1 LIGHT SIGNALRED PUSH ON TERM
9 2C-31697 2 SCREW 8-32 X 3/16 PH RD HD
10 I7-Z12221 1 PANEL, FRONT/CONTROL
11 2R-30371 1 KNOBASSY WARMERS

222 p/n 2M-303734 Owners Manual Built-In Hotplates
Model: H636
Built-In Electric Hotplate - 208/240V Spiral Element
PL222 IL1800 Rev. B 1/21/11
3
4
5
6
78
9
10
11
6
Nameplate
7
16
14 13
12
15
17 18
1
2
EXPLODED VIEW: H636
10
H-636 BUILT-IN ELECTRIC HOTPLATE - 208/240V - SPIRAL ELEMENT

H636 Built-n Electric Hotplate, Spiral Element
Fig No Part No Qty Description
1 2C-33977 4 SCREW, 8-32X3/8-PHBNDHD
2 WS-50293 2 ELEMENTASSY KIT, 240V @ 2600W
3 2N-30293ELUL 2 ELEMENT 240V 2600W
4 2P-6468 2 RING-ELEMENTADAPTOR
5 2D-30293DT 2 DRIP TRAY
6 2C-31697 4 SCREW, 8-32X3/16 PH RD HD
7 2K-37748X 2 FTG CONDUIT STRAIGHT 3/8
8 E7-49046 1 BOX OUTLET
9 WS-50131 1 TERM BLK KIT-3 POLE, 85AMP
10 2C-35736 2 NUT 8-32 HEX
11 2C-41974 2 NUT 8-32 HEX 7/8 LONGALU
12 2E-30562 2 SWITCH INFINITE 240V
13 2C-33935 4 SCREW 6ABX1/16 PH PAN
14 WS-50385 2 LIGHT SIGNAL RED PUSH ON
15 2C-31053 8 NUT 8-32 KEPS MS NICKEL
16 P2-Z12288 1 PNL,CNTRL
17 2R-30584 1 KNOB RR
18 2R-30583 1 KNOB FR
PARTS LIST: H636
222 p/n 2M-303734 Owners Manual Built-In Hotplates
11

EXPLODED VIEW: H706
12
222 p/n 2M-303734 Owners Manual Built-In Hotplates
H-706 BUILT-IN ELECTRIC HOTPLATE - 208/240V - SOLID (FRENCH PLATE) ELEMENT
Model: H706
Built-In Electric Hotplate - 208/240V Solid (French Plate) Element
PL222 IL1801 Rev. B 1/21/11
1
2
3
6
5
17
6
10
9
3
513 12 11
8
5
16
15 14
4
7

PARTS LIST: H706
222 p/n 2M-303734 Owners Manual Built-In Hotplates
H706 Built-In Electric Hotplate, French Plate
Fig No Part No Qty Description
1 WS-503973 2 ELEM HPLATE UPGRADE FUSED
2 WS-503972 2 HPLATE UPGRADE CRACKED CE
3 2C-33935 8 SCREW 6AB X 5/16 PH PAN SMS
4 2C-31053 2 NUT 8-32 KEPS MS NICKEL
5 2C-31697 4 SCREW 8-32X3/16 PH RD HD
6 2K-37748X 2 FTG CONDUIT STRAIGHT 3/8
7 2C-31053 6 NUT 8-32 KEPS MS NICKEL
8 WS-50385 2 LIGHTSIGNAL RED PUSH ON
9 2E-30562 2 SWITCH INFINITE 240V
10 E7-49046 1 BOX OUTLET
11 WS-50131 1 TERM BLOCK KIT RETRO
12 2C-35736 1 NUT 8-32 HEX KEPS MS GREEN
13 2C-41974 2 NUT 8-32 HEX 7/8 LONGALU
14 2R-30583 1 KNOB ASSY FRONT HOTPLATE
15 2R-30584 1 KNOB RR
16 P2-Z12288 1 PNL, CNTRL
17 I7-37930 1 CHANNEL ELEM MOUNT H706
13

222 p/n 2M-303734 Owners Manual Built-In Hotplates
WIRING DIAGRAM
ELECTRIC COUNTERTOP HOTPLATES
H-336
WIRING DIAGRAM
14

WIRING DIAGRAM
15
222 p/n 2M-303734 Owners Manual Built-In Hotplates
WIRING DIAGRAM
ELECTRIC COUNTERTOP HOTPLATES
H-636, H-656 and H-706

NOTES
16
222 p/n 2M-303734 Owners Manual Built-In Hotplates

222 p/n 2M-303734 Owners Manual Built-In Hotplates
IMPORTANT: Use only
factory authorized service parts
and replacement lters.
For factory authorized service,
or to order factory authorized
replacement parts, contact
your Wells authorized service
agency, or call:
Wells Manufacturing
10 Sunnen Dr.,
St. Louis MO 63143 USA
Service Dept.
phone: [phone]
fax: [phone]
Service Parts Department
can supply you with the name
and telephone number of
the WELLS AUTHORIZED
SERVICE AGENCY
nearest you.
CUSTOMER SERVICE DATA
please have this information available if calling for service
RESTAURANT _____________________________ LOCATION _____________
INSTALLATION DATE ________________________ TECHNICIAN ___________
SERVICE COMPANY ________________________________________________
ADDRESS ___________________________ STATE ______ ZIP__________
TELEPHONE NUMBER (_____)_____-_________ EQUIPMENT MODEL NO. _______________
EQUIPMENT SERIAL NO. _______________
VOLTAGE: (check one) 120 208 240
DESCRIPTION SERVICE
PART NO.
Drip Tray, 8” for H-636 2D-30293DT
PARTS & SERVICE
17

WELLS MANUFACTURING
10 Sunnen Dr., St. Louis, MO 63143
telephone: [phone]
fax: [phone]
www.wellsbloomfield.com
