Wells PL504 User manual

PARTS LIST
WELLS BLOOMFIELD, LLC
2 ERIK CIRCLE, P. O. Box 280 Verdi, NV 89439
www.wellsbloomfield.com
PRINTED IN UNITED STATES OF AMERICA
telephone: [phone]
fax: [phone]
504
p/n PL504 Rev. C 080602 cps
WV-4HF
WV-4HS
VENTLESS HOTPLATE COOKTOP
CONTENTS
Description page
Parts List ………………………………………………….. 2
WV-4H(F)(S) Hood Section
Cabinet ………………………………………………… 4
Hood Electrical and Vacuum ………………………….. 5
WV-4HF Cooktop Components ………………….……… 6
WV-4HS Cooktop Components ...………………….…… 7
WV-4H(F)(S) RW Roll Warmer Section ………………… 8
Ansul© Fire Detection & Suppression ……………….... 9
PL504

2
PART # DESCRIPTION
MECHANICAL
50372 KNOB, TEMP CONTROL RW
50471 CATCH, DRAWER
50483 BEARING, ROLLER (pk 6)
50583 KNOB, FRONT HOTPLATE
50584 KNOB, REAR HOTPLATE
51674 SPACER, 1/2” LONG
52112 HANDLE, RW DRAWER
53302 SEALANT 1/4x37 LONG
53565 PANEL, CONTROL LOWER
55677 BRKT ELEM MTG RW
55678 DRAWER ASSEMBLY RW
55683 SHIELD BULB RW
55726 SLIDE VENT ASSEMBLY RW
55988 DRAWER STOP RW
56050 INSUL FG .6 MICRO 1”x36”x100’
57748 FITTING, CONDUIT STRAIGHT 3/8
60444 SPACER, DRAWER STOP RW (pk 2)
63263 KNOB, VENT RW DRAWER
66502 MAGNET, DRAWER
PART # DESCRIPTION
MECHANICAL
501389 REMOTE PULL STA ASSY
501451 BKT, SOLID ELEMENT HOLD-DOWN
502588 TUBING ASSY VACUUM UNIV HOOD
502642 DOOR ASSEMBLY LEFT
502646 DOOR ASSEMBLY RIGHT
502772 GASKET SILICONE .25X.5X15.25
502773 GASKET SILICONE .25X.5X18.5
502782 FACEPLATE FRNT PNL UNIV HOOD
504112 LINK, FUSIBLE TYPE B 212ºF
504405 GREASE TRAY, HOOD DRIP
505099 GLASS GLOBE VCS HOOD
PART # DESCRIPTION
OPTIONAL ACCESSORIES
20804 SET, CASTER, (2 FIXED, 2 SWIVEL)
20811 SET, CASTER, (1 FIXED, 1 SWIVEL)
22618 PREFILTER
22619 FILTER PACK
22649 LEG, ADJ. (pk 4)
22682 POWER CORD NEMA 15-60P 4’
22683 CAGE, PRE-FILTER
22684 GREASE BAFFLE (TYPE 3)
LITERATURE & DOCUMENTATION
300959 DIA WIR 2-DRAWER WARMER
302731 PLUMBING LAYOUT, VAC
303334 OP MANUAL DRAWER WARMER
303796 ANSUL FIRE SUP 4-BURNER
303800 DIA WIR 4 BURNER SPIRAL
303838 DIA WIR 4 BURNER SOLID
303894 DIA WIR VCS WV-4H
303903 OPMANUAL WV-4H SERIES
304319 GLD WV-4HS/RW
304320 GLD WV-4HF/RW
SV504 SERVICE MANUAL WV-4H
PL504 Service Parts List for WV-4H Ventless Hotplate Cooktop

3
PART # DESCRIPTION
ELECTRICAL
50131 TERMINAL BLOCK 3P 85A
50293 ELEM, SPIRAL HOTPLATE 240V 2600w
50516 LIGHT, INDICATOR AMBER 240V
50562 INF. SWITCH 240V HOTPLATE
51157 LIGHT, INDICATOR RED 240V
53068 TERMINAL BLOCK 2P (FIRE ALARM)
54005 JUMPER, FLAME SENSOR
54131 CONNECTOR WIRE 12-14 GA
55687 LIGHT, SIGNAL GLO DOT W#8 RING
55697 LIGHT, INDICATOR GREEN 240V
58936 THERMO CONT RW W/O AUX
62897 CONNECTOR WIRE 14-18 GA
63880 RELAY, 208/240V
64514 RELAY, BLDG FIRE ALARM
64834 BUZZER 240V
67273 SWITCH ELECTRIC (FIRE ALARM)
69823 CAPACITOR, MOTOR START
500407 SWITCH FILTER INTERLOCK
502584 ASSY, BLOWER FAN & MOTOR
502590 VACUUM SWITCH #1
502591 VACUUM SWITCH #2
502592 VACUUM SWITCH #3
502593 VACUUM SWITCH #4
502789 CONTACTOR 208/240V 3ø 50A
503655 FAN COOLING FT
503973 ELEMENT, SOLID HOTPLATE 240V
505098 HOUSING, LIGHT SOCKET
505100 LIGHT BULB APPLIANCE 230V 100W
8528-40 SWITCH, POWER (NO LIGHT)
PART # DESCRIPTION
HARDWARE
51053 NUT, 8-32 KEPS SS (pk 100)
51038 RETAINER TRADEMARK (pk 10)
51040 GROMMET INSULATION 7/8D HEYCO
51053 NUT, 8-32 KEPS (pk 100)
51717 SCREW, 8-32x7/8 (pk 40)
51718 SCREW, 6-32x3/16 (pk 10)
52428 SPRING, HEAD SUPPORT ROD
53890 SCREW, 12-24x3/4 (pk 10)
53935 SCREW 6X1/4 SHEET METAL (pk 100)
53977 SCREW, 8-32x3/8PHBD (pk 100)
54136 FTG FLEX COND 90DEGx1/2IN
54222 WASHER FLAT #10
54284 RIVET, POP 3/32Dx1/8
54285 SCREW, 8-32x3/8 (pk 50)
55135 SCREW, 6-32x1/4 RD (pk 25)
55485 NUTS, 1/4-20 (pk 100)
55487 SCREW, 8-32x11/16 (pk 50)
55530 SCREW, 8-32x3/8 )pk 100)
55565 WASHER 2-1/4 DRWR BACK RWS
55566 SCREW, 6x1/4 SS (pk 100)
55736 NUT, 8-32 KEPS GREEN (pk 10)
57748 FTG CONDUIT STRAIGHT 1/2IN
60612 SCREWS, 1/4-20x1/2
60680 NUTS, 10-32 KEPS SS (pk 10)
61974 NUT, 8-32x7/8 LONG AL (pk 10)
63271 CLIP, RETAINING PILOT LIGHT
500102 STRAIN RELIEF
504420 STRAIN RELIEF 1 1/4NPT
18-302 NUT, 8-32 HEX SS
8543-74 NUT, 4-40 HEX SS
PART # DESCRIPTION
ANSUL© COMPONENTS
NOTE: Provided for reference only
All servicing of the fire detection and suppression
system must be performed by an authorized Ansul
technician
53068 TERMINAL BLOCK 2P (no Ansul p/n)
67273 SWITCH ELECTRIC (Ansul p/n 423575)
501389 ASSY, PULL STATION ANSUL©
(Ansul p/n 4835)
502583 FUSIBLE LINK 165ºF Model K
(no Ansul p/n)
504112 FUSIBLE LINK 212ºF Type B
(no Ansul p/n)
CABLE, WIRE ROPE , 50 FT/15m
(Ansul p/n 15821)
ANSULEX® FIRE EXTINGUISHING
MEDIA, 1.5 GAL. (Ansul p/n 79694)
EXPELLANT GAS CARTRIDGE ASSY
LT-20-R (Ansul p/n 67099)
QUICK-SEAL ADAPTER, 3/8”
(Ansul p/n 77284)
QUICK-SEAL ADAPTER, 1/4”
(Ansul p/n 78195)
MOUNTING BRACKET, RELEASE
MECH. R-102 (Ansul p/n 79493)
CABLE, WIRE ROPE , 500 FT/152m
(Ansul p/n 79653)
DESIGN, INSTALLATION, RECHARGE
AND MAINTENANCE MANUAL FOR
R-102 RESTAURANT FIRE
SUPPRESSION SYSTEM (STD. UL 300
LISTED) (Ansul p/n 418087-05)
NOZZLE 1W (Ansul p/n 419336)
NOZZLE 290 (Ansul p/n 419342)
PULLEY ELBOW, COMPRESSION
ENDS (Ansul p/n 423250)
TANK, 1.5 GAL ANSULEX®
(Ansul p/n 429864)
PL504 Service Parts List for WV-4H Ventless Hotplate Cooktop

4
WV-4H... CABINET AND HOOD SECTION COMPONENTS
PL504 Service Parts List for WV-4H Ventless Hotplate Cooktop
INTERNAL BRACKETS
CABINET DOORS
(NON -RW UNITS)
-RW UNITS
LEG, ADJUSTABLE (REAR LEG OPT.)
VCS 22649 (pk 2)
FIRE DAMPER ASSY
280ºF (ref. 301187)
LABEL, CONTROL
PANEL 502782
GASKET, SILICONE
15-1/4” 502772 (2 pl)
GASKET, SILICONE
18-1/2” 502773 (2 pl)
ASSY, FILTER
PACK 22619
PREFILTER
22618
CAGE,
PRE-FILTER
22683
BAFFLE, GREASE
FILTER (TYPE 3)
22684
ASSY, DOOR
LEFT 502642
MAGNET, DOOR
CATCH 66502 (2 pl)
ASSY, DOOR
RIGHT 502646
CASTER, REAR
VCS 20804
(pk 2 fixed, 2 swivel)
HOUSING, LIGHT
SOCKET 505098
BULB, APPLIANCE
100W 505100
GLASS GLOBE, LIGHT
BULB COVER 505099
GREASE CUP
504405

5
WV-4H... HOOD ELECTRICAL AND VACUUM COMPONENTS
PL504 Service Parts List for WV-4H Ventless Hotplate Cooktop
FRONT OF HOOD
ELECTRICAL - UPPER HOOD
ELECTRICAL - UNDER HOOD ELECTRICAL - REAR OF LOWER CABINET
ref Ansul®
77284
ref Ansul®
77284
FITTING, 1/2” CONDUIT
STRAIGHT 57748
ASSY, BLOWER
240V 502584
VACUUM SWITCH
#4 502593
VACUUM SWITCH
#1 502590
VACUUM SWITCH
#3 502592
VACUUM SWITCH
#2 502591
ASSY, VAC TUBE
MANIFOLD 502588
SWITCH, POWER
8528-40
LIGHT, INDICATOR
GREEN 240V 55697
LIGHT, INDICATOR
AMBER 240V 50516 (3 pl)
LIGHT, INDICATOR
RED 240V 51157
BUZZER, 240V
64834
SWITCH, FILTER
INTERLOCK
500407 (2 pl)
HOUSING, LIGHT
SOCKET 505098
BULB, APPLIANCE
230V 100W 505100
GLASS GLOBE
LIGHT BULB
COVER 505099
TERMINAL BLOCK
2P 250V 53068
JUMPER, FLAME
SENSOR 54005
RELAY, 208/240V
(-RW, -RWT ONLY) 63880
CONTACTOR 208/240V
50A 3-PH 502789
STRAIN RELIEF
1-1/4” 504420
RELAY, BLDG
FIRE ALARM
64514
POWER CORD
NEMA 15-60P
22682
(incl. strain relief)

PL504 Service Parts List for WV-4H Ventless Hotplate Cooktop
8

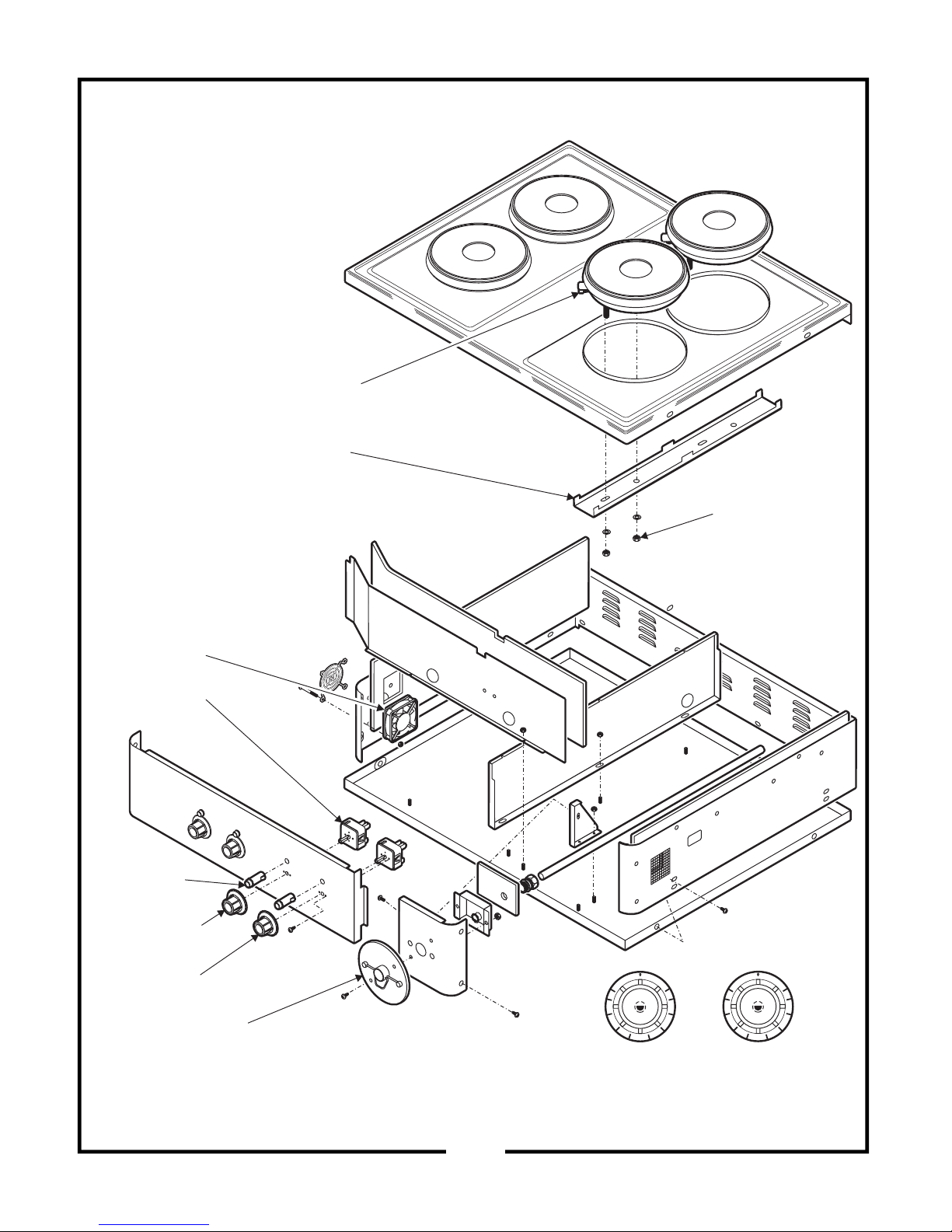

WVOC-4HF COOKTOP COMPONENTS
PULL
HANDLE
IN CASE OF
FIRE
ANSUL
FAN, COOLING
FT 503655
INFINITE SWITCH
240V A CAM 50562
LIGHT, SIGNAL
AMBER 50516
KNOB, HOTPLATE
REAR 50584
KNOB, HOTPLATE
REAR 50584
KNOB, HOTPLATE
FRONT 50583
KNOB, HOTPLATE
FRONT 50583
ASSEMBLY, REMOTE PULL
STATION 501389
OFF
LO
HI
7
6
5
4
3
2
FRONT
8
OFF
LO
HI
7
6
5
4
3
2
REAR
8
HEATING ELEMENT,
SOLID 240V 2000W
503973
BRACKET, HOLD-DOWN
SOLID ELEMENT 501451
NUT, 8-32 KEPS
Ni 51053 (pk 100)

PL504 Service Parts List for WV-4H Ventless Hotplate Cooktop
9

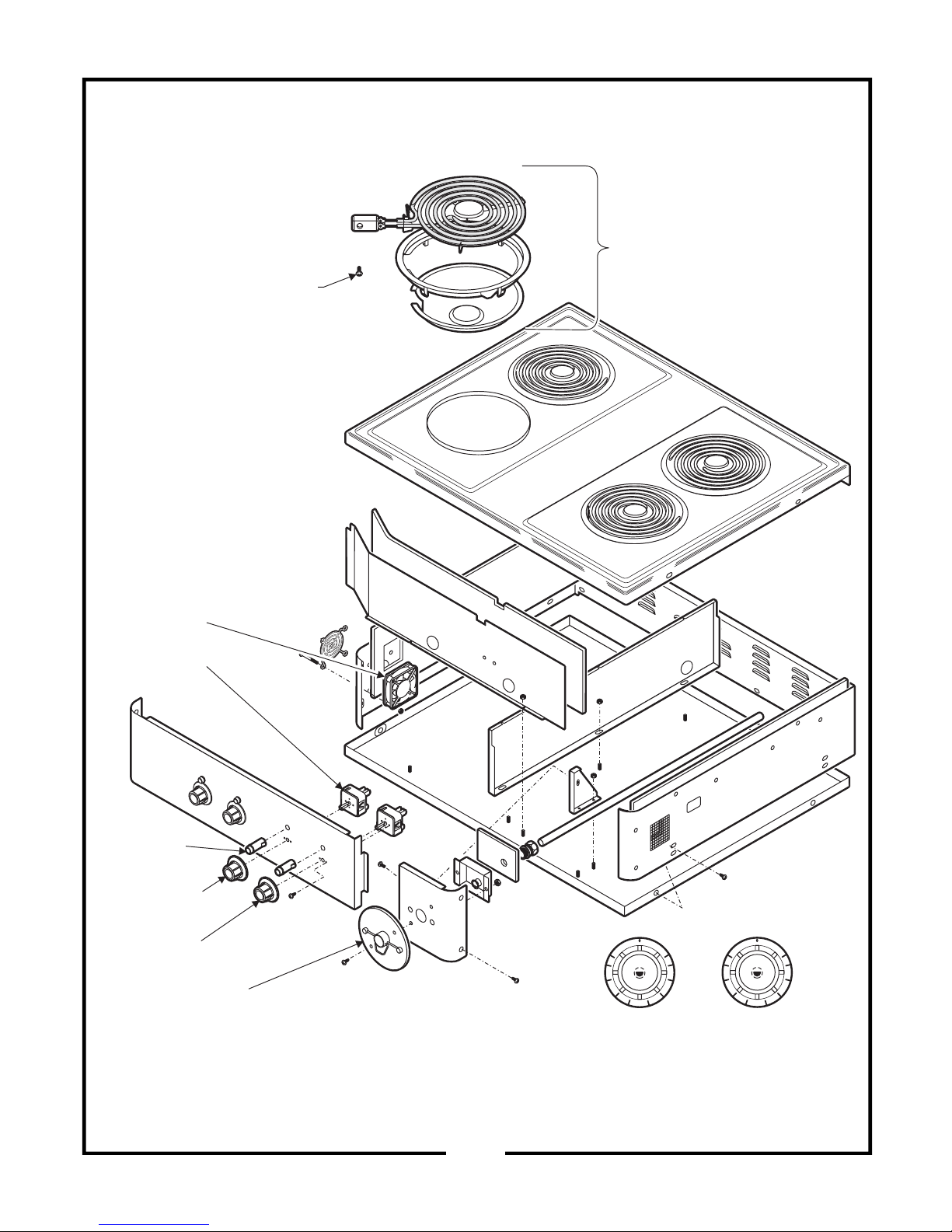

WVOC-4HS COOKTOP COMPONENTS
PULL
HANDLE
IN CASE OF
FIRE
ANSUL
50293
COMPLETE
ASSEMBLY
SCREW 8-32 x 3/8
(pk 100) 53977
FAN, COOLING
FT 503655
INFINITE SWITCH
240V A CAM 50562
LIGHT, SIGNAL
AMBER 50516
KNOB, HOTPLATE
REAR 50584
KNOB, HOTPLATE
REAR 50584
KNOB, HOTPLATE
FRONT 50583
KNOB, HOTPLATE
FRONT 50583
ASSEMBLY, REMOTE PULL
STATION 501389
OFF
LO
HI
7
6
5
4
3
2
FRONT
8
OFF
LO
HI
7
6
5
4
3
2
REAR
8

PL504 Service Parts List for WV-4H Ventless Hotplate Cooktop
8
WV-4H... ROLL WARMER COMPONENTS
CLOSED OPEN
CLOSED OPEN
55487 (pk 50)
part of 50471
50483 (pk 6)
18-302
55487
(pk 50)
55565
20624
(optional)
55530 (pk 10)
21488
69251
51796
52112
67096
heavy-duty
drawer assy
complete
50471 (includes
strike and catch)
55677
55683
50482 (240V)
50519 (120V)
50483 (pk 6)
18-302 (typ.)
64475 OPTIONAL
THERMOMETER
OFF
0
LO
HI
WELLS
2
3
4
5
6
7
8
50372
51801(UPPER)
53565 (LOWER)
65923 (set -
includes left
and right) 65351 (CAVITY ASSEMBLY)
63271
(pk 10)
58936
55687
51808
-RWT ELECTRONIC CONTROL
OPTION (PART NO. PENDING)

PL504 Service Parts List for WV-4H Ventless Hotplate Cooktop
WV-4H... FIRE DETECTION AND SUPPRESSION SYSTEM COMPONENTS
ref. CABLE, WIRE ROPE
ANSUL© p/n 15821 (50’/15m)
79653 (500’/152m) (typical)
ASSY, PULL STATION
ANSUL© 501389
FRONT OF UNIT
ref. PULLEY ELBOW
ANSUL© p/n 423250
(typical)
ref. NOZZLE 1W
ANSUL© p/n 419336
ref. NOZZLE 290
ANSUL© p/n 419342
ref. NOZZLE 290
ANSUL© p/n 419342
ref. ADAPTER, QUICK-SEAL 3/8”
ANSUL© p/n 77284
FOR USE ONLY BY AUTHORIZED
ANSUL© SERVICE PERSONNEL
Refer to Ansul© part no. 418078-05
R-102 Restaurant Fire Suppression
System Design, Installation,
Recharge and Maintenance
ref. TANK 1.5 GAL, ANSULEX®
ANSUL© p/n 429864
(NOT SHOWN)
ANSULEX ® EXTINGUISHING
AGENT 1.5 GAL.
ANSUL© p/n 79694
CARTRIDGE LT-20-R
ANSUL© p/n 67099
BACK OF UNIT
ANSUL© p/n 77284
DETAIL
inside
outside
cabinet wall
Seal with
Teflon tape
Seal with
Teflon tape
Fiber
washer
is always
on the inside
ANSUL© p/n 423250
DETAIL
Cable sits in
groove in
pulley
FUSIBLE LINK
TYPE B 212ºF
504112
ref. MOUNTING BRACKET
RELEASE MECHANISM
R-102 ANSUL© p/n 79493
(NOT SHOWN)
MICROSWITCH 67273
TERM.BLOCK 53068
9
