Wenger Fixed Media Cabinets User manual

Owner’s Manual
Media Storage Systems
Fixed Media Cabinets
©Wenger Corporation 2014 Printed in USA 08/14 Part #258A999-02
Wenger Corporation, 555 Park Drive, P.O. Box 448, Owatonna, Minnesota 55060-0448
Questions? Call.....USA: 1-800-4WENGER (493-6437) • Worldwide: 1-507-455-4100 • www.wengercorp.com
Contents
Important User Information . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Structural Fasteners . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Required Tools. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Component Identication. . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Weight Limits. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Digital Lock Accessory Note . . . . . . . . . . . . . . . . . . . . . . . . . .5
Hardware Parts List. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

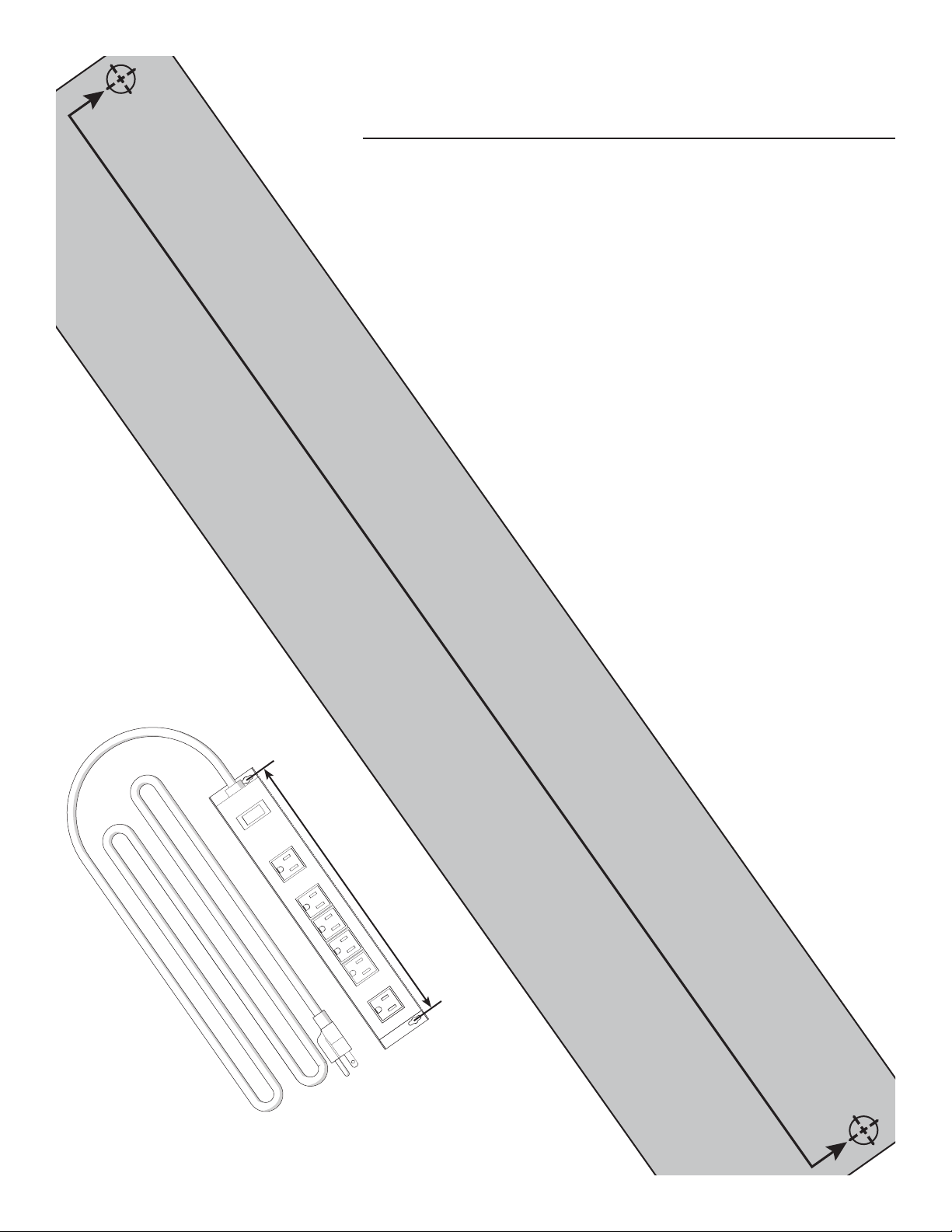

Template for Mounting Power Strip. . . . . . . . . . . . . . . . . . . . .15
1-Column
Fixed Media
Storage Cabinet
2-Column
Fixed Media
Storage Cabinet
Note: Please read and understand these instructions before starting the installation.
Note: Examine the illustrations on the following pages. If you need additional information,
contact Wenger Corporation using the information below.
Visit the Media Storage Cabinet web page at www.wengercorp.com.

2
Important User Information
General
Copyright©2014 by Wenger Corporation
All rights reserved. No part of the contents of this manual may be reproduced, copied, or transmitted
in any form or by any means including graphic, electronic, or mechanical methods or photocopying,
recording, or information storage and retrieval systems without the written permission of the publisher,
unless it is for the purchaser’s personal use.
Printed and bound in the United States of America.
The information in this manual is subject to change without notice and does not represent a commitment
on the part of Wenger Corporation. Wenger Corporation does not assume any responsibility for any
errors that may appear in this manual.
In no event will Wenger Corporation be liable for technical or editorial omissions made herein, nor for
direct, indirect, special, incidental, or consequential damages resulting from the use or defect of this
manual.
The information in this document is not intended to cover all possible conditions and situations that
might occur. The end user must exercise caution and common sense when assembling or installing
Wenger Corporation products. If any questions or problems arise, call Wenger Corporation at 1-800-
887-7145.
Manufacturer
The Media Storage Systems are manufactured by:
Wenger Corporation
555 Park Drive
Owatonna, MN 55060
1-800-4WENGER (493-6437) • 1-507-455-4100
www.wengercorp.com
Intended Use
· This product is intended for indoor use in normal ambient temperature and humidity conditions —
it must not be exposed to prolonged outside weather conditions.
· This product is intended to be assembled and used only as described in these instructions.
Warranty
This product is guaranteed free of defects in materials and workmanship for ten full years from
date of shipment. A full warranty statement is available upon request.
Optional power strips, digital locks and other electronic equipment are covered by the
individual manufacturer’s warranty.

3
Safety Precautions
Make sure anyone installing
the Fixed Media Storage Cabinet
has read and understands these
instructions.
!CAUTION
Throughout this manual you may nd CAUTIONS and WARNINGS which are dened as follows:
•WARNING means that failure to follow the instruction may result in serious injury or death.
•CAUTION means that failure to follow the instruction may result in serious injury or damage
to property.
Read all of these safety instructions before installing the Fixed Media Storage System.
Failure to comply with Warnings
and Cautions in this document
can result in damage to property
or serious injury.
!CAUTION
Structural Fasteners
Because materials and construction of oors and walls can vary, fasteners for attaching the
Fixed Media Storage Cabinet to the structure are not provided.
The installer must choose the appropriate fastener and follow the manufacturer’s instructions.
Structural Fastener guidelines:
· If the oor is wood construction, attachment should be by sheet metal or lag screws (#10 minimum).
· If the oor is concrete, attachment should be by 1/4” concrete screw (Tapcon™), 1/4” drive nail or
sheet metal screws (#10 minimum) into metal inserts.
· If the wall is wood stud-and-drywall construction, attachment should be by lag screws
(1/4” minimum) into a stud.
· If the wall is metal stud-and-drywall construction, attachment should be by toggle bolt
(Snap Toggle™) (1/4” minimum) into a stud. Toggle bolt (1/4” minimum) to be used between studs.
· If the wall is concrete block construction, attachment should be by concrete screws (#10 minimum)
(Tapcon), 1/4” drive nail or toggle bolt (1/4” minimum).
· If the wall is poured concrete construction, attachment should be by concrete screw (Tapcon)
or wedge-type concrete anchors.
Inferior or improperly installed
fasteners could cause the cabinet
to detach from the structure.
Serious injury or damage may result.
!CAUTION
The cabinet must be anchored
to both the oor and a wall.
!CAUTION
Required Tools
· Phillips Head Screwdriver
· Standard Screwdriver
· Open-End Wrench, 1/4” or 1/4” Socket
· Tape Measure
· Carpenter’s Square
· Variable Speed Electric Drill
· Safety Glasses
· Gloves

4

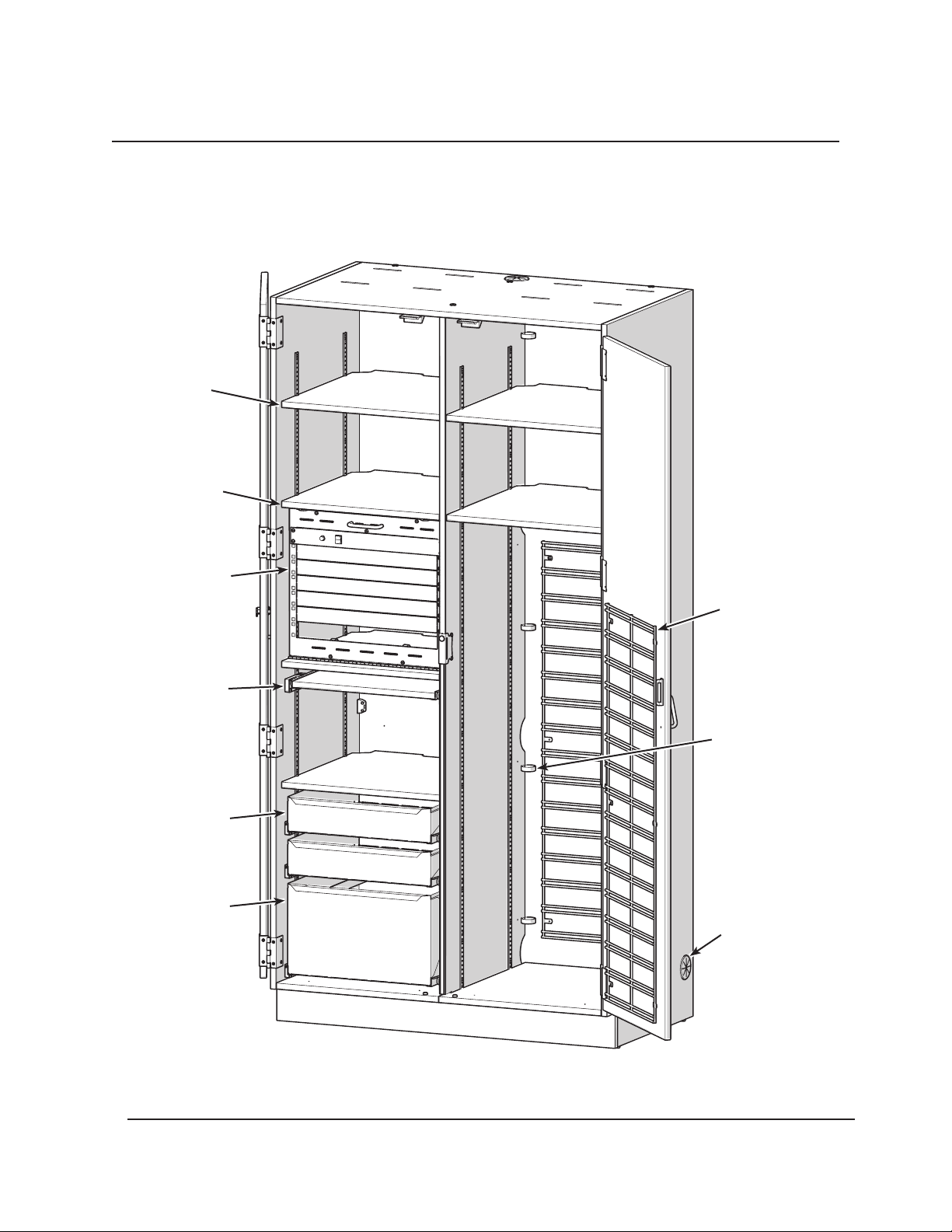

Component Identication
Adjustable
Shelf
Organizer
Fixed
Shelf
Rackmount
Slide-Out
Shelf
4” (10 cm)
Drawer
File
Drawer Cable Pass
Through
Structural Components
Wire Clamp
(#8)

5

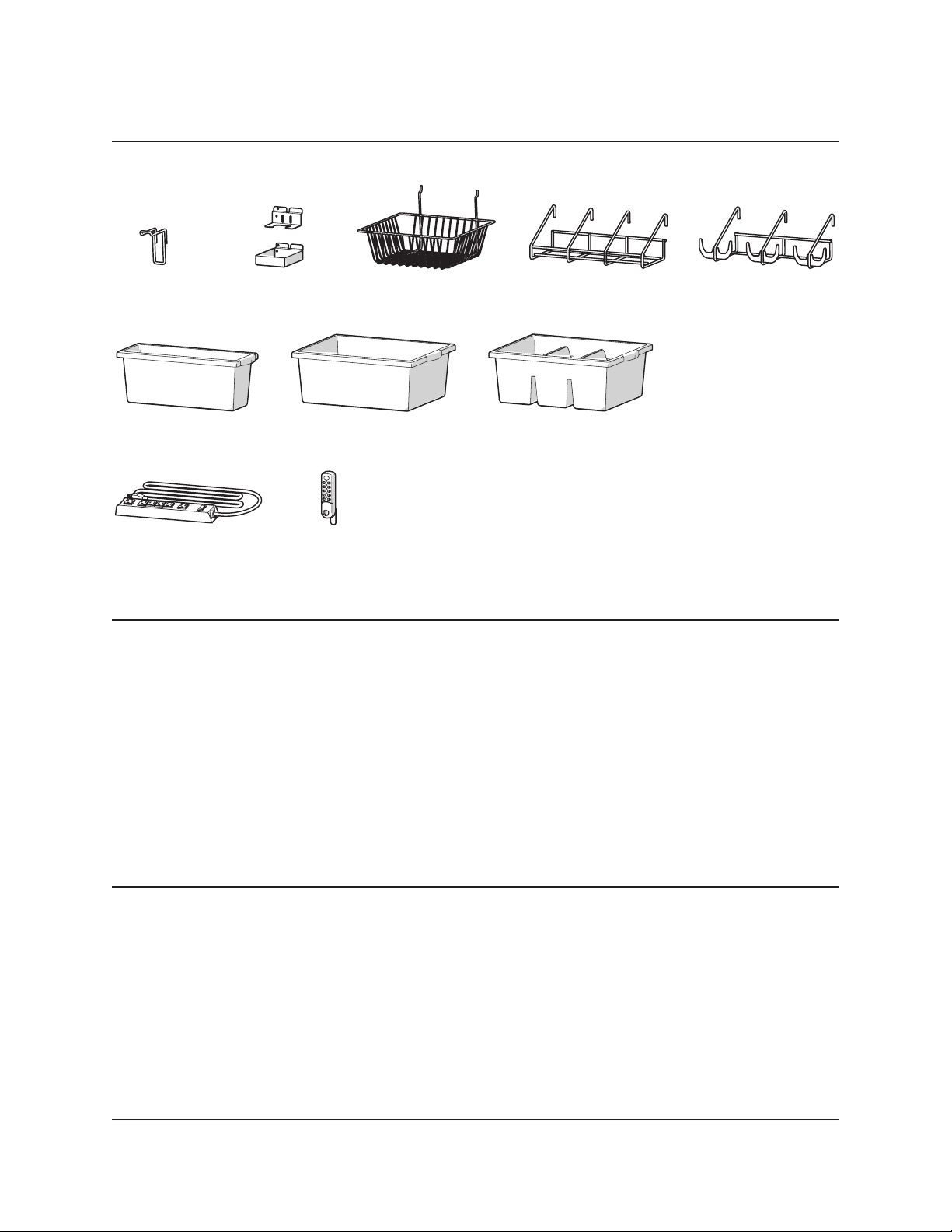

Component Identication (continued)
Hook (3-pack)
Accessory
258A004
Mic Stand Set
Accessory
258A007
Storage Basket
Accessory
258A003
CD Holder
Accessory
258A005
Cable Minder
Accessory
258A006
Power Strip
Accessory
X0003278
Digital Lock
Accessory
241C399
Accessories
Weight Limits
These structural components and accessories are rated at the maximum load capacities.
· Top of Cabinet - 40 lbs (18 kg) per foot.
· Organizer - 90 lbs (41 kg).
· 4” (10 cm) Drawer - 40 lbs (18 kg).
· File Drawer - 65 lbs (29 kg).
· Fixed, Adjustable and Slide-Out Shelves - 40 lbs (18 kg) per shelf.
· Hooks - 20 lbs (9 kg) per hook.
· Mic Stand Set - 20 lbs (9 kg).
· Storage Basket - 25 lbs (11 kg).
· CD Holder - 30 CDs.
· Cable Minder - 20 lbs (9 kg).
Small Plastic Bin
Accessory
204A007.113
Medium Plastic Bin
Accessory
204A007.120
Medium Divided Plastic Bin
Accessory
204A007.115
Digital Lock Accessory Note
The Digital Lock Accessory is supplied in the “PRIVATE” operating mode.
In this mode, the user must enter a four-digit User Code to open it. The unit will re-lock itself
after four seconds.
The lock can be opened at any time using the Master Code. Unless manufactured to special order,
the default Master Code is 11 33 55 77 and the default User Code is 22 44.
These codes are common to all standard locks and it is very important that you set your own personal
Master and User Codes.
Your lock is not secure until you have changed the default Master and User Codes.
Keep a safe record of your Master Code as it is not possible to make any programming changes
without it.
Please see programming guide to set your own codes.

6
Hardware Parts List
*Quantities may vary, extras can be discarded.
1
145A288
Cabinet Connector Bracket
253A115
Cabinet Cleat
2
X001872
1/4-14 x 5/8
Sheet Metal Screw
3
X001503
#10-16 x 3/4
Sheet Metal Screw
4
X000045
#8-15 x 5/8
Sheet Metal Screw
5
X001797
#8 x 2
Wood Screw
6
X003599
Shelf Clip
7
X003600
Wire Clamp
and
X000482
#8 x 5/8
Sheet Metal Screw
8
X003632
Cage Nut
10
9

7
IMPORTANT: The following procedures are shown using the 2-Column Fixed Media Cabinet,
the procedures for the 1-Column Fixed Media Cabinet are similar unless
indicated otherwise.

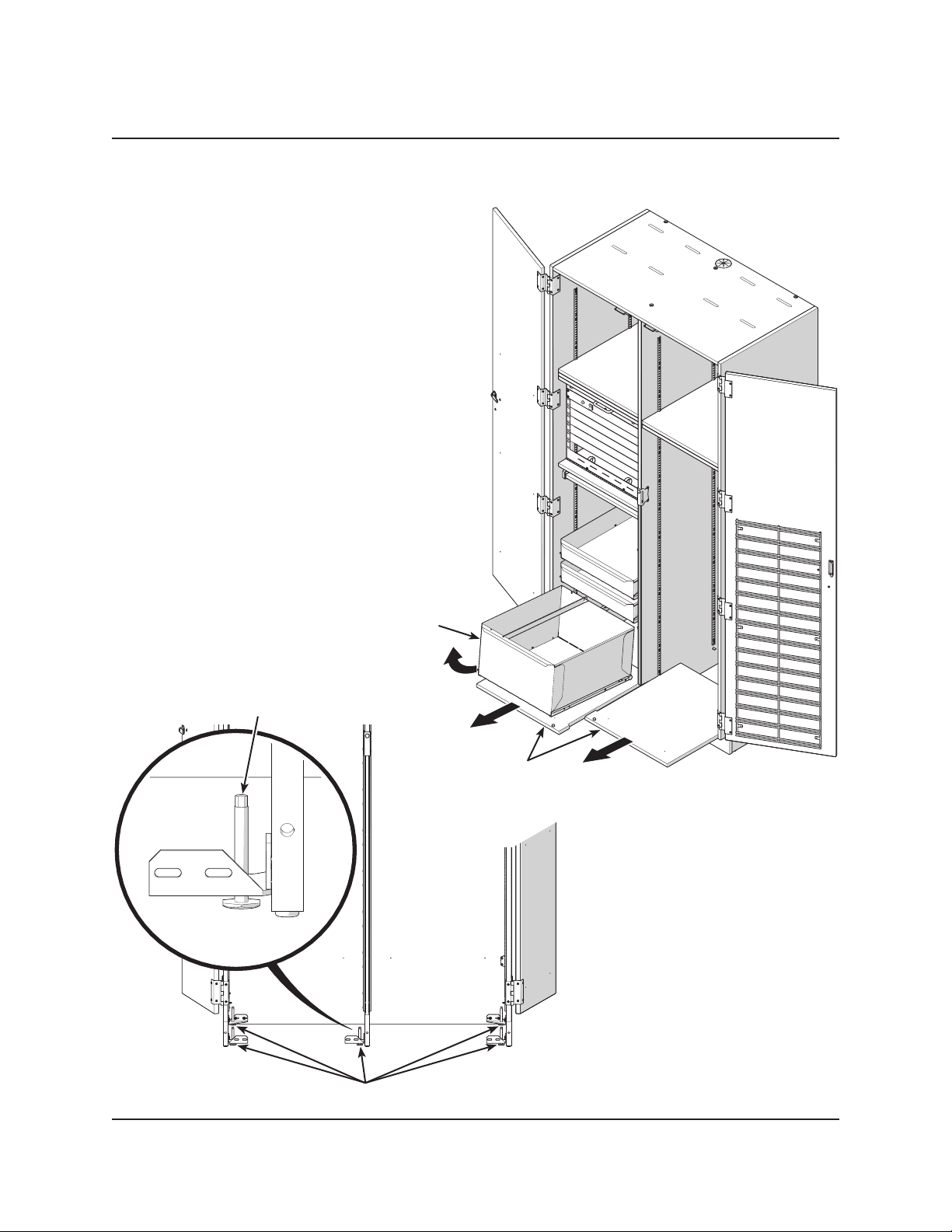

Leveling the Cabinet
1. Position the Cabinet at the installation location.
2. The Leveling Glides are located under the
Bottom Panel or Panels.
a. Remove any Drawers that may be blocking
the Bottom Panels by rst pulling them
outward, then tilting up and lifting them out.
b. Remove any Bottom Panels by pulling
them straight out.
3. Level the Cabinet by turning the Leveling Glides.
The 2-Column Cabinet has ve Leveling Glides
as shown and the 1-Column Cabinet has
four Leveling Glides.
Installation
Leveling
Glides
Turn
Leveling Glides
to Adjust
Drawer
Bottom
Panels

8
Installation (continued)
Attach the Cabinet to the Floor

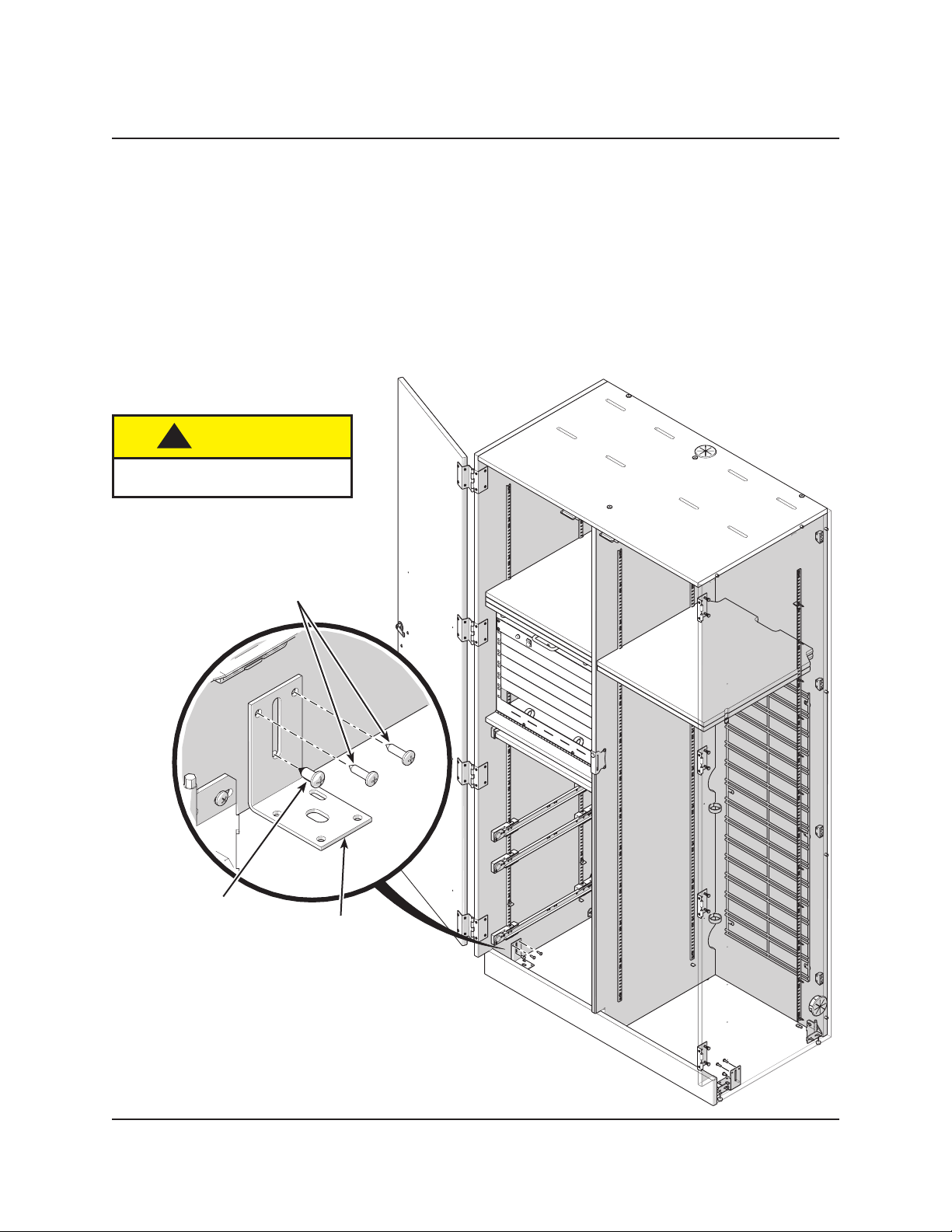

1. Attach a Cabinet Cleat (#2) to the inside of both End Panels.
a. Attach each Cabinet Cleat using a 1/4-14 x 5/8 Sheet Metal Screws (#3) through the
slotted hole into the predrilled hole at the bottom of the End Panel.
Leave the Screws loose enough so that the Cleats drop down and rest on the oor.
2. With the bottoms of the Cabinet Cleats against the oor, anchor them to the oor using the
appropriate fasteners as indicated in the “Structural Fasteners” section.
3. Finish attaching both Cabinet Cleats to the End Panels using two
#10-16 x 3/4 Sheet Metal Screws (#4).
4. Tighten both 1/4-14 x 5/8
Sheet Metal Screws (#3).
For applications requiring stamped seismic approval,
see your Wenger Sales Representative.
1/4-14 x 5/8
Sheet Metal Screw
(#3)
#10-16 x 3/4
Sheet Metal Screws
(#4)
After anchoring
to oor.
Cabinet Cleat
(#2)
Anchor to oor using
appropriate fasteners.
The cabinet must be anchored
to both the oor and a wall.
!CAUTION

9
Attach the Cabinet to the Wall
1. Position the Cabinet Connector Bracket (#1) at the top rear of the Cabinet against a wall surface.
Locate the Bracket to be near the middle of the Cabinet and over a Wall Stud (if applicable).
2. Attach the Cabinet Connector Bracket to the top of the Cabinet using
four #8-15 x 5/8 Sheet Metal Screws (#5).
3. Attach the Cabinet Connector Bracket to the Wall using the appropriate fasteners
as indicated in the “Structural Fasteners” section.
For applications requiring stamped seismic approval,
see your Wenger Sales Representative.
Installation (continued)
Cabinet
Connector
Bracket
(#1)
#8-15 x 5/8
Sheet Metal
Screws
(#5)
Anchor to wall using
appropriate fasteners.
The cabinet must be anchored
to both the oor and a wall.
!CAUTION

10
Installation (continued)
Attach the Bottom Panels
1. Slide all of the Bottom Panel(s) back into their original position and align any joints along
the front edges.
2. Secure the Bottom Panels to the Front Stretcher Panel using one #8 x 2 Wood Screw (#6)
in each of the predrilled holes.
3. Replace any Drawers that were removed.
#8 x 2
Wood Screw
(#6)
Align any joints along
the front edges

11
Installation (continued)

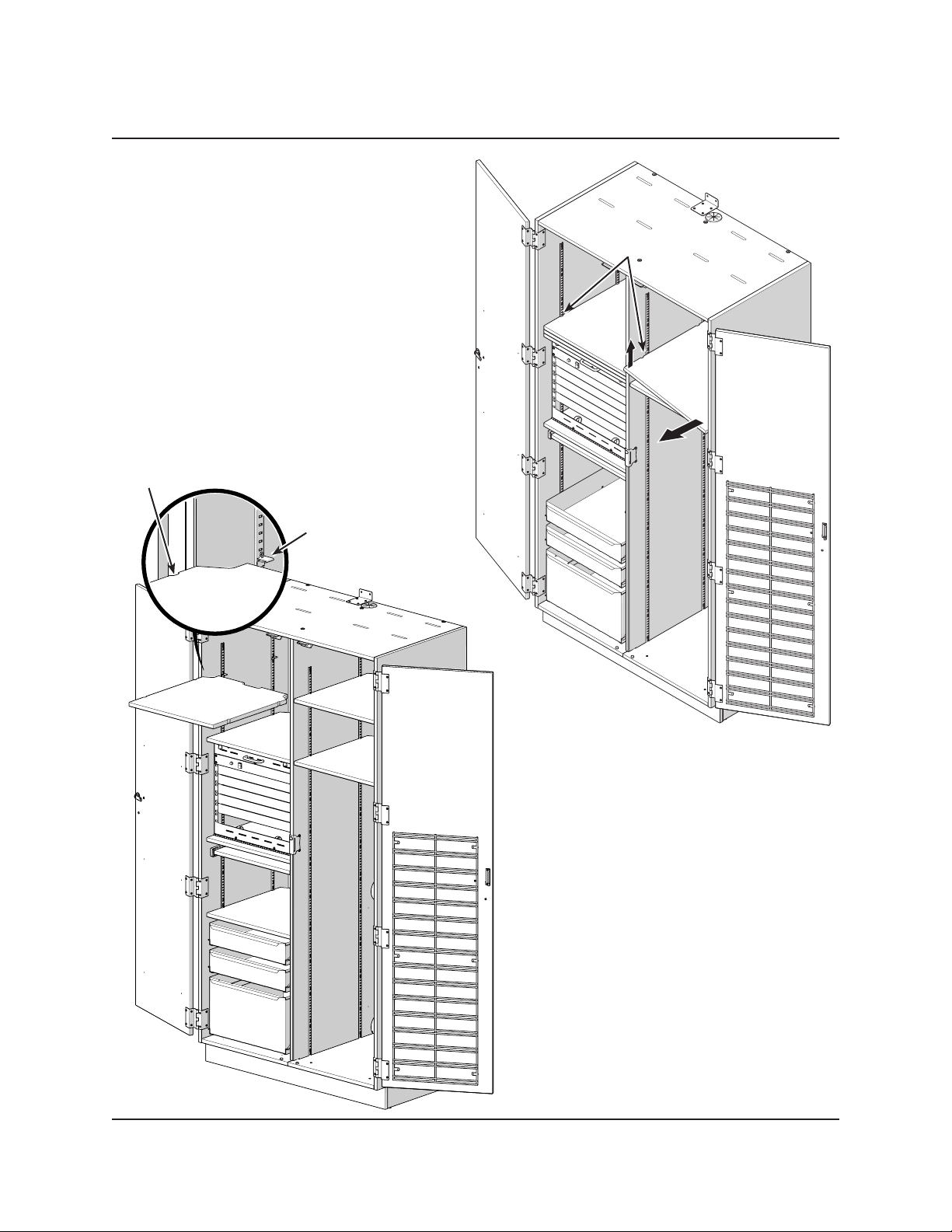

Position the Adjustable Shelves
1. Remove any screws that held the
Adjustable Shelves in place during shipping.
These screws can be discarded.
2. For each Adjustable Shelf being placed,
position one Shelf Clip (#7) at
even elevations on each of the four Rails.
3. Tilt each Shelf up on one side slightly
as shown and pull it out to remove.
4. Fitting the grooves in the Shelves over
the Rails, tilt the Shelves into position to
rest on the Shelf Clips.
Remove
Screws
Shelf Clip
(#7)
5. Fixed Shelves and Rackmounts may be
repositioned, but require that the screws
also be removed.
Always reattach the screws after
repositioning.
Fixed Shelves help maintain the width
of each column and ensure that the
locks function properly.
Keep the location of the Fixed Shelves
within the middle-third portion of the
Cabinet.
Groove in
Shelf

12
Operation
Repositioning Drawers and Slide-Out Shelves

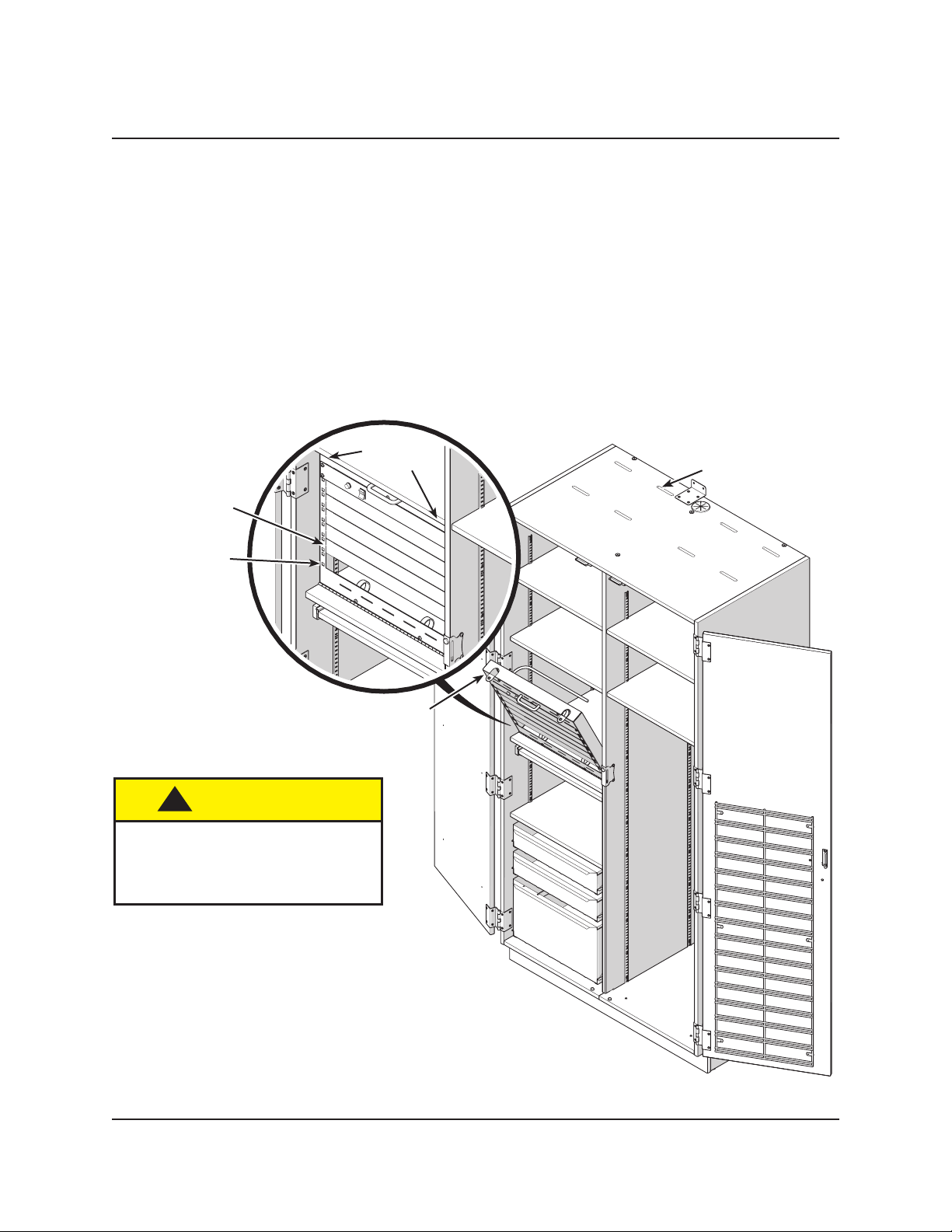

1. Drawers and Slide-Out Shelves can be repositioned at different heights in 1/2” (1.27 cm) increments
by relocating the Glides along the Rails.
a. Remove the Drawer or the Slide-Out Shelf and Stop Bracket from the Glides
by rst pulling it outward, then tilting it up and lifting it out.
The Plastic Bumper does not need to be removed from the Slide-Out Shelf.
b. Remove either the top or bottom set of Screws and Clips attaching both Glides to the Rails.
c. Relocate the Glides at even elevations on each of the four Rails and reattach the
Screws and Clips to secure them into place.
d. Reinstall the Drawer or the Shelf and Stop Bracket.
Glide
Only the top or bottom set of Screws
and Clips need to be removed.
Plastic
Bumper
Stop
Bracket
Screws

13
Operation (continued)
Rackmount Electronics
1. Electronic components can be accessed by tipping out the Rackmount.
2. Additional electronic components can be added but must be done so according to their
manufacturer’s specications.
Place deeper components at the bottom of the Rackmount.
3. Knockout Panels can be removed from the Rackmount by twisting them until they break away
from the frame.
4. To open the Rackmount, remove the two Screws securing it to the above Fixed Shelf
and carefully tip it down until the bottom rests on the shelf below.
5. Cage Nuts (#10) can be relocated or installed to match component settings.
6. When routing cables inside of the Rackmount, leave enough excess to tip the Panel forward.
Use a fan if electronic component
overheating is a concern.
Do not block the top ventalation
holes.
!CAUTION
Do Not Block
Ventilation Holes
Knockout
Panels
Rackmount
Install Additional
Cage Nuts
(#10)
Remove
Screws to
Open

14
Operation (continued)
Cable Management
Cable Pass Throughs are located at the top and sides to route cables through the Cabinet.
Notches in the Shelves and Dividers allow cables to be routed at the back of the Cabinet.
Wire Clamps assist in routing cables throughout the Cabinet.
The Clamps can be repositioned or more can be added as needed.
Organizer Panel
Most of the accessories can be hooked onto the Organizer and can be located on the doors or
at the back of the Cabinet.
The accessories can be permanently mounted to the Organizer using Nylon Ties.
Cable Minder
Accessory
Mic Stand Set
Top
Accessory
Mic Stand Set
Bottom
Accessory
Can be permanently mounted to
the Organizer using Nylon Ties.
Can be permanently mounted to
the Organizer using Nylon Ties.
Wrap one cable per hook.

15
Template for Mounting Power Strip
The Power Strip Accessory may be placed at any location in the Cabinet.
Secure the Power Strip mounting holes using two #8 x 5/8 Sheet Metal
Screws and this template.
IMPORTANT: Be sure that this page is printed at 100% actual size
before using template.
11-1/2” (29.21 cm)
Be sure that this template is printed at 100% actual size.
11-1/2 (29.21 cm)

16
This page is intentionally blank.
