Wenger Diva User manual

Installation Instructions
Diva®Acoustical Tower
©Wenger Corporation 2017 Printed in USA 06/17 Part #185C755-02
Wenger Corporation, 555 Park Drive, P.O. Box 448, Owatonna, Minnesota 55060-0448
Questions? Call.....USA: (800) 4WENGER (493-6437) • Worldwide: [phone] • www.wengercorp.com
Contents
Visit the Diva Acoustical Shell web page at www.wengercorp.com
for detailed instructions and videos.
Note: Please read and understand these instructions before installing.
Note: Review all of the Installation Drawings and Reference Drawings.
Note: Three or more people are recommended to work together during assembly and installation.
Note: If you need additional information, contact Wenger Corporation using the information below.
Important User Information . . . . . . . . . . . . . . . . . . . . . . . . . . .2
General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Manufacturer .................................2
Intended Use .................................2
Installation ...................................2
Warranty .....................................2
Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Required Tools. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Rigging Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Fasteners. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Tower Assembly Description . . . . . . . . . . . . . . . . . . . . . . . . . .6
Tower Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Before Starting the Tower Installation ..............7
Assemble the Tower Frame ......................8
Assemble the Center Panels .....................9
Attach Trim to the Center Panels ..................11

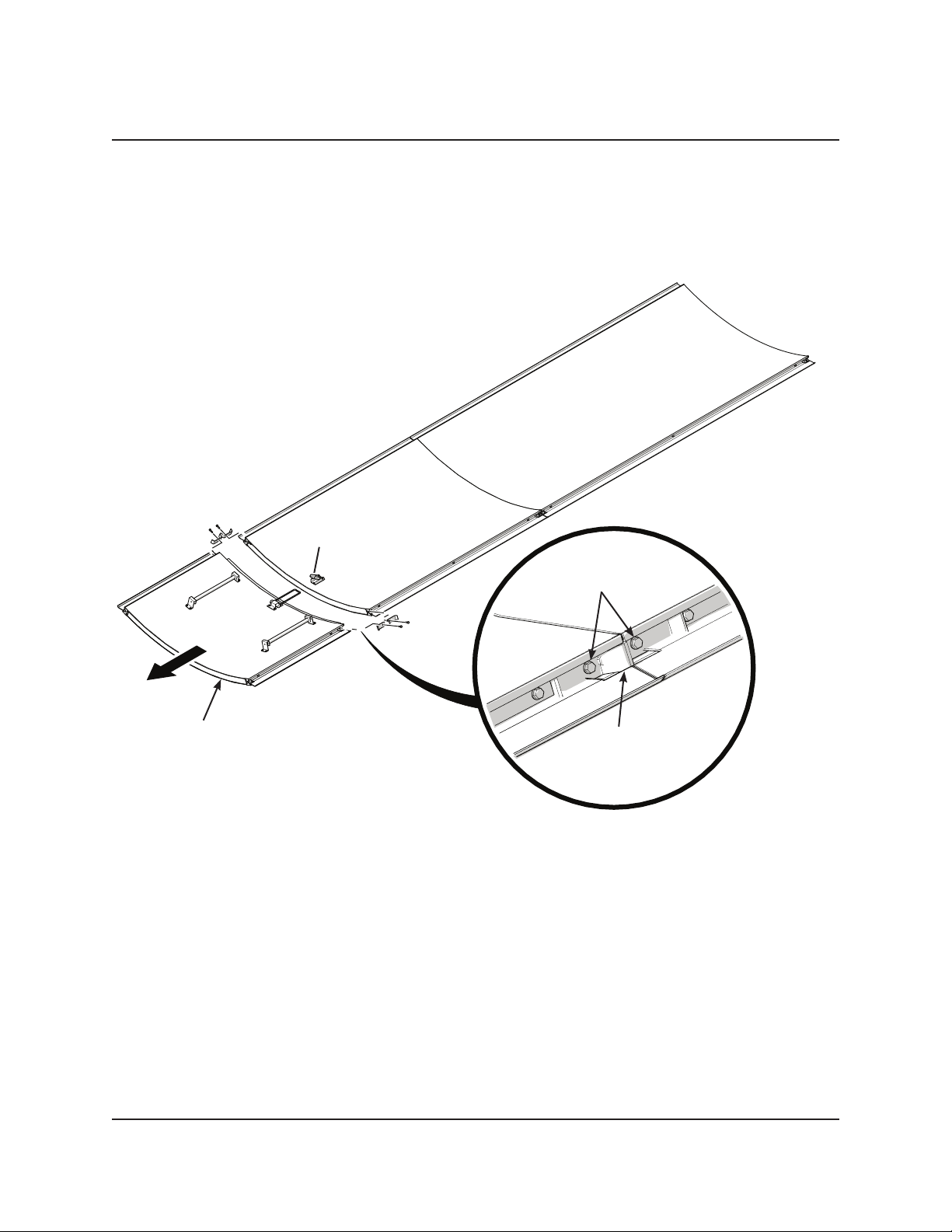

Seperate Lower Filler Panel ......................12

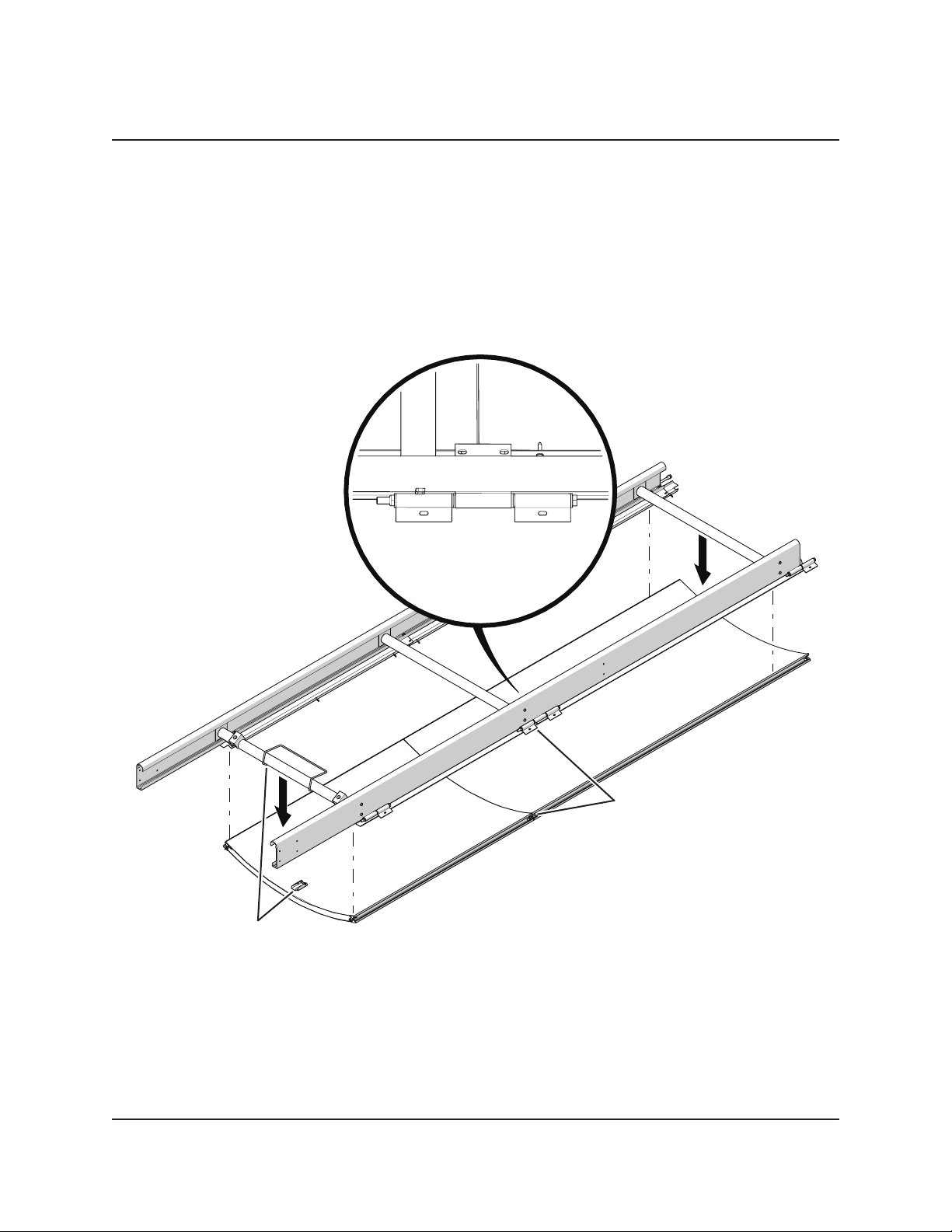

Attach Frame to the Center Panels ................13
Attach Base ..................................15
Attach Wing Panels ............................17
Attach Leveler Assembly ........................19
Attach Wing Stays .............................20
Attach Slide Lock ..............................23
Attach Door Pull Handle .........................24
Lifting Tower ..................................25
Install Counterweights ..........................27
Attach Base Handle ............................28
Store Lower Filler Panel .........................29
Attach Lower Filler Panel ........................30
Moving Towers ................................31
Decals, Numbers and Logos . . . . . . . . . . . . . . . . . . . . . . . . .32
Final Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32

2
Important User Information
General
Copyright © 2017 by Wenger Corporation
All rights reserved. No part of the contents of this manual may be reproduced, copied, or transmitted
in any form or by any means including graphic, electronic, or mechanical methods or photocopying,
recording, or information storage and retrieval systems without the written permission of the publisher,
unless it is for the purchaser’s personal use.
Printed and bound in the United States of America.
The information in this manual is subject to change without notice and does not represent a commitment
on the part of Wenger Corporation. Wenger Corporation does not assume any responsibility for any
errors that may appear in this manual.
In no event will Wenger Corporation be liable for technical or editorial omissions made herein, nor for
direct, indirect, special, incidental, or consequential damages resulting from the use or defect of this
manual.
The information in this document is not intended to cover all possible conditions and situations that might
occur. The end user must exercise caution and common sense when assembling or installing Wenger
Corporation products. If any questions or problems arise, call Wenger Corporation at 1-800-887-7145.
Manufacturer
The Diva®Acoustical Tower is manufactured by:
Wenger Corporation
555 Park Drive
Owatonna, MN 55060
(800) 4WENGER (493-6437) • [phone]
www.wengercorp.com
Intended Use
· The Diva Acoustical Tower is intended for indoor use only and is not intended for outdoor use.
· Never expose the Diva Acoustical Tower components to wind, humidity, or wet conditions.
·This product is intended to be assembled only as described in these instructions.
Installation
· The Diva Acoustical Shell installation and use must comply with local regulations and codes.
· All personnel (including all temporary workers) installing or maintaining the Diva Acoustical Shell
must read and understand these and other related installation instructions.
Warranty
This product is guaranteed free of defects in materials and workmanship for ve full years from date
of shipment. A full warranty statement is available upon request.

3
Required Tools
The following tools are required for assembly and installation.
Safety Precautions
Throughout this manual you may nd cautions and warnings which are dened as follows:
• WARNING means that failure to follow the instruction may result in serious injury or death.
• CAUTION means that failure to follow the instruction may result in serious injury or damage
to property.
Read all of these safety instructions before using the equipment.
Make sure that anyone
working with the Diva
Acoustical Tower has read
and understands these
instructions.
!WARNING
Always observe and comply
with the Warnings and
Cautions posted on the
system equipment.
!WARNING
Failure to comply with
Warnings and Cautions in
this document can result
in damage to property or
serious injury.
!WARNING
· Assorted Wrenches
· Cordless Drill and Cordless Impact Driver
· 3/8”, 7/16”, 1/2” and 9/16” Hex Nut Bit
· 3/8” Drift Pin
· Mallet
· 24” Carpenters’ Square
· 9/32” and 25/64” Drill Bit
· Chalk Line
· Box Level
· C-Clamp Set
· Phillips Screwdriver
· Hex Wrench Set
· 3/8”, 1/2” and 3/4” Drive Sockets
· 7/16” Deep Well Socket and Drive Adapter
with a Universal
· Rachet
· Angle Finder
· 100” Measuring Tapes (2)
· 25’ Tape Rule
· Claw Hammer
· Caulk Gun
· Rivet Gun
*Save the wood blocks from the tower frame and ceiling truss packaging.
They will be used later during the tower assembly.

4
Wing
Harnesses
Span Set Slings
Lifting Casters
Locking Clamps
1-ton Invertable Hoist
Rigging Equipment
The installers must supply the following rigging equipment for the Acoustical Tower Installation.
· Wing Harnesses
· Span Set Slings
· Lifting Casters
· 1-ton Invertable Hoist
· Locking Clamps

5
Button Head Screw,
3/8-16 x 1”
Carriage Bolt, 1/4-20 x 3-1/2”
Screw, Self-drill,
1/4-14 x 3/4”
Hex Head Screw, 3/8-16 x 3-1/2”
Locknut,
1/4-20
Locknut,
1/2-13
Locknut,
3/8-16
Hex nut,
5/16-18
Tapping Screw,
5/6 x 1”
Carriage Bolt, 1/2-13 x 4”
Screw, Pan Head,
10-24 x 5/8”
Screw, Self-drill,
1/4-20 x 1-1/4”
Hex Jam Nut,
1-8
Hex Head Screw,
3/8-16 x 2-1/4”
Tapping Screw,
1/4-20 x 1/2”
Screw, Sheet Metal,
10-18 x 3/4”
Hex Head Screw, 1/2-13 x 2”
Screw, Self-drill,
1/4-20 x 1”

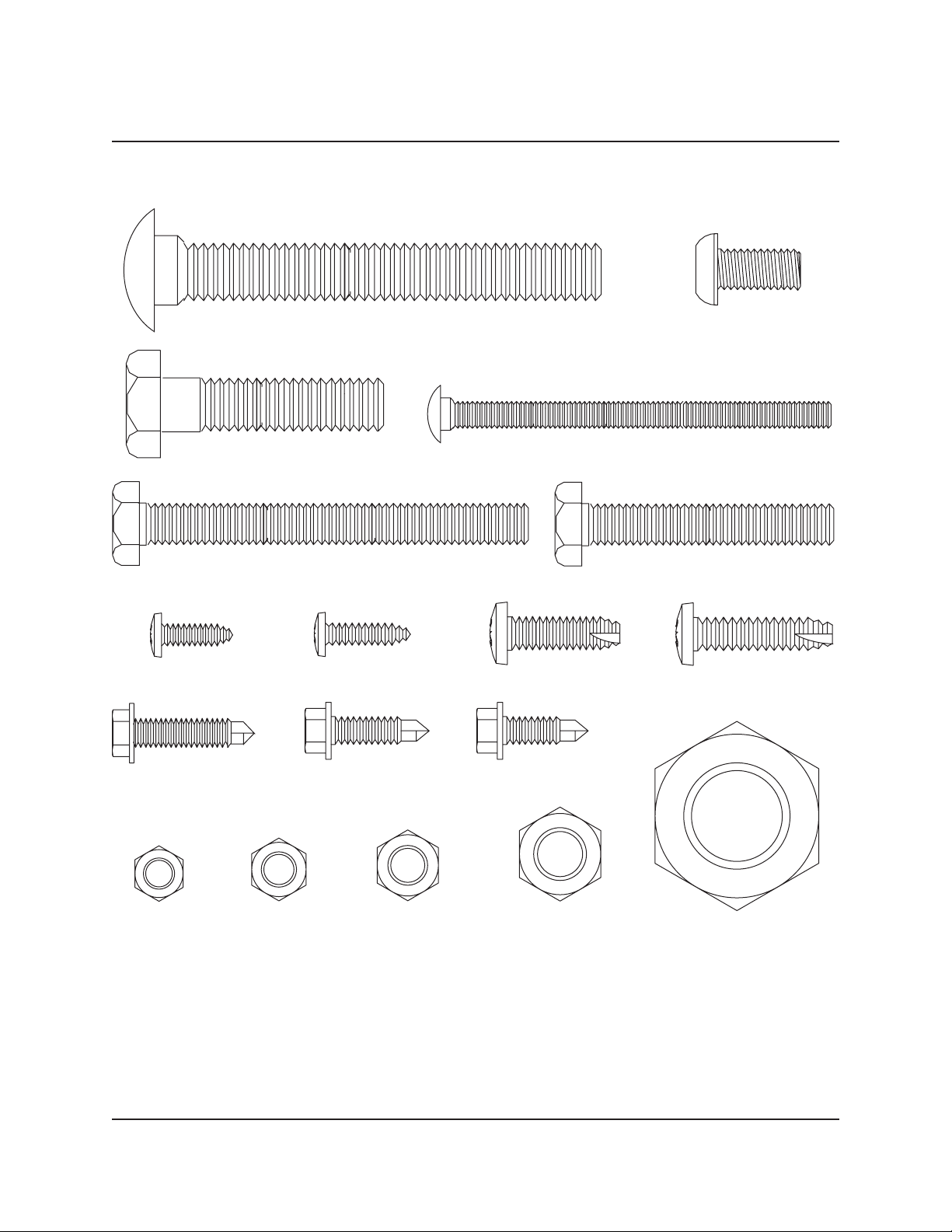

Fasteners
The fasteners shown below are contained in various Diva hardware kits.
Any fasteners remaining when an the installation is complete should be discarded.

6
The following illustration describes components used in the Diva Acoustical Tower Assembly.
Tower Assembly Description
Tower Assembly
Lower Filler Panel — Panel that can be
removed and stored to allow nesting to
other Tower Assemblies for storage.
Wing Panel — Panels that pivot for storage.
The lower Panel may be congured as a
door.
Vertical Frame — Frame consisting of two
vertical uprights and three or more cross
frames. The vertical uprights have xed and
rotating hinges that attach the Wing Panels
and Center Panels.
Center Panels — A set of two or more Panels
that are xed at the center of the assembly.
Wing Stay — Locks the Wing Panel in the
storage position or performance position.
Fixed Hinge — Bracket that is used to attach
the Center Panels to the Vertical Frame.
Rotating Hinge — A rotating hinge that
connects the Wing Panels to the Center
Panels.
Weldment Bar — A bracket that holds the
Lower Filler Panel when the Tower is stored.
Diagonal Brace — Structural member
adding stability to the Tower Assembly
and a means to adjust the Tower plumb.
Counterweighted Frame — Base that
supports the vertical structure and balances
the Tower Assembly.
Slide Lock — Locks the Wing Panel
to the Door Panel.

7
Before Starting the Tower Installation
1. Read and understand this entire Tower Installation section before starting the Tower Assembly
installation.
2. Make sure that all personnel installing the Diva Acoustical Shell Tower Assembly
(including any temporary workers) are trained and understand the installation procedure.
3. Review all installation drawings and reference drawings. Save these drawings for future reference.
4. Make sure that all items on the shipment packing list are present.
Note: The paragraphs on the following pages describe the assembly and installation of a
16’ tower assembly. All Diva Acoustical Shell assemblies are installed in the same way.
Tower Installation
Components can be heavy or
dicult to handle and may require
three or more people working
together to lift or assemble.
!CAUTION
To avoid damage to surfaces:
• Always wear gloves during the assembly and installation process.
• Lay any nished surfaces onto cardboard to protect from damage.
• During assembly, dropped hardware can roll under other components
and cause damage to nished surfaces.
!CAUTION

8
The following procedure is described using a 16’ tall Diva Tower.
Taller towers are assembled using the same steps but may need to be spliced together.
Refer to the installation drawings.

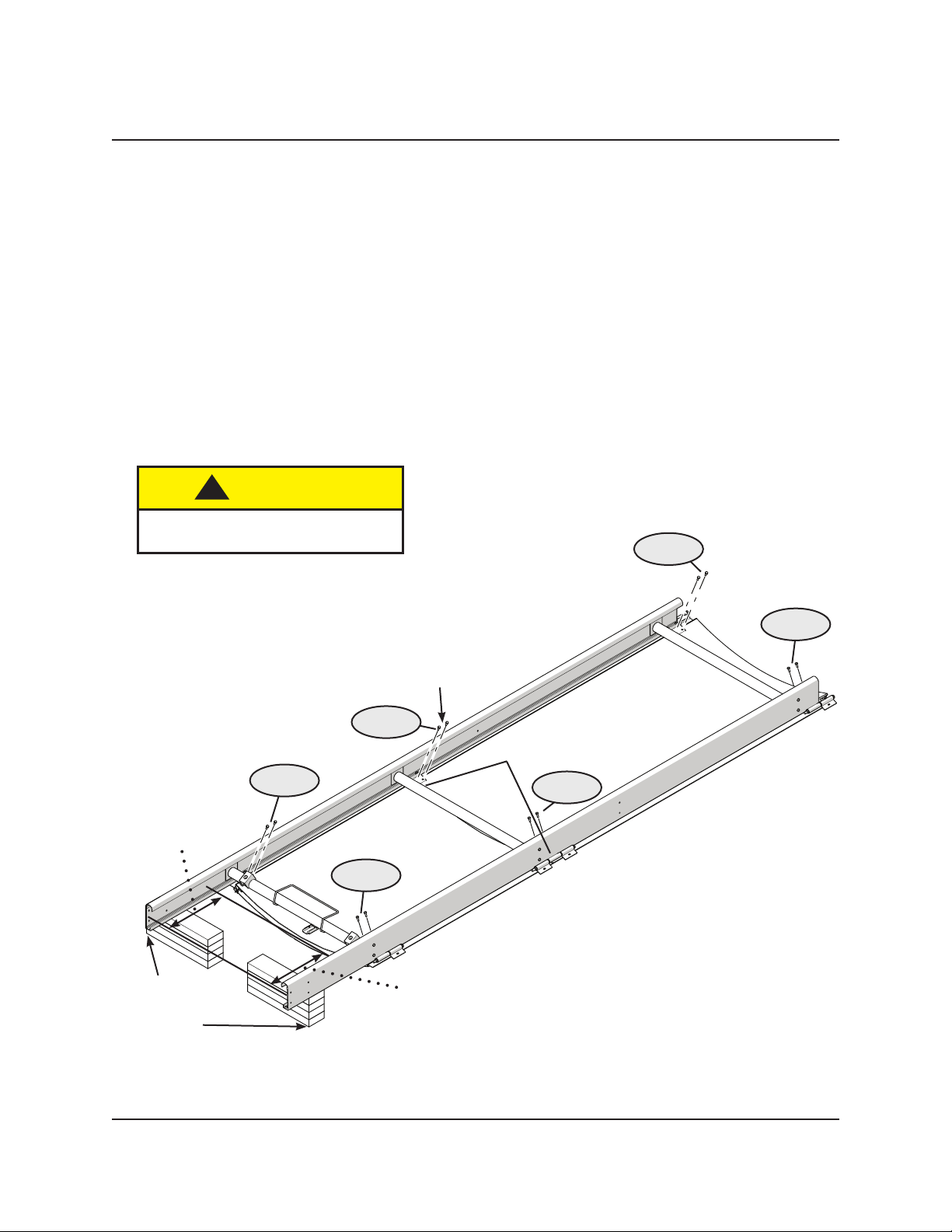

Assemble the Tower Frame
1. Assemble the Tower Frame as shown.
a. Layout both the Left and Right Hand Vertical Tower Frames with the at side
of each frame facing toward the outside.
b. Position the Lower Cross Brace with the Weldment Bar facing toward the top and
align with the third set of holes in the Frames.
c. Position the upper Cross Braces to align with the next set of holes in the Frames and then
approximately every 8’ thereafter.
d. Attach all of the Cross Braces to both Tower Frames using two
3/8-16 x 0.750 Hex Head Capscrews in each side.
The Capscrews attach directly to a welded nut on the inside of the Cross Braces.
2. Set the Tower Frame Assembly aside to attach later.
Tower Installation (continued)
Right Hand
Vertical
Tower Frame
Left Hand
Vertical
Tower Frame
Cross
Brace
Lower
Cross Brace
3/8-16 x 0.750
Hex Head
Cap Screw
Weldment Bar faces
toward the top
Bottom two
sets of holes for
Base
Set of holes
for Wing Stay

9
Tower Installation (continued)

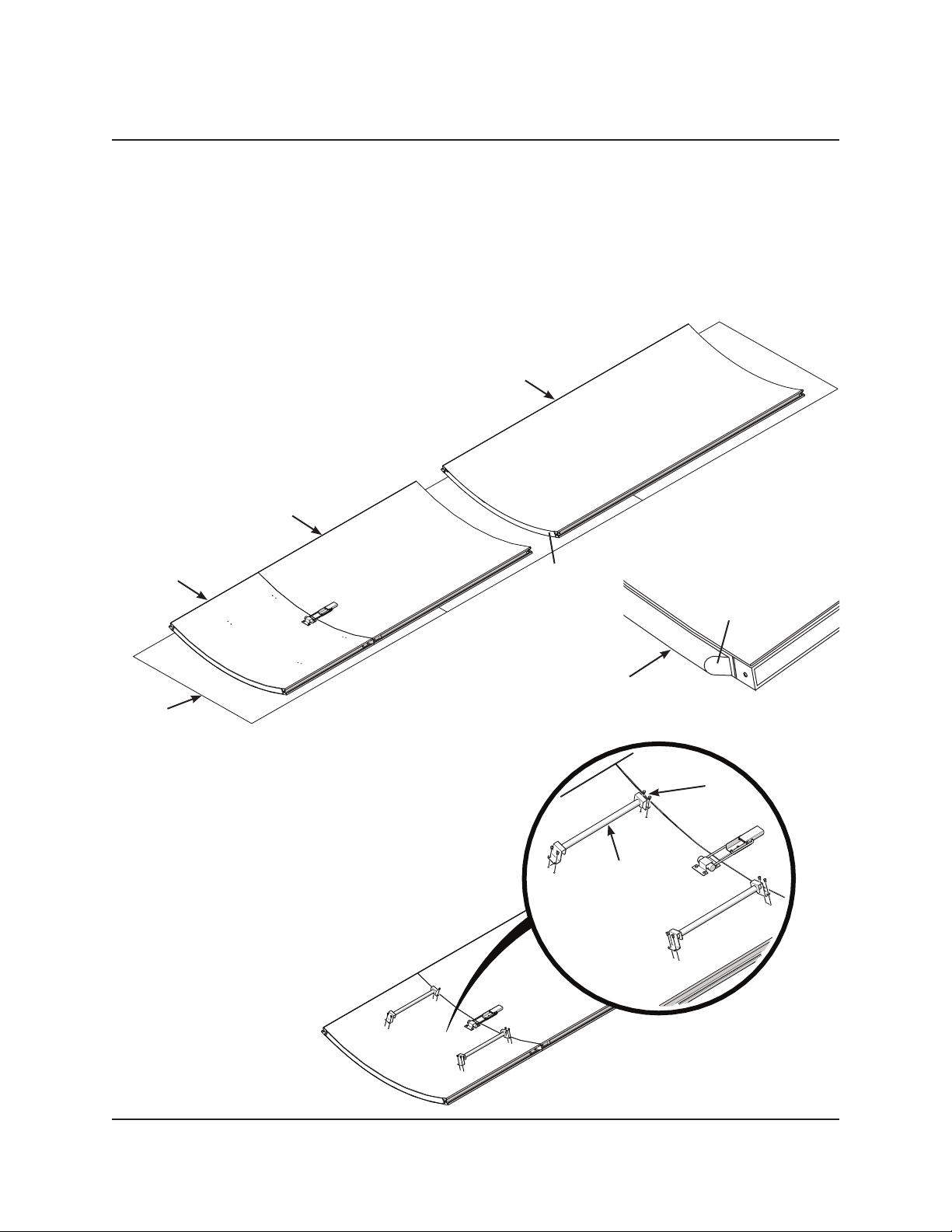

Assemble the Center Panels
Refer to the installation drawings for Center Panel placement.
1. Sweep the oor around the assembly area and place the 4’ x 8’ sheets of cardboard
that shipped with the tower onto the oor surface to protect the panel surfaces.
2. Place the Center Panels with the nished surface facing down onto the cardboard
and remove the tape holding any protective paper to the face of the panels.
3. Cut Foam Strips to span the entire width of each upper Center Panel and install it to be fully
recessed into the bottom edge of the panel.
Then trim each Foam Strip end to a 45° angle.
4. Attach two Handles to the Lower Filler Panel using
3/16” Blind Rivets in each of the pre-drilled holes.
Upper Center
Panel
Lower Center
Panel
4’ x 8’
Sheets of
Cardboard
Foam Strip
Location Cut Foam Strip
edges to 45°
angles
Foam Strip
Lower Filler
Panel
Handle
3/16”
Blind Rivets

10
Tower Installation (continued)
Assemble the Center Panels (continued)
5. Connect the Upper Center Panel and Lower Center Panel together.
a. Slide the panels together and align the edges.
b. Connect the two Panel Inner Clips together using a 1/4-20 x 3-1/2” Carriage Bolt
and 1/4-20 Lock Nut. Tighten until just snug.
c. Repeat to connect the panels on the other side.
Panel Inner
Clips
1/4-20 x 3-1/2”
Carriage Bolt
1/4-20
Lock Nut
Clips should
be touching

11
Trim
Strip
1/4-20 x 1”
Self-drilling Screw
Tower Installation (continued)
Attach Trim to the Center Panels
1. Align Trim Strips of matching lengths to both sides of all of the Center Panels.
The ends of the Trim Strips should match with the gaps between the Panels.
2. Attach the Trim Strips to the Panels using 1/4-20 x 1” Self-drilling Screws as shown.

12
Lower Filler
Panel Bracket
Screws
Flip Hasp up
Tower Installation (continued)
Seperate Lower Filler Panel
1. Seperate the Lower Filler Panel from the Lower Center Panel by removing the
bracket and two screws that secure each side.
2. Flip the Hasp up to release the Hook.
3. Slide the Lower Filler Panel away and set it aside.

13
Position the Weldment
Bar near the Door Latch
Be sure not to trap the
hinges inside of the trim
Tower Installation (continued)
Attach Frame to the Center Panels
1. Place the Tower Frame Assembly onto the Center Panels.
Position the Weldment Bar on the Frame Assembly to be near the Door Latch
on the Lower Panel.
Be sure not to trap the Hinges of the Tower Frame inside of the Trim at the edges of the
Center Panels.
Do not attach the Frame to the Center Panels yet.

14
5/16-18 x 1”
Hex Head
Tapping Screws
Seam between panels is
centered on middle hinge
27-5/8” from bottom of
Lower Center Panel
to bottom of
Frame Assembly
Tighten
2nd
Tighten
Last
Tighten
4th
Tighten
3rd
Tighten
1st
Tighten
Last
Position the
wood blocks
to not extend
beyond the
edge of the
frame
27-5/8”from bottom of
Lower Center Panel
to bottom of
Frame Assembly
Tower Installation (continued)
Attach Frame to the Center Panels (continued)
2. Place wood blocks (that were saved from the packaging) under both sides
of the Frame Asssembly to hold it steady and to keep pressure off of the Panels.
The wood blocks must be at even heights on both sides and positioned to not extend
beyond the edge of the Frame as shown.
3. Align the Frame Assembly and the Center Panels:
Proper alignment is critical!
a. Set the distance between the bottom of the Lower Center Panel
and the bottom of the Frame Assembly to be 27-5/8” on both sides.
This is a critical measurement!
b. The seam between the Center Panels should be at the center of the Middle Fixed Hinge.
4. Attach the Fixed Hinges to the Center Panels using 5/16-18 x 1” Hex Head Self-tapping Screws
in the sequence shown below.
Do not over tighten the Screws,
damage to the Panels could result.
!CAUTION

15
Tower Installation (continued)
Attach Base
1. Attach the Base Asssembly to the bottom of the Tower Frame using
four 3/8-20 x 1” Capscrews and 3/8-16 Lock Nuts on each side.
Only hand tighten the fasteners at this time.
2. Attach a 1-8 Hex Jam Nut to each End of both Base Rods.
Turn the Nut to be at least 3” in from one end and 5” in from the other end.
3/8-16 x 1”
Capscrews
3/8-16
Lock Nuts
1-8 Hex
Jam Nut
Base
Rod
5”
3”

16
Tower Installation (continued)
Attach Base (continued)
3. Attach the Brace Rods.
a. Slide a Brace Rod into the
Base and then into the
Lower Cross Brace
as shown.
b. Attach the Brace Rod using one 1-8 Hex Jam Nut
at each end.
Square the Base to the Tower while
tightening the Hex Jam Nuts.
c. Repeat for the other Brace Rod
on the other side.
Brace
Rod
First, slide Brace Rod
through the Base
Then through the
Lower Cross Brace
1-8 Hex
Jam Nut
1-8 Hex Jam Nut
on both sides
1-8 Hex
Jam Nuts
1-8 Hex Jam Nut
on both sides
Square the Base
to the Frame while
tightening the Nuts

17
Upper Wing
Panel
Lower Wing
Panel
Foam Strip
location
4’ x 8’
Sheets of
Cardboard
Tower Installation (continued)
Attach Wing Panels
Refer to the installation drawings for Wing Panel placement.
1. Sweep the oor around the assembly area and place 4’ x 8’ sheets of cardboard onto the oor
surface to protect the panel surface.
2. Place the Wing Panels with the nished surface facing down onto the cardboard and remove the
tape holding any protective paper to the face of the panels.
3. Wing Panels that are Access Doors already have Foam Strips installed in the panels.
Wing Panels that are not Access Doors will require Foam Strips to be cut and installed
between the panels.
If Foam Strips are required, install them and connect the panels together using
the same procedures as done with the Center Panel assembly.

18
Tower Installation (continued)
Attach Wing Panels (continued)
4. Align the seam of the adjacent Wing Panels with the seam of the Center Panels.
The panels should also be aligned along the top edge.
5. Attach the Wing Panels to the Tower Frame.
a. With the Wing Panels in position and square to the Tower Frame using a 9/32” drill bit,
drill a hole through the inside panel surface only into each panel at each marked location.
Do not drill through the panel surface on the other side.
c. Clean away any wood shavings from drilling.
d. Attach the Wing Panels to the Rotating Hinges using 5/16-18 x 1” Hex Head Tapping Screws.
6. Attach trim to the outer edges of the Wing Panels as indicated on the installation drawings.
7. Repeat these steps to attach the Wing Panels to the other side of the Tower Assembly.
Do not drill completely
through the Wing Panels.
Drill only through the
inside panel surface.
!CAUTION
5/16-18 x 1”
Hex Head
Tapping Screw
Align
seams
Rotating
Hinge
Trim
Strip

19
Leveler
Assembly
1-8 Hex
Jam Nut
2”
Bottom of Panel
to Bottom of Pad
Tower Installation (continued)

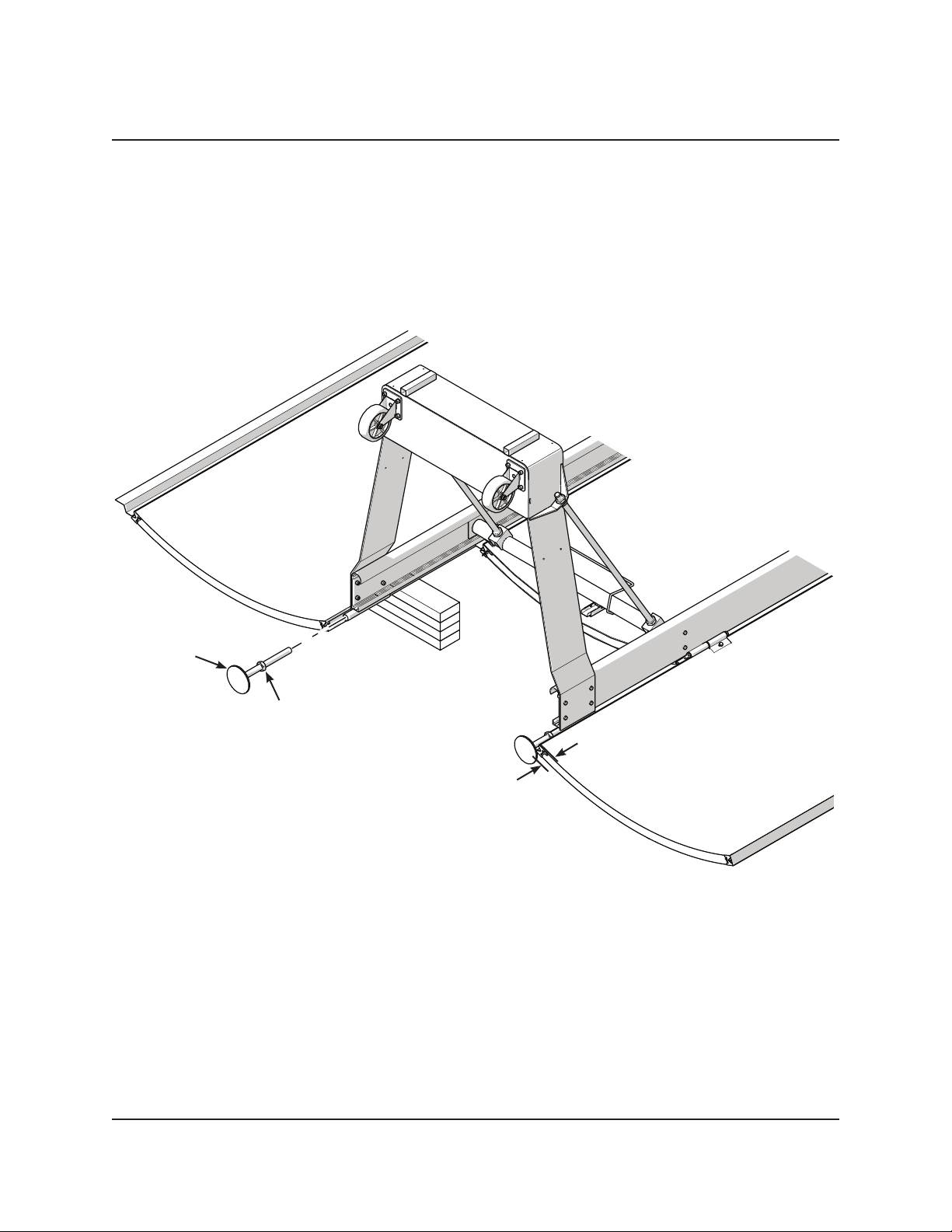

Attach Leveler Assembly
1. Attach the two Leveler Assemblies to the bottom of the Base.
a. Turn the 1-8 Hex Jam Nut on both Leveler Assemblies to be at the same height.
b. Turn each Leveler Assembly onto the Base until the Jam Nut contacts the bottom
of the Base.
c. Adjust the Leveler Assembly so that the distance between the bottom of the
Wing Panel and the bottom of the the Leveler Pad is 2”.

20
Tower Installation (continued)

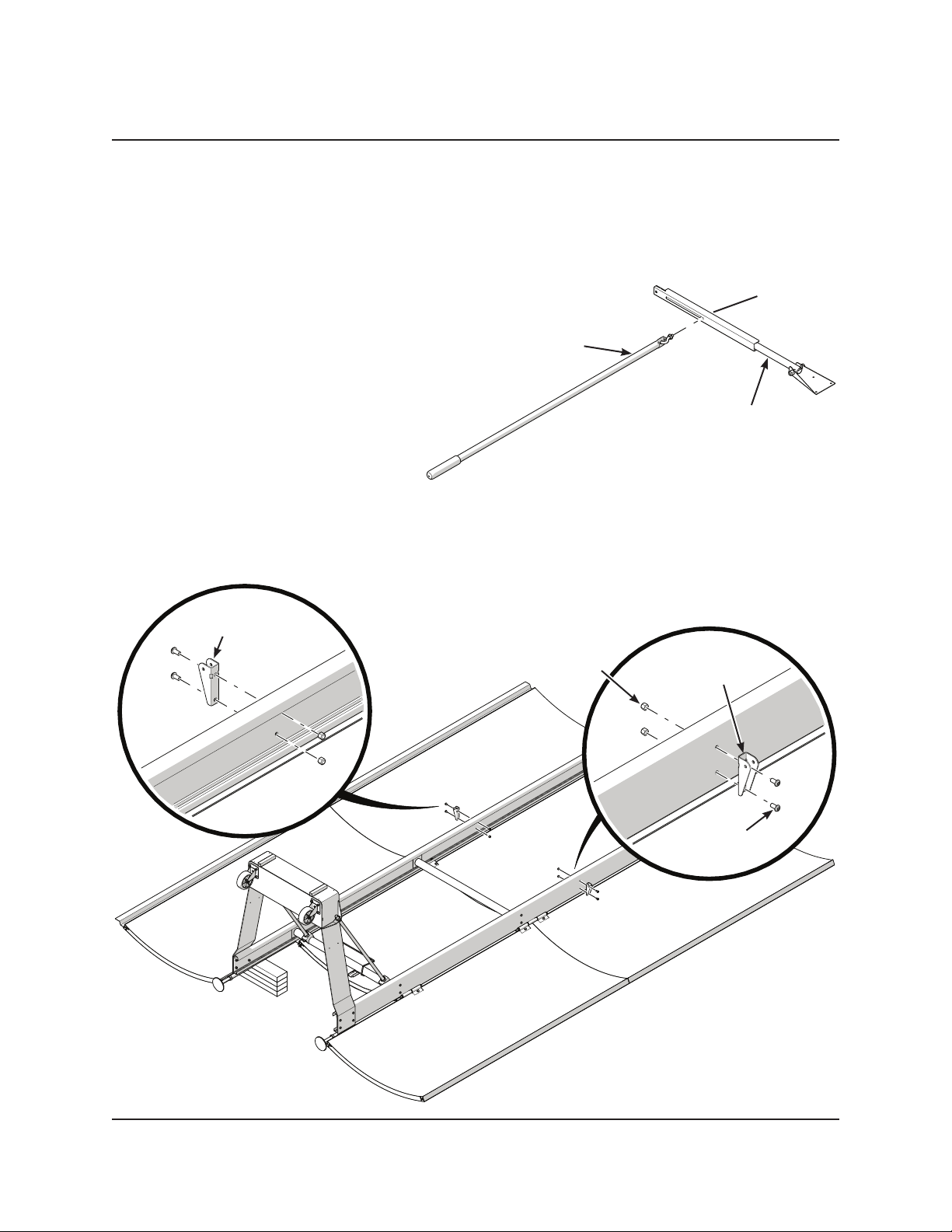

Attach Wing Stays
1. Assemble both the Right and Left Wing Stays.
a. Remove the Capscrew from the top slot in both Wing Stay Channels.
b. The Wing Stays must be fully extended as shown.
c. Screw a Wing Stay Tube into the bottom of the Wing Stay Channel to be hand tight.
2. Attach both the Right and Left Side Wing Stay Base Brackets to the Frame using
two 3/8-16 x 3/4” Button Head Screws and 3/8-16 Nylon Insert Lock Nuts.
Remove
Capscrew
Right Side
Wing Stay Base
Bracket
Wing Stay
Channel
(fully extended)
Wing Stay
Tube
Left Side
Wing Stay
Base Bracket
3/8-16 x 3/4”
Button Head
Screw
3/8-16 Nylon
Insert Lock
Nut
