Wenger Gearboss Rival User manual

Installation Instructions
Rival
™
Athletic Locker
Contents
Important User Information � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 2
General �����������������������������������������2
Manufacturer �������������������������������������2
Intended Use�������������������������������������2
Warranty ����������������������������������������2
Before Installation � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 2
Overview ����������������������������������������2
Before You Begin ���������������������������������2
Safety Precautions � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 3
Required Tools� � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 3
Fastener Parts List � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 4
Wall Fasteners - Not Supplied � � � � � � � � � � � � � � � � � � � � � � � � � � � 5
Layout Congurations � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 5
Locker Options � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 7
Wall Mount Conguration Locker Components� � � � � � � � � � � � � � � 8
Island Mount Conguration Locker Components � � � � � � � � � � � � � 9
Installation � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 10
Unpacking ���������������������������������������10
Leveling �����������������������������������������11
Connect All Locker Sides Together ��������������������14
Connect Locker Backs Together ����������������������16
Secure Lockers to Back Wall ������������������������17
Secure Island Mount Lockers ������������������������18
End Cover Panel Option � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 19
Assembly����������������������������������������19
Single End Cover Attachment ������������������������20
Island End Cover Attachment ������������������������21
Helmet and Shoulder Pad Topper Option � � � � � � � � � � � � � � � � � � � 22
Finalize Installation � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 23
Care and Maintenance � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 23
Replacement Parts � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 24
Note: Please read and understand these instructions before starting the installation�
Note: If you need additional information, contact Wenger Corporation using the information below�
©Wenger Corporation 2019 Printed in USA 2019-02 Part #243A242-01
Wenger Corporation, 555 Park Drive, P�O� Box 448, Owatonna, Minnesota 55060-0448
Questions? Call�����USA: (800) 4WENGER (493-6437) • Worldwide: [phone] • wengercorp�com
Visit gearboss.com/rival-lockers.php for detailed instructions and videos.

2
Important User Information
General
Copyright © 2019 by Wenger Corporation
All rights reserved� No part of the contents of this manual may be reproduced, copied, or transmitted in any form
or by any means including graphic, electronic, or mechanical methods or photocopying, recording, or information
storage and retrieval systems without the written permission of the publisher, unless it is for the purchaser’s
personal use�
Printed and bound in the United States of America�
The information in this manual is subject to change without notice and does not represent a commitment on the
part of Wenger Corporation� Wenger Corporation does not assume any responsibility for any errors that may
appear in this manual�
In no event will Wenger Corporation be liable for technical or editorial omissions made herein, nor for direct, indirect,
special, incidental, or consequential damages resulting from the use or defect of this manual�
The information in this document is not intended to cover all possible conditions and situations that might occur�
The end user must exercise caution and common sense when assembling or installing Wenger Corporation
products� If any questions or problems arise, call Wenger Corporation at 1-800-887-7145�
Manufacturer
The GearBoss Rival™Athletic Locker is manufactured by:
Wenger Corporation
555 Park Drive
Owatonna, MN 55060
(800) 4WENGER (493-6437) • [phone]
www�wengercorp�com
Intended Use
· This product is intended for indoor use in normal ambient temperature and humidity conditions
— it must not be exposed to outside weather conditions�
· This product is intended to be installed only as described in these instructions�
Warranty
This product is guaranteed free of defects in materials and workmanship for ve full years from date of
shipment� A full warranty statement is available upon request�
Before Installation
Overview
·This system should be installed only by skilled technical persons, and only after carefully studying these
instructions�
·It is suggested that the lockers are setup in a space that is large enough to safely handle the cartons,
parts and accessories�
· Inspect the condition of the wall and oor where the lockers will be located.
If the wall is not straight, establish a reference line so that the fronts of all lockers will line up�
Also, determine the highest point on the oor, which will establish the leveled height of each
row of lockers�
Before You Begin
·Read the complete installation procedure before beginning�
·Hardware packs may contain extra fasteners that will not be required on your lockers�
·At least two people are required to install the locker�

3
Safety Precautions
Make sure anyone installing
the lockers has read and
understands these instructions.
!CAUTION
Failure to comply with
Warnings and Cautions in this
document can result in damage
to property or serious injury.
Throughout this document you may nd cautions and warnings which are dened as follows:
• WARNING: Failure to follow the instruction could result in serious injury or damage to property�
• CAUTION: Failure to follow the instruction could result in minor injury or damage to property�
Read all of these safety instructions before installation�
!CAUTION
To avoid damage and injury,
more than one person is
needed for installation.
!CAUTION
Make sure the lockers are
securely attached to walls
or adjoining lockers after
installation is complete.
!CAUTION
Always wear safety glasses
and gloves when assembling
or installing the lockers.
!CAUTION
Assemble and install the
lockers only on at, solid
surfaces.
!CAUTION
Required Tools
· Power drill
· 1/4" Socket or insert bit
(to adjust levelers)
·5/32" Hex key or insert bit
(to remove bottom shelf)
·3/16" Hex key or insert bit
(to connect lockers and attach end cover panel)
· Phillips screwdriver or insert bit
(if attaching end cover panel)
· Box cutter
· Tape measure
· Carpenter’s level
· 5/32" Drill bit (if attaching end cover panel)
· Hammer or mallet (if attaching end cover panel)
· Hammer drill and bits (if anchoring to concrete)
· 9/16" Open end wrench
(if installing helmet and shoulder pad topper)

4

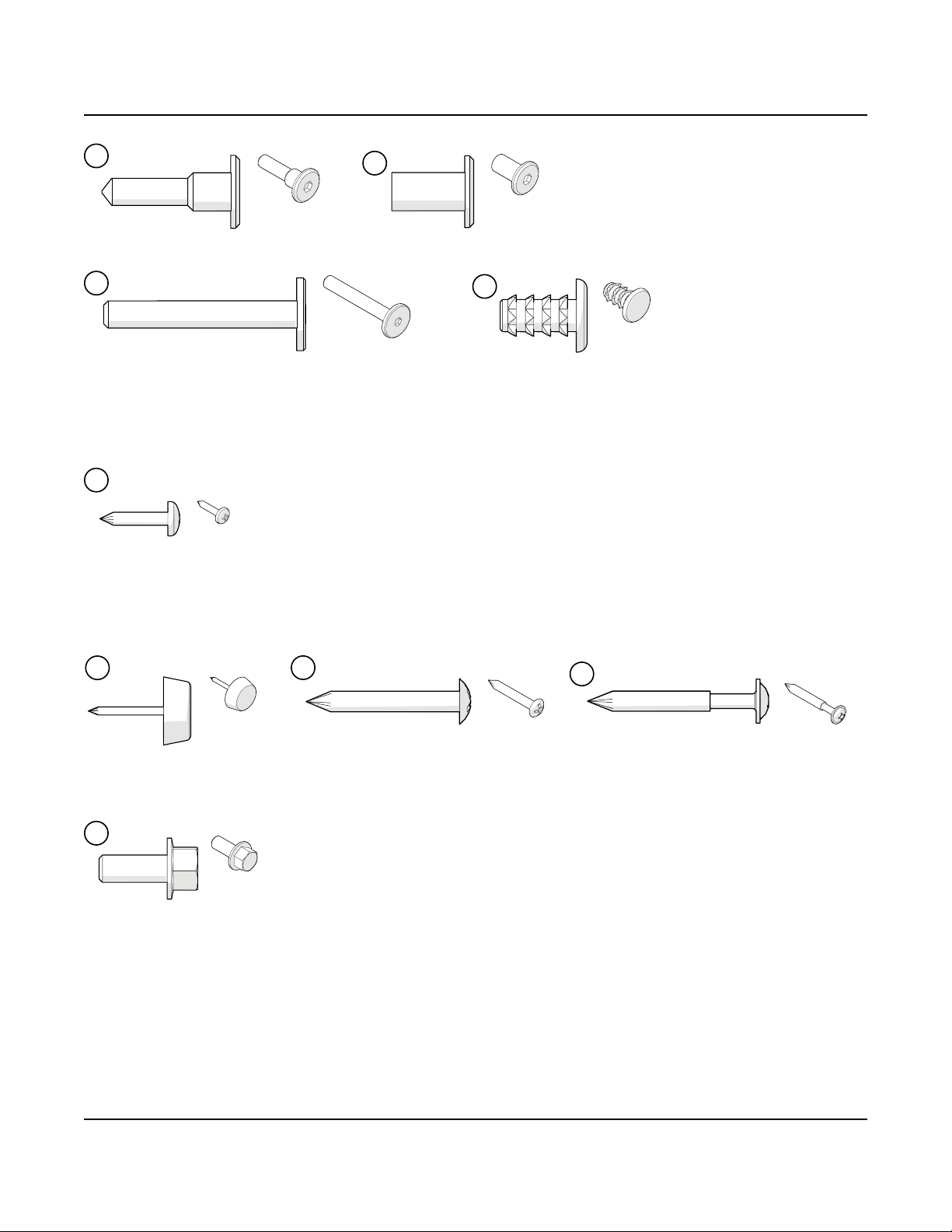

Fastener Parts List
1/4-20 x 1.181"
Connector Bolt
3
6
1/4-20
Cap Nut
4
Locker Connection Fasteners*
End Cover Panel Accessory Fasteners*
#8 x 1-1/4"
Truss Head Screw
8
#8 x 1-3/8"
Wood Screw
9
1/4-20 x 1.77"
Machine Screw
10
Helmet and Shoulder Pad Topper Accessory Fasteners*
14
Wall or Floor Bracket Fasteners*
*Depending on conguration, not all fasteners may be used.
#8 x 5/8"
Pan Head Screw
Tack Glide
20
3/8-16 x 3/4"
Flange Bolt
1/4-20
Insert Nut
11

5
Layout Congurations
Back Wall
Wall Mount
Configuration
Island Mount
Configuration
Lockers can be installed in wall mount or island mount congurations.
Be sure to follow the appropriate installation instructions on the following pages�
Fasteners - Not Supplied
Because materials and construction of oors and walls can vary, fasteners for attaching the locker
to the structure are not provided�
The installer must choose the appropriate fastener and follow the manufacturer’s instructions�
Determine the construction of the walls and/or oor.
If the lockers will be attached to the wall, no attachment to the oor is required.
If the lockers will be installed back-to-back in the middle of a room, attachment to the oor is required.
Locker Fastener Guidelines:
· If the oor is wood construction, attachment should be by sheet metal or lag screws (#10 minimum).
· If the oor is concrete, attachment should be by concrete screw (Tapcon), or sheet metal screws
(#10 minimum) into metal or plastic inserts�
· If the wall is wood stud-and-drywall construction, attachment should be by lag screws
(1/4" minimum) into every stud�
· If the wall is metal stud-and-drywall construction, attachment should be by toggle bolt
(1/4" minimum) into every stud�
· If the wall is concrete block construction, attachment should be by concrete screw (Tapcon) or
toggle bolt (1/4" minimum), spaced no more than 16" apart�
· If the wall is poured concrete construction, attachment should be by Concrete screw (Tapcon) or
wedge-type concrete anchors, spaced no more than 24" apart�
Note: Each wall and oor connection must be rated for a minimum of 500 lb of tension.
Other fasteners may be used if the connection strength requirement is met�
Inferior or improperly installed fasteners
could cause the lockers to tip over.
!WARNING

6

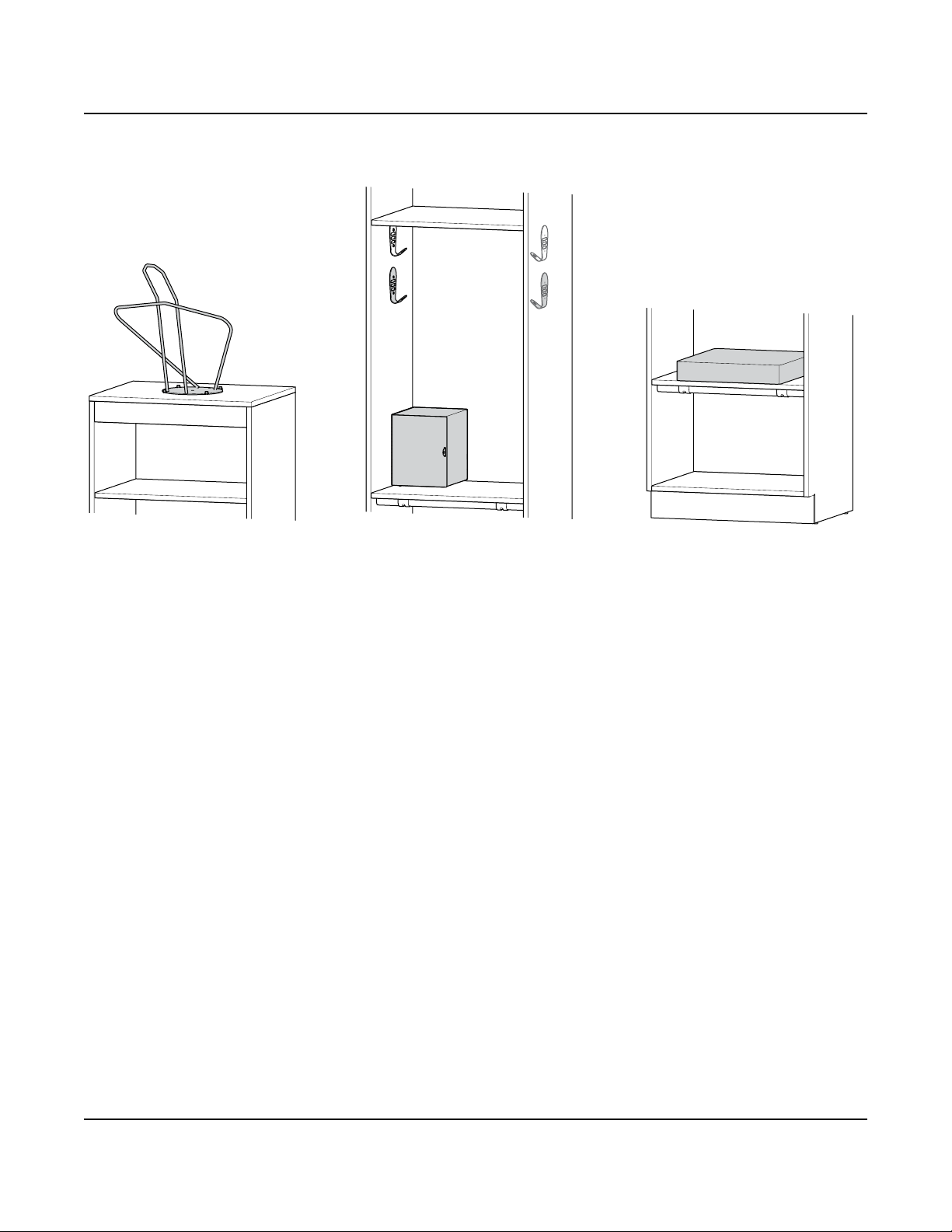

Locker Options
Customer Installed Options
The following options are installed during the locker installation�
Helmet and Shoulder Pad Topper
(see page 22)
ADA Compliant Locker
Includes two additional Garment Hooks
(see separate installation instructions)
Padded Seat Cushion
Available for
Fixed or Hinged Seats
(see separate installation instructions)

7
Fixed Seat with
Open Foot Locker
Shelf is available for
Open Foot Locker
Hinged Seat with
Enclosed Foot Locker
Cubby Compartment with
Programmable Digital Lock
Cubby Compartment with
Hasp Lock
Cubby Compartment with
No Door
Flip-down
Garment Bar
Locker Options (continued)
Pre-installed Options
The following options may be installed on the locker prior to shipping with no assembly required�
Nameplate
Housing

8
Item Description Item Description Item Description
1Locker Unit 5Single End Cover Panel (Optional) 9#8 x 1-3/8" Wood Screw
2 Leveler 6 Tack Glide
31/4-20 x 1�181" Connector Bolt 7Toe Kick Cover Plate
41/4-20 Cap Nut 8#8-15 x 1-1/4" Truss Head Screw

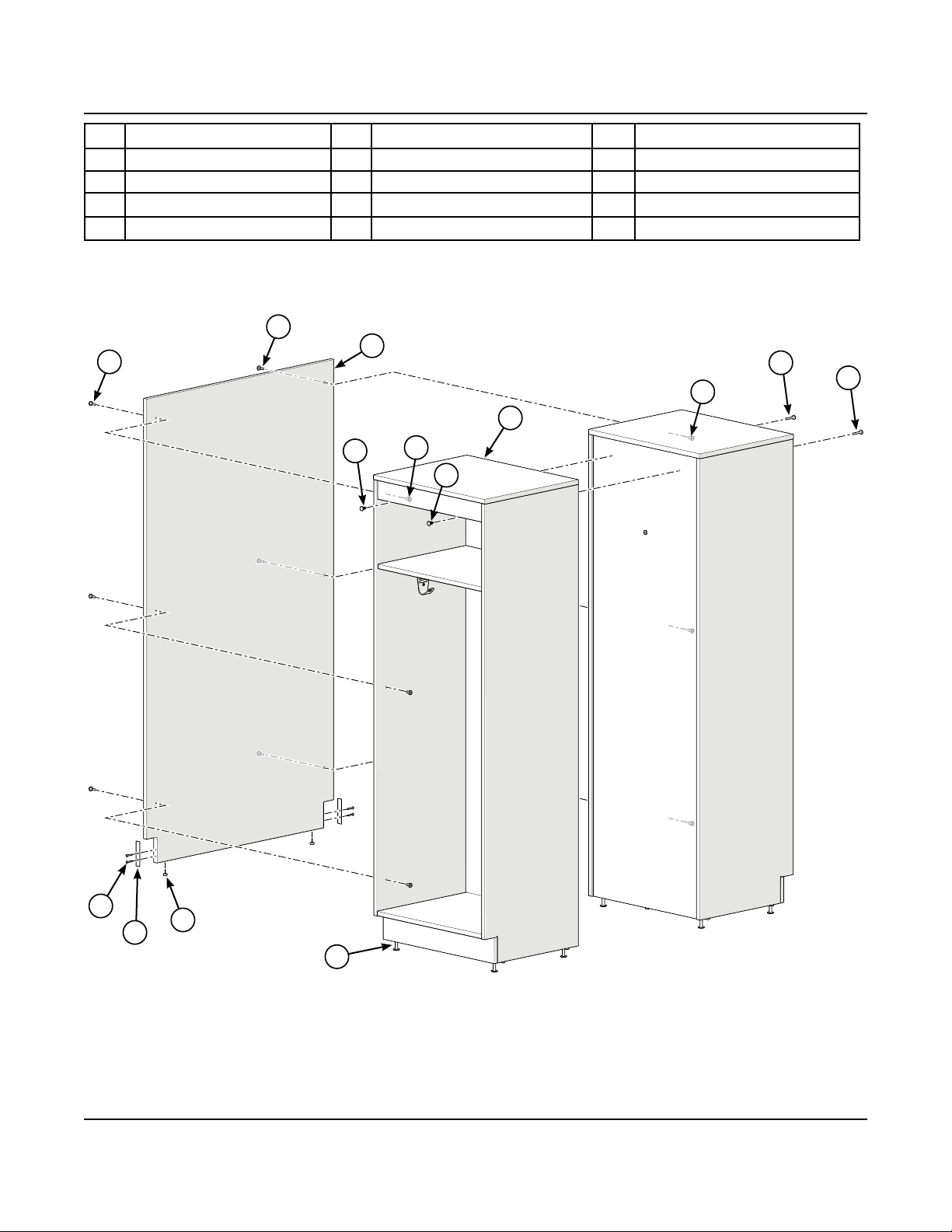

Wall Mount Conguration Locker Components
1
3
2
7
5
8
6
4
9
3
4

9
Item Description Item Description Item Description
1Locker Unit 6Tack Glide 11 1/4-20 Insert Nut
2 Leveler 7 Toe Kick Cover Plate 12 Island End Cover Panel (Optional)
31/4-20 x 1�181" Connector Bolt 8#8-15 x 1-1/4" Truss Head Screw
41/4-20 Cap Nut 10 1/4-20 x 1�77" Machine Screw
Island Mount Conguration Locker Components
1
3
2
8
6
10
7
4
11
12
3
4
10
11

10
Installation
Unpacking
1� Unpack each individual locker unit�
Use more than one person and take care to avoid damage�
2� Set each locker unit upright�
More than one person is needed
to unpack the lockers.
!CAUTION

11

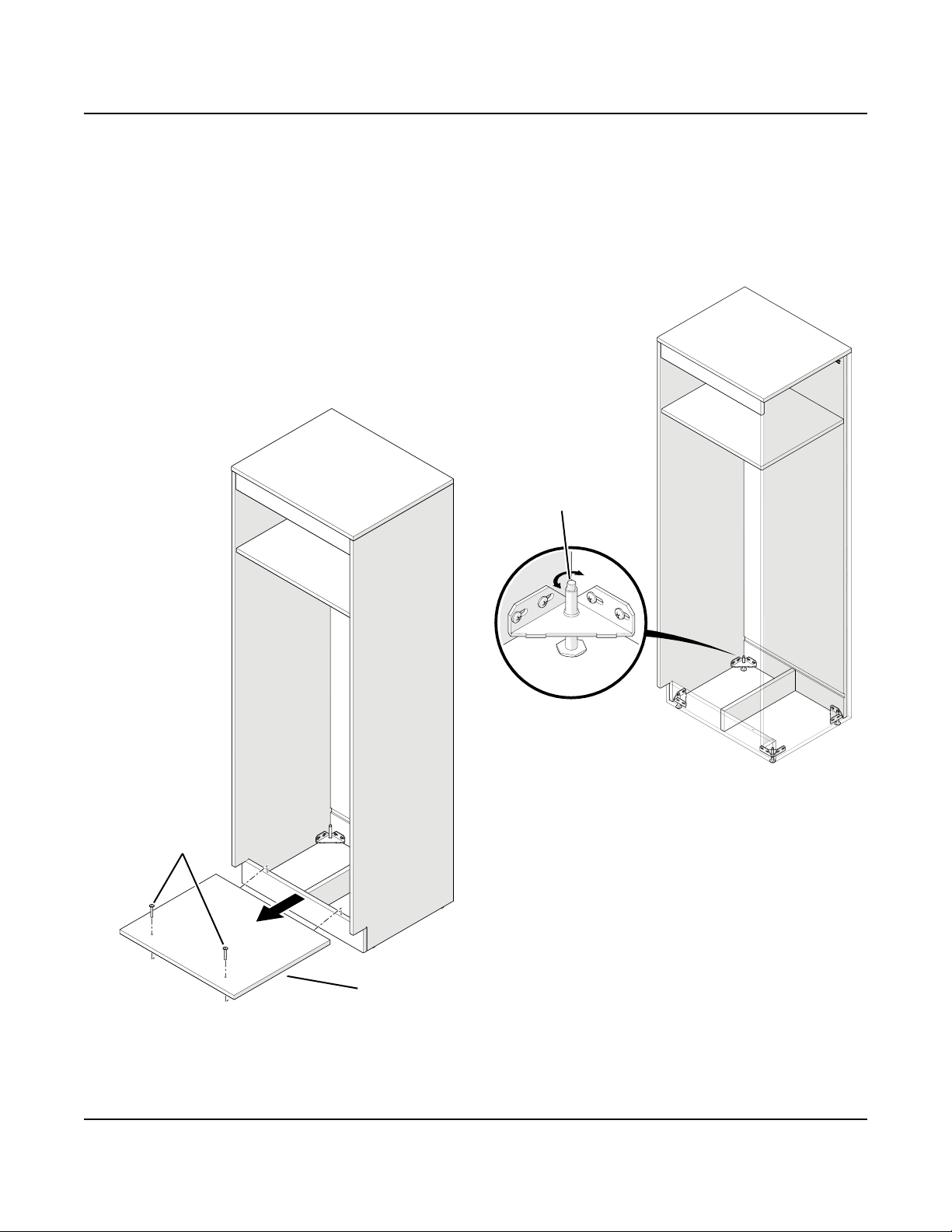

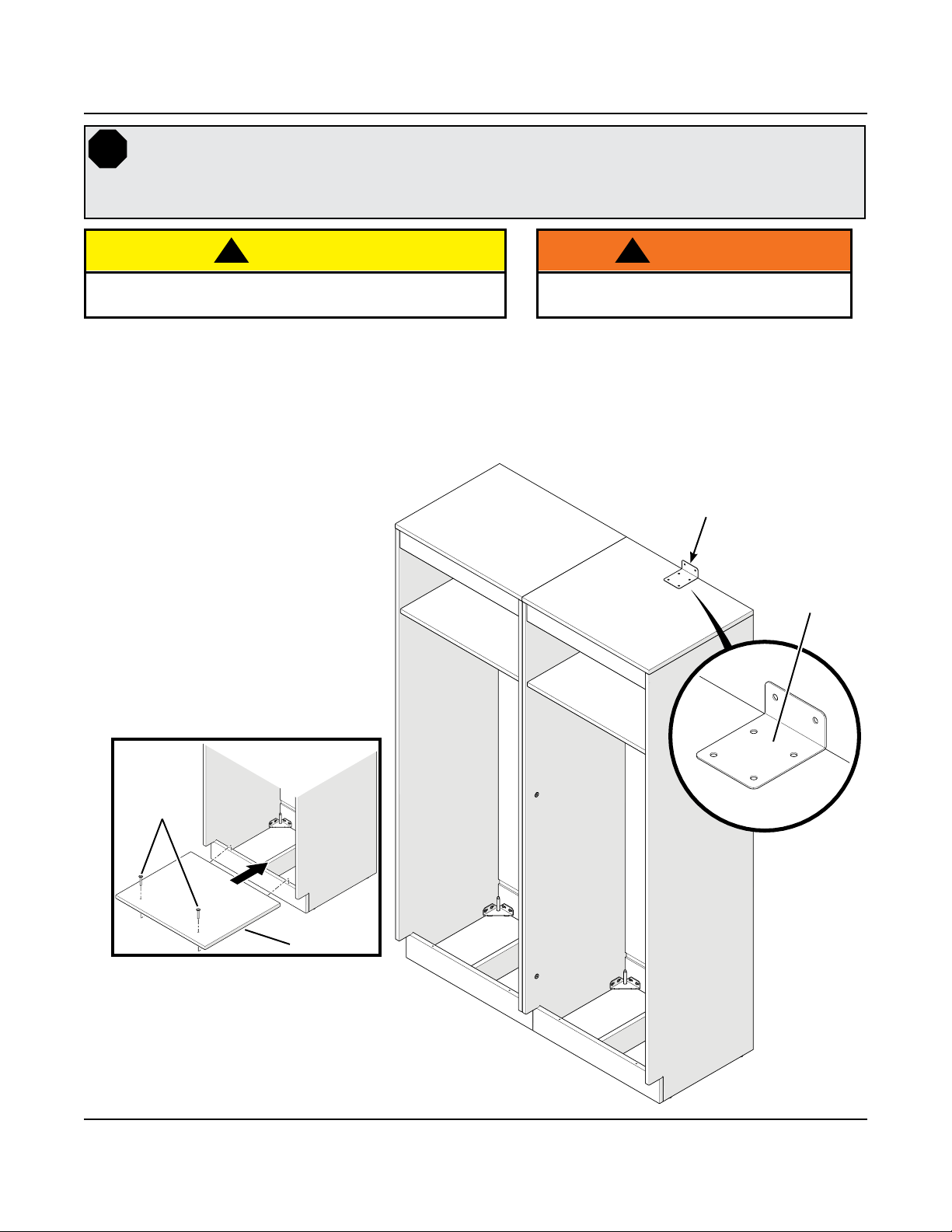

1� The bottom shelf must be removed to access the
levelers�
a� Remove the two screws that secure the shelf
to the locker�
b� Pull the shelf out�
c� Set the shelf and screws aside to reattach
later�

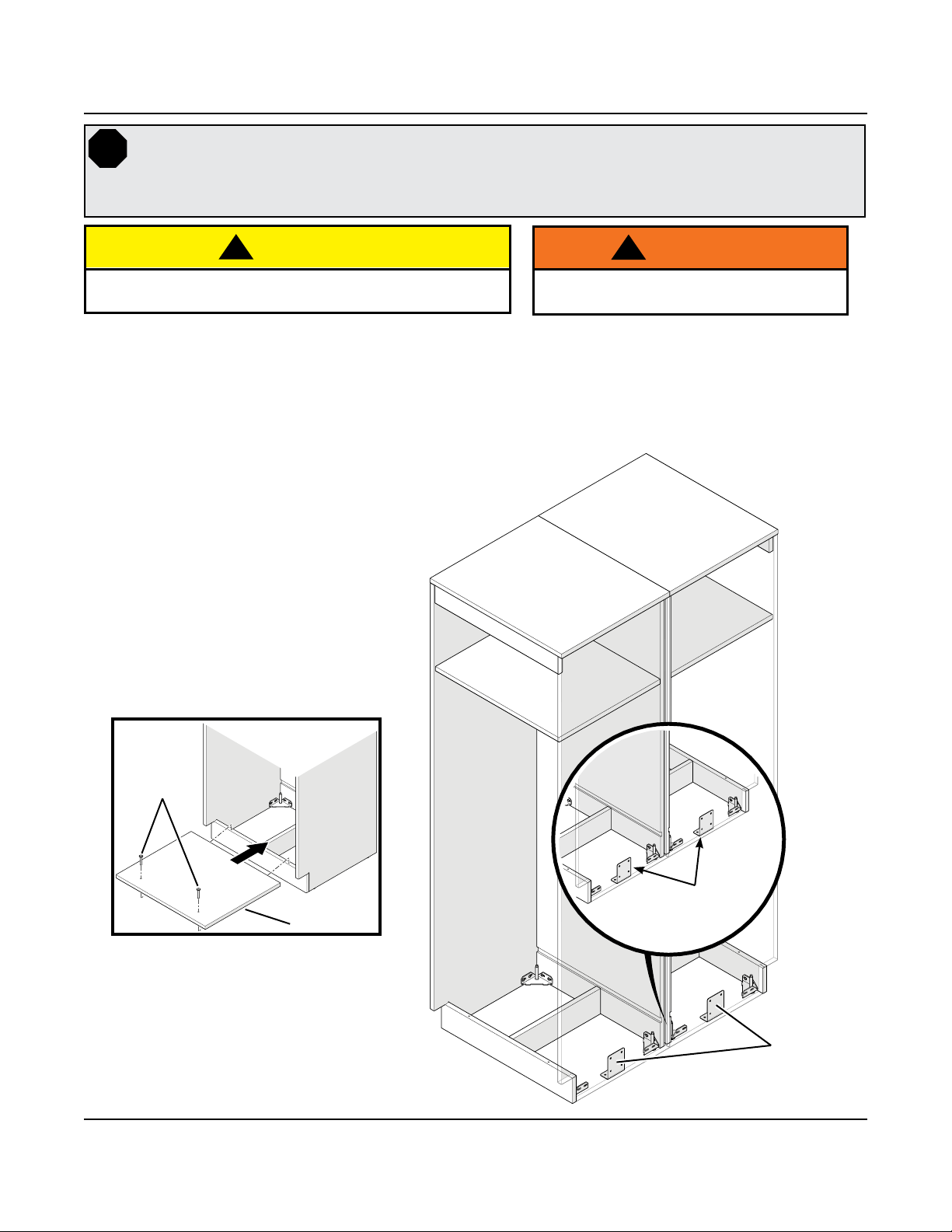

Do not reattach the bottom shelf until the
lockers are attached to the structure.
2� Move the lockers to be within a few inches of their
nal location according to the layout drawings.
3� Turn the levelers to adjust the height at each
corner�
Continued on the next page.
Installation
Leveling
The lockers must be leveled to each other before attaching them together�
Pull
shelf out
Remove
screws
Turn to
adjust height

12
Installation (continued)

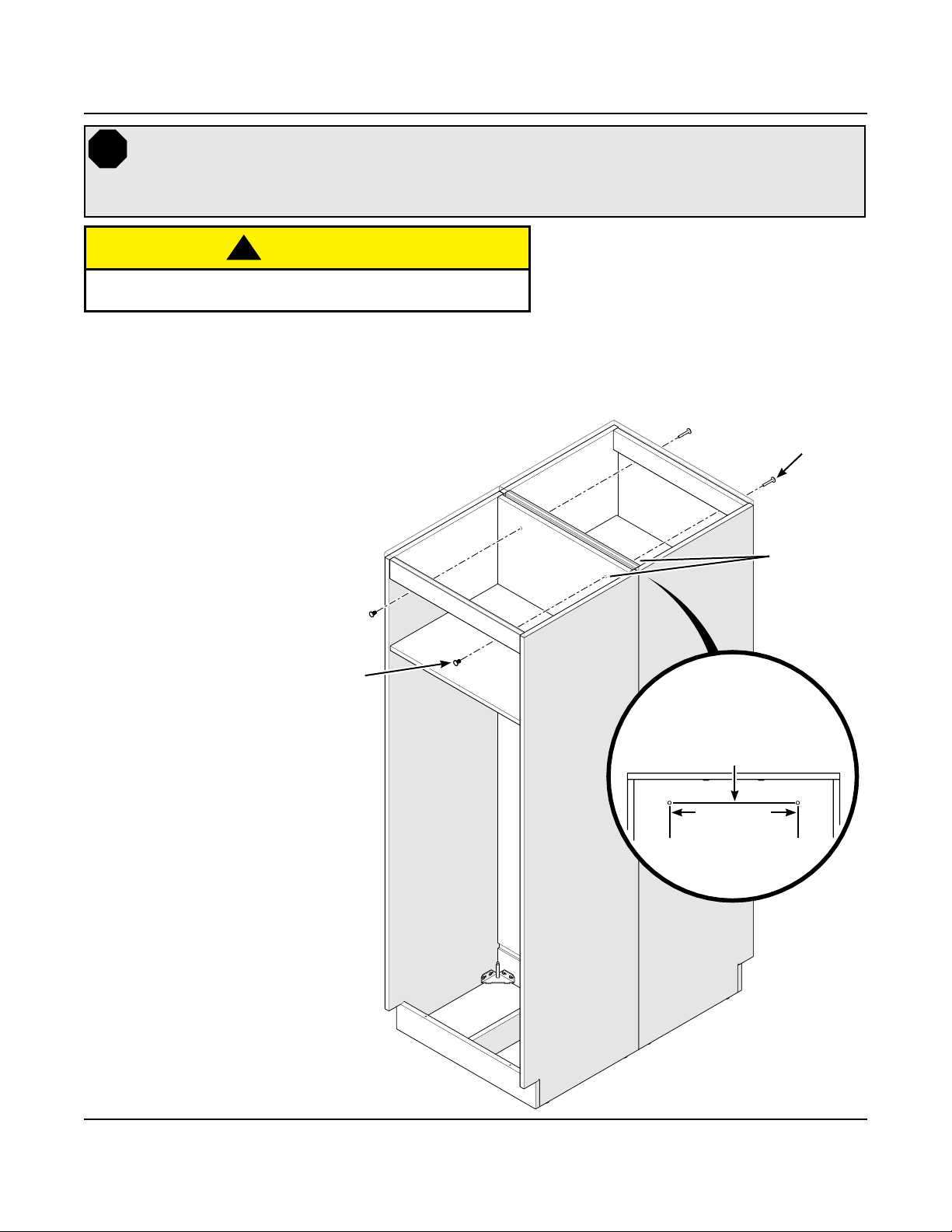

4. a. Check the level of the entire oor where
the lockers will be installed�
b. Determine the highest point of the oor in
that area�
c� The locker installed at this highest location
will be the reference for all other lockers
to be leveled against�

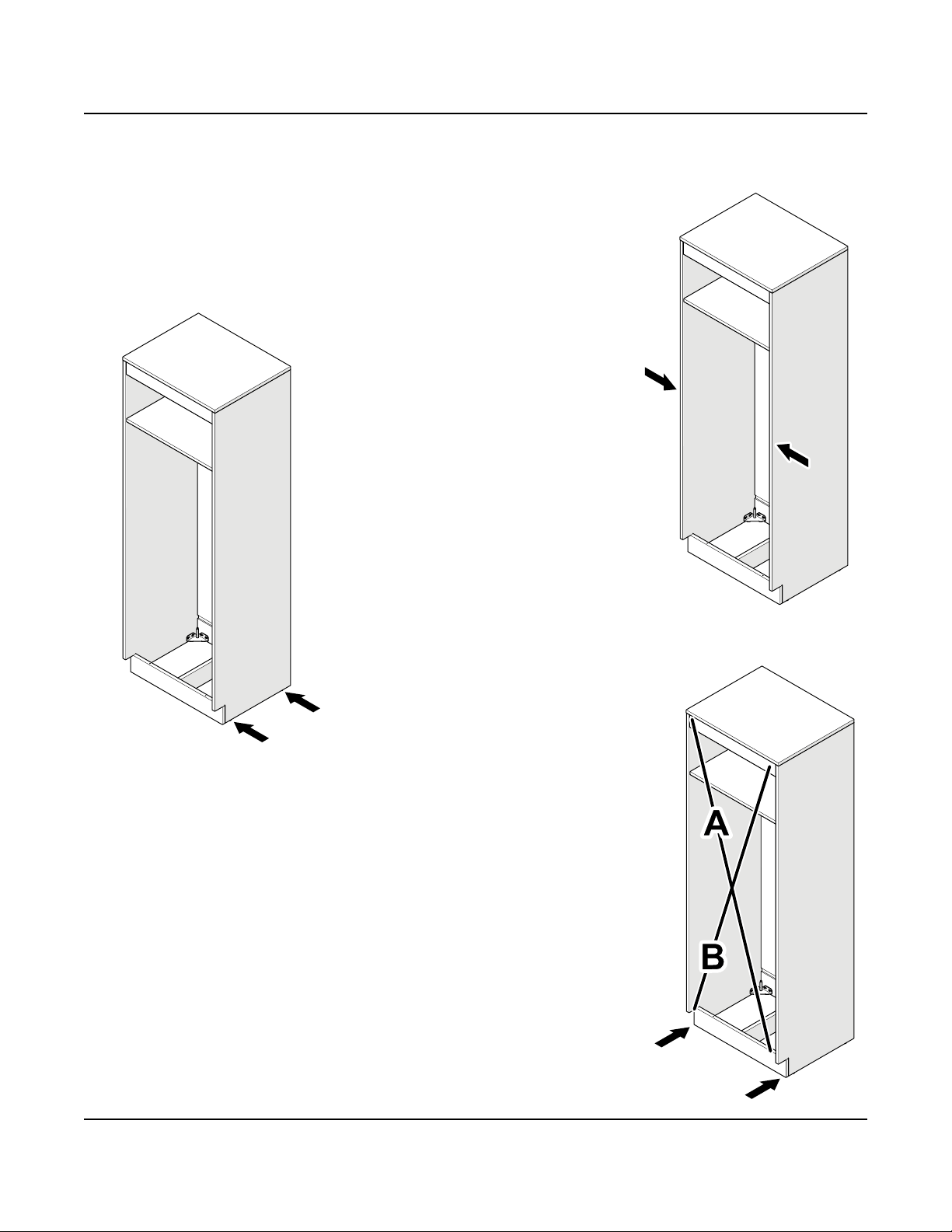

5� Adjust the levelers on one side
until the front edges of the
locker side panels
are plumb
(side-to-side)�
Leveling (continued)
6� Measure A and B and adjust
the front levelers until
A=B (+1/32 inch)�

13
Installation (continued)
7� Adjust both front levelers equally until the front
edges of the locker are plumb (front-to-back)�
8� Recheck that A=B�
Readjust if necessary
(repeat steps 4-6)�
9� Adjust the levelers on the adjacent locker so it will
line up with the top of the highest locker�
Conrm that adjacent lockers are level using a
wall bracket or carpenter’s level across the tops�
10� Repeat steps 5-9 for the remaining lockers�
Leveling (continued)
Adjacent lockers must be
level along tops
Wall bracket or
carpenter’s level

14
Installation (continued)
Connect All Locker Sides Together
There are three holes at the front of the side panels for securing adjacent lockers together�
See Detail A1. All adjacent locker sides must be connected together.
See Detail A2. Island mount lockers must also be connected together at the back in addition to
the sides.
This procedure is for securing the sides of adjacent lockers.
Island mount lockers will require additional steps on the next pages.
For standard installations only, see separate seismic instructions if required.
STOP
Detail A1 - Top View of Wall Mounted Lockers
Wall
Side Locker
Connections
All adjacent locker sides must
be connected together.
!CAUTION
Detail A2 - Top View of Island Mounted Lockers
Back Locker
Connections
Side Locker
Connections
Side Locker
Connections
Back Locker
Connections
Back Locker
Connections

15
Installation (continued)
Connect All Locker Sides Together (continued)
1� Check that each locker is level vertically and adjacent lockers are level along the tops�
Make any necessary leveling adjustments before connecting the locker sides together�
2� Be sure that the front pilot holes in the end panels are aligned and connect the locker units
together using 1/4-20 x 1�181" connector bolts (3) and 1/4-20 cap nuts (4)�
1/4-20
Cap Nut
(4)
1/4-20 x 1.181"
Connector Bolt
(3)
3� If installing island mounted lockers continue to the next page�
If installing wall mounted lockers skip to page 17�
Each locker must be
level vertically and
adjacent lockers must be
level along the tops

16
Installation (continued)
Connect Locker Backs Together (island mount lockers only)
NOTE: If lockers are installed in a back-to-back conguration, two holes must be drilled through
both lockers to secure the adjacent backs together�
NOTE: Make sure the locker sides are secured together before attaching them back-to-back�
1� From inside one locker, drill two 3/8" holes 3" down
from the top of the inside through the backs of both lockers�
These holes should be a minimum of 4" in from
the sides of the locker�
2� Use a plastic mallet to pound
1/4-20 insert nuts (11) from the inside
of one of the lockers and install
1/4-20 x 1�77" machine screws (10)
from the other side and tighten�
3� Skip to page 18�
This procedure is for securing the backs of adjacent island mount lockers.
The sides of the lockers must already be connected as described on the previous page.
This instruction is for standard installation only.
For seismic installation, see the instructions included with the Seismic Island Kit 243A028.
STOP
In an island conguration, the adjacent locker backs must
also be connected in addition to the sides of the lockers.
!CAUTION
3" Down from
inside top
Minimum of
4" from
inside edges
1/4-20
Insert Nut
(11)
1/4-20 x 1.77"
Machine Screw
(10)
Drill through
both lockers

17
Installation (continued)
This procedure is for securing wall mount lockers to the structure.
See the next page for securing island mount lockers to the structure.
This instruction is for standard installation only.
For seismic installation, see the instructions included with the Seismic Wall Kit 243A024.
STOP
Secure Lockers to Back Wall (wall mount lockers only)
Because materials and construction of walls can vary, fasteners for attaching the lockers to the structure
are not provided� The installer must choose the appropriate fastener and follow the manufacturer’s instructions�
See “Fasteners - Not Supplied" on page 5 for more information�
NOTE: At least every 2nd locker must be secured to the back wall�
NOTE: Make sure all adjacent locker sides are
secured together before attaching them
to the back wall�
1� Place the wall bracket (13) onto the top
of the locker and position it to be ush
with the back wall�
The brackets have extra holes for the
best t on the top of the locker.
2� Secure the bracket to the locker
using a minimum of two
#8 x 5/8" pan head screws (14)�
3� Secure the wall bracket to the wall
using the appropriate fasteners�
4� Reattach the bottom shelves
in the lockers�
5� Install any optional equipment
as shown on the following pages
before continuing to
“Finalize Installation" on page 23�
In addition to the sides of the lockers being secured,
the locker backs must also be attached to a back wall.
!CAUTION
Inferior or improperly installed fasteners
could cause the lockers to tip over.
!WARNING
Attach to the
locker using
a minimum of two
#8 x 5/8"
Pan Head Screws
(14)
Wall Bracket
(13)
Slide
shelf in
Reattach
screws

18
Installation (continued)
This procedure is for securing island mount lockers to the structure.
See the previous page for securing wall mount lockers.
This instruction is for standard installation only.
For seismic installation, see the instructions included with the Seismic Island Kit 243A028.
STOP
Secure Island Mount Lockers
Because materials and construction of walls can vary, fasteners for attaching the lockers to the structure
are not provided� The installer must choose the appropriate fastener and follow the manufacturer’s instructions�
See “Fasteners - Not Supplied" on page 5 for more information�
NOTE: The end of every locker bank must be secured to the oor.
NOTE: Make sure all the lockers are secured together before
attaching them to the oor.
1� At the ends of the locker bank, attach one
wall bracket (13) to the bottom inside of
each locker using
#8 x 5/8" pan head screws (14)�
The brackets have extra holes for the
best t.
2� Secure the bracket to the locker
using #8 x 5/8" pan head screws (14)�
3. Secure the bracket to the oor using
the appropriate fasteners�
4� Reattach the bottom shelves in the
lockers�
5� Install any optional equipment
as shown on the following pages
before continuing to
“Finalize Installation" on page 23�
In addition to the sides and backs of the lockers being
secured, the lockers must also be attached to the oor.
!CAUTION
Attach to the
locker using
#8 x 5/8"
Pan Head Screws
(14)
Wall
Bracket
(14)
Slide
shelf in
Reattach
screws
Inferior or improperly installed fasteners
could cause the lockers to tip over.
!WARNING

19
End Cover Panel Option
Assembly
1� Carefully remove the end cover panel from the package�
2� Pound two plastic tack glides (6) into the bottom edge, centered and 2"-3" from each end�
3� Attach one toe kick cover plate (7) to the bottom notched edges of the end cover panel using
two #8-15 x 1-1/4" truss head screws (8)�
Single end cover panels (5) use one cover plate.
Island end cover panels (12) use two cover plates.
4� If attaching a single end cover panel, go to the next page�
If attaching an island end cover panel, skip to page 22�
Toe Kick
Cover Plate
(7) #8 x 1-1/4"
Truss Head Screws
(8)
Island End
Cover Panel
(12)
Single End
Cover Panel
(5)
2"-3"
Tack
Glides
(6)

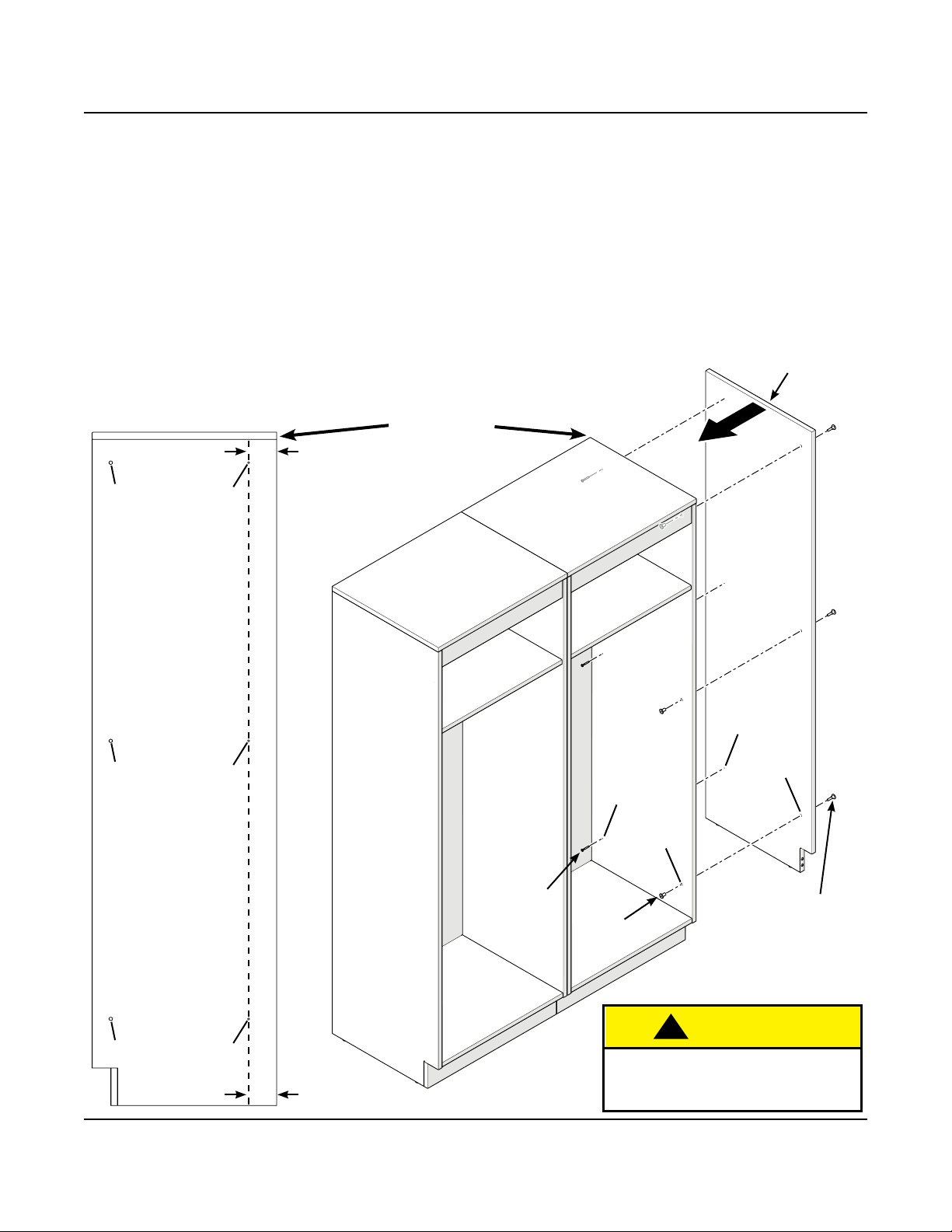

End cover panels may be attached to cover exposed ends of locker formations.
For Single End Cover Panel attachment, see page 20.
For Island End Cover Panel attachment, see page 21.
STOP
Pound in
Tack Glides

20
End Cover Panel Option (continued)
Single End Cover Panel Attachment
1� To further secure the single end cover panel, screws must be installed through the rear of the end locker�
a� From the outside of the locker at the end of the locker formation, measure and mark for three holes�
These holes should be parallel with the existing holes in the front of the locker and 2-1/2"-3" in
from the back of the locker as shown�
b� Drill three 5/32" holes completely through the locker�
2. Raise the single end cover panel into position covering the cabinet side and ush with the front edge.
Be sure that the front holes in the single end cover panel (5) are aligned with the front holes in the locker�
3� Attach the front of the single end cover panel to the locker using
three 1/4-20 x 1�181" connector bolts (3) and 1/4-20 cap nuts (4)�
4� Attach the back of the end cover panel using three #8 x 1-3/8" wood screws (9)
through the locker holes drilled in Step 1 and into the end cover panel�
Single End
Cover Panel
(5)
#8 x 1-3/8"
Wood Screw
(9)
1/4-20 x 1.181
Connector Bolt
(3)
1/4-20
Cap Nut
(4)
Overtightening the screws could
cause them to poke through the
outside of the end cover panel.
!CAUTION
Existing
hole
Drill new
5/32" hole
2-1/2"-3"
End of
locker formation
End of
locker formation
Existing
hole
Drill new
5/32" hole
Existing
hole
Drill new
5/32" hole
2-1/2"-3"
New drilled
hole
Existing
hole
No
existing
hole
Existing
hole
