Wenglor OPT2012 User manual

OPT2012
OPT2013
OPT2014
High-Performance Distance Sensor
Operating Instructions
Available as PDF only
Status: 16.08.2018
www.wenglor.com
EN

2
EN
Index
1. Use for Intended Purpose 3
2. Safety Precautions 3
2.1. Safety Precautions 3
2.2. Laser/LED warning 3
3. EC Declaration of Conformity 4
4. Device Features 5
4.1. Connecting the Sensors 7
4.2. Housing Dimensions 8
4.3. The Control Panel 8
5. Installation Instructions 8
6. Initial Start-Up 9
6.1. Initial Start-Up 9
6.2. Default Settings 10
7. Functional Overview 11
7.1. Run 12
7.2. Pin Function 12
7.3. A1/A2/A3 Switch 12
7.4. A3 Error/A3 Input 15
7.4.1. A3 Error 15
7.5. A1 Analog/Analog 16
7.6. Offset 18
7.7. Measure Rate 20
7.8. Laser 20
7.9. Run Mode 21
7.10. Display 22
7.10.1. Intensity 22
7.11. Language 22
7.12. Info 22
7.13. Reset 23
7.14. Password 23
8. Maintenance Instructions 24
9. Proper Disposal 24

3
1. Use for Intended Purpose
This wenglor product has to be used according to the following functional principle:
High-performance distance sensors which use the principle of transit time measurement determine the dis-
tance between the sensor and the object according to the principle of transit time measurement. These sensors
have a large working range and are therefore able to detect objects over large distances.
Selected sensors are distinguished by WinTec (wenglor interference free technology). This technology allows
black or shiny surfaces to be reliably detected even in extremely inclined positions. It is possible to mount sev-
eral sensors next to or across from each other without them influencing each other.
2. Safety Precautions
2.1. Safety Precautions
• This operating instruction is part of the product and must be kept during its entire service life.
• Read this operating instruction carefully before using the product.
• Installation, start-up and maintenance of this product has only to be carried out by trained personnel.
• Tampering with or modifying the product is not permissible.
• Protect the product against contamination during start-up.
• Not a safety component in accordance with the EU Machinery Directive.
2.2. Laser/LED warning
For the respective Laser/LED Class please view the technical data of the product.
Class Laser 1 (EN 60825-1)
Observe all applicable standards
and safety precautions.
Class Laser 2 (EN 60825-1)
Observe all applicable standards and safety precautions.
The enclosed laser warning labels must be attached and
visible at all time. Do not stare into beam.
Caution: Use of controls, adjustments or performance of procedures other than those specified herein may result
in hazardous radiation exposure
LASER RADIATION -
DO NOT STARE INTO BEAM
620 - 690 nm < 1mW
CLASS 2 LASER PRODUCT
CAUTION
LASER CLASS 1
EN60825-1
2007

4
EN
3. EC Declaration of Conformity
The EC declaration of conformity can be found on our website at www.wenglor.com in download area.
RoHS

5
4. Device Features
Optical Data OPT2013 OPT2014 OPT2012
Working range 0,1…10,1 m 0,1…10,1 m 0,2…6,2 m
Measuring range 10 m 10 m 6 m
Linearity 0,1…5 m 0,05 % 0,2 % 0,2 %
Linearity 5…10 m 0,2 % 0,5 % 0,5 %
Switching hysteresis 3…20 mm 3…20 mm 3…20 mm
Light Source Laser (red) Laser (red) Laser (red)
Wave Length 660 nm 660 nm 660 nm
Service life (amb. temp. = 25 °C) 100000 h 100000 h 100000 h
Laser Protection Class (EN60825-1) 2 2 1
Beam Divergence <2 mrad <2 mrad <2 mrad
Electrical Data
Supply Voltage* 18…30 V DC 18…30 V DC 18…30 V DC
Current Consumption
(operating voltage = 24 V) <100 mA <100 mA <100 mA
Switching Frequency 50 Hz 50 Hz 50 Hz
Response Time 10…200 ms 10…200 ms 10…200 ms
Measure Rate 1…100/s 1…100/s 1…100/s
Temperature Drift <0,2 mm/k <0,2 mm/k <0,2 mm/k
Temperature Range −25…60 °C −25…60 °C −25…60 °C
Number of switching outputs
configurable as PNP
NPN or push-pull
3 2 2
Switching Output Voltage Drop <2,5 V <2,5 V <2,5 V
Switching Output Switching Current 200 mA 200 mA 200 mA
Error Output yes yes yes
Error Output Switching Current 200 mA 200 mA 200 mA
Analog Output 0…10 V 0…10 V 0…10 V
Current Load Voltage Output <1 mA <0,5 mA <0,5 mA
Analog Output 4…20 mA 4…20 mA 4…20 mA
Current Output Load Resistance <500 W<500 W<500 W
Short Circuit Protection yes yes yes
Reverse Polarity Protection yes yes yes
Overload Protection yes yes yes
Resolution 1…12 mm 1…12 mm 1…12 mm
Mechanical Data
Adjustment Teach-In Teach-In Teach-In
Housing Plastic Plastic Plastic
Protection IP68 IP68 IP68
Connection M12 × 1, 8-pin M12 × 1, 4-pin M12 × 1, 4-pin
Protection Class III III III
*Supply voltage residual ripple may not exceed 10 % (within the specified voltage range).
**Temperature Drift: 0,4 mm/k at ambient temperature < −10 °C and > 50 °C

6
EN
Measuring Range:
The Sensors’ measuring range is determined by object remission.
Maximum range of OPT2013, OPT2014 OPT2012
Up to 10 m on white (90 % remission) Up to 6 m on white (90 % remission)
Up to 5 m on gray (18 % remission) Up to 5 m on gray (18 % remission)
Up to 3 m on black (6 % remission) Up to 3 m on black (6 % remission)
Light Spot Diameter
Working Distance 0 6 m 10 m
Light Spot Diameter 5 mm < 12 mm < 20 mm
Dependence of Hysteresis and Resolution on the Sampling Rate on white (90 % Remission)
OPT2013, OPT2014
Selected sampling
rate in Hz
Default setting for min.
hysteresis in mm
Resolution in mm
0,1…3 m 3…5 m 5…10,1 m
100 20 3 5 12
50 15 2 3 10
20 10 2 2 8
10 8 1 2 7
5 6 1 2 6
2 4 1 1 6
1 3 1 1 6
OPT2012
Selected sampling
rate in Hz
Default setting for min.
hysteresis in mm
Resolution in mm
0,2…3 m 3…5 m 5…6 m
100 20 3 5 12
50 15 2 3 10
20 10 2 2 8
10 8 1 2 7
5 6 1 2 6
2 4 1 1 6
1 3 1 1 6

7
4.1. Connecting the Sensors
OPT2012/OPT2014 OPT2013
514
Switching laser light off via pin connection:
If the “La” pin is open or connected to negative, the laser is on.
If positive voltage is applied, the laser is off.
In the case of OPT2012 Pin “A1” can also be used as an analog output.
The reference to ground here is Pin “–” (supply voltage “0 V”).
Legend
Wire Colors according to
DIN IEC 757
Platinum measuring resistor
not connected
Test Input
Test Input inverted
Trigger Input
Analog Output
Ground for the Analog Output
Block Discharge
Valve Output
Valve Control Output +
Valve Control Output 0 V
Synchronization
Receiver-Line
Emitter-Line
Grounding
Switching Distance Reduction
Ethernet Receive Path
Ethernet Send Path
Interfaces-Bus A(+)/B(–)
Emitted Light disengageable
Magnet activation
Input confirmation
Contactor Monitoring
Encoder A/A (TTL)
Encoder B/B (TTL)
Black
Brown
Red
Orange
Yellow
Green
Blue
Violet
Grey
White
Pink
Green/Yellow
Supply Voltage +
Supply Voltage 0 V
Supply Voltage (AC Voltage)
Switching Output (NO)
Switching Output (NC)
Contamination/Error Output (NO)
Contamination/Error Output (NC)
Input (analog or digital)
Teach Input
Time Delay (activation)
Shielding
Interface Receive Path
Interface Send Path
Ready
Ground
Clock
Output/Input programmable
Power over Ethernet
Safety Input
Safety Output
Signal Output
Ethernet Gigabit bidirect. data line (A-D)
Encoder 0-pulse 0-0 (TTL)
Encoder A
Encoder B
Digital output MIN
Digital output MAX
Digital output OK
Synchronization In
Synchronization OUT
Brightness output
Maintenance
reserved
PT

8
EN
4.2. Housing Dimensions

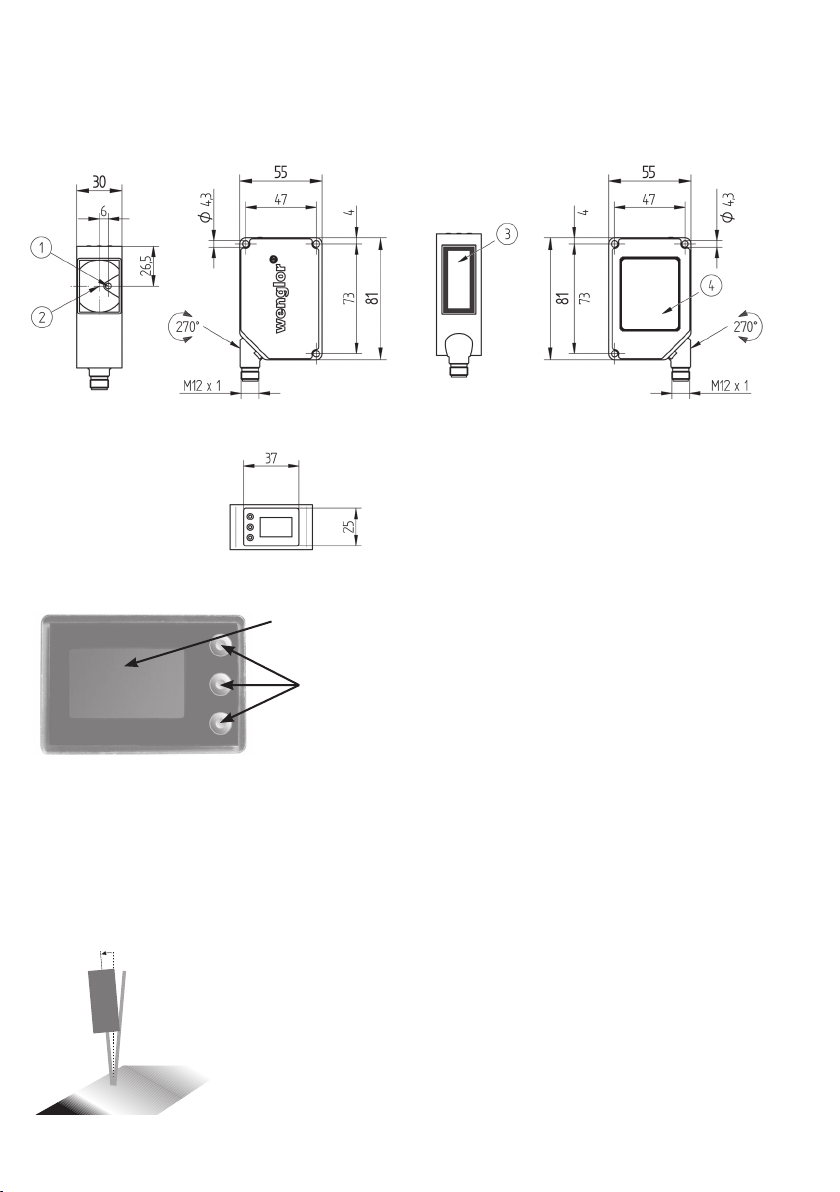

1 = Laser Diode/Laser Aperture
2 = Receiver Diode
3 = Laser Warning Sign
4 = Name Plate incl. Laser
Warning Sign
4.3. The Control Panel
Display
Control key
A warning triangle in the display indicates that the
Sensor receives a lot of light, e.g. through a glossy
surface of the object. The measurement value could
be around 400 mm too low in this case. To find a
remedy, see the mounting instructions in case of
glossy surfaces.
5. Installation Instructions
All applicable electrical and mechanical regulations, standards and safety precautions must be adhered to
when installing and operating the Sensor. The Sensor must be protected against mechanical influences. Install
the device such that its installation position cannot be inadvertently changed. The wenglor mounting system is
recommended for installing the Sensor. In order to obtain best possible results, the device’s optics should be
aligned at a right angle to the direction in which the objects are conveyed.
At brilliant surfaces, mount the Sensor in an angle of 5° to avoid
a direct reflexion beam into the lens.
SENSOR
5

9
6. Initial Start-Up
6.1. Initial Start-Up
Connect the Sensor to supply power (18 to 30 V DC). The display view appears.
The Sensor is ready for operation after 2 seconds. The following table provides an overview of typical, addi-
tional deviations during the warm-up phase.
Time (min.) 0 1 2 5 10 15
Deviation (mm) ±10 ±7 ±6 ±2 ±1 0
Switch to the configuration menu by pressing any key.
Note:
If no settings are adjusted in the configuration menu for a period of 30 s, the Sensor is automatically returned to
the read-out view. The Sensor accesses the last used menu view when a key is once again activated.
If a setting is adjusted, it becomes active when the configuration menu is exited.
The keys are used for navigation, and for configuring settings.
Important:
Do not use any sharp objects to press the keys when configuring settings, because they might otherwise
be damaged.
Navigation up.
Navigation down.
Acknowledge the selected menu item (arrow points towards the display).
Accept the selected setting, exit the menu (arrow points away from the display).

10
EN
6.2. Default Settings
OPT2012 OPT2013/OPT2014
Pin Function
A1: Switching output A1: Switching output
A2*: Switching output
A3: Error output A3: Error output
Outputs
Teach Mode Object Object
Switching threshold 1000 mm 1000 mm
Hysteresis 20 mm 20 mm
Window Size 50 mm 50 mm
PNP/NPN PNP PNP
NO/NC NO NO
ON Delay 0 ms 0 ms
OFF Delay 0 ms 0 ms
Impulse 0 ms 0 ms
Error output PNP/NPN PNP PNP
NO/NC NO NO
A3 Input invers
Analog
U/I U U
0 V 200 mm 100 mm
10 V 6200 mm 10100 mm
Offset Specification Offset 0 mm 0 mm
Measure Rate 100 Hz 100 Hz
Laser An An
Run Mode Display Mode Distance Distance
Display Intensity Screensaver Screensaver
Language German German
Password Enable Off Off
Enter 0 0
* Does apply to OPT2013

11
7. Functional Overview
4. A2 Switch
5. A3
Switch/Error/Input
6. Analog
7. Offset
8. Measure Rate
9. Laser
10. Run Mode
11. Display
12. Language
13. Info
100 Hz
50 Hz
20 Hz
10 Hz
5 Hz
2 Hz
1 Hz
NPN/PNP
NO/NC
Switching Output
Error Output
14. Reset
15. Password
1. Run
2. Pin Funktion
Input
3. A1 Switch/Analog
1. Run
2. Pin Function A1
A3
Switching Output
Analog Output
Mode U/I
Teach
at 0 V
at 10 V
Disp Mode
Run
Mirror
Intensity
Deutsch
English
Francais
Sensor type
Sensor version
T Object
T Backgrnd.
T Window
Poti
Hysteresis/
Window Size
NPN/PNP
NO/NC
ON Delay
OFF Delay
Impulse
Extern T
ON
OFF
Enable
Enter
Change
Lock
not invers
invers
Mode U/I
Teach
at 0 V
at 10 V
Apply
Preset
Change
*
*
* only for OPT2012 and OPT2014

12
EN
7.1. Run
The Sensor can be switched to the display mode by pressing the key.
7.2. Pin Function
The Pin Function serves to determine the function of the pins A1 or A3. The pins can each take on different
functions.
Designation Function
A1 Configuration of Pin A1
A1



Switch
Analog
(does apply to OPT2014 or OPT2012)
By pressing the buttons and Pin A1 can be configured as a switching output
or analog output.
A3 Configuration of Pin A3
A3



Switch
Error
Laser
Offset
Ext T A1
Ext T A2
By pressing the button and Pin A3 can be configured as:
a switching output an input for application of the offset
an error output a Teach-Input for A1
an input for switching on/off a Teach-Input for A2 (if A2 available)
the transmitted light
*Note: A1 applies only to OPT2012 and OPT2014. A3 applies only to OPT2012, OPT2014 and OPT2013
The adjusted function of the pins is displayed figuratively in the menu “Run Mode”:
  Teach-Input A3 for A1 or A2
A1 A2 A3 Switch output
AN Analog output
IN Input
FError output
7.3. A1/A2/A3 Switch

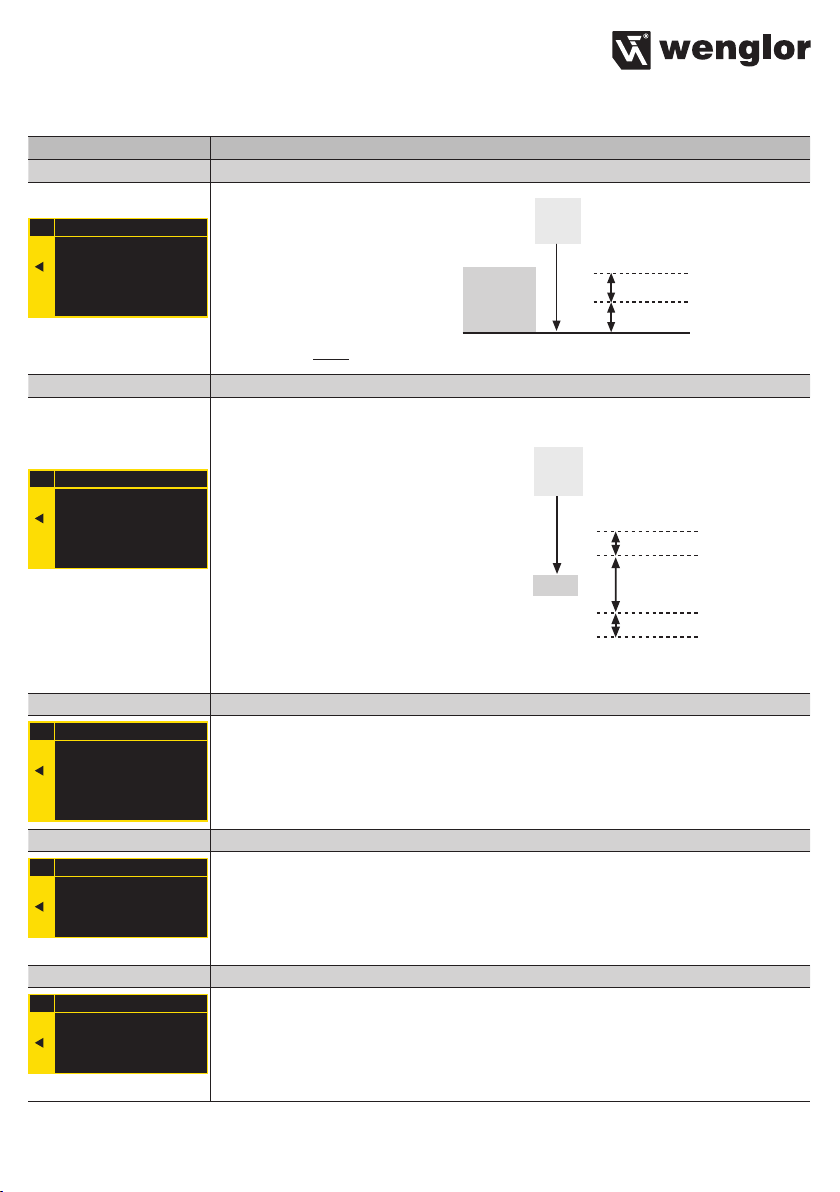

Basic settings for the individual switching outputs are selected in the A1/A2/A3 Switch menu.
Designation Function
T Object Object Teach-In
A1 Switch
TT Objekt
1000 mm
Current measurement
point in mm
Distance to the object is taught in by pressing the Tkey:
• Align the spot to the object.
• Briefly press the Tkey.
ÚSwitching distance to the
object is set.
• If necessary, readjust the
switching distance with the help
of the Potentiometer menu item.
* OPT201x: ( Hysteresis
2) + 10 mm
Sensor
Object
*
Hysteresis
Making point
Breaking point
Background
e. g. conveyor bel
t

13
Designation Function
T Backgrnd. Background-Teach-In
A1 Switch
TT Background
1000 mm
Current measurement
point in mm
Distance to the background is taught in by
pressing the Tkey, so that the background
can be suppressed:
• Align the spot to the back-
ground (e.g. conveyor belt).
• Briefly press the Tkey.
ÚThe background is
suppressed.
* OPT201x: ( Hysteresis
2) + 10 mm
T Window Teach-In a tolerance window
A1 Switch
TT Window
1000 mm
Current measurement
point in mm
A window tolerance is taught in by pressing the Tkey:
• Align the spot to the object.
• Briefly press the Tkey.
ÚA tolerance window is set up
around the measured distance.
The window width value is
adjustable (see below). The default
value is 50 mm. If the measuring
distance lies within the window
width, the sensor is activated.
When the window is taught in, the lower (L)
and upper (H) switching points are displayed
alternately in line 3.
Poti Readjusting the switching distance
Poti
+
−
T Poti
1000 mm
Current measurement
point in mm
The switching distance can be readjusted by pressing the + or the – key.
Hysteresis Adjusting switching hysteresis
Hysteresis
+
−
Hysteresis
20 mm The hysteresis value is adjusted by pressing the + or the – key.
Minimum value: depends upon the measure rate (see table page 6)
Window Size Setting the desired window width
Window Size
+
−
WindowSize
50 mm
(Can only be adjusted after Teach Window).
The width (10 mm…1000 mm) of the tolerance window is selected by pressing
the + or the – key. The default value is 50 mm.
*
Sensor
Hysteresis
Making point
Breaking point
Background
e. g. conveyor belt
Object
Sensor
Object
Hysteresis
Breaking point
Making point
Hysteresis
Making point
Breaking point
Window Width

14
EN
Designation Function
NPN/PNP Configuring the outputs
P
N
PnP
npn
The output is preset to PNP. Pressing the Nkey sets the output to push-pull. Press-
ing the Nkey again sets the output to NPN.
The respective circuit diagram indicates how the output is set:
PNP Push-pull NPN
pnp
PnP
npn
npn
NO/NC Configuring the outputs
NO/NC
NO
NC
no Outputs can be set up as normally open or normally closed by pressing the NO
or the NC key. The respective circuit diagram is displayed.
ON Delay Adjusting ON Delay
ON Delay
+
−
ON Delay
10 ms
ON Delay can be set to a value within
a range of 10 to 10.000 ms by pressing
the + or the – key. If the value is set to “0 ms”
the function is deactivated.
OFF Delay Adjusting OFF Delay
OFF Delay
+
−
OFF Delay
10 ms
OFF Delay can be set to a value within a
range of 10 to 10.000 ms by pressing the
+ or the – key. If the value is set to “0 ms”
the function is deactivated.

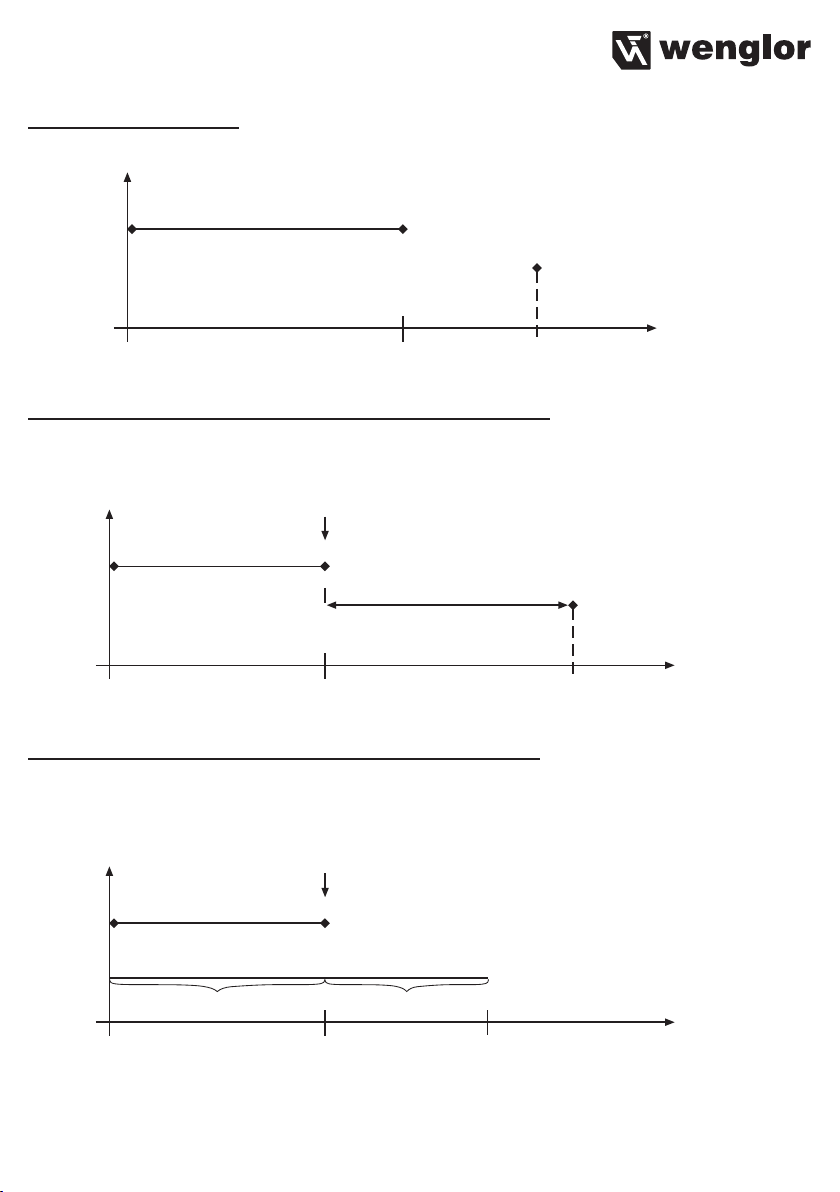

OFF Delay is disabled if a impulse duration
has already been selected. If this is the case,
Impulse! appears at the control panel.



Object
OFF Delay
Output

15
Designation Function
Impulse Adjusting impulse duration
Impulse
+

−
Impulse
0 ms
Impulse duration defines how long the
output signal remains in the activated
state. Impulse duration can be set to a
value within a range of 0 to 10.000 ms
by pressing the + or the – key.
If the value is set to “0 ms” the function
is deactivated.
After the selected impulse duration has
elapsed, the output signal is returned
to the deactivated state.. Function can be combined with
ON Delay.
Extern T External Teach-In
A1 Switch



T Object
T Backgrnd.
Window
By pressing the button can be selected, if an “Object Teach-In”, a “Background
Teach-In”, or “Teach-In of a tolerance window” is executed at the External Teach-In.
7.4. A3 Error/A3 Input
7.4.1. A3 Error
The error output is activated if no light signal is returned to the Sensor.
Designation Function
NPN/PNP Configuring the error outputs
P
N
PnP
npn
The error output is preset to PNP. Pressing the Nkey sets the error output to push-
pull. Pressing the Nkey again sets the error output to NPN.
The respective circuit diagram indicates how the output is set:
PNP Push-pull NPN
pnp
PnP
npn
npn
NO/NC Configuring the error outputs
NO/NC
NO
NC
no Error Outputs can be set up as normally open or normally closed by pressing the
NO
or the NC key. The respective circuit diagram is displayed.






16
EN
7.4.2 A3 Input

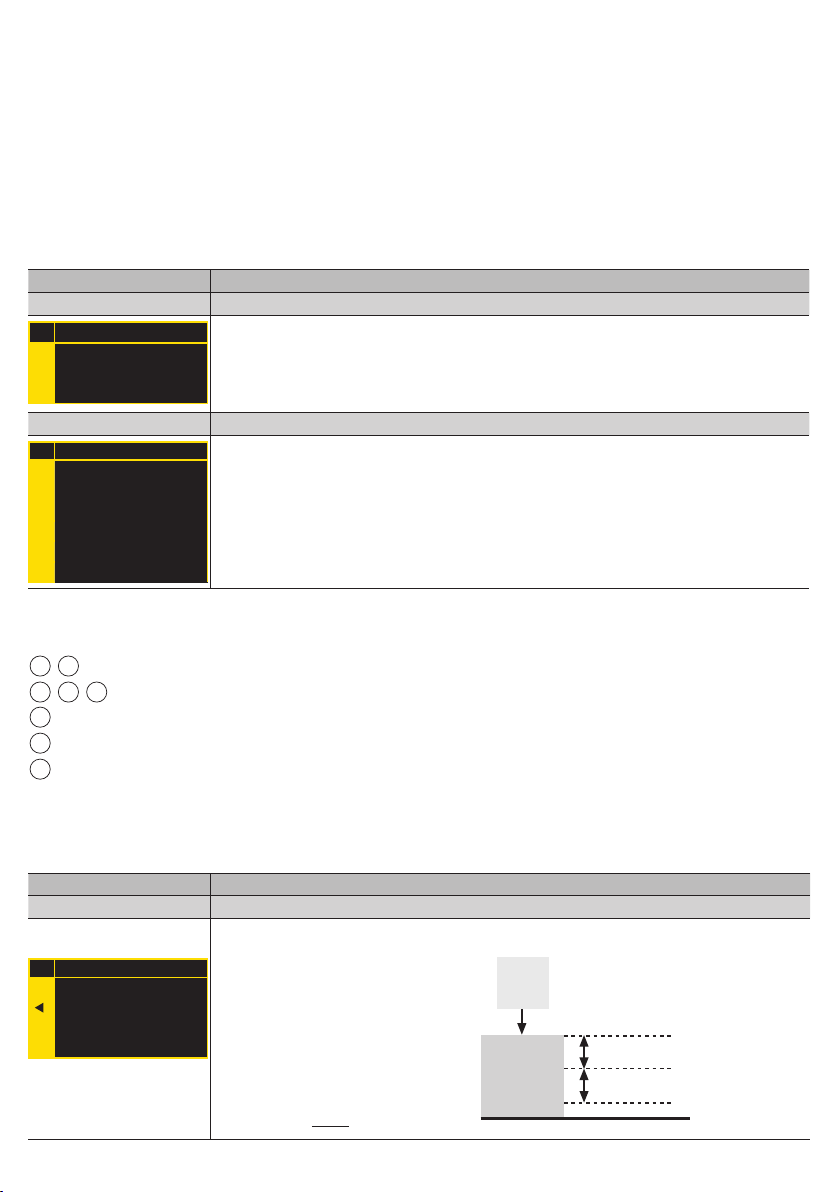

If Pin “A3” is used as input “Emitted light disengageable” or as input “Offset”, the input can be set as an
inverted or non-inverted input.
Designation Function
not invers Usage as non-inverted input
A3 Input



not invers
invers Normally, the input is at supply voltage “0”.
The functionality of the input is triggered upon applying a voltage > 7 V.
invers Usage as inverted input
A3 Input



not invers
invers
The input is normally at a voltage of > 7 V.
The functionality of the input is triggered upon applying a voltage < 7 V.

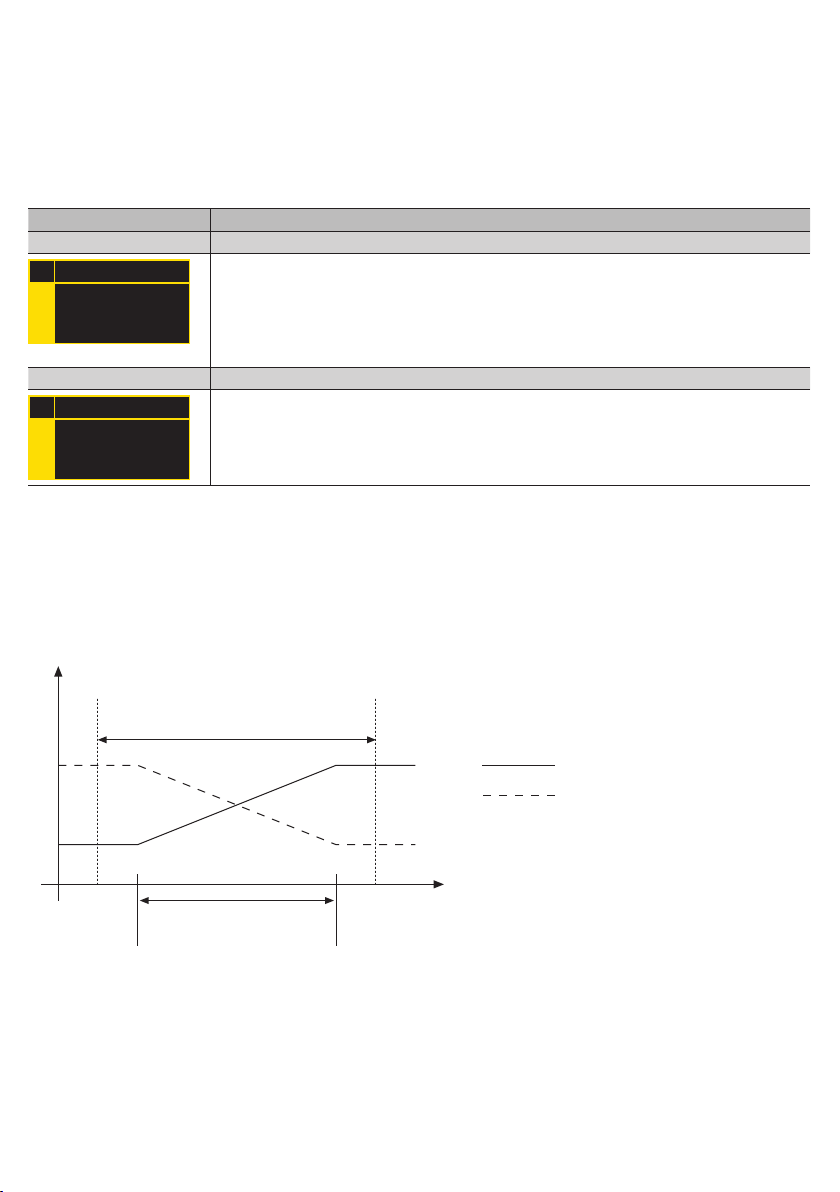

7.5. A1 Analog/Analog
The measuring range for the analog output can be feely selected within the specified working range with rising
of falling characteristic curve.
The adjusted measuring range must have a value of at least 2 % of the total measuring range.





Note: The menu item is only present for the Sensors OPT2014 and OPT2012 if pin function “Analog” is set.

17
Analog Settings of the analog output



Mode U/I
Teach-In
At 0 V
At 10 V
At 4 mA
At 20 mA
Mode U/I: Analog output as current or voltage output. The analog output can be set up
as either a current or a voltage output by pressing the Uor the Ikey. The cor-
responding symbol is displayed.
Teach-In: Teach in the distances which correspond to the upper and lower voltage
values. The momentary actual distance is assigned to a voltage value of
10 V or a current value of 20 mA by pressing the 10 V or the 20 mA key.The
momentary actual distance is assigned to a voltage value of 0 V or a current
value of 4 mA by pressing the 0 V or the 4 mA key. If necessary, the assigned
distances can be readjusted with the help of menu items At 0 V or at 10 V.
At 0 V: Distance at 0 V (visible in U mode) The distance assigned to the value 0 V
can be recalibrated by pressing the “+” key or the “–” key.
At 10 V: Distance at 10 V (visible in U mode) The distance assigned to the value 10 V
can be recalibrated by pressing the “+” key or the “–” key.
At 4 mA: Distance at 4 mA (visible in I mode) The distance assigned to the value 4 mA
can be recalibrated by pressing the “+” key or the “–” key.
At 20 mA: Distance at 20 mA (visible in I mode) The distance assigned to the value
20 mA can be recalibrated by pressing the “+” key or the “–” key.

18
EN
7.6. Offset
The function Offset serves to change the current measurement value to a certain other value. Here, the switch-
ing thresholds and the analog measurement ranges are changed as well.
The offset can take place optionally via a menu or externally via Pin A3.
Via menu
Designation Function
Apply* Accepting the value set in “Specification” as the distance.
Apply
T
Z
Apply
0 mm
Current measurement
point in mm
Upon pressing the button T, the offset value set in the menu option
Specification is accepted as the distance. Upon pressing the button Z, the offset
function is reset and the real distance is displayed.
Preset* Teaching the offset value
Preset
T
Z
Offset
0 mm
Current measurement
point in mm
Upon pressing the button T, the current distance is accepted as the specification
offset. Upon pressing the button Z, the offset specification value is set to 0 (the offset
is activated in the menu option Apply)
Change Changing the offset value that has been set in steps
Change
+
−
Preset
0 mm
By pressing the keys + or − the adjusted specification offset (menu point Preset)
can be changed stepwise upwards or downwards.
*The currently set specification offset is displayed in line 3. The current distance is displayed in line 4.
Via Pin “A3”
Via the multifunctional pin A3, the offset equalization can be applied through an external trigger Sensor (corre-
sponds to the menu Offset Apply T. Here, A3 must be configured by means of the setting Offset as input
(see chapter 7.2 – Pin Function).
In order to apply the Offset equalization, a voltage > 7 V should be applied at the input pin to trigger a positive
flank. Here, the value set in the menu option Preset is accepted as the current distance.

19
Without Offset equalization:
In the diagram, the Sensor measures a distance of 5000 mm.
The switching point is located 2000 mm distant, at 7000 mm.
5000 mm 7000 mm
Switching Point
[Distance measured with
a meter ruler(mm)]
With application of the offset equalization: Specification offset: 0 mm
In the diagram, the Sensor measures a distance of 5000 mm. The switching point is located 2000 mm distant,
at 7000 mm. After application of the offset equalization, from the distance 5000 mm the distance becomes
0 mm. The switching distance thus gets displaced by 7000 mm to the actual 12000 mm.
5000 mm 12000 mm
Switching Point
[Distance measured with
a meter ruler (mm)]
0 mm
Switching Distance: 7000 mm
Application of the offset equalization
Application of the offset equalization: Specification offset: 3000 mm
In the diagram, the Sensor measures a distance of 5000 mm. The switching point is located 2000 mm distant,
at 7000 mm. After application of the offset equalization, from the distance 5000 mm the distance becomes
3000 mm. The switching distance thus gets displaced by 4000 mm to the actual 9000 mm.
5000 mm 9000 mm [Distance measured with
a meter ruler (mm)]
3000 mm
Switching distance set: 7000 mm
Application of the offset equalization
3000 mm 4000 mm

20
EN
Example of application:
A OPT2013 is used in a high rack warehouse with varying ambient temperatures. To eliminate the temperature
drift, a reference path of 1000 mm is specified to the Sensor as the specification offset. Through an external trig-
ger Sensor, the specification offset is applied and given to the Sensor as the current distance. This ensures that
the distance tallies with the value of the reference route with every trigger signal and thus, the varying ambient
temperature has no influence on the measurement values of the Sensor.
Movement path of sensor
Reference path
1000 mm
Trigger sensor:
Switch output, sensor on
PIN A3/V of the LLZ-sensor
High rack stores
7.7. Measure Rate
Reducing the measure rate improves resolution and reduces minimum selectable switching hysteresis.
The respective minimum and maximum values are in the table on page 6.
Designation Function
MeasureRate



 100 Hz
 50 Hz
 20 Hz
 10 Hz
 5 Hz
 2 Hz
 1 Hz
Measure rate value
The measure rate which is best suited for the respective application can be selected from the predefined
values by pressing the or the key.
7.8. Laser
Transmitted light can be either deactivated or activated with the help of the Laser menu.
Designation Function
Laser



 ON
 OFF
ON: Switch transmitted light on
OFF: Switch transmitted light off
Transmitted light is deactivated or activated by pressing the or the key.
In case of the OPT2013 the laser diode can be switched off via pin 8, by connecting pin 8 to 24 V.
