Wenglor OPT2001 User manual

Available as PDF only
Status: 28.01.2016
www.wenglor.com
OPT2001 OPT2002
OPT2003 OPT2004
OPT2005 OPT2006

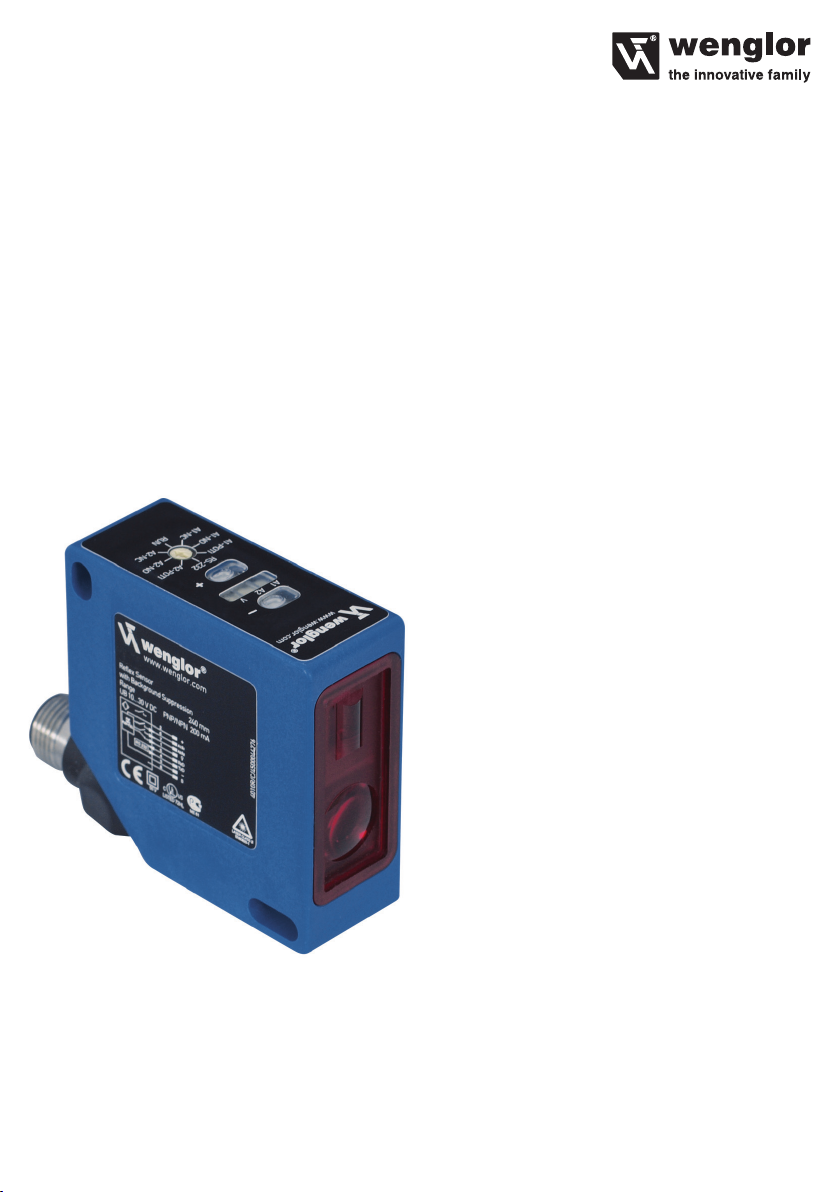

High-performance distance sensor
Operating Instructions
EN

2
EN
Index
1. Proper Use 3
2. Safety Precautions 3
3. Declaration of Conformity 4
4. Technical Data 5
5. Installation Instructions 8
6. Initial Operation 8
7. Function 8
8. Adjustment 9
8.1. Manual Adjustments 9
8.2. Special Settings 12
9. Maintenance Instructions 13
10. Proper Disposal 13

3
1. Proper Use
This wenglor product has to be used according to the following functional principle:
High-performance distance sensor
High performance distance sensors which use the principle of angle measurement determine the distance
between the sensor and the object. These sensors have small working ranges (under 1 m) and recognize
objects with high precision. Some sensors use a high-resolution CMOS line array and DSP signal processing.
The color, shape and texture of the objects to be recognized does not affect the sensors’ measurements. Even
dark objects can be reliably detected against a bright background.
They can be operated with very high speeds or very high resolutions. The measured value can be output as an
analog value. Furthermore, Teach-In, filter functions for adjusting a switching output, and an error output are
available. The measuring range can be selected individually within the working range.
2. Safety Precautions
• This operating instruction is part of the product and must be kept during its entire service life.
• Read this operating instruction carefully before using the product.
• This product is not suitable for safety applications.
• Installation, start-up and maintenance of this product has only to be carried out by trained personal.
• Tampering with or modifying the product is not permissible.
• Protect the product against contamination during start-up.
Laser/LED warning
For the respective Laser Class/LED Group please view the technical data of the product.
LASERSTRAHLUNG
NICHT IN DEN STRAHL BLICKEN
LASER KLASSE 2
EN60825-1: 2007
Pp<1.0 mW, t<2000 µs, λ= 620-690 nm
LASER RADIATION -
DO NOT STARE INTO BEAM
620 - 690 nm < 1mW
CLASS 2 LASER PRODUCT
CAUTION
Caution: Use of controls, adjustments or performance of procedures other than those specified herein may result
in hazardous radiation exposure.
LASER CLASS 1
EN60825-1
2007
Class Laser 1 (EN 60825-1)
Observe all applicable standards
and safety precautions.
Class Laser 2 (EN 60825-1)
Observe all applicable standards and
safety precautions.
The enclosed laser warning labels
must be attached and visible at all
time. Do not stare into beam.

4
EN
3. Declaration of Conformity
The EC declaration of conformity can be found on our website at www.wenglor.com in download area.
RoHS

5
4. Technical Data
OPT2001 OPT2003 OPT2005
Optical Data
Working Range 30…80 mm 40...160 mm 50...350 mm
Measuring Range 50 mm 120 mm 300 mm
Resolution < 8 µm < 20 µm < 50 µm
Resolution (Speed-Mode) < 12 µm < 30 µm < 80 µm
Linearity 0,1 % 0,1 % 0,15 %
Linearity (Speed-Mode) 0,2 % 0,2 % 0,2 %
Light Source Laser (red) Laser (red) Laser (red)
Wave Length 660 nm 660 nm 660 nm
Laser Class 2 2 2
Service Life (25 °C) 100000 h 100000 h 100000 h
max. Ambient Light 10000 Lux 10000 Lux 10000 Lux
Electrical Data
Supply Voltage 18…30 V DC 18…30 V DC 18…30 V DC
Light Spot Size at begin working range 0,4×0,8 mm 0,4×0,9 mm 0,4×1 mm
Light Spot Size at end working range 0,7×1,4 mm 0,9×1,8 mm 1,4×3,1 mm
Current Consumption (Ub = 24 V) < 80 mA < 80 mA < 80 mA
Measurement Rate 1500/s 1500/s 800/s
Response Time 660 µs 660 µs 1250 µs
Response Time (Resolution-Mode) 1660 µs 1660 µs 2500 µs
Temperature Drift < 5 µm/°C < 10 µm/°C < 25 µm/°C
Temperature Range –25...50 °C –25...50 °C –25...50 °C
Analog Output 0…10 V 0…10 V 0…10 V
Current Output Load Resistance < 1 mA < 1 mA < 1 mA
Analog Output 4…20 mA 4…20 mA 4…20 mA
Current Output Load Resistance < 500 Ohm < 500 Ohm < 500 Ohm
Voltagedrop PNP-Error Output < 2,5 V < 2,5 V < 2,5 V
Switching Current PNP-Error Output < 200 mA < 200 mA < 200 mA
Short-Circuit Protection yes yes yes
Reverse Polarity Protection yes yes yes
Mechanical Data
Adjustment Teach-In Teach-In Teach-In
Housing Plastic Plastic Plastic
Protection Mode IP67 IP67 IP67
Connection M12×1, 8-pin M12×1, 8-pin M12×1, 8-pin
Protection Class III III III
Reference material: Kodak white 90 % remission

6
EN
OPT2002 OPT2004 OPT2006
Optical Data
Working Range 30…80 mm 40…160 mm 50…350 mm
Measuring Range 50 mm 120 mm 300 mm
Resolution < 8 µm < 20 µm < 50 µm
Resolution (Speed-Mode) < 12 µm < 30 µm < 80 µm
Linearity 0,1 % 0,1 % 0,15 %
Linearity (Speed-Mode) 0,2 % 0,2 % 0,2 %
Light Source Laser (red) Laser (red) Laser (red)
Wave Length 660 nm 660 nm 660 nm
Laser Class 1 1 1
Service Life (25 °C) 100000 h 100000 h 100000 h
max. Ambient Light 10000 Lux 10000 Lux 10000 Lux
Electrical Data
Supply Voltage 18…30 V DC 18…30 V DC 18…30 V DC
Light Spot Size at begin working range 0,5×1 mm 0,5×1,2 mm 0,6×1,5 mm
Light Spot Size at end working range 1×2 mm 1×2,5 mm 1,5×4 mm
Current Consumption (Ub = 24 V) < 80 mA < 80 mA < 80 mA
Measurement Rate 1000/s 1000/s 500/s
Response Time 1000 µs 1000 µs 2000 µs
Response Time (Resolution-Mode) 2000 µs 2000 µs 4000 µs
Temperature Drift < 5 µm/°C < 10 µm/°C < 25 µm/°C
Temperature Range –25…50 °C –25…50 °C –25…50 °C
Analog Output 0…10 V 0…10 V 0…10 V
Current Output Load Resistance < 1 mA < 1 mA < 1 mA
Analog Output 4…20 mA 4…20 mA 4…20 mA
Current Output Load Resistance < 500 Ohm < 500 Ohm < 500 Ohm
Voltagedrop PNP-Error Output < 2,5 V < 2,5 V < 2,5 V
Switching Current PNP-Error Output < 200 mA < 200 mA < 200 mA
Short-Circuit Protection yes yes yes
Reverse Polarity Protection yes yes yes
Mechanical Data
Adjustment Teach-In Teach-In Teach-In
Housing Plastic Plastic Plastic
Protection Mode IP67 IP67 IP67
Connection M12×1, 8-pin M12×1, 8-pin M12×1, 8-pin
Protection Class III III III
Reference material: Kodak white 90 % remission

7
Connection Diagram
535
+ Supply Voltage +
V Contamination/Error output (NO)
La Emitted light disengageable
O Analogue output
O – Ground for the analogue output
– Supply Voltage 0 V
S Shielding
Housing Dimensions
= Transmitter Diode
= Receiver Diode

8
EN
Control Panel
On the control panel you find the Plus key and the Minus key, several LEDs and the rotary selector switch.
The rotary selector switch is used for choosing the setting- and operation functions.
= Minus key (with LED)
= Plus key (with LED)
I-LED (yellow) = Current output
U-LED (yellow) = Voltage Output. Brightness is proportional to the output voltage
F-LED (rot) = Error Output
Ý= Rotary selector switch
RUN = Sensor operation
TEACH = Teach measurement range
FILTER ADJUST = Filter adjustment
DCM/SCM/LCM = Switching Default Capture Mode/Short Capture Mode/Long
Capture Mode
RES./SPEED-MODE = Switch Resolution/Speed
RxD/La Mode = Emitted Light can be switched off
U/I Mode = Switching 0…10 V/4…20 mA
RESET = Reset
5. Installation Instructions
During use of the sensors, applicable electrical and mechanical regulations, standards and safety precautions
must be adhered to. The sensor has to be protected against mechanical influences.
In case of very glossy surfaces the sensor has to be mounted slightly inclined and has to be mounted on a
plane surface (approx. 5°), to inhibit a direct reflection of the laser beam into the optics.
6. Initial Operation
Please control the proper connection of all conductors.
Impress a supply voltage of 18...30 V DC with ripple of < 10 % (within the indicated voltage range).
7. Function
The sensor uses a high-resolution CMOS line array and DSP technology, virtually eliminating material, color
and brightness related measurement value differences. Alternatively high speed (Speed-Mode) or high
resolution (Resolution-Mode) are adjustable. Integrated analogue output can be configured for voltage
0…10 V or current 4…20 mA. Teach-In, an Error Output and filter functions are available.
DCM
LCM
SCM
FILTER
ADJUST
TEACH
RUN
RESET
U/I MODE
RxD
La MODE
RES./SPEED MODE
I U F


9
Outputs
Analog Output
The analog output is connected to analog earth. The analog output can be configured as a current output or a
voltage output. If you have the choice we recommend the use of the voltage output (reduced current consump-
tion).
The analog output reads out a standard signal of 0...10 V when configured as a current output (see settings).
The analog output reads out a standard signal of 4...20 mA when configured as a voltage output (see settings).










Error Outputs
The PNP error output is switched to positive if no object is detected within the selected working range, or if an
error has occurred (e.g. an interrupted conductor at the current output). The red F LED lights up to indicate that
the error output has been activated.
8. Adjustment
8.1. Manual Adjustments
Reset:
• Set the rotary selector switch Ýto RESET
• Briefly press the minus-key or the plus-key 
èred F-LED lights up
èDelivery status restored (RES. MODE, rising characteristic function, full measuring range, filter func-
tion off.) The adjusted transmission speed (Baud rate) and the setting Current or Voltage Output is not
changed by the RESET.
• Set the rotary selector switch Ýto RUN

10
EN
Set Input
The Input can be used as follows: Emitted Light can be switched off at 24 V (La) or Emitted Light can be
switched off at 0 V (La).
• Rotary Selector Switch Ýto RxD/La Mode
èThe U-LED and I-LED indicate the current configuration. RxD is preset in the delivery status. By pressing
the Plus or the Minus key, the configuration can be changed.
Delivery Status

La U-LED: ON
I-LED: OFF
U-LED: OFF
I-LED: ON
La


= Minus Button / LED
= Plus Button / LED
La = Emitted Light can be switched off at 24 V
La = Emitted Light can be switched off at 0 V
• Set the rotary selector switch Ýto RUN
Adjustment of the Output
Configuring the analog output as a voltage output:
• Set the rotary selector switch Ýto U / I MODE
èThe red F-LED lights up
èIf the yellow U-LED lights up: Analog output presently set to 0...10 V
èIf the yellow I-LED lights up: Analog output presently set to 4...20 mA
• Briefly press the plus-key 
èThe Yellow U-LED lights up: Analog output reconfigured to 0...10 V (voltage output)
• Set the rotary selector switch Ýto RUN
Configuring the analog output as a current output:
• Set the rotary selector switch Ýto U / I MODE
èThe red F-LED lights up
èIf the yellow U-LED lights up: Analog output presently set to 0...10 V
èIf the yellow I-LED lights up: Analog output presently set to 4...20 mA
• Briefly press the minus-key 
èThe yellow I-LED lights up: Analog output reconfigured to 4...20 mA (current output)
• Set the rotary selector switch Ýto RUN
Operate the sensor with high resolution (Resolution-Mode)
• Set the rotary selector switch Ýto RES. / SPEED-MODE
èThe red F-LED lights up
èThe yellow U-LED lights up: Sensor presently set to high speed
èThe yellow I-LED lights up: Sensor presently set to high resolution
• Briefly press the minus-key 
The yellow I-LED lights up: Sensor now operates with high resolution.
• Set the rotary selector switch Ýto RUN

11
Operate the sensor with high speed (Speed-Mode)
• Set the rotary selector switch Ýto RES. / SPEED-MODE
èThe red F-LED lights up
èThe yellow U-LED lights up: Sensor presently set to high speed
èThe yellow I-LED lights up: Sensor presently set to high Resolution
• Briefly press the plus-key 
The yellow U-LED lights up: Sensor now operates with high speed.
• Set the rotary selector switch Ýto RUN

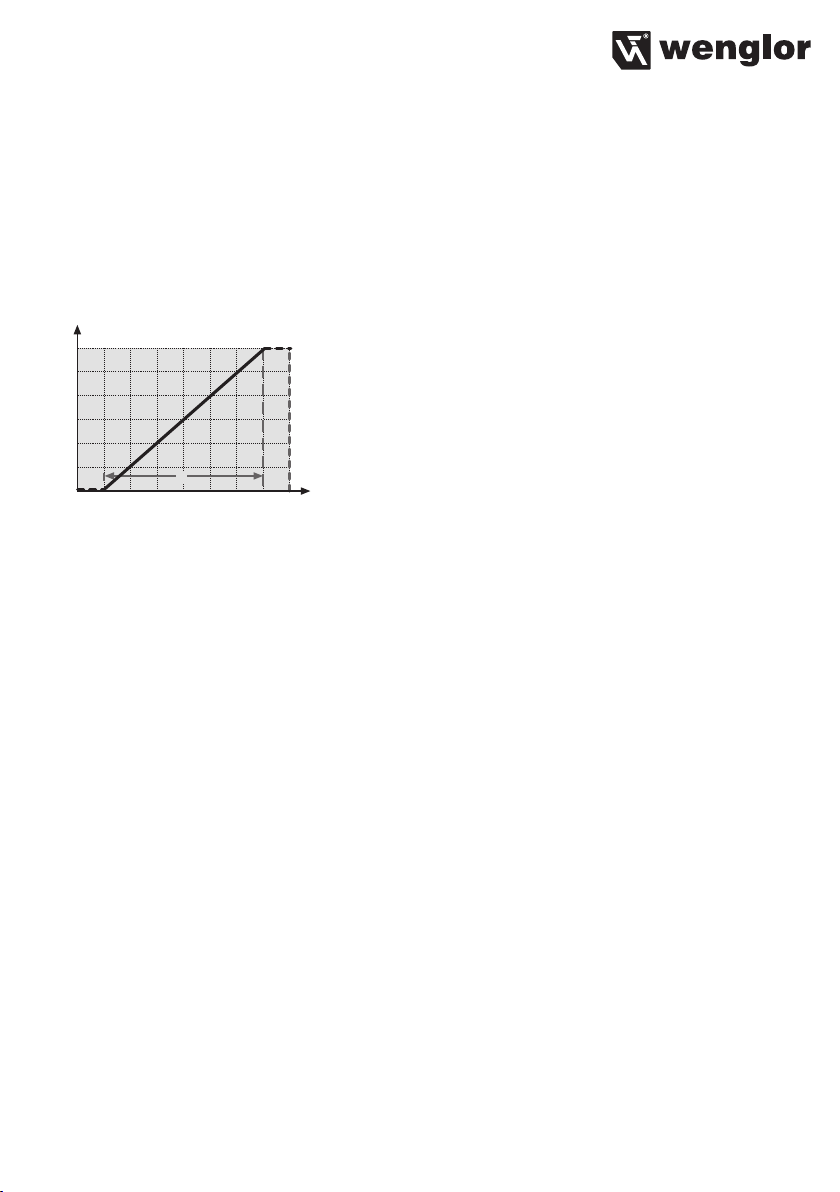

Adjustment of Measuring Range
You can either adjust the zero point (begin of working range) of the rising characteristic function (vide point A) or
you can set the Measuring Range individually by means of the zoom function (vide points B and C). The zoom
function is possible for rising and falling characteristic functions. You can restore the the full Measuring Range
with Reset.
A) Adjust zero point of the Measuring Range:
• Set the rotary selector switch Ýto TEACH
• Press and holt the minus-key until the yellow LEDs blink
èyellow LEDs blink
èCharacteristic curve is now rising with slope over the full measuring range and the selected zero point
• Set the rotary selector switch Ýto RUN
B) Setting the measuring range for a rising characteristic function (Zoom function):
• Set the rotary selector switch Ýto TEACH
èred F-LED lights up
• Place the object at the most distant point of the desired working range
• Briefly press the plus-key 
èyellow I-LED lights up
• Place the object at the nearest point of the desired working range
• Briefly press the minus-key 
èyellow LEDs light up: The two points have now been taught in
èyellow LEDs do not light up: Teach-In must be repeated because the two points are too close to each
other, or they are outside of the measuring range
• Set the rotary selector switch Ýto RUN
C) Setting the measuring range for a falling characteristic function (Zoom function):
• Set the rotary selector switch Ýto TEACH
èred F-LED lights up
• Place the object at the most distant point of the desired working range
• Briefly press the minus-key 
èyellow U-LED lights up
• Place the object at the nearest point of the desired working range
• Briefly press the plus-key 
èyellow LEDs light up: The two points have now been taught in
èyellow LEDs do not light up: Teach-In must be repeated because the two points are too close to each
other, or they are outside of the measuring range
• Set the rotary selector switch Ýto RUN

12
EN
8.2. Special Settings
Adjusting the filter function:
• Set the rotary selector switch Ýto FILTER ADJUST
èThe red F-LED lights up
èThe yellow LEDs are off: Filter function is presently disabled
èYellow LEDs blink once followed by a pause: filter currently set to level 1 (1/4 cut-off frequency)
èYellow LEDs blink twice followed by a pause: filter currently set to level 2 (1/16 cut-off frequency)
èYellow LEDs blink three times followed by a pause: filter currently set to level 3 (1/64 cut-off frequency)
• Briefly press the minus-key 1 to 3 times
èThe filter level is reduced by one each time the key is pressed
èThe blinking pattern of the yellow LEDs indicates the newly selected filter level
• Briefly press the plus-key 1 to 3 times
èThe filter level is increased by one each time the key is pressed
èThe blinking pattern of the yellow LEDs indicates the newly selected filter level
• Set the rotary selector switch Ýto RUN
Optimize the exposure time
The exposure time is adapted automatically by the sensor. In the presetted DCM (Default Capture Mode) the
Sensor has a fixed maximal possible Exposure Time. It can be adjusted manually in addition in case of difficult
applications.
By means of the LCM (Long Capture Mode) the Exposure Time of the sensor can be elongated for dark or
highly glossy objects (e.g. black lack) in order to achieve a more exact measurement.
By means of the SCM (Short Capture Mode) the Exposure Time of the sensor can be reduced for dark or highly
glossy objects (e.g. black lack) in order to achieve a reduction of the drop down of the Measurement Rate.
The shining of the U-LED and the I-LED the current setting is indicated. DCM is preset in delivery status. By
pressing of the Plus respectively Minus key the current setting can be changed.

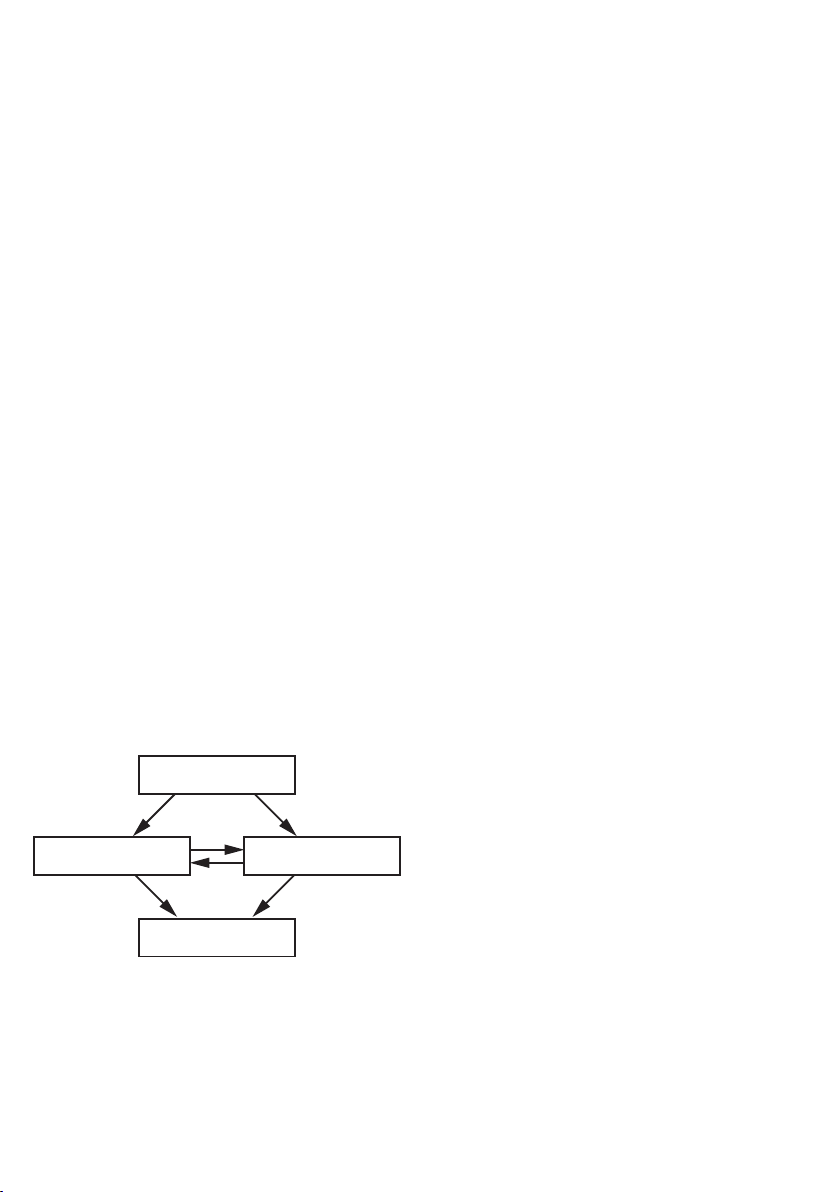

• Set the rotary selector switch Ýto DCM/LCM/SCM
DCM U-LED: OFF
I-LED: OFF
*
DCM U-LED: OFF
I-LED: OFF

LCM U-LED: ON
I-LED: OFF
U-LED: OFF
I-LED: ON
SCM





* Presetting
= Minus Button/ LED
= Plus Button / LED
DCM = Default Capture Mode
SCM = Short Capture Mode
LCM = Long Capture Mode
• Set the rotary selector switch Ýto RUN

13
9. Maintenance Instructions
• This wenglor sensor is maintenance-free.
• It is advisable to clean the lens and the display, and to check the plug connections at regular intervals.
• Do not clean with solvents or cleansers which could damage the device.
10. Proper Disposal
wenglor sensoric GmbH does not accept the return of unusable or irreparable products. Respectively valid
national waste disposal regulations apply to product disposal.
