Weslo WLEL32912.0 User manual

www.weslo.com
Model No. WLEL32912.0
Serial No.
Write the serial number in the space
above for reference.
Serial Number Decal
(under frame)
QUESTIONS?
If you have questions, or if parts
are damaged or missing, DO NOT
CONTACT THE STORE; please
contact Customer Care.
IMPORTANT: Please register this
product (see the limited warranty
on the back cover of this manual)
before contacting Customer Care.
CALL TOLL-FREE:
1-866-699-3756
Mon.-Fri., 6a.m.-6 p.m. MT
Sat. 8 a.m.-4 p.m. MT
ON THE WEB:
www.wesloservice.com
;ER'S A UAL
lirn"® ,ow. oj
',,--- www.iFit.com =-t

TABLE OF CONTENTS
WARNING DECAL PLACEMENT ............................................................... 2
IMPORTANT PRECAUTIONS .................................................................. 3
BEFORE YOU BEGIN ........................................................................ 4
PART IDENTIFICATION CHART ................................................................ 5
ASSEMBLY ................................................................................ 6
HOW TO USE THE ELLIPTICAL .............................................................. 13
MAINTENANCE AND TROUBLESHOOTING .................................................... 17
FCC INFORMATION ........................................................................ 17

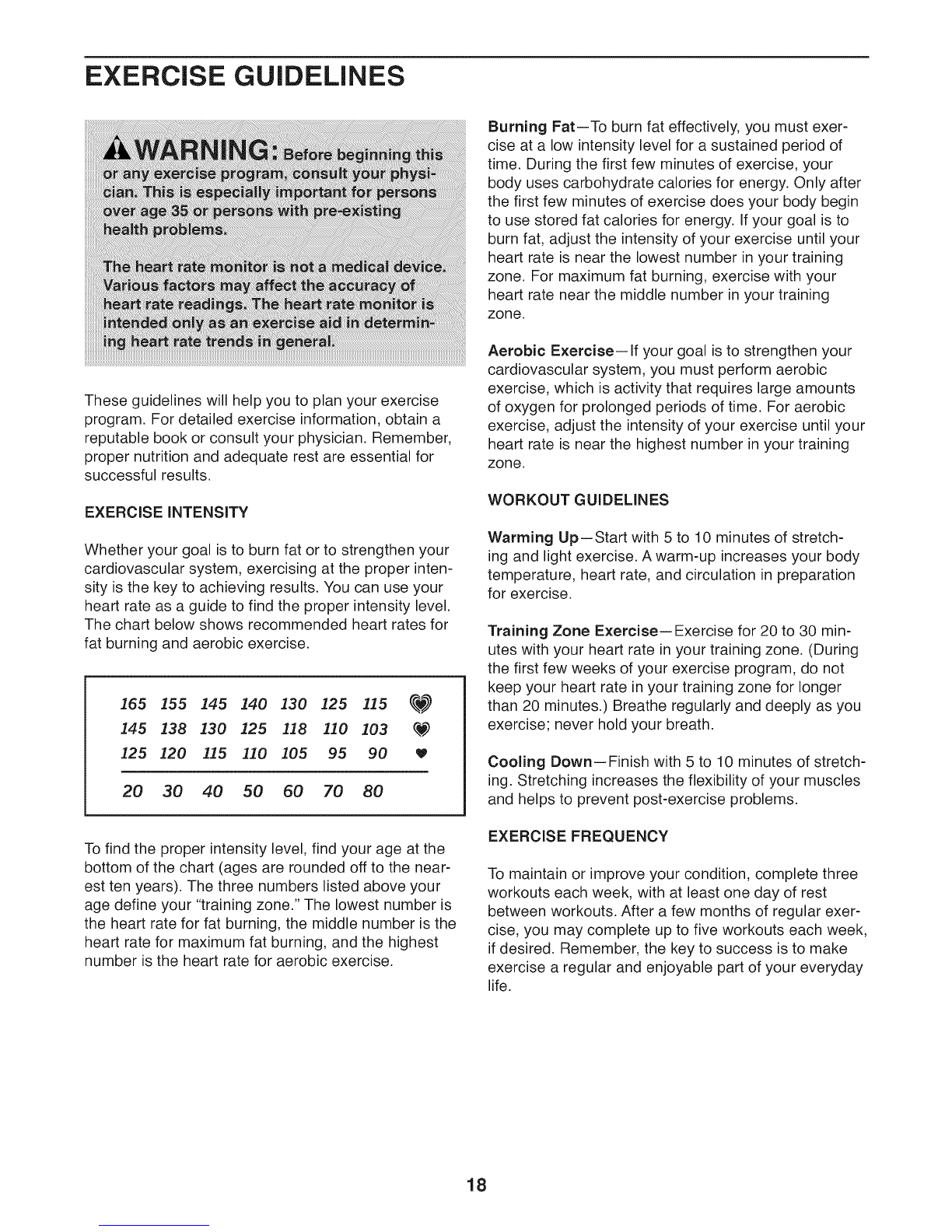

EXERCISE GUIDELINES .................................................................... 18
PART LIST ................................................................................ 20
EXPLODED DRAWING ...................................................................... 22
ORDERING REPLACEMENT PARTS .................................................. Back Cover
LIMITED WARRANTY ............................................................... Back Cover
WARNING DECAL PLACEMENT
This drawing shows the location(s) of the warning
decal(s), if adecal is missing or illegible, see the
front cover of this manual and request a free
replacement decal. Apply the decal in the Ioca=
tion shown. Note: The decal(s) may not be shown at
actual size.
•Misuse of this machine
may result in serious
injury.
•Read user's m=anuall
prior to use and foUow
all warnings and
instructions.
• Do not allow children
on or around machine.
•Pedals continue to
spin when you stop
pedaling.
•Spinning pedals can
cause injury.
•Reduce pedal speed
ina controlled manner.
•User weight must not
exceed 250 pounds.
• Replace label if
damaged, illegible, or
removed,
•Mal usode esta m_quina
puede resumtaren graves
lesiones.
.Lea el manual del usuarb
antes del uso y siga
todas las precauciones
e _nstrucciones,
•No deje a ni_os en o
alrededor deia m_quLna.
•Los pedales contin_an a
girar cuando usted para
de empujara los pedales.
•Los pedales al girar
pueden causar heridas.
°Reduzca la velocidad de
los pedales enforma
controlada.
•El peso del usuario no
debe exceder 113 kg.
•Reemplace la calcomania
si est_ daSada, Jlegible,
LO faltando, _.
WESLO is a registered trademark of ICON IP, Inc.
2

iMPORTANT PRECAUTIONS
WARNING: Toreducetheriskofseriousinjury,reada, mportantprecautionsand
instructions in this manual and all warnings on your elliptical before using your elliptical, iCON
assumes no responsibility for personal injury or property damage sustained by or through the use of
this product.
1. it is the responsibility of the owner to ensure 9.
that all users of the elliptical are adequately
informed of all precautions.
.
=
Before beginning any exercise program,
consult your physician. This is especially
important for persons over age 35 or per-
sons with pre-existing health problems.
Use the elliptical only as described in this
manual.
10.
11.
The elliptical should not be used by persons
weighing more than 250 Ibs. (113 kg).
Wear appropriate clothes while exercising;
do not wear loose clothes that could become
caught on the elliptical. Always wear athletic
shoes for foot protection while exercising.
Hold the handlebars or the upper body arms
when mounting, dismounting, or using the
elliptical.
.
.
.
The elliptical is intended for home use only.
Do not use the elliptical in a commercial,
rental, or institutional setting.
Keep the elliptical indoors, away from mois-
ture and dust. Do not put the elliptical in a
garage or covered patio, or near water.
Place the elliptical on a level surface, with at
least 3 ft. (0.9 m) of clearance in the front and
rear of the elliptical and 2 ft. (0.6 m) on each
side. To protect the floor or carpet from dam-
age, place a mat under the elliptical.
12.
13.
14.
The heart rate monitor is not a medical
device. Various factors may affect the accu-
racy of heart rate readings. The heart rate
monitor is intended only as an exercise aid
in determining heart rate trends in general.
The elliptical does not have a freewheel; the
pedals will continue to move until the fly-
wheel stops. Reduce your pedaling speed in
a controlled way.
Keep your back straight while using the ellip-
tical; do not arch your back.
=
.
inspect and properly tighten all parts regu-
larly. Replace any worn parts immediately.
Keep children under age 12 and pets away
from the elliptical at all times.
15. Over exercising may result in serious injury
or death. If you feel faint or if you experience
pain while exercising, stop immediately and
cool down.
3

BEFORE YOU BEGIN
Thank you for selecting the new WESLO <_'
MOMENTUM CT 6.2 elliptical. The MOMENTUM CT
6.2 elliptical provides a selection of features designed
to make your workouts at home more effective and
enjoyable.
For your benefit, read this manual carefully before
you use the elliptical. If you have questions after
reading this manual, please see the front cover of this
manual. To help us assist you, note the product model
number and serial number before contacting us. The
model number and the location of the serial number
decal are shown on the front cover of this manual.
Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
Length: 6 ft. (183 cm)
Width: 1ft. 11 in. (58cm)
Console
Upper Body Arm
--Heart Rate Monitor
Handlebar
Wheel
Pedal Disc
Pedal
Leveling Dial
4

PART iDENTiFiCATiON CHART
Use the drawings below to identify the small parts needed for assembly. The number in parentheses below each
drawing is the key number of the part, from the PART LIST near the end of this manual. The number following the
key number is the quantity needed for assembly. Note: if a part is not in the hardware kit, check to see if it
has been preassembled.
M8 Locknut
(27)-6 M10 Locknut (32)-6 M8 Split M8 Washer M10 Washer Washer (8)-10 (71)-10 (10)-6
M3 x 20mm M4 x 16mm M4 x 20mm M4 x 20mm M8 x 16mm
Screw (79)-4 Screw (2)-4 Self-tapping Screw (93)-6 Screw (35)-4
Screw (45)-2
M8 x 20mm
Screw (7)-3 M8 x 36mm Bolt (22)-4
M8 x 82mm
Screw (53)-4
M10 x 76mm
Bolt (30)-2
M8 x 78mm Bolt (38)-2
M10 x 45mm
Bolt (39)-4
5

ASSEMBLY
To hire an authorized service technician to
assemble this product, call 1-800-445-2480.
To watch an assembly
video, go to
http ://productvideo.co/
assembly/kmart/weslo or
use your mobile phone
or smartphone to read
the QR code at the right.
Assembly requires two
persons.
Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until you finish all assembly steps.
• Left parts are marked "L" or "Left" and right parts
are marked "R" or "Right."
• To identify small parts, see page 5.
• In addition to the included tool(s), assembly
requires the following tools:
one adjustable wrench
one Phillips screwdriver
one rubber mallet
Assembly may be easier if you have a set of
wrenches. To avoid damaging parts, do not use
power tools.
.Identify the Rear Stabilizer (52), which has a lev-
eling dial on each end. Note: The Rear Stabilizer
does not have wheels.
Set a sturdy piece of packing material under the
rear of the Frame (54). Have a second person
hold the Frame to prevent it from tipping
while you complete this step.
Attach the Rear Stabilizer (52) to the Frame (54)
with two M8 x 82mm Screws (53), two M8 Split
Washers (8), and two M8 Washers (71).
Remove the packing material.
53
71
8
Leveling
Dial
6

.2
If there is a cardboard tube (not shown) on the
front the Frame (54), remove and discard the
attachment screw and the cardboard tube.
Set a sturdy piece of packing material under the
front of the Frame (54). Have a second person
hold the Frame to prevent it from tipping
while you complete this step.
Attach the Front Stabilizer (37) to the Frame (54)
with two M8 x 82mm Screws (53), two M8 Split
Washers (8), and two M8 Washers (71).
Remove the packing material.
37
54
53
3. Orient the Right Pedal (76) as shown.
Attach the Right Pedal (76) to the Right Pedal
Arm (75) with two M10 x 45mm Bolts (39), two
M10 Washers (10), and two M10 Locknuts (32).
Attach the Left Pedal (not shown) to the Left
Pedal Arm (not shown) in the same way.
3
39
75
76
10
32
7

Attach the Right Pedal Arm Cover (85) to the
Right Pedal Arm (75) with an M4 x 20mm Self-
tapping Screw (45).
Repeat this step on the other side of the
elliptical.
.Orient the Upright (9) and the Lower Upright
Cover (83) as shown. Slide the Lower Upright
Cover upward onto the Upright.
Have a second person hold the Upright (9) and
the Lower Upright Cover (83) near the Frame
(54). Connect the Extension Wire (16) to the
Main Wire (26).
Tip: Avoid pinching the wires. Slide the
Upright (9) onto the Frame (54).
Attach the Upright (9) with two M8 x 78mm Bolts
(38), two M8 Split Washers (8), two M8 Washers
(71), and two M8 Locknuts (27). Make sure that
the Locknuts are inside the hexagonal holes.
Do not fully tighten the Bolts yet.
Then, attach the Upright (9) with four M8 x
16mm Screws (35), four M8 Split Washers (8),
and four M8 Washers (71). Do not fully tighten
the Screws yet.
Slide the Lower Upright Cover (83) downward
to the Frame (54). Do not press the Lower
Upright Cover into place yet.
5
Avoid pinching
the wires
35
Hexagonal
Holes
26
71
_8
35
8

Apply a small amount of grease to an M10 x
76mm Bolt (30).
Hold the end of the Right Upper Body Leg (80)
inside the bracket on the Right Pedal Arm (75).
Attach the Right Upper Body Leg (80) to the
Right Pedal Arm (75) with the M10 x 76mm Bolt
(30), an M10 Washer (10), and an M10 Locknut
(32). Do not overtighten the Bolt; the Right
Upper Body Leg must pivot freely.
Repeat this step on the other side of the
elliptical.
80
Grease
75
,Attach a set of Left and Right Upper Body Leg
Covers (90, 91) to the Right Pedal Arm (75) with
three M4 x 20mm Screws (93).
Repeat this step on the other side of the
elliptical.
91
93
9

8. Orient the Handlebar (4) as shown.
Have a second person hold the Handlebar (4)
near the Upright (9). Insert the Extension Wire
(16) into the Handlebar and pull it out of the top
of the Handlebar.
Tip: Avoid pinching the wires. Attach the
Handlebar (4) to the Upright (9) with three M8 x
20mm Screws (7).
4 16
7_
/
Avoid pinching
the wires
,Slide the Right Upper Body Arm (15) onto the
Right Upper Body Leg (80).
Attach the Right Upper Body Arm (15) with two
M8 x 36mm Bolts (22) and two M8 Locknuts
(27). Make sure that the Locknuts are inside
the hexagonal holes.
Repeat this step on the other side of the
elliptical.
9
Hexagonal
Holes
22
10
