Whalen WMFP60FH-9 User manual

THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION.
PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Whalen Furniture Manufacturing Page 1 Factory No. 16015
Date 2015-05-24 Rev. 1 Factory: HECFUR
60" Fall Harvest Fireplace
Stock # WMFP60FH-9
ADULT ASSEMBLY REQUIRED
If you have any questions regarding assembly or if parts are missing, DO NOT return this item to the
store where it was purchased. Please call our customer service number and have your instructions
and parts list ready to provide the model name, part name or factory number:
1-866-942-5362
Pacific Standard Time: 8:30 a.m. - 4:30 p.m., Monday - Friday
Or visit our web site 24 hours a day, 7 days a week for product assistance at
www.whalenstyle.com
Or e-mail your request to [e-mail]
LOT NUMBER:
DATE PURCHASED:
/
/

Stock # WMFP60FH-9
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Manufacturing Page 2 Factory No. 16015
MANUFACTURER: Whalen Furniture Manufacturing
CATALOG: 60" Fall Harvest Fireplace (WMFP60FH-9)
DATE OF MANUFACTURE: June 2015
MADE IN CHINA
How to adjust the European adjustable hinges on doors
Shipping may cause doors to go out of alignment. If you find that the doors need to be adjusted slightly,
turn the appropriate screw, as illustrated.
1. TO ADJUST DOOR FORWARD OR BACKWARD.
2. TO ADJUST DOOR TO RIGHT OR TO LEFT.
3. TO ADJUST DOOR UP OR DOWN.
PLACE TV BEHIND THE STOPPER
IMPORTANT INFORMATION
MAXIMUM LOAD 50 lb. (22.6 kg)
FITS UP TO MOST 70” FLAT PANEL TVs
MAXIMUM LOAD 135 lb. (61.2 kg)
THIS UNIT IS NOT INTENDED FOR USE WITH CRT TVS. USE ONLY WITH FLAT
PANEL TVS AND AUDIO/VIDEO EQUIPMENT MEETING RECOMMENDED SIZE AND WEIGHT
LIMITS. NEVER USE WITH LARGER/HEAVIER THAN RECOMMENDED FLAT PANEL TVS OR
EQUIPMENT. TO AVOID INSTABILITY, PLACE FLAT PANEL TV IN THE CENTRE OF THE UNIT;
THE BASE OF THE TELEVISION MUST BE ABLE TO REST ON THE SUPPORTING SURFACE OF
THE UNIT WITHOUT OVER-HANGING THE EDGES. IMPROPERLY POSITIONED FLAT PANEL
TVS, OR FLAT PANEL TVS OR OTHER EQUIPMENT THAT EXCEED RECOMMENDED SIZE AND
WEIGHT LIMITS COULD FALL OFF OR BREAK THE UNIT, CAUSING POSSIBLE SERIOUS INJURY.
1
3
2

Stock # WMFP60FH-9
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Manufacturing Page 3 Factory No. 16015
Important
Before you begin: Open, identify and count all parts prior to assembly. Lay out parts on a flat and non-
abrasive surface. You will need the parts identified on page 4 and 5 of this instruction manual.
NOTE: IT IS VERY IMPORTANT TO USE GLUE WITH DOWELS. EXCESS GLUE CAN BE WIPED OFF
WITH DAMP CLOTH.
Insert Dowel at least half way by tapping lightly with a rubber mallet IF NECESSARY.
CAM LOCK SYSTEM OPERATION
HOW THE KNOCK DOWN (KD) ASSEMBLY SYSTEM WORKS
1. Screw Cam Bolt into the pre-drilled small holes on panel. Connect both panels together; making sure Cam
Bolt goes into pre-drilled hole on the end of panel with Cam Lock.
2. Insert Cam Lock into pre-drilled large hole on panel. Make sure arrow on Cam Lock is pointed toward
Cam Bolt.
3. Once Cam Bolt is connected inside Cam Lock, take a Phillips screwdriver and tighten Cam Lock clockwise.
4. Plug Cam Cap into the cross slot of the Cam Locks to conceal the cam.
You are now ready to assemble the KD unit.

Stock # WMFP60FH-9
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Manufacturing Page 4 Factory No. 16015

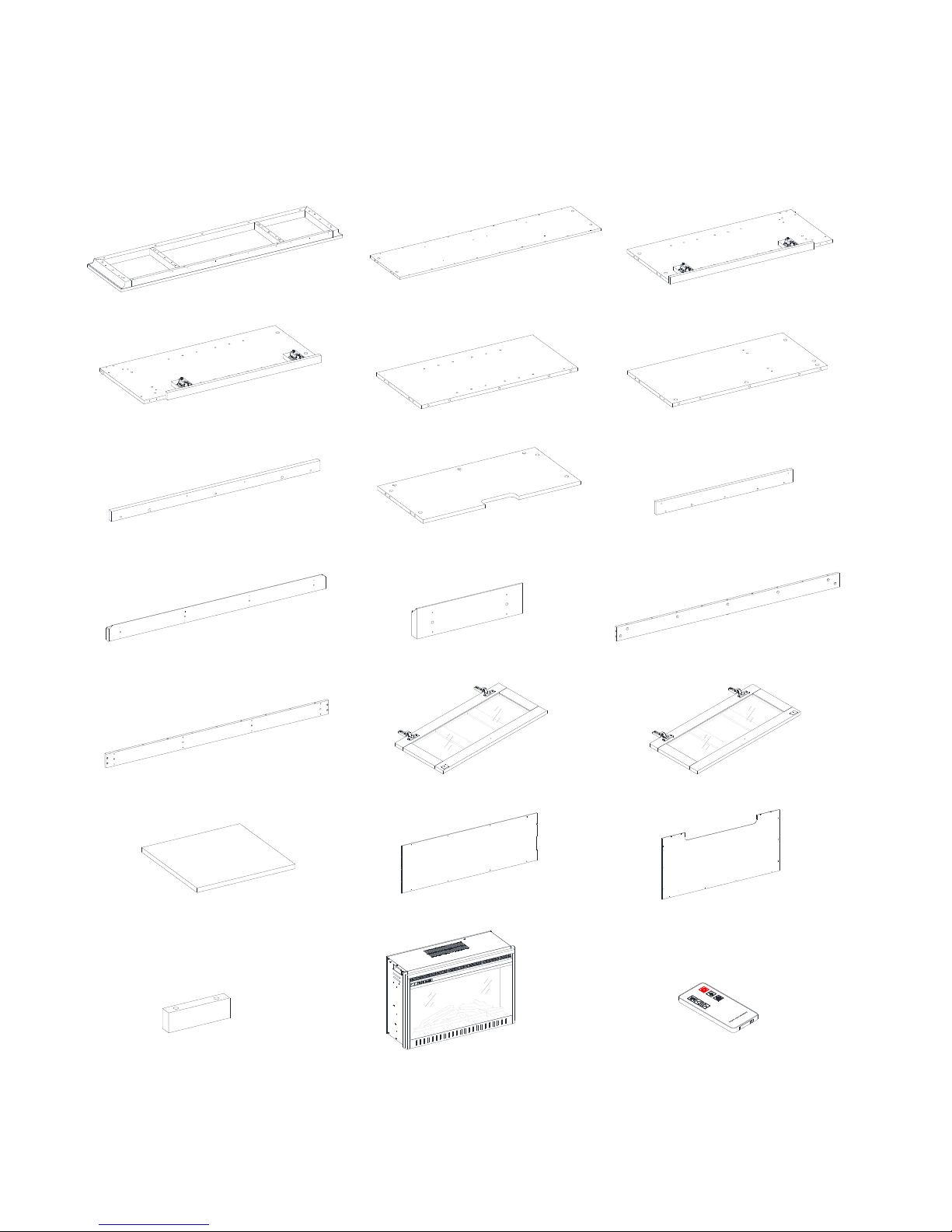

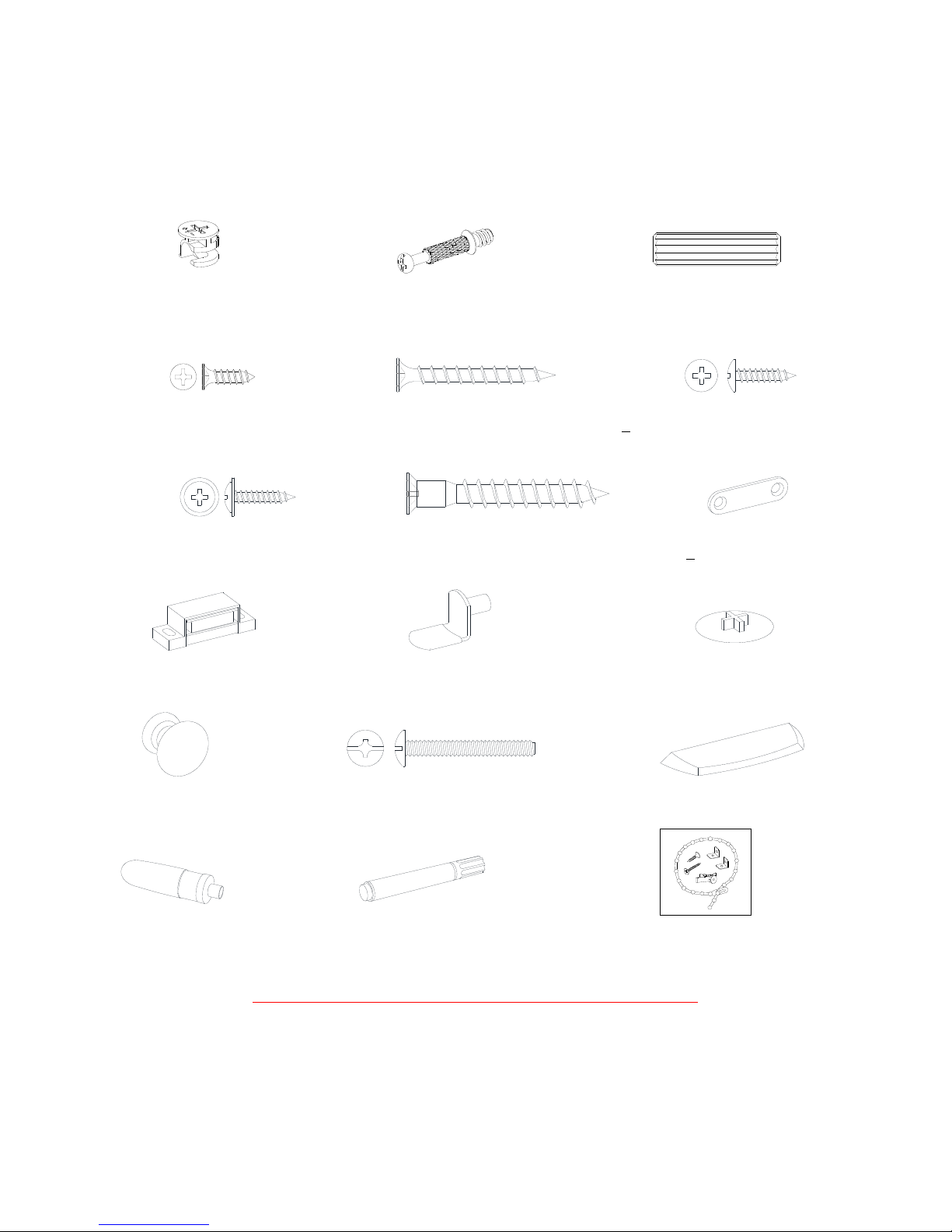

Parts and Hardware List
Please read completely through the instructions and verify that all listed parts and hardware are present
before beginning assembly.
A- Top Panel (1) B- Bottom Panel (1) C- Left Side Panel (1)
D- Right Side Panel (1) E- Left Partition Panel (1) F- Right Partition Panel (1)
G- Partition Panel Molding (2) H- Fixed Shelf (1) I- Middle Crossbar (1)
J- Front Skirting (1) K- Side Skirting (2) L- Base Rear Stretcher (1)
M- Base Front Stretcher (1) N- Left Door (1) O- Right Door (1)
P- Adjustable Shelf (4) Q- Center Back Panel (1) R-Side Back Panel (2)
S- Firebox Support (1) Fireplace Insert (1) Remote Control with Battery (1)

Stock # WMFP60FH-9
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Manufacturing Page 5 Factory No. 16015
Parts and Hardware List
Please read completely through the instructions and verify that all listed parts and hardware are present
before beginning assembly.
(1) Cam Lock (2) Cam Bolt (3) M8 x 30 mm Wood Dowel
(37+1 extra) (37+1 extra) (44+2 extra)
(4) M3 x 12 mm Screw (5) M4 x 38 mm Wood Screw (6) M3 x 15 mm Pan Head Screw
(4+1 extra) (24+1 extra) (4+1 extra)
(7) M3 x 15 mm Washer Head Screw (8) M7 x 50 mm Shoulder Screw (9) Metal Bracket
(36+1 extra) (2) (2)
(10) Magnetic Catch (11) Shelf Support (12) Cam Lock Cover
(2) (16+1 extra) (20+1 extra)
(13) Knob (2) (14) 32 mm Knob Bolt (2) (15) Acrylic Stopper (1)
Glue (1) Touch-up Pen (1) Tipping Restraint Hardware Kit (2)
(Included in plastic bag)
Tools required: Phillips screwdriver and Hammer (not provided).

Stock # WMFP60FH-9
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Manufacturing Page 6 Factory No. 16015
Assembly Instructions

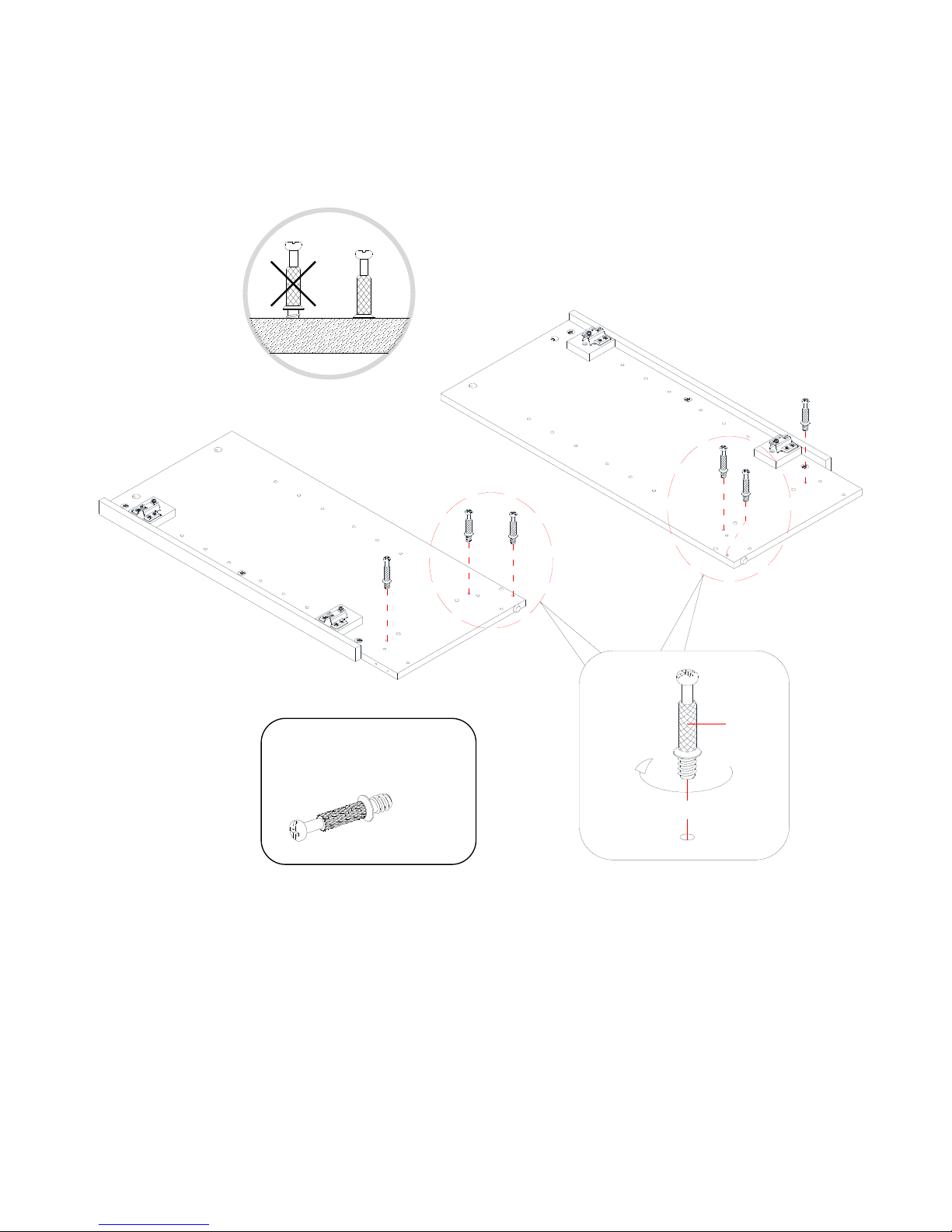

1. Unpack the unit and confirm that you have all the hardware and required parts. Assembly the unit on a
carpeted floor or the empty carton to avoid any scratch.
2. Securely screw the Cam Bolts (2) into the designated small holes on the Top Panel (A), Bottom Panel
(B), Partition Panels (E and F), Partition Panel Moldings (G) and Front Crossbar (I) by a Phillips
screwdriver, as shown in the illustration.
Cam Bolt
(31 used in this step)
②
2
B
A
I
G
E
F
G

Stock # WMFP60FH-9
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Manufacturing Page 7 Factory No. 16015
Assembly Instructions
3. Insert two Wood Dowels (3) into the inner holes on the end of Left Partition Panel (E). Tap in with a
rubber mallet, if necessary. Make sure that you use a small amount of glue with both ends of all dowels.
4. Align the drilled holes on one Partition Panel Molding (E) with the inserted Wood Dowel (3) on the
Left Partition Panel (E), and then press them together as shown. Attach the Partition Panel Molding (G)
in place by engaging three Cam Locks (1) (Refer to page 3 on Cam Lock system operation supplement).
5. Repeat the same procedure to combine the Right Partition Panel (F) and the other Partition Panel
Molding (G), the Fixed Shelf (H) and the Middle Crossbar (I) together.
E
G
F
G
I
H
1
3
Wood Dowel
(6 used in this step)
③
Cam Lock
(9 used in this step)
①

Stock # WMFP60FH-9
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Manufacturing Page 8 Factory No. 16015
Assembly Instructions
6. Align and attach the Base Rear Stretcher (L) to the Bottom Panel (B) with four wood dowels (3) and
five cam locks (1). As shown.
B
L
1
3
Wood Dowel
(4 used in this step)
③
Cam Lock
(5 used in this step)
①

Stock # WMFP60FH-9
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Manufacturing Page 9 Factory No. 16015
Assembly Instructions
7. Insert four Wood Dowels (3) into the inner holes of Fixed Shelf (H) at both ends.
8. Align and attach the assembled Fixed Shelf (H) between the Left and Right Partition Panels (E and F)
(3) keep the Middle Crossbar (I) facing the bottom edge, using four Cam Locks (1) as shown.
NOTE: There are cam bolt holes on the bottom edge of partition panels.
Wood Dowel
(4 used in this step)
③
Cam Lock
(4 used in this step)
①
H
E
F
1
3
I

Stock # WMFP60FH-9
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Manufacturing Page 10 Factory No. 16015
Assembly Instructions

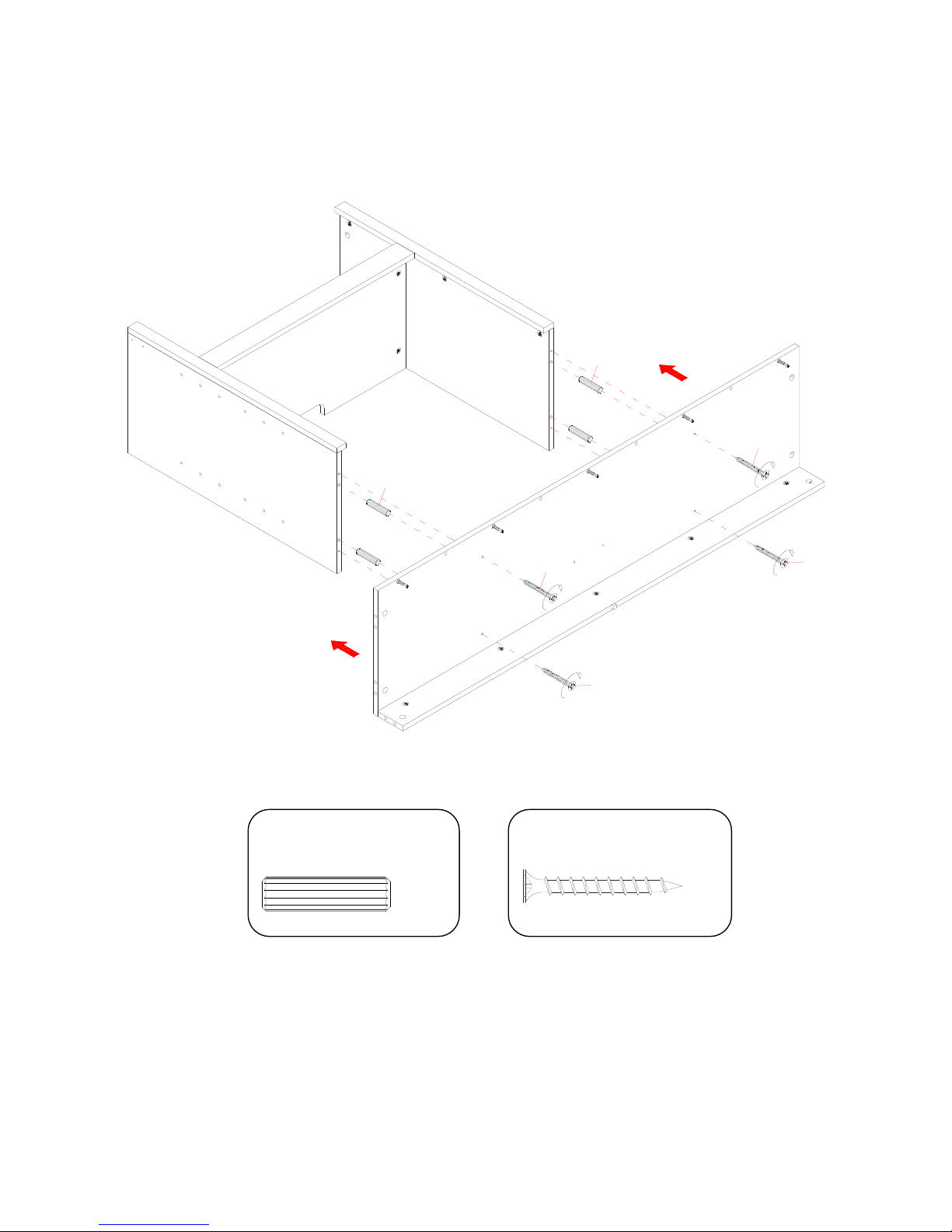

9. Insert four Wood Dowels (3) into the bottom inner holes of assembled Partition Panels (E and F) and
attach them to the Bottom Panel (B) with four 38 mm Screws (5) as shown. Tighten the screws with a
Phillips screwdriver.
E
F
B
5
5
5
5
3
3
Wood Dowel
(4 used in this step)
③
M4 x 38 mm Screw
(4 used in this step)
⑤

Stock # WMFP60FH-9
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Manufacturing Page 11 Factory No. 16015
Assembly Instructions

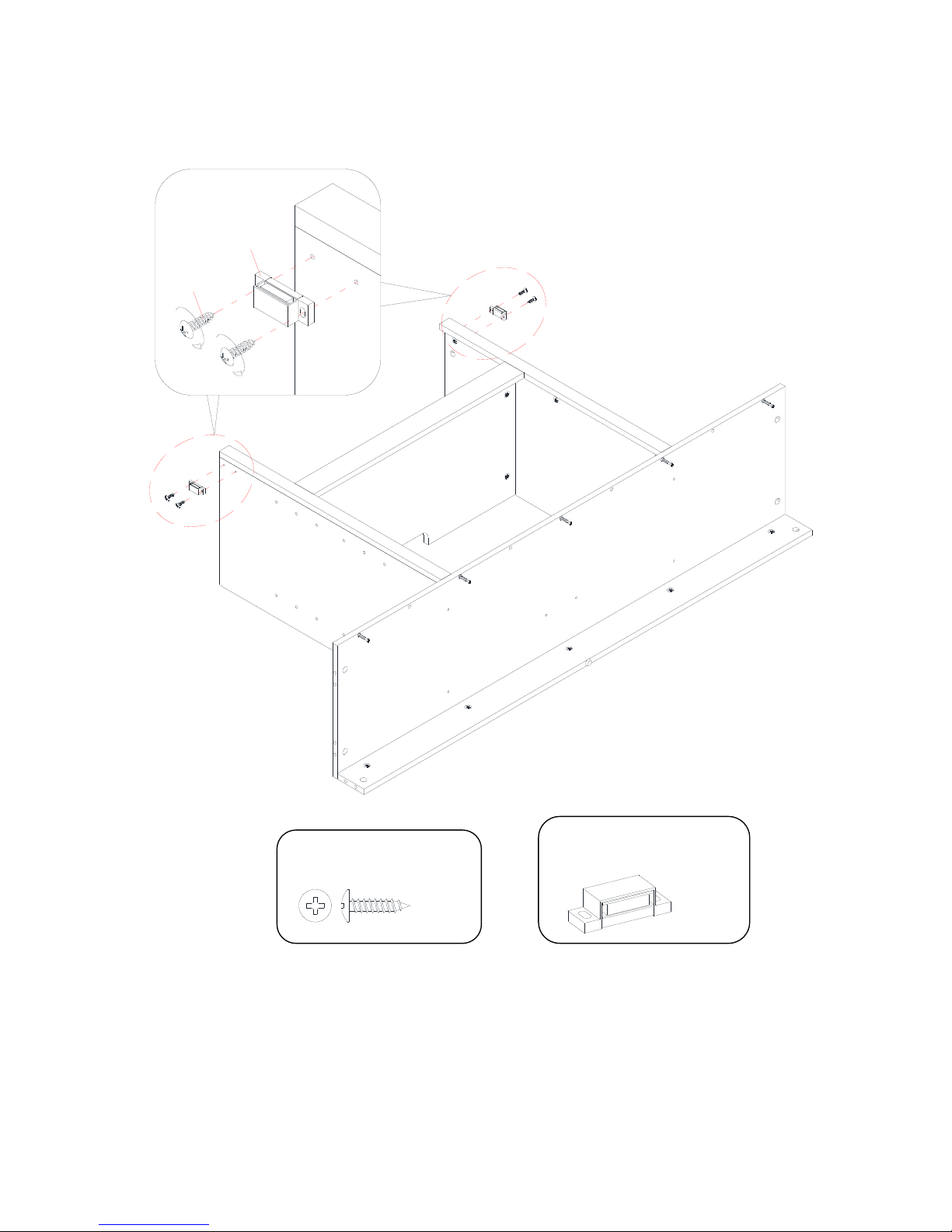

10. Using the pilot holes as a guide, attach one Magnetic Catch (10) to each Partition Panel (E and F) with
two 15 mm Screws (6) as shown. Make sure that the magnet faces the Partition Panel Molding (G).
E
F
B
10
6
M3 x 15 mm Screw
(4 used in this step)
⑥
Magnetic Catch
(2 used in this step)
⑩

Stock # WMFP60FH-9
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Manufacturing Page 12 Factory No. 16015
Assembly Instructions
11. Securely screw the Cam Bolts (2) into the designated small holes on Side Panels (C and D) as shown.
Cam Bolt
(6 used in this step)
②
C
D
2

Stock # WMFP60FH-9
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Manufacturing Page 13 Factory No. 16015
Assembly Instructions

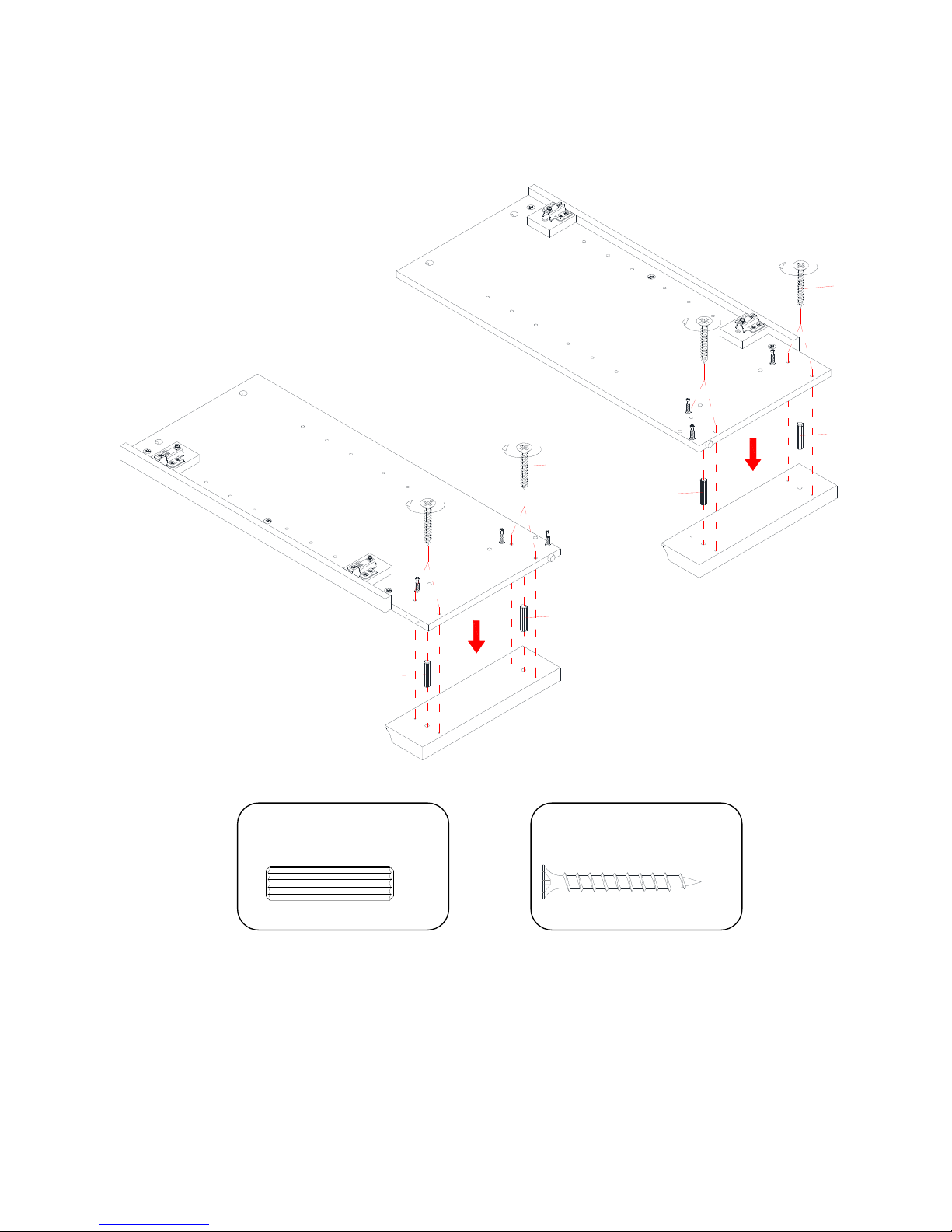

12. Insert two Wood Dowels (3) into the center holes of one Side Skirting (K) and fasten it to the Left Side
Panel (C) with two 38 mm Wood Screws (5). As shown.
13. Repeat last step to attach the other Side Skirting (K) to Right Side Panel (D).
5
C
D
5
K
K
3
3
3
3
M4 x 38 mm Wood Screw
(4 used in this step)
⑤
Wood Dowel
(4 used in this step)
③

Stock # WMFP60FH-9
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Manufacturing Page 14 Factory No. 16015
Assembly Instructions

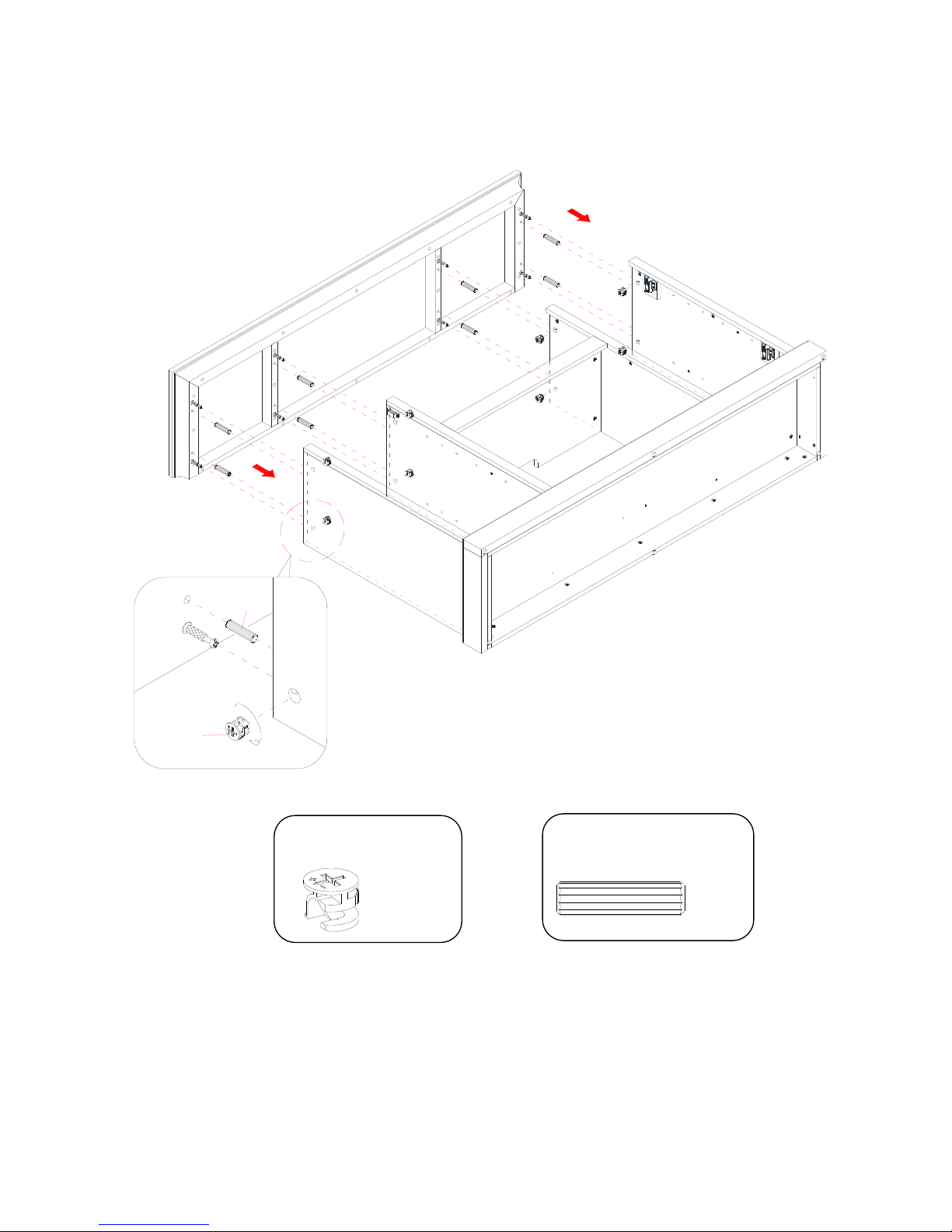

14. Insert six Wood Dowels (3) into the large end holes on the Bottom Panel (B) and Back Bottom
Stretcher (L).
15. Align the large holes on the Left Side Panel (C) with the inserted Wood Dowels (3), then firmly press
them together and fasten in place by engaging three Cam Locks (1).
16. Repeat last step to attach Right Side Panel (D) at the opposite end.
Wood Dowel
(6 used in this step)
③
Cam Lock
(6 used in this step)
①
C
D
B
L
1
3

Stock # WMFP60FH-9
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Manufacturing Page 15 Factory No. 16015
Assembly Instructions

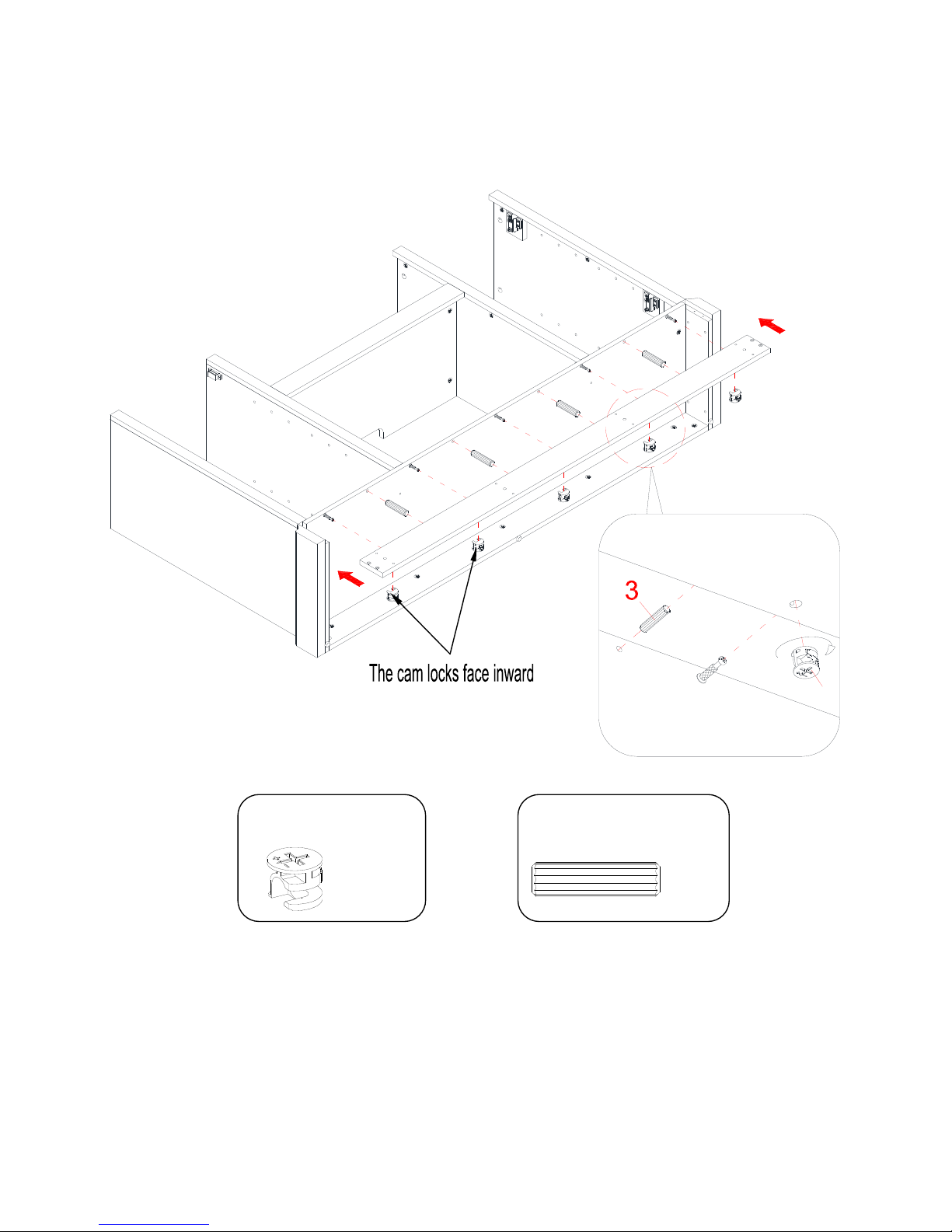

17. Align and attach the Base Front Stretcher (M) to the Bottom Panel (B) by using four wood dowels (3)
and five cam locks (1). As shown.
Wood Dowel
(4 used in this step)
③
Cam Lock
(5 used in this step)
①
1
C
D
BM

Stock # WMFP60FH-9
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Manufacturing Page 16 Factory No. 16015
Assembly Instructions
18. Fasten the Front Stretcher (M) to the Side Panels (C and D) with four 38 mm Wood Screws (5).
5B
M
C
D
5
M4 x 38 mm Wood Screw
(4 used in this step)
⑤

Stock # WMFP60FH-9
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Manufacturing Page 17 Factory No. 16015
Assembly Instructions
19. Align and attach the Front Skirting (J) to the Base Front Stretcher (M) by using four wood dowels (3)
and eight 38 mm Wood Screws (5) as shown. Make sure the floor levelers on the Front Skirting (J) will
face to the floor when the unit is turned upright.
5
3
5
3
5
3
5
3M
J
Wood Dowel
(4 used in this step)
③
M4 x 38 mm Wood Screw
(8 used in this step)
⑤

Stock # WMFP60FH-9
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Manufacturing Page 18 Factory No. 16015
Assembly Instructions
20. Insert eight Wood Dowels (3) into the top inner holes on the vertical panels (C, D, E and F). Position
the Top Panel (A) onto the inserted Wood Dowels (3) and fasten it in place with eight Cam Locks (1).
Wood Dowel
(8 used in this step)
③
Cam Lock
(8 used in this step)
①
A
C
D
E
F
1
3

Stock # WMFP60FH-9
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Manufacturing Page 19 Factory No. 16015
Assembly Instructions

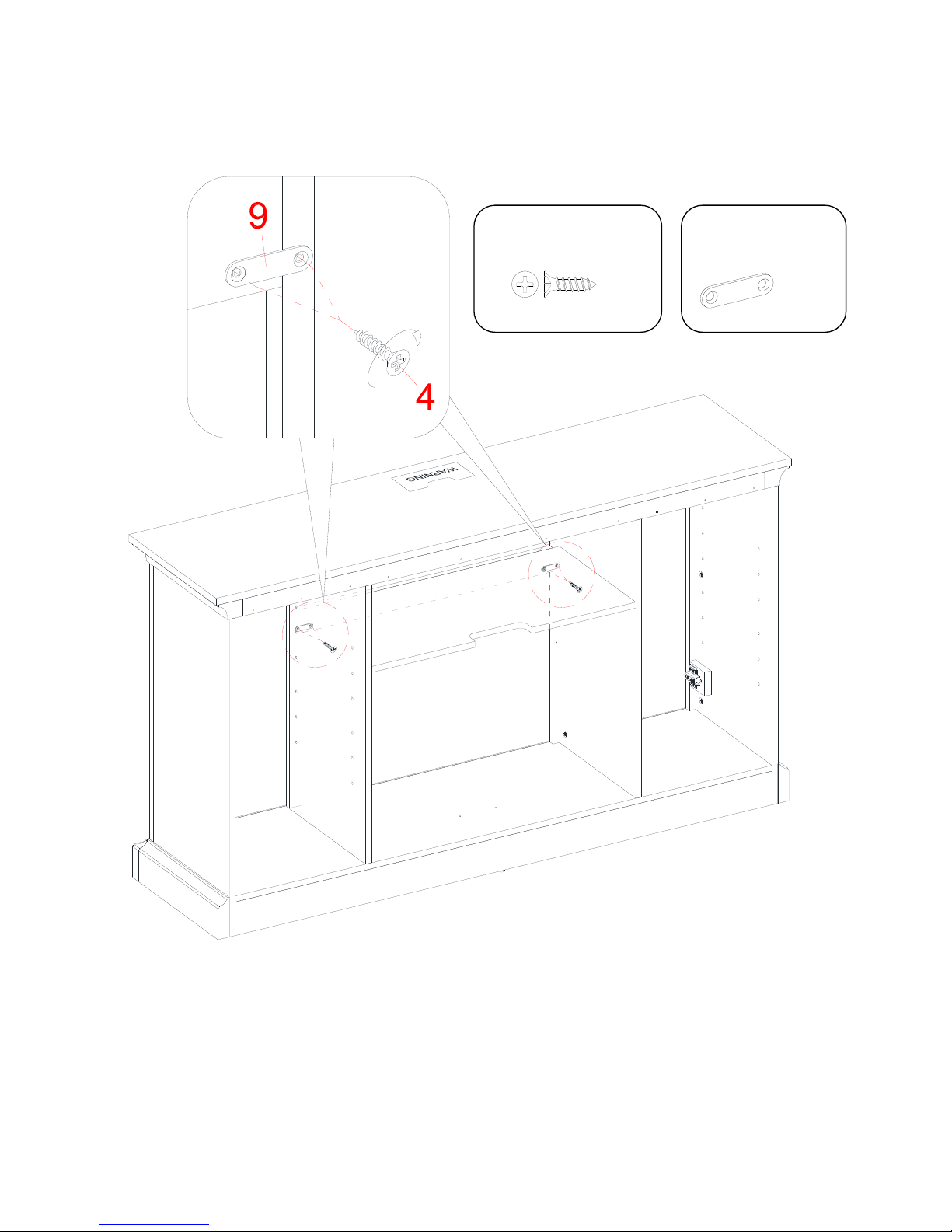

21. Stand the assembled unit upright.
22. Fasten the Middle Crossbar (I) to the Partition Panel Moldings (G) by attaching two Metal Brackets (9)
at the joints, using two 12 mm Screws (4) per Bracket.
E
F
I
M3 x 12 mm Screw
(4 used in this step)
④
Metal Bracket
(2 used in this step)
⑨

Stock # WMFP60FH-9
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Manufacturing Page 20 Factory No. 16015
Assembly Instructions
23. Now, go back and securely tighten all the Cam Locks and Wood Screws. Make sure all the parts are
tight and there are no gaps between the parts. This will help keep the unit square.
24. Pick up the Center Back Panel (Q) and align the pre-drilled holes against the upper long edge with the
pilot holes on the back stretcher of Top Panel (A). Attach the Center Back Panel (Q) in place using the
provided Washer Head Screws (7).
25. Align and attach two Side Back Panels (P) to the Top Panel (A) and the vertical panels (C, D, E and F)
with the provided Washer Head Screws (7).
7
A
Q
R
R
M3 x 15 mm Washer Head Screw
(37 used in this step)
⑦
