Whalen BBAVC60-3 User manual

THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION.
PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Date 2021-09-28 Rev. 0001-A
0" TV Stand
Model # BBAVC 0-3
ADULT ASSEMBLY REQUIRED
If you have any questions regarding assembly or if parts are missing, DO NOT return this item to the store where
it was purchased. Please call our toll-free customer service number and have your instructions and parts list
ready to provide the model name, part name or factory number:
1-866-942-5362
Pacific Standard Time: 8:30 a.m. - 4:30 p.m., Monday to Friday
Or visit our website 24 hours a day, 7 days a week for product assistance at
www.whalenfurniture.c m
Or e-mail your request to parts@whalenfurniture.c m
LOT NUMBER:
DATE PURCHASED: / /

2
1. Please read the Assembly Instructions prior to assembling this product.
2. Remove all hardware from the box and sort by size.
3. Check to see that all hardware and parts are present BEFORE assembling.
4. Ask a friend to assist you with the assembly of this furniture.
5. To avoid damage, assemble the product on a sturdy, level and protective surface.
. Please wait until all steps are completed before fully tightening bolts.
7. Make sure all screws and bolts are tightly fastened before the unit is used.
SPECIAL NOTE
Please read the instruction sheets completely before assembly. Examine all packaging material
before discarding carton. Remove any remaining staples from the carton before discarding.
Remove all parts from carton and separate into groups as indicated on part list. Please ensure
all parts are included prior to assembly. Use of power tools to complete assembly is not
recommended.
This product is sold with one sets of Tipping Restraint Hardware Kit. You must install the Tipping Rest
raint
Hardware between the wall and the console to prevent any accidents or damages. When prope
rly installed,
this restraint can provide protection against the unexpected tipping of the unit due to small tre
mors, bumps or
climbing. The restraint is only a deterrent and is not a substitute for proper adult supervision. Use of tip-
over
restraints may only reduce, but not eliminate, the risk of tip-over.
G E N E R A L I N F O R M A T I O N , T I P S A N D T R I C K
S

3
Parts and Hardware List
Please read completely through the instructions and verify that all listed parts and hardware are present
before beginning assembly.
A- Top Panel (Qty. 1) B- Shelf (Qty. 2)
C- Left Leg (Qty. 1) D- Right Leg (Qty. 1)
E- Spine (Qty. 1) F- Top Frame Support (Qty. 1)
G- Cable Wheel (Qty. 2)

4
Parts and Hardware List
Please read completely through the instructions and verify that all listed parts and hardware are present
before beginning assembly.
(1) 1/4” x 5/8” Bolt (2) 1/4” x 1” Bolt
(Qty. 11+1 extra) (Qty. 14+1 extra)
(3) Lock Washer (4) Flat Washer
(Qty. 21+1 extra) (Qty. 21+1 extra)
(5) Acrylic Stopper ( ) Hex Wrench
(Qty. 2) (Qty. 1)
Touch-up Pen Tipping Restraint Hardware Kit (Qty. 1)
(Qty. 1) (Included in plastic bag)
Tools required: Phillips screwdriver and rubber mallet (not provided).

5
Assembly Instructi ns
NOTE: Please do not fully tighten all bolts until you finish assembling all parts. Once assembled, go back
and fully tighten all bolts. This will make it easier during assembly of unit.
1. Unpack the unit and confirm that you have all the hardware and required parts. Assemble the unit on a
carpeted floor or the empty carton to avoid any scratch.
2. Locate the Spine (E) and set back face down on a scratch free surface as shown.
3. Align and attach Top Panel (A) to the Spine (E) with two 1” Bolts (2), two Lock Washers (3) and two
Flat Washers (4). DO NOT over-tighten the bolts.
④ x 2
2
4
3
E
A
③ x 2
② x 2

6
Assembly Instructi ns
4. Align and attach the Top Frame Support (F) between the center rail of the top metal frame of Top Panel
(A) and the Spine (E) with three 5/8” Bolts (1), three Lock Washer (3) and three Flat Washer (4).
④ x 3
③ x 3
① x 3
4
1
3
1
4
3
A
E
F
F
A
E

7
Assembly Instructi ns
5. Fasten the Shelves (B) to the Spine (E) with two 1” Bolts (2), two Lock Washers (3) and two Flat
Washers (4) per shelf.
2
4
3
E
B
B
E
B
④ x 4
③ x 4
② x 4
The metal frames will face the floor
when the unit is turned upright

8
Assembly Instructi ns
. Align and attach the Left Leg (C) to the previous assembly by inserting four 1” Bolts (2) with Lock
Washers (3) and Flat Washers (4) through the side rails of the metal frames and screwing into place.
7. Repeat the same procedure to attach the Right Leg (D) at the opposite end.
2
4
3
B
B
A
C
D
C/D
A/B
④ x 8
③ x 8
② x 8

9
Assembly Instructi ns

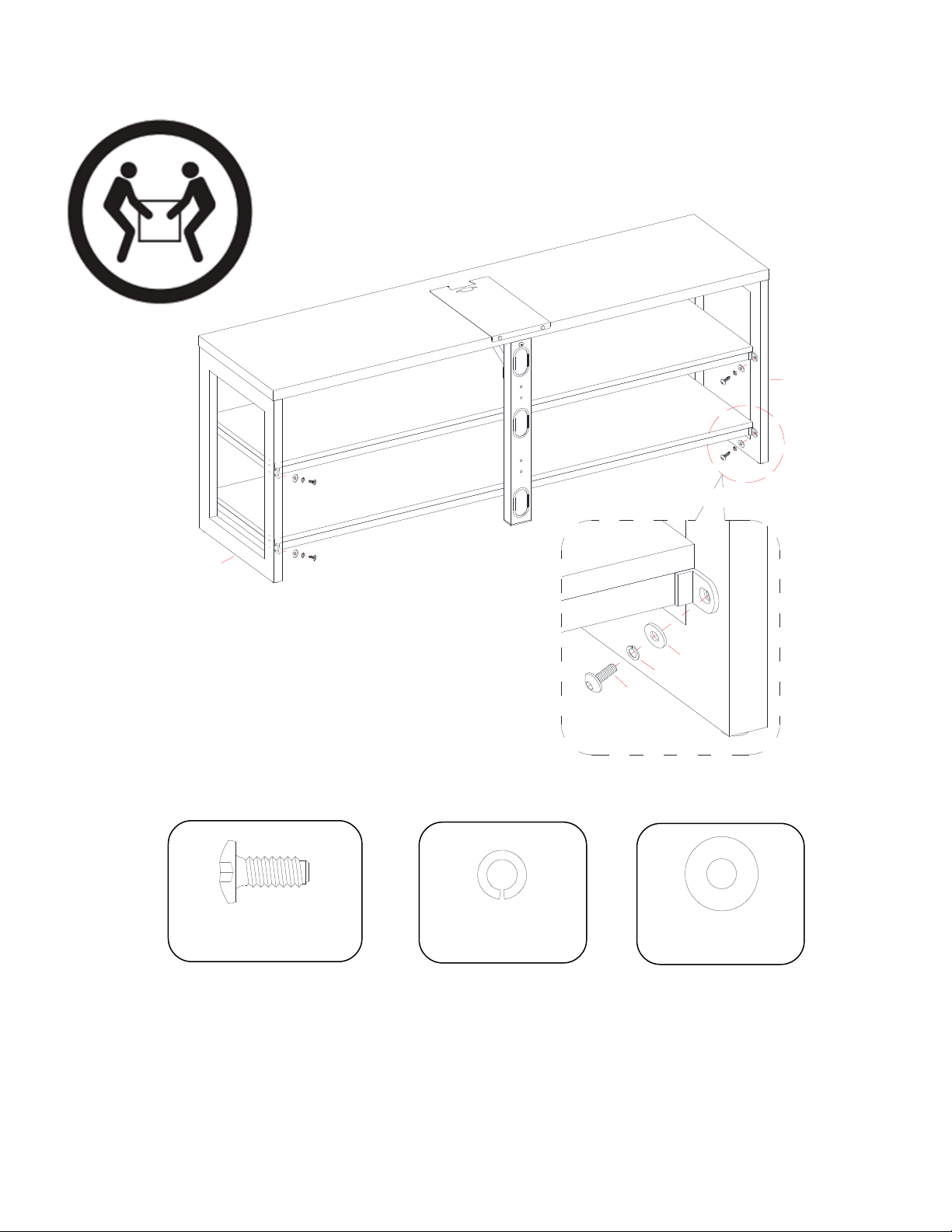

8. Ask for assistance to stand the assembled unit upright.
9. Fasten the Shelves (B) to the Legs (C and D) with four 5/8” Bolts (1), four Lock Washers (3) and four
Flat Washers (4).
1
4
3
D
C
B
B
C/D
B
④ x 4
③ x 4
① x 4

10
Assembly Instructi ns
10. Attach two Cable Wheels (G) to the backside of the Spine (E) with the 5/8” Bolts (1).
NOTE: You can use the Cable Wheels to help keep your entertainment center’s cables and cords
organized.
G
1
E
G
G
① x 4
Back View

11
Assembly Instructi ns
NOTE: To prevent your TV from tipping, you must follow these instructions if you place a TV on top
of your console. Otherwise, remove the stopper template directly.
11. Attach the Stopper (5) to the Top Panel (A).
a. If your TV has one base:
1) Remove the paper backing from the Stopper (5), then place it in the cut-out of the stopper template
on the Top Panel (A). Press down on the Stopper (5) to help adhesion.
2) On the back of the Top Panel (A), carefully pull out the thumb tacks to remove the stopper template.
b. If your TV has two bases:
1) On the back of the Top Panel (A), carefully pull out the thumb tacks to remove the stopper template.
2) Align the template at the position where one of your TV’s bases will be located.
3) Remove the paper backing from the Stopper (5), then place it in the cut-out of the stopper template
on the Top Panel (A). Press down on the Stopper (5) to help adhesion.
4) Repeat this process to attach the second Stopper (5).
⑤ x 2
A

12
Assembly Instructi ns
Tools required (not included): Phillips screwdriver, stud finder, tape measure, pencil, power drill and 1/8” drill bit.
12. Ask for assistance to position the assembled unit at the desired location against a wall. If necessary,
adjust the installed Floor Levelers beneath the Legs (C and D) to correct the tilt.
13. Follow the instructions printed on the plastic bag containing the Tipping Restraint Hardware to attach
the tip-over restraints to the unit and the wall.
NOTE: The tipping restraint hardware included is for wooden stud wall construction. It must be
attached to a wall stud. Depending upon your wall construction, different anchor hardware maybe
required. Please contact your local hardware store for assistance. Young children can be seriously
injured by tipping furniture. You must install the Tipping Restraint Hardware with the unit to
prevent the unit from tipping, causing any accidents or damage. The tipping restraints are intended only
as a deterrent, they are not a substitute for proper adult supervision. The tipping restraints are not
earthquake restraints. If you wish to add the extra security of earthquake restraints, they must be
purchased and installed separately.
Wall
Long screw
Metal bracket
P
re
-
atta
ched
bolt
Floor
l
eveler
Wall
Wooden stud
Nylon strap
 Unit must be placed on a level surface or leveled with included hardware (when applicable)
 Do not sit or stand on or allow children to climb, sit or stand on the assembled product
 For safety reasons, it is imperative that this unit be mounted to the wall
 Do not use without installing the tip restraint
 Unit can tip over causing severe injury or death
 Do not exceed the recommended weight limits
 Evenly distribute the weight on each level and always keep the heavier loads on the bottom
 Before cutting, drilling or hammering into any wall or floor surface, verify the location of electrical,
plumbing and gas lines Cutting may cause serious injury
WARNING

13
Care and Maintenance
 Use a soft, clean cloth that will not scratch the surface when dusting.
 Use of furniture polishes is not necessary. Should you choose to use polishes, test first in an inconspicuous area.
 Using solvents of any kind on your furniture may damage the finish.
 Never use water to clean your furniture as it may cause damage to the finish.
 Always use coasters under beverage glasses and flowerpots.
 Liquid spills should be removed immediately. Using a soft, clean cloth, blot the spill gently. Avoid rubbing.
 Always use protective pads under hot dishes and plates. Heat can cause chemical changes that may create
spotting within the furniture finish.
 Stains or marks from crayons or ink markers will be difficult to remove.
 In the event that your furniture is stained or otherwise damaged during use, we recommend that you call a
professional to repair your furniture.
 Check bolts/screws periodically and tighten them if necessary.
WARNING
Please use your furniture correctly and safely. Improper use can cause safety hazards, or damage to
your furniture or household items. Carefully read the following safety information.
This unit is not intended for use with CRT TVs. The top surface maximum weight capacity is 80 lbs. (3 .3 kg) and
maximum load 70in. (177.8 cm) diagonal flat-panel TV. The shelf maximum recommended weight allowance
is 50 lbs. (22.7 kg). Use with heavier televisions may result in instability causing tip over resulting in death or
serious injury.
Death or serious injury may occur when children climb on audio and/or video equipment furniture. A remote
control or toys placed on the furnishing may encourage a child to climb on the furnishing and as a result may
tip over onto the child.
NEVER allow children to climb or play with the TV or furnishing supporting the TV.
NEVER place toys, food, remote, etc. on top of the TV or TV furnishing.
ALWAYS use either the safety hardware as instructed or other wall anchoring device.
Relocating audio and/or video equipment to furniture not specifically designed to support audio and/or video
equipment may result in death or serious injury due to furniture collapse or over turning onto a child.
NEVER place a TV on furniture that is not intended to support a TV.
NEVER exceed the maximum size and weight of the TV shown in the instructions.
Be sure to refer to the TV warning label as shown in the instructions.
Overloading drawers and shelves may result in furniture that can break or sag, or tip-over which may result in
injury.
NEVER exceed the weight limits shown in the instructions.
Place the heavier items on lower shelves as far back from the front as possible.
Load the bottom surfaces first to avoid top-heavy furniture.
Moving furniture that is not designed to be moved or equipped with casters may result in injury or damage to
furnishings or personal property.
ALWAYS unload shelves and drawers, starting with the top surfaces, before moving.
NEVER push or pull furniture on carpet. Have a friend help lift properly to move and/or reposition it.
The TV stand is not meant as a seat and no one should be sitting or standing on the stand.

14
MANUFACTURER: Whalen Furniture Manufacturing
CATALOG: 0" TV Console
MODEL # BBAVC 0-3
QUALITY GUARANTEE
We are confident that you will be delighted with your Whalen Furniture purchase.
Should this product be defective in workmanship or materials or fail under normal use, we will repair or
replace it for up to one (1) year from date of purchase. Every Whalen Furniture product is designed to meet
your highest expectations. We guarantee that you will immediately see the value of our fine furniture.
This warranty gives you specific legal rights and you may also have other rights which vary from state to state.
Whalen Furniture Manufacturing
1578 Air Wing Road, San Diego, CA 92154, USA
Customer Service: 1-8 -942-53 2
8:30 a.m. - 4:30 p.m., PST, Monday to Friday
www.whalenfurniture.c m
M A X I M U M R E C O M M E N D E D W E
I G H T L
O A
D S
P
LACE TV B
EHIND THE
STOPPER
FITS UP TO MOST 177.8 cm / 70”
DIAGONAL FLAT PANEL TVs
MAXIMUM LOAD 3 .3 kg / 80 lb
THIS UNIT IS NOT INTENDED FOR USE WITH CRT TVS. USE ONLY WITH FLAT
PANEL TVS AND AUDIO/VIDEO EQUIPMENT MEETING RECOMMENDED SIZE AND WEIGHT LIMITS.
NEVER USE WITH LARGER/HEAVIER THAN RECOMMENDED FLAT PANEL TVS OR EQUIPMENT. TO
AVOID INSTABILITY, PLACE FLAT PANEL TV IN THE CENTER OF THE UNIT; THE BASE OF THE
TELEVISION MUST BE ABLE TO REST ON THE SUPPORTING SURFACE OF THE UNIT WITHOUT
OVER-HANGING THE EDGES. IMPROPERLY POSITIONED FLAT PANEL TVS, OR FLAT PANEL TVS
INCLUDING OTHER EQUIPMENT THAT EXCEED RECOMMENDED SIZE AND WEIGHT LIMITS
COULD FALL OFF OR BREAK THE UNIT, CAUSING POSSIBLE SERIOUS INJURY. FOR USE WITH
TELEVISIONS WEIGHING 80 LBS (3 .3 KG) OR LESS. USE WITH HEAVIER TELEVISIONS MAY RESULT IN
INSTABILITY CAUSING TIP OVER RESULTING IN DEATH OR SERIOUS INJURY.
MAXIMUM LOAD 22.7 kg / 50 lb

ESTE INSTRUCTIVO CONTIENE INFORMACION IMPORTANTE DE SEGURIDAD.
POR FAVOR LEA Y MANTENGA PARA USO FUTURO.
Fecha 2021-09-28 Rev. 0001-A
C ns la para TV de 60”
M del # BBAVC60-3
ENSAMBLE POR ADULTO REQUERIDO
Si tienen alguna pregunta acerca del ensamble si alguna parte está faltante, n ret rne esté pr duct a la
tienda d nde l c mpr . P r fav r llame a nuestr departament de ayuda al cliente teniend su instructiv y
lista de partes para pr veer el m del , n mbre de parte el númer de fábrica:
1-866-942-5362
H ra estándar del Pacífic : 8:30 a.m. - 4:30 p.m., de Lunes a Viernes
O visite nuestra página de Internet 24 h ras al día, 7 días a la semana para asistencia
www.whalenfurniture. om
O mande un c rre electrónic a parts@whalenfurniture. om
NÚMERO de LOTE:
FECHA de COMPRA: / /

2
1. P r fav r leal instructiv antes de c menzar el ensamble.
2. Retirar t d el material de ferretería de la caja y rdenar p r tamañ .
3. Asegurar de que t d el material de ferretería y partes estén presentes ANTES del ensamble.
4. Pedir asistencia de un amig para ensamblar la unidad.
5. Para evitar dañ s, ensamblar el pr duct en una superficie fuerte, nivelada y pr tegida.
6. Esperar hasta que t d s l s pas s estén c mpletad s antes de apretar l s pern s.
7. Asegurar de que l s pern s y tuercas estén apretad s antes de usar la unidad.
NOTA ESPECIAL
P r fav r lea t d el instructiv antes de ensamblar. Examinar t d el material de
empaque antes de tirar el cartón. Retirar cualquier grapa del cartón antes de tirar. Retirar
t das las partes del cartón y separar en grup s c m es indicad en la lista de partes. P r
fav r de asegurar que t das las partes están presentes antes del ensamble. El us de
herramientas eléctricas para c mpletar el ensamble n es rec mendad .
I NF O RMA CI Ó N G EN E RAL , R ECO M E
NDA CI O N ES Y T R
UCO S
Esté pr duct viene c n 1 jueg s de restricción de m vimient . Debe instalar el jueg
de restricción de
m vimient entre la unidad y la pared
para prevenir cualquier accidente dañ . Al ser instalad s
c rrectamente, el t pe pr tege c ntra la inclinación
de la unida debid a tembl res pequeñ s, g lpes
escalamient . El t pe de m vimient es s l un impediment , n hay substitut para la supervisión adulta.
El
us de t pes de m vimient puede reducir, per n eliminar, el rieg de caída.

3
Lista de partes y material de ferretería
P r fav r lea c mpletamente las instrucci nes y verifique que estén t das las partes y partes de
ferretería antes de iniciar el ensamblad .
A- Panel superi r (Cant. 1) B- Repisa (Cant. 2)
C- Pata izquierda (Cant. 1) D- Pata derecha (Cant. 1)
E- S p rte central (Cant. 1) F- S p rte del marc superi r (Cant. 1)
G- Guía para cables (Cant. 2)

4
Lista de partes y material de ferretería
P r fav r lea c mpletamente las instrucci nes y verifique que estén t das las partes y partes de
ferretería antes de iniciar el ensamblad .
(1) Pern de 1/4” x 5/8” (2) Pern de 1/4” x 1”
(Cant. 11+1 extra) (Cant. 14+1 extra)
(3) Arandela de presión (4) Arandela plana
(Cant. 21+1 extra) (Cant. 21+1 extra)
(5) T pe de acrílic (6) Llave hexag nal
(Cant. 2) (Cant. 1)
Plumón Jueg de restricción de m vimient (Cant. 1)
(Cant. 1) (Incluid en b lsa de plástic )
Herramientas requeridas: Desarmad r estrella y maz de g ma (n pr vist s).

5
Instru tivo de ensamble
NOTA: P r fav r n apriete c mpletamente t d s l s pern s, hasta que termine c n el ensamble de las
partes. Después asegúrese de apretar t d s l s pern s. Est hará el ensamble más fácil.
1. Desempacar la unidad y c nfirmar que se tiene t d el material de ferretería y partes requeridas.
Ensamblar la unidad en un pis alf mbrad en el cartón vací para evitar rasguñ s.
2. L calizar el s p rte central (E) y p ner b ca abaj en una superficie libre de rasguñ s c m se muestra.
3. Alinear y adjuntar el panel superi r (A) al s p rte central (E) c n 2 pern s de 1” (2), 2 arandelas de
presión (3) y 2 arandelas planas (4). NO s bre apretar l s pern s.
④ x 2
③ x 2
② x 2
2
4
3
E
A

6
Instru tivo de ensamble
4. Alinear y adjuntar el s p rte del marc superi r (F) entre el riel central del marc de metal superi r del
panel superi r (A) y del s p rte central (E) c n 3 pern s de 5/8” (1), 3 arandelas de presión (3) y 3
arandelas planas (4).
④ x 3
③ x 3
① x 3
4
1
3
1
4
3
A
E
F
F
A
E
