Whalen Jaxon 3-in-1 XL-27 User manual

THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION.
PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Date 2016-07-13 Rev. 0001-A Factory: FOCIDI

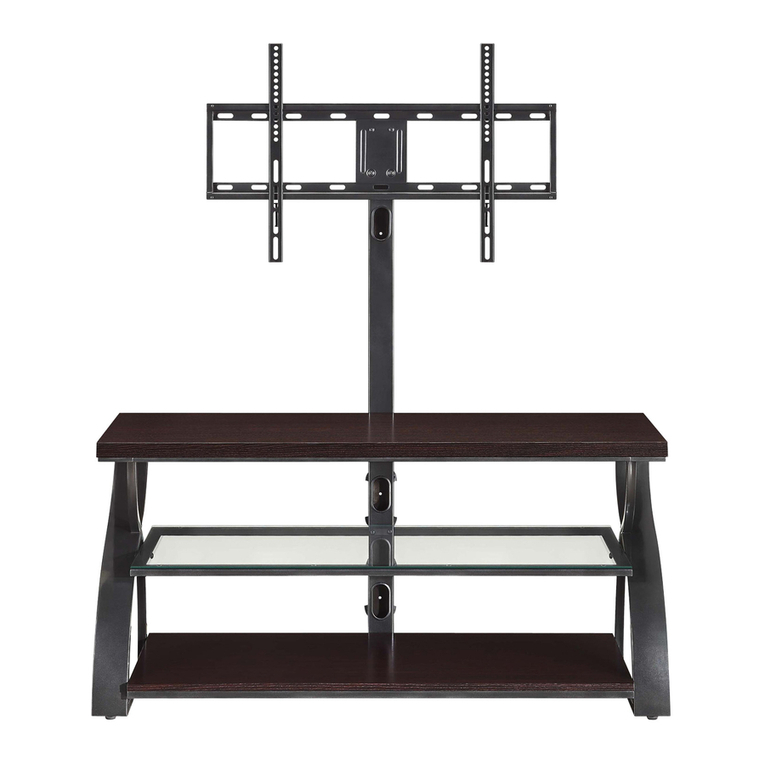

Jaxon 3-in-1TM TV Stand
Model # XL-27 / XL-27EL / XL-27ELG
U.S. Patents 8,079,311 & 8,191,485
This item is designed to be a 3-in-1 configuration. Please choose the option that best suits your
needs. DO NOT discard any of the hardware or parts that you will not use on your chosen option.
This will allow you to use this TV Console in different configurations at a later date, if desired.
ADULT ASSEMBLY REQUIRED
If you have any questions regarding assembly or if parts are missing, DO NOT return this item to the
store where it was purchased. Please call our customer service number and have your instructions
and parts list ready to provide the model name, part name or factory number:
866-942-5362 8:30 a.m. - 4:30 p.m ., PST, Monday - Friday
ONLINE: www.whalenstyle.com EMAIL: [e-mail]
On-line Video Instruction Guides
Go to http://vig.sellpoints.com to view step-by-step instructional
videos for assembling and installing your product. Enter the
following product number on the website.
LOT NUMBER:
DATE PURCHASED: / /
TV
TV
X
L
-
27

2
MANUFACTURER: Whalen Furniture Manufacturing
CATALOG: Jaxon 3-in-1
TM
TV Stand (XL-27 / XL-27EL / XL-27ELG)
MADE IN CHINA
FCC STATEMENT
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This devicemustacceptanyinterferencereceived,includinginterferencethatmaycauseundesiredoperation.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
 Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
 Consult the dealer or an experienced radio/TV technician for help.
Modifications not approved by the party responsible for compliance could void user’s authority to operate the
equipment.
MAXIMUM RECOMMENDED WEIGHT LOADS
MAXIMUM LOAD 50 lb. (22.6 kg)
PLACE TV BEHIND THE STOPPER
RECOMMENDED FLAT PANEL TV RANGE: 42” –70”
MAXIMUM LOAD 135 lb. (61.2 kg)
RECOMMENDED FLAT PANEL TV RANGE: 42” –65”
WITHOUT DELUXE SWIVELING BRACKET
MAXIMUM LOAD 135 lb. (61.2 kg)
THIS UNIT IS NOT INTENDED FOR USE WITH CRT TVS. USE ONLY
WITH FLAT PANEL TVS AND AUDIO/VIDEO EQUIPMENT MEETING RECOMMENDED SIZE
AND WEIGHT LIMITS. NEVER USE WITH LARGER/HEAVIER THAN RECOMMENDED FLAT
PANEL TVS OR EQUIPMENT. TO AVOID INSTABILITY, PLACE FLAT PANEL TV IN THE
CENTRE OF THE UNIT; THE BASE OF THE TELEVISION MUST BE ABLE TO REST ON THE
SUPPORTING SURFACE OF THE UNIT WITHOUT OVER-HANGING THE EDGES.
IMPROPERLY POSITIONED FLAT PANEL TVS, OR FLAT PANEL TVS OR OTHER
EQUIPMENT THAT EXCEED RECOMMENDED SIZE AND WEIGHT LIMITS COULD FALL OFF
OR BREAK THE UNIT, CAUSING POSSIBLE SERIOUS INJURY.

3
Parts and Hardware List
Please read completely through the instructions and verify that all listed parts and hardware
are present before beginning assembly.
A- Top Panel w/Metal Frame (1) B- Middle Shelf Frame (1)
C- Bottom Shelf w/Metal Frame (1) D- Floater Post (1)
E- Back Frame (1) F- Left Leg (1) G- Right Leg (1)
H- Middle Glass Shelf (1) I- Swiveling Bracket (1)
J- Mounting Frame (1) K- Monitor Bracket (2) L- Cable Wheel (2)
(1) 1/2” Bolt (2) 5/8” Bolt (3) 1” Bolt (4) 1-3/4” Bolt
(4+1 extra) (8+1 extra) (8+1 extra) (4+1 extra)
KR
KL

4
Parts and Hardware List
(5) 2-1/4” Bolt (6) Hex Nut (7) Lock Washer (8) Flat Washer
(8+1 extra) (4+1 extra) (24+1 extra) (24+1 extra)
(9) 2-1/2” Lag Bolt (4) (10) Large Flat Washer (4+1 extra) (11) Concrete Anchor (4)
(12) Glass Bumper (6+1 extra) (13) Acrylic Stopper (1) Touch-up Pen (1)
Open Wrench M4 Allen Wrench 3/16” Allen Wrench Tipping Restraint Hardware Kit (1)
(1) (2) (1) (Inside Plastic Bag)
TV Mounting Kit
M4 x 12 Bolt (4) M4 x 30 Bolt (4) M5 x 12 Bolt (4) M5 x 30 Bolt (4)
M6 x 12 Bolt (4) M6 x 35 Bolt (4) M8 x 16 Bolt (4) M8 x 40 Bolt (4)
M4 Lock Washer (4) M5 Lock Washer (4) M6 Lock Washer (4) M8 Lock Washer (4)
Large Spacer (4) Small Spacer (4) M4/M5 Flat Washer (8) M6/M8 Flat Washer (4)
Tools required: Allen wrench, open wrench (provided) and Phillips screwdriver (not provided).

5
Assembly Instructions
NOTE: Please do not fully tighten all bolts until you finish assembling all parts. Once assembled,
go back and fully tighten all bolts. This will make the assembly easier.
1. Unpack the unit and confirm that you have all the hardware and required parts.
2. Locate the Back Frame (E) on a level and protective surface with the flush surfaces facing up.
As shown.
3. Align and attach the Top and Bottom Shelf Frames (A and C) to the Back Frame (E) with four
1” Bolts (3). Make sure that the wood panel will face up when the unit is turned upright.
4. Fasten the Middle Shelf Frame (B) to the Back Frame (E) with two 1-3/4” Bolts (4). As shown.
1-3/4” Bolt
(2 used in this step)
④
UP
E
B
A
C
3
4
A/C
E
B
E
1” Bolt
(4 used in this step)
③

6
Assembly Instructions

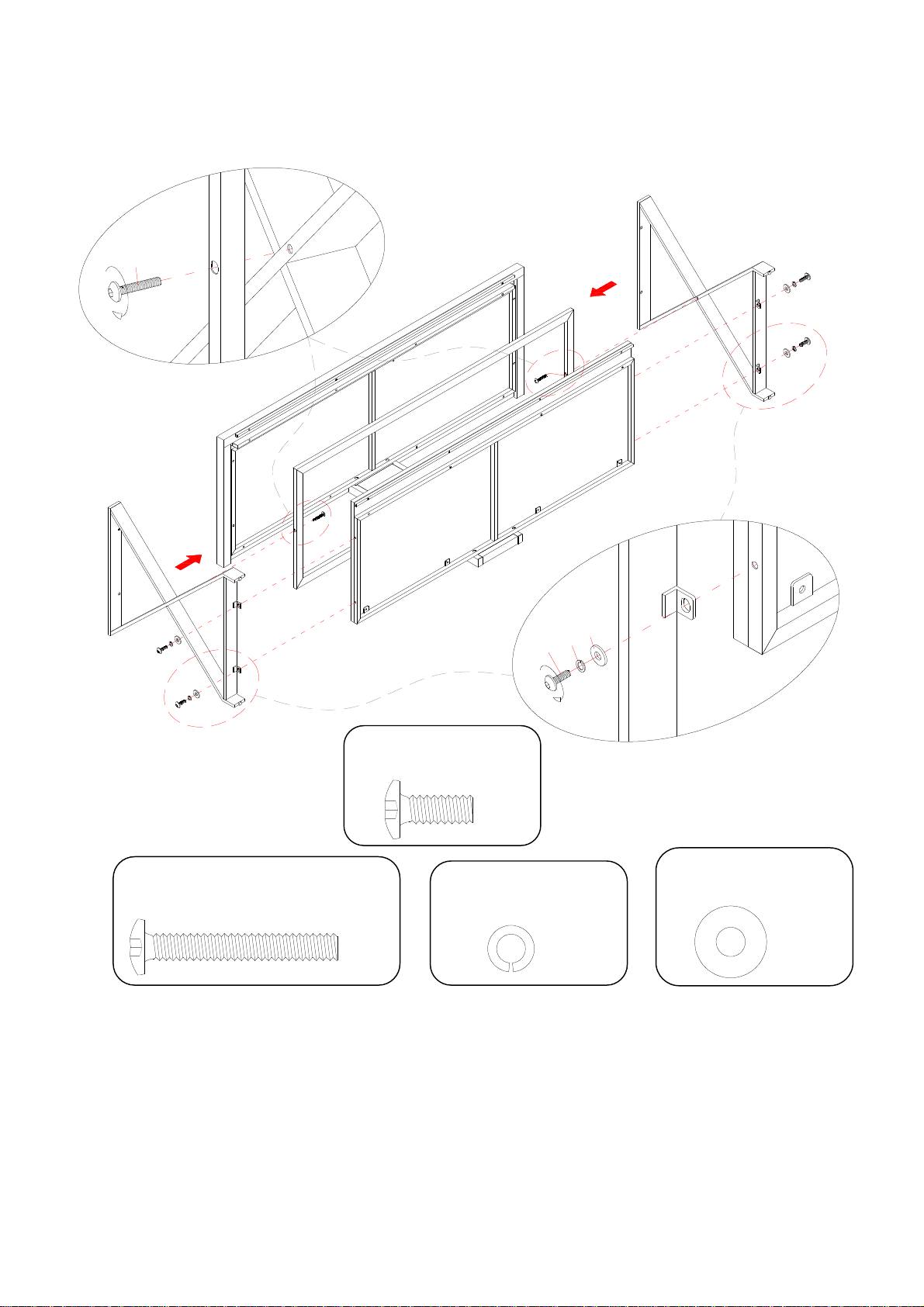

5. Align and attach Right Leg (G) to the Bottom Shelf Metal Frame (C) using two 5/8” Bolts (2)
with the Washers (7 and 8) through the metal brackets and loosely screw into place. As shown.
6. Insert one 1-3/4” Bolt (4) through the drilled hole on the side rail of Middle Shelf Frame (B) and
screw into the Right Leg (G). As shown. DO NOT tighten the bolt.
7. Repeat the same procedure to attach the Left Leg (F) at the opposite end.
1-3/4” Bolt
(2 used in this step)
④
F
B
A
C
G
F/G
C
278
F/G
B
4
Flat Washer
(4 used in this step)
⑧
Lock Washer
(4 used in this step)
⑦
5/8” Bolt
(4 used in this step)
②

7
Assembly Instructions
8. Fasten the Legs (F and G) to the Top Metal Frame (A) by inserting four 1” Bolts (3) with the
Washers (7 and 8) through the drilled holes of the top rail of legs and screw into place.
9. Go back and tighten all bolts with the provided Allen Wrench.
B
A
C
F
G
3
7
8
F/G
A
Flat Washer
(4 used in this step)
⑧
Lock Washer
(4 used in this step)
⑦
1” Bolt
(4 used in this step)
③

8
Assembly Instructions
10.Stand the unit upright.
11.Evenly place the Glass Bumpers (12) onto the Middle Shelf Frame (B), as shown above.
12.Place the Glass Shelf (H) onto the Glass Bumpers (12). Push the glass shelf all the way back
against the Back Frame.
Glass Bumper
(6 used in this step)
⑫
If you choose Table-top Console
configuration, continue to the next step.
If mounting TV with the Floating Swivel
Mount, skip ahead to PAGE 12.
H
12
B
A
C
B
H
B
12

9
Assembly Instructions for Table-top Console
13.Attach 2 Cable Wheels (L) to the backside of the Back Frame (E) with the 5/8” Bolts (2) and
tighten with the enclosed Allen wrench.
NOTE: You can use the Cable Wheels to help keep the entertainment center’s cables and
cords organized.
14.The USB Hub is pre-attached at the bottom round hole of the Back Frame (E) when shipping.
Also, you can put it between the top and middle shelves as needed. To change the location of
USB hub, you need to interchange it with the upper round grommet on the Back Frame (E).
E
2
L
E
A
5/8” Bolt
(4 used in this step)
②

10
Assembly Instructions for Table-top Console
NOTE: You must install the Acrylic TV Stopper to prevent TV from tipping when placing your flat
panel television directly on the table-top console.
15. Remove the tape of Acrylic Stopper (13) and place it in the cut-out of the acrylic stopper
template on the front of Top Panel (A). Make sure it is properly aligned before applying
pressure.
16. Remove the acrylic stopper template from the Top Panel (A) carefully.
Acrylic Stopper
(1 used in this step)
⑬
A
13
13
A
A

11
Assembly Instructions for Table-top Console
Tools required: Allen wrench (provided), Phillips screwdriver, mallet, power drill, and 3/8” drill bit.

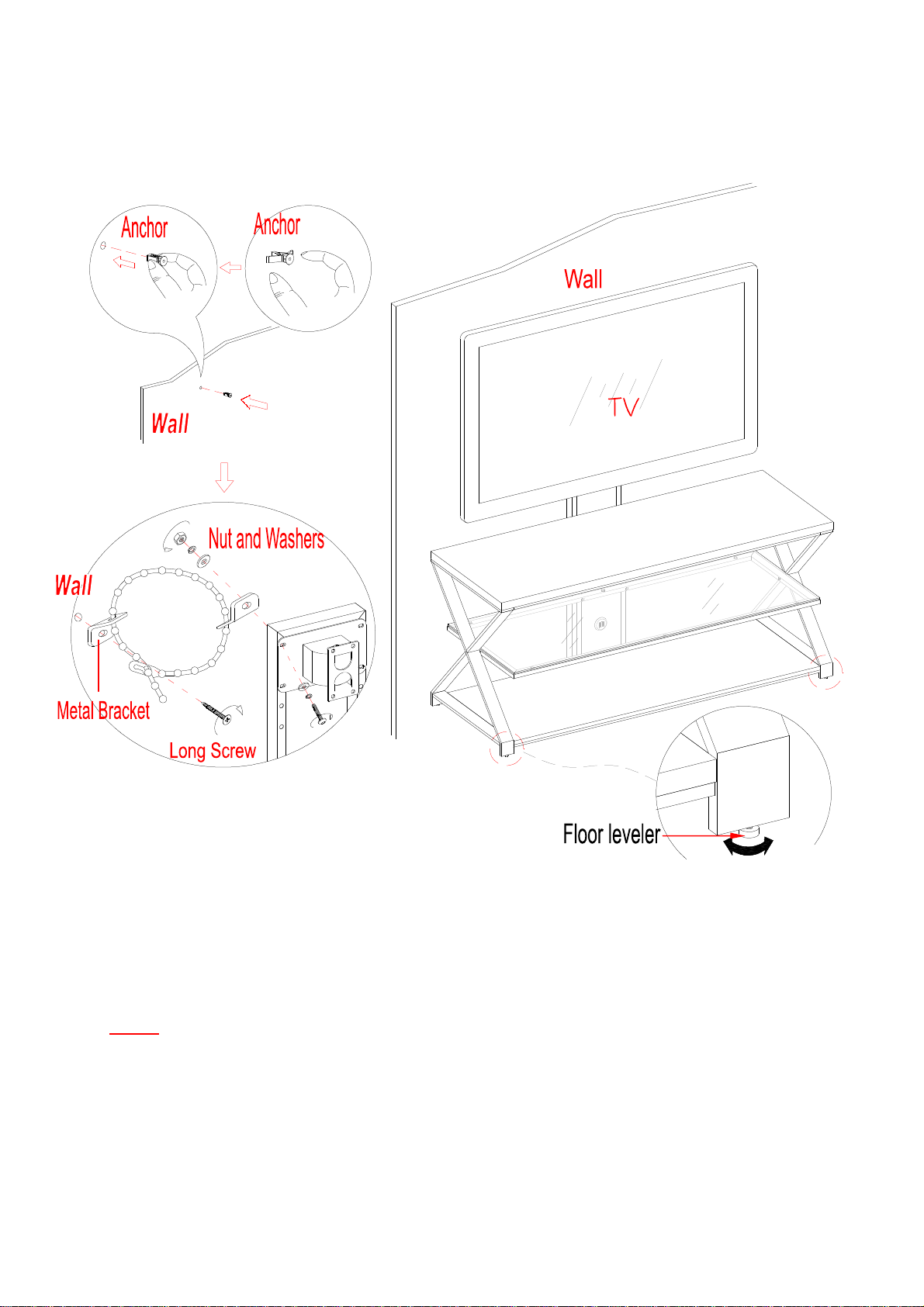

17.Position the assembled console at the desired location against a wall. If necessary, adjust the
pre-attached Floor Levelers at the bottom of Legs (F and G) to level the unit. Now, follow the
instructions printed on the plastic bag containing the Tipping Restraint Hardware to attach the
tip-over restraint to the Back Frame and the wall.
NOTE: YOU MUST USE THIS TIPPING RESTRAINT TO ATTACH THIS UNIT TO
THE WALL, TO PREVENT ACCIDENTS AND/OR INJURIES.
18.The table-top console is now ready for use. Be sure to position your Flat Panel TV in the
center of the console.
NOTE: For Tilting Wall Mount, proceed to PAGE 20.
F/G
TV

12
19.Align and attach the Floater Post (D) to the back of the Back Frame (E) with four 2-1/4” Bolts
(5) and four Washers (7 and 8). Make sure the threaded sockets for the Cable Wheel (L) face
backward. Tighten the bolts with M4 Allen Wrench.
D
UP
E
A
5
7
8
5
7
8
Asse
mbly Instructions for
:
Floating Swivel Mount
2-1/4” Bolt
(4 used in this step)
⑤
Flat Washer
(4 used in this step)
⑧
Lock Washer
(4 used in this step)
⑦

13
Assembly Instructions for Floating Swivel Mount
20.Attach the Swiveling Bracket (I) to the top of Floater Post (D) with the pivoting bolt head up. As
shown above. Securely tighten with the provided Open Wrench and M4 Allen Wrench.
NOTE: The Floater Post can provide three height options for your TV set. Refer to your TV
size and adjust the Swiveling Bracket at your desired height to offer optimum viewing.
Hex Nut
(4 used in this step)
⑥
I
86
7
86
7
I
578
578
D
UP
D
2-1/4” Bolt
(4 used in this step)
⑤
Flat Washer
(8 used in this step)
⑧
Lock Washer
(8 used in this step)
⑦

14
Assembly Instructions for Floating Swivel Mount

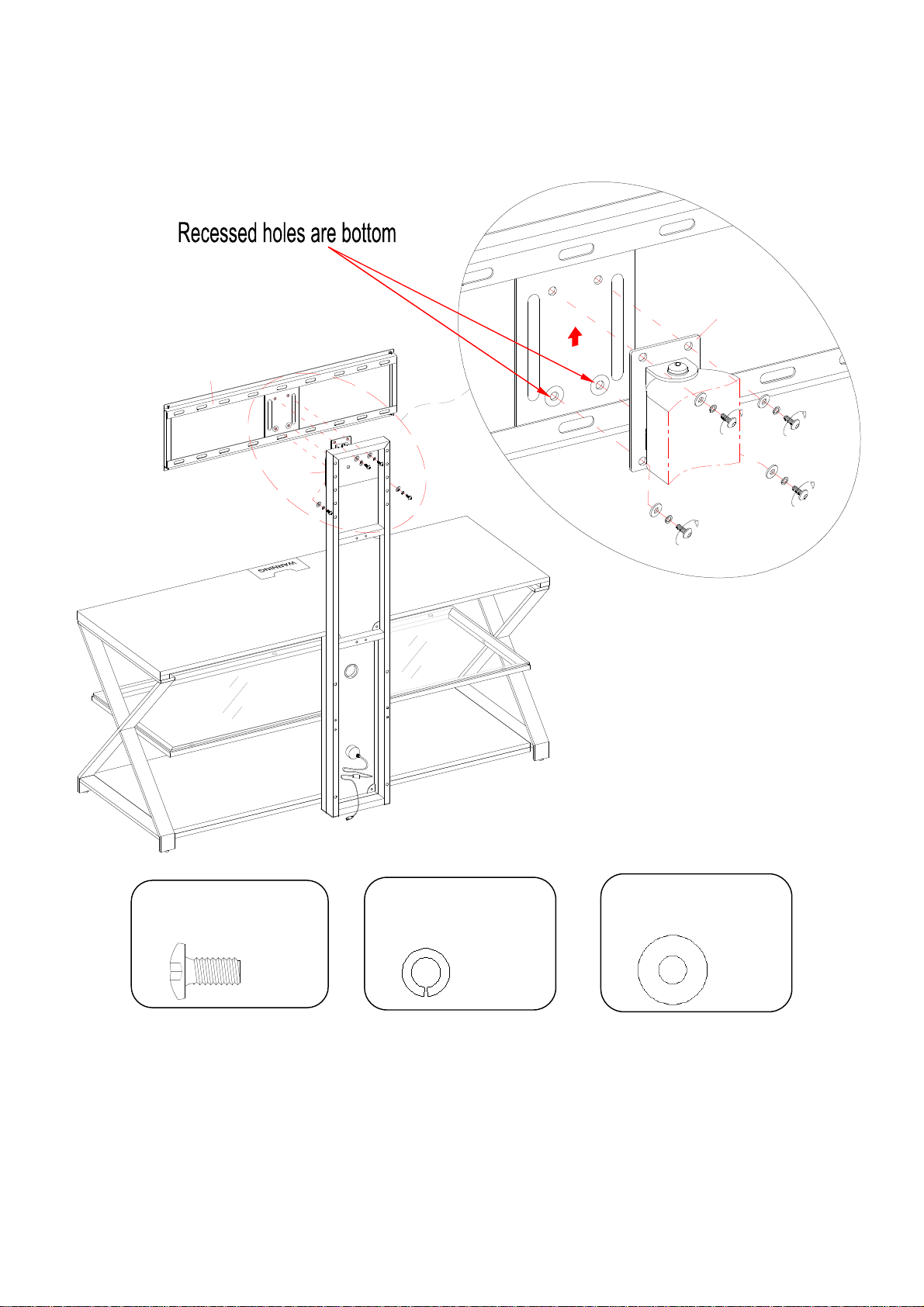

21.Hold and attach the flat side of the Mounting Frame (J) to the Swiveling Bracket (I) using four
1/2” Bolts (1) and four Washers (7 and 8). As shown above. Make sure the recess holes on
the Mounting Frame are at the bottom.
1/2” Bolt
(4 used in this step)
①
J
I
BACK
JI
7
81
81
7
81
7
D
Lock Washer
(4 used in this step)
⑦
Flat Washer
(4 used in this step)
⑧

15

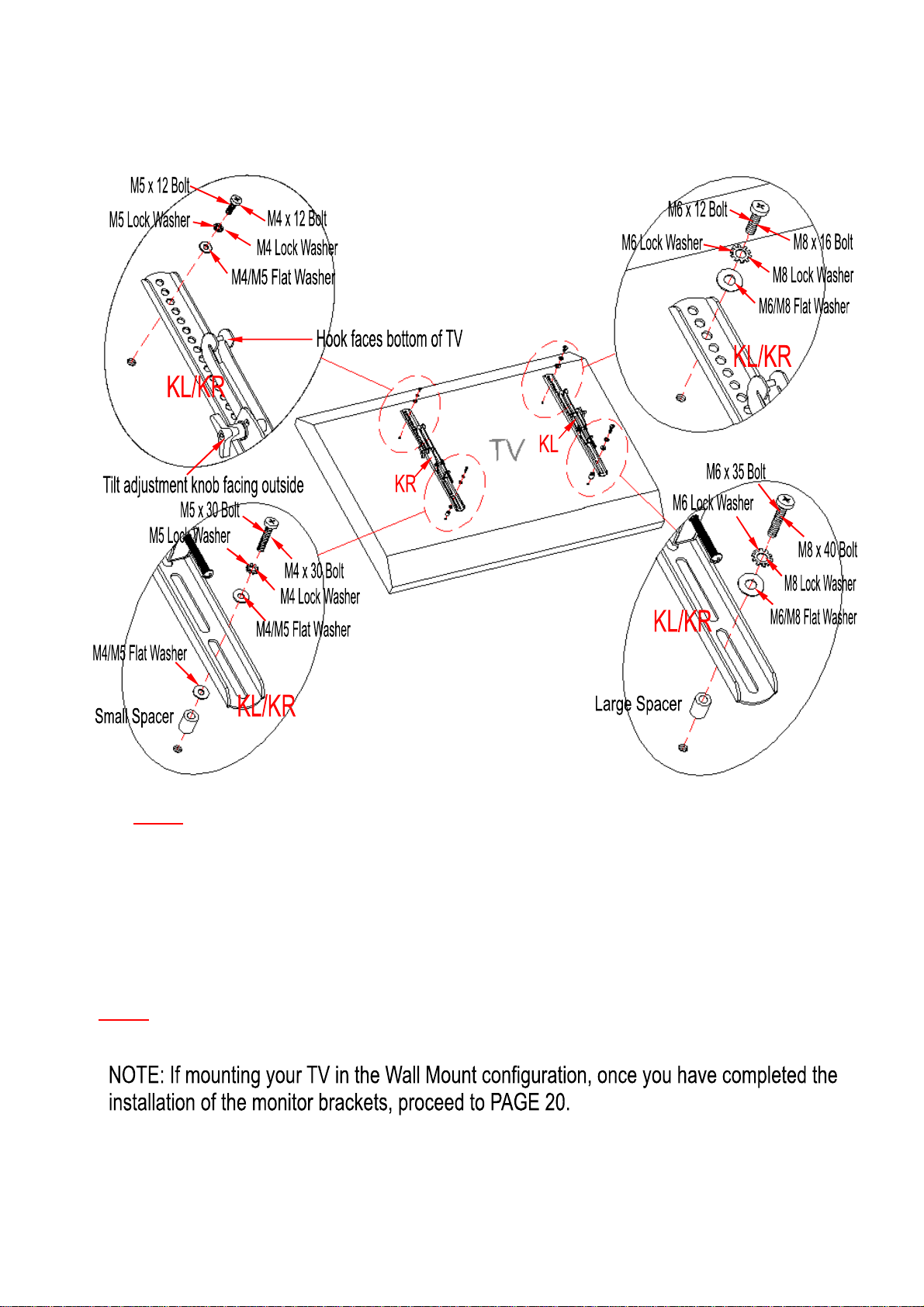

Mounting the Monitor Brackets to a television with a Flat Back
NOTE: For televisions with a curved or recessed back, proceed directly to next page.
22.Determine the correct diameter of the bolt the TV requires by hand threading them into the
threaded insert on the back of the TV. If you encounter any resistance, stop immediately. If
you are unable to find the correct bolt, consult a local hardware store.
23.Follow the appropriate diagram above to attach the Monitor Brackets (KL/KR) to the back of
the TV with the selected fasteners. Make sure the Monitor Brackets are centered and level
with each other. Secure the bolts with a Phillips screwdriver. DO NOT over tighten the bolts.
NOTE: Lean the TV up against a wall, or other solid surface, when attaching the Monitor
Brackets. DO NOT place the TV face down on the glass as this may cause permanent damage.

16

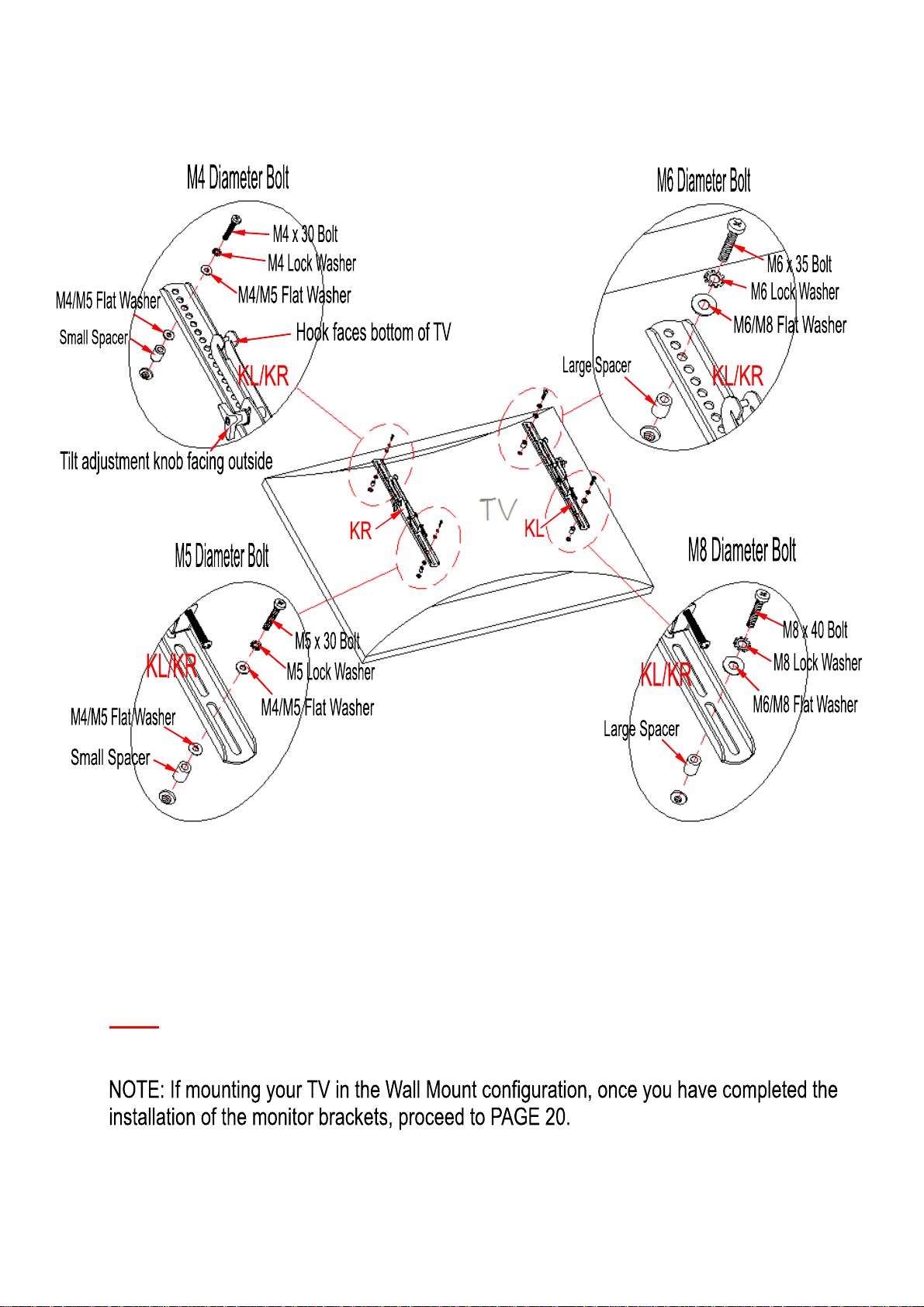

Mounting the Monitor Brackets to a television with a Curved/Recess Back
24.Determine the correct diameter of the bolt the TV requires by hand threading them into the
threaded insert on the back of the TV. If you encounter any resistance, stop immediately. If
you are unable to find the correct Bolt consult a local hardware store.
25.Follow the appropriate diagram above to attach the Monitor Brackets (KL/KR) to the back of
the TV with the selected fasteners. Make sure the Monitor Brackets are vertically centered and
level with each other. Secure the bolts with a Phillips screwdriver. DO NOT over tighten the
bolts.
NOTE: Lean the TV up against a wall, or other solid surface, when attaching the Monitor
Brackets. DO NOT place the TV face down on the glass as this may cause permanent
damage.

17
Assembly Instructions for Floating Swivel Mount
MAKE SURE ALL BOLTS ARE TIGHT AND THE SPINE IS AT A 90 DEGREE ANGLE.
USE A QUALITY LEVEL TO VERIFY THE MOUNTING FRAME IS LEVEL PRIOR TO
INSTALLATION OF TV.
26.Once the Monitor Brackets (KL/KR) are attached onto the back of television, ask for
assistance to lift the television up to hang the Monitor Brackets (KL/KR) onto the Mounting
Frame (J). Set the hooks on the Monitor Brackets over the Mounting Frame and then lower
them onto the bars of the Mounting Frame.
NOTE: Loosen the Lock Bolt that is pre-attached to each Monitor Bracket to ensure an easy fit
at the bottom hook.
27.Center the television and tighten both Lock Bolts with a long Phillips screwdriver until they hit
the underside of the Mounting Frame (J) to secure it in place.
J
1
2
J
KL/KR
J
KL/KR
KR
KL

18
Assembly Instructions for Floating Swivel Mount
28.The Monitor Brackets (KL/KR) can tilt up to 11˚ downward and 5˚ upward, depending on your
optimum viewing position. Keep the enclosed 3/16”Allen Wrench to ensure the Tilt Adjustment
Knobs remain tightly fastened.

19
Assembly Instructions for Floating Swivel Mount
29. Repeat step 13 to attach the Cable Wheels (L) to the back side of Floater Post (D) .
30.Carefully move the console and position it at the desired location against a wall. If necessary,
adjust the pre-attached Floor Levelers at the bottom of Legs (F and G) to level the unit. Now,
follow the instructions printed on the plastic bag containing Tipping Restraint Hardware Kit to
mount the tip-over restraint to the Floater Post and the wall.
NOTE: YOU MUST USE THIS TIPPING RESTRAINT TO ATTACH THIS UNIT TO THE WALL,
TO PREVENT ACCIDENTS AND/OR INJURIES.
31.The console is now ready for use. Swivel the TV left-or-right for optimum viewing control.
F/G

20
Assembly Instructions for Universal Wall Mount
Installing the Mounting Frame onto a WOODEN STUD WALL
NOTE: If you are mounting your TV onto brick, solid concrete or concrete block walls, skip this
section. This assembly requires an electric drill, level and stud finder (not included).
32.Using a stud finder, locate the edges of the wood studs. Find the center line of each stud and
draw a vertical reference line on the wall over each one. Place the Mounting Frame (J) level
against the wall where you intend to mount the TV. Using the Mounting Frame (J) as a
template, mark 4 drill points (2 on top, 2 on bottom) with a pencil on the vertical reference lines
you just drew.
33.With an electric drill (not included), drill 3/16 inch diameter holes to at least 2½ inch deep on
the 4 drill points. While holding the Bracket Plate in place, loosely screw in the Lag Bolts (9).
34.Secure the Mounting Frame (J) to wall with Lag Bolts (9) and the Washers (10) at the drill
points. Tighten the bolts firmly, but be careful not to over-tighten.
The following steps are only for those who wish to mount their
TV directly to the wall. If you have already mounted your TV to
the Swinging Floater or plan to display your TV on the top
surface of the Console, disregard the following steps.
Do not over-tighten the Lag Bolts. Tighten the Lag Bolts only until the
Lag Bolt Washer is pulled firmly against the metal plate of the Mounting Frame. If there is a
layer of drywall or other material, this drywall or other material may not exceed 5/8 inch in
thickness. Failure to heed this caution may result property damage and/or personal injury.
2.50" (63 mm)
0.20" (5 mm)
