Whalen WMCPRO-9 User manual

THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION.
PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Whalen Furniture Mfg. Inc. Page 1 Factory No. 33-10944
Flat Panel Console (WMCPRO-9)
ADULT ASSEMBLY REQUIRED
If you have any questions regarding assembly or if parts are missing, DO NOT return this item to
the store where it was purchased. Please call our toll-free customer service number and have your
instructions and parts list ready to provide the model name, part name or factory number:
1-866-942-5362 8:30 a.m. - 4:30 p.m. PST, Monday - Friday
ONLINE: www.whalenstyle.com EMAIL: [e-mail]
Video Instruction Guides
Go to http://whalen.showuhow.com to view step-by-step instructional
videos for assembling and installing your product. Enter the following
product number on the ShowUhow homepage.
LOT NUMBER:
DATE PURCHASED: / /
WMCPRO-9

Model # WMCPRO-9
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Mfg. Inc. Page 2 Factory No. 33-10944
MANUFACTURER: Whalen Furniture
CATALOG: Flat Panel Console (WMCPRO-9)
DATE OF MANUFACTURE: February 2012
MADE IN CHINA
1. Please read the Assembly Instructions prior to assembling this product.
2. Remove all hardware from box and sort by size.
3. Check to see that all hardware and parts are present BEFORE assembling.
4. Ask a friend to assist you with the assembly of this furniture.
5. To avoid damage, assemble the product on a sturdy, level and protective surface.
6. Please wait until all steps are completed before tightening bolts.
7. Make sure all bolts are tightly fastened before the unit is used.

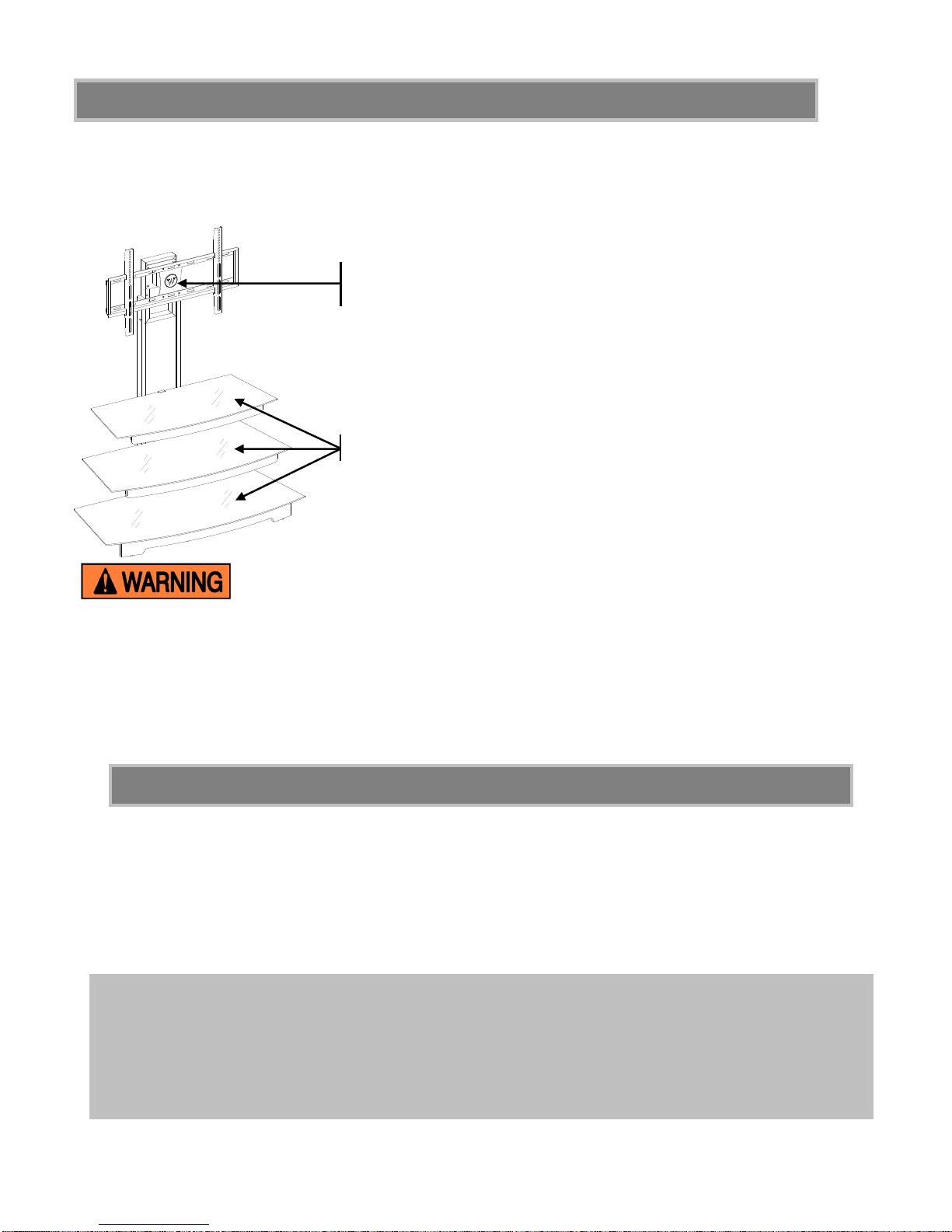

MAXIMUM RECOMMENDED WEIGHT LOADS
GENERAL INFORMATION, TIPS and TRICKS
This product is sold with Tip Restraint Hardware kit. You must install the Tipping Restraint
Hardware between the wall and the TV stand to prevent any accidents or damages. When
properly installed, this restraint can provide protection against the unexpected tipping of the
unit due to small tremors, bumps or climbing. The restraint is only a deterrent and is not a
substitute for proper adult supervision. Use of tip-over restraints may only reduce, but not
eliminate, the risk of tip-over.
FITS UP TO MOST 47” FLAT PANEL TVs
MAXIMUM LOAD 61.2 kg (135 lb.)
MAXIMUM LOAD 22.7 kg (50 lb.)
THIS UNIT IS NOT INTENDED FOR USE WITH CRT TVS. USE ONLY
WITH FLAT PANEL TVS AND AUDIO/VIDEO EQUIPMENT MEETING RECOMMENDED SIZE
AND WEIGHT LIMITS. NEVER USE WITH LARGER/HEAVIER THAN RECOMMENDED FLAT
PANEL TVS OR EQUIPMENT. TO AVOID INSTABILITY, PLACE FLAT PANEL TV IN CENTRE
OF UNIT; CRT TVS, IMPROPERLY POSITIONED FLAT PANEL TVS, OR FLAT PANEL TVS
OR OTHER EQUIPMENT THAT EXCEED RECOMMENDED SIZE AND WEIGHT LIMITS
COULD FALL OFF OR BREAK THE UNIT, CAUSING POSSIBLE SERIOUS INJURY.

Model # WMCPRO-9
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Mfg. Inc. Page 3 Factory No. 33-10944
Parts List
Please read completely through the instructions and verify that all parts listed are present
before beginning assembly.
A- Left Side Frame (1) B- Right Side Frame (1) C- Back Panel (1)
D - Back Top Frame (1) E- Back Bottom Stretcher (1) F- Top Crossbar (1)
G- Top Stringer (1) H- Middle Crossbar (1) I- Middle Stringer (1)
J- Bottom Brace (1) K- Bottom Stringer (1) L- Top Glass (1)
M- Middle Glass Shelf (1) N- Bottom Glass Shelf (1) O- Swiveling Bracket (1)
P- XYZ Mounting Frame (1) Q- Monitor Bracket (2) R- Cable Control (2)

Model # WMCPRO-9
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Mfg. Inc. Page 4 Factory No. 33-10944

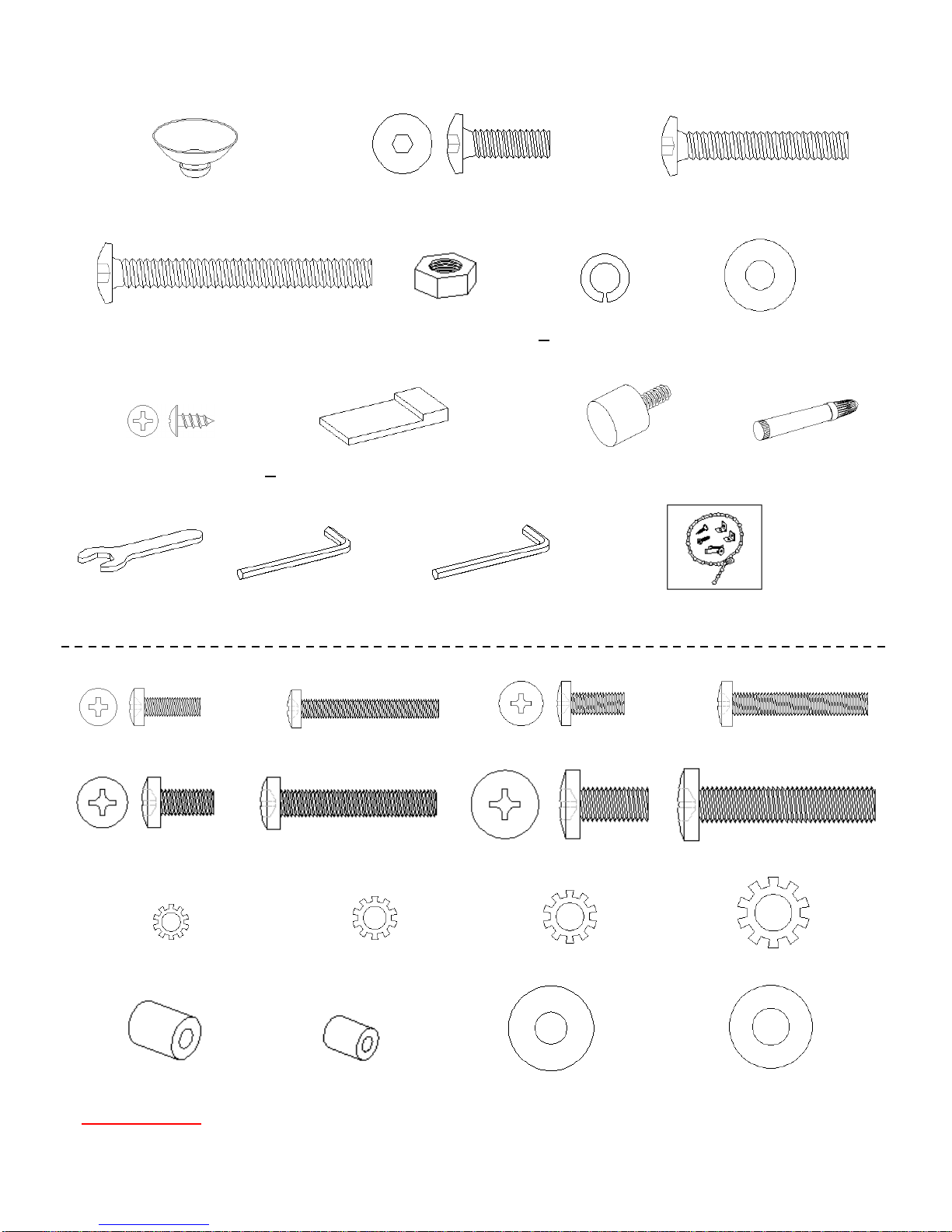

Hardware List
(1) Suction Cup (2) 3/4” Bolt (3) 1-5/8” Bolt
(19+1 extra) (8+1 extra) (16+1 extra)
(4) 2-1/4” Bolt (5) Hex Nut (6) Lock Washer (7) Flat Washer
(8+1 extra) (8+1 extra) (32+1 extra) (36+1 extra)
(8) #3 x 9 mm Screw (9) Glass Alignment Template (10) Large Floor Leveler Touch-up Pen
(4+1 extra) (1) (2) (1)
Open Wrench M4 Allen Wrench 3/16”Allen Wrench Tipping Restraint Hardware Kit (1)
(1) (2) (1) (Inside Plastic Bag)
TV Mounting Kit
M4 x 12 Bolt (4) M4 x 30 Bolt (4) M5 x 12 Bolt (4) M5 x 30 Bolt (4)
M6 x 12 Bolt (4) M6 x 35 Bolt (4) M8 x 16 Bolt (4) M8 x 40 Bolt (4)
M4 Lock Washer (4) M5 Lock Washer (4) M6 Lock Washer (4) M8 Lock Washer (4)
Large Spacer (4) Small Spacer (4) M4/M5 Flat Washer (8) M6/M8 Flat Washer (4)
Tools required: Allen Wrench, Open Wrench (provided) and Phillips Screwdriver (not provided).

Model # WMCPRO-9
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Mfg. Inc. Page 5 Factory No. 33-10944
Assembly Instructions
Note: Please do not fully tighten all bolts until you finish assembling all parts. Once
assembled, go back and fully tighten all bolts. This will make it easier during assembly of unit.

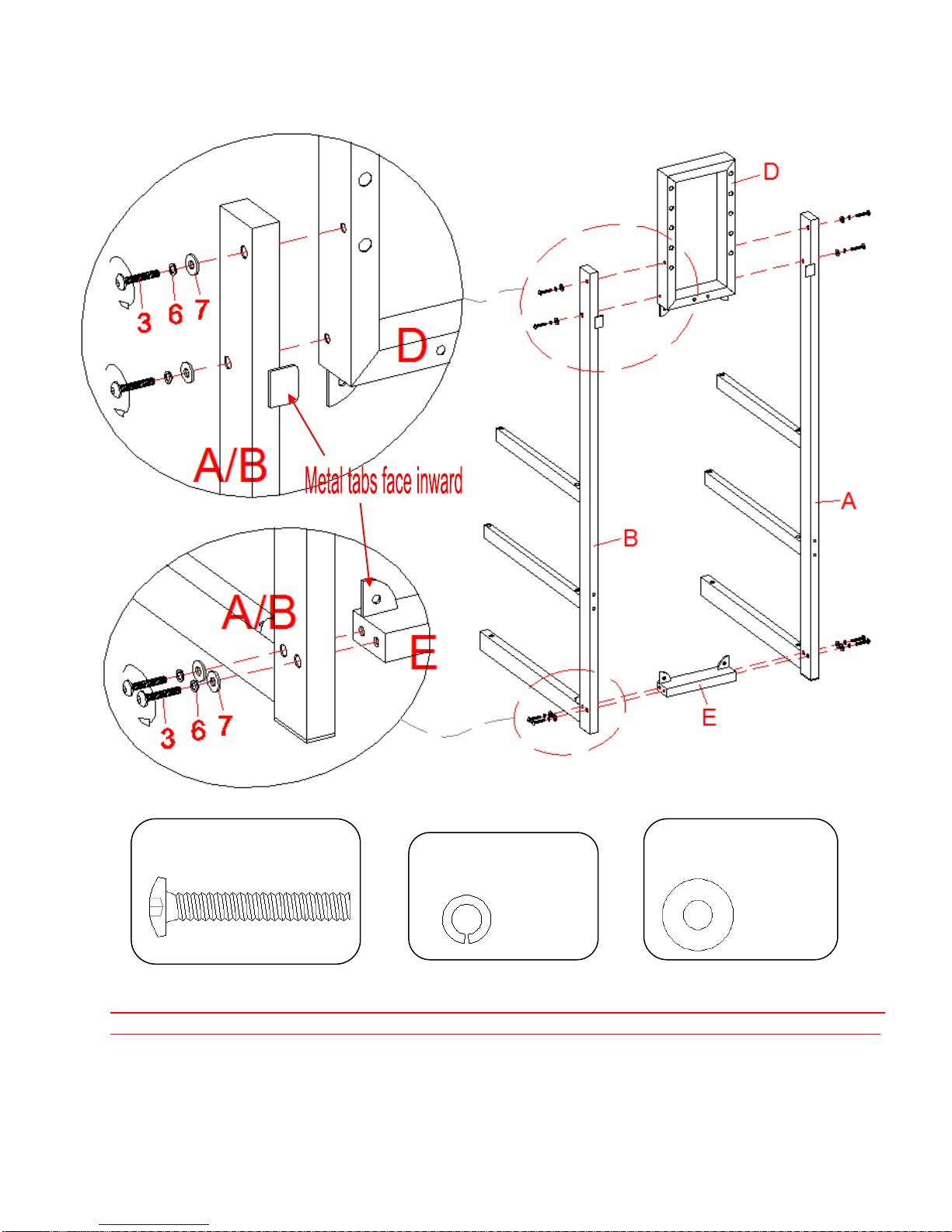

1. Attach Back Top Frame (D) and Back Bottom Stretcher (E) between Left and Right Side
Frame (A and B). Make sure the metal brackets on Back Bottom Stretcher (E) facing up and
pointing forward. Tighten the bolts with enclosed M4 Allen Wrench.
Lock Washer
(8 used in this step)
⑥
Flat Washer
(8 used in this step)
⑦
1-5/8” Bolt
(8 used in this step)
③

Model # WMCPRO-9
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Mfg. Inc. Page 6 Factory No. 33-10944
Assembly Instructions
2. Pick up Back Panel (C) and fit it between the front of Left and Right Side Frames (A and B).
Insert and screw four #3 x 9 mm Screws (8) through the corner brackets to secure the Back
Panel in place. Tighten the screws with a Phillips Screwdriver.
#3 x 9 mm Screw
(4 used in this step)
⑧

Model # WMCPRO-9
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Mfg. Inc. Page 7 Factory No. 33-10944
Assembly Instructions

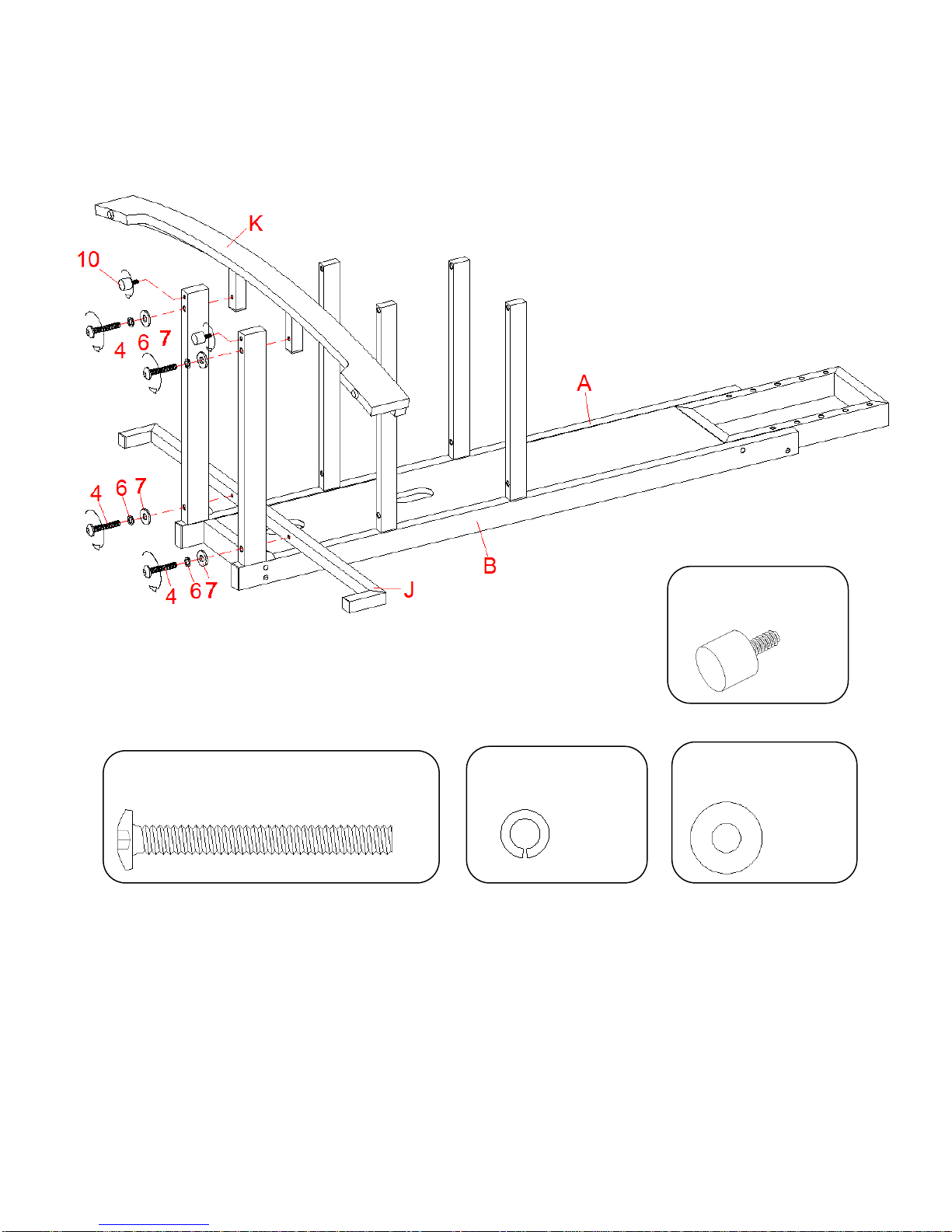

3. Lay down the unit on a level and protective surface as shown.
4. Attach Bottom Brace (J) and Bottom Stringer (K) to the bottom rail of Left and Right Side
Frame (A and B).
5. Screw the Large Floor Levelers (10) into the front sockets underneath the bottom rail
of Left and Right Side Frame (A and B). Set the Levelers to the correct height.
Lock Washer
(4 used in this step)
⑥
Flat Washer
(4 used in this step)
⑦
2-1/4” Bolt
(4 used in this step)
④
Floor Leveler
(2 used in this step)
⑩

Model # WMCPRO-9
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Mfg. Inc. Page 8 Factory No. 33-10944
Assembly Instructions

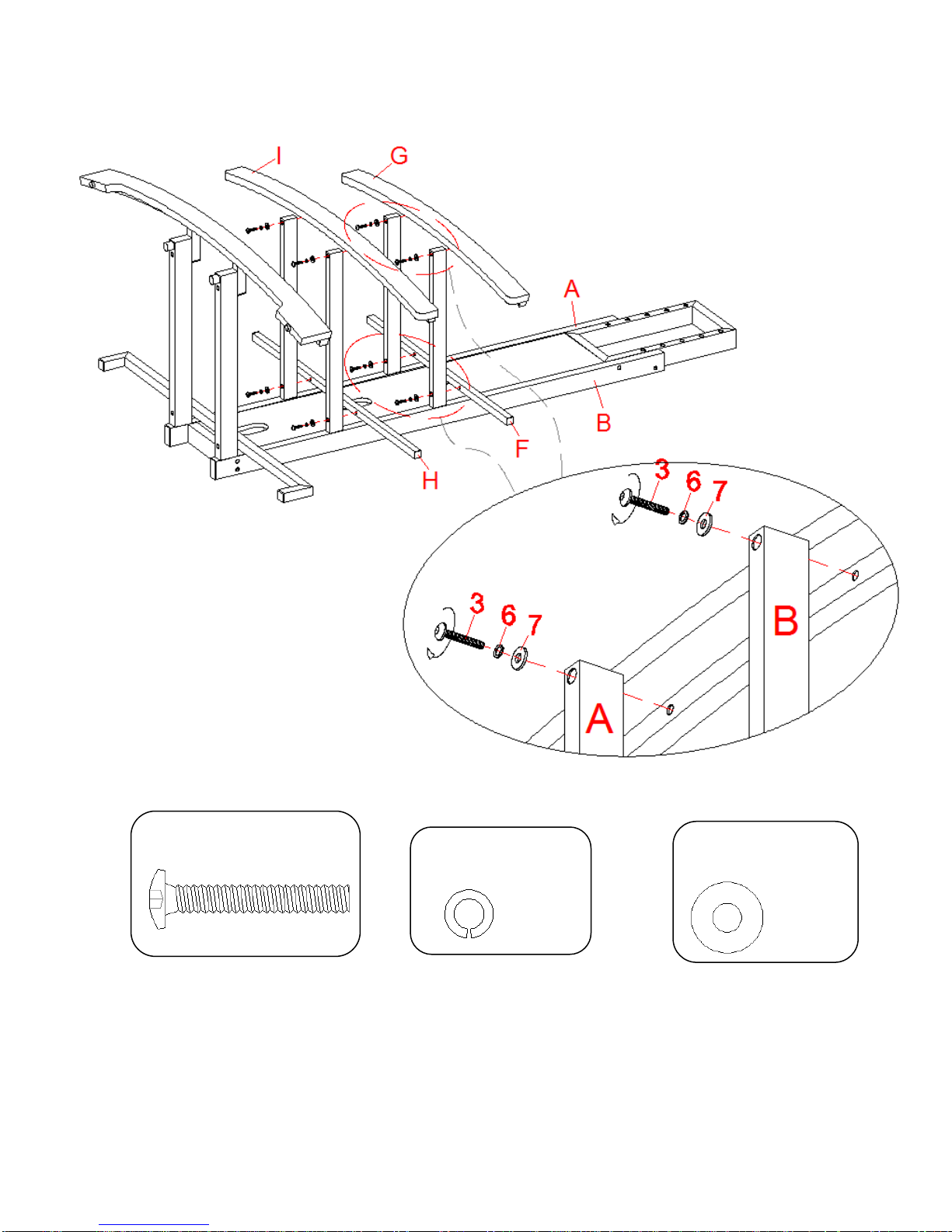

6. Attach Middle Crossbar (H) and Middle Stringer (I) to the middle rail of Left and Right Side
Frame (A and B). Tighten the bolts with enclosed M4 Allen Wrench.
7. Repeat last step to attach Top Crossbar (F) and Top Stringer (G) to the top rail of Left and
Right Side Frame (A and B).
Lock Washer
(8 used in this step)
⑥
Flat Washer
(8 used in this step)
⑦
1-5/8” Bolt
(4 used in this step)
③

Model # WMCPRO-9
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Mfg. Inc. Page 9 Factory No. 33-10944
Assembly Instructions
8. Adjust the Large Floor Levelers (10) installed and the small floor levelers pre-attached at the
bottom of Bottom Stringer (K) to level the unit.
Hardware provided Tools required
Floor Levelers No tool required

Model # WMCPRO-9
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Mfg. Inc. Page 10 Factory No. 33-10944
Assembly Instructions
9. Attach Swiveling Bracket (O) to the top of Back Top Frame (D) with the pivoting bolt head up.
Securely tighten with Open Wrench and M4 Allen Wrench provided.
Note: The Back Top Frame can provide three height options for your TV set. Refer to your
TV size, adjust the Swiveling Bracket at your desired height to offer optimum viewing.
OD
O
D
A
B
C
Lock Washer
(8 used in this step)
⑥
Flat Washer
(8 used in this step)
⑦
2-1/4” Bolt
(4 used in this step)
④
Hex Nut
(4 used in this step)
⑤

Model # WMCPRO-9
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Mfg. Inc. Page 11 Factory No. 33-10944
Assembly Instructions

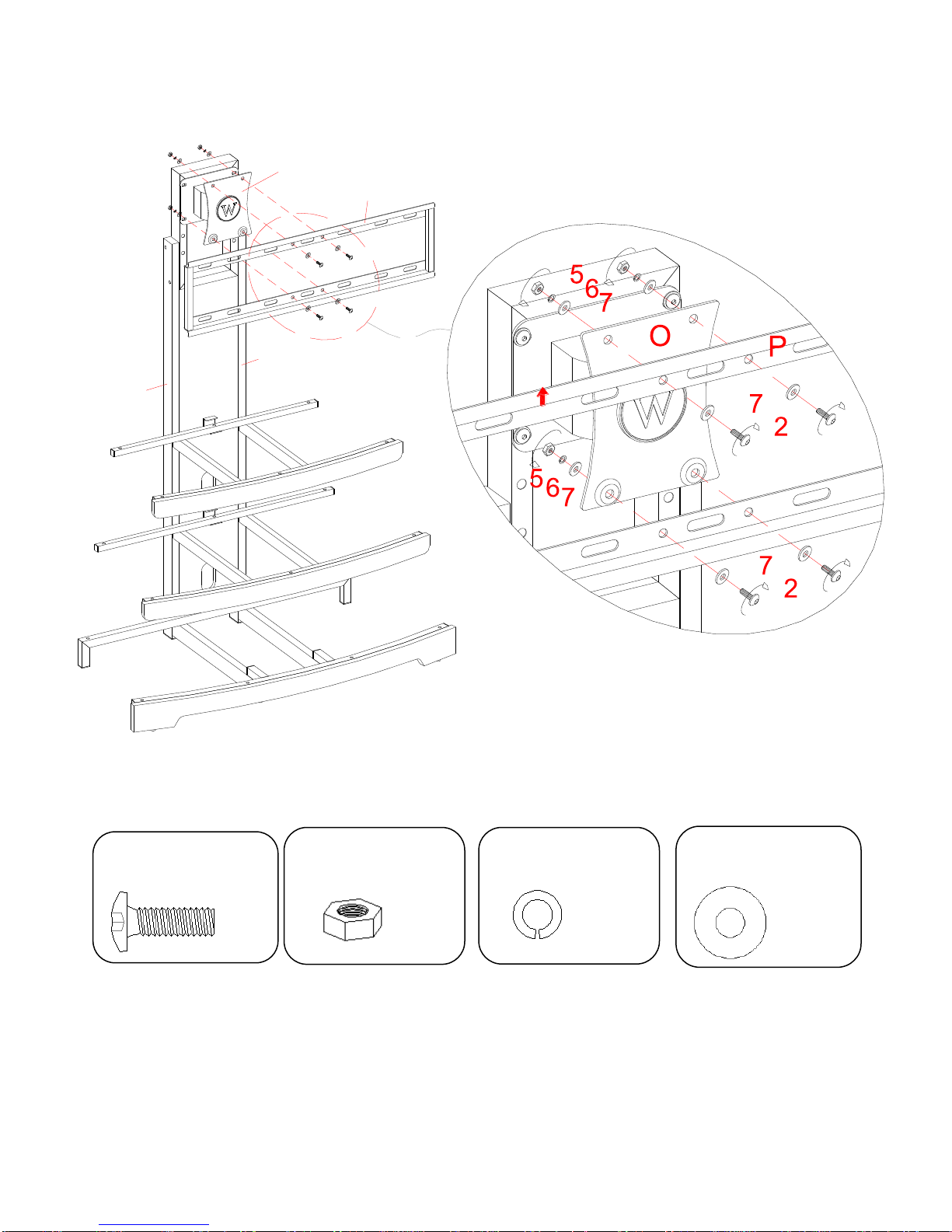

10.Attach XYZ Mounting Frame (P) to the Swiveling Bracket (O) using four 3/4”Bolts (2) with
Washers and then secure with Hex Nuts (5). Securely tighten with Open Wrench and Allen
Wrench provided.
OP
AB
C
Lock Washer
(4 used in this step)
⑥
Flat Washer
(8 used in this step)
⑦
Hex Nut
(4 used in this step)
⑤
3/4” Bolt
(4 used in this step)
②

Model # WMCPRO-9
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Mfg. Inc. Page 12 Factory No. 33-10944
Mounting Monitor Bracket to a television with a flat back
Note: For televisions with a curved back or recessed back proceed directly to step #13.
11.Determine the correct diameter of the bolt your TV requires by hand threading them into the
threaded inserts on the back of the TV. If you encounter any resistance, stop immediately. If
you are unable to find the correct bolt consult a local hardware store.

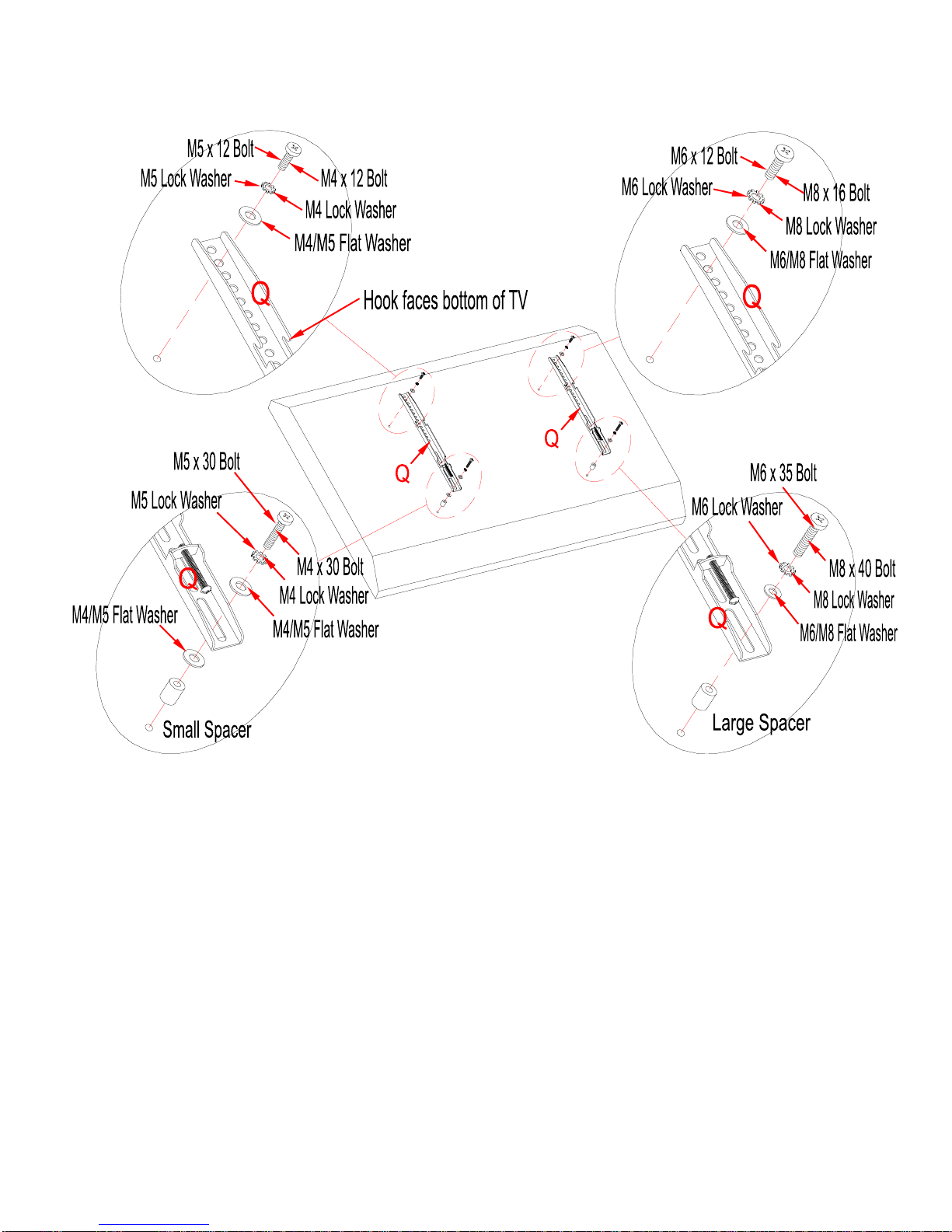

12.Follow the appropriate diagram below to attach Monitor Brackets (Q) to the back of your TV
with selected fasteners. Make sure the Monitor Brackets are centered and level with each
other. Secure the bolts with a Phillips Screwdriver. DO NOT over tighten the bolts.
Note: Lean the TV up against a wall or other solid surface when attaching with the Monitor
Brackets. DO NOT place the TV face down on the glass this may cause permanent damage.
TV

Model # WMCPRO-9
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Mfg. Inc. Page 13 Factory No. 33-10944
Mounting Monitor Bracket to a television with a curved / recess back
13.Determine the correct diameter of the bolt your TV requires by hand threading them into the
threaded insert on the back of the TV. If you encounter any resistance, stop immediately. If
you are unable to find the correct bolt consult a local hardware store.
14.Follow the appropriate diagram below to attach Monitor Brackets (Q) to the back of your TV
with selected fasteners. Make sure the Monitor Brackets are vertically centered and level
with each other. Secure the bolts with a Phillips Screwdriver. DO NOT over tighten the bolts.
TV

Model # WMCPRO-9
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Mfg. Inc. Page 14 Factory No. 33-10944
Assembly Instructions
15.Once the Monitor Brackets (Q) are attached onto the back of television, ask for assistance
to lift the television up to attach the Monitor Brackets onto the XYZ Mounting Frame (P). Set
the hooks on Monitor Brackets over the Mounting Frame then lower them onto the bars of
Mounting Frame. Loosen the Safety Bolt pre-attached on the Monitor Brackets to ensure an
easy fit at the bottom hooks. Proceed to center the television.
P
Q
Q
1
Q
2

Model # WMCPRO-9
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Mfg. Inc. Page 15 Factory No. 33-10944
Assembly Instructions

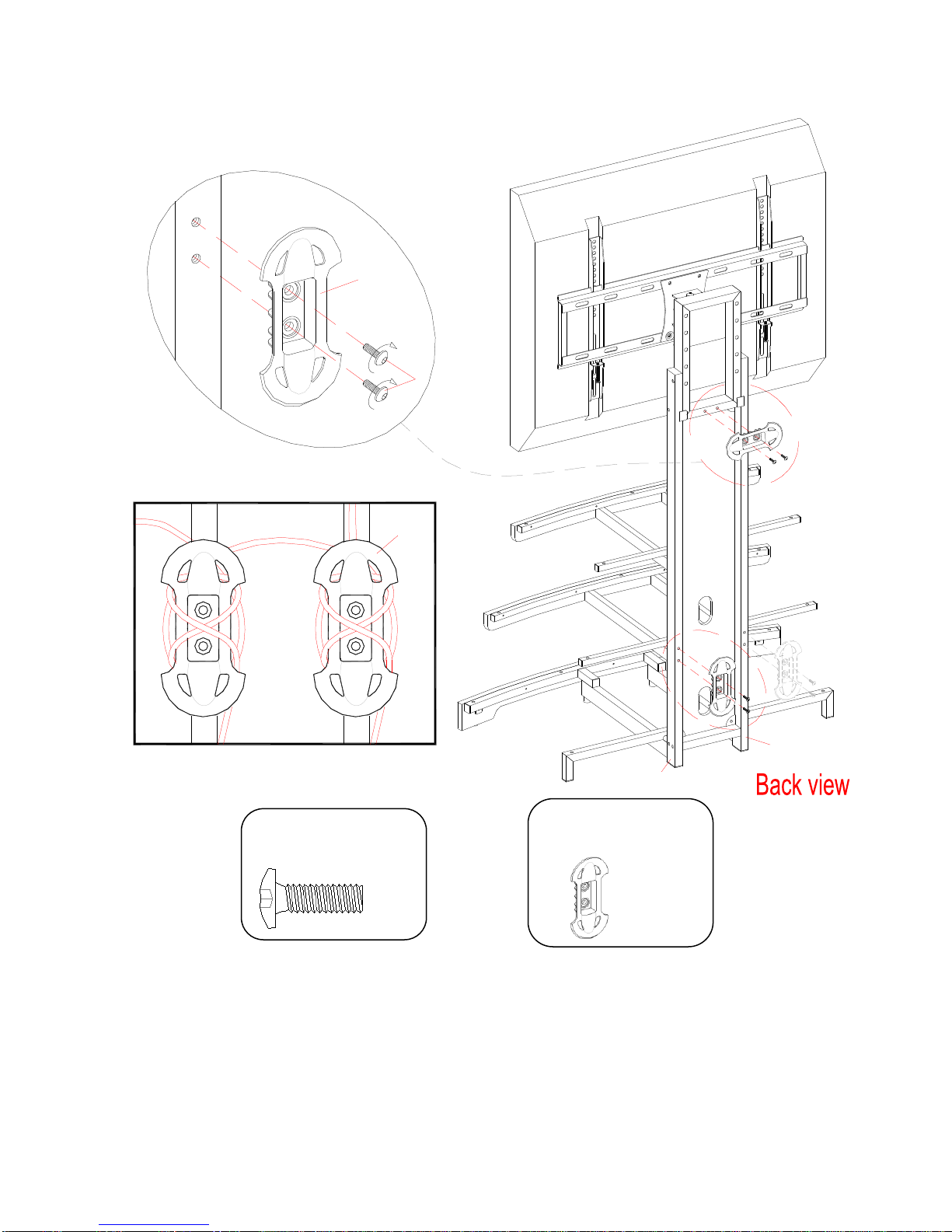

16.Attach 2 Cable Controls (R) onto the backside of assembled unit with the 3/4” Bolts (2).
Tighten the bolts with M4 Allen Wrench provided.
17.The Cable Controls (R) enable you to shorten, separate and route cables and cords. Using
the Cable Controls you can create a system for routing cables through channels, between
components and to power sources without usual tangled mess or annoying signal
interference.
2
R
R
D
A
B
3/4” Bolt
(4 used in this step)
②
Cable Control
(2 used in this step)
○
R

Model # WMCPRO-9
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Mfg. Inc. Page 16 Factory No. 33-10944
Assembly Instructions
18.Put Suction Cups (1) firmly into the top holes on Crossbars and Stringers (F, G, H, I, J and
K).Tip: If a suction cup resists insertion, try pressing down on the middle of the cup with the
Allen Wrench while twisting it clockwise into the hole.
19.Set Top Glass (L) and Glass Shelves (M and N) in place starting with Bottom Glass Shelf (N)
as shown. Make sure the black side of glass is down. Using the provided Glass Alignment
Template (9) to ensure each glass is centered properly. Push each glass all the way back
against the post of Left and Right Side Frame.
Note: If glass is scratched you can minimize the damage by using a BLACK marker and
filling in scratched area from underneath.
Suction Cup
(19 used in this step)
①
Glass Alignment Template
(1 used in this step)
⑨

Model # WMCPRO-9
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Mfg. Inc. Page 17 Factory No. 33-10944
Assembly Instructions
Tools required: Allen Wrench (provided), Phillips Screwdriver, Mallet, Power Drill, and 3/8” Drill Bit.
20.Carefully move the console and position in your desired location against the wall. Now
follow the instructions printed on the plastic bag containing Tipping Restraint Hardware to
mount the Tipping Restraint Hardware Kit to the console and wall.
Note: You must install the Tipping Restraint Hardware with the unit in use to
prevent any accidents or damage to the unit.
21.You can enjoy your home entertainment center now. Swivel left-or-right for optimum viewing
control.

Model # WMCPRO-9
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Mfg. Inc. Page 18 Factory No. 33-10944
Care and Maintenance
Use a soft, clean cloth that will not scratch the surface when dusting.
Use of furniture polish is not necessary. Should you choose to use polish, test first in an
inconspicuous area.
Using solvents of any kind on your furniture may damage the finish.
Never use water to clean your furniture as it may cause damage to the finish.
Always use coasters under beverage glasses and flowerpots.
Liquid spills should be removed immediately. Using a soft clean cloth, blot the spill gently.
Avoid rubbing.
Always use protective pads under hot dishes and plates. Heat can cause chemical changes
that may create spotting within the furniture finish.
Stains or marks from crayons or ink markers will be difficult to remove.
In the event that your furniture is stained or otherwise damaged during use, we recommend
that you call a professional to repair your furniture.
Check bolts/screws periodically and tighten them if necessary.
Further advice about furniture care
It is best to keep your furniture in a climate-controlled environment. Extreme temperature and
humidity changes can cause fading, warping, shrinking and splitting of wood. It is advised to keep
furniture away from direct sunlight as sun may damage the finish.
Proper care and cleaning at home will extend the life of your purchase. Following these important
and helpful tips will enhance your furniture as it ages.
A Touch-up Pen has been provided to repair any small nicks or scratches that may occur
during assembly or shipping.
We hope you enjoy your purchase for many years.
Thank you for your purchase!
QUALITY GUARANTEE
We are confident that you will be delighted with your Whalen Furniture purchase.
Should this product be defective in workmanship or materials or fail under normal use, we
will repair or replace it for up to one (1) year from the date of purchase. Every Whalen
Furniture product is designed to meet your highest expectations. We guarantee that you
will immediately see the value of our fine furniture.
This warranty gives you specific legal rights and you may also have other rights which vary
from State to State (province to province).
Customer Service: 1-866-942-5362
8:30 a.m. - 4:30 p.m. PST, Monday to Friday
www.whalenstyle.com

IF YOU NEED TO ORDER PARTS PLEASE USE THE LIST BELOW
Flat Panel Console (WMCPRO-9)
4
12
3
5
6
7
89
10
12
11
15
16
17 17
22
24
26
28 29 30 31
32 33 34
21
25
35
27
36
23
*WMCPRO-9-1-LSF Left Side Frame *WMCPRO-9-14-BGS Bottom Glass Shelf *WMCPRO-9-27-2 1/4B 2-1/4" Bolt *WMCPRO-9-2-RSF Right Side Frame *WMCPRO-9-15-SB Swiveling Bracket *WMCPRO-9-28-HN Hex Nut *WMCPRO-9-3-BP Back Panel *WMCPRO-9-16-MF XYZ Mounting Frame *WMCPRO-9-29-LW Lock Washer *WMCPRO-9-4-BTF Back Top Frame *WMCPRO-9-17-MB Monitor Bracket *WMCPRO-9-30-FW Flat Washer *WMCPRO-9-5-BBS Back Bottom Stretcher *WMCPRO-9-18-SPEC Small Plastic End Cap (15 x 15 mm) *WMCPRO-9-31-#3 x 9S #3 x 9 mm Screw *WMCPRO-9-6-TC Top Crossbar *WMCPRO-9-19-MPEC Medium Plastic End Cap (20 x 20 mm) *WMCPRO-9-32-GAT Glass Alignment Template *WMCPRO-9-7-TS Top Stringer *WMCPRO-9-20-LPEC Large Plastic End Cap (20 x 40 mm) *WMCPRO-9-33-OW Open Wrench *WMCPRO-9-8-MC Middle Crossbar *WMCPRO-9-21-CC Cable Control *WMCPRO-9-34-M4AW M4 Allen Wrench *WMCPRO-9-9-MS Middle Stringer *WMCPRO-9-22-SFL Small Floor Leveler *WMCPRO-9-35-3/16AW 3/16" Allen Wrench *WMCPRO-9-10-BB Bottom Brace *WMCPRO-9-23-LFL Large Floor Leveler *WMCPRO-9-36-TUP Touch-up Pen *WMCPRO-9-11-BS Bottom Stringer *WMCPRO-9-24-SC Suction Cup *WMCPRO-9-37-TRHK Tipping Restraint Hardware Kit *WMCPRO-9-12-TG Top Glass *WMCPRO-9-25-3/4B 3/4" Bolt *WMCPRO-9-TVMK TV Mounting Kit *WMCPRO-9-13-MGS Middle Glass Shelf *WMCPRO-9-26-1 5/8B 1-5/8" Bolt *WMCPRO-9-CH Complete Hardware
4
12
3
5
6
7
89
10
12
13
14
11
15
16
17 17
22
24
26
28 29 30 31
32 33 34
21
25
35
37
27
36
23
