Whalen BBAVT27-MBC User manual

THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION.
PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Date 2021-10-14 Rev. 0001-D
27”Audio Tower
Model # BBAVT27-MBC
ADULT ASSEMBLY REQUIRED
If you have any questions regarding assembly or if parts are missing, DO NOT return this item to the
store where it was purchased. Please call our customer service number and have your instructions and
parts list ready to provide the model name, part name or factory number:
1-866-942-5362
Pacific Standard Time: 8:30 a.m. - 4:30 p.m., Monday - Friday
Or visit our web site 24 hours a day, 7 days a week for product assistance at
www.whalenfurniture.com
Or e-mail your request to part[email protected]
LOT NUMBER:
DATE PURCHASED: / /

2
1. Please read the Assembly Instructions prior to assembling this product.
2. Remove all hardware from box and sort by size.
3. Check to see that all hardware and parts are present BEFORE assembling.
4. Ask a friend to assist you with the assembly of this furniture.
5. To avoid damage, assemble the product on a sturdy, level and protective surface.
6. Please wait until all steps are completed before tightening bolts.
7. Make sure all bolts are tightly fastened before the unit is used.
GENERAL INFORMATION, TIPS AND TRICKS
This product is sold with one set of Tipping Restraint Hardware Kit. You must install the Tipping Restraint
Hardware between the wall and the tower to prevent any accidents or damages. When properly installed,
this restraint can provide protection against the unexpected tipping of the unit due to small tremors, bumps
or climbing. The restraint is only a deterrent and is not a substitute for proper adult supervision. Use of tip-
over restraints may only reduce, but not eliminate, the risk of tip-over.
Unit must be placed on a level surface or leveled with included hardware (when applicable).
Do not sit or stand on or allow children to climb, sit or stand on the assembled product.
For safety reasons, it is imperative that this unit be mounted to the wall.
Do not use without installing the tip restraint.
Unit can tip over causing severe injury or death.
Do not exceed the recommended weight limits.
Evenly distribute the weight on each level and always keep the heavier loads on the bottom.
Before cutting, drilling or hammering into any wall or floor surface, verify the location of electrical,
plumbing and gas lines. Cutting may cause serious injury.
WARNING

3
Parts and Hardware List
Please read completely through the instructions and verify that all listed parts and hardware are present
before beginning assembly.

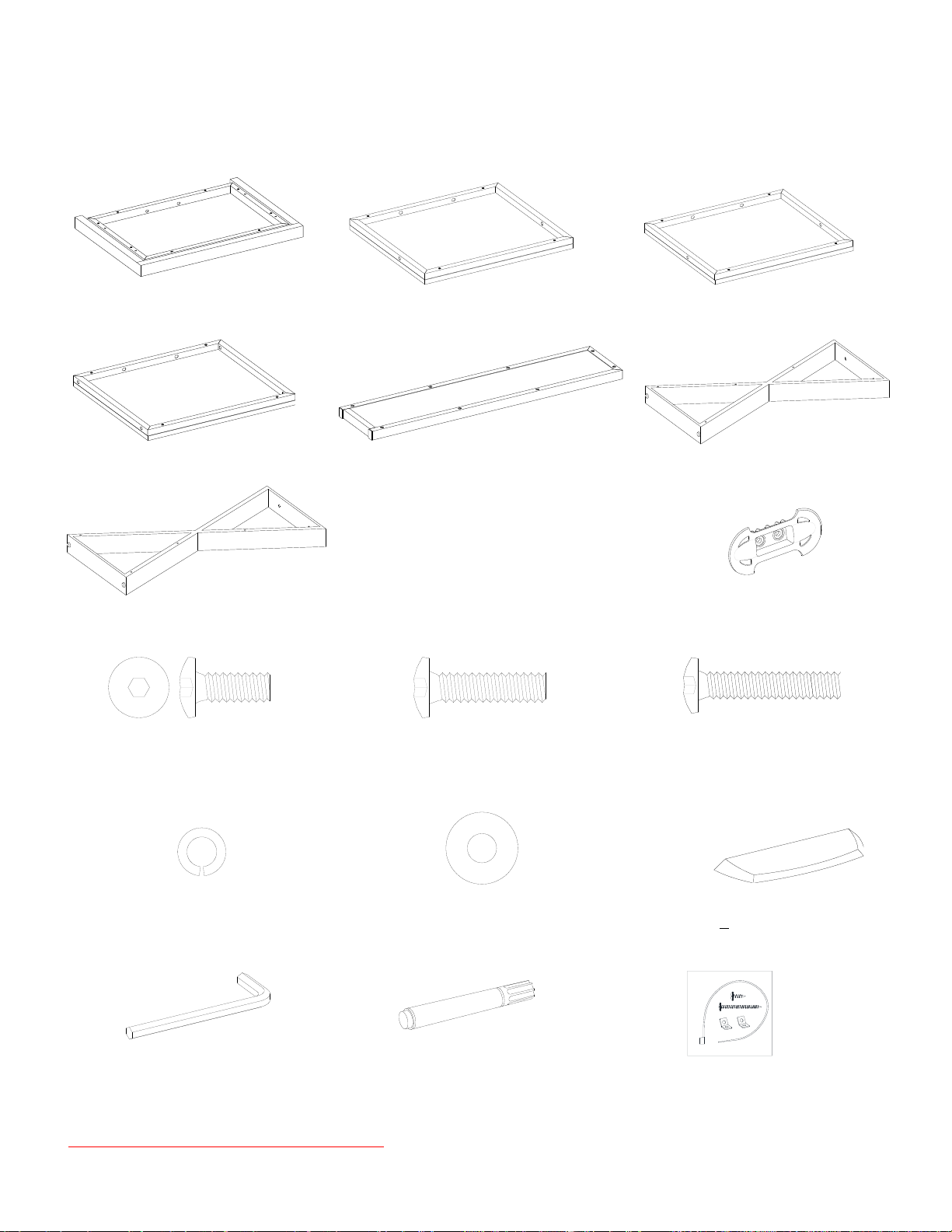

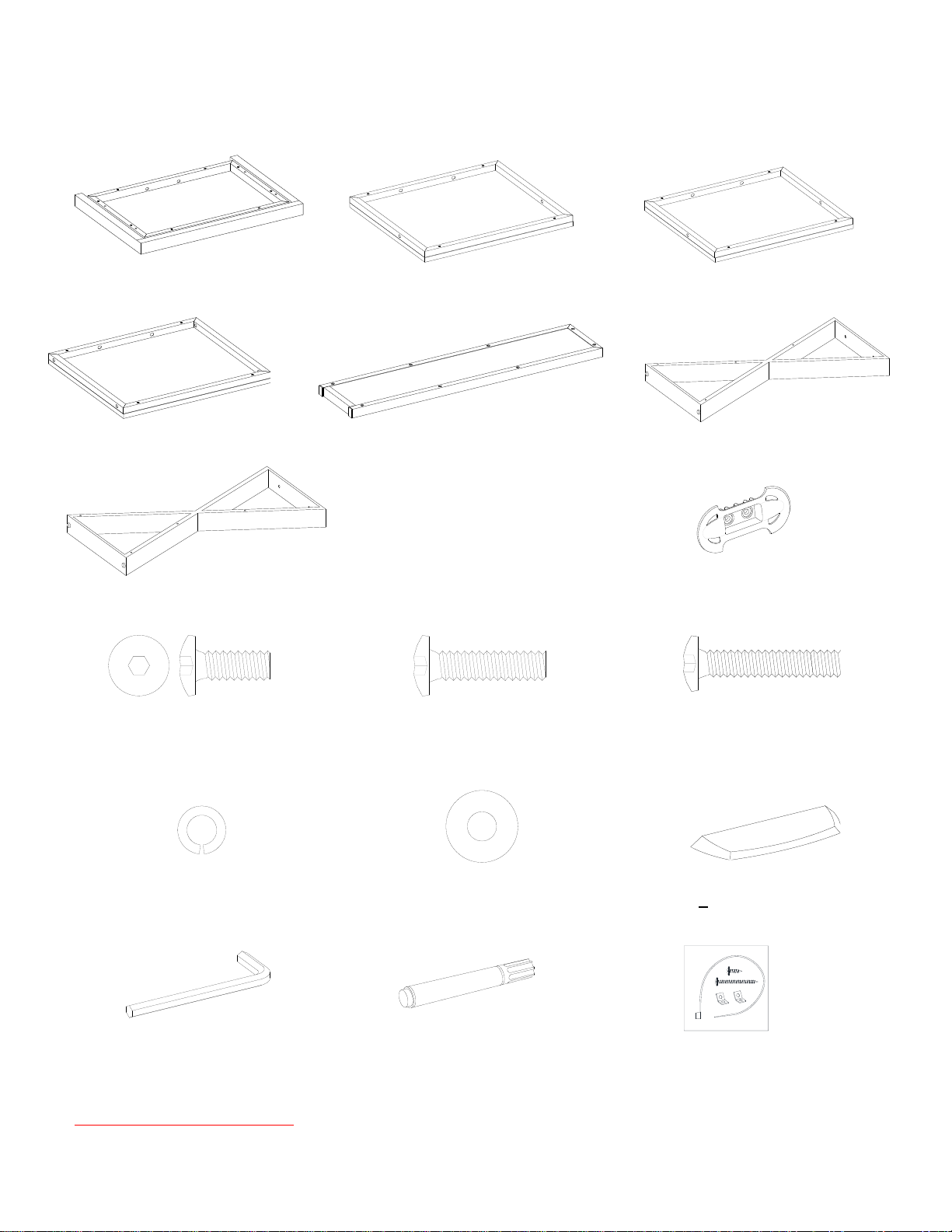

A- Top Panel (Qty. 1) B- Upper Middle Shelf (Qty. 1) C- Lower Middle Shelf (Qty. 1)
D- Bottom Shelf (Qty. 1) E- Back Frame (Qty. 1) F- Left Leg (Qty. 1)
G- Right Leg (Qty. 1) H- Cable Wheel (Qty. 2)
(1) 5/8” Bolt (2) 1” Bolt (3) 1-1/4” Bolt
(Qty. 4+1 extra) (Qty. 4+1 extra) (Qty. 16+1 extra)
(4) Lock Washer (5) Flat Washer (6) Acrylic Stopper
(Qty. 20+1 extra) (Qty. 20+1 extra) (Qty. 1)
4 mm Hex Wrench Touch-up Pen Tipping Restraint Hardware Kit (Qty. 1)
(Qty. 1) (Qty. 1) (Inside Plastic Bag)
Tools required (not included): Phillips screwdriver, stud finder, pencil, tape measure, power drill and
1/8" drill bit.

4
Assembly Instructions
NOTE: Please do not fully tighten all bolts until you finish assembling all parts. Once assembled, go back
and fully tighten all bolts. This will make the assembly easier.
1. Unpack the unit and confirm that you have all the hardware and required parts.

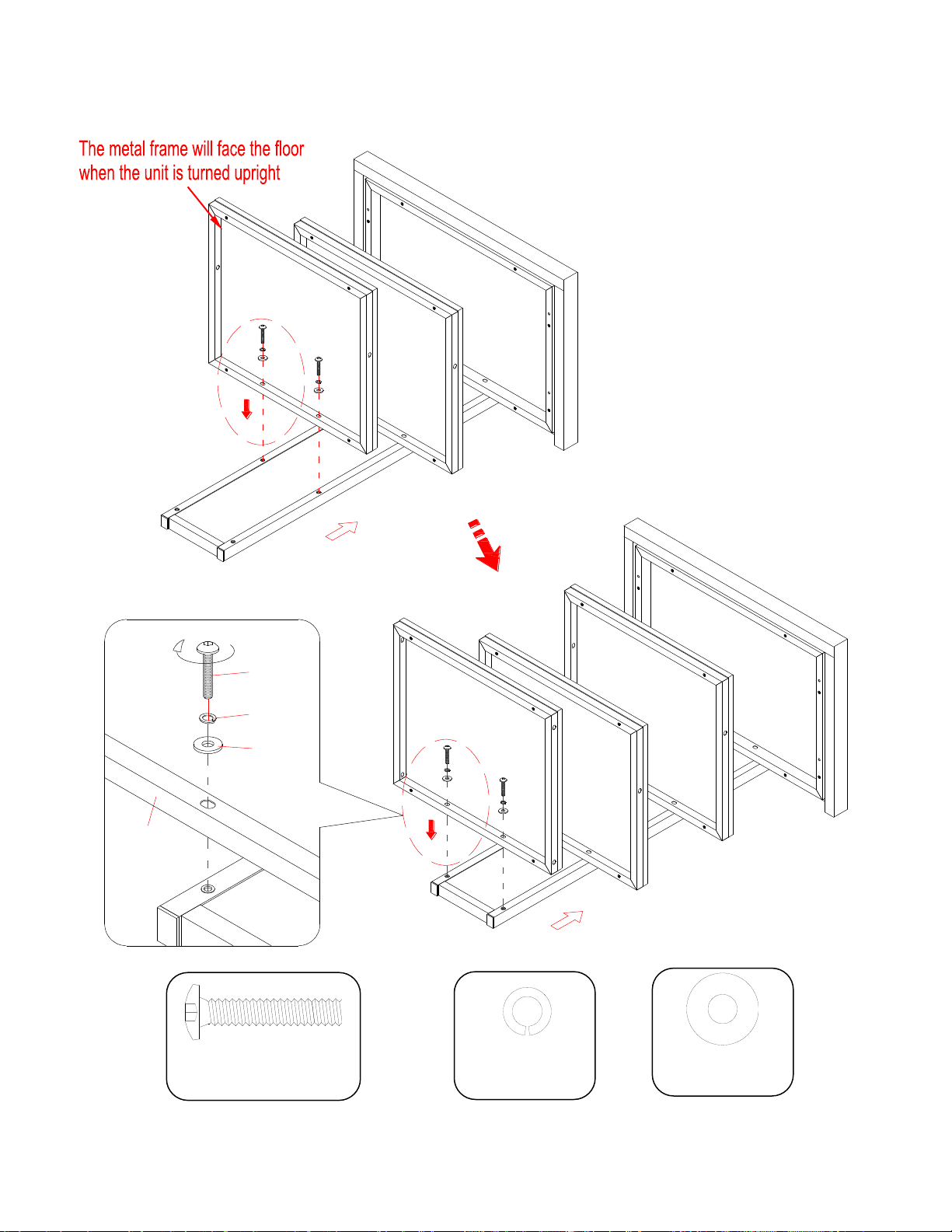

2. Locate the Back Frame (E) on a level and protective surface with the flush surfaces facing up.
3. Attach the Top Panel (A) to the Back Frame (E) with two 1-1/4” Bolts (3) and two Washers (4 and 5).
4. Attach the Upper Middle Shelf (B) to the Back Frame (E) with two 1-1/4” Bolts (3) and two Washers (4
and 5).
A/B
E
3
4
5
A
A
B
E
E
UP
UP
③×4
④×4
⑤×4

5
Assembly Instructions

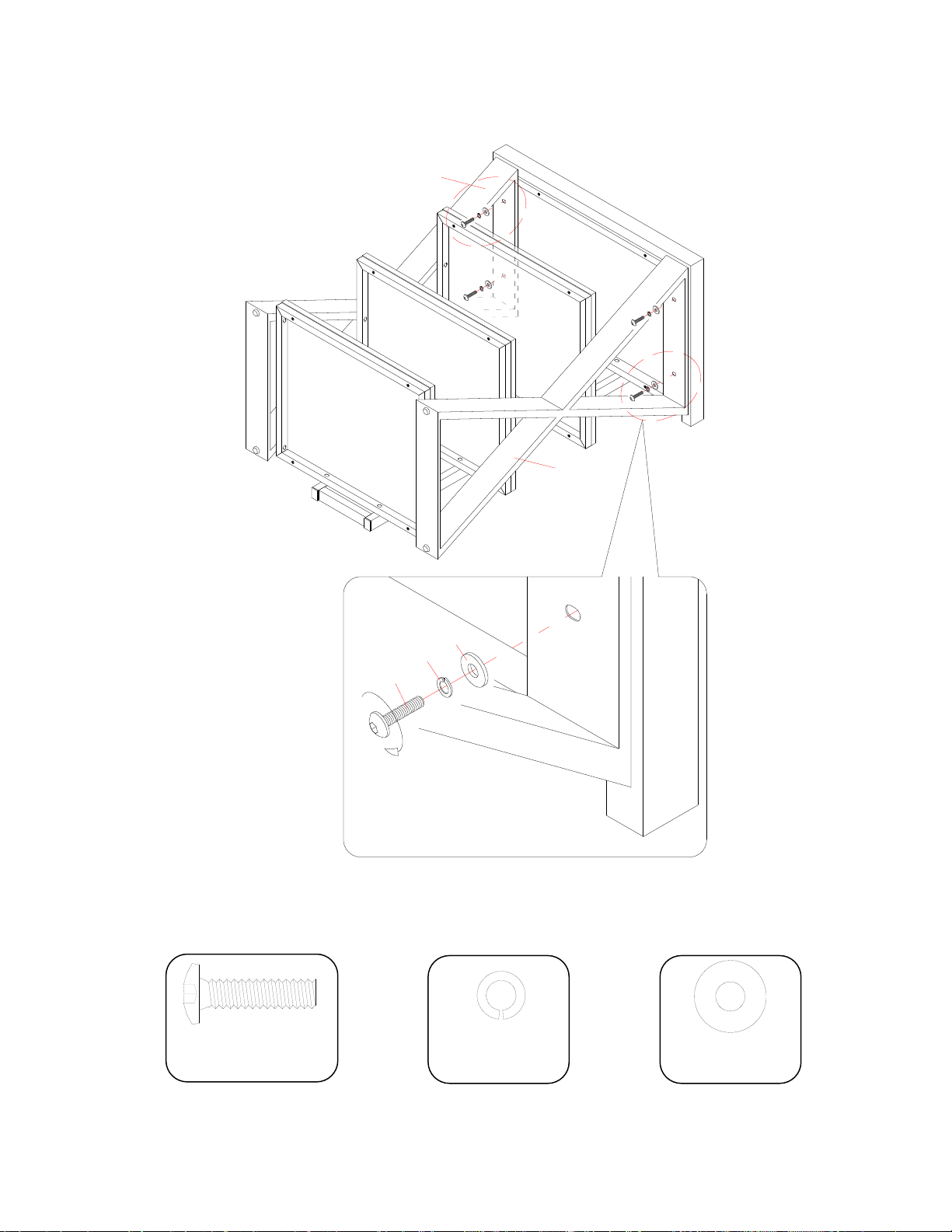

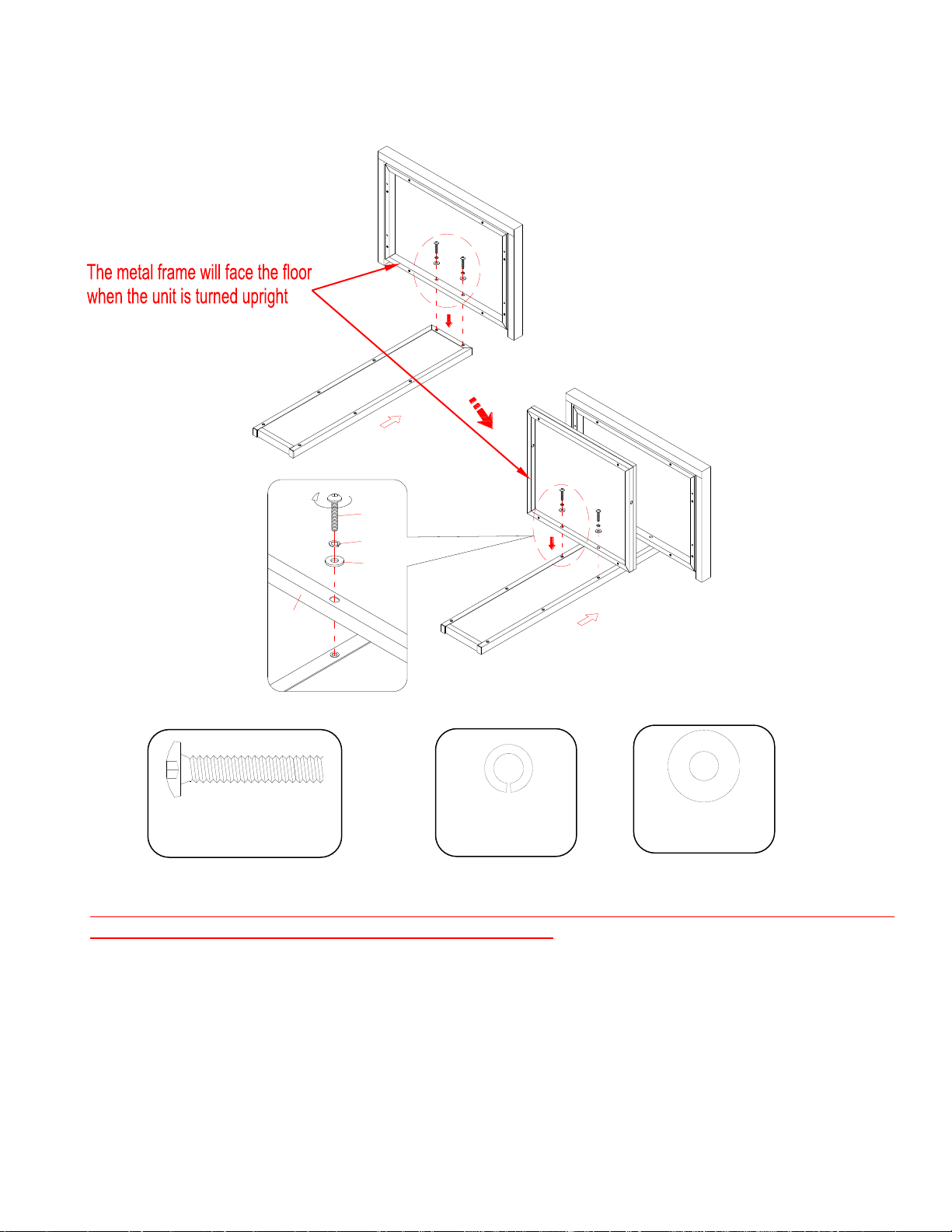

5. Attach the Lower Middle Shelf (C) and Bottom Shelf (D) to the Back Frame (E) with four 1-1/4” Bolts
(3) and four Washers (4 and 5).
C/D
E
3
4
5
C
D
E
E
UP
UP
③×4
④×4
⑤×4

6
Assembly Instructions

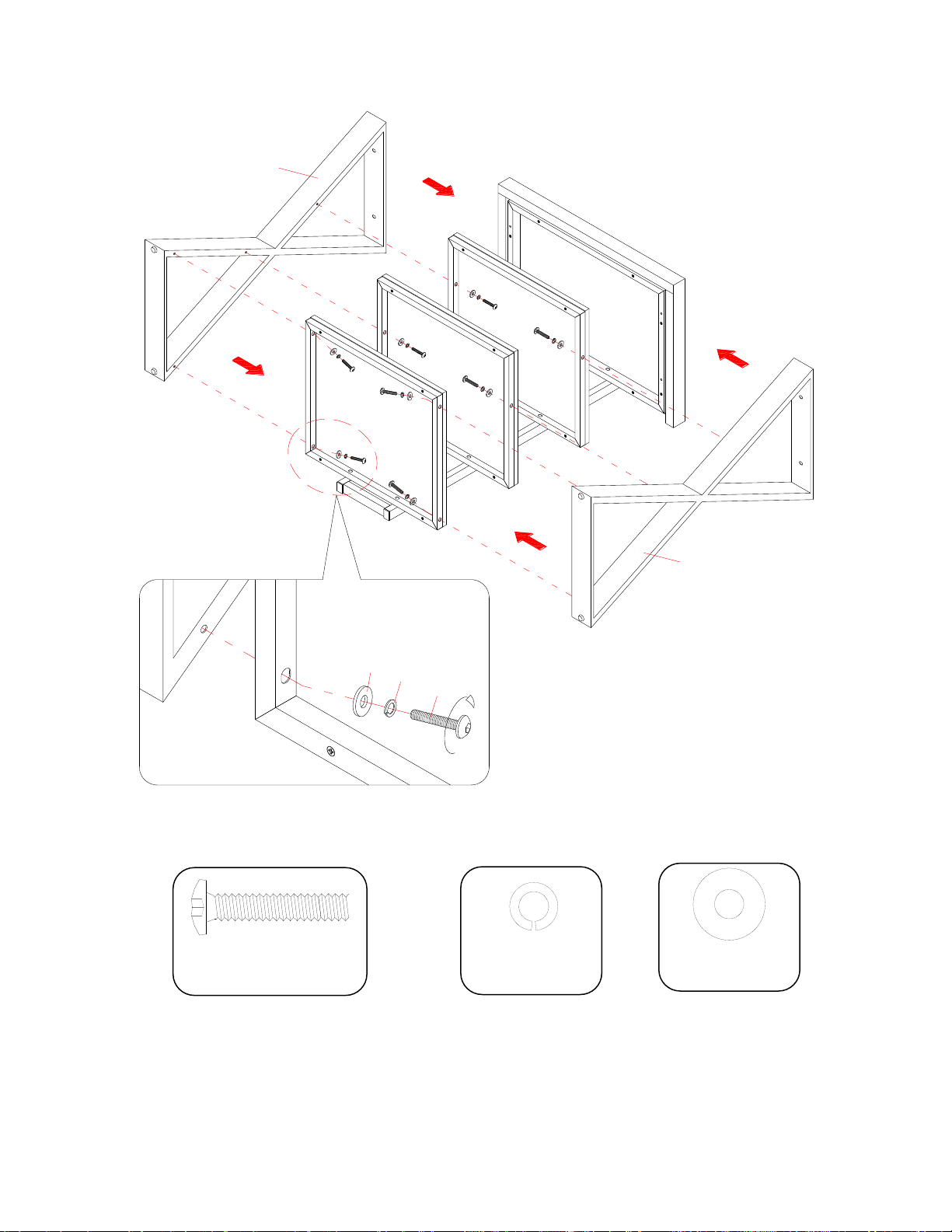

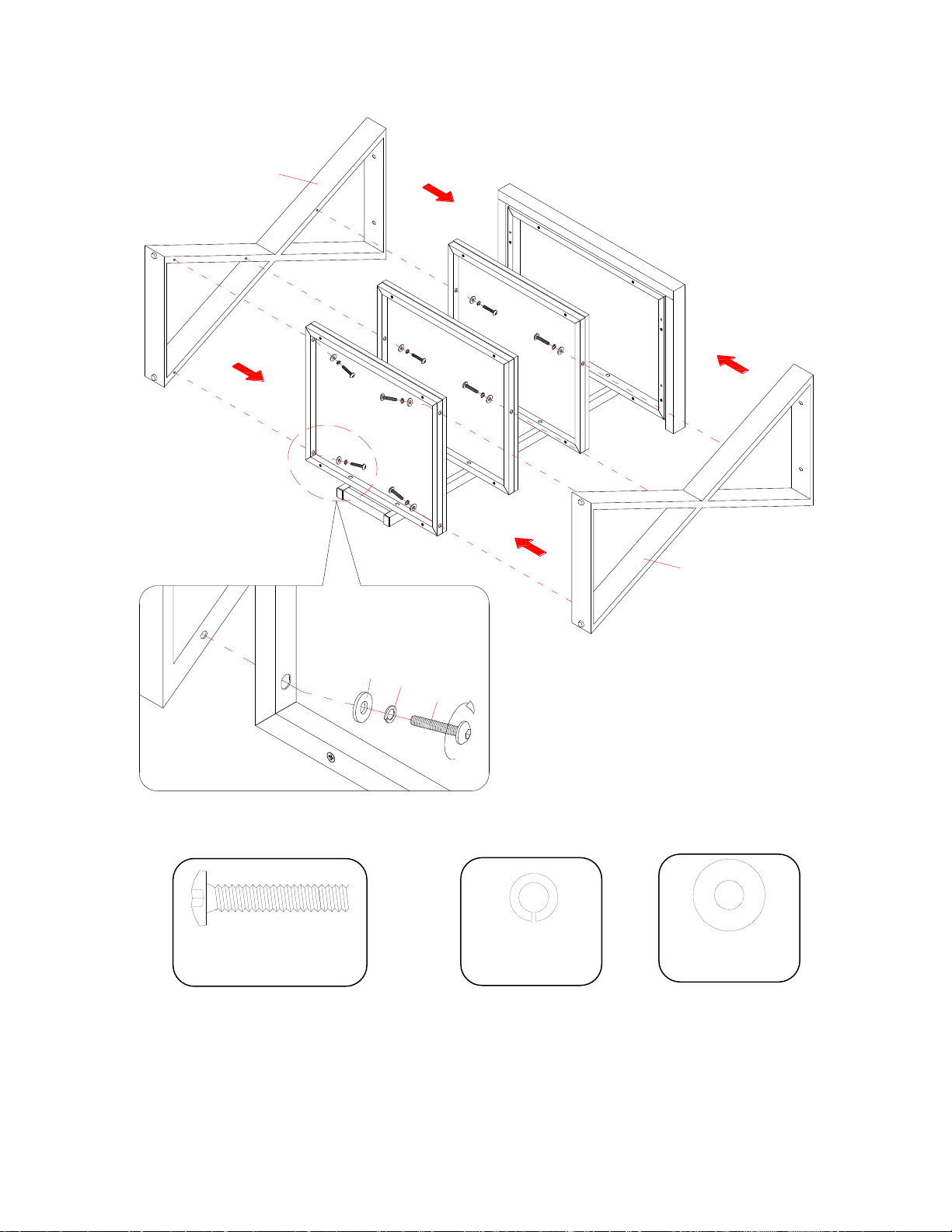

6. Align and attach Left Leg (F) to the Lower Shelf Frames (B, C and D) with four 1-1/4” Bolts (3) and four
Washers (4 and 5).
7. Repeat the same procedure to attach the Right Leg (G) on the other side.
3
4
5
B/C/D
F/G
C
B
A
D
F
G
③×8
④×8
⑤×8

7
Assembly Instructions

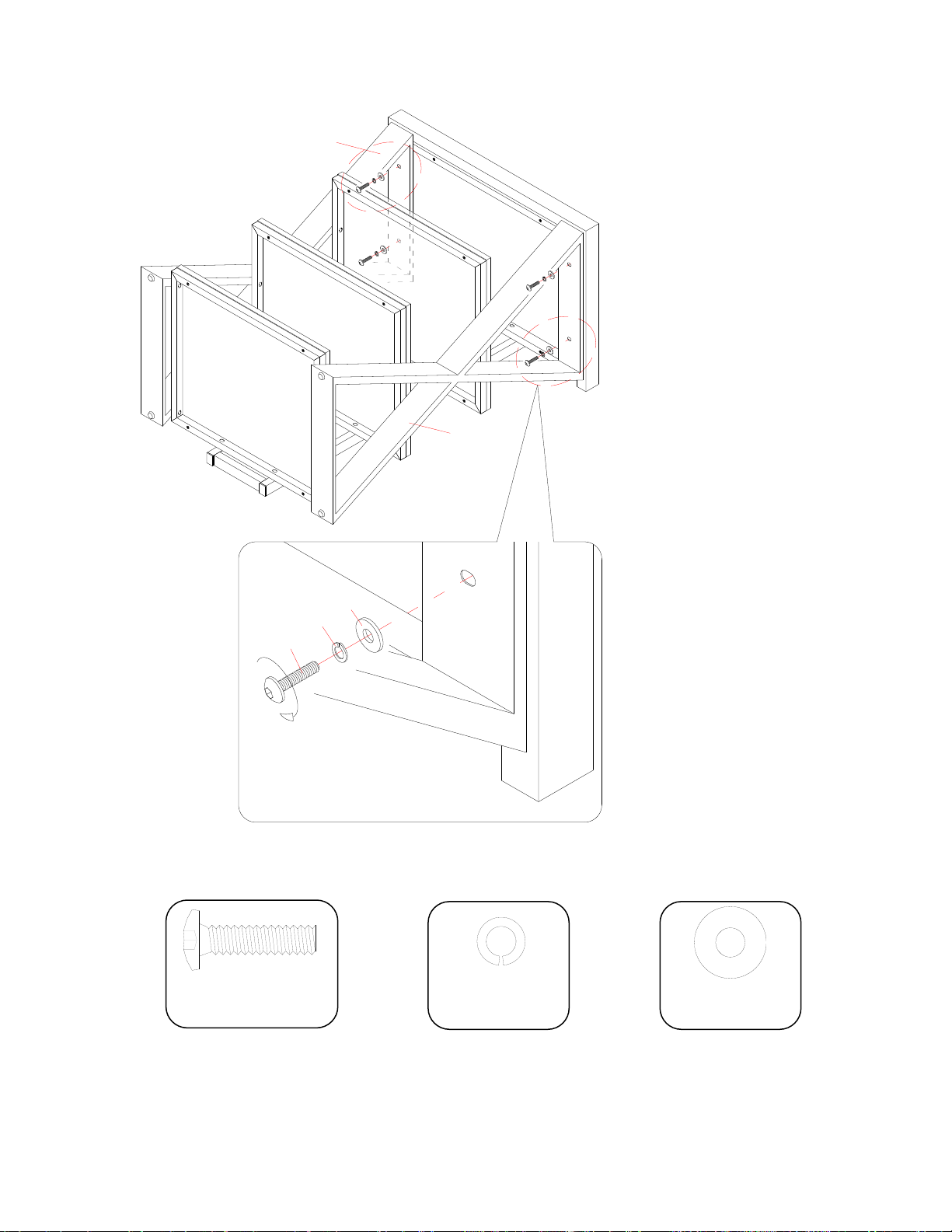

8. Fasten the Top Panel (A) into place with four 1” Bolts (2) and four Washers (4 and 5).
G
A
245F/G A
F
④×4
⑤×4
②×4

8
Assembly Instructions
9. Stand the unit upright.

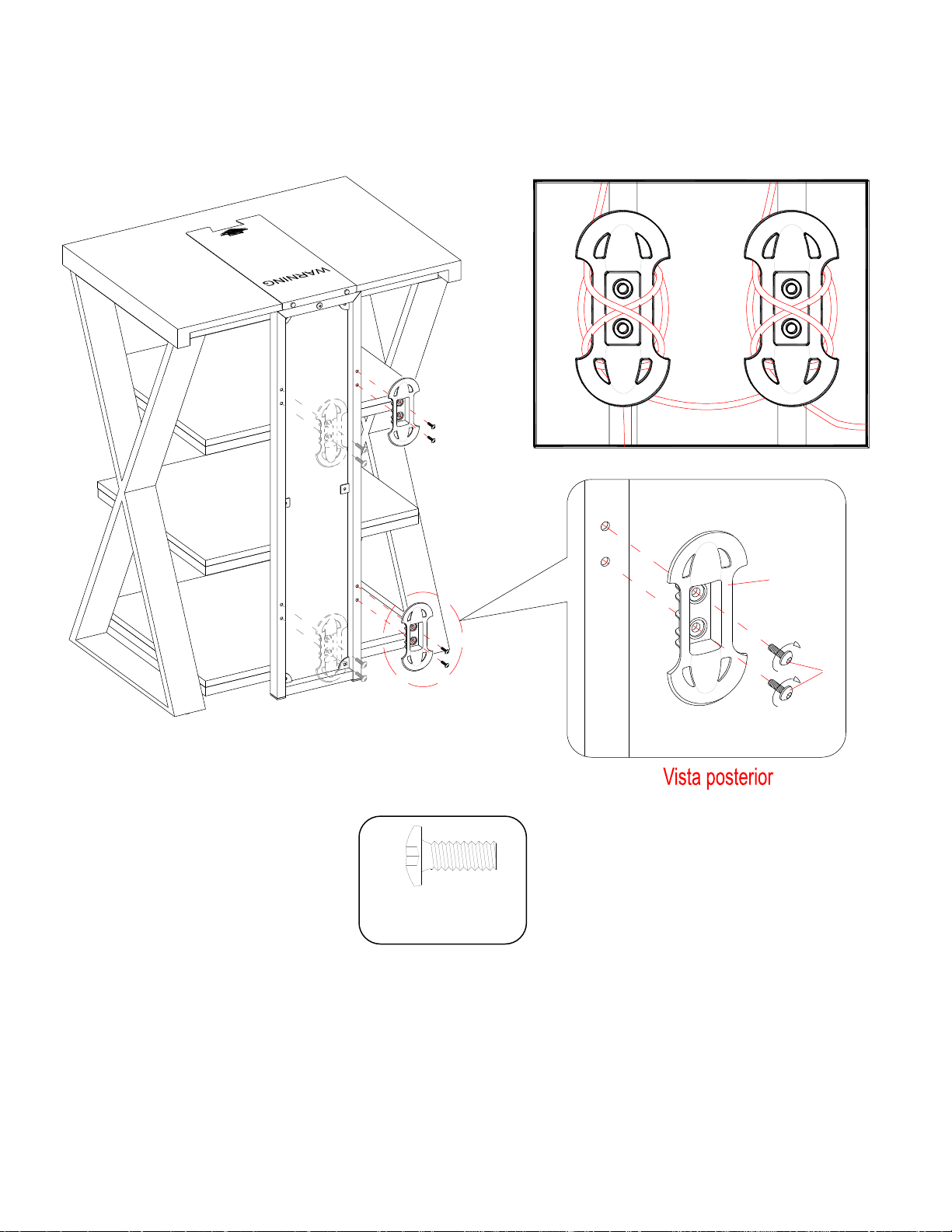

10. Attach 2 Cable Wheels (H) onto the backside of the Back Frame (E) and tighten with the enclosed hex
wrench.
11. The cable wheels allow you to organize, route and separate your component cords and cables to minimize
tangling and signal interference.
1
H
E
E
①×4

9
Assembly Instructions

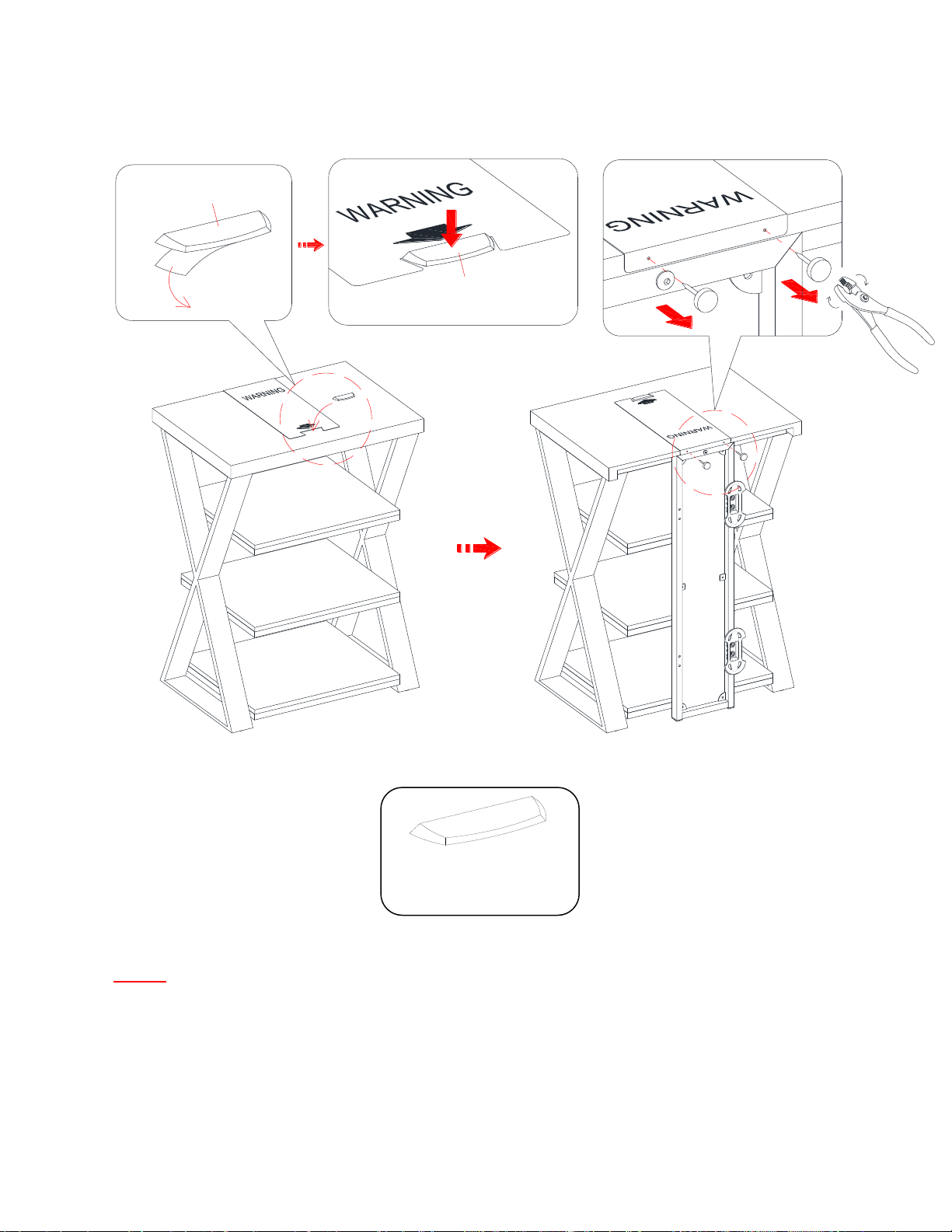

NOTE: You must install the Acrylic TV Stopper to prevent the TV from tipping when placing your flat
panel television directly on the tower. Otherwise, skip to step 13 to remove the stopper template directly.
12. Remove the paper backing from the acrylic stopper (6), then properly align the acrylic stopper into the
cut-out on the acrylic stopper template on the top panel (A). Press down on the acrylic stopper to help
adhesion.
13. At the back of the top panel (A), grip the head of plastic tack with pliers, with twisting motion pull tack
loose to remove the acrylic stopper template.
⑥×1
6
A
6
A
A

10
Assembly Instructions
Tools required (not provided): Phillips screwdriver, stud finder, power drill and 1/8" drill bit.

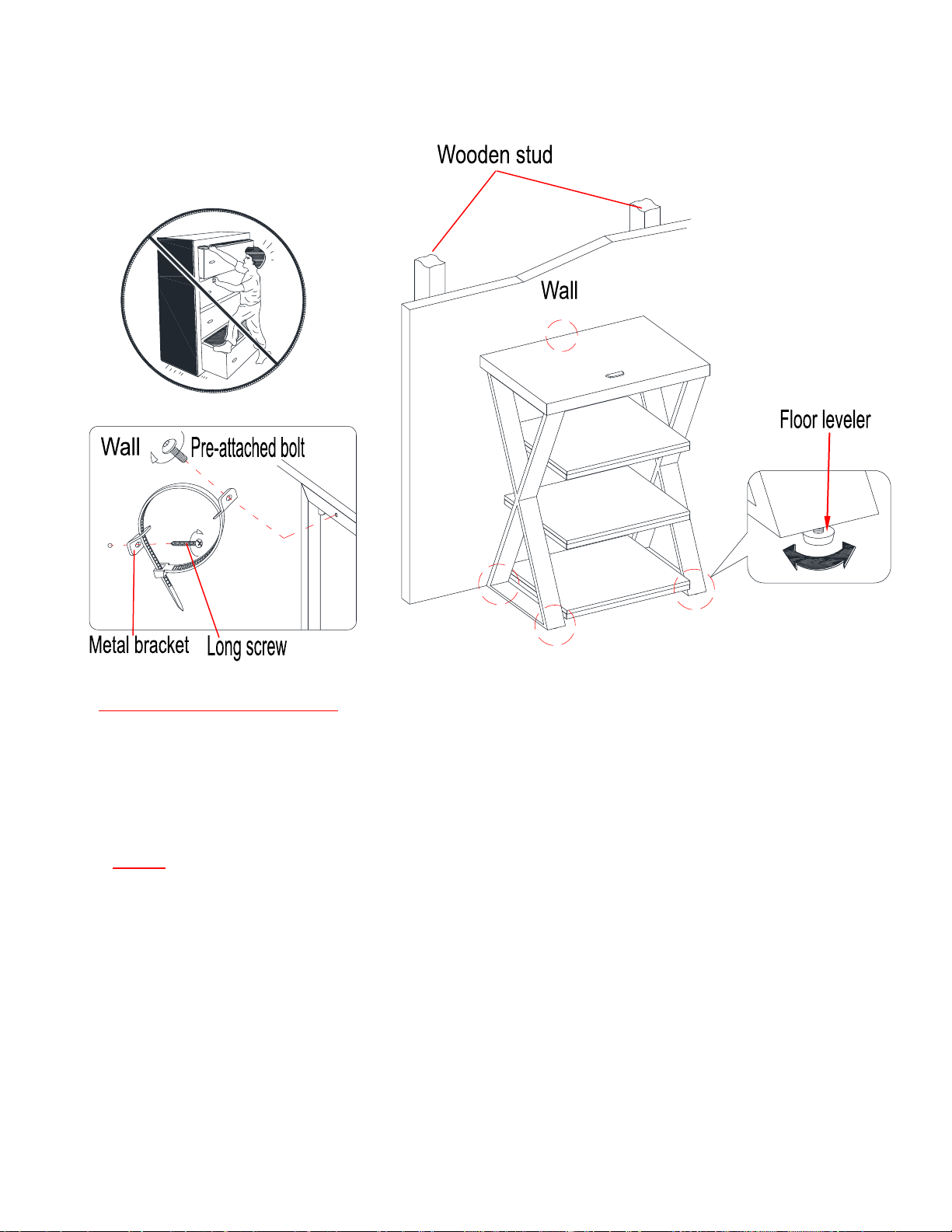

14. Position the assembled unit at the desired location against a wall. If necessary, adjust the pre-attached
Floor Levelers at the bottom of the Legs (F and G) to level the unit. Now, follow the instructions
printed on the plastic bag containing the Tipping Restraint Hardware to attach the tip-over restraint to
the Back Frame and the wall.
NOTE: The tipping restraint hardware included is for wooden stud wall construction. It must be
attached to a wall stud. Depending upon your wall construction, different anchor hardware maybe
required. Please contact your local hardware store for assistance. Young children can be seriously
injured by tipping furniture. You must install the Tipping Restraint Hardware with the unit to
prevent the unit from tipping, causing any accidents or damage. The tipping restraints are intended
only as a deterrent, they are not a substitute for proper adult supervision. The tipping restraints are not
earthquake restraints. If you wish to add the extra security of earthquake restraints, they must be
purchased and installed separately.
15. The unit is now ready for use.

11
Care and Maintenance
⚫Use a soft, clean cloth that will not scratch the surface when dusting.
⚫Use of furniture polishes is not necessary. Should you choose to use polishes, test first in an inconspicuous area.
⚫Using solvents of any kind on your furniture may damage the finish.
⚫Never use water to clean your furniture as it may cause damage to the finish.
⚫Always use coasters under beverage glasses and flowerpots.
⚫Liquid spills should be removed immediately. Using a soft, clean cloth, blot the spill gently. Avoid rubbing.
⚫Always use protective pads under hot dishes and plates. Heat can cause chemical changes that may create
spotting within the furniture finish.
⚫Stains or marks from crayons or ink markers will be difficult to remove.
⚫In the event that your furniture is stained or otherwise damaged during use, we recommend that you call a
professional to repair your furniture.
⚫Check bolts/screws periodically and tighten them if necessary.
WARNING
Please use your furniture correctly and safely. Improper use can cause safety hazards, or damage to
your furniture or household items. Carefully read the following safety information.
This unit is not intended for use with CRT TVs. The top surface maximum weight capacity is 80 lbs. (36.3 kg) and
maximum load 65 in. (165.1 cm) diagonal flat-panel TV. The shelf maximum recommended weight
allowance is 50 lbs. (22.6 kg). Use with heavier televisions may result in instability causing tip over resulting
in death or serious injury.
Death or serious injury may occur when children climb on audio and/or video equipment furniture. A remote
control or toys placed on the furnishing may encourage a child to climb on the furnishing and as a result may
tip over onto the child.
NEVER allow children to climb or play with the TV or furnishing supporting the TV.
NEVER place toys, food, remote, etc. on top of the TV or TV furnishing.
ALWAYS use either the safety hardware as instructed or other wall anchoring device.
Relocating audio and/or video equipment to furniture not specifically designed to support audio and/or video
equipment may result in death or serious injury due to furniture collapse or over turning onto a child.
NEVER place a TV on furniture that is not intended to support a TV.
NEVER exceed the maximum size and weight of the TV shown in the instructions.
ALWAYS place TV no more than two inches from the back edge of the tower. Placing TV more than two
inches from the back edge may increase the risk that the tower will tip over.
Be sure to refer to the TV warning label as shown in the instructions.
Overloading drawers and shelves may result in furniture that can break or sag, or tip-over which may result in
injury.
NEVER exceed the weight limits shown in the instructions.
Place the heavier items on lower shelves as far back from the front as possible.
Load the bottom surfaces first to avoid top-heavy furniture.
Moving furniture that is not designed to be moved or equipped with casters may result in injury or damage to
furnishings or personal property.
ALWAYS unload shelves and drawers, starting with the top surfaces, before moving.
NEVER push or pull furniture on carpet. Have a friend help lift properly to move and/or reposition it.
The unit is not meant as a seat and no one should be sitting or standing on the top panel.

12
MANUFACTURER: Whalen Furniture Manufacturing
CATALOG: 27”Audio Tower
MODEL # BBAVT27-MBC
QUALITY GUARANTEE
We are confident that you will be delighted with your Whalen Furniture purchase.
Should this product be defective in workmanship or materials or fail under normal use, we will repair or
replace it for up to one (1) year from date of purchase. Every Whalen Furniture product is designed to meet
your highest expectations. We guarantee that you will immediately see the value of our fine furniture.
This warranty gives you specific legal rights and you may also have other rights which vary from state to state
or province to province.
Whalen Furniture Manufacturing,
1578 Air Wing Road, San Diego, CA 92154, USA
Customer Service: 1-866-942-5362
8:30 a.m. - 4:30 p.m., PST, Monday to Friday
www.whalenfurniture.com
MAXIMUM RECOMMENDED WEIGHT LOADS
MAXIMUM LOAD 22.7 kg / 50 lb
PLACE TV BEHIND THE STOPPER
FITS UP TO MOST 32”
DIAGONAL FLAT-PANEL TVs
MAXIMUM LOAD 36.3 kg / 80 lb
THIS UNIT IS NOT INTENDED FOR USE WITH CRT TVS. USE ONLY WITH FLAT
PANEL TVS AND AUDIO/VIDEO EQUIPMENT MEETING RECOMMENDED SIZE AND WEIGHT LIMITS.
NEVER USE WITH LARGER/HEAVIER THAN RECOMMENDED FLAT PANEL TVS OR EQUIPMENT. TO
AVOID INSTABILITY, PLACE FLAT PANEL TV IN THE CENTER OF THE UNIT; THE BASE OF THE
TELEVISION MUST BE ABLE TO REST ON THE SUPPORTING SURFACE OF THE UNIT WITHOUT
OVER-HANGING THE EDGES. IMPROPERLY POSITIONED FLAT PANEL TVS, OR FLAT PANEL TVS
INCLUDING OTHER EQUIPMENT THAT EXCEED RECOMMENDED SIZE AND WEIGHT LIMITS
COULD FALL OFF OR BREAK THE UNIT, CAUSING POSSIBLE SERIOUS INJURY. FOR USE WITH
TELEVISIONS WEIGHING 80 LBS (36.3 KG) OR LESS. USE WITH HEAVIER TELEVISIONS MAY RESULT IN
INSTABILITY CAUSING TIP OVER RESULTING IN DEATH OR SERIOUS INJURY.

ESTE INSTRUCTIVO CONTIENE INFORMACION IMPORTANTE DE SEGURIDAD.
POR FAVOR LEA Y MANTENGA PARA USO FUTURO.
Fecha 2021-10-14 Rev. 0001-D
Torre de audio de 27”
Modelo # BBAVT27-MBC
ENSAMBLE POR ADULTO REQUERIDO
Si tiene alguna pregunta acerca del ensamble o si le hace falta alguna parte, no devuelva este producto
a la tienda donde lo compró. Por favor llame a nuestro departamento de ayuda al cliente teniendo su
instructivo y lista de partes para proveer el modelo, nombre de parte o el número de fábrica:
1-866-942-5362
Hora estándar del Pacífico: 8:30 a.m. - 4:30 p.m., Lunes-Viernes
O nuestra página de Internet 24hrs al día, 7 días a la semana para asistencia en el producto:
www.whalenfurniture.com
O mande su requerimiento por correo Eléctronico a [e-mail]
NÚMERO de LOTE:
FECHA de COMPRA: / /

2
1. Por favor lea el instructivo antes de comenzar el ensamble.
2. Retirar todo el material de ferretería de la caja y ordenar por tamaño.
3. Asegurar de que todo el material de ferretería y partes estén presentes ANTES del ensamble.
4. Pedir asistencia de un amigo para ensamblar la unidad.
5. Para evitar daños, ensamblar el producto en una superficie fuerte, nivelada y protegida.
6. Esperad hasta que todos los pasos estén completos antes de apretar los pernos.
7. Asegurar de que los pernos estén apretados antes de usar la unidad.
INFORMACIÓN GENERAL, RECOMENDACIONES Y TRUCOS
Estéproducto se vende con un juego de restricción de movimiento. Usted debe instalar el juego de
restricción de movimiento entre la pared y la consola de TV para prevenir accidentes o daños. Cuando
estáinstalada correctamente, este tope de movimiento puede proveer protección en contra la inclinación
inesperado de la unidad a causa de pequeños temblores, golpes. El tope de movimiento es solo un
impedimento, no hay substituto para la supervisión adulta. El uso del tope de movimiento puede reducir,
pero no eliminar, el riesgo de voltearse la unidad.
La unidad debe ser puesta en una superficie nivelada o nivelada con la ferretería incluida (cuando sea
aplicable).
No sentarse o pararse o dejar que niños se trepen, sienten, o paren en el producto ensamblado.
Por seguridad, la unidad debe ser montada a la pared.
No usar sin instalar los topes de movimiento.
La unidad se puede volquear causando lesiones graves o la muerte.
No exceder los límites de peso recomendados.
Distribuir en forma nivelada el peso en cada nivel y siempre mantener los pesos mayores en la parte
inferior.
Antes de cortar, perforar, o golpear con el martillo la pared o el piso, localizar líneas eléctricas, tuberías,
y líneas de gas. Cortar puede causar lesiones graves.
ADVERTENCIA

3
Lista de partes y material de ferretería
Por favor lea completamente las instrucciones y verifique que estén todas las partes y partes de
ferretería antes de iniciar el ensamblado.
A- Panel superior l (Cant. 1) B- Repisa superior media (Cant. 1) C- Repisa inferior media (Cant. 1)
D- Repisa inferior (Cant. 1) E- Marco posterior (Cant. 1) F- Pata izquierda (Cant. 1)
G- Pata derecha (Cant. 1) H- Guía de cable (Cant. 2)
(1) Perno de 5/8”(2) Perno de 1”(3) Perno de 1-1/4”
(Cant. 4+1 extra) (Cant. 4+1 extra) (Cant. 16+1 extra)
(4) Arandela de presión (5) Arandela plana (6) Tope de acrílico
(Cant. 20+1 extra) (Cant. 20+1 extra) (Cant. 1)
Llave hexagonal de 4 mm Plumón Juego de restricción de movimiento (Cant. 1)
(Cant. 1) (Cant. 1) (Incluido en bolsa de plástico)
Herramientas requeridas (no incluidas): Desarmador estrella, buscador de vigas, lápiz, cinta métrica,
taladro, y broca de 1/8".

4
Instrucciones de ensamble
NOTA: Por favor no apriete completamente todos los pernos, hasta que termine con el ensamble de las
partes, después asegúrese de apretar todos los pernos, esto haráel ensamble más fácil.
1. Desempacar la unidad y confirmar que se tiene todo el material de ferretería y partes requeridas.
2. Localizar el marco posterior (E) en una superficie nivelada y protegida con las superficies niveladas
apuntando hacia arriba.
3. Adjuntar el panel superior (A) al marco posterior (E) con 2 pernos de 1-1/4” (3) y 2 arandelas (4 y 5).
4. Adjuntar la repisa superior media (B) al marco posterior (E) con 2 pernos de 1-1/4” (3) y 2 arandelas (4
y 5).
A/B
E
3
4
5
A
A
B
E
E
UP
UP
③×4
④×4
⑤×4
ARRIBA
ARRIBA

5
Instrucciones de ensamble

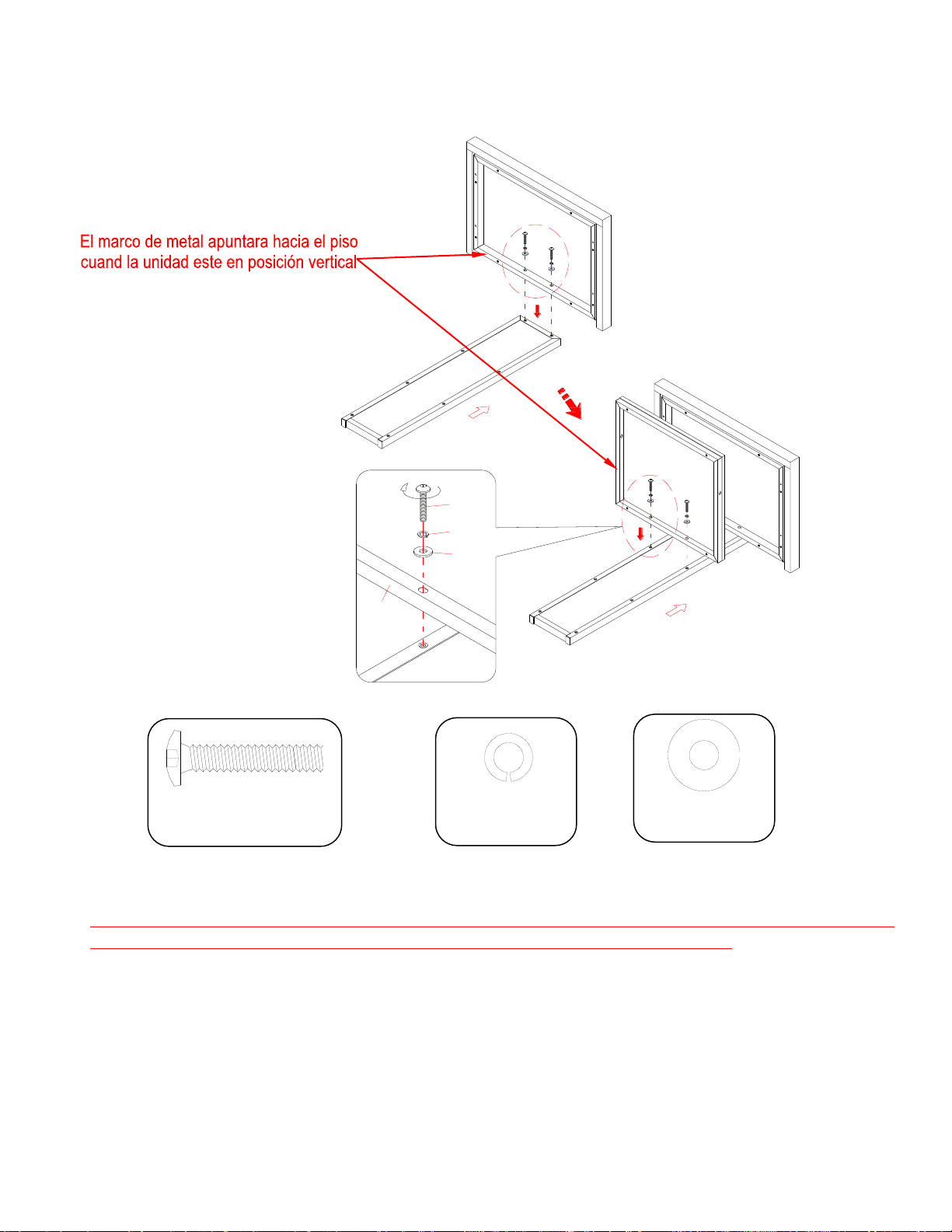

5. Adjuntar la repisa inferior media (C) y la repisa inferior (D) al marco posterior (E) con 4 pernos de 1-
1/4” (3) y 4 arandelas (4 y 5).
C/D
E
3
4
5
C
D
E
E
UP
UP
③×4
④×4
⑤×4
ARRIBA
ARRIBA

6
Instrucciones de ensamble

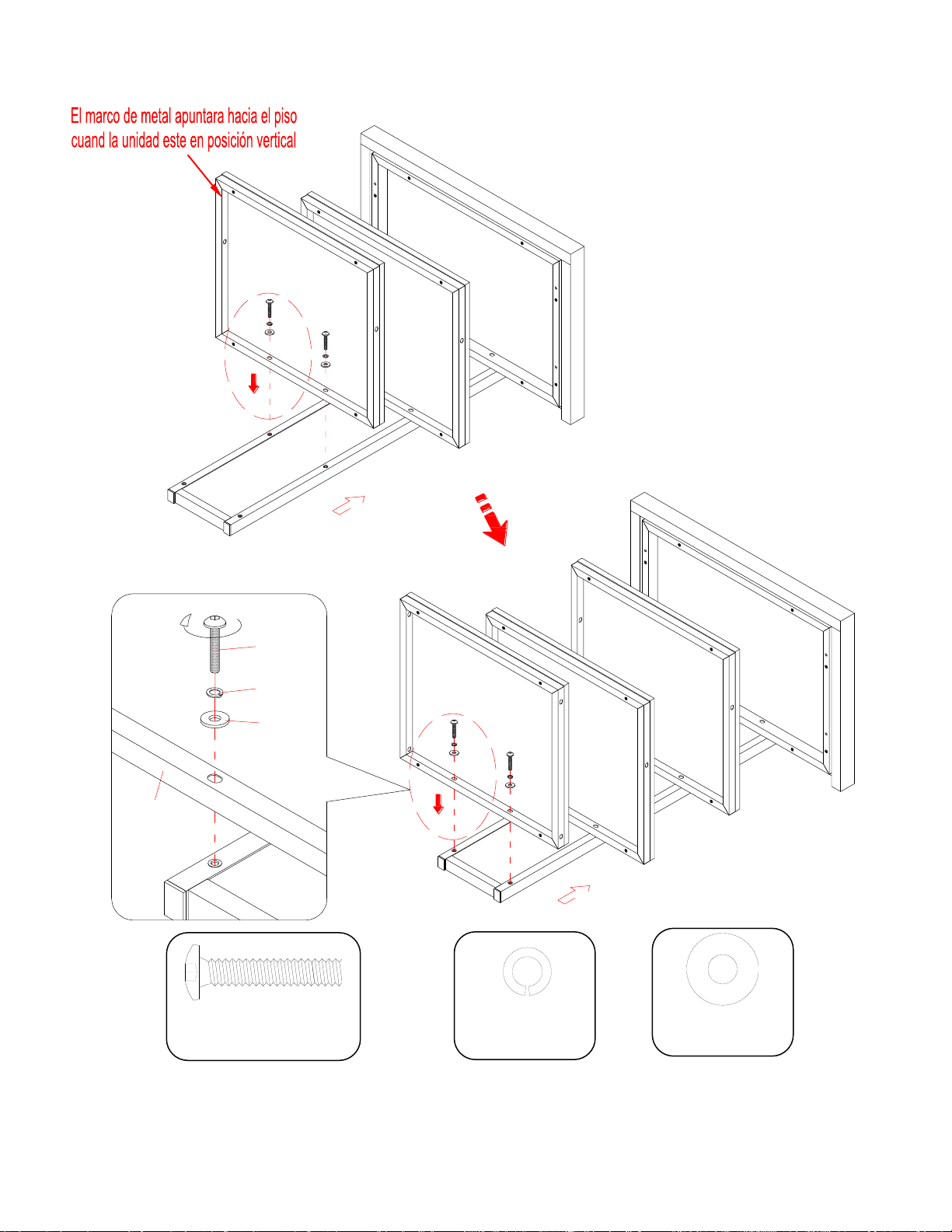

6. Alinear y adjuntar la pata izquierda (F) a los marcos inferiores de repisa (B, C y D) con 4 pernos de 1-
1/4” (3) y 4 arandelas (4 y 5).
7. Repetir el mismo procedimiento para adjuntar la pata derecha (G) al otro lado.
3
4
5
B/C/D
F/G
C
B
A
D
F
G
③×8
④×8
⑤×8

7
Instrucciones de ensamble
8. Sujetar el panel superior (A) en su lugar con 4 pernos de 1” (2) y 4 arandelas (4 y 5).
G
A
245F/G A
F
④×4
⑤×4
②×4

8
Instrucciones de ensamble
9. Poner la unidad en posición vertical.
10. Adjuntar 2 guías de cable (H) en la parte posterior del marco posterior (E) y sujetar con la llave
hexagonal.
11. Las guías de cable le permiten organizar, encaminar, y separar sus cables para minimizar enredamientos
e interferencia de señal.
1
H
E
E
①×4
