Whalen SPLS-TU48CD User manual

THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION.
PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Date 2020-01-29 Rev. 0001-A
Turing 48" Corner Desk with Power Strip
Model # SPLS-TU48CD
ADULT ASSEMBLY REQUIRED DUE TO THE PRESENCE OF SMALL PARTS, SHARP
POINTS, SHARP EDGES AS RECEIVED
If you have any questions regarding assembly or if parts are missing, DO NOT return this item to the
store where it was purchased. Please call our toll-free customer service number and have your
instructions and parts list ready to provide the model name, part name or factory number:
1-866-942-5362
Pacific Standard Time: 8:30 a.m. - 4:30 p.m., Monday - Friday
Or visit our web site 24 hours a day, 7 days a week for product assistance at
www.whalenfurniture.com
Or e-mail your request to [e-mail]
LOT NUMBER:
DATE PURCHASED: / /

2
MANUFACTURER: Whalen Furniture Manufacturing
CATALOG: Turing 48" Corner Desk with Power Strip
MODEL # SPLS-TU48CD
SPECIAL NOTE
Please read the instruction sheets completely before assembly. Examine all packaging
material before discarding carton. Remove any remaining staples from the carton before
discarding. Remove all parts from carton and separate into groups as indicated on part
list. Please ensure all parts are included prior to assembly. Use of power tools to
complete assembly is not recommended.

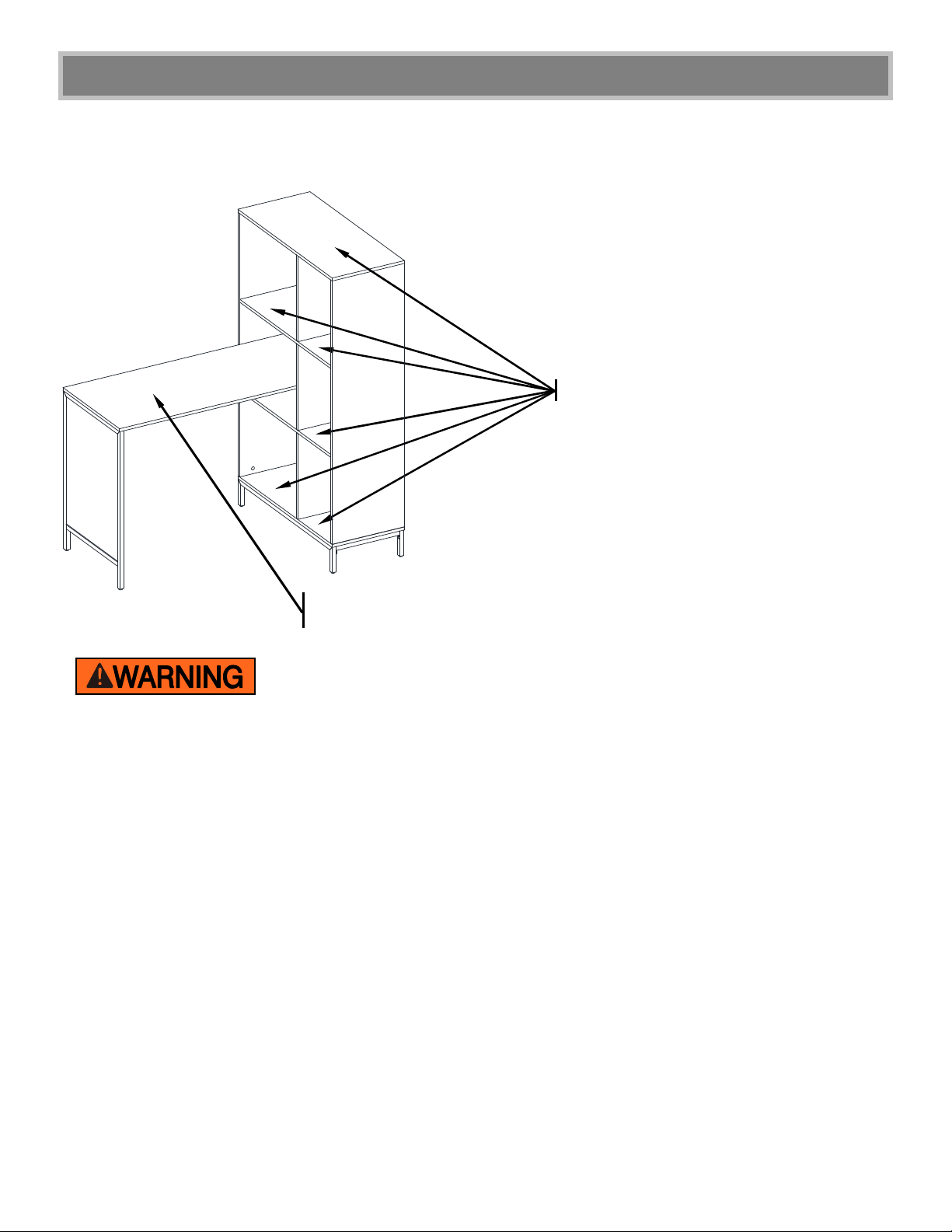

M A X I M U M R E C O M M E N D E D W E I G H T L O A D S
THIS UNIT IS INTENDED ONLY FOR USE WITHIN THE MAXIMUM
WEIGHTS INDICATED. USE WITH LOAD HEAVIER THAN THE MAXIMUM WEIGHTS
INDICATED MAY RESULT IN INSTABILITY, CAUSING POSSIBLE INJURY.
MAXIMUM LOAD 22.7 kg / 50 lb.
MAXIMUM LOAD 90.7 kg / 200 lb

3
IMPORTANT
Before you begin: Open, identify and count all parts prior to assembly. Lay out parts on a flat and non-
abrasive surface. You will need the parts identified on page 6 and 7 of this instruction manuals.

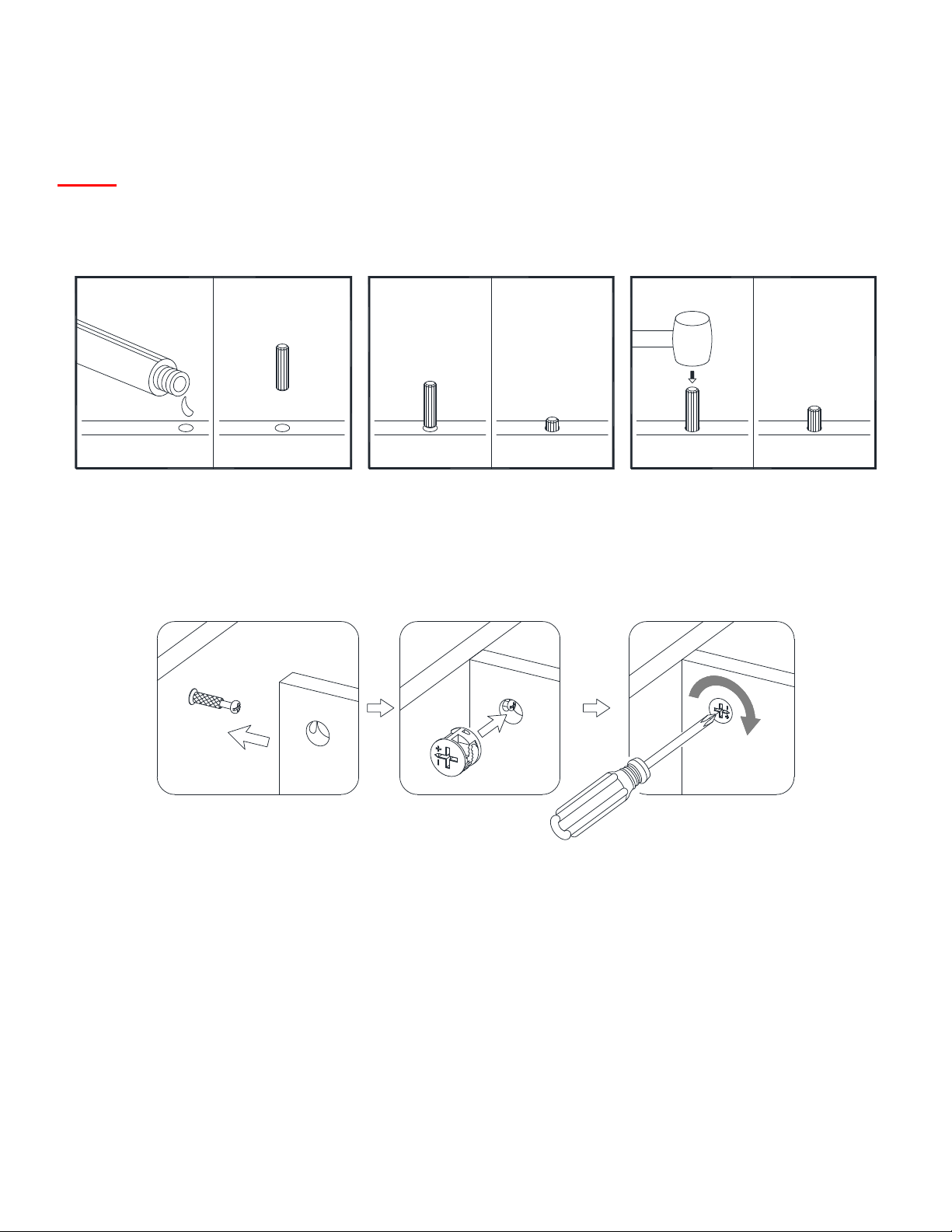

NOTE: IT IS VERY IMPORTANT TO USE GLUE WITH DOWELS. EXCESS GLUE CAN BE WIPED
OFF WITH DAMP CLOTH.
Insert the Dowel at least half way by tapping lightly with a rubber mallet, IF NECESSARY.
CAM LOCK SYSTEM OPERATION
HOW THE KNOCK DOWN (KD) ASSEMBLY SYSTEM WORKS
1. Screw the Cam Bolt into the pre-drilled small holes on the panel. Connect both panels together; making sure
the Cam Bolt goes into the pre-drilled hole at the end of the panel with the Cam Lock.
2. Insert the Cam Lock into the pre-drilled large hole in the panel. Make sure the arrow on the Cam Lock is
pointed towards the Cam Bolt.
3. Once the Cam Bolt is connected inside the Cam Lock, take a Phillips screwdriver (not included) and
tighten the Cam Lock clockwise.
4. Cover the cam locks with the PVC stickers provided.
You are now ready to assemble the KD unit.
GLUE
XX
FINAL
1 2 43
123

4
FURNITURE POWER DISTRIBUTION CENTER
IMPORTANT SAFETY INSTRUCTIONS
Carefully read all instructions before installing and operating fixture
IF YOU HAVE ANY QUESTIONS REGARDING THE PROPER INSTALLATION
CONSULT A QUALIFIED ELECTRICIAN.
TO REDUCE THE RISK OF FIRE, ELECTRICAL SHOCK OR
INJURY TO PERSONS, PLEASE FOLLOW THE BELOW:
 Use only insulated staples or plastic ties (not included) to secure the cords.
 Route and secure cords so that they will not be pinched or damaged when the desk is pushed up against
the wall.
 Make sure cord is not pinched between desk and floor.
 Use the unit for indoor use only.
 Do not use an extension cord to connect this unit to a wall outlet.
 Use a power strip with integral over-current protection to supply other electrical devices or accessories
in desk.
 This unit must be plugged into a properly grounded outlet.
 The socket-outlet should be installed near the equipment and should be easily accessible.
 Maximum load of connected equipment cannot exceed a total of 12 amps and 120 volts.
 Do not open or disassemble this unit for any reason.
SAVE THESE INSTRUCTIONS

5
Furniture Power Distribution Unit User Guide
Please read this user guide before installing and using your power distribution Center.
INTRODUCTION
The integrated power and USB center offer 480 Mbps
high transmission rate and can connect up to two devices,
such as a digital camera, MP3 player, cell phone or
wireless mouse.
SPECIFICATIONS
cULus listed, rated for: 120 V ac, 12 A, 60 Hz
NOTES
 To reach USB 2.1 high speed, your computer or host
adapter card must support USB 2.1. This hub is also
backwards compatible with USB 1.1.
 When using the hub with a computer that has a version
1.1 USB interface, all of the devices attached to the hub
will run at USB 1.1 speed.
NOTE: This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful
interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and,
if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications.
However, there is no guarantee that interference will not
occur in a particular installation.
If this equipment does cause harmful interference to radio
or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following
measures:
 Reorient or relocate the receiving antenna.
 Increase the separation between the equipment and receiver.
 Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
 Consult the dealer or an experienced radio/TV technician
for help.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2)
this device must accept any interference received,
including interference that may cause undesired
operation.
CAN ICES-3 (B)/NMB-3(B)
This Class B digital apparatus complies with Canadian
ICES-003.
Whalen Furniture Manufacturing
1578 Air Wing Road, San Diego, CA 92154, USA
1-866-942-5362
WARNINGS
! Your hub automatically shuts off any port with a low
or excessive current.
! If USB Hub Current Limit Exceeded appears on your
screen, disconnect the affected USB device, click
Reset on the screen, and reconnect the device.
! If one of your hub ports is disabled, but USB Hub
Current Limit Exceeded does not appear:
 Disconnect and reconnect the affected device.
 If the port still does not work, disconnect the hub
and the device, and then reconnect.
! Keep your desktop hub dry; if it gets wet, wipe it dry
immediately.
! Do not modify or tamper with your desktop hub’s
internal components. It may cause a malfunction and
invalidate its warranty.
! Modifications not approved by the party responsible
for compliance could void user’s authority to operate
the equipment.
Product: Furniture Power Distribution Unit
Model No: HG2000-DBU
Company: Whalen Furniture Manufacturing

6

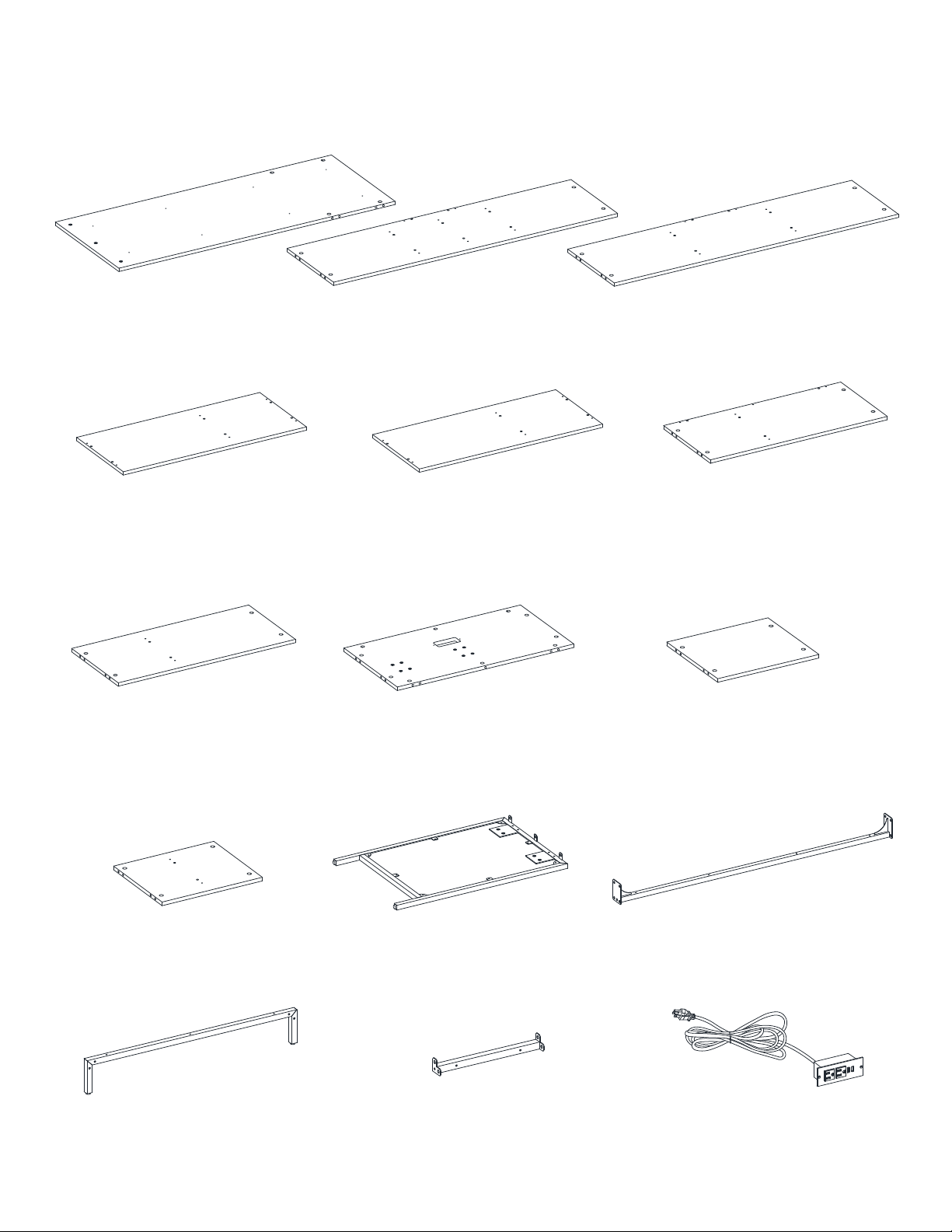

Parts and Hardware List
Please read completely through the instructions and verify that all listed parts and hardware are present
before beginning assembly.
A- Desk Top (Qty. 1) B- Bookcase Left Side Panel (Qty. 1) C- Bookcase Right Side Panel (Qty. 1)
D- Bookcase Top Panel (Qty. 1) E- Bookcase Bottom Panel (Qty. 1) F- Upper Shelf (Qty. 1)
G- Lower Shelf (Qty. 1) H- Back Panel (Qty. 1) I- Upper/Lower Partition Panel (Qty. 2)
J- Middle Partition Panel (Qty. 1) K- Desk Side Frame (Qty. 1) L- Desk Top Stretcher (Qty. 2)
M- Base Long Support N- Base Short Support O- Power Center
(Qty. 2) (Qty. 2) (Qty. 1)

7
Parts and Hardware List
Please read completely through the instructions and verify that all listed parts and hardware are present
before beginning assembly.
(1) 1/4” x 12 mm Bolt (2) Lock Washer (3) Flat Washer
(Qty. 27+1 extra) (Qty. 27+1 extra) (Qty. 27+1 extra)
(4) Cam Lock (5) Cam Bolt (6) M8 x 30 mm Wood Dowel
(Qty. 42+2 extra) (Qty. 42+2 extra) (Qty. 40+2 extra)
(7) M4 x 32 mm Screw (8) M3.5 x 12 mm Screw (9) PVC Cover
(Qty. 18+1 extra) (Qty. 2+1 extra) (Qty. 42+2)
Hex Wrench Glue
(Qty. 1) (Qty. 1)
Tools required (not included): Phillips screwdriver.

8
Assembly Instructions
NOTE: Please do not fully tighten all bolts until you finish assembling all parts. Once assembled, go back
and fully tighten all bolts. This will make the assembly easier.
1. Unpack the unit and confirm that you have all the hardware and required parts. Assemble the unit on a
carpeted floor or the empty carton to avoid any scratch.

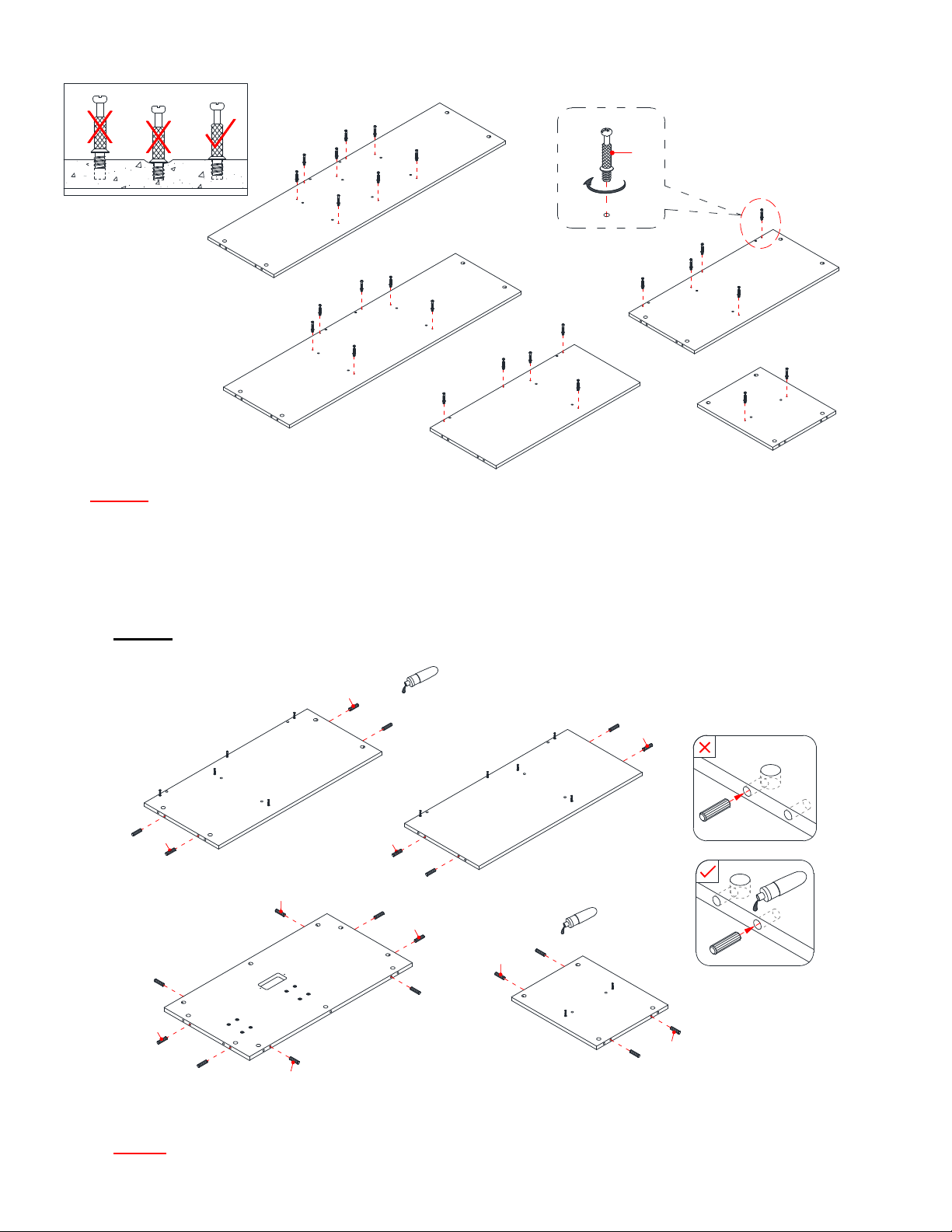

2. Securely screw the Cam Bolts (5) into the designated small holes on the Panels (B, C, F, G and J) with a
Phillips screwdriver. DO NOT overtighten the Cam Bolts.
NOTE: Screw-in cam bolts must be screwed down flush.
3. Glue the 30 mm Wood Dowels (6) into the inner holes on the Shelves (F and G) and the Panels (H and
J). Make sure that you use a small amount of glue with both ends of all dowels.
NOTE: It is very important to use a small amount of glue on both ends of dowels.
B
C
G
F
J
5
F
G
H
J
6
6
6
6
6
6
6
6
6
6

9
Assembly Instructions
4. Align and attach the Upper Shelf (F) to the Back Panel (H) by engaging three Cam Locks (4). (Refer to
page 3 on Cam Lock system operation supplement).
5. Align and attach the Middle Partition Panel (J) to the Upper Shelf (F) by engaging two Cam Locks (4).
H
F
4
4
H
F
J
The cam locks face inward
The cam bolts point toward
the side with cut-out

10
Assembly Instructions
6. Align and attach the Lower Shelf (G) to the previous assembly by engaging five Cam Locks (4).
7. Securely screw the Cam Bolts (5) into the designated small holes on the Shelves (F and G) using a
Phillips screwdriver.
J
H
G
4
F
G
5

11
Assembly Instructions

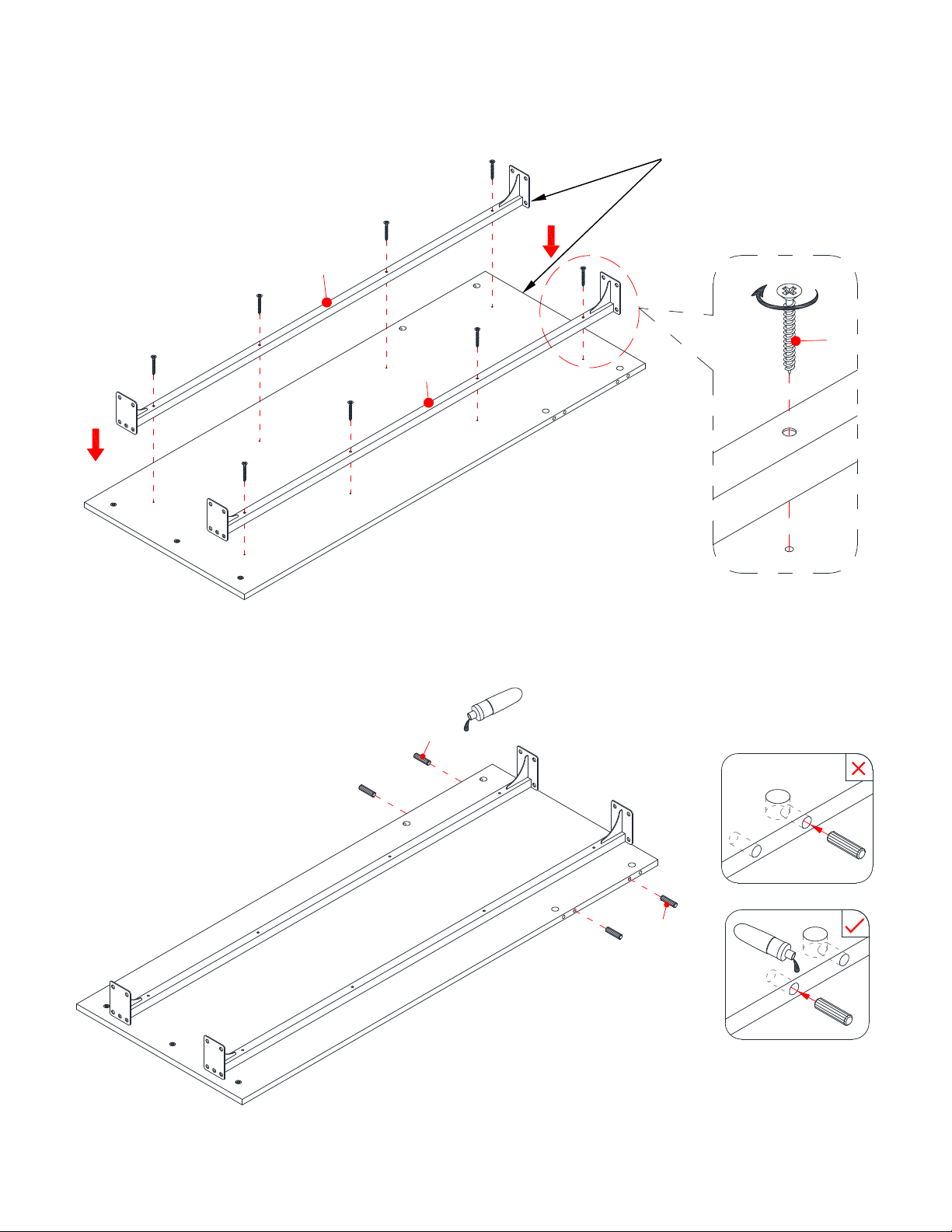

8. Using the pilot holes as a guide, align and attach two Desk Top Stretchers (L) to the Desk Top (A) with
eight 32 mm Screws (7).
9. Glue four Wood Dowels (6) into the inner holes of Desk Top (A).
A
L
L
7
This end lines up with each other.
6
6
A

12
Assembly Instructions

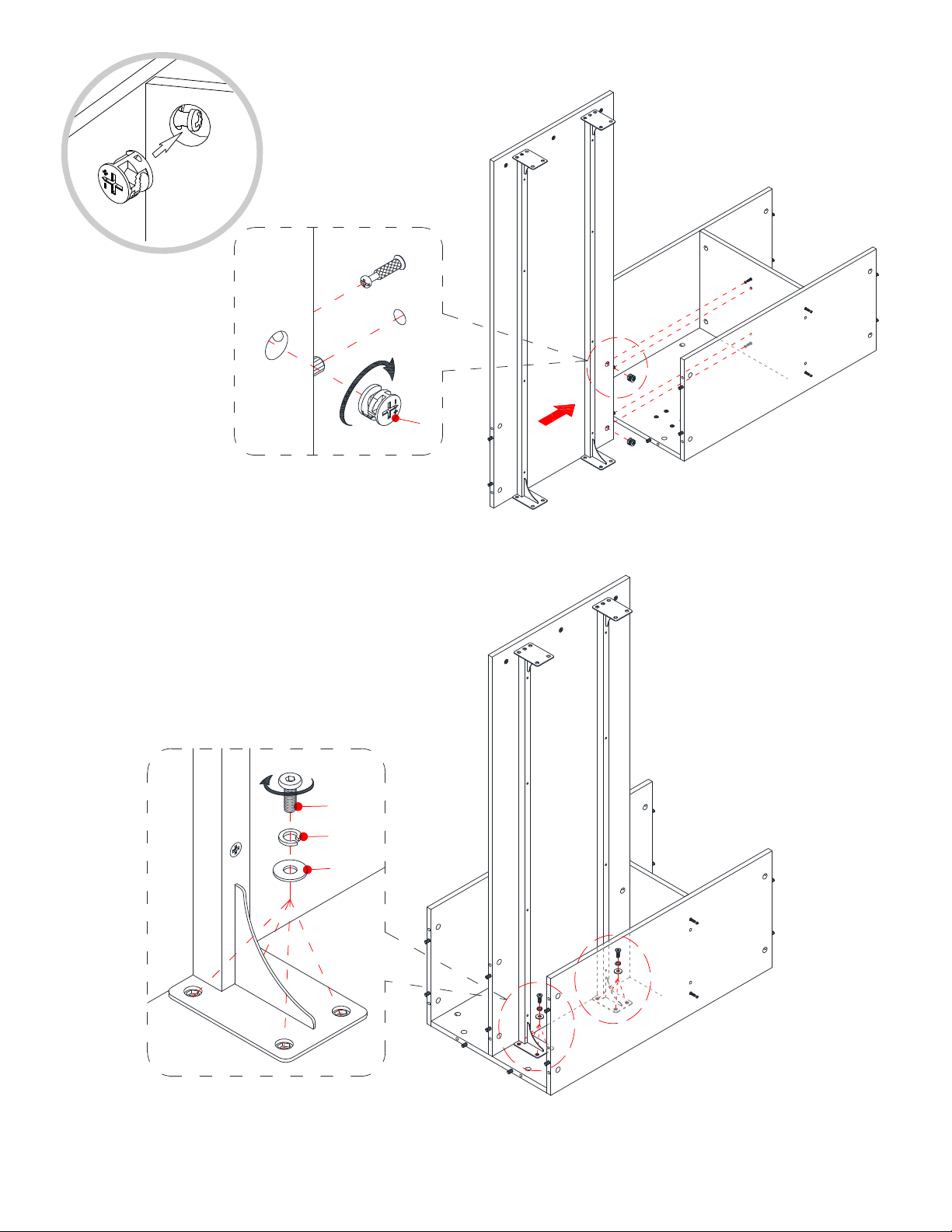

10. Using the wood dowels as a guide, align and attach the Desk Top (A) to the Middle Partition Panel (J)
by engaging two Cam Locks (4).
11. Fasten the assembled Desk Top Stretchers (L) to the Back Panel (H) by attaching eight 12 mm Bolts (1)
and eight Washers (2 and 3).
AJ
G
4
A
H
1
2
3
L
H

13
Assembly Instructions

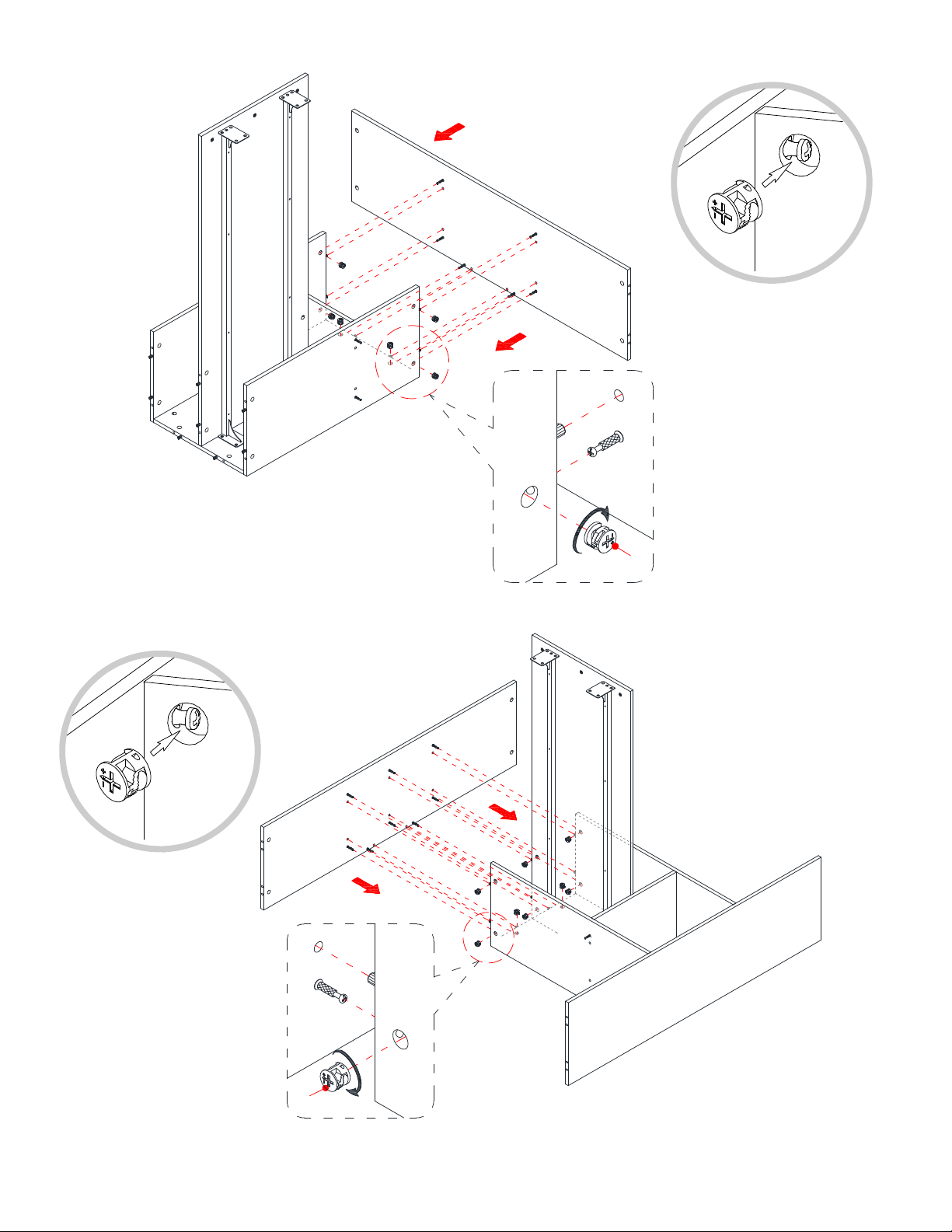

12. Align and attach the Bookcase Right Side Panel (C) to the assembled Shelves (F and G) and Back Panel
(H) by engaging six Cam Locks (4).
13. Align and attach the Bookcase Left Side Panel (B) to the assembled unit by engaging eight Cam Locks
(4).
G
F
C
H
4
4
G
F
A
B

14
Assembly Instructions

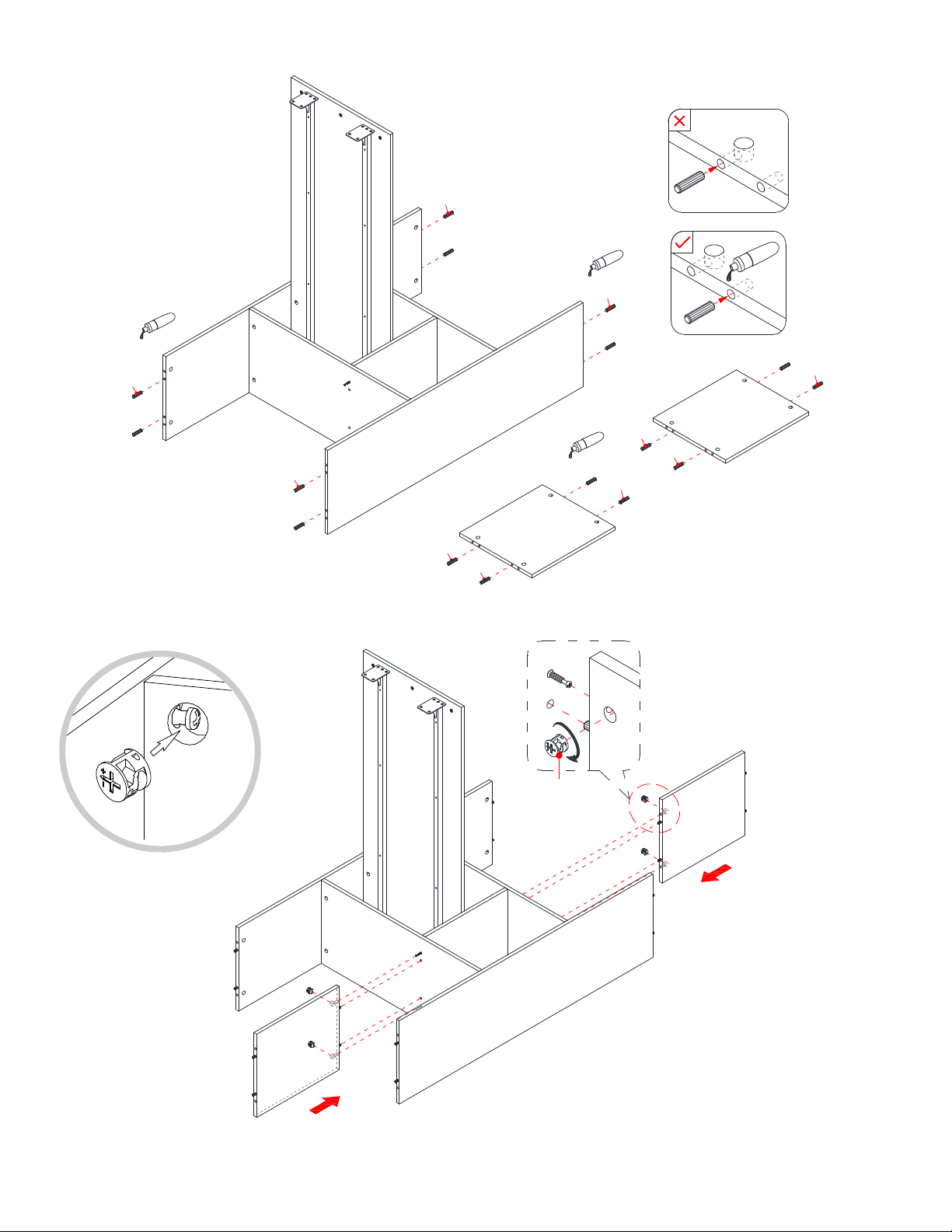

14. Glue the Wood Dowels (6) into the inner holes of assembled Side Panels (B and C), Upper and Lower
Partition Panels (I).
15. Align and attach the Upper/Lower Partition Panels (I) to the assembled Shelves (F and G) respectively
by engaging two Cam Locks (4) per panel.
6
6
66
6
6
6
6
6
6
B
CI
I
4
G
F
I
I

15
Assembly Instructions

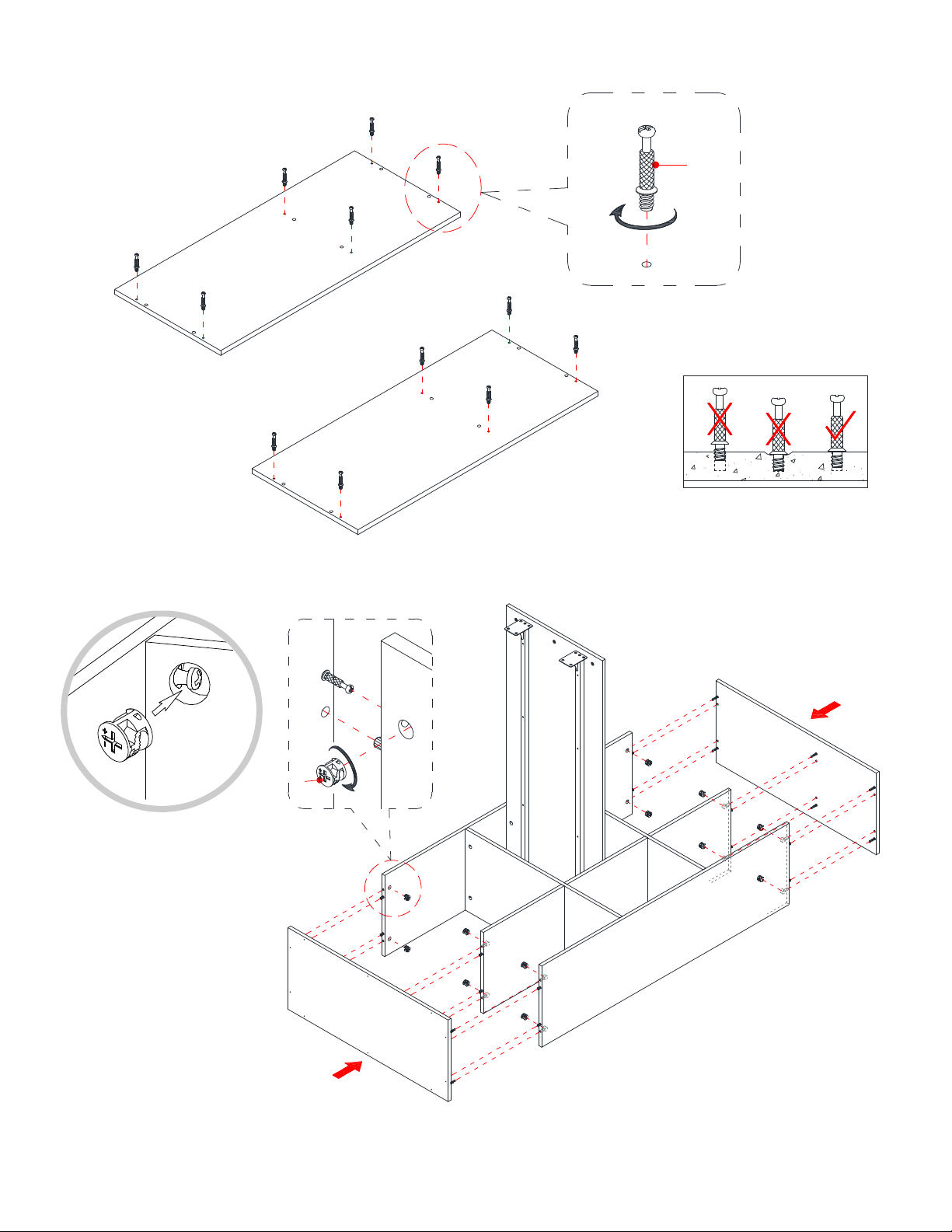

16. Securely screw the Cam Bolts (5) into the designated small holes on the Panels (D and E) using a
Phillips screwdriver.
17. Align the large holes on Bookcase Top and Bottom Panels (D and E) with the inserted wood dowels (6)
and press them together. Attach them into place by engaging twelve Cam Locks (4).
5
D
E
4
E
D
I
I
B
C

16
Assembly Instructions
18. Attach two Base Short Supports (N) between the Base Long Supports (M) with eight 12 mm Bolts (1)
and eight Washers (2 and 3).
19. Using the pilot holes as a guide, align and attach the assembled Base to the Bookcase Bottom Panel (E)
with ten 32 mm Screws (7).
M
32
1
N
M
N
N
N
E
7
M

17
Assembly Instructions

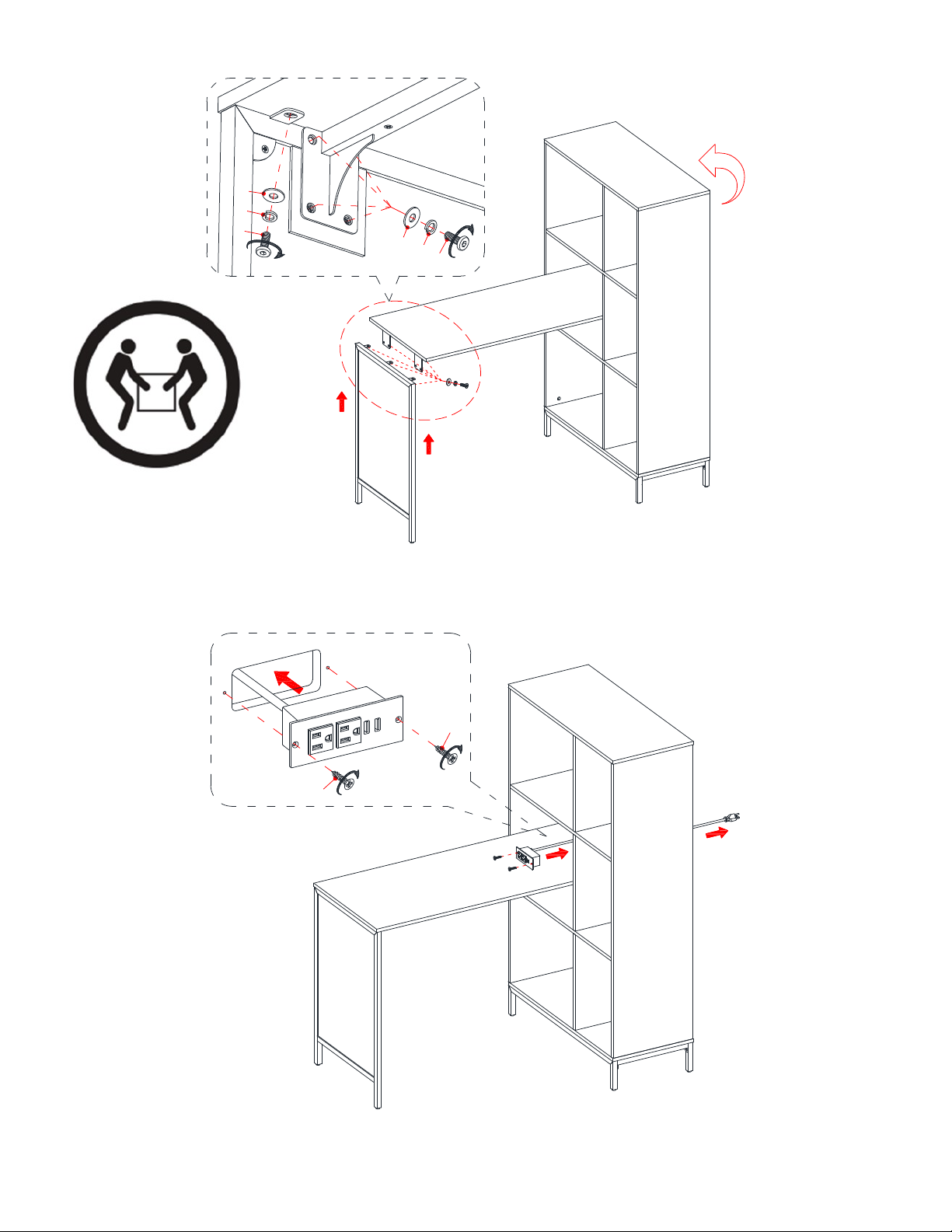

20. Ask for assistance to stand the assembled unit upright.
21. Attach the Desk Side Frame (K) to the Desk Top (A) with eleven 12 mm Bolts (1) and eleven Washers
(2 and 3).
22. Feed the wire of Power Center (O) through the cutout on the Back Panel (H) and push into the cutout.
Make sure the wire is not pinched. Secure it into place with two 12 mm Screws (8).
A
K
321
3
2
1
K
A
L
H
O
8
8

18
Assembly Instructions
23. Cover the visible cam locks with the PVC Covers (9) provided.
24. Position the unit at the desired location against a wall. If necessary, adjust the pre-attached floor levelers
at the bottom of the Desk Side Frame (K) and Base Supports (M) to level the unit.
25. The unit is now ready for use.
Floor leveler
K
9
K
A
9

19
Care and Maintenance
 Use a soft, clean cloth that will not scratch the surface when dusting.
 Use of furniture polish is not necessary. Should you choose to use polish, test first in an inconspicuous
area.
 Using solvents of any kind on your furniture may damage the finish.
 Never use water to clean your furniture as it may cause damage to the finish.
 Always use coasters under beverage glasses and flowerpots.
 Liquid spills should be removed immediately. Using a soft, clean cloth, blot the spill gently. Avoid
rubbing.
 Always use protective pads under hot dishes and plates. Heat can cause chemical changes that may create
spotting within the furniture finish.
 In the event that your furniture is stained or otherwise damaged during use, we recommend that you call a
professional to repair your furniture.
 Check bolts/screws periodically and tighten them if necessary.
Further advice about wood furniture care
It is best to keep your furniture in a climate-controlled environment. Extreme temperature and humidity
changes can cause fading, warping, shrinking and splitting of wood. It is advised to keep furniture away from
direct sunlight as sun may damage the finish.
Proper care and cleaning at home will extend the life of your purchase. Following these important and helpful
tips will enhance your furniture as it ages.
We hope you enjoy your purchase for many years.
Thank you for your purchase!
QUALITY GUARANTEE
We are confident that you will be delighted with your Whalen Furniture purchase.
Should this product be defective in workmanship or materials or fail under normal use, we will repair or
replace it for up to one (1) year from date of purchase. Every Whalen Furniture product is designed to meet
your highest expectations. We guarantee that you will immediately see the value of our fine furniture.
This warranty gives you specific legal rights and you may also have other rights which vary from state to state
or province to province.
Whalen Furniture Manufacturing
1578 Air Wing Road, San Diego CA, 92154, USA
Customer Service: 866-942-5362
8:30 a.m. - 4:30 p.m., PST, Monday to Friday
www.whalenfurniture.com
