Whalen WSF54BF23-3 User manual

THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION.
PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Date 2017-06-10 Rev. 0001-A Factory: SANPTY
Halsted 54" Fireplace Console
Model # WSF54BF23-3
ADULT ASSEMBLY REQUIRED
If you have any questions regarding assembly or if parts are missing, DO NOT return this item to the
store where it was purchased. Please call our toll-free customer service number and have your
instructions and parts list ready to provide the model name, part name or factory number:
1-866-942-5362
Pacific Standard Time: 8:30 a.m. - 4:30 p.m., Monday - Friday
Or visit our website www.whalenfurniture.com
Or e-mail your request to: [email protected]
LOT NUMBER:
DATE PURCHASE
D
:
/
/

2
MANUFACTURER: Whalen Furniture Manufacturing
CATALOGUE: Halsted 54" Fireplace Console (WSF54BF23-3)
MADE IN CHINA

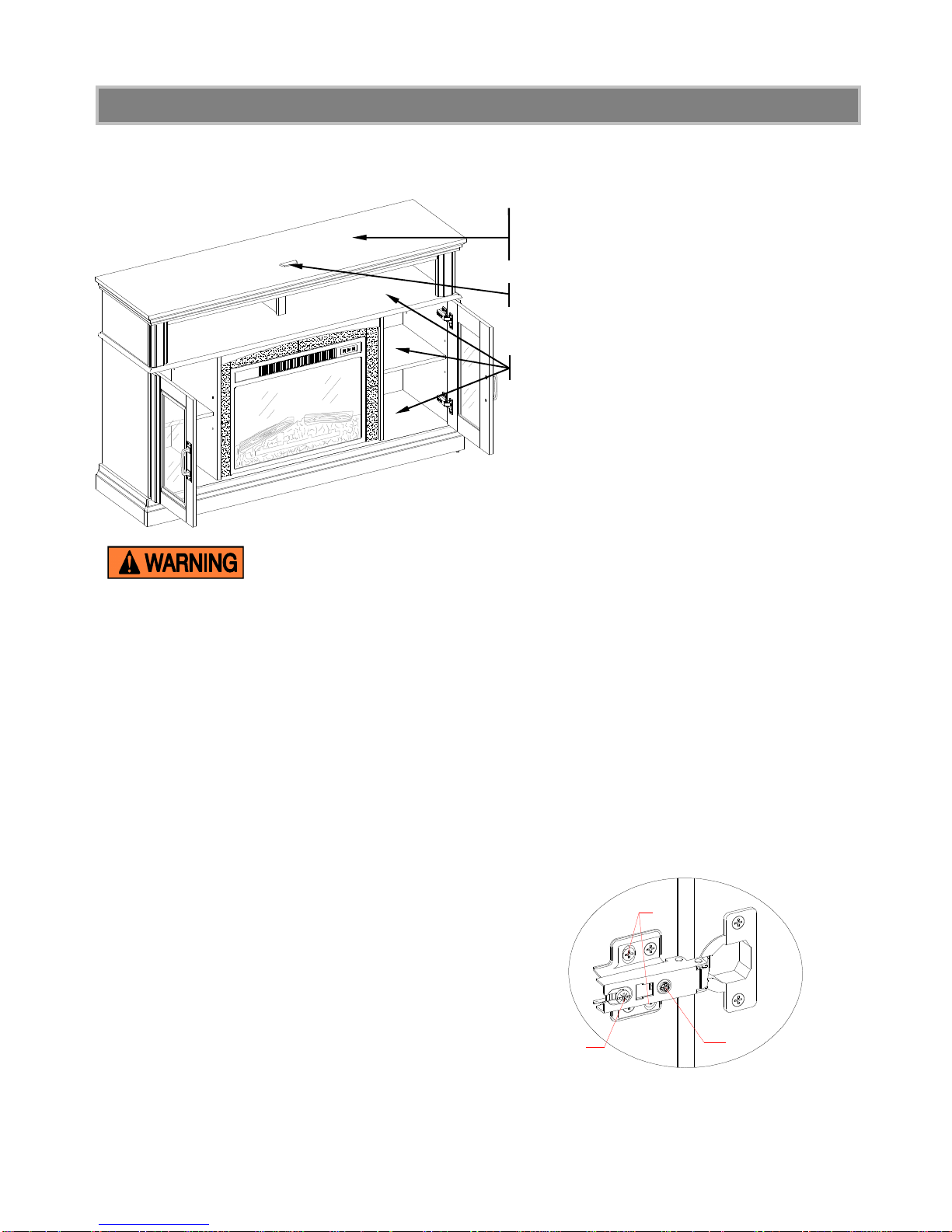

How to adjust the European adjustable hinges on doors
Shipping may cause doors to go out of alignment. If you find that the doors need to be adjusted
slightly, turn the appropriate screw as illustrated.
1. TO ADJUST DOOR FORWARD OR BACKWARD.
2. TO ADJUST DOOR TO RIGHT OR TO LEFT.
3. TO ADJUST DOOR UP OR DOWN.
MAXIMUM RECOMMENDED WEIGHT LOADS
PLACE TV BEHIND THE STOPPER
FITS UP TO MOST 165.1 cm / 65 in.
FLAT PANEL TELEVIONS
MAXIMUM LOAD 61.3 kg / 135 lb
MAXIMUM LOAD 22.7 kg / 50 lb
THIS UNIT IS NOT INTENDED FOR USE WITH CRT TVS. USE ONLY WITH FLAT
PANEL TVS AND AUDIO/VIDEO EQUIPMENT MEETING RECOMMENDED SIZE AND WEIGHT
LIMITS. NEVER USE WITH LARGER/HEAVIER THAN RECOMMENDED FLAT PANEL TVS OR
EQUIPMENT. TO AVOID INSTABILITY, PLACE FLAT PANEL TV IN THE CENTER OF THE UNIT; THE
BASE OF THE TELEVISION MUST BE ABLE TO REST ON THE SUPPORTING SURFACE OF THE
UNIT WITHOUT OVER-HANGING THE EDGES. IMPROPERLY POSITIONED FLAT PANEL TVS, OR
FLAT PANEL TVS INCLUDING OTHER EQUIPMENT THAT EXCEED RECOMMENDED SIZE AND
WEIGHT LIMITS COULD FALL OFF OR BREAK THE UNIT, CAUSING POSSIBLE SERIOUS INJURY.
3
12

3
IMPORTANT
Before you begin: Open, identify and count all parts prior to assembly. Lay out parts on a flat and non-
abrasive surface. You will need the parts identified on page 4 and 5 of this instruction manual.
NOTE: IT IS VERY IMPORTANT TO USE GLUE WITH THE DOWELS. EXCESS GLUE CAN BE
WIPED OFF WITH A DAMP CLOTH.
Insert Dowel at least half way by tapping lightly with a rubber mallet (not included), IF NECESSARY.
CAM LOCK SYSTEM OPERATION
HOW THE KNOCK DOWN (KD) ASSEMBLY SYSTEM WORKS
1. Screw the Cam Bolt into the pre-drilled small holes on the panel. Connect both panels together; making sure
the Cam Bolt goes into the pre-drilled hole at the end of the panel with the Cam Lock.
2. Insert the Cam Lock into the pre-drilled large hole in the panel. Make sure the arrow on the Cam Lock is
pointed towards the Cam Bolt.
3. Once the Cam Bolt is connected inside the Cam Lock, take a Phillips screwdriver (not included) and
tighten the Cam Lock clockwise.
4. Plug the Cam Lock Cover into the cross slot of the Cam Locks to conceal the cam.
You are now ready to assemble the KD unit.
XX
1 2 43

4
Parts and Hardware List
Please read completely through the instructions and verify that all listed parts and hardware are present
before beginning assembly.
A- Top Panel (Qty. 1) B- Center Shelf (Qty. 1) C-
Bottom Panel (Qty. 1)
D- Upper Side Panel Assembly E- Upper Partition Panel F- Left Lower Side Panel
(Qty. 2) (Qty. 1) (Qty. 1)
G- Right Lower Side Panel H- Left Lower Partition Panel I- Right Lower Partition Panel
(Qty. 1) (Qty. 1) (Qty. 1)
J- Middle Crossbar Assembly (Qty. 1) K- Left Middle Stile (Qty. 1) L- Right Middle Stile (Qty. 1)
M- Base Front Molding (Qty. 1) N- Base Front Stretcher (Qty. 1) O- Base Rear Stretcher (Qty. 1)
P- Upper Back Panel (Qty. 1) Q- Lower Back Panel (Qty. 2) R- Door (Qty. 2)

5
Parts and Hardware List
Please read completely through the instructions and verify that all listed parts and hardware are present
before beginning assembly.
S- Adjustable Shelf T- Top Stretcher Fireplace Insert Remote Control with Battery
(Qty. 2) (Qty. 1) (Qty. 1) (Qty. 1)
(1) Cam Lock (2) Cam Bolt (3) M8 x 30 mm Wood Dowel
(Qty. 41+2 extra) (Qty. 41+2 extra) (Qty. 43
+2 extra)
(4) M8 x 20 mm Wood Dowel (5) M3.5 x 15 mm Flat Head Screw (6) M4 x 25 mm Screw
(Qty. 4+1 extra) (Qty. 4+1 extra) (Qty. 10
+1 extra)
(7) M4 x 50 mm Wood Screw (8) M3.5 x 15 mm Washer Head Screw (9) Straight Metal Bracket
(Qty. 8+1 extra) (Qty. 38+1 extra) (Qty. 2)
(10) Cam Lock Cover (11) Shelf Support (12) Handle and Back Plate
(Qty. 26+1 extra) (Qty. 8+1 extra) (Qty. 2)
(13) Handle Bolt (Qty. 4) (14) M4 x 32 mm Screw (Qty. 4+1 extra
) (15) Floor Leveler (Qty. 2)
(16) Rubber Bumper (Qty. 4+1 extra) (17) Acrylic Stopper (Qty. 1) Glue (Qty. 1)
Touch-up Pen (Qty. 1) Tipping Restraint Hardware Kit (Qty. 2)
(Included in plastic bag)
Tools required: Phillips screwdriver and rubber mallet (not provided).

6
Assembly Instructions
1. Unpack the unit and confirm that you have all the hardware and required parts. Assemble the unit on a
carpeted floor or the empty carton to avoid any scratch.

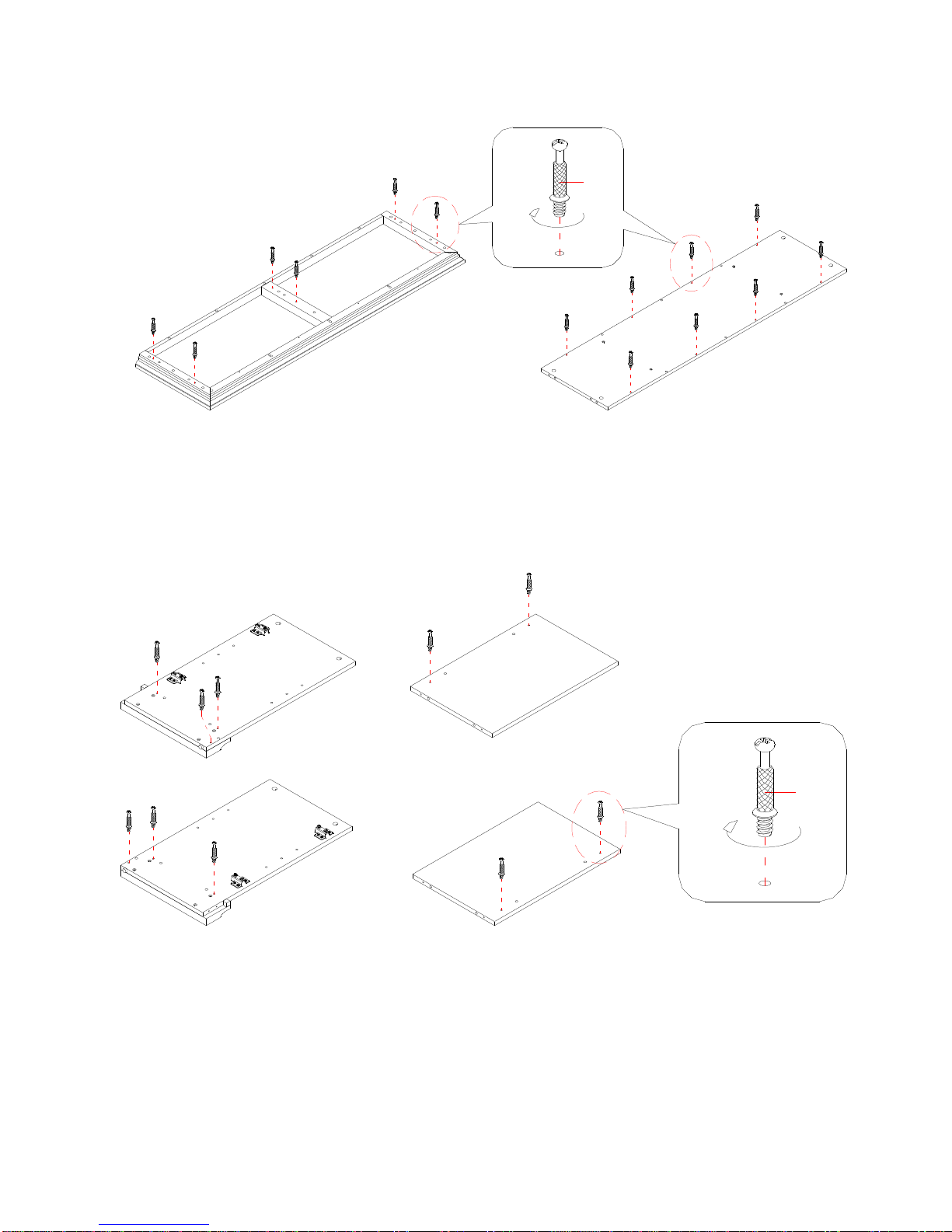

2. Securely screw the Cam Bolts (2) into the designated small holes on the Top Panel (A) and the Bottom
Panel (C) using a Phillips screwdriver.
3. Securely screw the Cam Bolts (2) into the designated small holes on the Lower Side Panels (F and G)
and the Lower Partition Panels (H and I).
2
A
C
H
F
G
I
2

7
Assembly Instructions
4. Securely screw seventeen Cam Bolts (2) into the designated small holes on the Center Shelf (B) on both
sides.
5. Insert two 30 mm Wood Dowels (3) into the inner holes of the Middle Crossbar Assembly (J). Tap in
with a rubber mallet, if necessary. Make sure that you use a small amount of glue with both ends of all
dowels.
6. Align the drilled holes on the Center Shelf (B) with the inserted Wood Dowel (3) on the Middle
Crossbar Assembly (J), and then press them together. Attach the Middle Crossbar Assembly (J) in place
by engaging three Cam Locks (1) (Refer to page 3 on Cam Lock system operation supplement).
B
J
1
3
B
B
2

8
Assembly Instructions

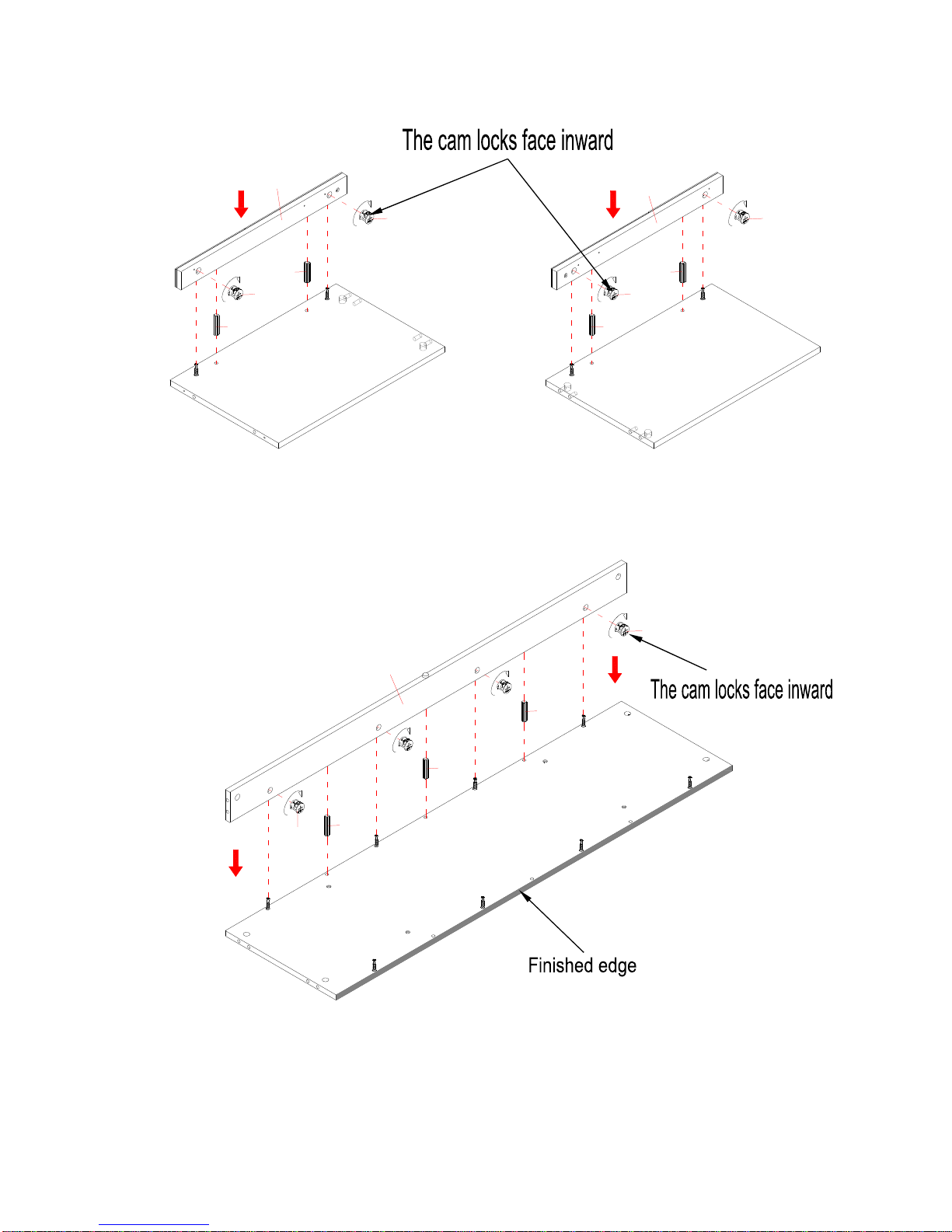

7. Align and attach the Left Middle Stile (K) to the Left Lower Partition Panel (H) with two 30 mm Wood
Dowels (3) and two Cam Locks (1).
8. Repeat the same procedure to combine the Right Middle Stile (L) with the Right Lower Partition Panel (I).
9. Attach the Base Rear Stretcher (O) to the Bottom Panel (C) with three 30 mm Wood Dowels (3) and
four Cam Locks (1).
3
1
3
3
C
O
1
3
1
H
K
3
1
I
L
1313

9
Assembly Instructions

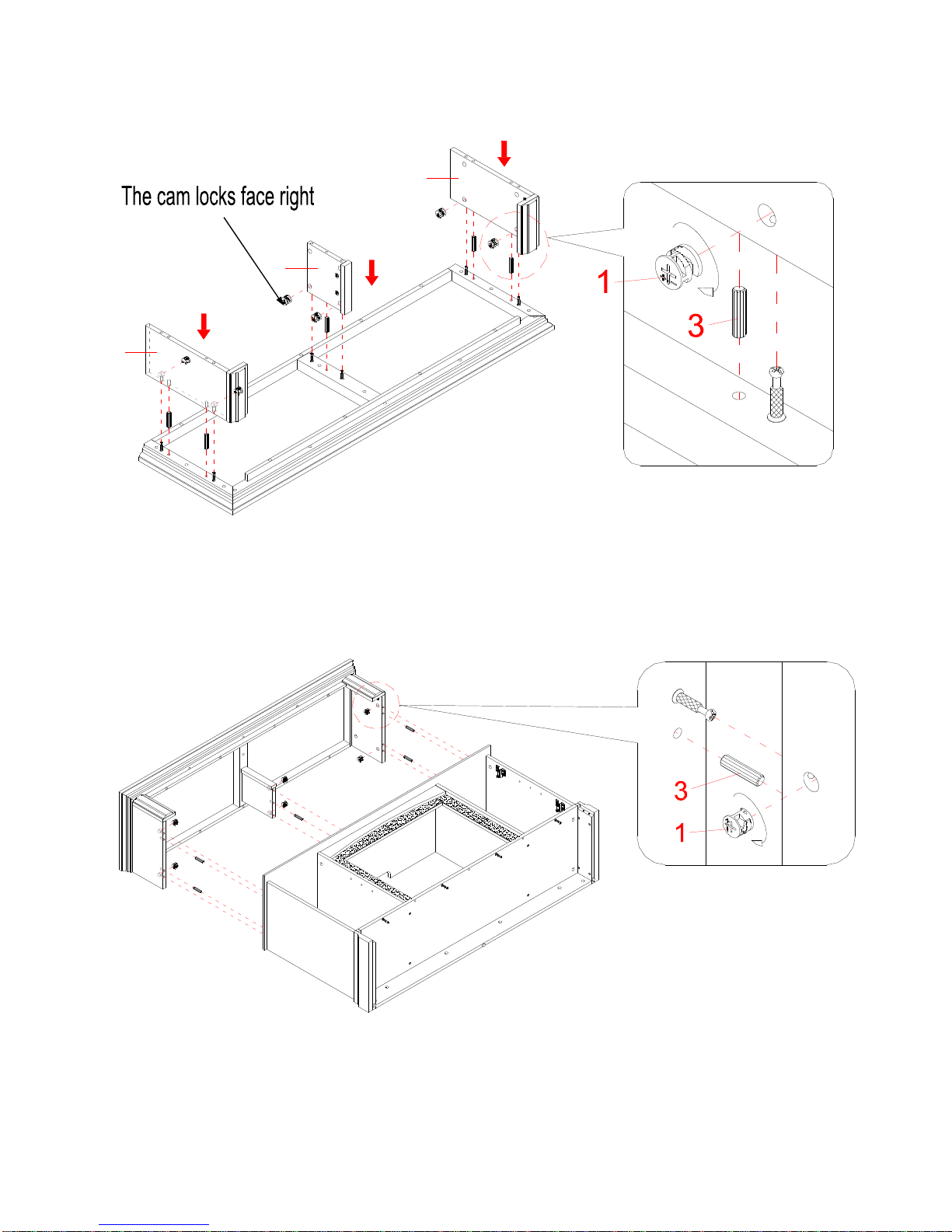

10. Attach the assembled Lower Partition Panels (H and I) to the Bottom Panel (C) with the Middle Stiles
(K and L) facing forward, using four 30 mm Wood Dowels (3) and four 50 mm Screws (7) as shown.
11. Glue six 30 mm Wood Dowels (3) into the large holes of the Bottom Panel (C) and Base Rear Stretcher
(O) at both ends.
12. Align the large holes on the Lower Side Panels (F and G) with the inserted Wood Dowels (3) on the
Bottom Panel (C) and Base Rear Stretcher (O). Firmly press them together and fasten in place by
engaging six Cam Locks (1).
3
7
C
I
7
3
7
7
H
O
G
F
C
O
1

10
Assembly Instructions
13. Glue eight 30 mm Wood Dowels (3) into the inner holes on the vertical panels (F, G, H, and I). Position
the Center Shelf (B) onto the inserted Wood Dowels (3) and fasten it in place with eight Cam Locks (1).
14. Attach the Top Stretcher (T) to the Top Panel (A) with three 30 mm Wood Dowels (3) and four 32 mm
Screws (14).
A
T
14
14
14
14
3
3
3
F
G
H
I
B
3

11
Assembly Instructions
15. Attach two Upper Side Panel Assemblies (D) to the Top Panel (A) with four 30 mm Wood Dowels (3)
and four Cam Locks (1) as shown.
16. Fasten the Upper Partition Panel (E) to the Top Panel (A) with one 30 mm Wood Dowel (3) and two
Cam Locks (1) as shown.
17. Glue five 30 mm Wood Dowels (3) into the drilled holes on the Center Shelf (B). Position the Upper
Side Panel Assemblies (D) and Upper Partition Panel (E) onto the inserted Wood Dowels (3) and Cam
Bolts (2) and secure them to the Center Shelf (B) by engaging six Cam Locks (1).
D
D
A
E
D/E
A
D
E
D
A
B
BD/E

12
Assembly Instructions

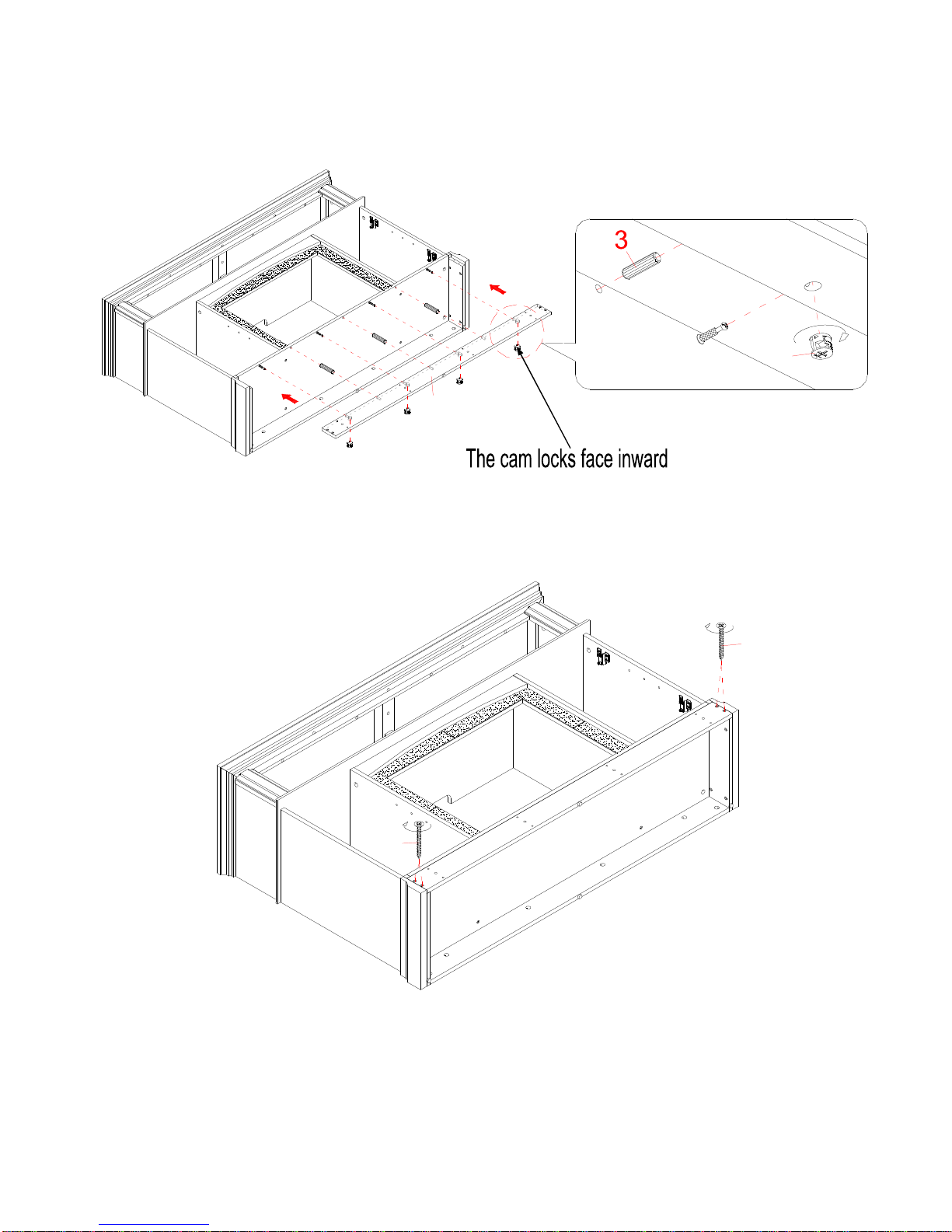

18. Attach the Base Front Stretcher (N) to the Bottom Panel (C) with three 30 mm Wood Dowel (3) and
four Cam Locks (1) as shown.
19. Fasten the Base Front Stretcher (N) to the Lower Side Panels (F and G) with four 50 mm Screws (7).
C
N
1
7
7C
N
F
G

13
Assembly Instructions

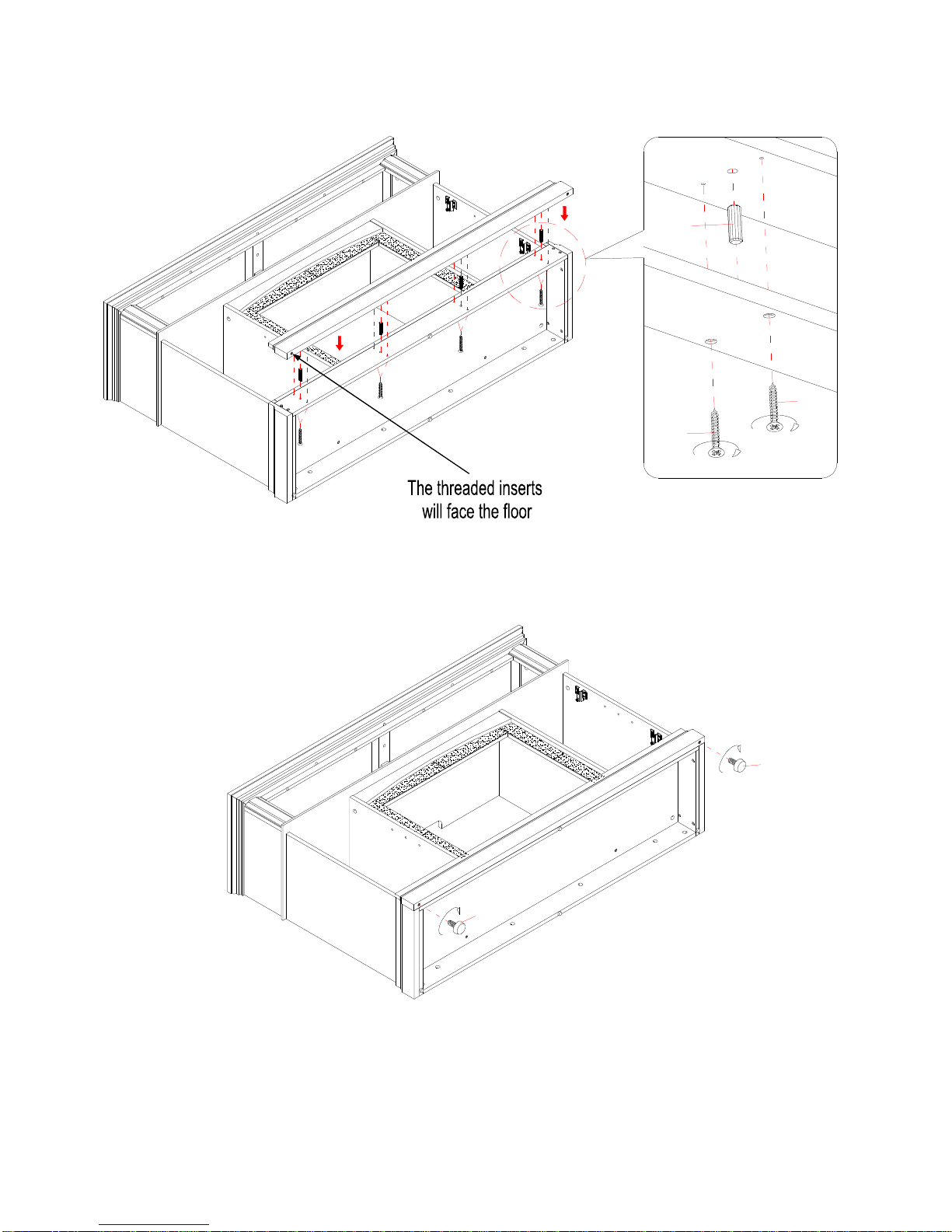

20. Glue four 20 mm Wood Dowels (4) into the inner holes on the Base Front Molding (M) and attach it to
the Base Front Stretcher (N) with eight 25 mm Screws (6).
21. Screw two Floor Levelers (15) into the threaded inserts on the Base Front Molding (M) and set to the
correct height.
N
M
6
4
6
M
N
15
15

14
Assembly Instructions
22. Flip the assembly around at its front edges.
23. With the pilot holes as a guide, fasten two Straight Metal Brackets (9) at the joints between the Middle
Crossbar (J) and Middle Stiles (K and L), using two 15 mm Flat Head Screws (5) per bracket.
24. Insert two 25 mm Screws (6) through the countersunk holes on the Middle Stiles (K and L) and securely
screw into the Middle Crossbar Assembly (J) as shown.
25. Now, go back and securely tighten all the Cam Locks and the Screws. Make sure that all the parts are
tight and there are no gaps between the parts. This will help keep the unit square.
26. Pick up the Upper Back Panel (P) and align the pre-drilled holes against the upper long edge with the
pilot holes on the back stretcher of the Top Panel (A). Attach the Back Panel (P) in place using the
provided Washer Head Screws (8).
27. Attach two Lower Back Panels (Q) to the mantel frame with the provided Washer Head Screws (8).
JK
L
9
56
UP
UP
Q
Q
P
8
8
P/Q

15
Assembly Instructions
28. Stand the unit upright.
29. Attach one Handle with Back Plate (12) to the front side of each Door (R) with two Handle Bolts (13).
30. Pick up one Door (R) and attach the extended Hinge Arms to the Hinge Bases installed on the Left
Lower Side Panel (F). Loosen the bolt on the back of Hinge Base for an easy fit. Align and insert the
“U” slot on Hinge Arm under the bolt head on the back of Hinge Base. Make sure that both door hinges
engage and function properly. Tighten the bolt on the Hinge Base to lock the hinges in place.
31. Repeat the same procedure to attach the other Door (R) to the Right Lower Side Panel (G).
32. Open and close the doors to make sure they are aligned and shut correctly. If necessary, adjust the
screws for a good fit. Refer to the hinge sticker on door for adjustment.
33. Insert the Shelf Supports (11) into the desired holes in the sides of the compartments. Make sure you
place the four Shelf Supports in the same level so the shelf is not tilted. Tilt and rest the Adjustable
Shelves (S) onto the Shelf Supports (11).
x 2
R
13
12
S
S
11 S
11
1
F
G
R
R

16
Assembly Instructions
34. Stick the Rubber Bumpers (16) at the outer corners of the two Doors (R) where they meet the Lower
Partition Panels (H and I).
35. Plug the Cam Lock Covers (10) onto the visible Cams Locks to conceal the cams.
36. Unpack the fireplace insert from the inner box and follow the instructions to install the Top Trim and
Side Trims to the fireplace insert.
37. Lift the fireplace insert carefully into the back of the assembled mantel and center it in the opening.
DO NOT drag the insert across the Bottom Panel (C) as it may scratch the unit.
38. Fasten the fireplace insert to the mantel with four insert screws as shown.
C
R
R
16
16
10

17
Assembly Instructions
NOTE: You must install the Acrylic TV Stopper to prevent the TV from tipping when placing your flat
panel television directly on the console.
39. Remove the paper backing from the acrylic stopper (17), then properly align the acrylic stopper into the cut-out
on the acrylic stopper template on the Top Panel (A). Press down on the acrylic stopper to help adhesion.
40. At the back of Top Panel (A), carefully unscrew two thumb tacks to remove the acrylic stopper template.
Tools required: Phillips screwdriver, Power Drill, 3/8” Drill Bit and Rubber Mallet.
41. Ask for assistance to position the assemble fireplace at the desired location against a wall. If necessary,
adjust the installed Floor Levelers (15) at the front bottom corners to level the unit. Now, follow the
instructions printed on the plastic bag containing the Tipping Restraint Hardware to attach the tip-over
restraints to the unit and the wall.
NOTE: Young children can be seriously injured by tipping furniture. You must install the Tipping
Restraint Hardware with the unit to prevent the unit from tipping, causing any accidents or damage. The
tipping restraint is intended only as a deterrent, they are not a substitute for proper adult supervision.
The tipping restraint is not an earthquake restraint. If you wish to add the extra security of earthquake
restraints, they must be purchased and installed separately.
42. Connect the fireplace to the power transformer. Follow the operating manual for the electric fireplace
insert to control your fireplace.
AA
17
17

18
Care and Maintenance
Use a soft, clean cloth that will not scratch the surface when dusting.
Use of furniture polishes is not necessary. Should you choose to use polishes, test first in an inconspicuous
area.
Using solvents of any kind on your furniture may damage the finish.
Never use water to clean your furniture as it may cause damage to the finish.
Always use coasters under beverage glasses and flowerpots.
Liquid spills should be removed immediately. Using a soft, clean cloth, blot the spill gently. Avoid rubbing.
Always use protective pads under hot dishes and plates. Heat can cause chemical changes that may create
spotting within the furniture finish.
In the event that your furniture is stained or otherwise damaged during use, we recommend that you call a
professional to repair your furniture.
Check bolts/screws periodically and tighten them if necessary.
Further Advice about Wood Furniture Care
It is best to keep your furniture in a climate-controlled environment. Extreme temperature and humidity
changes can cause fading, warping, shrinking and splitting of wood. It is advised to keep furniture away from
direct sunlight as sun may damage the finish.
Proper care and cleaning at home will extend the life of your purchase. Following these important and helpful
tips will enhance your furniture as it ages.
Cleaning Trim for Fireplace
Clean the metal trim using a soft cloth, slightly dampened with citrus oil based product and buff with a clean
soft cloth. DO NOT use brass polish or household cleaners as these products will damage the metal trim. Citrus
oil based products can be obtained at supermarkets or hardware stores.
A touch-up pen has been provided to repair any small nicks or scratches that may occur during
assembly or shipping.
We hope you enjoy your purchase for many years.
Thank you for your purchase!
QUALITY GUARANTEE
We are confident that you will be delighted with your Whalen Furniture purchase.
Should this product be defective in workmanship or materials or fail under normal use, we will repair or
replace it for up to one (1) year from date of purchase. Every Whalen Furniture product is designed to meet
your highest expectations. We guarantee that you will immediately see the value of our fine furniture.
This warranty gives you specific legal rights and you may also have other rights which vary from state to state
or province to province.
Customer Service: 1-866-942-5362
8:30 a.m. - 4:30 p.m ., PST, Monday to Friday
www.whalenfurniture.com
